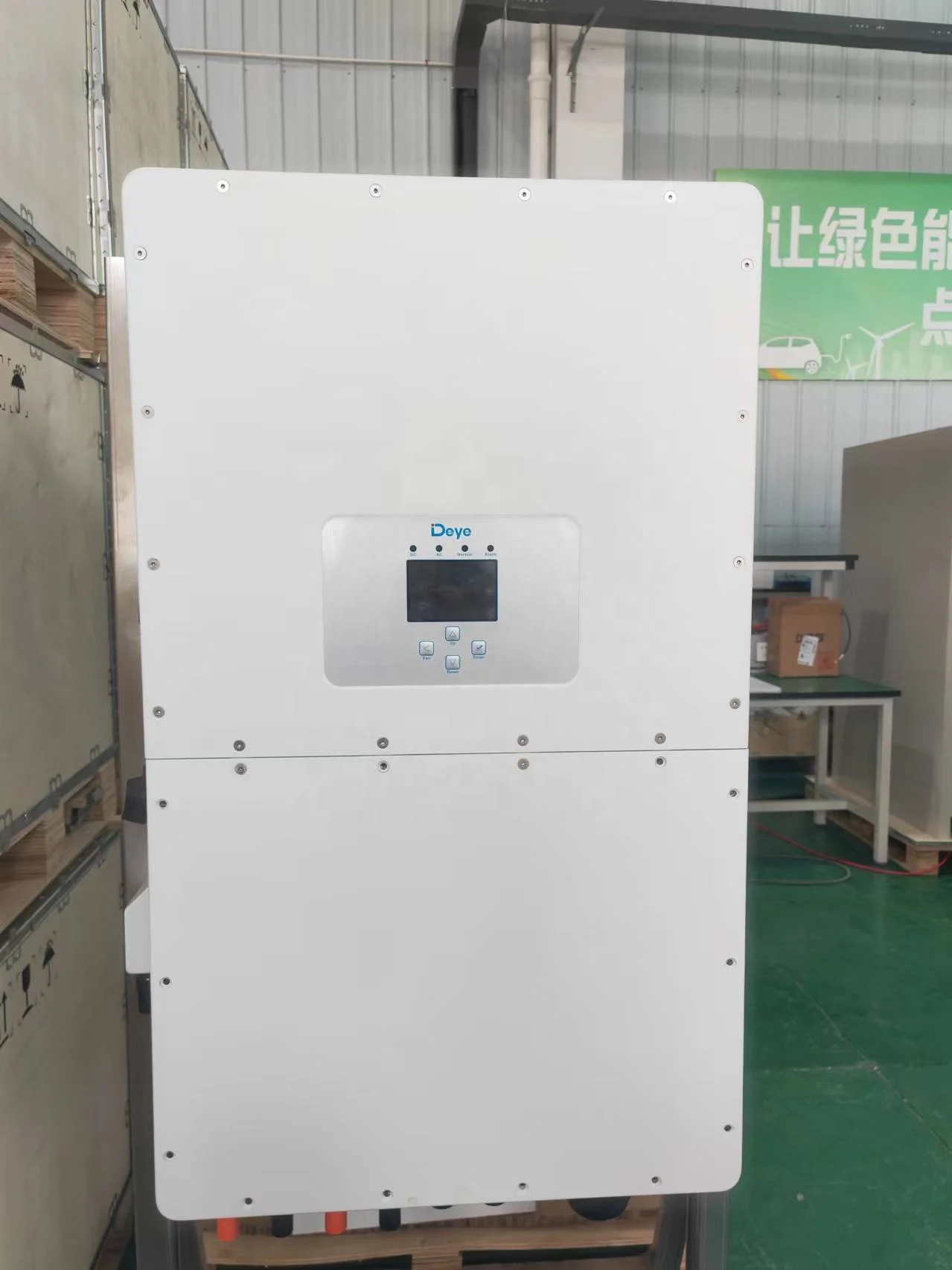

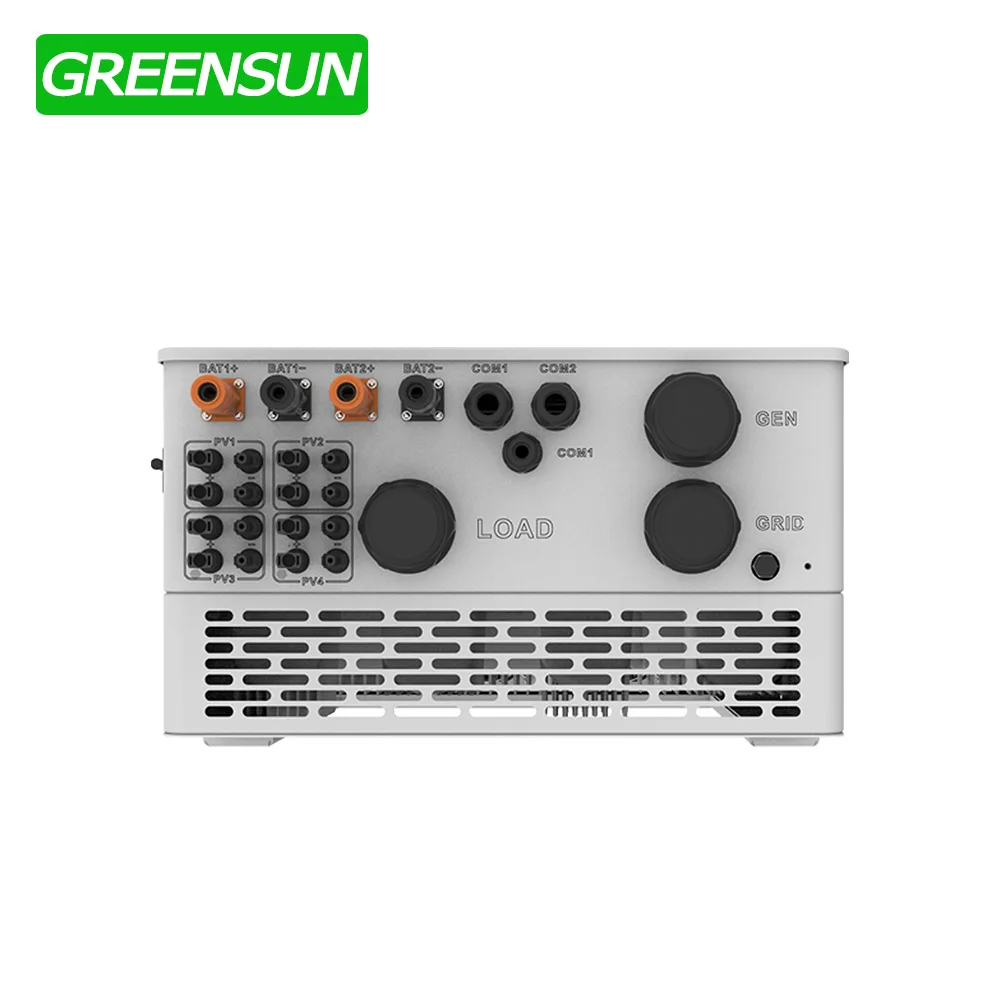

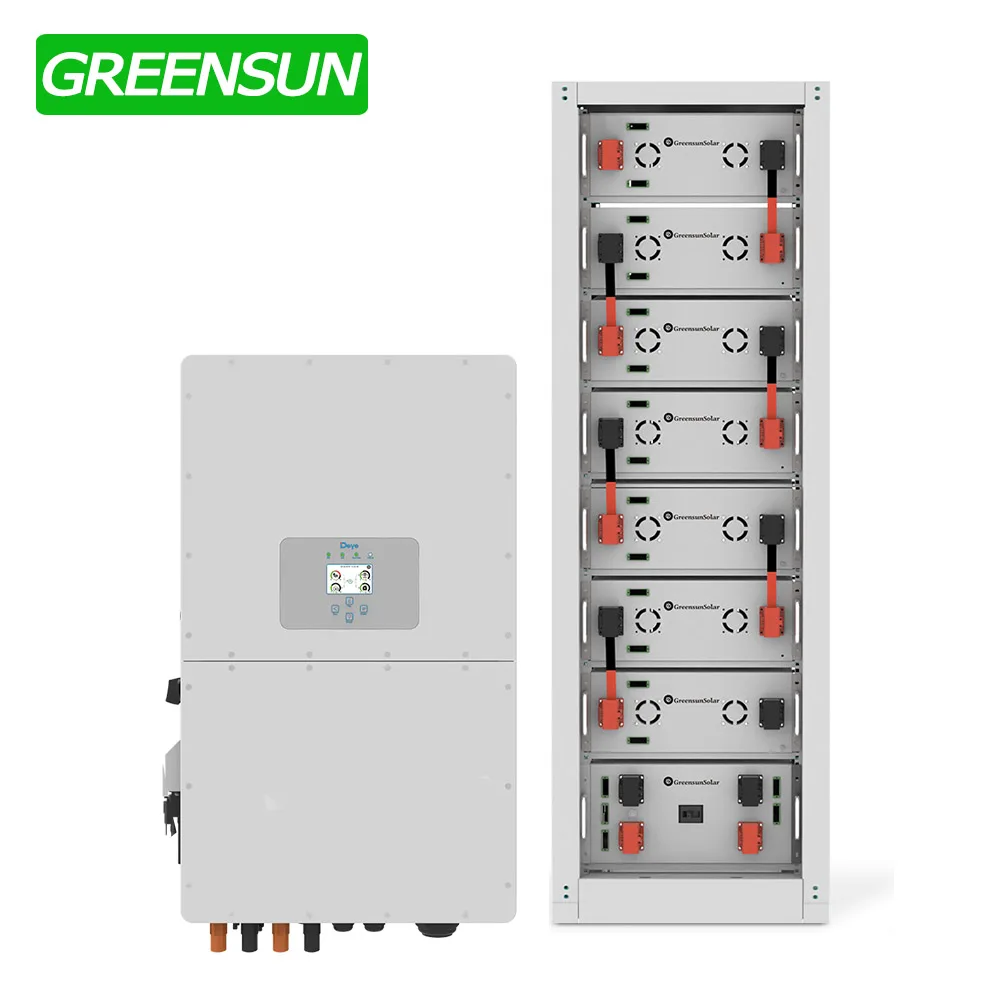

Deye 50kw 40kw 30kw 25kw 20kw 3 Phase Hybrid Inverter High Voltage Inverter EU AM2 BM4
- Category: >>>
- Supplier: Hefei Greensun Solar Energy Tech Co. LimitedHefei Limited
Share on (1601168460085):
Product Overview
Description
Product Description
Specification
EU Version Three Phase Hybrid Inverter 10-50KW | ||||||||||||
Model | SUN-10K SG01HP3 EU-AM2 | SUN-15K SG01HP3 EU-AM2 | SUN-20K SG01HP3 EU-AM2 | SUN-30K SG01HP3 EU-BM3 | SUN-40K SG01HP3 EU-BM3 | SUN-50K SG01HP3 EU-BM4 | ||||||
DC Input(PV Side) | ||||||||||||
Max DC input Power | 15600w | 19500w | 26000w | 39000W | 52000W | 65000W | ||||||
Max DC input Voltage | 1000V | 1000V | 600V | |||||||||
MPPT Voltage Range | 150-850V | 150-850 | 150V-850V | |||||||||
No. of MPPT Trackers | 2 | 2 | 2 | 3 | 4 | 4 | ||||||
Max Input Current | 39+39A | 39+39A | 55+55A | 55+55+55A | 55+55+55+55A | |||||||
Battery Parameters | ||||||||||||
Battery Type | Lead-acid or Li-lon | Lead-acid or Li-lon | ||||||||||
Battery voltage range | 160~700 | 160~700 | 160~700V | 160-800 | 160-800 | 160-800 | ||||||
Communication interface | RS485/CAN | CAN/RS485 | ||||||||||
Charge/discharge current | 37A | 37A | 37A | 50A+50A | 50A+50A | 50A+50A | ||||||
AC Output | ||||||||||||
Rated Power | 10000W | 15000W | 20000W | 30000W | 40000W | 50000w | ||||||
Nominal voltage/rang | 3L/N/PE 220/380, 230/400Vac | |||||||||||
Norminal Frequency | 50/60Hz（45 to 54.9Hz / 55 to 65Hz） | |||||||||||
Grid Frequency Range | 50/60Hz（45 to 54.9Hz / 55 to 65Hz） | 50/60Hz（45 to 54.9Hz / 55 to 65Hz） | ||||||||||
Max. AC Output Rated Current (A) | 16.7/16A | 25/24A | 33.4/31.9A | 50/47.8A | 66.7/63.8A | 83.4/79.7A | ||||||
Peak Power (offff grid | 1.5 time of rated power, 10 S | 1.5 time of rated power, 10 S | ||||||||||
Total Harmonic Distortion (THD) | <3% (of nominal power) | <0.5% | ||||||||||
Power Factor | 0.8leading…0.8lagging | 0.8leading…0.8lagging | ||||||||||
Others | ||||||||||||
MPPT Efficiency | 99.9% | |||||||||||
Protection Degree | IP65 | IP65 | ||||||||||
Noise emission (typical) | ≤55 dB | ≤55 dB | ≤55 dB | ≤65 dB | ≤65 dB | ≤65 dB | ||||||
Operatation Temperature | -40-60℃, >45℃ derating | -40~60℃, >45℃ derating | -40-60℃, >45℃ derating | -40-60℃, >45℃ derating | -40-60℃, >45℃ derating | |||||||
Protection | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection | <3W | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection | |||||||||
Weight | 30.5kg | 30.5kg | 30.5kg | 75kg | 75kg | 75kg | ||||||
Cooling | Smart cooling | |||||||||||

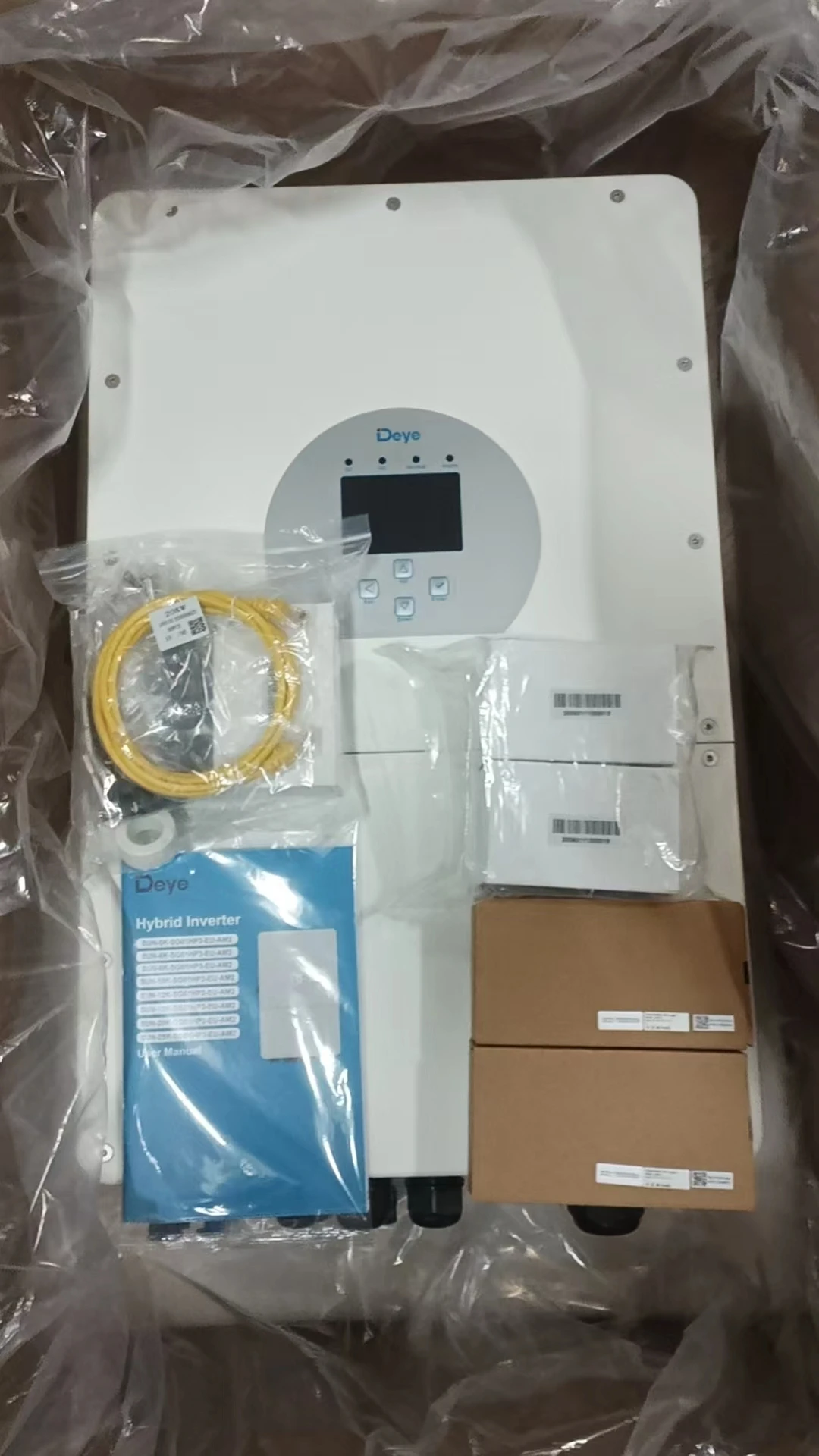

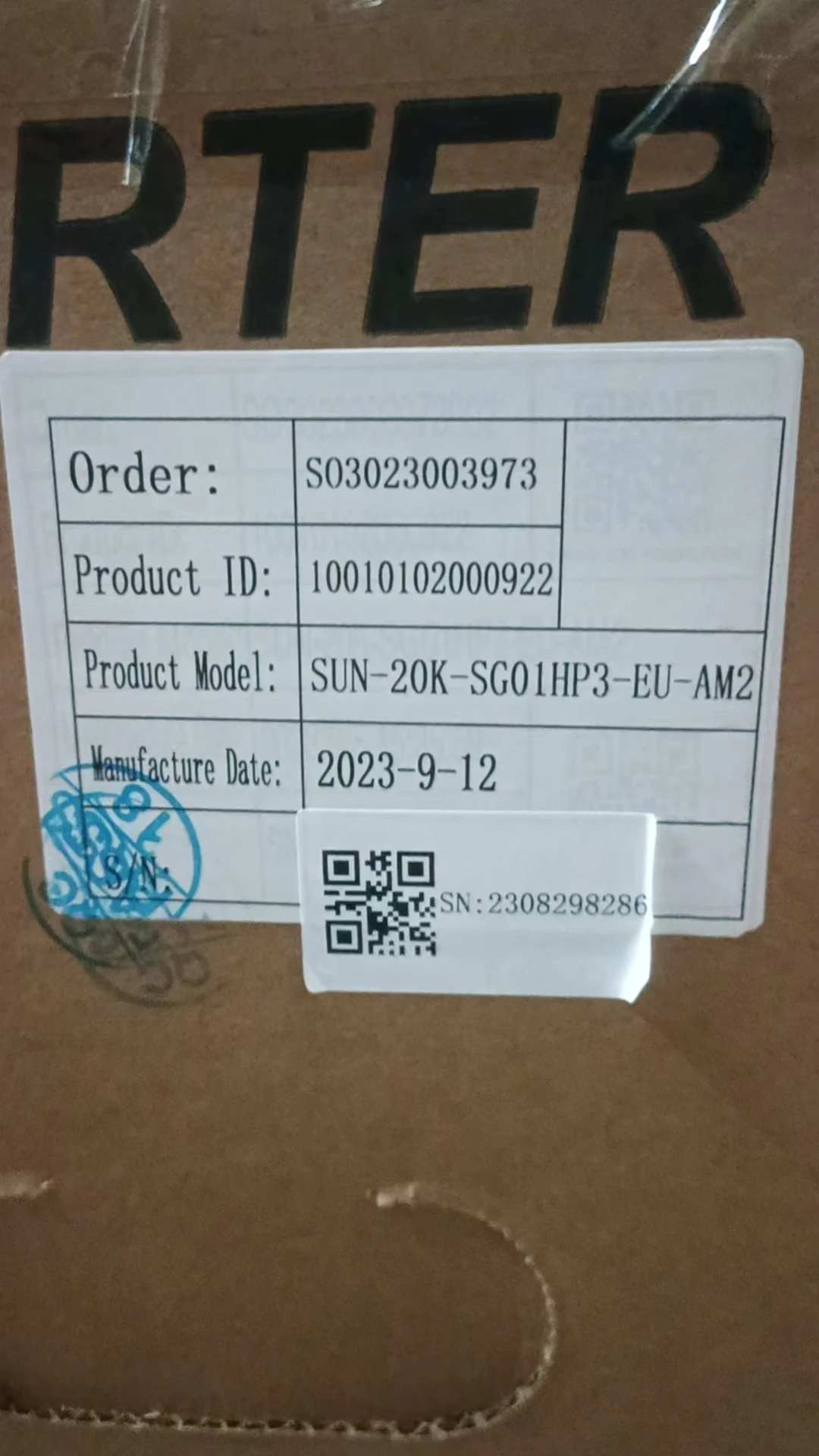

Packing & Delivery
Professional Packing: Carton, Wooden Pallet and Wooden Box. | ||||||
By Express | TNT, DHL, FedDex, UPS available | |||||
By Air | Shenzhen/Shanghai or other Designated Airport | |||||
By Sea | Shenzhen, Shanghai, Ningbo or other Designated Port in China | |||||

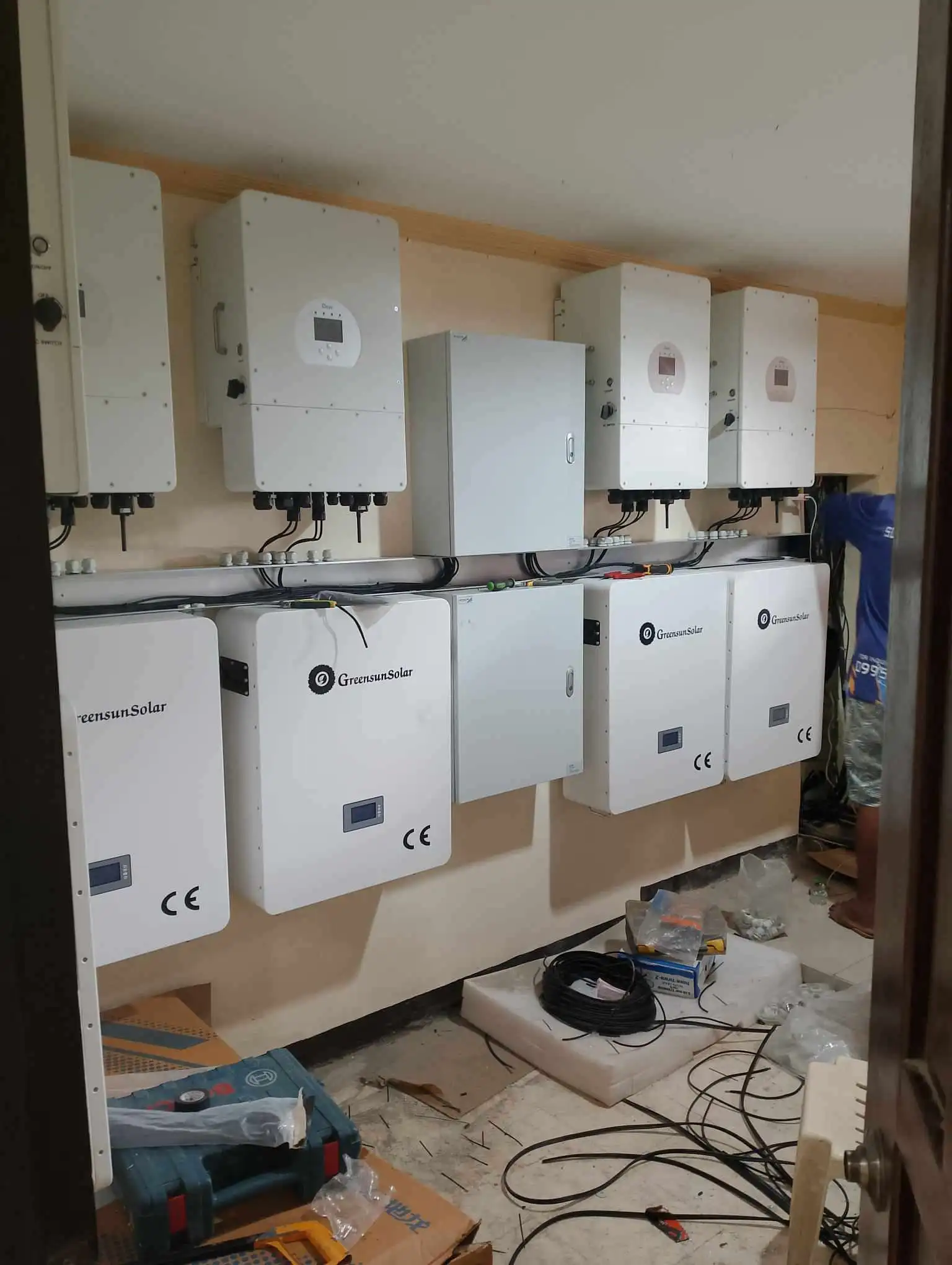

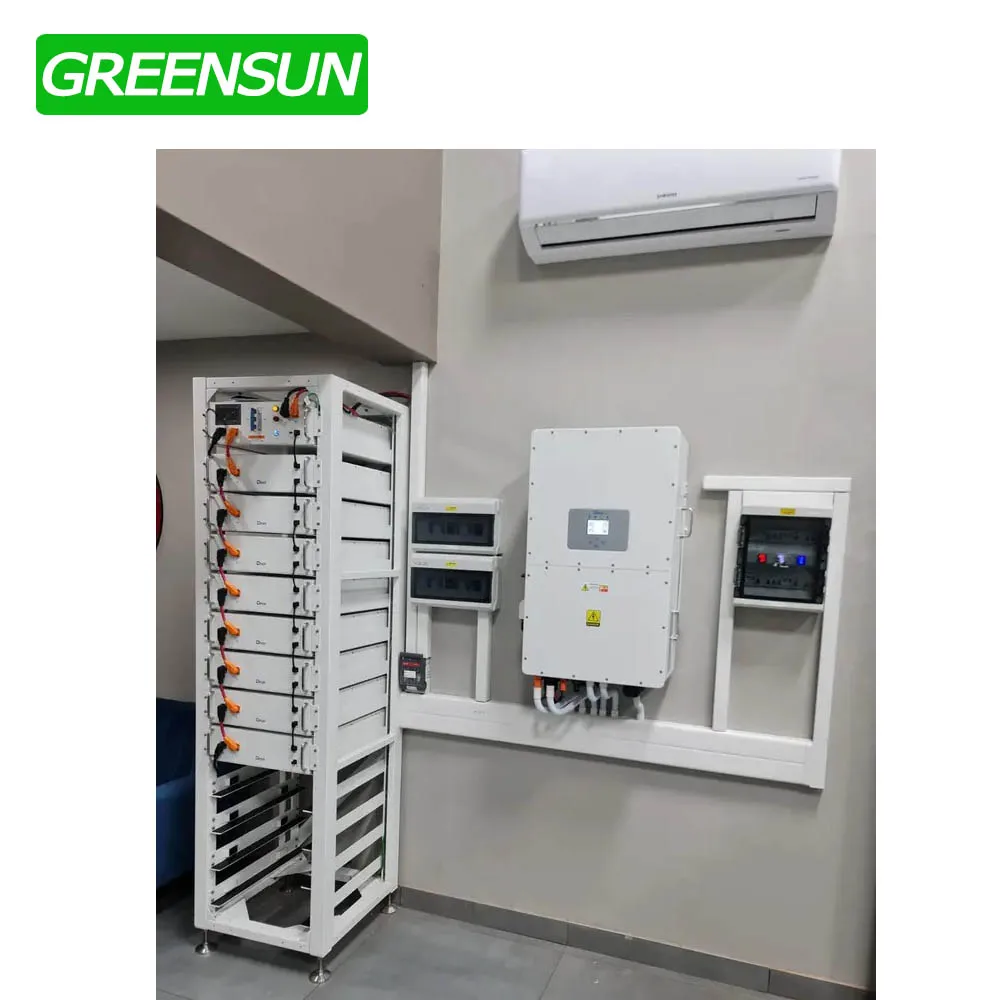

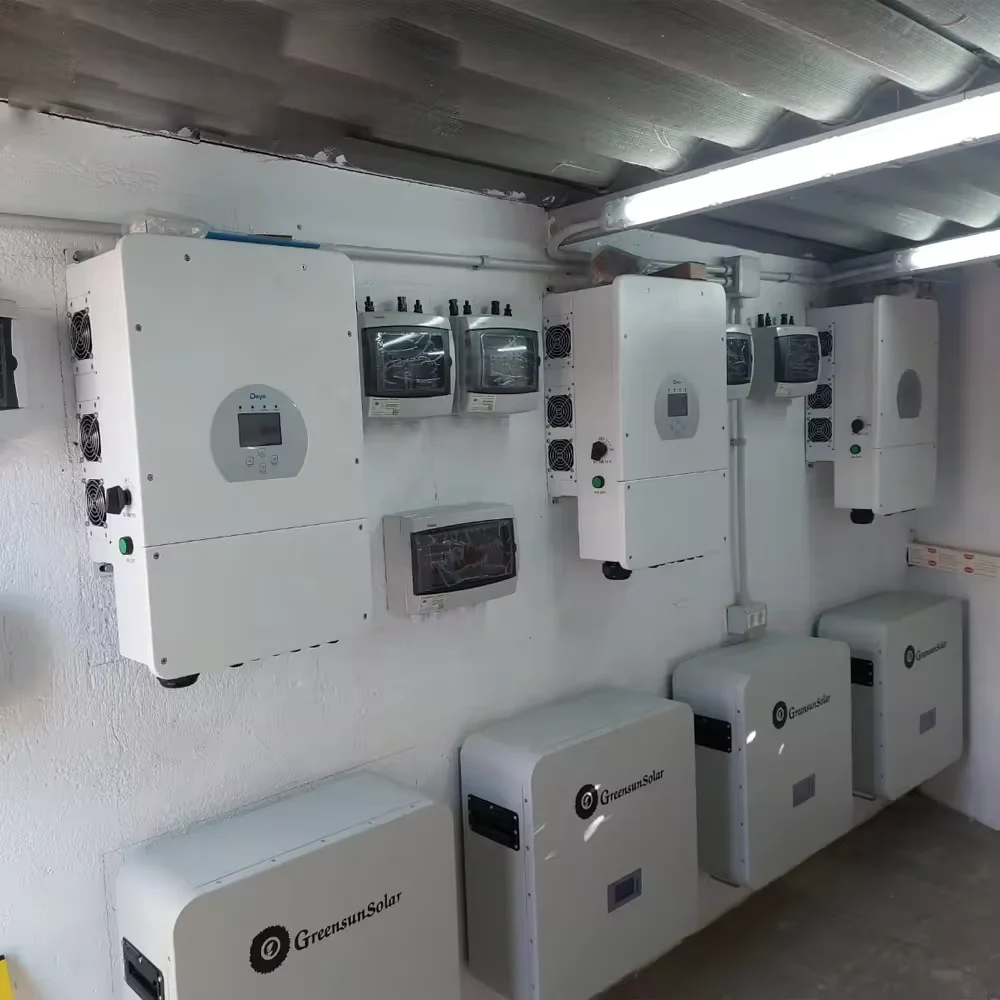

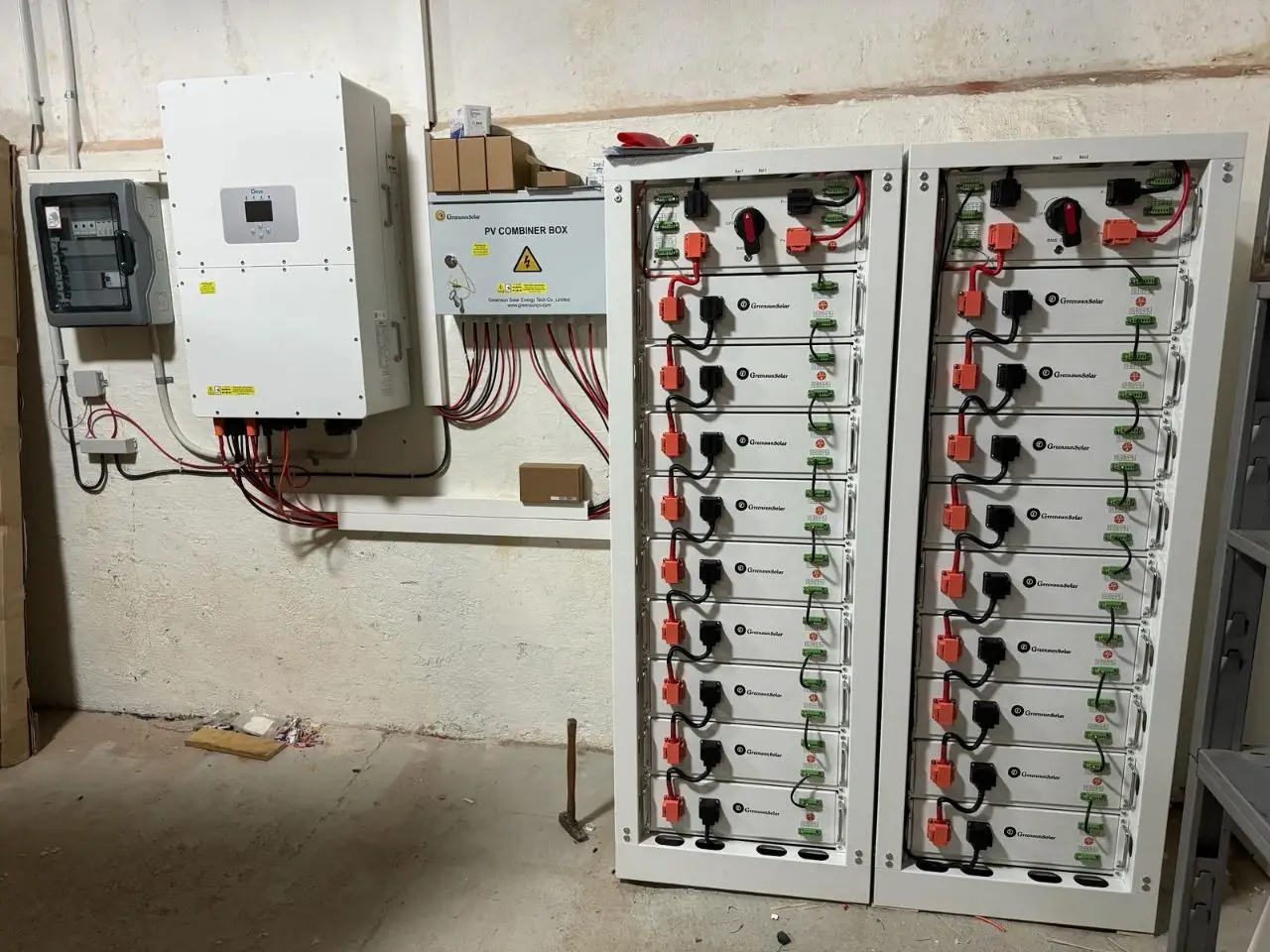

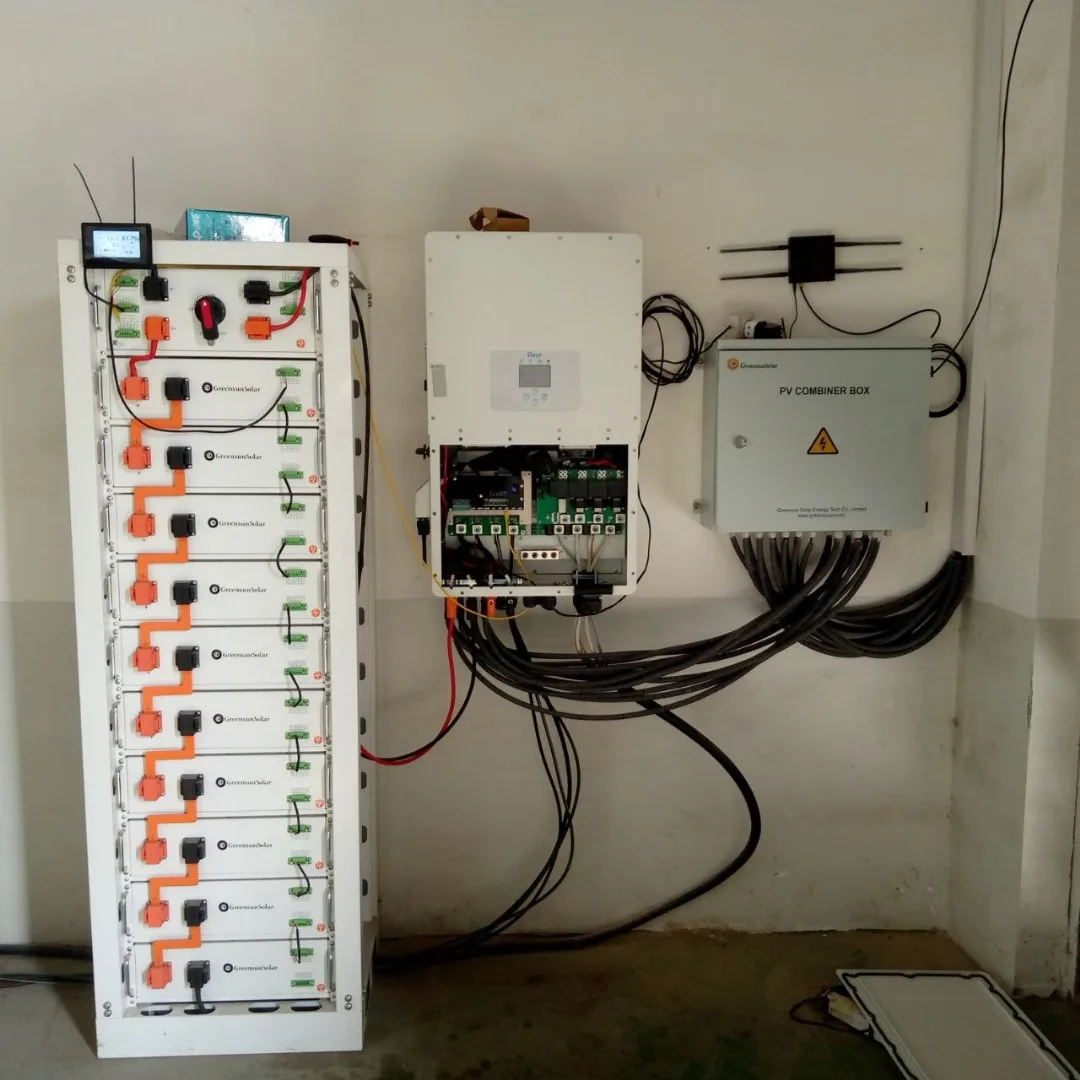

Project
