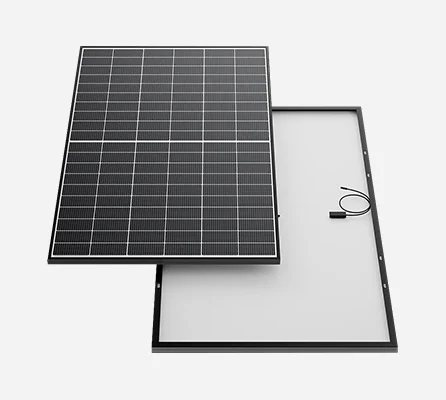

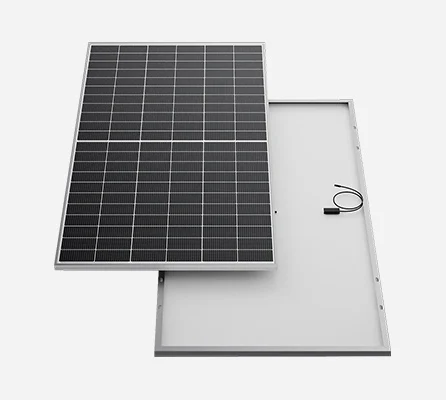

High Voltage Solar Panels Single Glass 590W 580W 575W Solar Panel For Sale
- Category: >>>
- Supplier: Mate Solar Co. Ltd.
Share on (1601168482080):
Product Overview
Description
Product Description
Maximum power (Pmax/W) | 570 | 575 | 580 | 585 | 590 | ||||
Open Circuit Voltage (Voc/V) | 51.98 | 52.15 | 52.31 | 52.47 | 52.63 | ||||
Short Circuit Current (Isc/A) | 13.88 | 13.95 | 14.01 | 14.07 | 14.13 | ||||
Voltage at Maximum power (Vmpp/V) | 42.93 | 43.17 | 43.35 | 43.53 | 43.71 | ||||
Current Maximum Power (Impp/A) | 13.28 | 13.32 | 13.38 | 13.44 | 13.50 | ||||
MODULE EFFICIENCY (%) | 22.06 | 22.25 | 22.44 | 22.64 | 22.83 | ||||
Nominal Operating Temperature (NMOT) | 45±2°C | ||||||||
Temperature Coecient of Pmax | -0.30%°C | ||||||||
Temperature Coecient of Voc | -0.25%°C | ||||||||
Temperature Coecient of Isc | +0.046%°C | ||||||||
Cells Layout: 108 Half Cells (6×18)
Dimensions: 1722 x 1134 x 30/35mm
Weight: 21.0kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Weight: 21.0kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
470 - 490 Watt
Cells Layout: 120 Half Cells (6×20)
Dimensions: 1910 x 1134 x 30/35mm
Weight: 23.0kg
Modules per box: 36pcs
Modules per 40' container: 864pcs
Weight: 23.0kg
Modules per box: 36pcs
Modules per 40' container: 864pcs
Cells Layout: 132 Half Cells (6×22)
Dimensions: 2094 x 1134 x 30/35mm
Weight: 25.5kg
Modules per box: 36pcs
Modules per 40' container: 792pcs
Weight: 25.5kg
Modules per box: 36pcs
Modules per 40' container: 792pcs
Cells Layout: 144 Half Cells (6×24)
Dimensions: 2279 x 1134 x 30/35mm
Weight: 27.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Weight: 27.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Cells Layout: 156 Half Cells (6×24)
Dimensions: 2465 x 1134 x 30/35mm
Weight: 30.0kg
Modules per box: 36pcs
Modules per 40' container:576pcs
Weight: 30.0kg
Modules per box: 36pcs
Modules per 40' container:576pcs

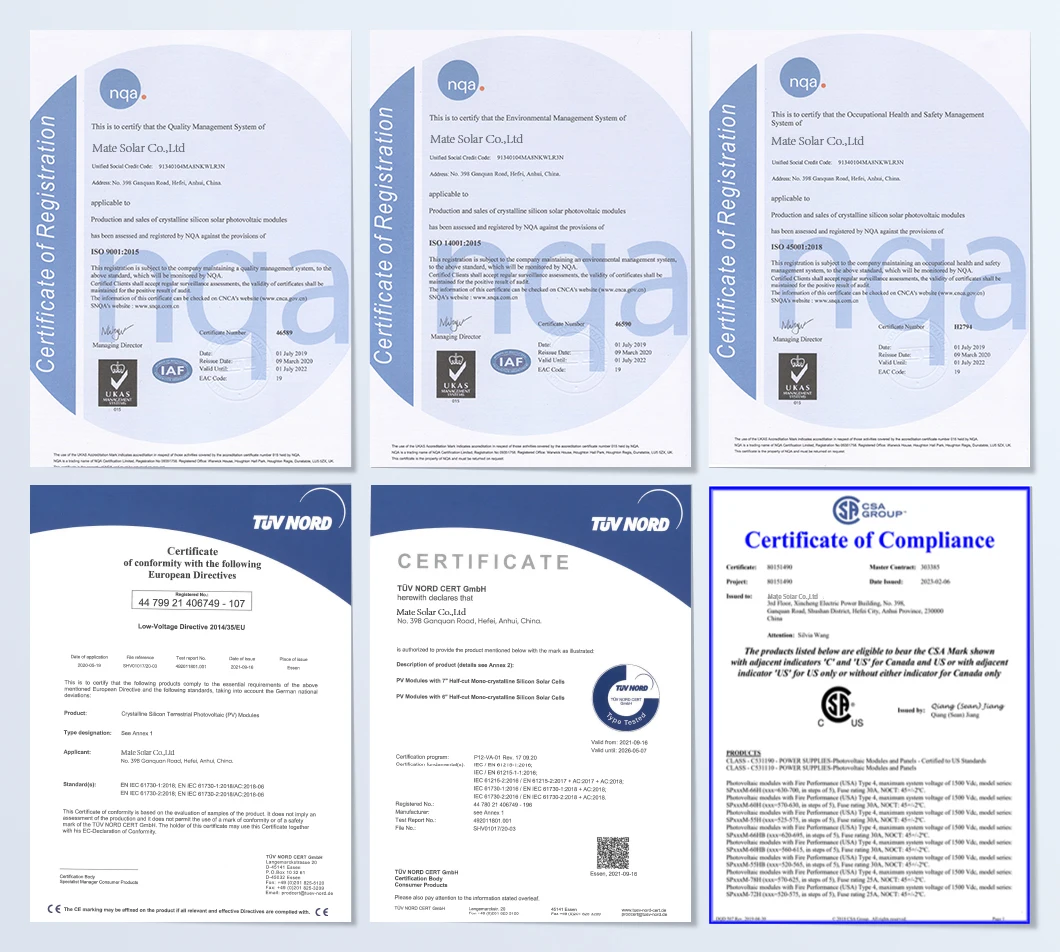

Certifications

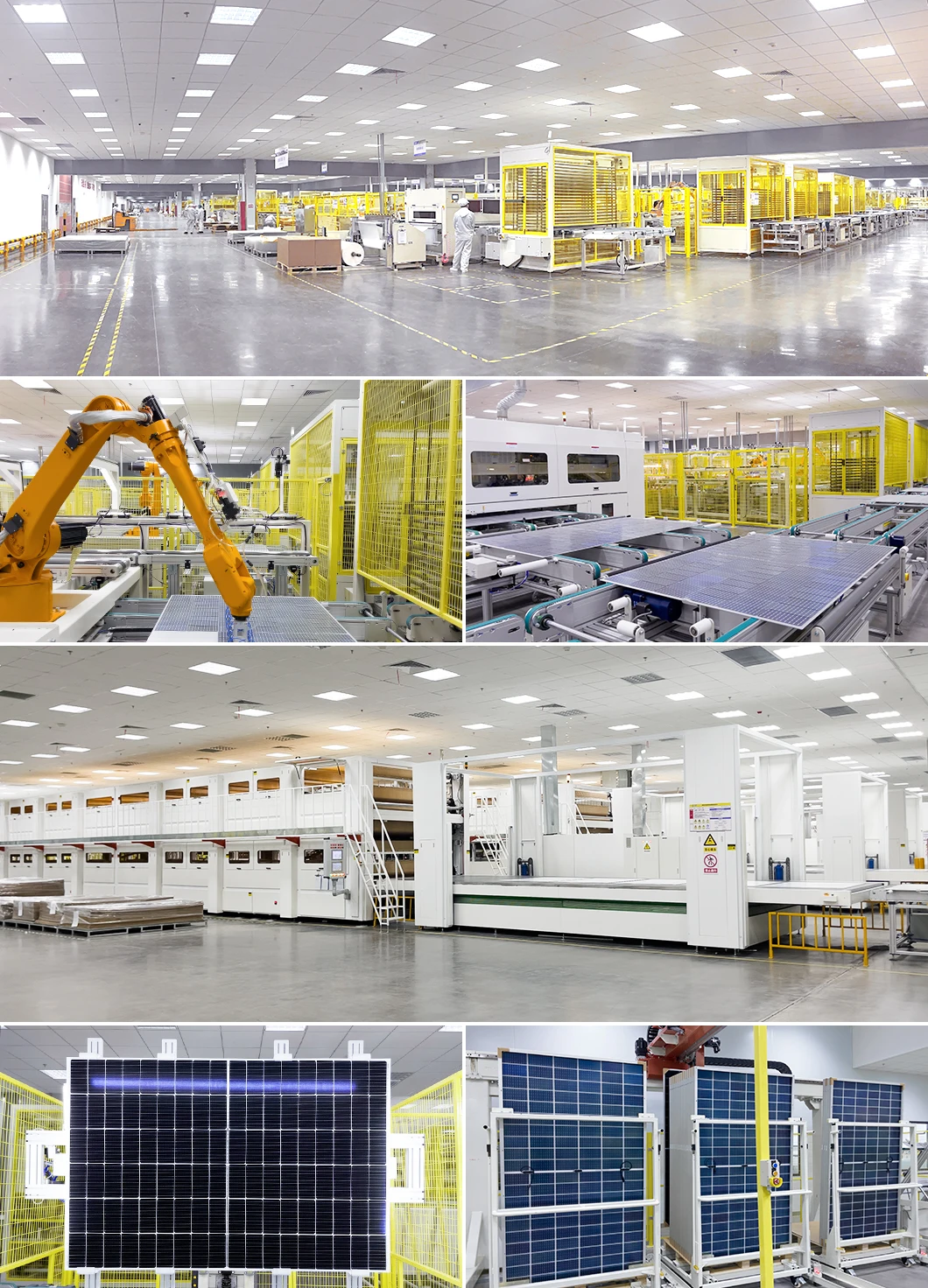

Company Profile
Stringent quality control is the cornerstone of Mate solar's manufacturing. Our customers have come to expect uncompromising quality standards in our products. To meet this expectation of high quality, we continue to invest in state-of-the art equipment and professional training of our employees . We are proud of our product quality and their reliable performance even in the most extreme conditions.

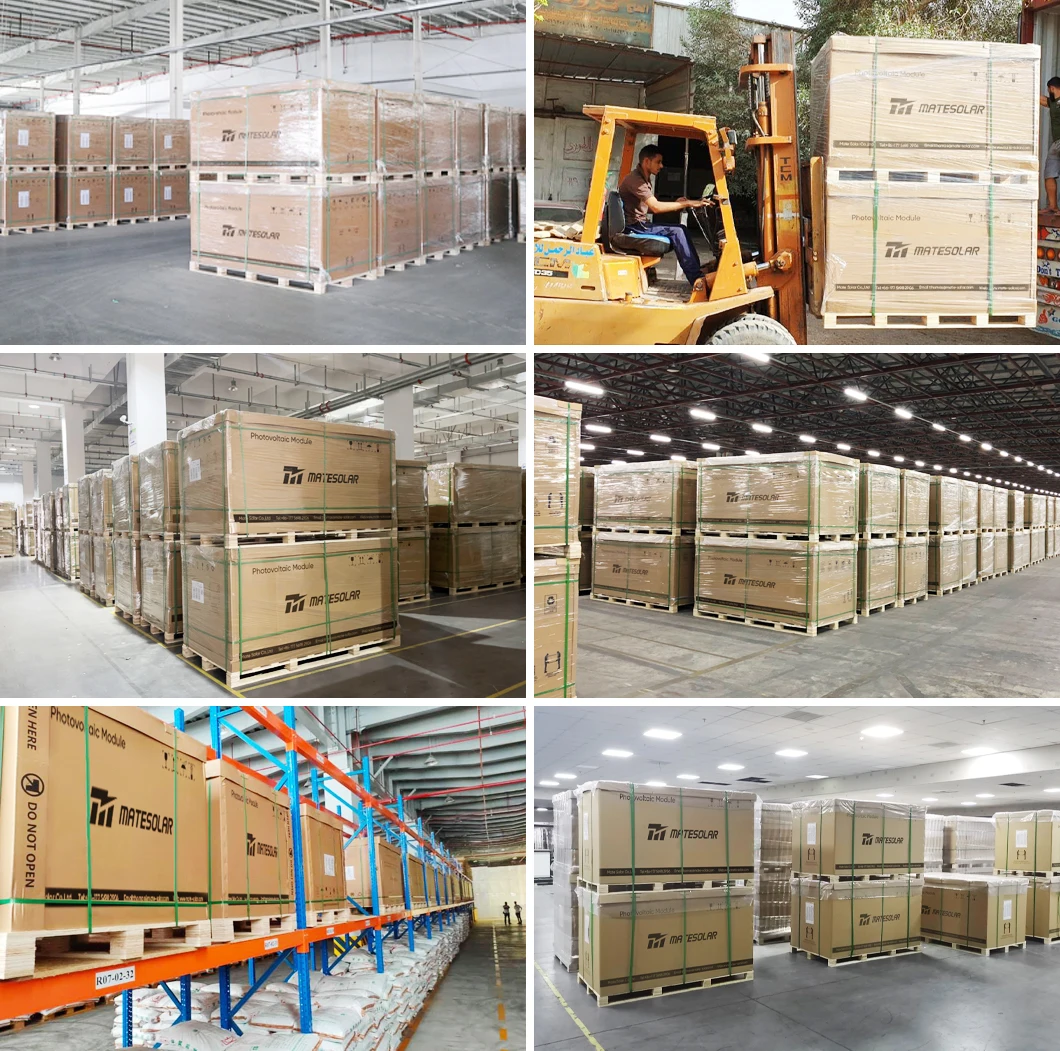

Product packaging

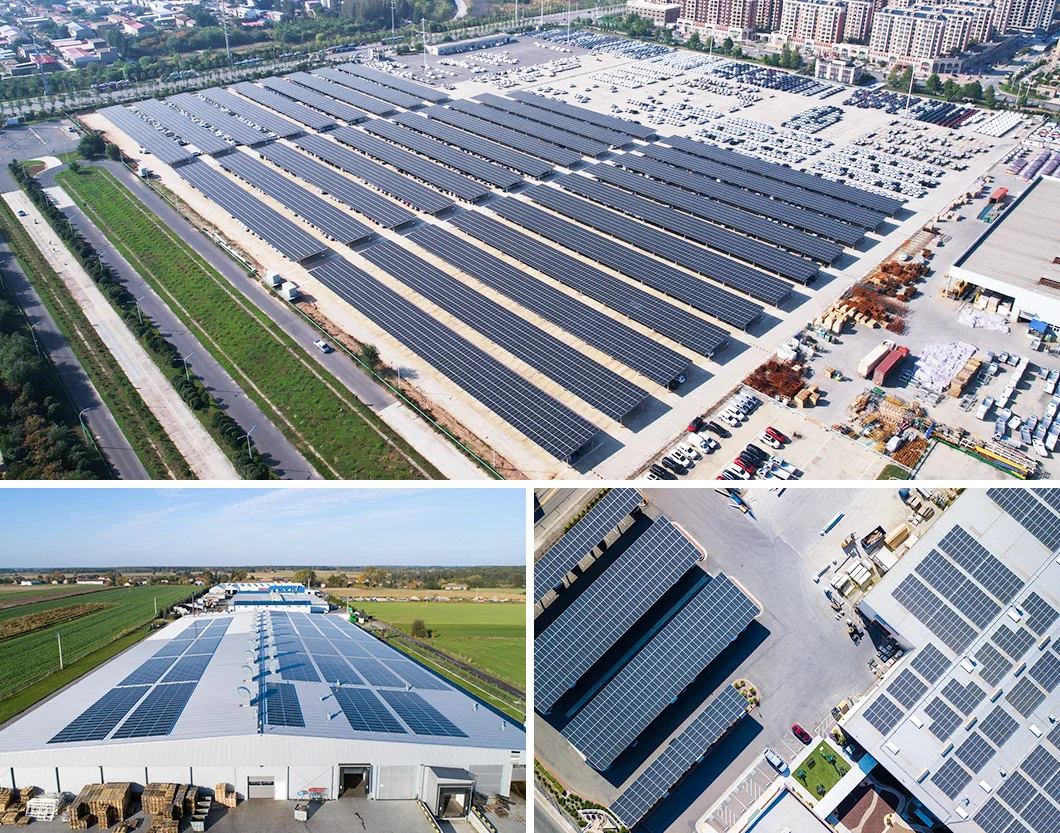

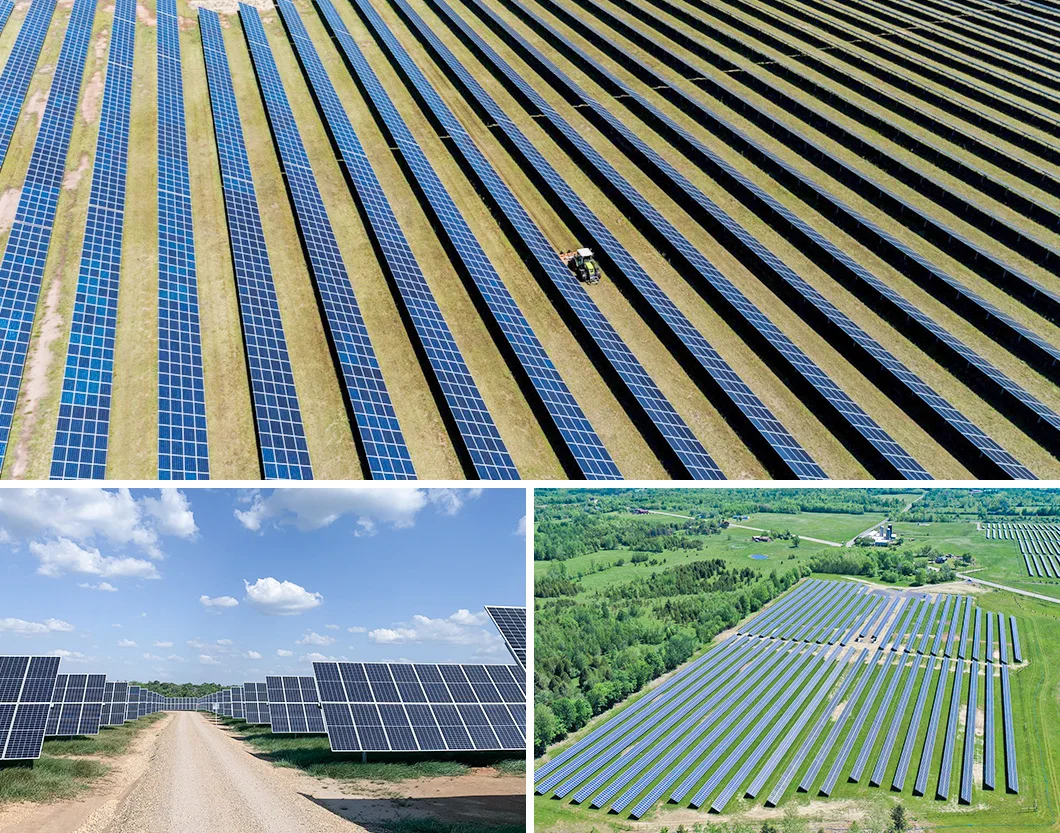

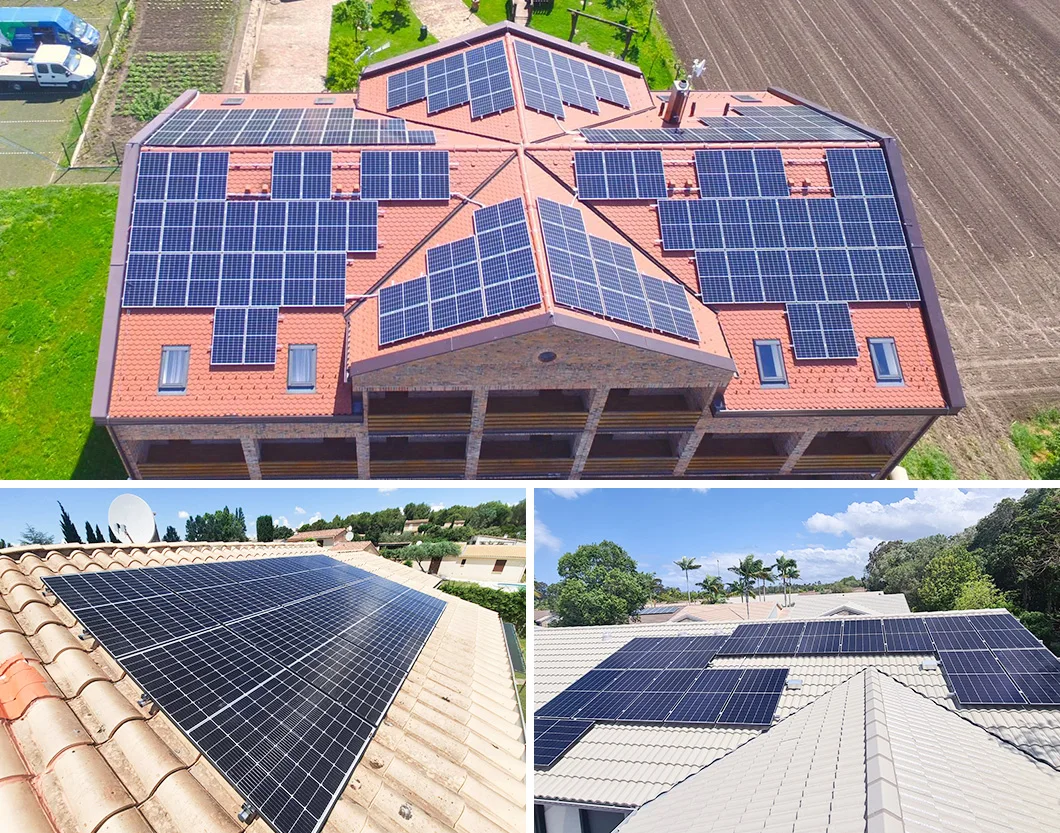

Project Cases
Either self-consumption or selling to the grid, commercial projects provide system owners with a new way of investment, in which module plays a key role. And Matesolar was, is, and will always be a reliable partner which you won`t regret to choose.
OEM & ODM
With a full array of exciting renewable energy technologies, Matesolar's strong innovation continues to help customers to meet their goals. From utilities to commercial and industrial customers, we work with the unique needs of each customer, site, and application to deliver the right products and OEM/ODM services.
