Product Overview
Description
Low price stone powder grinder raymond type roller grinding mill 5tph calcium carbonate mill
Product Description

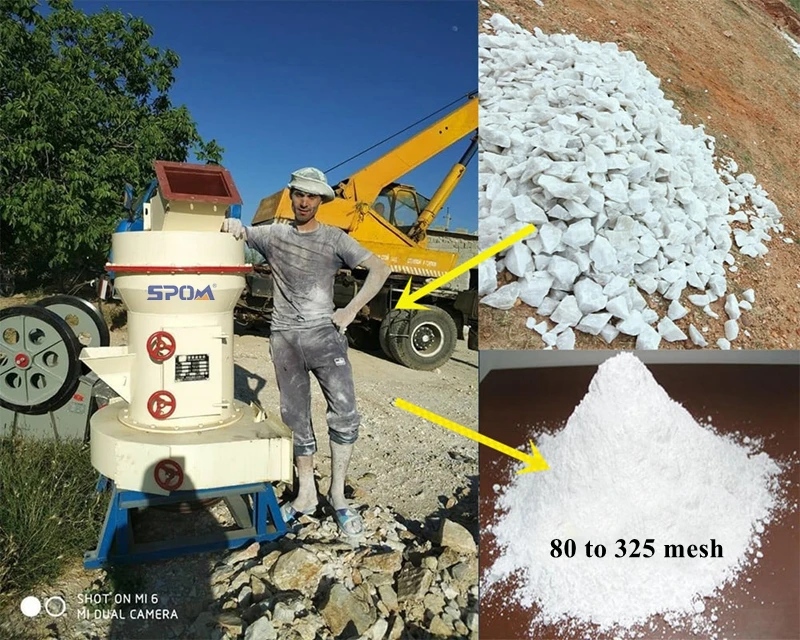

Raymond mill is widely used in mining, metallurgy, chemical engineering, building materials to grind finely more than 280 kinds of material with Mohs hardness less than 9.3 and the moisture content below 6%, such as barite, limestone. ceramic and slag. The granularity of finished product is controlled between 80 and 325 mesh. And it can produce 30-80 meshes coarse powder by adding some special equipment.
Materials
Gypsum, phosphate, cement, limestone, dolomite, slag, calcite, clinker, quartz, clay, talc, bauxite, coal, feldspar, calcium carbonate, etc.
Application: Calcium carbonate crushing processing, gypsum powder processing, power plant desulfurization, non-metallic mineral pulverization, coal powder preparation, etc.
Gypsum, phosphate, cement, limestone, dolomite, slag, calcite, clinker, quartz, clay, talc, bauxite, coal, feldspar, calcium carbonate, etc.
Application: Calcium carbonate crushing processing, gypsum powder processing, power plant desulfurization, non-metallic mineral pulverization, coal powder preparation, etc.
Main Structure

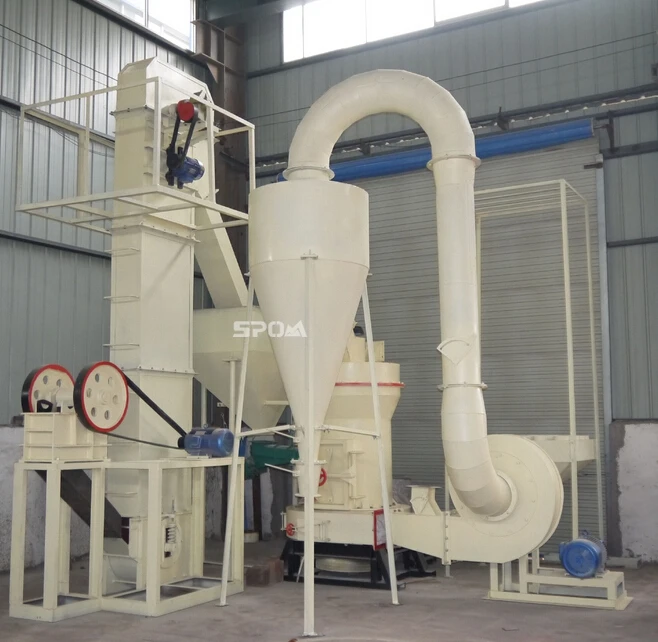

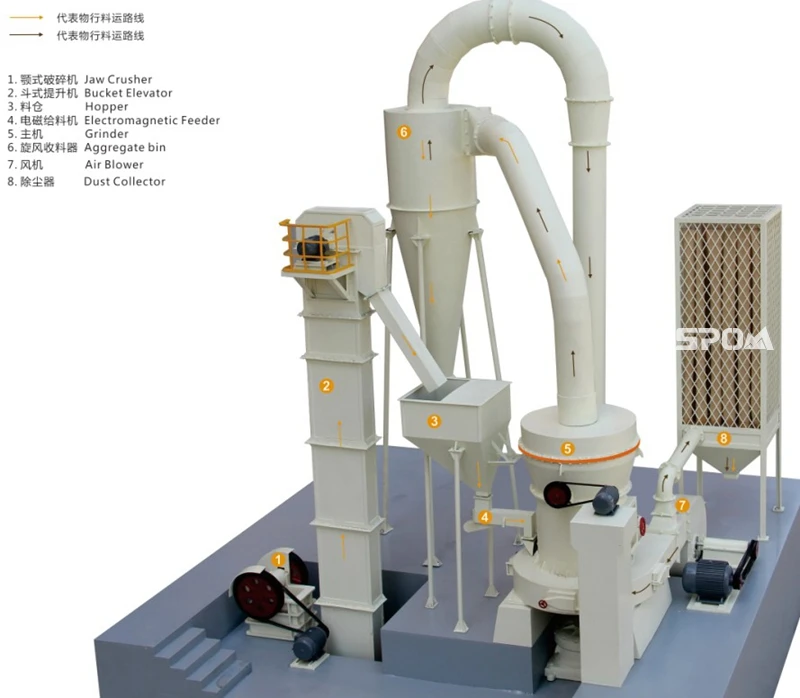

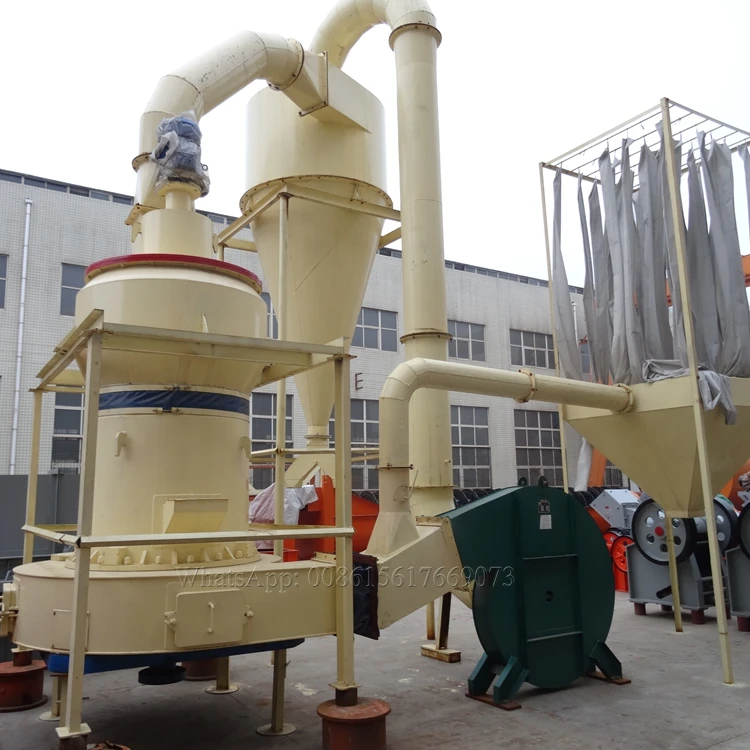

The complete plant of the grinding mill is composed of jaw crusher, bucket elevator, storage hopper, electromagnetic vibrating feeder, main mill, classifier, pipes, dust collector, electric control cabinet, etc.
The complete plant of the grinding mill is composed of jaw crusher, bucket elevator, storage hopper, electromagnetic vibrating feeder, main mill, classifier, pipes, dust collector, electric control cabinet, etc.
Performance Advantages
1. Strong system, high screening rate: up to 99%, uniform fineness of finished powder.
1. Strong system, high screening rate: up to 99%, uniform fineness of finished powder.
2. With centralized control electrical system, the workshop can basically achieve unmanned operation.
3. Easy to control and maintain, reliable operation. The core components adopts high-performance wear-resistant materials, high wear resistance, cost-saving.
Working Principle

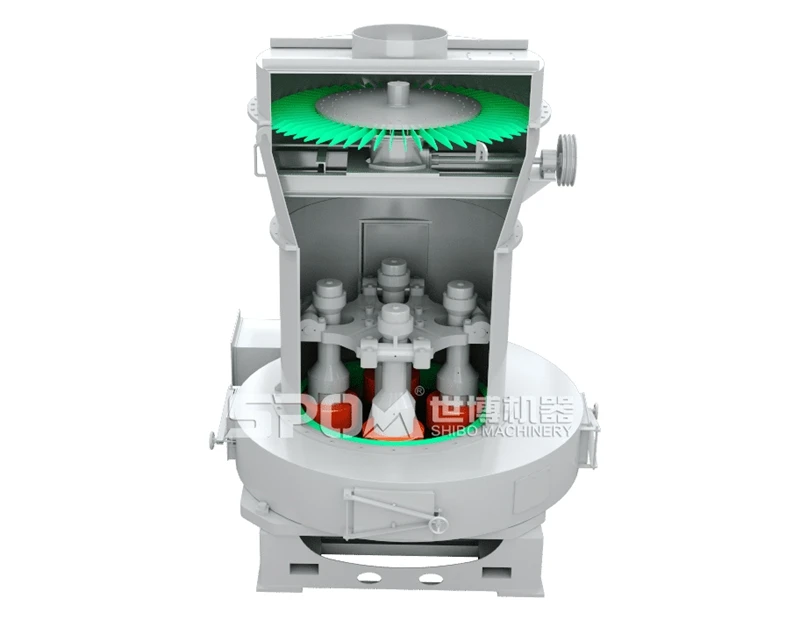

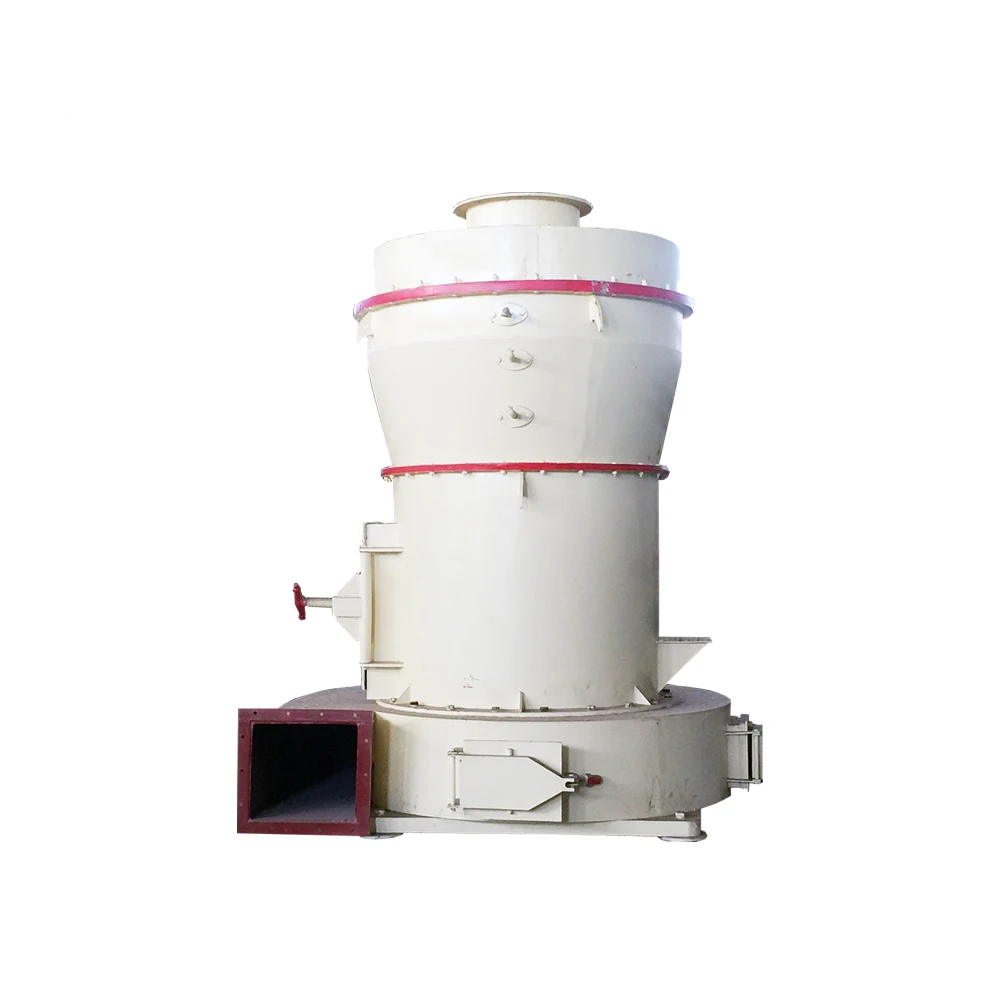

1. The whole structure of Raymond mill is composed of main frame, separator, pipeline installation, blower, jaw crusher, hopper, electromagnetic vibrating feeder and electric control motor. The host of Raymond mill contains air volute, blade, grinding roller, grinding ring, shell and motor.
1. The whole structure of Raymond mill is composed of main frame, separator, pipeline installation, blower, jaw crusher, hopper, electromagnetic vibrating feeder and electric control motor. The host of Raymond mill contains air volute, blade, grinding roller, grinding ring, shell and motor.
2. The raw material will be fed into the jaw crusher to be crushed to below 20mm. The bucket elevator will load the crushed material below 20mm and then feed it into the main mill through a hopper and a vibrating feeder, evenly and continuously into the grinding chamber for powder processing.
Product Paramenters
Model | ZRM100 | ZRM130 | ZRM160 |
Rollers | 4 | 5 | 6 |
Roller Diameter×Height (mm） | Ф310×170 | Ф410×210 | Ф440×270 |
Ring Diameter×Height (mm) | Ф950×170 | Ф1280×210 | Ф1600×270 |
Rotate speed of central shaft（r/min) | 130 | 103 | 82 |
Max. feeding size（mm） | <25 | <30 | <35 |
Fineness of final product (mm) | 1.6—0.045 (Fine powder up to 0.038) | 1.6—0.045 (Fine powder up to 0.038) | 1.6—0.045 (Fine powder up to 0.038) |
Capacity（t/h） | 3.0-8.0 | 6.0-11.0 | 9.0-22.0 |
Overall Dimension (mm) | 7100x5900x7900 | 9200×7250×9700 | 12550×5700×8355 |
Host motor model | Y225S-4 | Y280S-4 | Y315M-4 |
Power of main frame (KW) | 37 | 75 | 132 |
Motor model of powder separator | YCT200-4A | YCT200-4B | YCT250-4A |
Power of powder separator (KW) | 5.5 | 7.5 | 18.5 |
Motor model of induced draft fan | Y225S-4 | Y280S-4 | Y315M-4/Y315L1-4 |
Motor power of Induced draft fan (KW) | 37 | 75 | 132/160 |
Model of electromagnetic vibrating feeder | GZ2F | GZ3F | GZ3F |
Power of electromagnetic vibrating feeder (kw) | 0.15 | 0.2 | 0.2 |

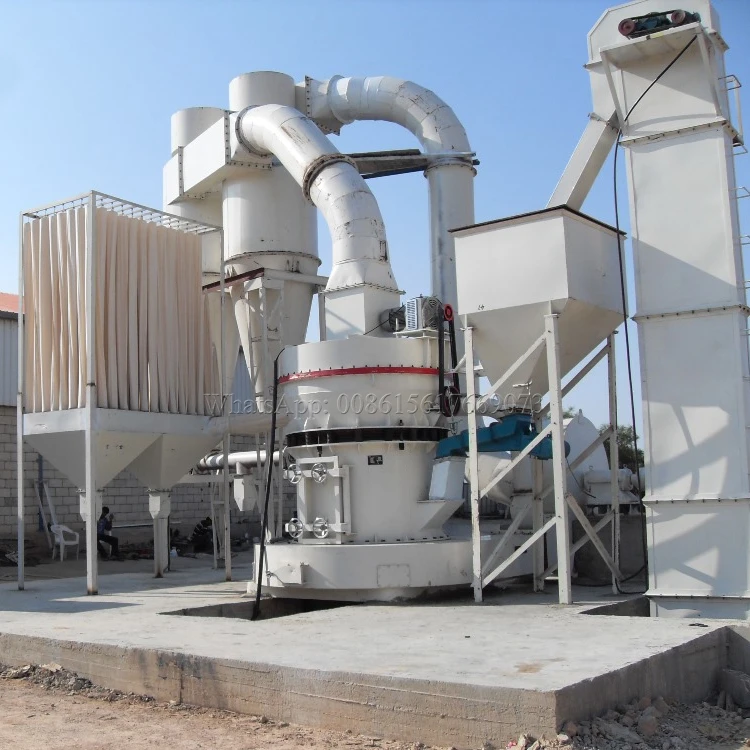

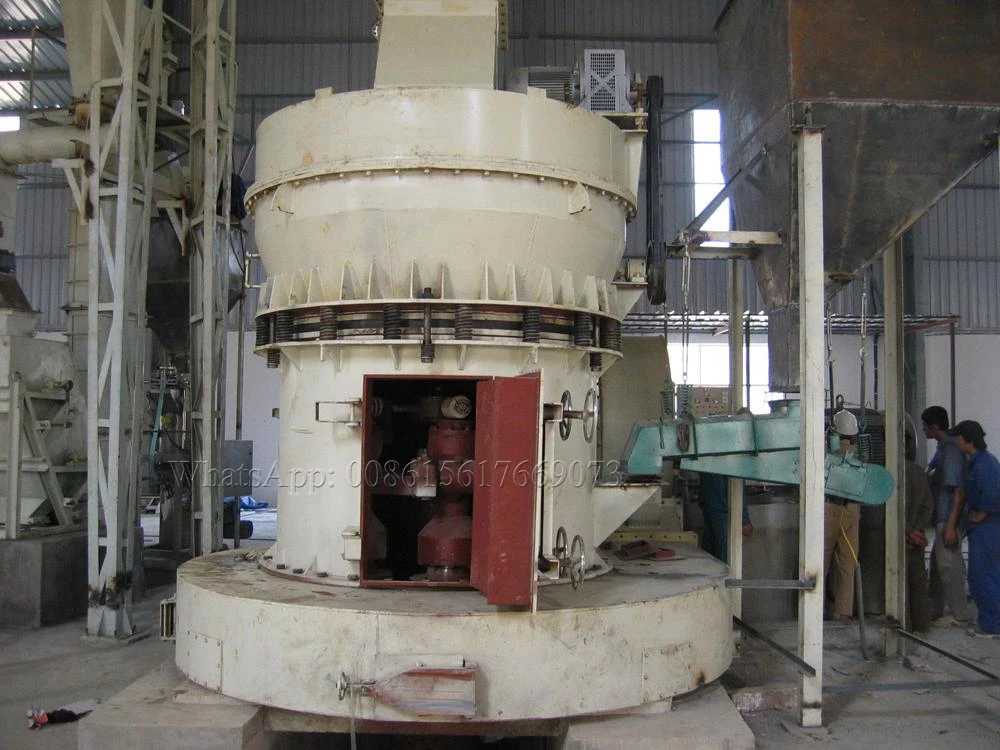

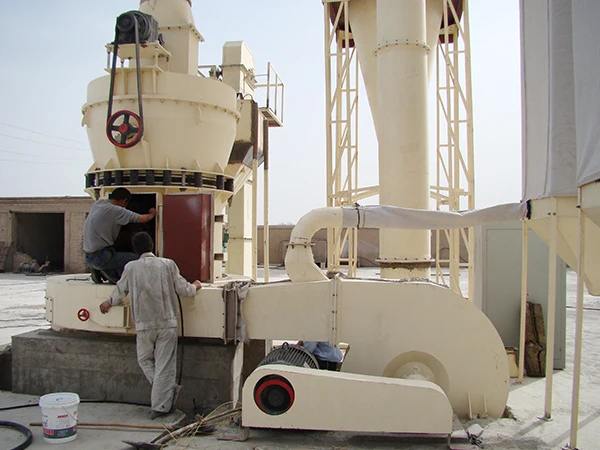

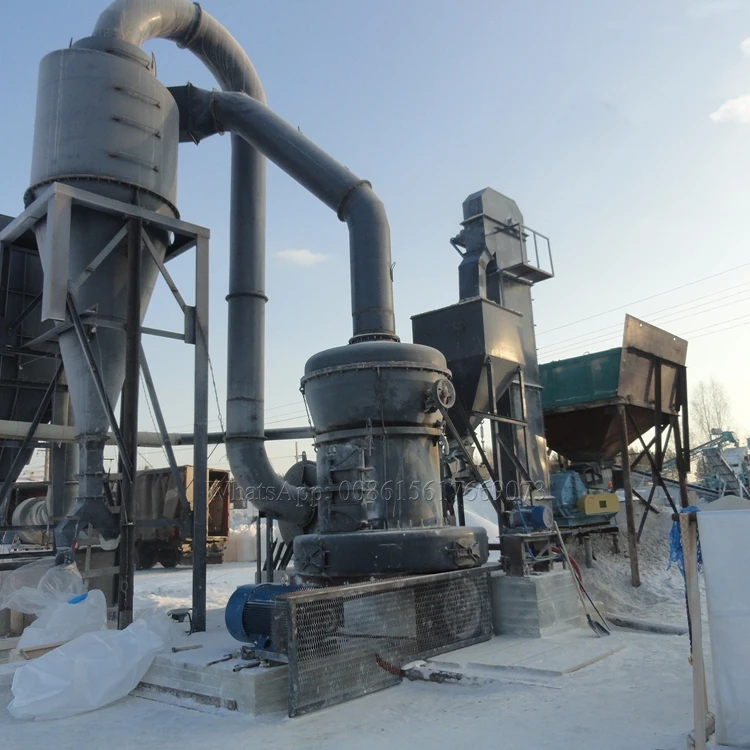

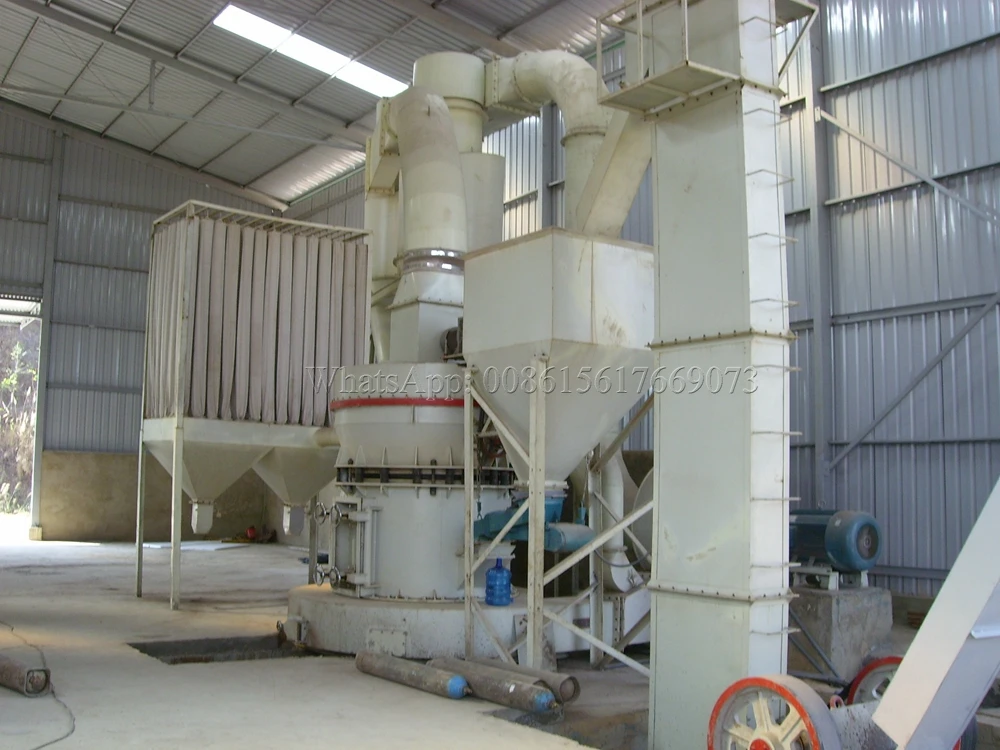

Customer Photos
Contact us
Packing & Shipping
Company Introduction
Zhengzhou Shibo Machinery Manufacturing Co., Ltd. (SPOM) is committed to the research, development, production and sales of technical equipment in the mining industry. It mainly produces large-scale crushing, grinding and sand production lines.
Our company has 11 service outlets in China, and also exported products to Europe, America, Asia, Africa etc. more than 30 Country and region. Our company owns an experienced and skilled sales and service team which compose a perfect service network.We will professional engineers to the installation sites and provide guidance for the installation,commissioning and initial run as well as planning administration of the equipment after purchase.And welcome all our client to visit our factory in Zhengzhou.
