Multi Span Bridge Suspension Bridge Used Cable Tray Bridge Bracket Hanger
- Category: >>>
- Supplier: Daxin Prestressing Technique Co. Ltd.
Share on (1601168508891):
Product Overview
Description
From design, R&D, production of prestressing force products, above 30 years experience, with safe and fatigue resistance performance, corrosion resistance. Guarantee the quality from design, products, installation and monitoring.

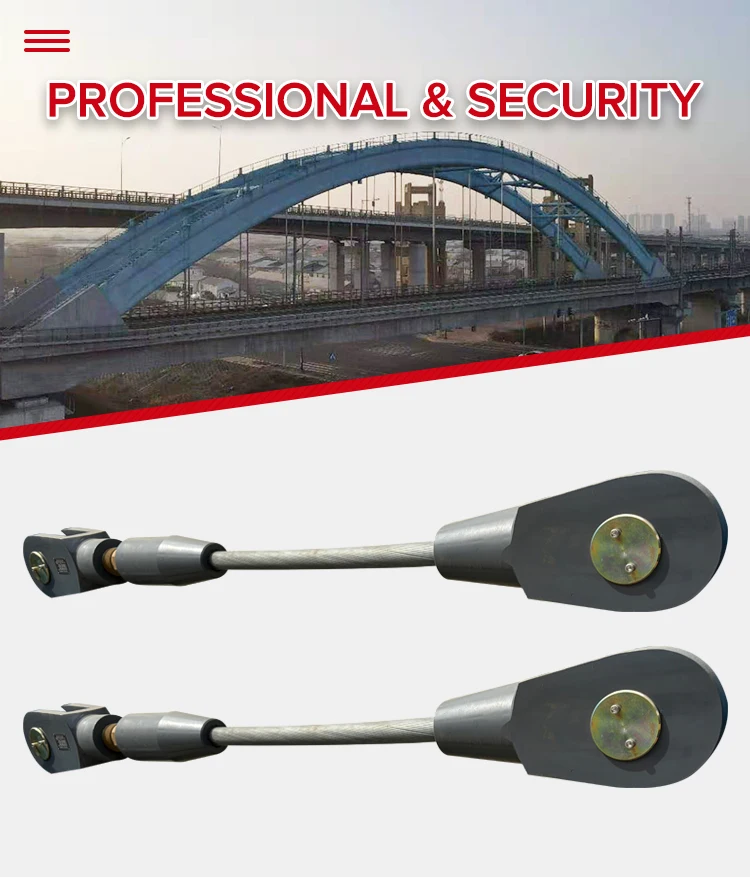

Hanger cable:
Suspension hangers:
Hanger cable:
Vertical suspender assemblies realize the actual load transfer from the bridge deck to the main cables, ensures tight adherence to your specification. Come with various corrosion protection options to meet the lifetime security.

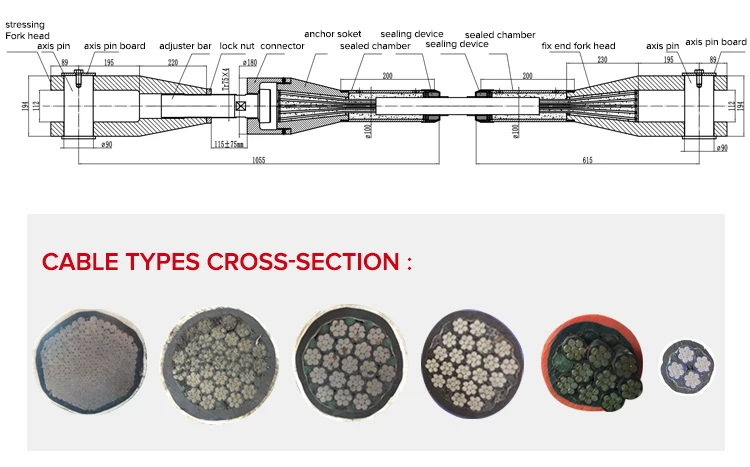

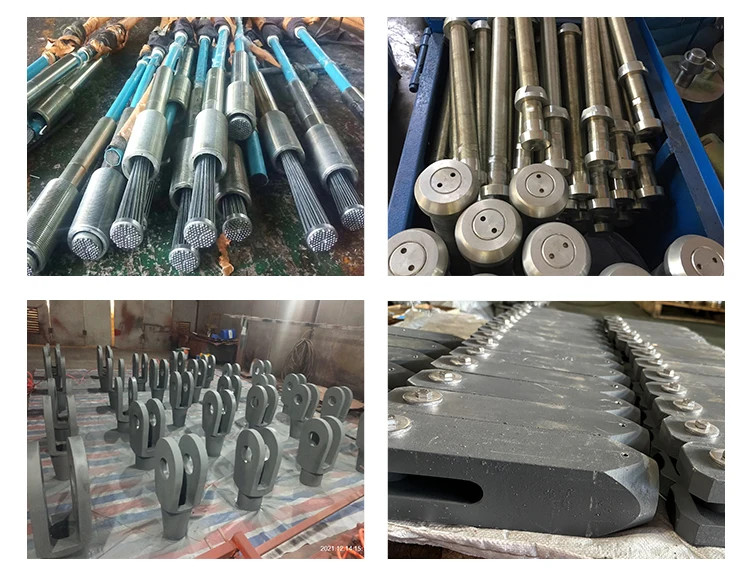

Suspension hangers:
These suspension hangers are perfabricated with Daxin parallel strand system technology, connected to the bridge deck either by clevis or by standard anchors and are tensioned with light equipment. From 4T15 to 55T15, the hangers system is designed for loads up to700 tonnes.
Table of technical parameters of the type boom (supporting diameter is φ5, 3.2B=1670MPa steel wire cold-cast anchor) Unit:mm
Boom specifications | Breaking force (KN) | Design cable K=3 (KN) | Desig cabls K=2.5 (KN) | Buriad pipe DlxT1 | Anchor plate E1×ElxT3 | Stainless steel sheathed pipe DXT | Tension end protective cover BlxHI |
LZM5-19 | 623 | 208 | 249 | φ140×6 | 260×260×30 | φ42 (45)×05 | φ196×240 |
LZM5-37 | 1213 | 404 | 485 | φ159×7 | 280×280×30 | φ52 (56)×05 | φ216×290 |
LZM5-55 | 1803 | 601 | 721 | φ168×6 | 290×290×30 | φ58 (62)×05 | φ226×305 |
LZM5-61 | 2000 | 667 | 800 | φ168×6 | 290×290×30 | φ62 (67)×05 | φ226×306 |
LZM5-73 | 2394 | 798 | 957 | φ194×9 | 305×305×30 | φ66 (70)×05 | φ246×335 |
LZM5-85 | 2787 | 929 | 1115 | φ194×5 | 320×320×30 | φ68 (73)×05 | φ256×365 |
LZM5-91 | 2984 | 995 | 1194 | φ194×5 | 320×320×30 | φ72 (78)×05 | φ256×365 |
LZM5-109 | 3574 | 1191 | 1430 | φ194×5 | 320×320×30 | φ75 (81)×05 | φ266×350 |
LZM5-121 | 3968 | 1323 | 1587 | φ219×10 | 330×330×30 | φ78 (84)×05 | φ276×370 |
LZM5-127 | 4164 | 1388 | 1666 | φ219×10 | 330×330×30 | φ82 (91)×05 | φ276×370 |
LZM5-139 | 4558 | 1519 | 1823 | φ219×6 | 360×360×35 | φ85 (91)×05 | φ306×410 |
LZM5-151 | 4951 | 1650 | 1981 | φ219×10 | 360×360×35 | φ86 (93)×05 | φ306×410 |
1)Our engineer can go to your project site for technique supporting.
2)Installation team can go to your projects site for installation.
3)Engineer team office for online supporting.
2)Installation team can go to your projects site for installation.
3)Engineer team office for online supporting.
