High efficiency electric turbine hydro generator 1 mw
- Category: >>>
- Supplier: Hongya Power Generating Equipment To Utilities LimitedHongya Limited
Share on (1601168534473):
Product Overview
Description

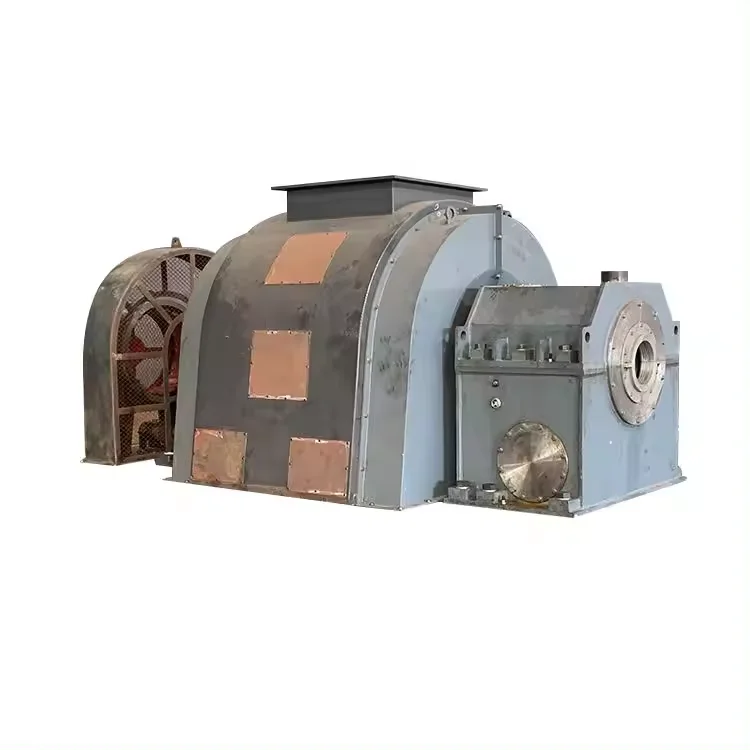

High efficiency electric turbine hydro generator 1 mw
Product Description
Hydro turbine generator is droved directly or indirectly by hydro turbine. The rotating speed is less than 1500r/min, with horizontal and vertical arrangement. Excitation mode with brushless and static silicon type.

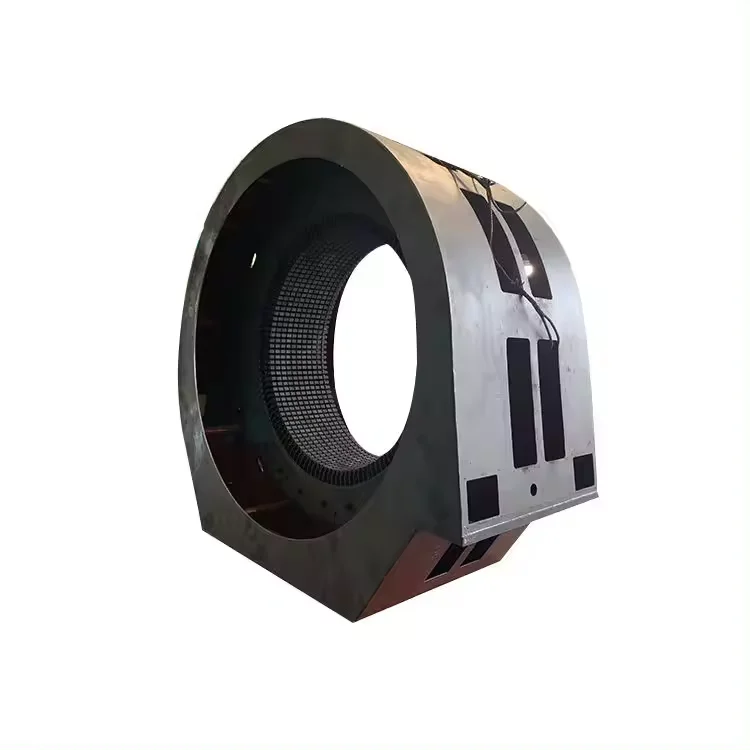

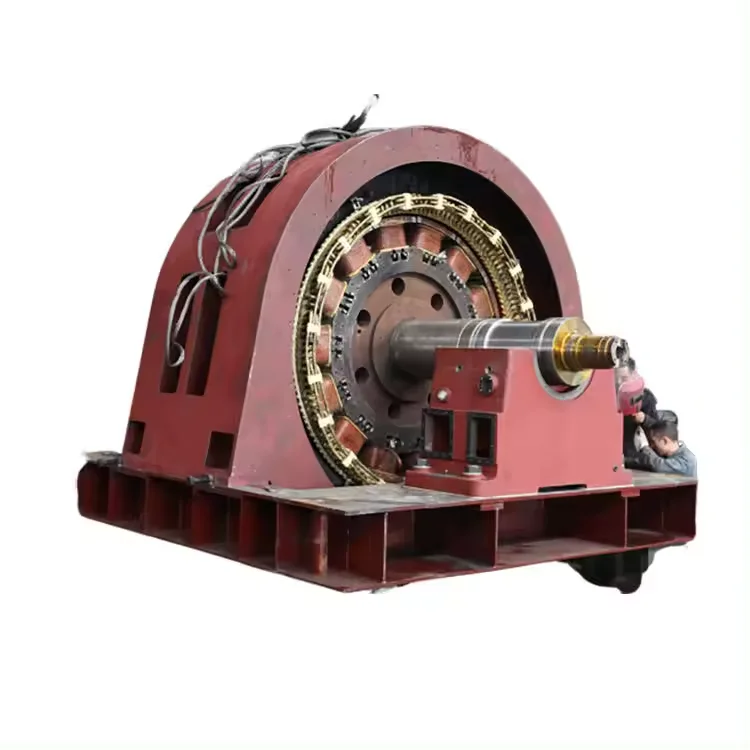

Components including stator, rotor,base frame, bearing, excitation motor or collecting ring. The outlet voltage from 400V to 13.8KV, and frequency could be 50Hz or 60Hz, output from 50Kw to 50Mw. Our generator are high efficiency, reliable, manufacture and tests all follow related IEC standards.
| Material | Steel plate/Copper |
| Shaft type | Vertical/Horizontal |
| Power range | 50KW-20MW |
| Speed range | 150RPM-1000RPM |
| Voltage range | 400V-10KV |
| Frequency | 50HZ/60HZ |
| Efficiency | 92%-96% |
| Generator current | 200A-920A |
| Excitation method | Brushless/Thyristor |
| Application | On-grid/Off-grid |
Hydroelectric generator consists of the following main parts. Dynamos generate pulsing direct current through the use of a commutator. Alternators generate alternating current. Mechanically a generator consists of a rotating part and a stationary part.
Other Product
Why choose us?
1.More than 30 years of industry experience, install commissioning more than 150 equipment each year
2.Provide complete proposal for hydro power plant from water to wire
3.Abundant foreign power plant project implementation experience
4.Design and manufacture of hydro power generator with voltage 400V
Case & Exhibition
Company & Factory
Hongya Power Generating Equipment To Utilities Limited(HPGE), is a professional manufacturer with 16 years experience of mini hydraulic generator generator set.HPGE have 200 workers, which the R&D part is 25%.
We have the equipment inclueded: Francis, pelton, turgo, Kaplan turbine, synchronous generator, speed governor, brushless excitor, hydraulic hardware etc with unit turbine generator set capacity under 20mw.HPGE offer a comprehensive range of hydroelectric power plant service such as: Project consultant of mini Hpp; Site management studies; equipment Design; Hydroelectric equipment Manufacture; Project management; Installation guidance; Commission and start operation; Operation guidance; Hydroelectric equipment maintenance etc.
We cooperate with more than 300 hydro power plants with more than 600 turbine generators sets, areas covering more than 20 provinces of China and also international markets such as Russia, Belarus, Turkey, Albania,Vietnam Indonesia, Nepal, Laos, Sri Lanka, Cuba and Brazil etc.
Certification
Packaging & Shipping
FAQ
1.You are a trading company or a manufacture?
We are a hydro turbine generator manufacture with over 15 years of experiences, Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.
2.What Kind of hydropower micro should I choose?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.
3: Can you do the EPC for the hydro power plant?
Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
4: what the packing of the equipment?
We will use wooden box to protect product
