Automatic small rice puffed corn puff snacks making extruder machine

1.Automatic small rice  puffed corn puff snacks making extruder machine Description:

1. Raw materials: corn flour, wheat flour, rice flour, etc.

2. Shape: By changing the molds and process technology, this line can produce different shapes of puff snacks, like ring, stick, ball, etc. We can provide you with molds.

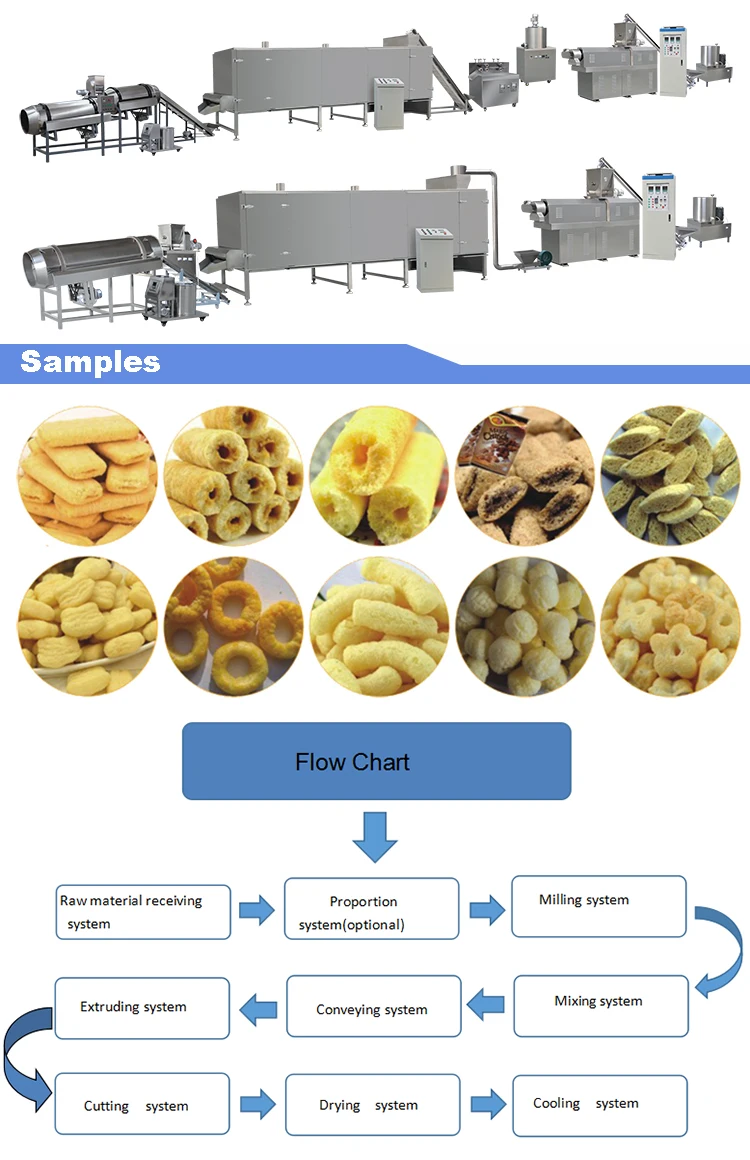

3.Puff snack food extrusion machine Flow Chart:

Mixer→ Screw Conveyor→ Twin Screw Extruder→ Air Conveyor→ Dryer→ Hoister→ Flavoring Roller→ Cooling Conveyor.

4. Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.



5.Automatic corn puff extruder machine puffed rice making machine puff corn snack make machine Capacity: 100-150kg/h, 200-250kg/h, 450-500kg/h.



Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder

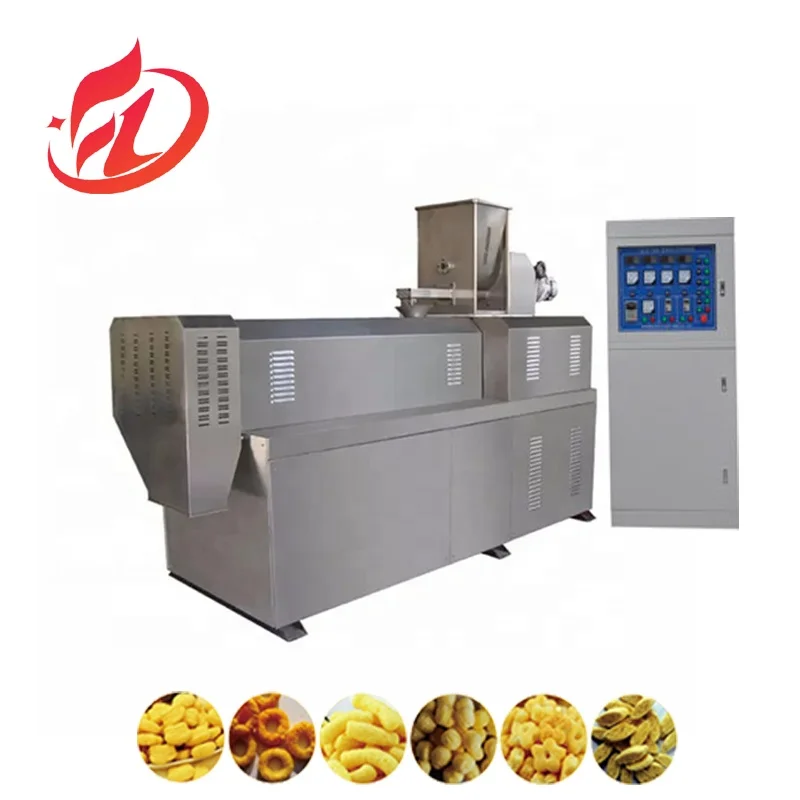

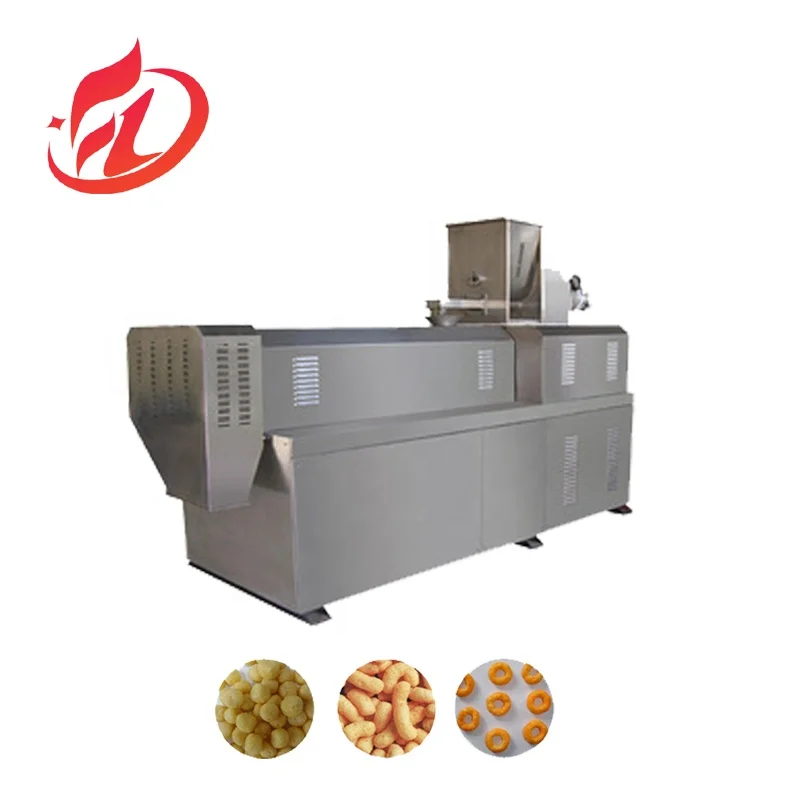

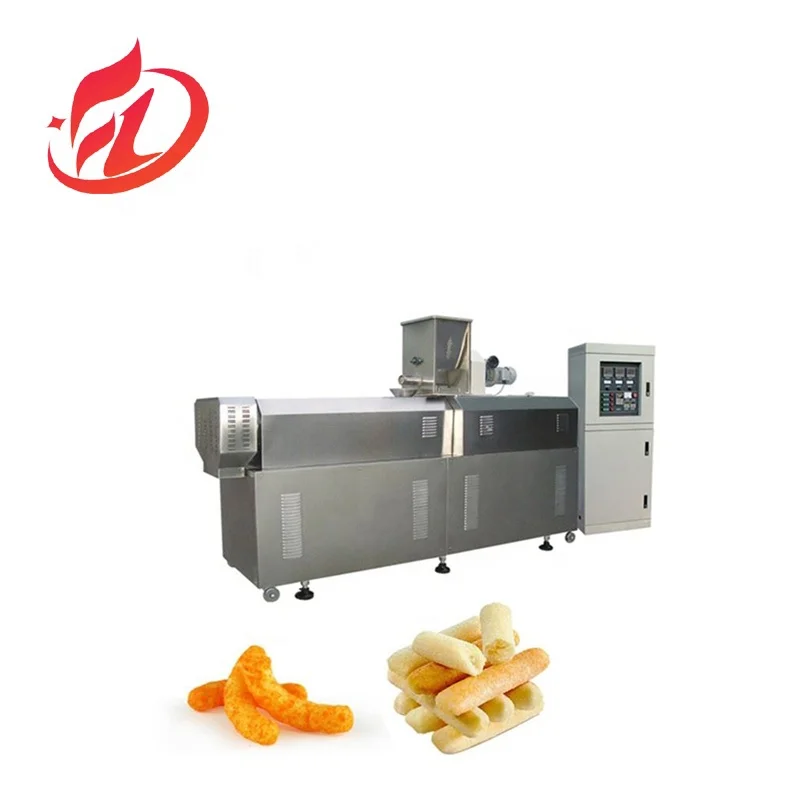

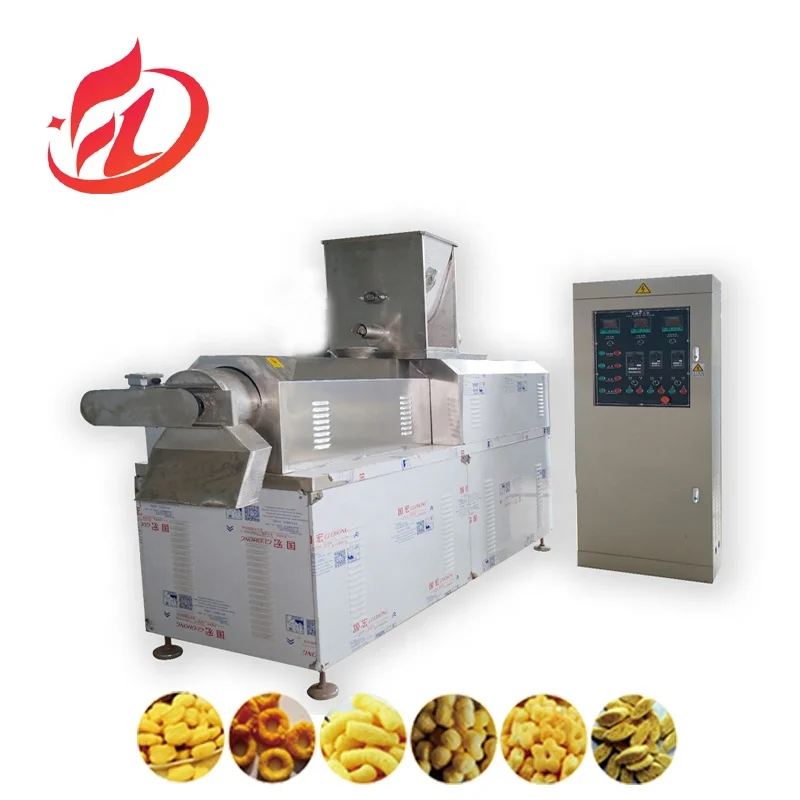

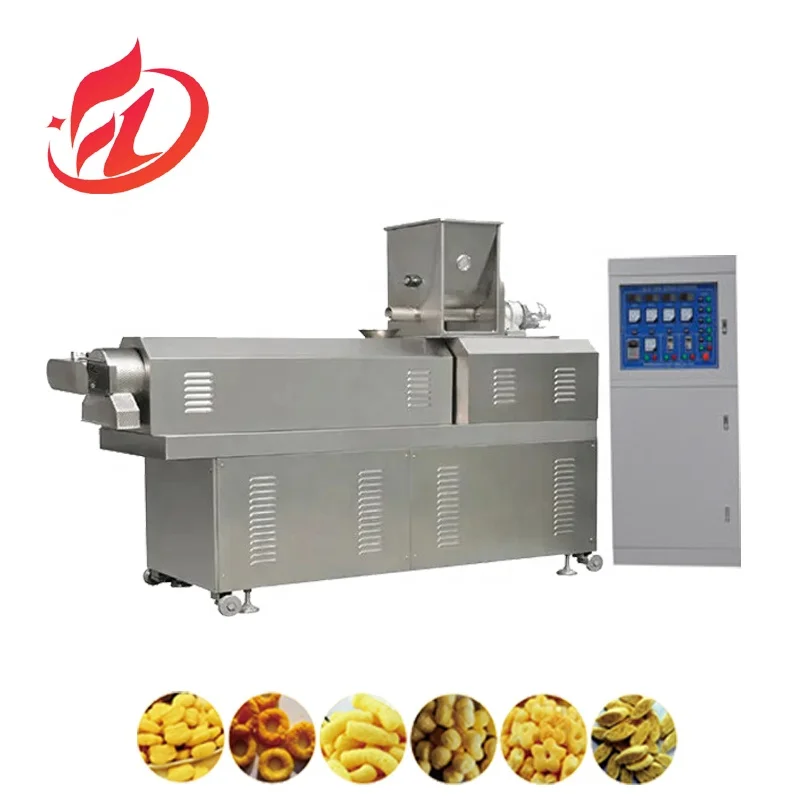

2.Puff snack food extrusion machine Feature:

1).Adoptting swiss tech;

2).Heating power for extruder can be electric or steam
3).Total stainless steel SUS 304
4).Direct transmit between motor and gear bx, reducing energy consumption;
5).Original bearing with more strong capacity;
6).Screw adopts high wearable material with long life, the rigidity degree above HRC>=55
7).Screw can be assembled freely according to different material and products.
8).Barrel adopts infrared ray stainless steel heating circles to heat, the temperature of each section can be adjusted separately,and automatic cooling system controls the temperature accurately.
9).Hanging mould and knives seat and bearing knife adjusting system can adjust the knives exactly and swiftly.
10).With this twin screw extruder, you can produce all kinds of extruded foods, such as artificial rice, textured vegetable protein, pet food, fish feed, etc. Especially, this twin screw extruder can make the foods which only can be made by single screw extruder before, such as square tube, screw, shell, onion ring, etc



3.Technical Parameter:

Model	SLG65-III	SLG70-III	SLG85-III
Install Power	76KW	95kw	178kw
Power Consumption	54KW	66kw	125kw
Capacity	120-150KG/H	240-260kg/h	300-500kg/h
Dimension	17×2×2.5m	22×2×2.5m	26×2×3.5m



4.Main equipment of Puff snack food extrusion machine:

Mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine.

	Name Mixer Usage To mix the raw materials evenly, fast speed, no leakage.   Type including Single axle and double shaft mixer Motor 3kw, 4kw, 7.5kw etc. Capacity 20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material stainless steel, carbon steel
	Name Twin screw extruder Usage To extrude the raw materials and make them to the required shape and size of the snack food pellets by mould model 65, 70, 75, 85 Motor 22kw, 30kw, 55kw, 75kw, 90kw, 110kw etc. Capacity 100kg/h to 0.5 ton/h Material Screw materials 38CrMoAl stainless steel, carbon steel
	Name Dryer (oven) Usage the expanded food go through the "s" passage, to be dried to increase the self life. Type electrical, steam, gas fired, diesel fired heating type Motor KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc. Capacity 100kg/h to 10 ton/h Material stainless steel, carbon steel
	Name Flavoring machine Usage To mix the oil and flavors on the surface of the snacks food Type single and double flavoring drum Motor 0.75kw Capacity 100kg/h to 10 ton/h Material stainless steel
	Name Packaging machine Usage To pack the snack food with required weight Flowing Process Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing Weight range 1-5kg/bag, 5-25kg/bag, 25-50kg/bag Material stainless steel, carbon steel Type Automatic

1.) Consultation service before, during,and after sales;

2.) Project planning and design service;

3.) Debugging of equipment until everything is functional;

4.) Management of equipments' long distance shipping from seller's factory to the named place by buyer;

5.) Training of equipment maintenance and operating personally;

6.) New production techniques and formulas;

7.) Provide 1 year complete warranty and life-time maintenance service.

1.Daub coal oil on the surface of theAutomatic puffed rice puff corn extruder machine corn puff extruder machine snack machines.

2.Plastic film as the inner packing.

3.Standard export wooden case as the outer packing.

4.Train, ship or depend on clients' requirement

   Jinan FLD Machinery Co., Ltd. is a leading supplier of high quality Twin Screw Extruders and other food processing lines. We are located in Jinan city, the Capital of Shandong Province.

   We have ten years' experience of working with our customers providing specialist designs and practical solutions for a wide range of process needs. We can improve client's equipment and provide related training on new advanced technique.

  We can guarantee customers superior quality machines up to design requirements and perfect working state. Our technicians can also provide all kinds of relevant technology to make the food production clean, healthy and safe.

 Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss beforecontract.

Q: Could you supply all the parameters about the machines?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.

Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shipment after inspection.

Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.

Q:do you supply any formula to buyer?
A: yes, we supply formulas to buyer.

Q: How about the machine warranty?
A: We provide 1 year warranty, Lifetime service
