RLabS4 intelligent laboratory four channel independent control calibration micro flow touch precision distribution pump
RLabS4 intelligent laboratory four channel independent control calibration micro flow touch precision distribution pump
RLabS4 intelligent laboratory four channel independent control calibration micro flow touch precision distribution pump
RLabS4 intelligent laboratory four channel independent control calibration micro flow touch precision distribution pump
RLabS4 intelligent laboratory four channel independent control calibration micro flow touch precision distribution pump
RLabS4 intelligent laboratory four channel independent control calibration micro flow touch precision distribution pump
RLabS4 intelligent laboratory four channel independent control calibration micro flow touch precision distribution pump

RLabS4 intelligent laboratory four channel independent control calibration micro flow touch precision distribution pump

Share on (1601168648080):


Price:

Quantity:


Product Overview

Description



Speed\t0.01-100 rpm,reversible\t\t
Speed resolution\t0.01 rpm\t\t
Max. Flow rate\t32 mL/min\t\t
Pump heads\tDG-4(10 roller)\t\t
Tubing\tID≤3.17mm;Wall Thickness 0.8-1mm\t\t
Number of Channels\t4\t\t

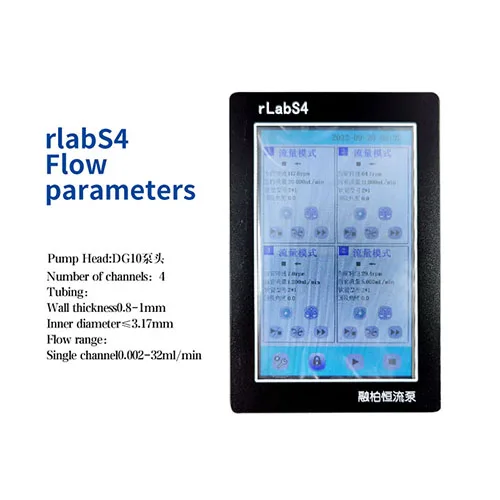

Display\t5-inch, industrial grade, color touch screen\t\t
Control mode\tTouch screen control, footswitch control and communication control\t\t

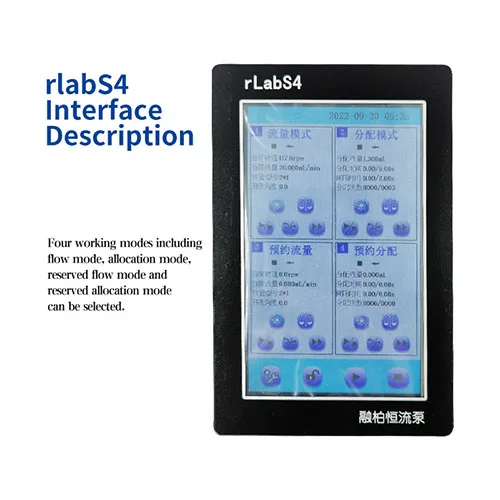

Flow rate mode\tContinuous operation at a set rate and direction\t\t
Dispensing mode\tDispense the fluid at desired volume, dispensing time and batch cycles\t\t
Reservation Flow rate mode\tDispensing for a set time duration over multiple cycles with defined pause time in between\t\t
Reservation Dispensing mode\tDispensing a set volume over multiple cycles with defined pause time in between\t\t
Communication interface\tRS485 / USB\t\t
External control input interface\tFootswitch, start/stop line\t\t
Power supply\tAC 90-265 V 50/60 Hz\tAC 100-240 V 50/60 Hz\t
Power consumption\t＜65 W\t\t
Operating temperature\tTemperature 0 to 40 ℃\t\t
Relative humidity\t＜ 80%\t\t

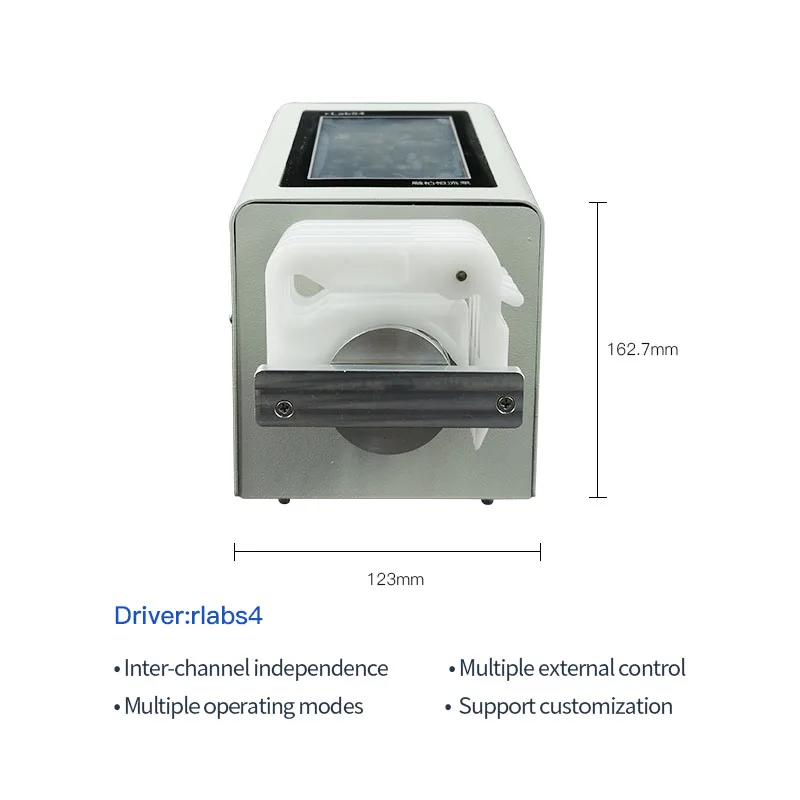

Dimensions\t253.5mm*123mm*162.7mm\t\t
Drive weight\t3.62 Kg\t\t
IP rating\tIP31\t\t
Calibration function\tAllows each channel to be calibrated for dispensed fluid volume accuracy\t

















Baoding Rongbai Peristaltic Pump Manufacturing Co., Ltd.


Email: rongbaipump@foxmail.com


Postcode: 071000


Address:

4-C-622, Electric Valley Technology Center, No. 3088, Lekai North Street, National High-tech Industrial
Development Zone, Baoding City, Hebei Province, China



FAQ



Warm tips:


(1)Usually we send the goods by EMS/DHL/SEA, if you want ship by any ways please feel free to contact us.

(2) A tracking number will send to you after your order has been shipped

(3) Delivery: Small orders will be shipped within 24 hours if the payment is made before 3 pm on the same day. For large
orders,please contact customer service. If you encounter shop activities, generally control the delivery within 48 hours, if there is anextension Please understand.

(4) Return/Exchange: If the product is not in use, it can be returned for 7 days without reason.

(5) Size: The product size is marked, if there is any error, please contact the customer service staff to solve it.

(6) Color: Store products are all actual shots.

(7) Customization: The company accepts orders of various sizes, and can be customized and developed according to customer requirements to ensure quality and low prices. New and old customers are welcome to negotiate business.


Product Maintenance：


(1) When the pump is not working for a long time, loosen the pressure block to avoid squeezing the hose for a long time to cause deformation.

(2) The roller of the pump head should be kept clean and dry, otherwise it will accelerate the wear of the hose, shorten the
service life of the hose and cause premature damage to the roller.

(3) The surface of the drive and the pump head are not resistant to organic solvents and strong corrosive liquids, so special attention should be paid when using them.


Warranty：


(1) The product is guaranteed for one year.

(2) Contact the seller or manufacturer before returning to the factory for repair.

(3) The original packaging or other reliable packaging methods should be used as far as possible for the return to the factory for maintenance and transportation.

(4) When returning to the factory for maintenance, the fault phenomenon and contact information should be found in detail.

(5) During the warranty period, if it is improperly used or damaged by the user, it will not be included in the free warranty.
