Water based haze DMX control Remote control 1500W haze Safety features Fog effects for Large venues
- Category: >>>
- Supplier: Guangzhou Shengyi Photoelectric Equipment Co. Ltd.
Share on (1601168653177):
Product Overview
Description
Product Description

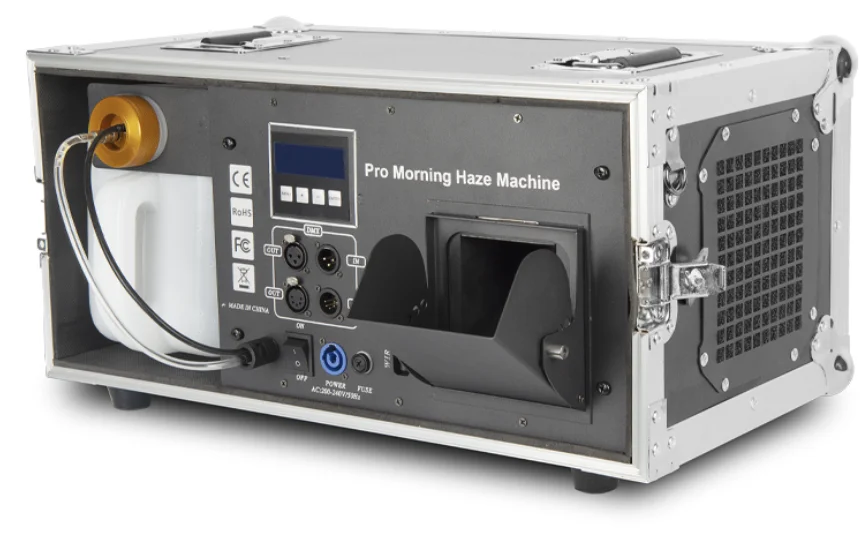

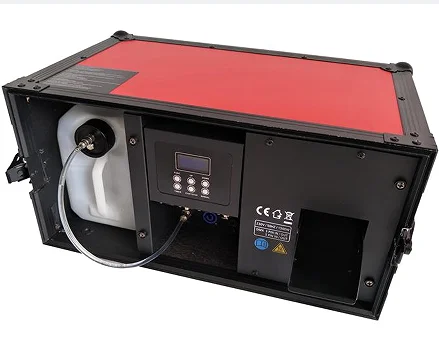

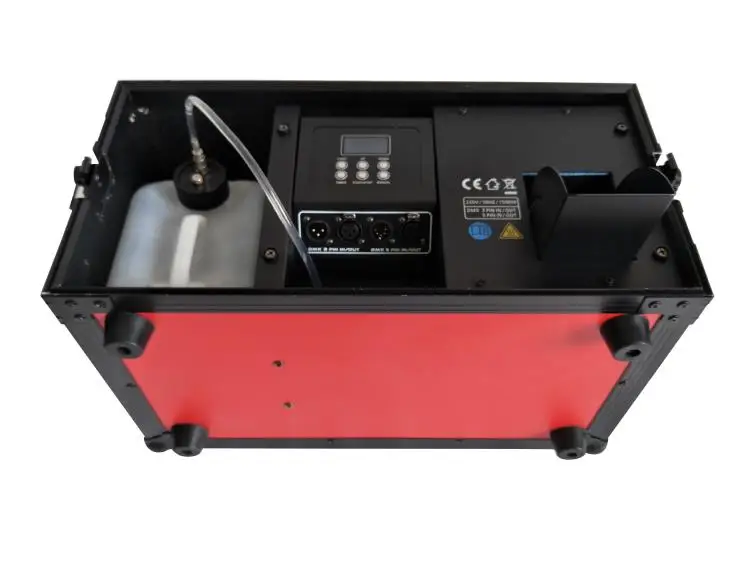

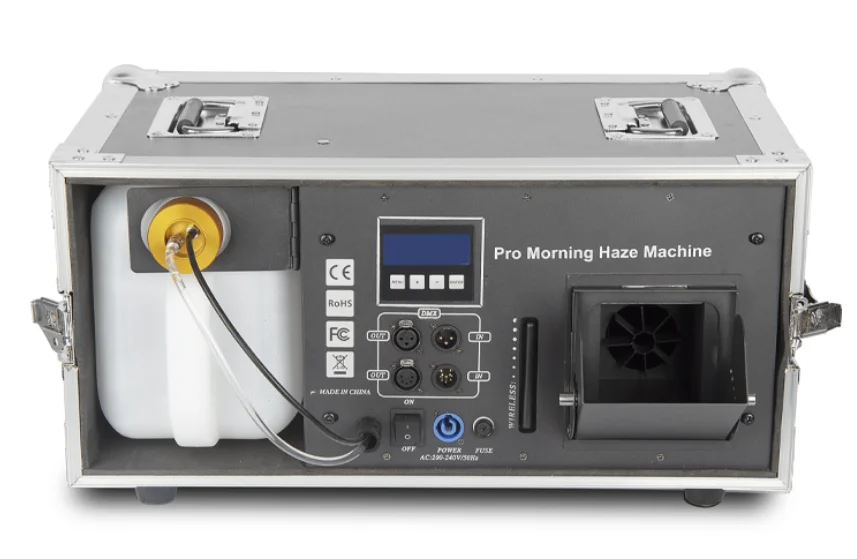

1500W Hazer machine
1. Voltage:AC110V~240V,50/60HZ
2. Power Consumption:1500W
3. Warming up time:30 - 40 seconds
4. Liquid capacity:5L
5. Smoke output:18000cuft/min
6. Control mode:Manual/DMX512
7. NW.:15kg
8. Packing Size:59*33*45cm
9. DMX Channel:3 channels 10.GW:16.5KG
2. Power Consumption:1500W
3. Warming up time:30 - 40 seconds
4. Liquid capacity:5L
5. Smoke output:18000cuft/min
6. Control mode:Manual/DMX512
7. NW.:15kg
8. Packing Size:59*33*45cm
9. DMX Channel:3 channels 10.GW:16.5KG
1000W Hazer machine
1. Voltage:AC110V~240V,50/60HZ
2. Power Consumption:1000W
3. Warming up time:30 - 40 seconds
4. Liquid capacity:2L
5. Smoke output:18000cuft/min
6. Control mode:Manual/DMX512
7. NW.:12kg
8. Size:59*33*45cm
9. DMX Channel: 3 channels
2. Power Consumption:1000W
3. Warming up time:30 - 40 seconds
4. Liquid capacity:2L
5. Smoke output:18000cuft/min
6. Control mode:Manual/DMX512
7. NW.:12kg
8. Size:59*33*45cm
9. DMX Channel: 3 channels
Product Name | Hazer machine | Item Name | M-1500B |
Fog output | 8000cuft/min | Voltage | AC110v 220-24v50/60Hz |
Tank Capacity | 5L | Dimension | 59*33*45cm |
Warming up time | 30-40sec | Power | 1000W/1500W |
Fuse | 5A | Control mode | DMX 512 |
Detailed Images
CONNECTION OF A SIGNAL CABLE The connection between the output of the ffrst unit and the input of the next unit must be carried
out by a 3-pin XLR cable. Connect the signal cable from the DMX output of the controller to the DMX IN socket of the ffrst unit,
then connect the DMX OUT socket of the ffrst to the DMX IN socket of the second unit, etc. until you have connected all units.
Insert the last connector to the input of the last machine. (Note: the core diameter of every cable should be 0.5mm at least,
double core screened cable should be used).
out by a 3-pin XLR cable. Connect the signal cable from the DMX output of the controller to the DMX IN socket of the ffrst unit,
then connect the DMX OUT socket of the ffrst to the DMX IN socket of the second unit, etc. until you have connected all units.
Insert the last connector to the input of the last machine. (Note: the core diameter of every cable should be 0.5mm at least,
double core screened cable should be used).
1.Main menu: When the machine is warming up, “Warming Up” is displayed on the LCD. When it is ready to fog, “Ready To Fog” will be
displayed on the LCD 2.Fogging time set up: Interval Set (5-200s) 3.Continuous fogging time set up: Duration Set (5-200s) 4.DMX
set up: DMX address (1-512) 5. "No ffuid" protection switch: When “Fluid Sensor ON” is displayed, the ffuid protection function is
active. If the machin has detected that there is no ffuid in the tank, it will display “No Fluid”, and it will stop working. Power
off the machine, ffll the tank and switch it on again. 6. Light effect selection: When “Inner Flame 0” is displayed, the inner LED
light effects are on and you can set up 9 kinds of effects. When “Outer Flame 0” is displayed, the outer LED light effects are
activated and you can set up 9 kinds of effects
displayed on the LCD 2.Fogging time set up: Interval Set (5-200s) 3.Continuous fogging time set up: Duration Set (5-200s) 4.DMX
set up: DMX address (1-512) 5. "No ffuid" protection switch: When “Fluid Sensor ON” is displayed, the ffuid protection function is
active. If the machin has detected that there is no ffuid in the tank, it will display “No Fluid”, and it will stop working. Power
off the machine, ffll the tank and switch it on again. 6. Light effect selection: When “Inner Flame 0” is displayed, the inner LED
light effects are on and you can set up 9 kinds of effects. When “Outer Flame 0” is displayed, the outer LED light effects are
activated and you can set up 9 kinds of effects
* Smoke & Bubble machine with 3-in-1 LEDs
* Red, Green and Blue colour mixing
* Powerful double fans
* Large double bubble wheels
* DMX and Stand-alone mode
* DMX in/output via 3-pin XLR
* Control panel with LCD display
* IEC-connector input
* Handgrip for easy transport
* Red, Green and Blue colour mixing
* Powerful double fans
* Large double bubble wheels
* DMX and Stand-alone mode
* DMX in/output via 3-pin XLR
* Control panel with LCD display
* IEC-connector input
* Handgrip for easy transport
Product video
Packing&Shipping

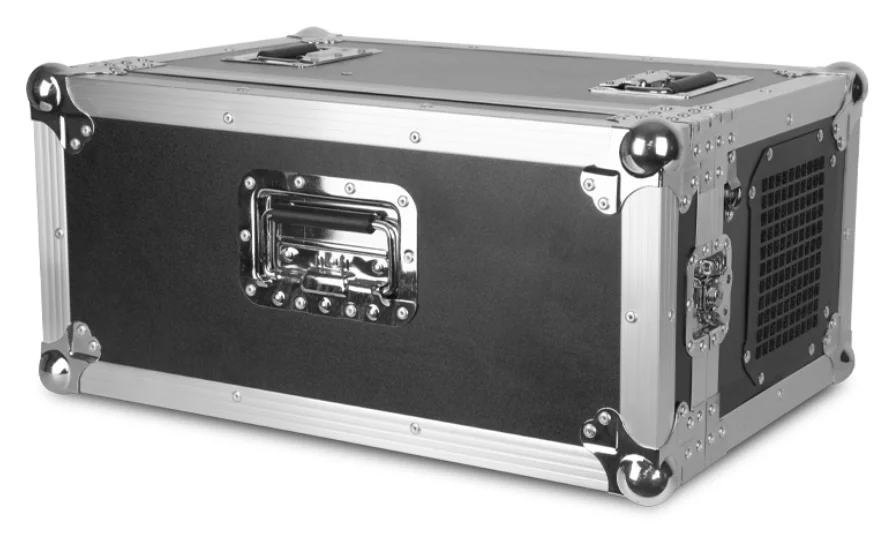

Flight case packing 1/1pcs for wooden case packing /pallets/wooden case packing with cartons
