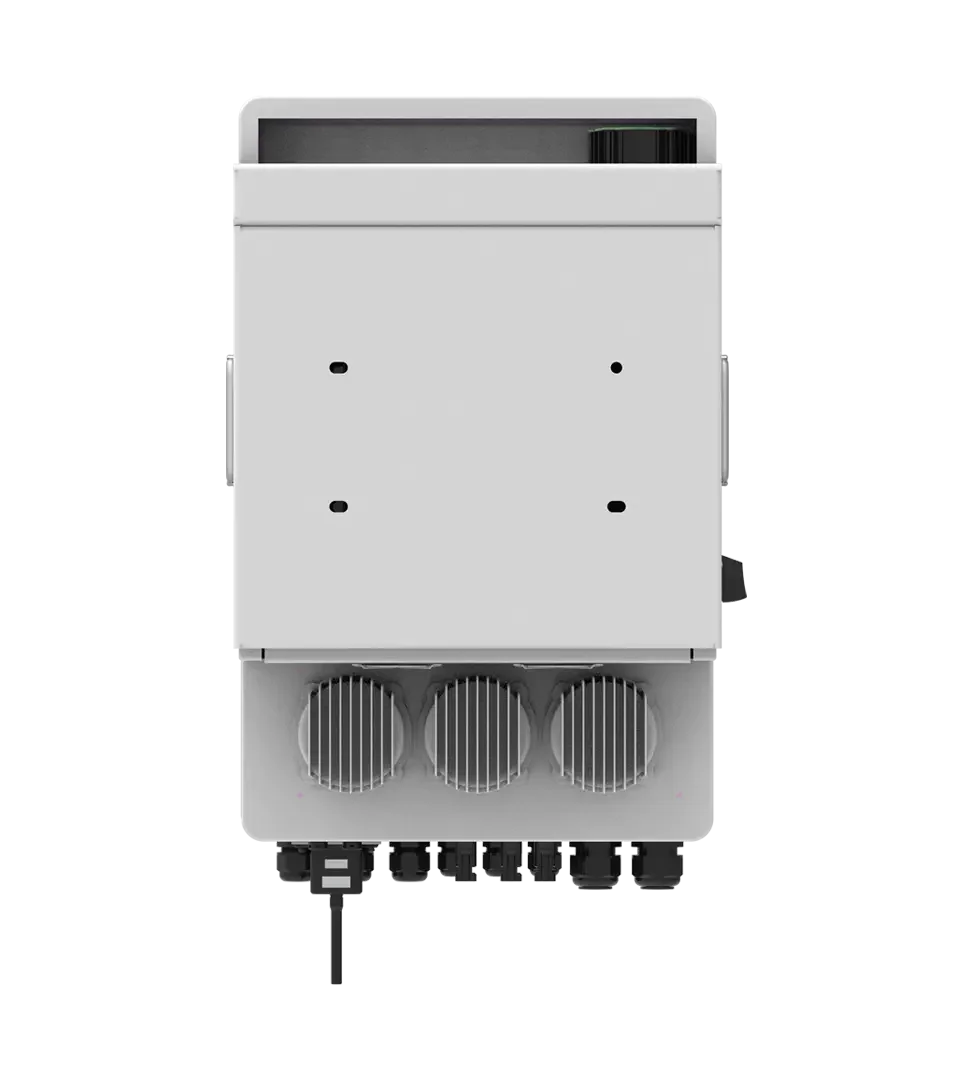

Best Selling Deye 16kw Hybrid Inverter Three phase Low Voltage 400Vac Solar Inverter For Hybrid Solar System Use
- Category: >>>
- Supplier: Hefei Gaoshang New Energy Co. Ltd.Hefei Ltd.
Share on (1601168691287):
Product Overview
Description
Products Description
Model | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU | |||||
Battery Input Data | ||||||||||
Battery Type | Lead-acid or Lithium-ion | |||||||||
Battery Voltage Range(V) | 40-60 | |||||||||
Max.Charging Current(A) | 120 | 150 | 190 | 210 | 240 | |||||
Max.Discharging Current(A) | 120 | 150 | 190 | 210 | 240 | |||||
Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||||||||
Number of battery input | 1 | |||||||||
PV String Input Data | ||||||||||
Max PV Input Power（W） | 6500 | 7800 | 10400 | 13000 | 15600 | |||||
MaxPV Input Voltage（V） | 800 | |||||||||
Start-up Voltage（V） | 160 | |||||||||
MPPT Voltage Range（V） | 200-650 | |||||||||
Rated PV Input Voltage(V) | 550 | |||||||||
Max. Operating PV Input Current (A) | 13+13 | 26+13 | ||||||||
Max. Input Short-Circuit Current (A) | 17+17 | 34+17 | ||||||||
No.of MPP Trackers/No.of String Per MPP Tracker | 2/1+1 | 2/2+1 | ||||||||
AC Input/Output Data | ||||||||||
Rated AC Input/Output Active Power（W） | 5000 | 6000 | 8000 | 10000 | 12000 | |||||
Max AC Input/Output Apparent Power （VA） | 5500 | 6600 | 8800 | 11000 | 13200 | |||||
Peak Power (off-grid)（W） | 2 times of rated power, 10s | |||||||||
Rated AC Input/Output Current（A） | 7.6/7.2 | 9.1/8.7 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 | |||||
Max AC Input/Output Current（A） | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/15.9 | 20/19.1 | |||||
Max. Three-phase Unbalanced Output Current（A） | 11.4/10.9 | 13.6/13 | 18.2/17.4 | 22.7/21.7 | 27.3/26.1 | |||||
Max Continuous AC Passthrough (grid to load)（A） | 45 | |||||||||
Rated Input/Output Voltage/Range(V) | 220/380V，230/400V 0.85Un-1.1Un | |||||||||
Grid Connection Form | 3L+N+PE | |||||||||
Rated Input/Output Grid Frequency/Range | 50/45-55, 60/55-65 | |||||||||
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||||||||
Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||||||||
DC Injection Current | <0.5%ln | |||||||||
Efficiency | ||||||||||
Max Efficiency | 97.6% | |||||||||
Euro Efficiency | 97.0% | |||||||||
MPPT Efficiency | ＞99% | |||||||||
Equipment Protection | ||||||||||
DC Polarity Reverse Connection Protection | YES | |||||||||
AC Output Overcurrent Protection | YES | |||||||||
AC Output Overvoltage Protection | YES | |||||||||
AC Output Short Circuit Protection | YES | |||||||||
Thermal Protection | YES | |||||||||
DC Terminal Insulation Impedance Monitoring | YES | |||||||||
DC Component Monitoring | YES | |||||||||
Ground Fault Current Monitoring | YES | |||||||||
Power Network Monitoring | YES | |||||||||
Island Protection Monitoring | YES | |||||||||
Earth Fault Detection | YES | |||||||||
DC Input Switch | YES | |||||||||
Overvoltage Load Drop Protection | YES | |||||||||
Residual Current (RCD) Detection | YES | |||||||||
Surge Protection Level | TYPE II(DC), TYPE II(AC) | |||||||||
Interface | ||||||||||
Communication Interface | RS485/RS232/CAN | |||||||||
Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | |||||||||
General Data | ||||||||||
Operating Temperature Range | -40 to +60℃, >45℃ Derating | |||||||||
Permissible Ambient Humidity | 0-100% | |||||||||
Permissible Altitude | 2000m | |||||||||
Noise | ≤ 55 dB(A) | |||||||||
Ingress Protection(IP) Rating | IP 65 | |||||||||
Inverter Topology | Non-Isolated | |||||||||
Over Voltage Category | OVC II(DC),OVC III(AC) | |||||||||

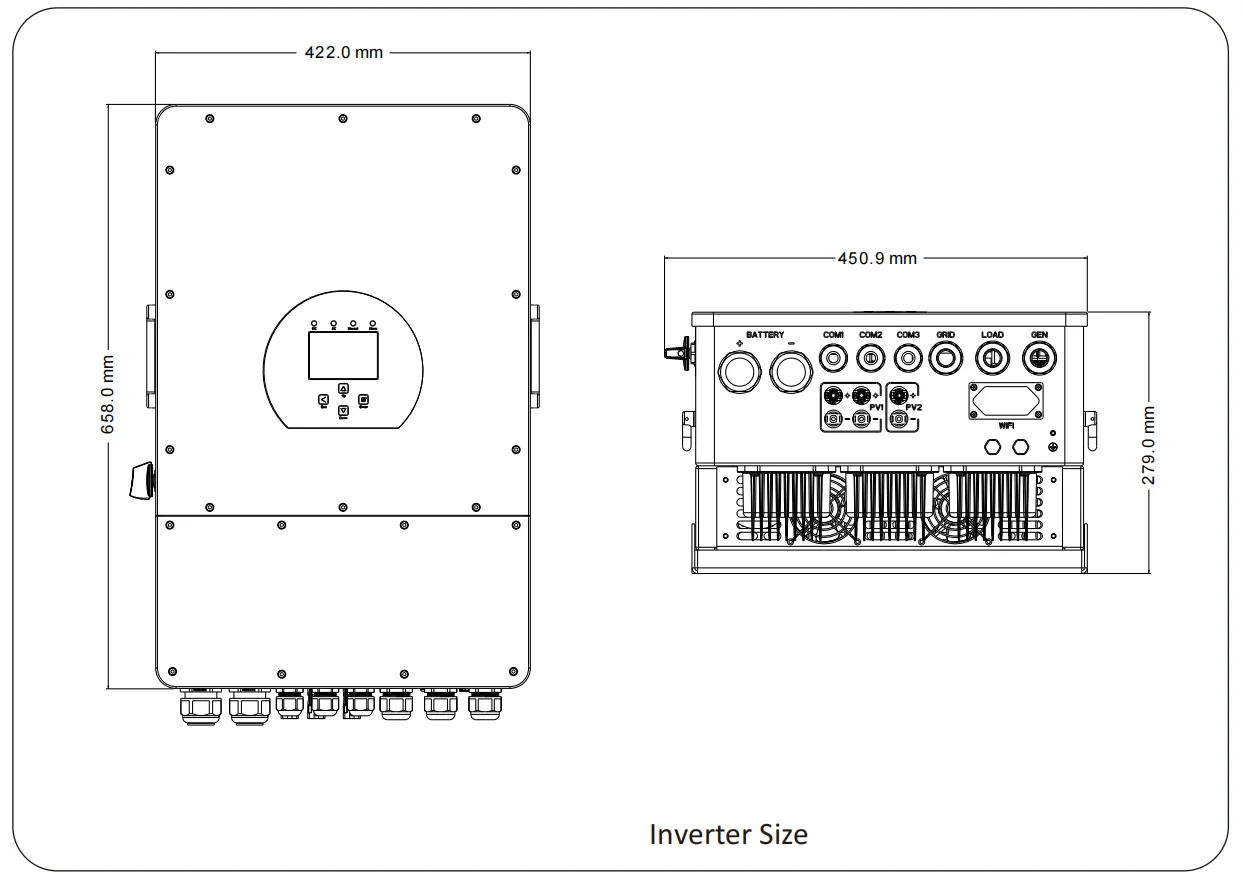

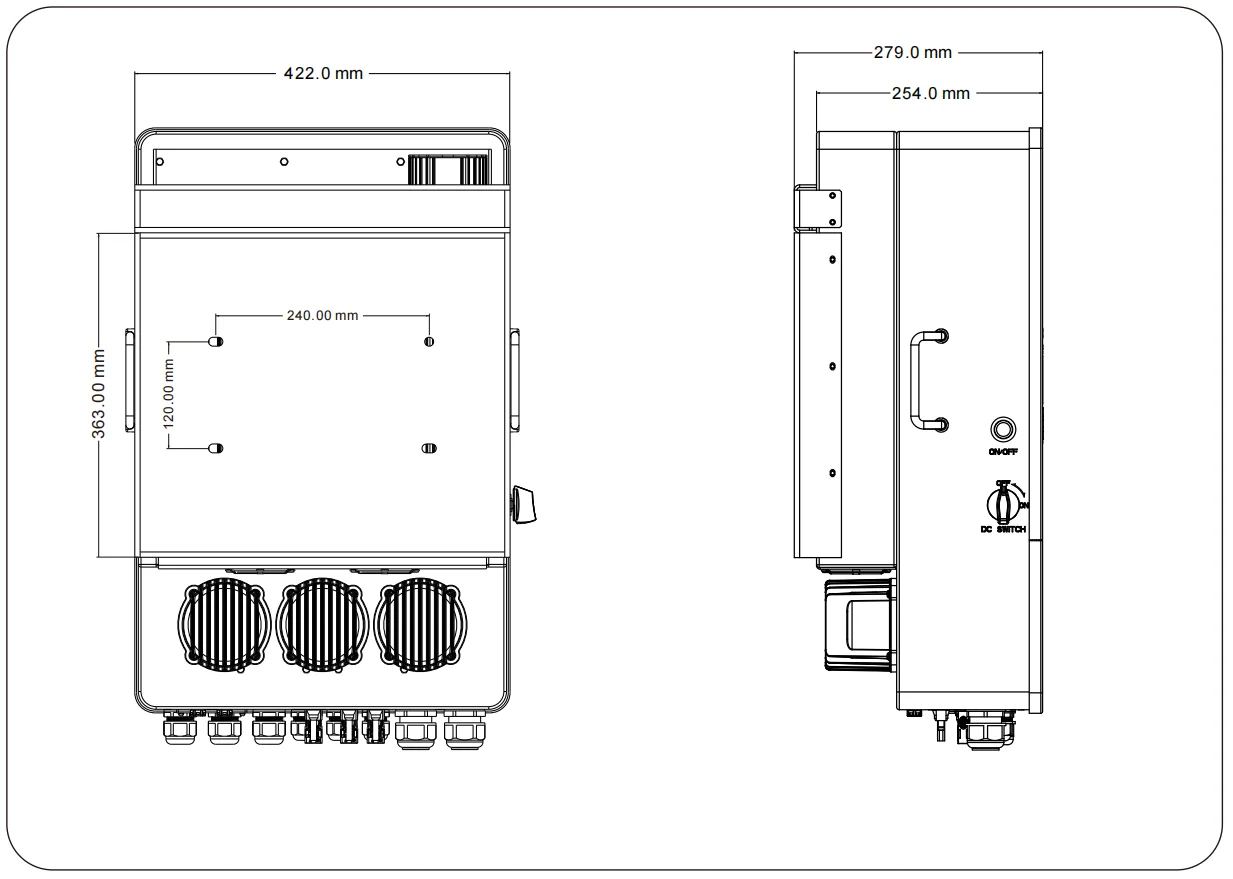

Cabinet size（W*H*D）[mm] | 422×658×254（Excluding connectors and brackets） | |||||||||
Weight[kg] | 38 | |||||||||
Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||||||||
Type Of Cooling | Intelligent air cooling | |||||||||
Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | |||||||||
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||||||

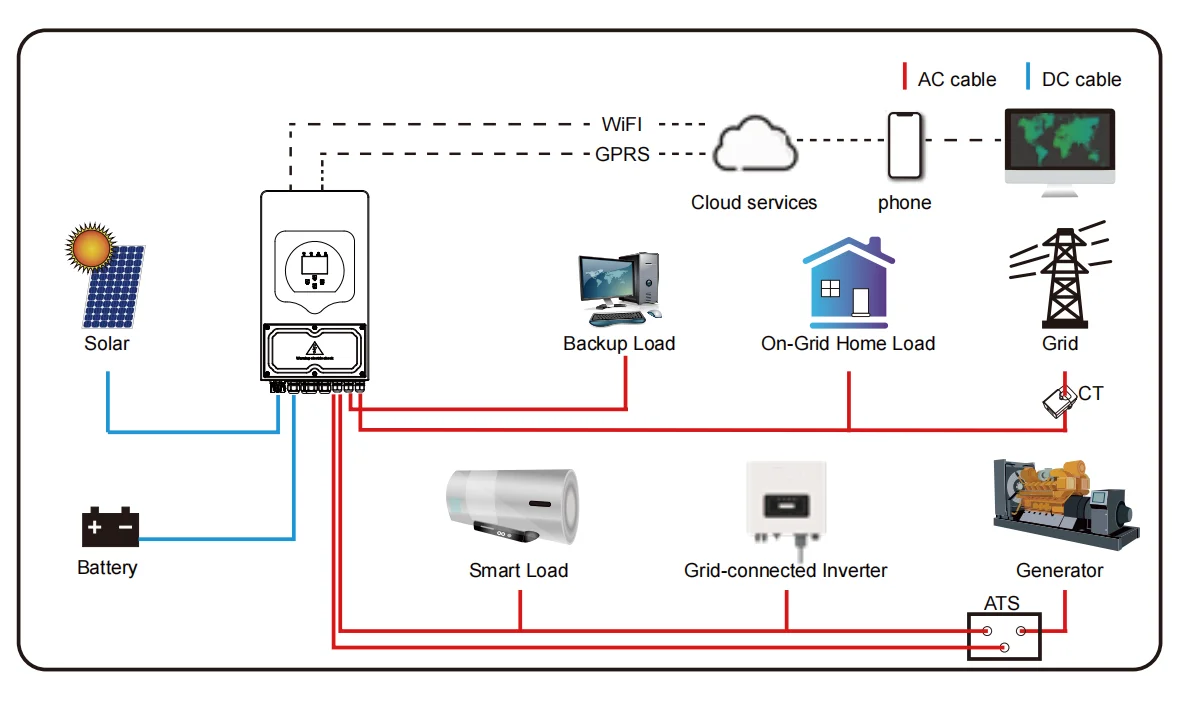

Basic System Architecture

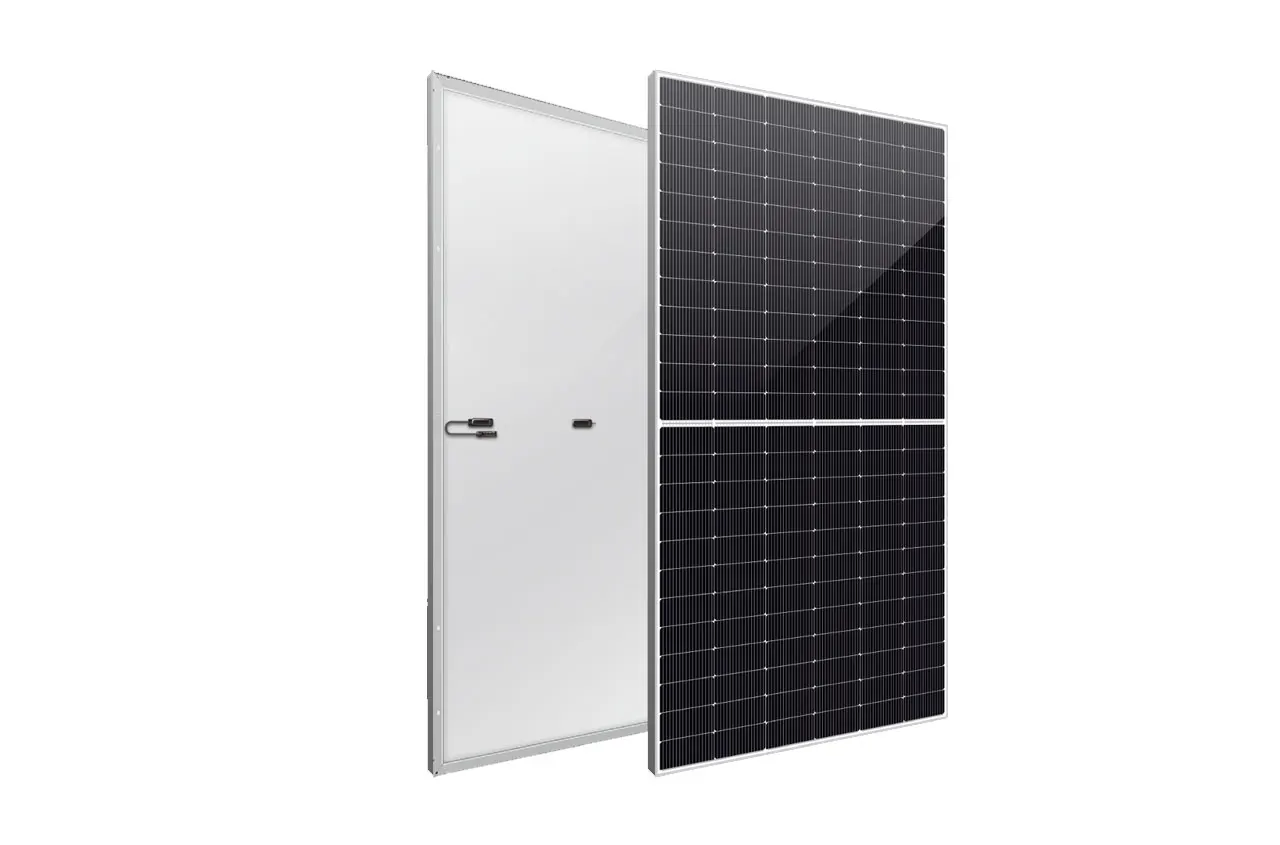

·30-year Linear Performance Warranty
·Higher Output Power
·Less Shading And Lower Resistive Loss
·Better Mechanical Loading
·Lower LCOE
·Higher Output Power
·Less Shading And Lower Resistive Loss
·Better Mechanical Loading
·Lower LCOE

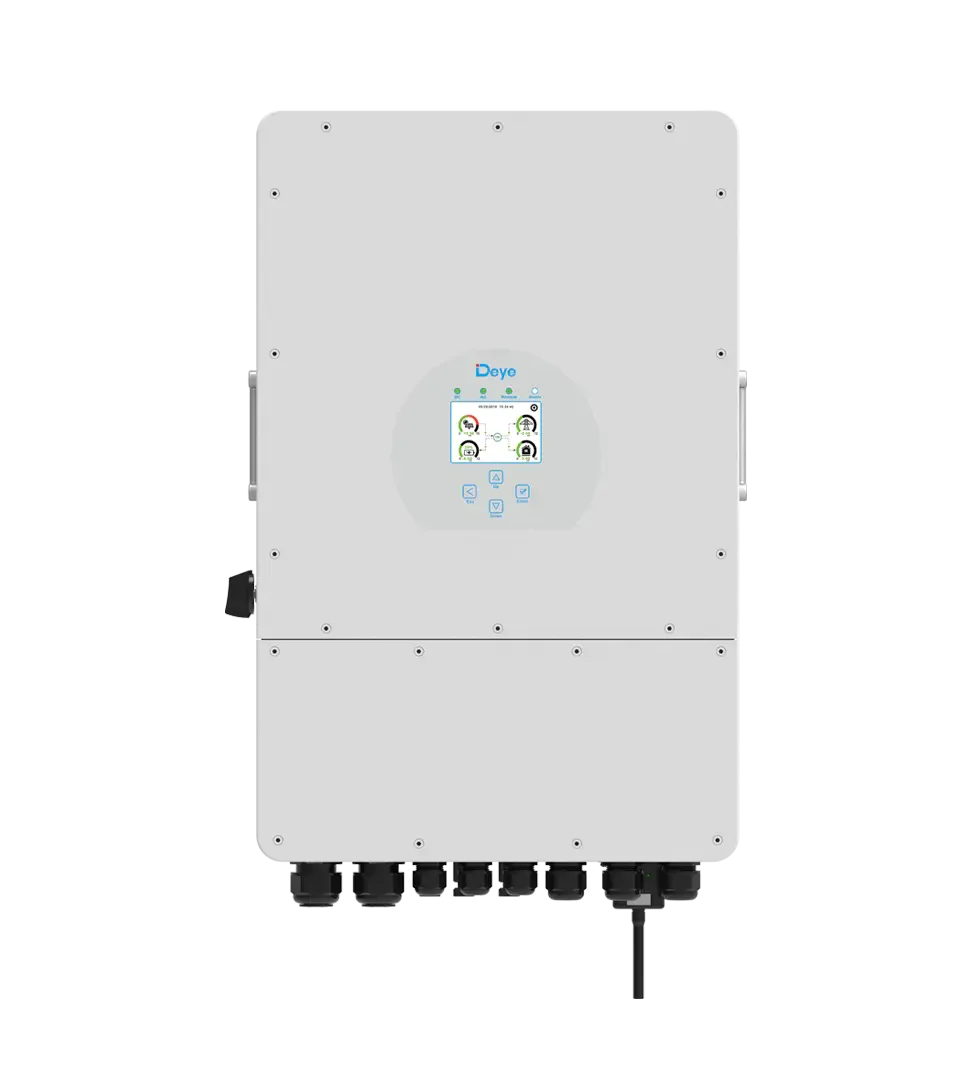

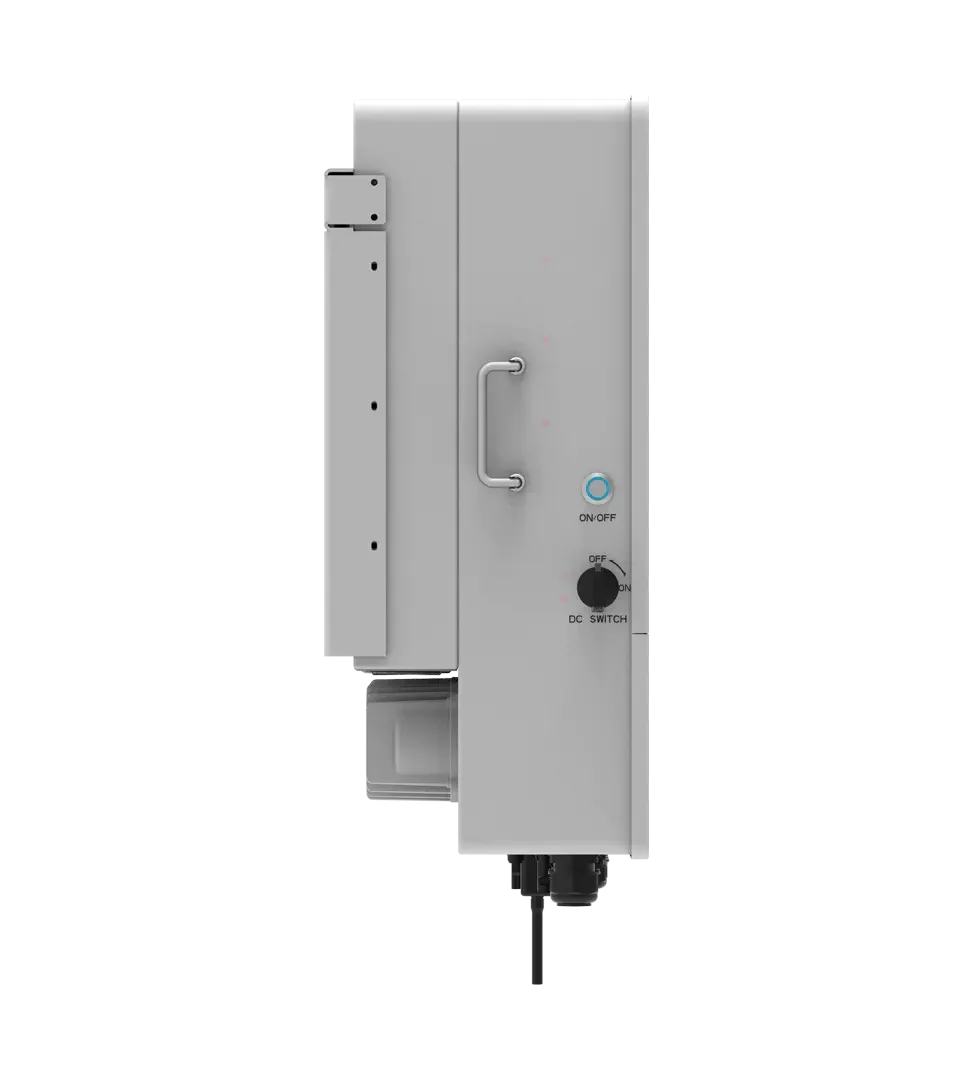

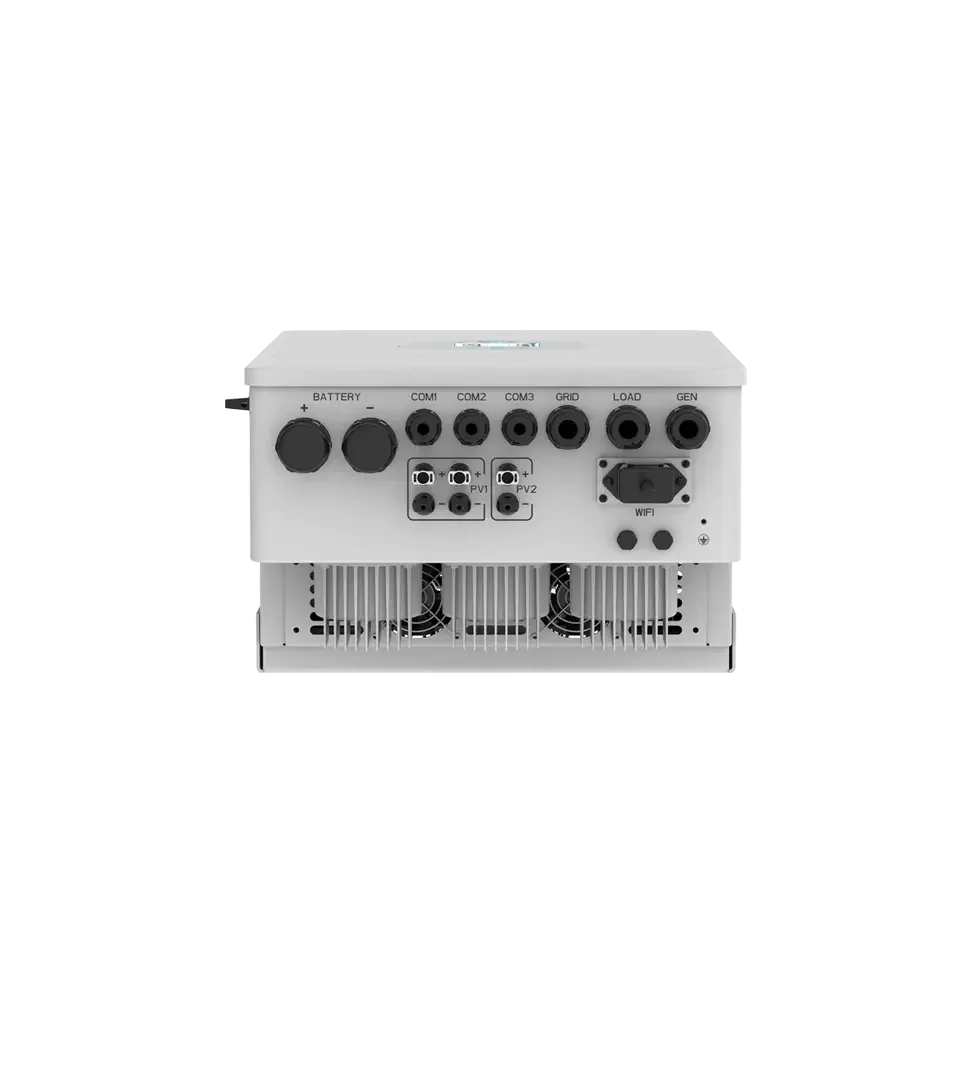

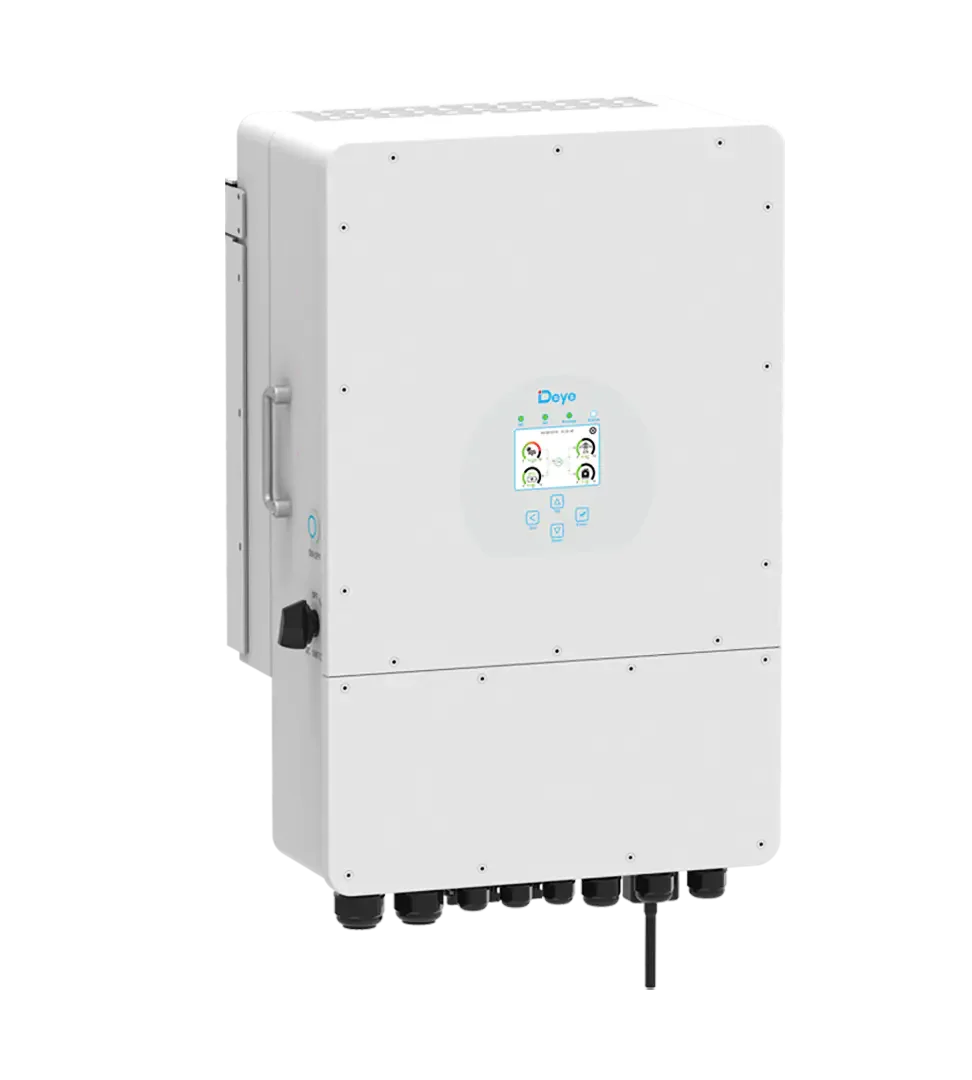

Hybrid Grid Solar Inverter
·Single/Three Phases , 220V-380
·Low voltage battery 48V
·Touch key & OLED display
·Parallel function / Wifi Module
·Compact and light , easy to install

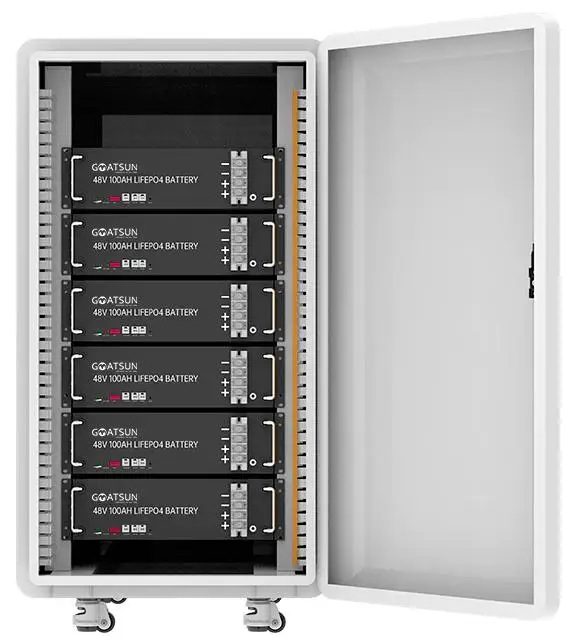

Battery Specification
·Good Stability 、Good Load-Bearing Capacity And Stable Structure
·Flat Surface 、Neat Incision And Assembled Installation·Support Customization According To Needs
·Integrated Services
·Adequate Inventory
·Good Stability 、Good Load-Bearing Capacity And Stable Structure
·Flat Surface 、Neat Incision And Assembled Installation
·Support Customization According To Needs
·Integrated Services
·Adequate Inventory
·Flat Surface 、Neat Incision And Assembled Installation
·Support Customization According To Needs
·Integrated Services
·Adequate Inventory

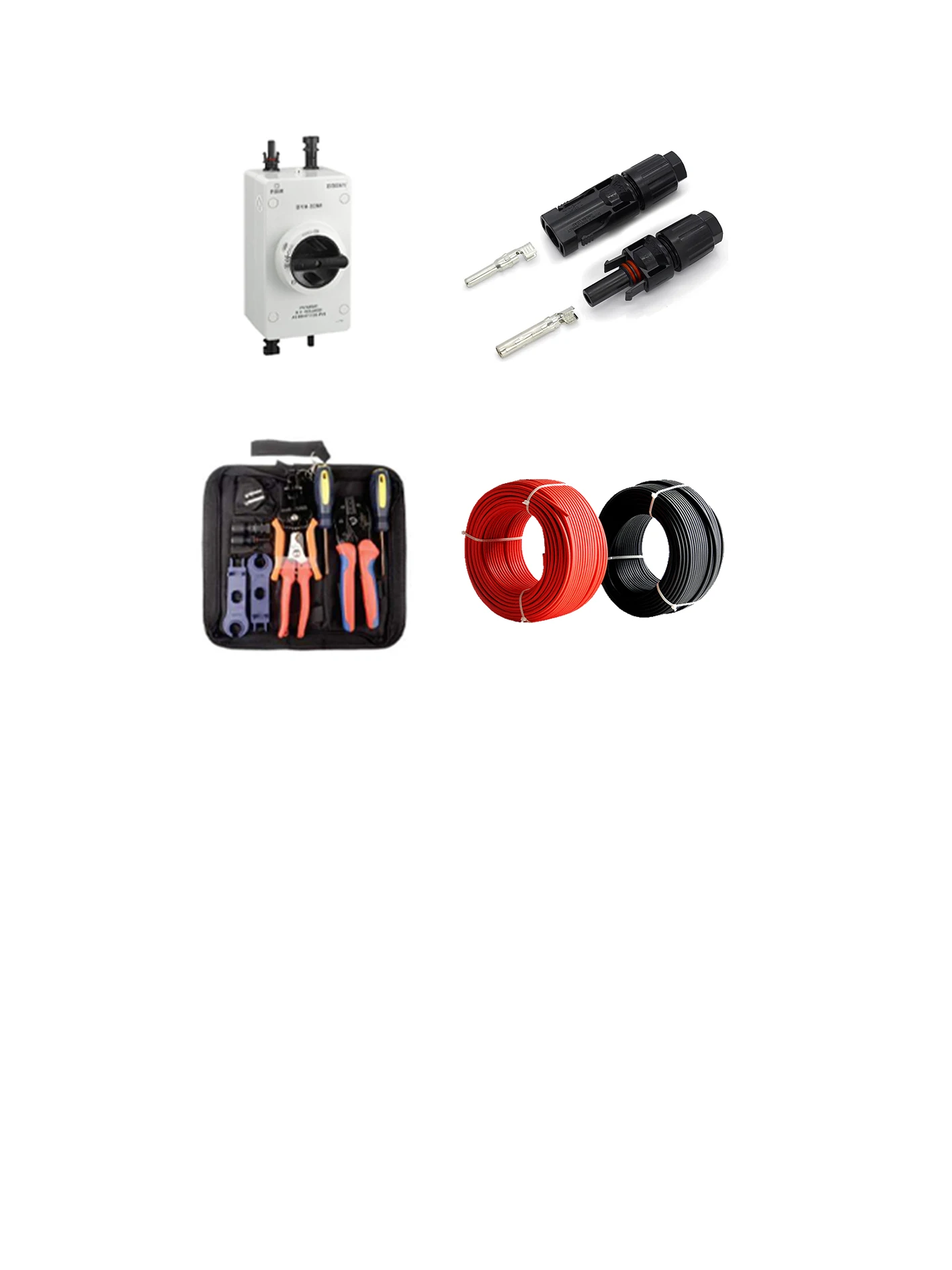

· MC4
· CT & Breaker
· PV Tools
· PV Cable
Product packaging

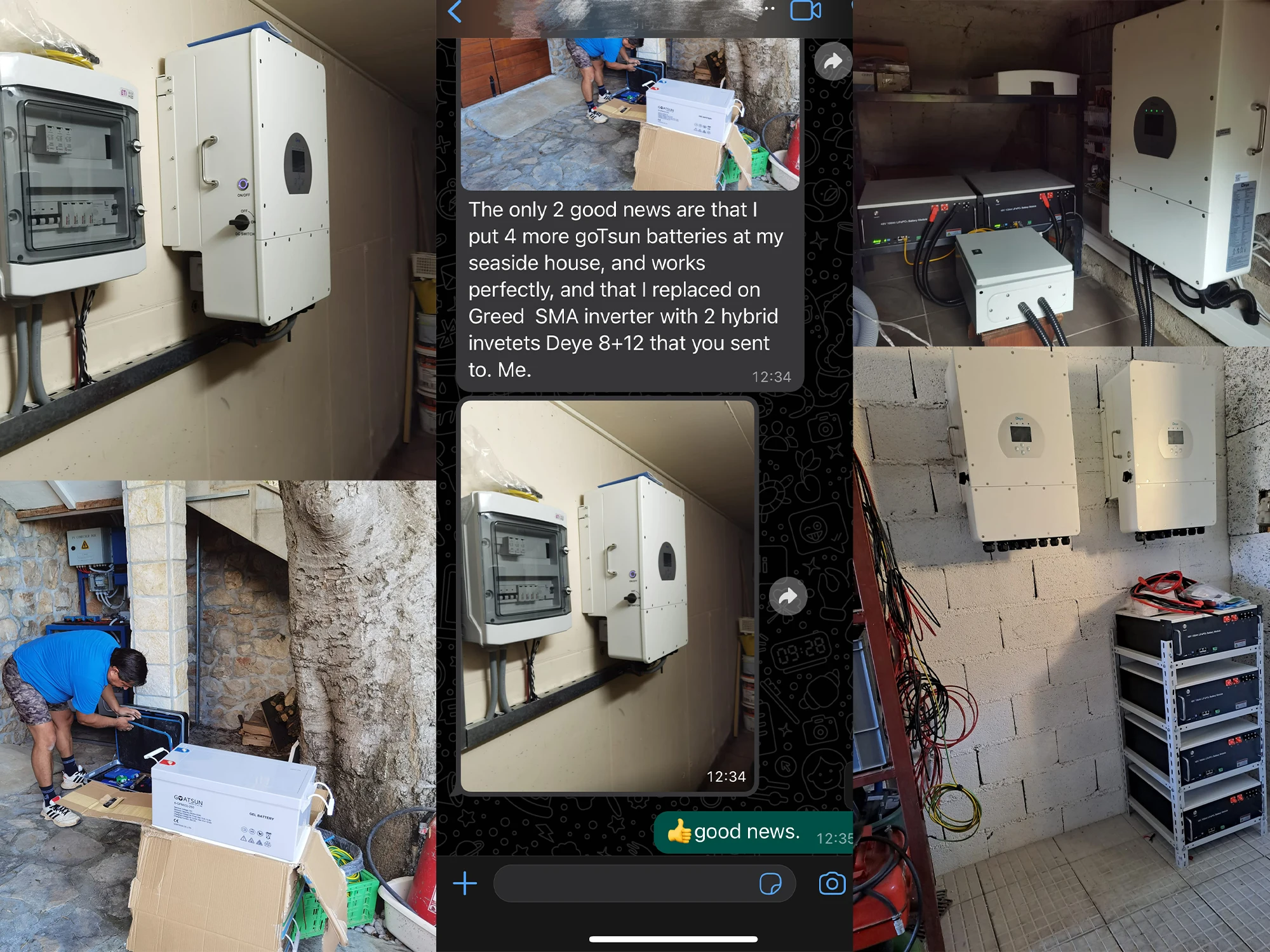

Customer Feedback
