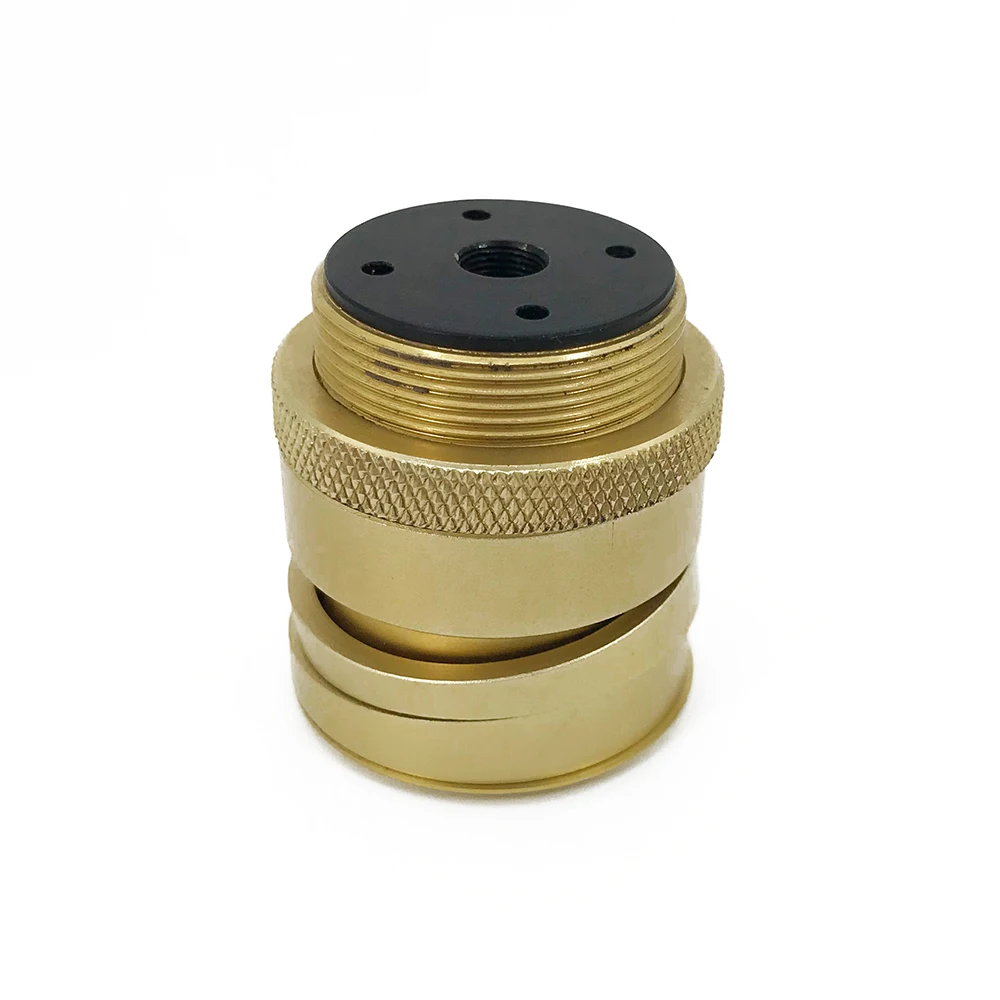

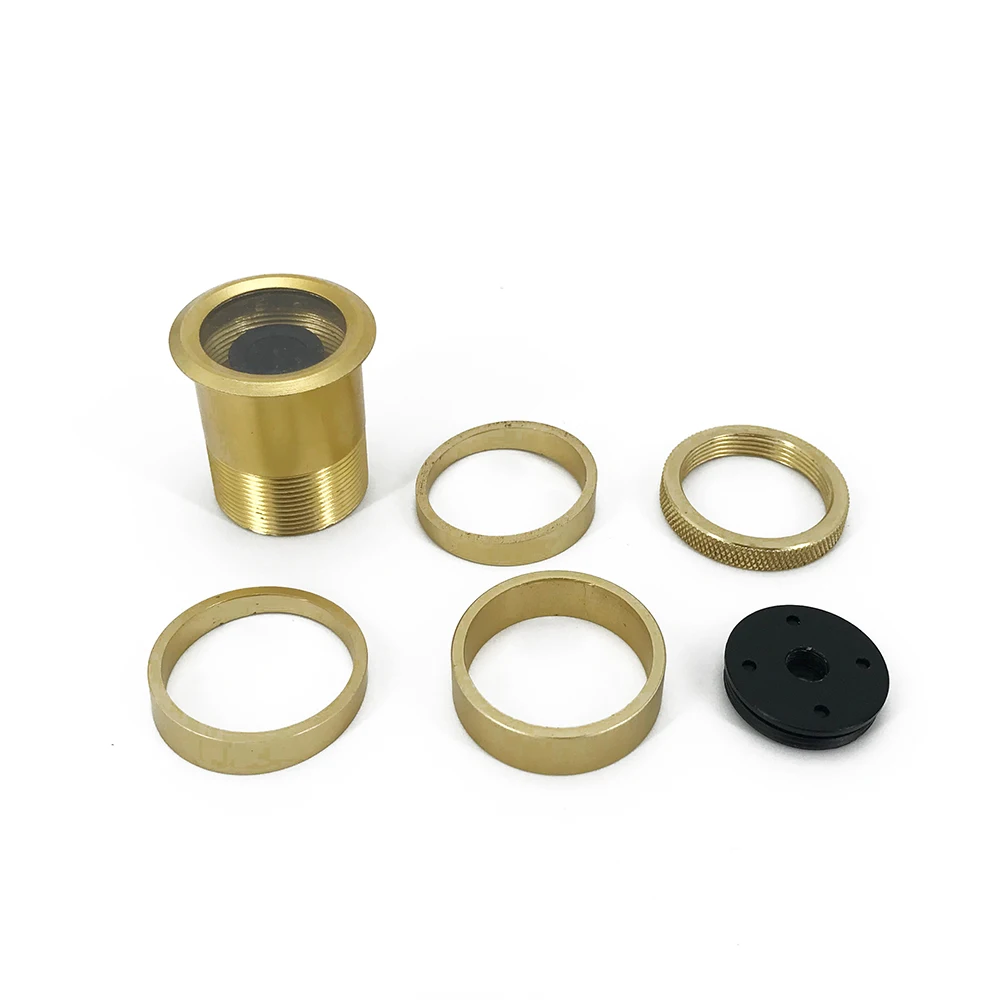

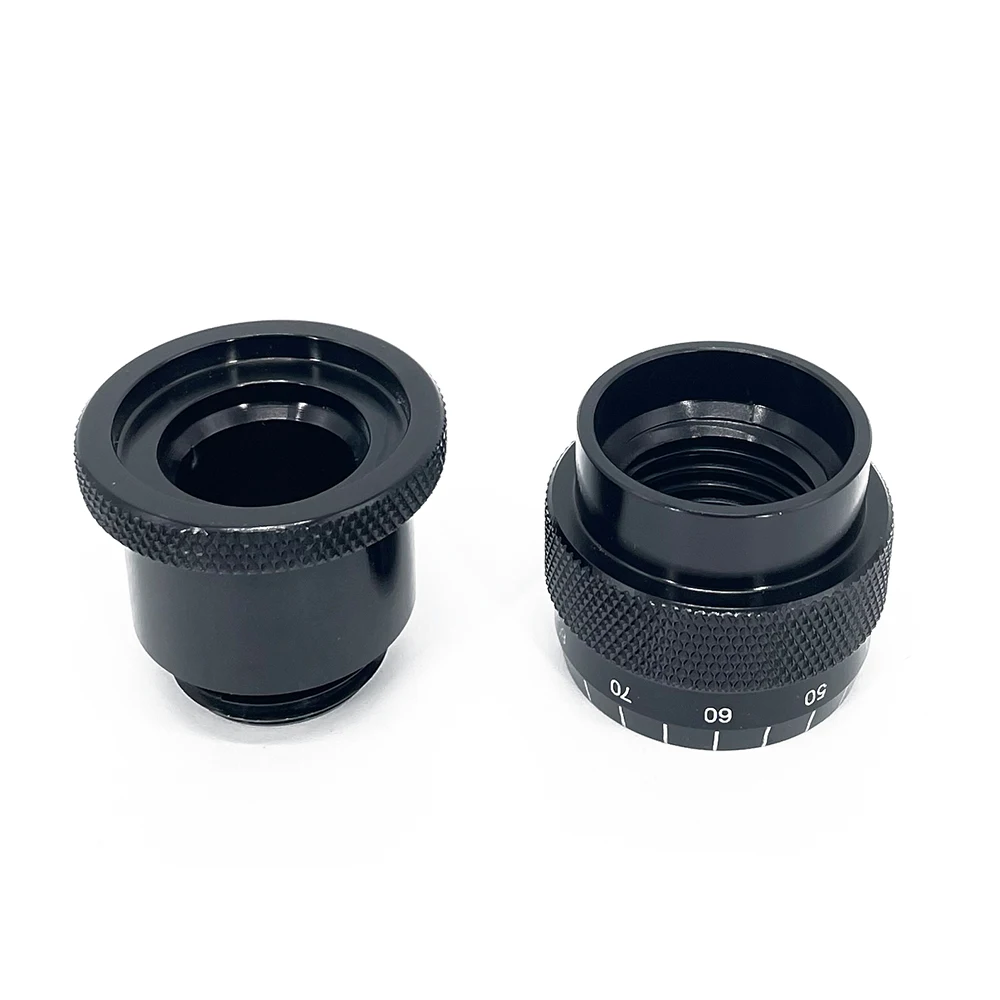

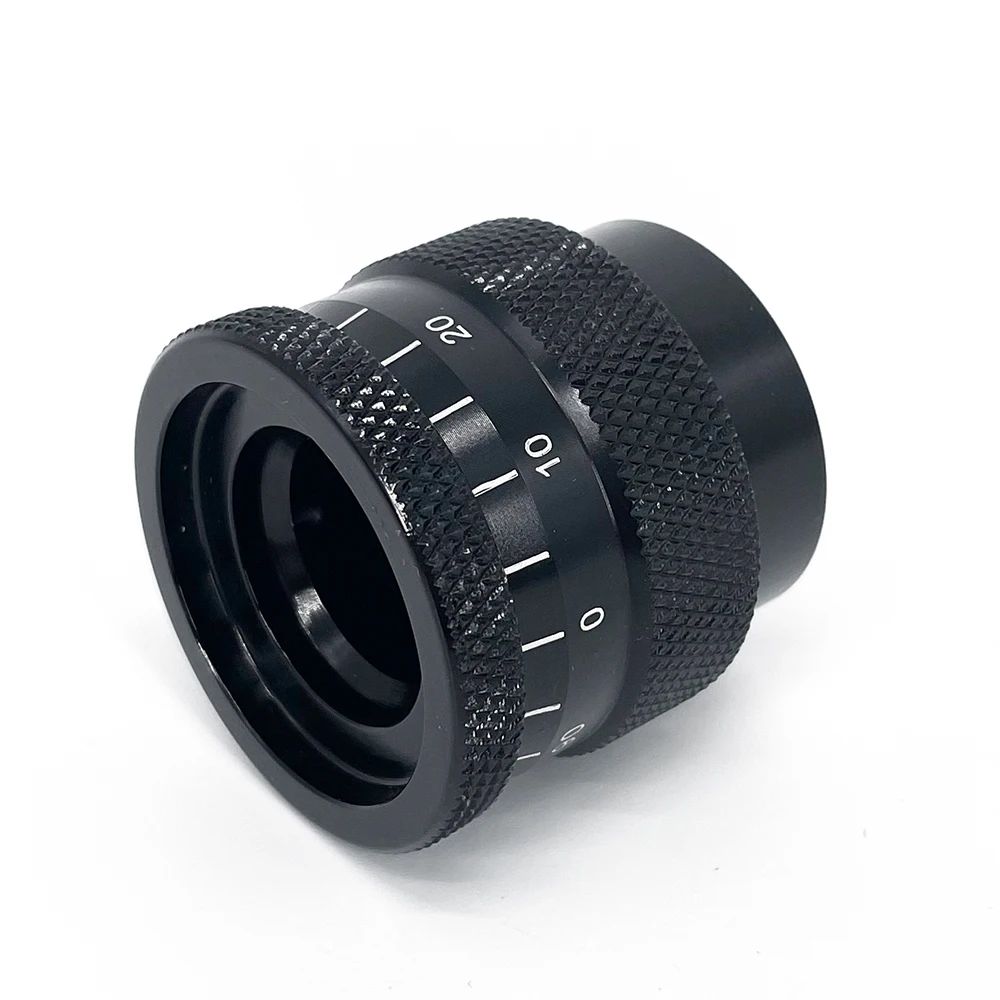

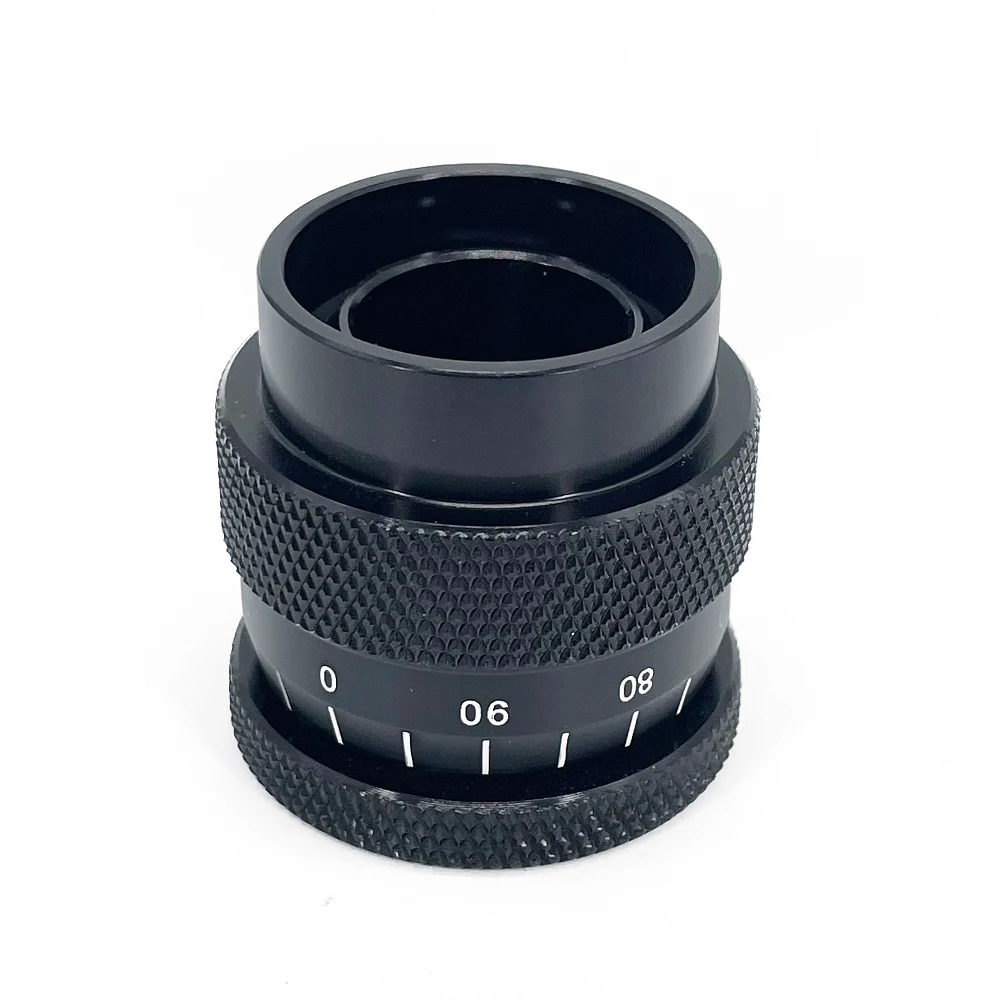

optical lens parts cnc precision custom cnc machining parts for optics

Product Overview

Description

Description of product



Item name	CNC machining
Tolerance	minimum tolerance 0.005mm
Material	Stainless Steel: SS201,SS301,SS303, SS304, SS316, SS416 etc.
	Steel: mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# etc.
	Aluminum: AL6061, Al6063, AL6082, AL7075, AL5052, A380 etc.
	Brass: HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc.
	Copper: C11000,C12000,C12000, C36000 etc.
	Plastic: ABS, PC, PE, POM, Delrin, Nylon,PP, Peek etc.
	Other: Titanium,etc.We handle many other type of materials. Please contact us if your required material is not listed above.
Surface Treatment	Stainless Steel:Polishing, Passivating, Sandblasting, Laser engraving,Oxide black,Electrophoresis black
	Steel: Zinc plating, Oxide black, Nickel plating, Chrome plating, Carburized, Powder Coated, Heat treatment.
	Aluminum:Clear Anodized, Color Anodized, Sandblast Anodized, Chemical   Film,Brushing,Polishing.
	Brass: Nickel plating,chrome plating,Electrophoresis black,Oxide black,Powder coated.
	Plastic:Plating gold (ABS), Painting, Brushing (Acylic), aser engraving.
Drawing Format	jpg/.pdf/.dxf/.dwg/.igs./.stp/x_t. etc
Testing Machine	CMM,Digital Height Gauge, caliper, Coordinate measuring machine, projecter   machine, roughness tester, hardness tester and so on
MOQ	1 piece
Delivery time	10-15 days after placed order
Quality Control	Conducted by ISO9001 System and PPAP Quality control documents
Inspection	IQC, IPQC,FQC,QA
Service	Warm and quick response service provided by the professional  Export Sales Team with many years' experience in handling exports to the US,   Europe, Japan and other countries and regions.





Product details

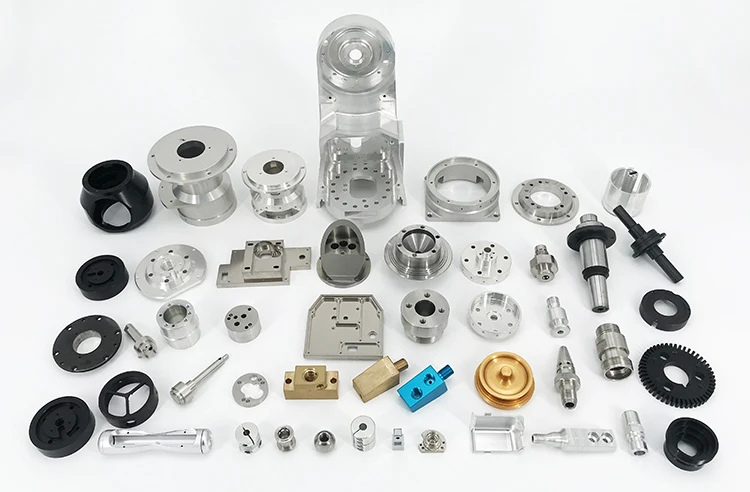

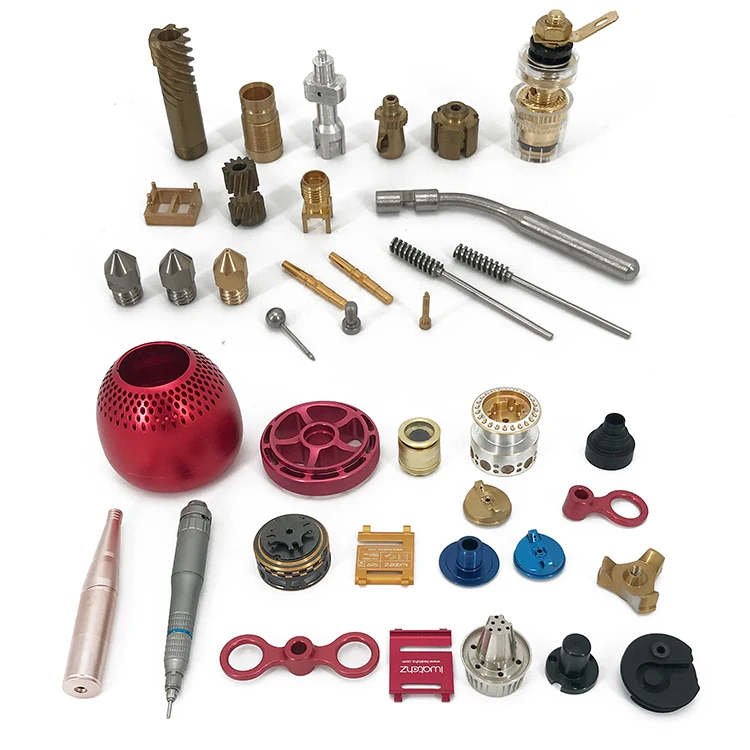

CNC Machining Service

We use advanced equipment to offer you a variety of CNC machining services including milling, turning, EDM and wire EDM, surface grinding and much more. One-stop shop for all your machining projects. CNC rapid prototyping is used to create plastic prototypes and metal prototypes.Using our imported CNC machining centers, our skilled machinists can make turned and milled parts using a wide range of plastic and metal materials. Whether you require a one off model for fit and function, a small batch run for marketing and testing or low volume production QC Mold has the solution for you. Machining metal&plastic parts over 50+ materials, parts in as fast as 3 days. Send 2d/3d files for fast free quote!

We offers metal CNC machining that meets any complex design specifications at a very reasonable cost. It encompasses turning, milling, drilling and tapping for a variety of metal materials. Secondary operations are viable like anodizing, painting, polishing, powder coating, sand blasting and heat treatment.









Our Advantage



1.We promise:All the parts from our company have no sharp edge. All dimensions are controlled according to your drawings. Every product will be fully inspected and carefully packed to prevent the bump and rust in transit.
2. The craftsmanship of all parts we machined is controlled rigorously, Every product has its own process card and process chart.
3. Our quality inspection procedure is quite strict.it must self-inspected during production, we have flow inspectors and professional inspectors.
4. Each size of product must be tested one by one after completing production and provide quality report.

5.We have many years of export experience,exports to the US,Europe, Japan and other countries and regions.

6.Our team are more professional. We have more reasonable price and better quality controlling than trade company. And our language ability is also diversified.

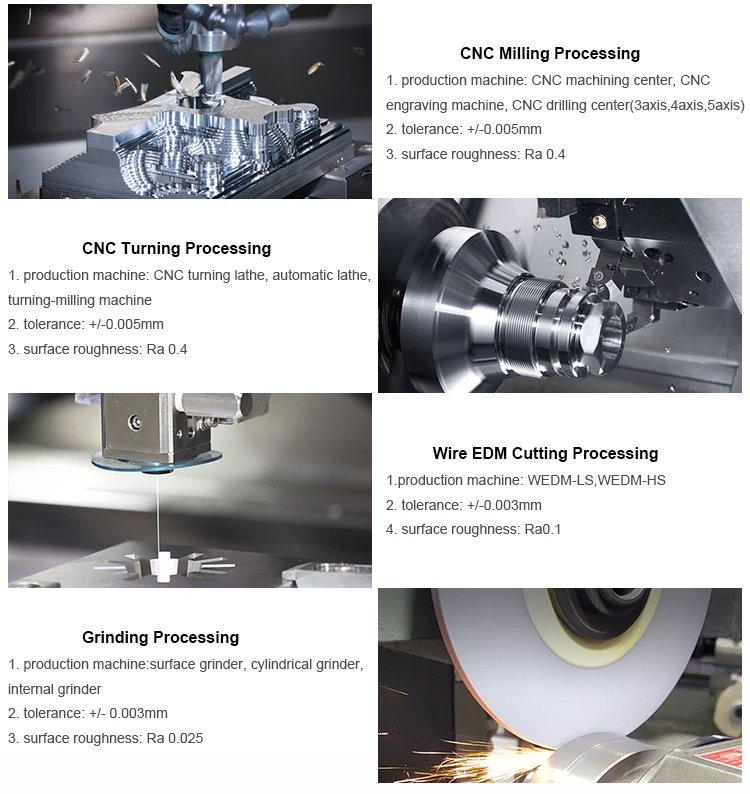

Production Process





About Us



Foshan Mogel Hardware & Plastic Co., Ltd. was founded initially as a Plastic injection molding and tooling fabrication plant from 2006, afterwards growing quickly and set up Mogel Industry Limited in HK, we have several divisions,focusing on turnkey solutions inclusive of the CNC machining, Punching, Stamping and assembly , Based on our extensive experience and deep understanding of mechanical and plastic components manufacturing,and now become a growing innovative mechanical , plastic components engineering design and manufacturing company.     Mogel group is proud to offer a comprehensive suite of compact and cost-effective products to our partners, monitoring and maintenance operations with the utmost in quality. Our factory are engaged in mechanical and plastic components manufacturing  over 10 years with our goal to leverage on our synergetic capability to add value to our customer and grow the business together.

 Strict inspection we do during operation

1. Experienced QC testers to check the products dimension, surface and performance according to drawings specification.


2. Experienced IQC to check the dimensions and surface of the incoming material.


3. Experienced PQC to inspect full-course during the processing.


4. Experienced FQC to inspect all the plating products from outsides and make the 100% inspection before the shipments.

       Quality sample will be provided for your testing before production according to ISO 9001: 2008.
       We are pleased to service you with excellent quality, reasonable cost and grow withyou together.

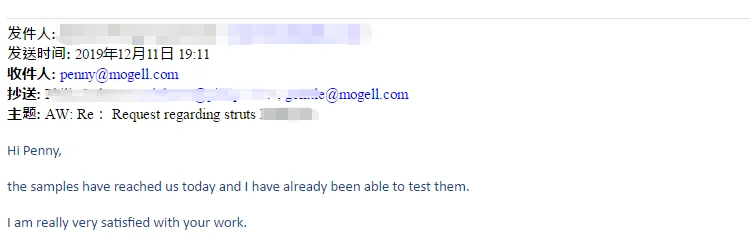

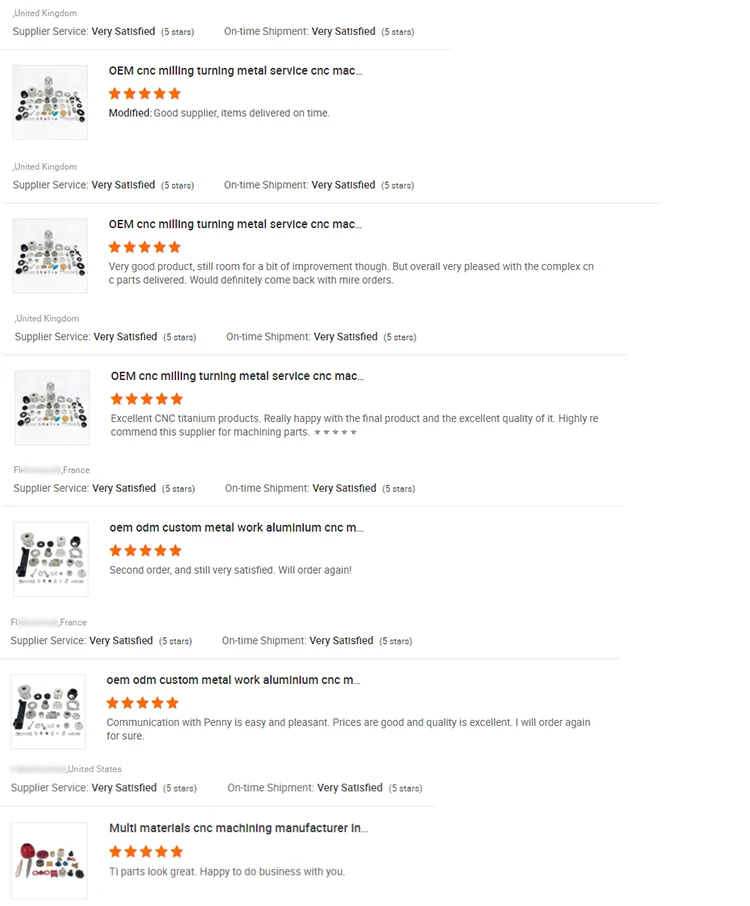

Customer feedback:









FAQ



Q1.How to have my components quoted ?
A1: Please contact us via TradeManager or Email and send us your drawings inclusive of 2D and 3D (.STEP or .IGE file) and detail requirements. We are pleased to sign NDA with you if you prefer. Then our engineering team will work on them and submit competitive quotation to you.



Q2.What is the lead time for tooling and samples fabrication?
A2: The exact lead time depends on your parts specification.

The normal lead time is 40*45 days for tooling fabrication and samples.
If the tooling is not required, the lead time for samples is 15 days normally.

Q3.Can I have prototypes for testing before tooling ?
A3: Yes, our factory have team to support prototypes with machining process to fabricate them for your testing.

Q4.How to ship the samples and production order ?
A4: We will normally ship samples via DHL, UPS or FedEX via our cooperated forwarder or freight collect. For the shipping of production order, it will be by sea or by air

Q5.How to ensure the quality of parts?
A5: Firstly, our team will inspect all incoming material. QC team will inspect parts while production and finished products, then submit Quality Inspection Report together with samples and production order.
