Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00

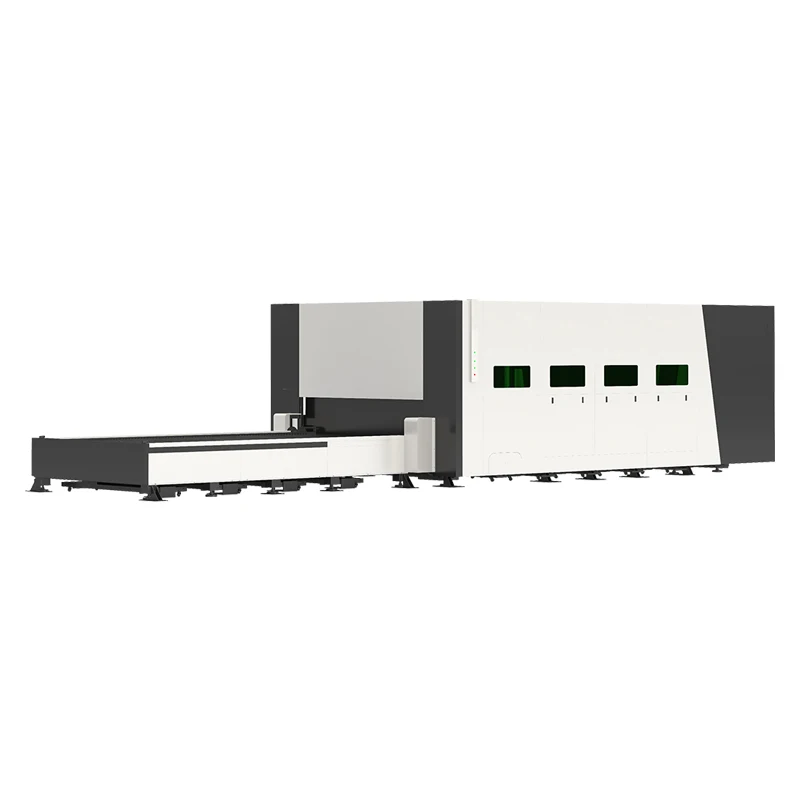

6kw 12kw 20kw high Powerful Popular sale Raycus Laser Source enclosed cover fiber laser cutting machine with exchange platform
- Category: >>>
- Supplier: Razortek CNC Co. Ltd.
Share on (1601168738355):
Product Overview
Description
Products Description

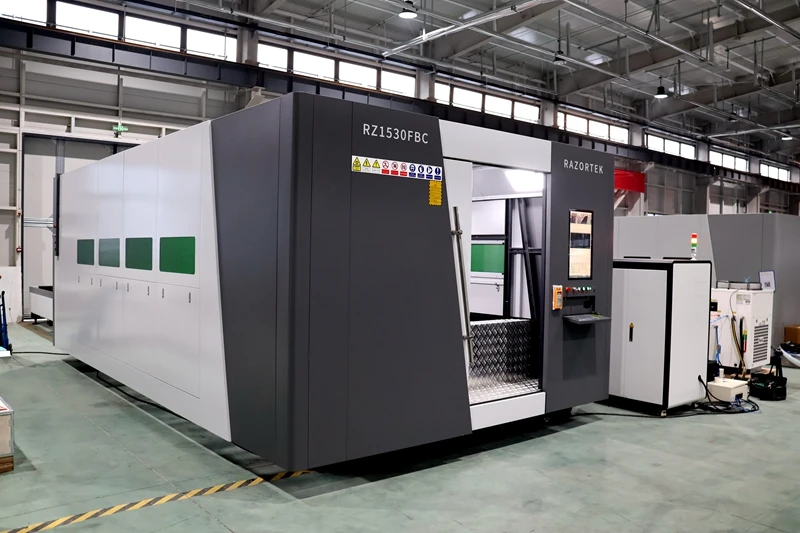

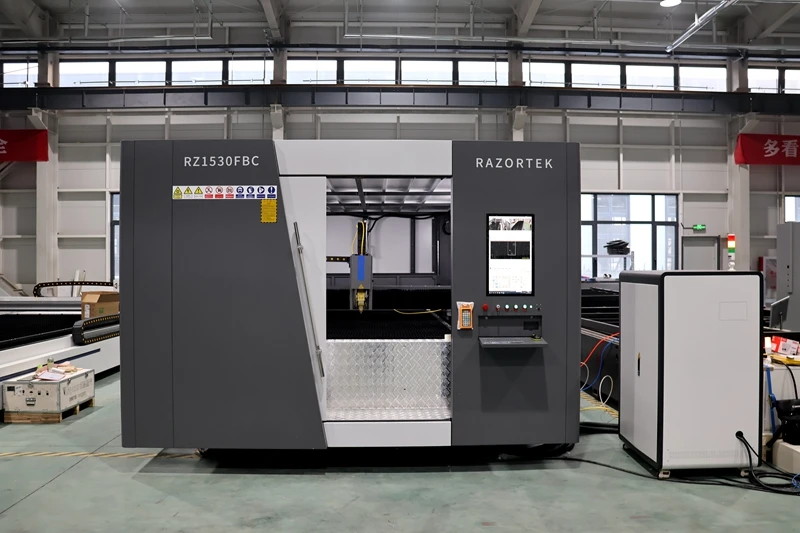

Model | RZ1530FBC |
Working area | 1500*3000mm |
Laser medium | Fiber laser |
Transmitting way | XY axis transmitting by Korea grinding rack with Shimpo flange reducer, Z axis transmitting by grinding rolling ball screw |
Laser source | Raycus/MAX/ IPG |
Cover structure | All covered with anti-fire material |
Min. Route Width | 0.1mm |
Reposition Accuracy | ± 0.05mm |
X axis max speed | 65m/min |
Y axis max speed | 70m/min |
Z axis max speed | 30m/min |
Cooling Way | Water Cooling |
Power Requirements | 380v/220V, 50/60Hz, 3phase |
Continuous Working Time | 24Hours |
Operating temperature | 25~28C° |
Product Advantages
1.Adopt industrial heavy-duty machine body with firm structure, treated by CNC high-temperature tempering and stress-relieving, ensuring no deformation after long-term use, suitable for high-powered laser source operation
2. The whole processing by CNC large-scale pentahedron machining center, including milling, drilling, tapping and other processes, can effectively improve the assembly accuracy of the machine body, and ensure the running progress and stability of the equipment.
5.XY axis is equipped with Japan Shimpo flange reducer, which is faster and more stable at high speed.
9.Adopting auto-focusing cutting head, quick response and high positioning accuracy
10.The whole intelligent pneumatic system adopts Japanese SMC complete sets, including proportional valves, electronagentic walves, one-way valves, etc.
11.Equipped with large enclosed structure with integral fireproof steel material; having high safety level graphite platform in the processing area
12.Equipped with a partitioned smoke exhaust system to automatically switch the smoke exhaust district for better smoke evacuation
13.Equipped with high-speed and high-efficiency automatic material exchanging device in variable frequency drive, and is equipped with chain protection device
14. Optical fiber transmission, flexible processing, realizing equal quality cutting at any point.
2. The whole processing by CNC large-scale pentahedron machining center, including milling, drilling, tapping and other processes, can effectively improve the assembly accuracy of the machine body, and ensure the running progress and stability of the equipment.
3.Three axis adopts Japan THK high-precision linear square guide rail to ensure smooth operation, having the features of wear-resistant and dust-proof, and is equipped with automatic oil lubrication system.
4. XY axis adopts Korea Leadrack high-precision grinding rack, Z-axis is equipped with high-precision grinding screw. The grinding gear and grinding screw ensure higher precision of the equipment.
4. XY axis adopts Korea Leadrack high-precision grinding rack, Z-axis is equipped with high-precision grinding screw. The grinding gear and grinding screw ensure higher precision of the equipment.
5.XY axis is equipped with Japan Shimpo flange reducer, which is faster and more stable at high speed.
6.Using CYPCUT industrial optical fiber cutting system, supporting auto focus, material exchanging platform, scanning cutting,automatic edge cutting, etc.
7.Dual-screen display, self-contained monitoring device, could conduct in-time monitoring for working platform and switching platform; also have the function of warning protection
8.XY axis Japanese AC servo drive system, X-axis 1.3KW, Y-axis 2.9KW (dual drive transmission), Z-axis 750W, strong torque, higher performance
7.Dual-screen display, self-contained monitoring device, could conduct in-time monitoring for working platform and switching platform; also have the function of warning protection
8.XY axis Japanese AC servo drive system, X-axis 1.3KW, Y-axis 2.9KW (dual drive transmission), Z-axis 750W, strong torque, higher performance
9.Adopting auto-focusing cutting head, quick response and high positioning accuracy
10.The whole intelligent pneumatic system adopts Japanese SMC complete sets, including proportional valves, electronagentic walves, one-way valves, etc.
11.Equipped with large enclosed structure with integral fireproof steel material; having high safety level graphite platform in the processing area
12.Equipped with a partitioned smoke exhaust system to automatically switch the smoke exhaust district for better smoke evacuation
13.Equipped with high-speed and high-efficiency automatic material exchanging device in variable frequency drive, and is equipped with chain protection device
14. Optical fiber transmission, flexible processing, realizing equal quality cutting at any point.
Detail photos
Raycus laser generator

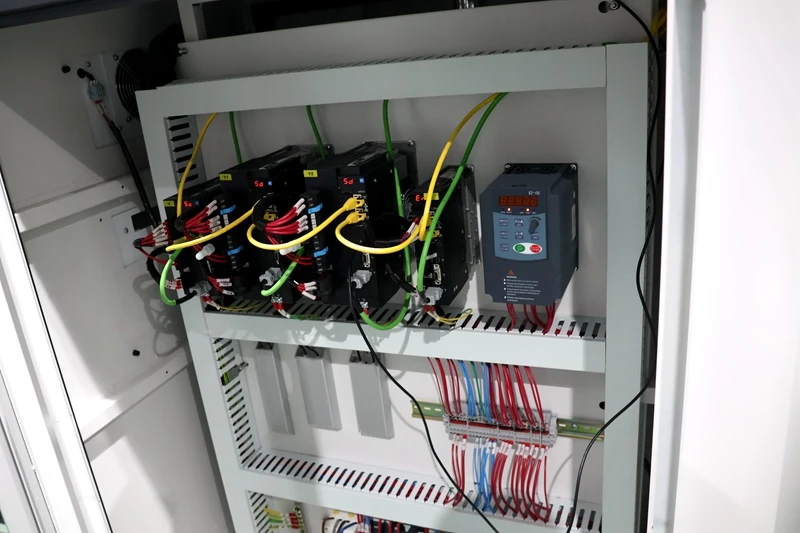

Intelligent servo driver
Intelligent alarm laser head
Remote control

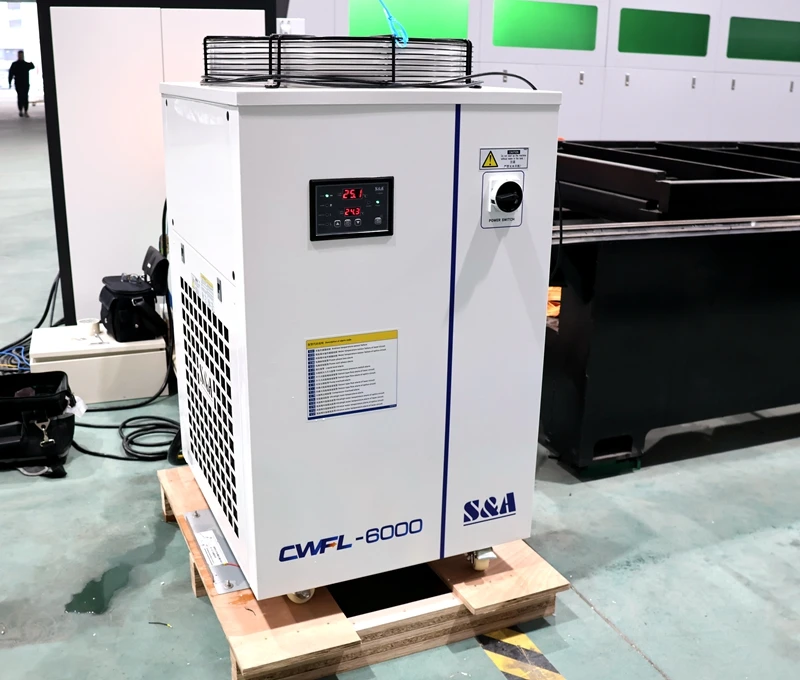

Industrial water chiller

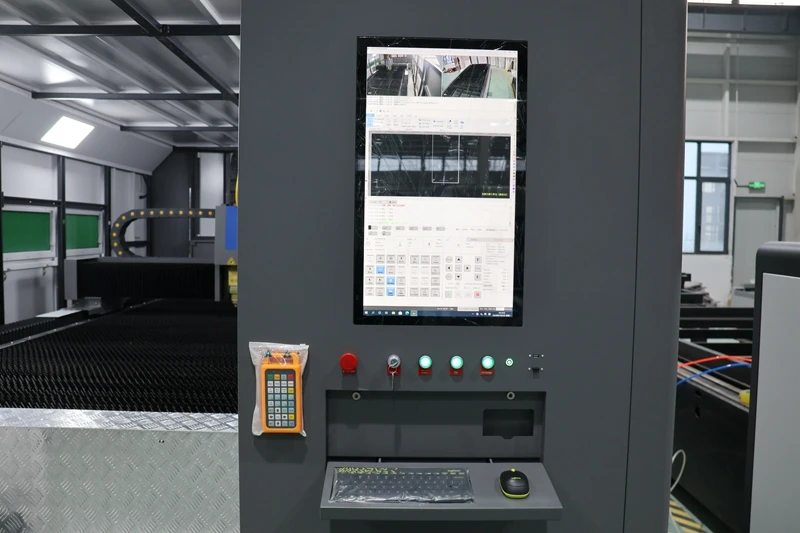

PC with display
Dust cover and metal armor

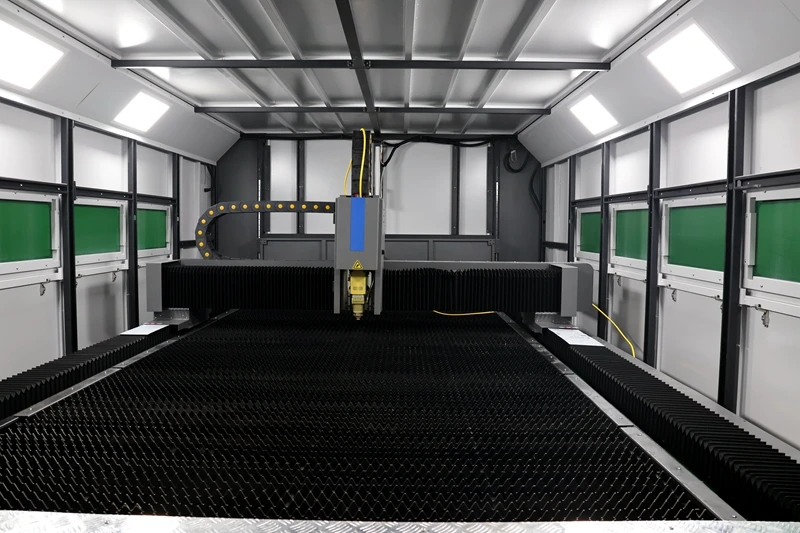

Thickened saw table
Automatic dust door
Intelligent proportional valve
Rear platform surveillance camera
Automatic oil Lubrication

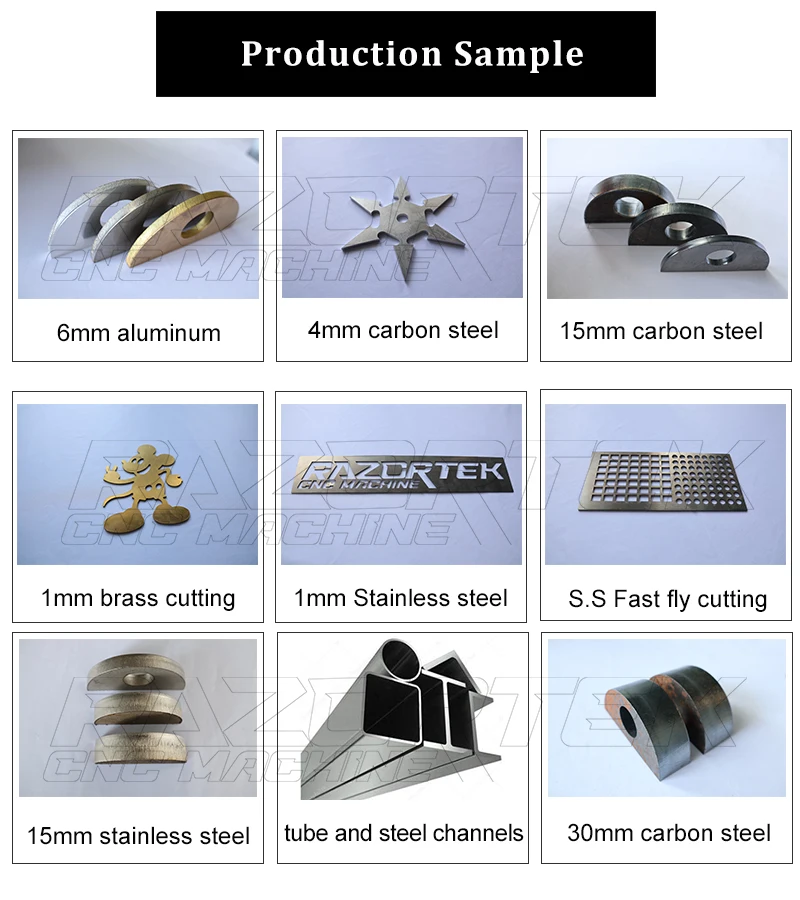

Sample Show
Cutting materials: It can cut all kinds of metal plates and pipes, mainly used for rapid cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy plates, rare metals and other materials.
Applicable industry: advertising decoration, kitchen appliances, mechanical equipment, electrical equipment, lighting hardware,advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and other industries
Applicable industry: advertising decoration, kitchen appliances, mechanical equipment, electrical equipment, lighting hardware,advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and other industries

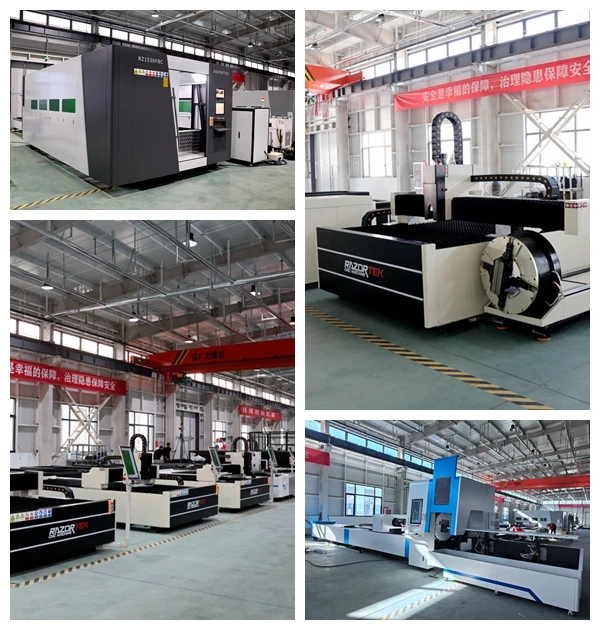

Company Profile
RAZORTEK has been engaged in laser machine business since July 2014 and is a professional manufacturer located in Jinan, Shandong Province. The company has been committed to the research and manufacturing of laser cutting machines, laser welding machines, and laser cleaning machines. All machines have passed the EU CE certification and the US FDA certification. CNC equipment is exported to most countries in the world, including over 70 countries and regions in Europe, America, Asia, Oceania, etc., and we provide OEM services for our cooperative agents.

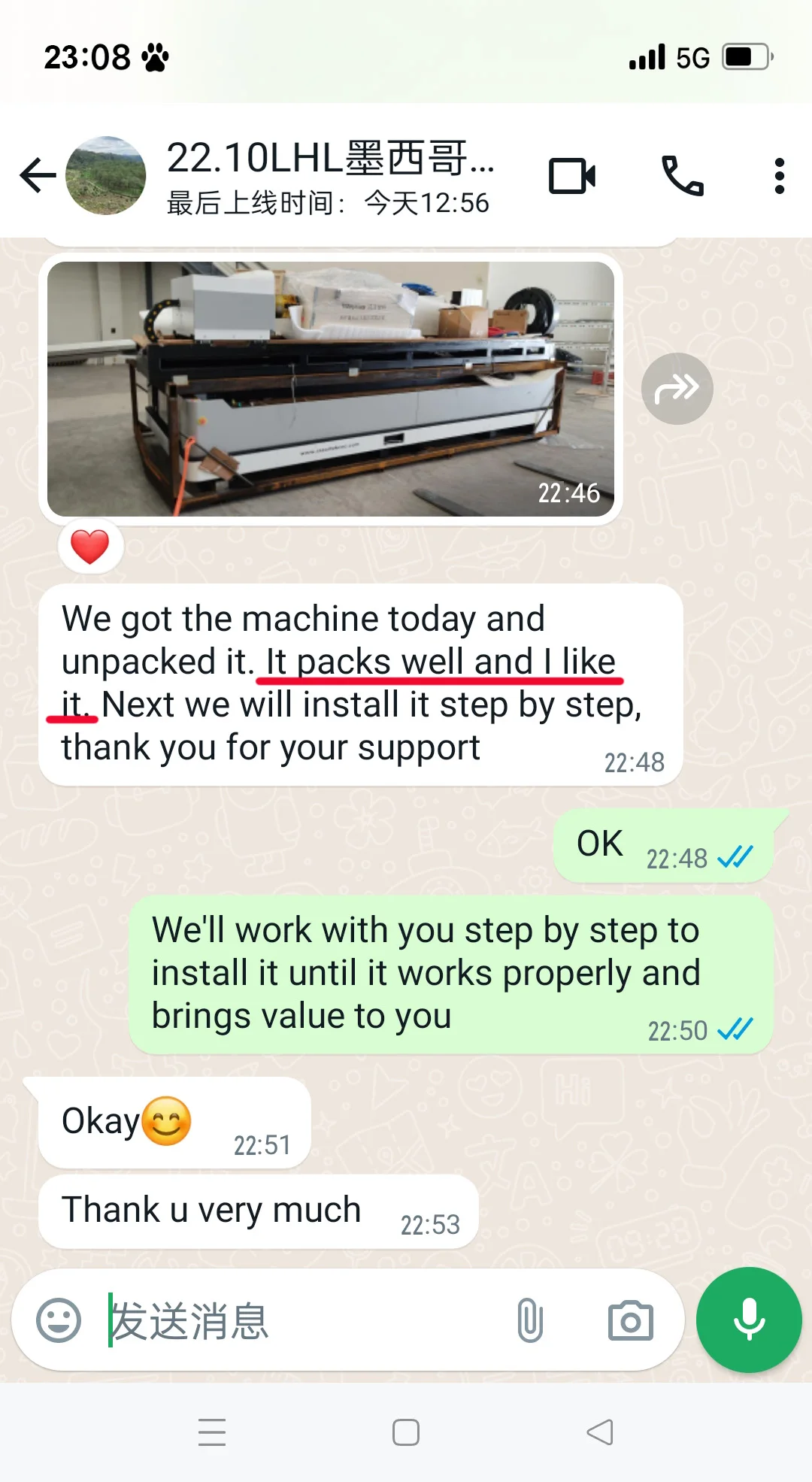

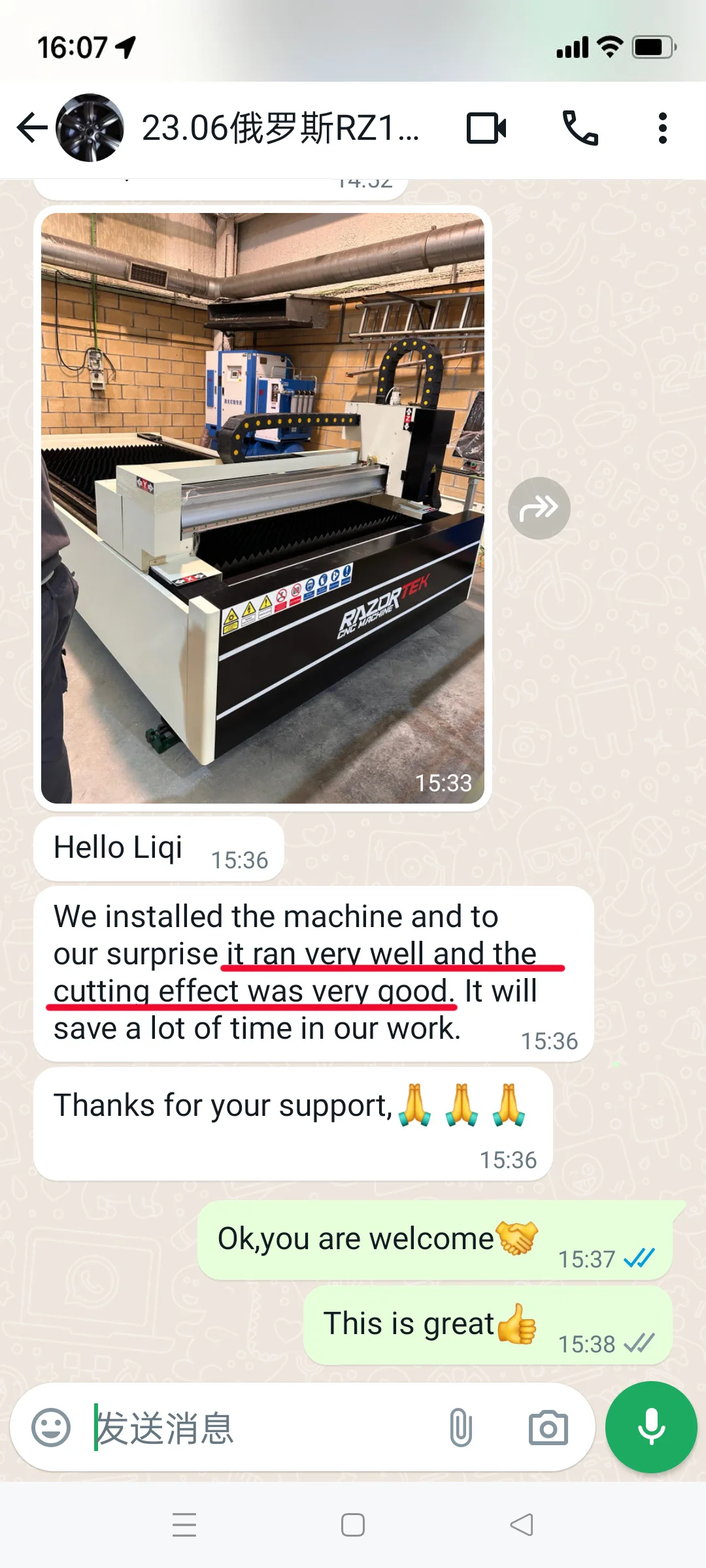

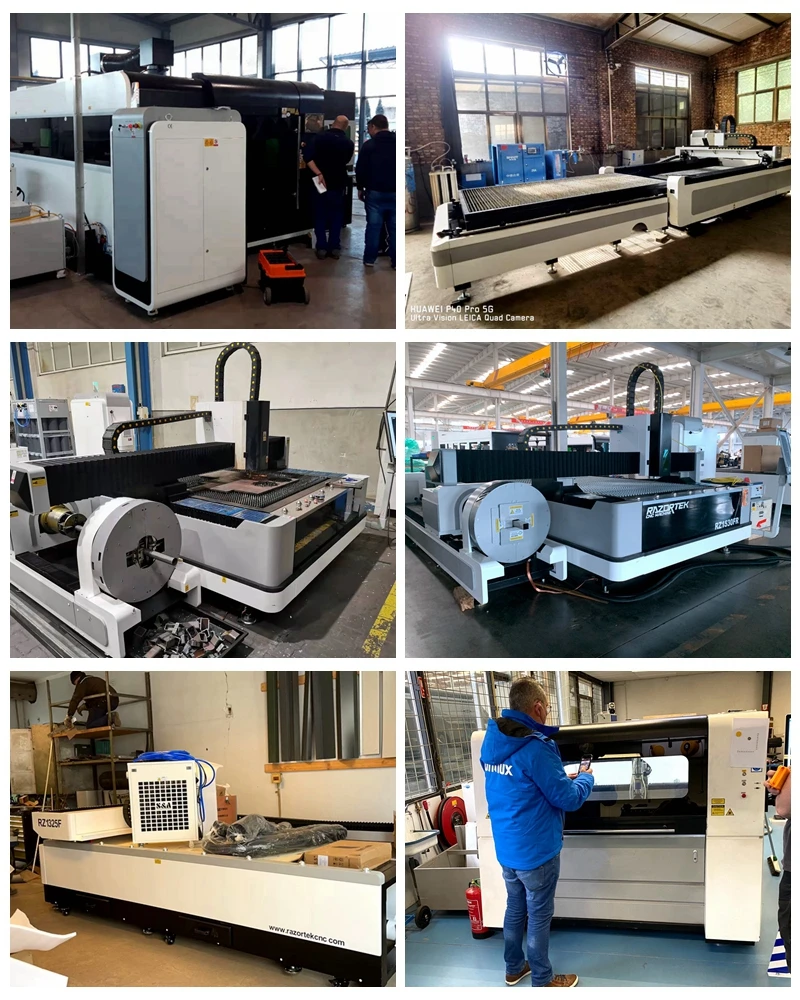

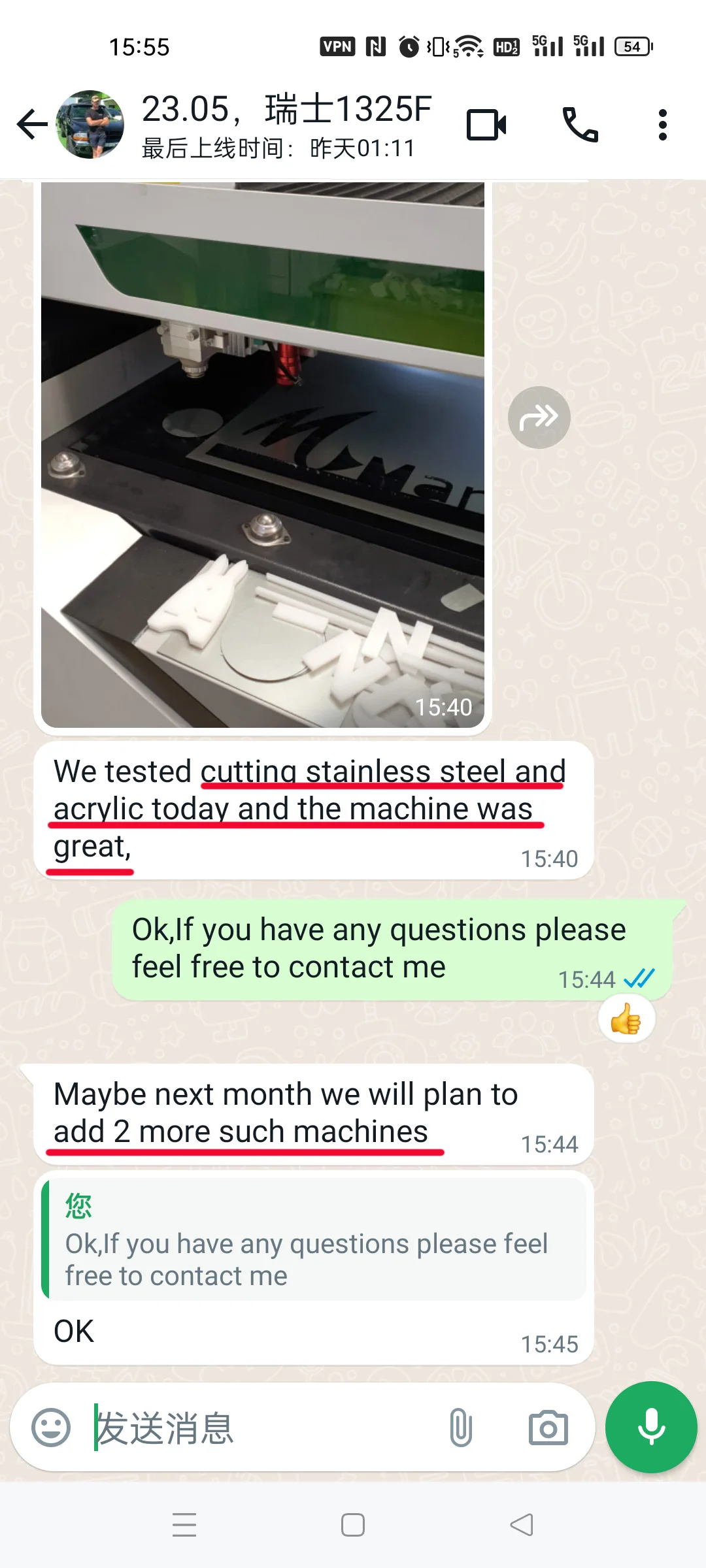

Customer Feedback
Packaging and transportation
According to different products and size, we use different packaging materials, our packaging staff are very experienced, and we absolutely guarantee the safety of the products during transportation.
Why Choose Us
1.The laser generator we use is the Raycus Global warranty version, which has better quality. If there are any problems, they can be repaired at nearby repair centers in countries without the need to send them back to China, saving time and cost.
2.A professional after-sales team is available 24 hours a day to solve various problems for you at any time
3.All RAZORTEK laser machines support 24 months free warranty, making your purchase more reassuring
4.To ensure that every customer can quickly master the use of the machine, each of our machines can help you input the local language system and provide user manuals and instructional videos before leaving the factory
5. We conduct regular inspections and strict quality control from materials, accessories, production to final delivery. The entire machine undergoes testing before leaving the factory to ensure that each machine meets production standards and can effectively serve customers
2.A professional after-sales team is available 24 hours a day to solve various problems for you at any time
3.All RAZORTEK laser machines support 24 months free warranty, making your purchase more reassuring
4.To ensure that every customer can quickly master the use of the machine, each of our machines can help you input the local language system and provide user manuals and instructional videos before leaving the factory
5. We conduct regular inspections and strict quality control from materials, accessories, production to final delivery. The entire machine undergoes testing before leaving the factory to ensure that each machine meets production standards and can effectively serve customers
FAQ
Q1.I need a laser cutting machine, can you give me some suggestions?
Sure,we will give suggestions of the most suitable machine,Before that,we need to know some information,such as effective processing area,materials,etc.,to getermine the main parameters. in addition，Our machines can be customized according to buyers’request.
Q2. Which kind of materials can be processed on this machine?
Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
Q3. Are you a factory or trading company?
We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself,the quality can be tursted,and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy,sowelcome to visit to our factory
Q4. How should i pay for my order?
You need to pay 30% as prepayment at first,then we will start to make production.When the machine is completed,we will send pictures or videos to you,and then you need to pay the balance.We will ship the machine to you after we receive your full payment.
Q5.How long is the delivery time?
For standard machines,it will be 1-3 days;For non-standard machines and customized machines according to client' specific requirements,it will be 10 to 15 days.
Q6. Do you have certificate of the laser machine?
Yes, we have CE and FDA.
Sure,we will give suggestions of the most suitable machine,Before that,we need to know some information,such as effective processing area,materials,etc.,to getermine the main parameters. in addition，Our machines can be customized according to buyers’request.
Q2. Which kind of materials can be processed on this machine?
Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
Q3. Are you a factory or trading company?
We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself,the quality can be tursted,and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy,sowelcome to visit to our factory
Q4. How should i pay for my order?
You need to pay 30% as prepayment at first,then we will start to make production.When the machine is completed,we will send pictures or videos to you,and then you need to pay the balance.We will ship the machine to you after we receive your full payment.
Q5.How long is the delivery time?
For standard machines,it will be 1-3 days;For non-standard machines and customized machines according to client' specific requirements,it will be 10 to 15 days.
Q6. Do you have certificate of the laser machine?
Yes, we have CE and FDA.
