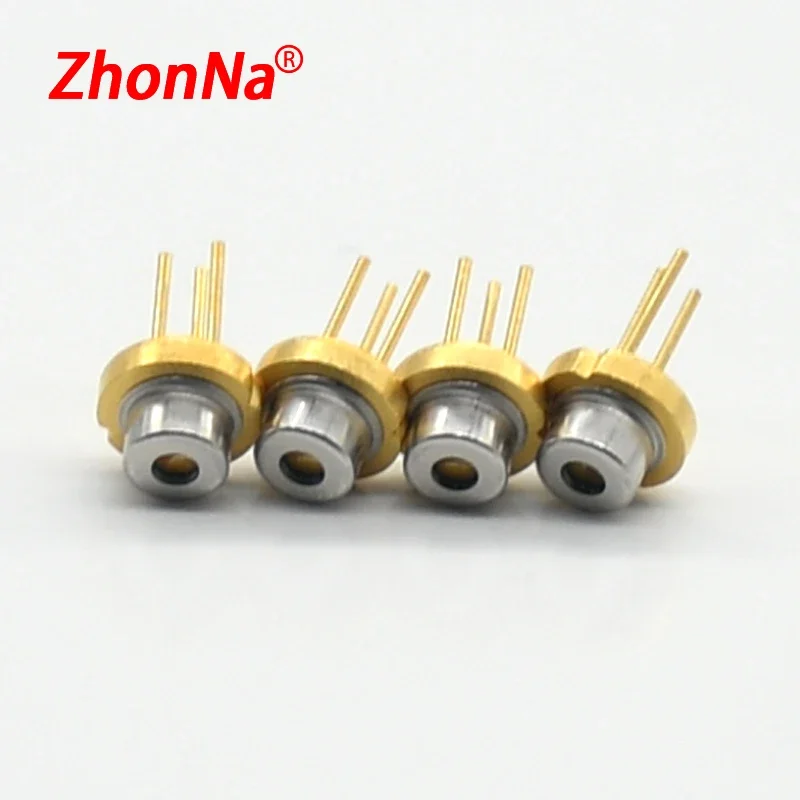

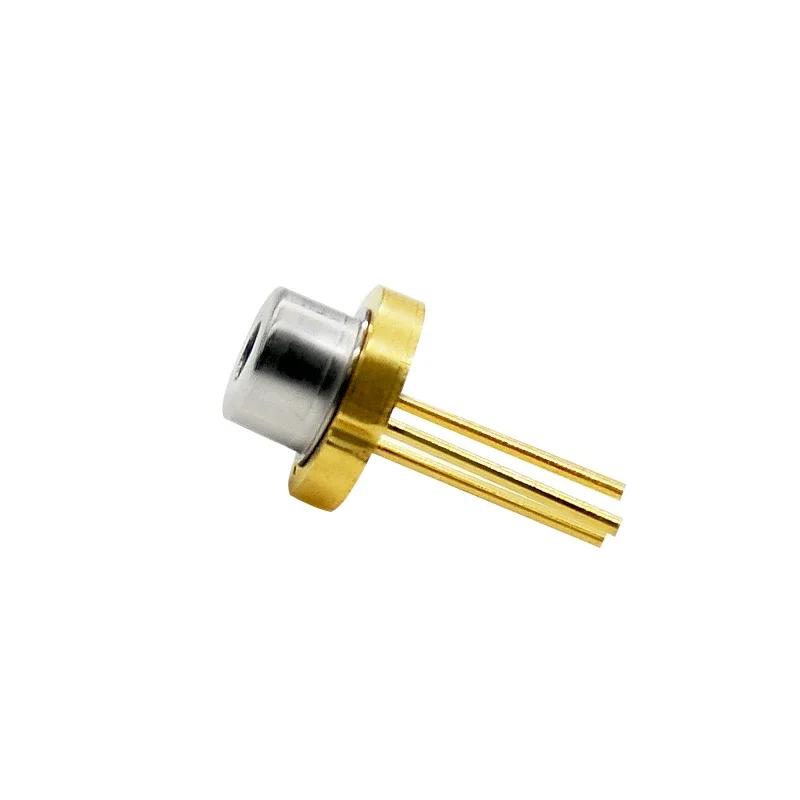

660nm100mw Laser Diode Module RED Mitsubishi Japan Original Factory Number Photoelectric Sensor Light EmittingTube TO56

Product Overview

Description



[ZhongNa]: We can develop, design, and process laser modules and optical systems according to the special requirements of customers. We can also provide OEM and ODM for laser system applications and special purposes, and undertake bulk orders. Welcome to contact us!

[Product Name]: 660nm 100mw Red Laser Diode~Factory Direct Sales

- Used for instruments and equipment, healthcare equipment, military, anti-counterfeiting and security, stage lighting, tools, USB drives, mobile phones, projection teaching flip pens, temperature measuring (ranging) instruments, leveling instruments, marking instruments, level rulers, indoor and outdoor decoration and other products

All laser products are available in stock, directly sold by the manufacturer, and shipped as soon as you place an order!

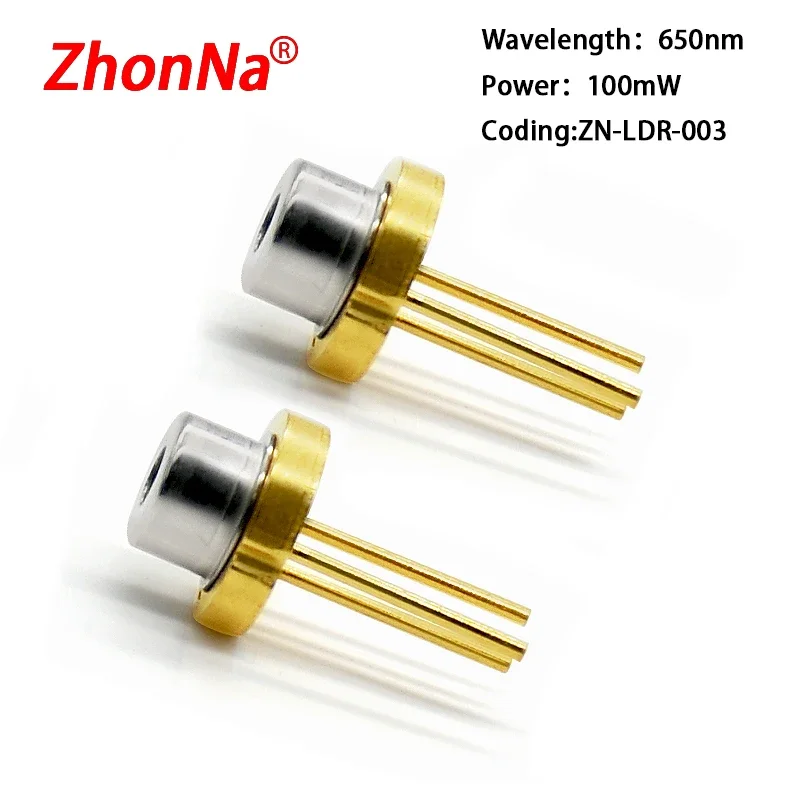

660nm 100mw Laser Diode Module RED Number ZN-LDR-003 DIY Laser Sensor Light Emitting Tube LED Electronic Desi

product description

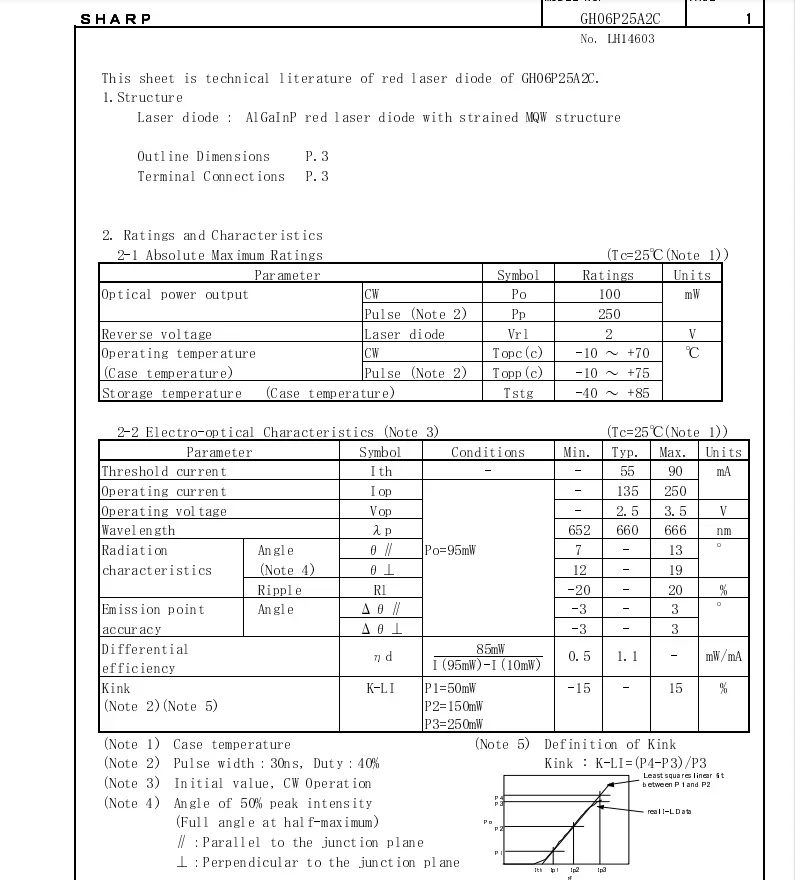

[Product Specifications]

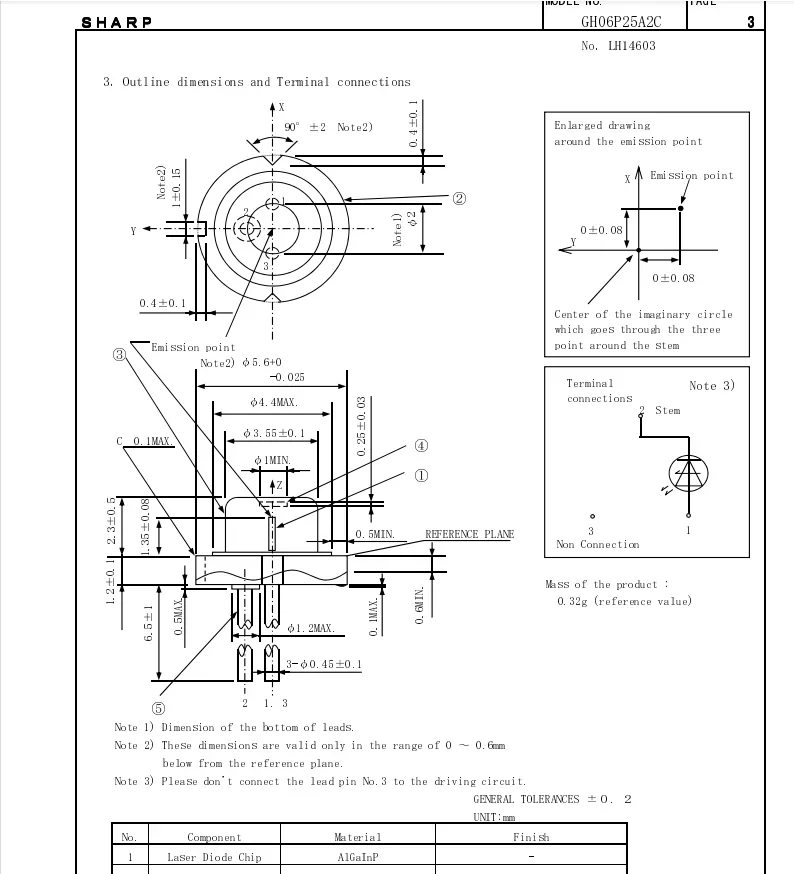

[Size]: Φ5.6mm

[Package]:TO-18

[Service life]:>10000 hours

[Output wavelength]: 660nm/±5nm

[Output power]: 100mW

[Working voltage]: DC=2.2V

[Working current]: I<45mA

[Working temperature]: -10℃~+50℃

[Storage temperature]: -40℃~+80℃


Product wavelength	660nm
Product power	100mW







The safety level of the laser



According to the classification of the risk of laser to the human body, the MPE (maximal possible effect) on the eyes is observed in the light tree as a benchmark, which can be divided into grades one to four.

Class I: Low-output laser (power less than 0.4mW), under any conditions, the eyes and skin will not exceed the MPE value, even after focusing through the optical system, it will not exceed the MPE value. Design security can be guaranteed without special management. Typical applications such as laser pointers, CD players, CD-ROM equipment, geological exploration equipment and laboratory analysis instruments, short-distance communication transmission, etc.

Class II:low-output visible laser (power 0.4mW-1mW), the response time of people closing their eyes is 0.25 seconds, and the exposure calculated by this time cannot exceed the MPE value. Usually, the laser below 1mW will cause dizziness and inability to think. It cannot be said to be completely safe to use closed eyes to protect it. Do not observe directly in the beam, and do not directly irradiate other people's eyes with Class II lasers. Avoid using telescopic equipment to observe Class II Laser. Typical applications are classroom presentations, laser pointers, aiming devices and rangefinders.

Class III:Medium output laser, if the beam is directly injected into the eyes, it will cause injury. Based on some safety reasons, it is further divided into IIIA and IIIB.

Class IIIA: is a visible light continuous laser, the output is a laser beam of 1-5mW, and the energy density of the beam should not exceed 25W/m-m. Avoid observing the IIIA laser with telescopic equipment, which may increase the danger. Typical applications of IIIA and Class II have many similarities, such as laser pointers, laser scanners and so on.

Class IIIB: is a continuous laser of 5-500mW, and it is dangerous to observe directly in the beam. However, the minimum irradiation distance is 13cm, and the maximum irradiation time is less than ten seconds for safety. Typical applications of IIIB lasers are spectrometry and entertainment light shows.

Class IV: High output continuous laser (greater than 500mW), higher than the third level, there is a danger of fire, and diffuse reflection is also dangerous. Typical applications such as surgery, research, cutting, welding and micromachining
