Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
LX3015E Exchange Table 20kw 15kw 1 kw 1.5 kw 3d Fiber Laser Cutting Machine 4000 Watt
- Category: >>>
- Supplier: Jinan Lxshow Laser Manufacture Co. Ltd.
Share on (1601168971122):
Product Overview
Description
Machine Description

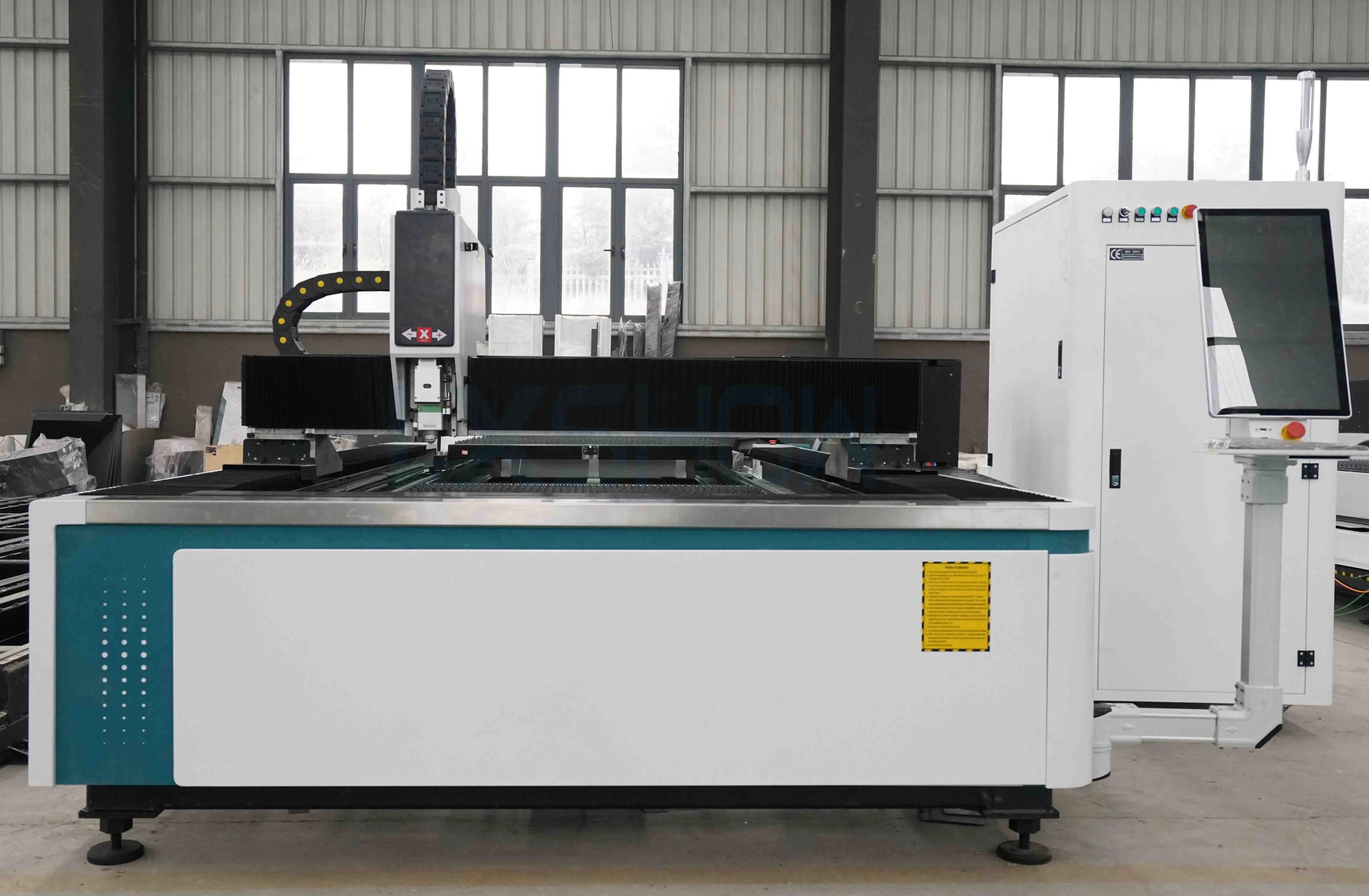

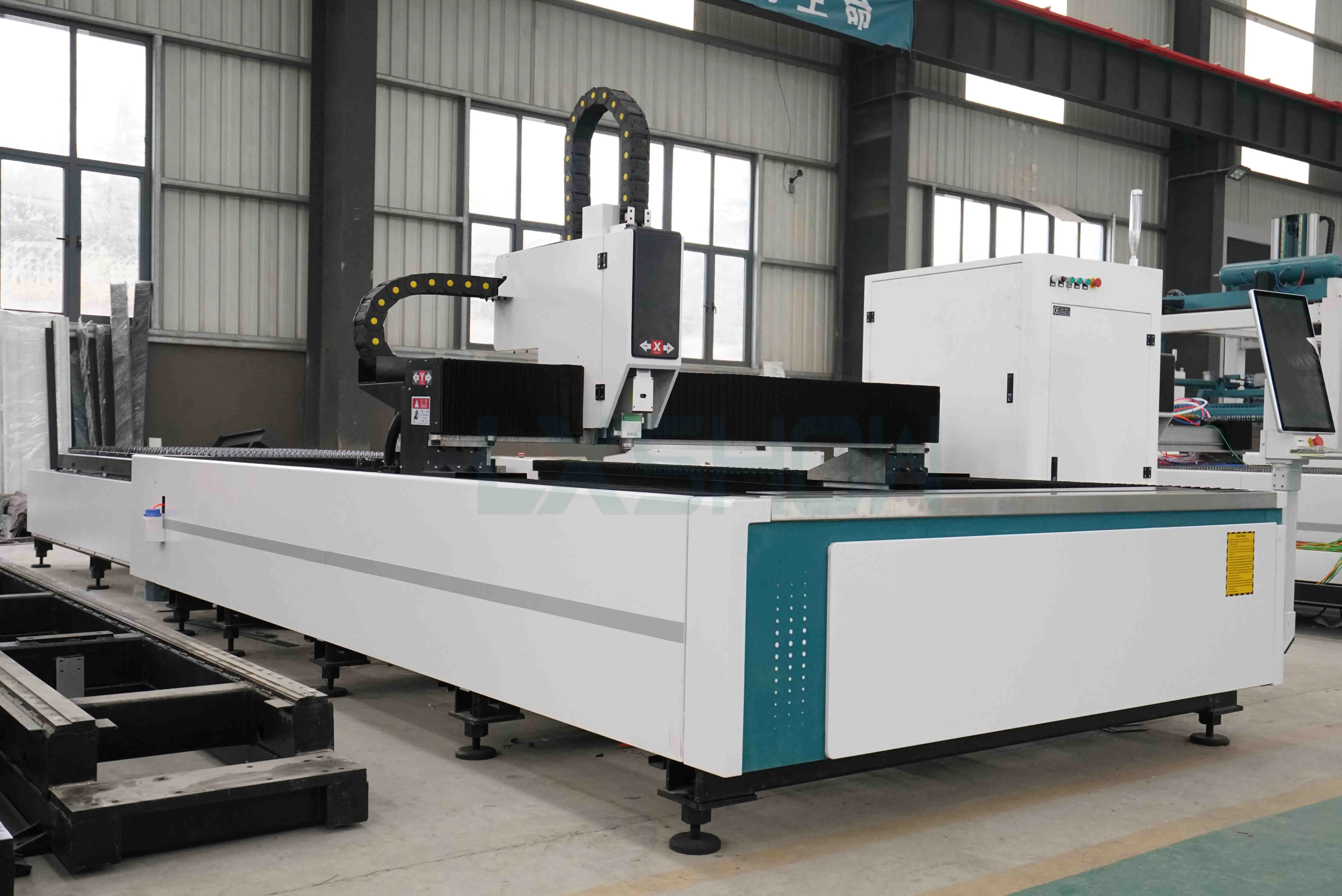

Cnc Fiber Laser Cutting Machine
1. Fiber laser cutter power: 1000W, 1500W, 2000W, 3000W, 6000w, 10000w, 12000w, etc.
2. Fiber laser generator: JPT, RAYCUS, MAX, NIGHT, IPG etc.
3. Fiber laser cutter materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.
4. Other machine optional parts can be chosen, such as, rotary axis, etc.
5. China Top fiber laser machine cutting manufactuers, LXSHOW, low cost and best quality, with CE etc certificates.
2. Fiber laser generator: JPT, RAYCUS, MAX, NIGHT, IPG etc.
3. Fiber laser cutter materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.
4. Other machine optional parts can be chosen, such as, rotary axis, etc.
5. China Top fiber laser machine cutting manufactuers, LXSHOW, low cost and best quality, with CE etc certificates.
Machine Parts
LXSHOW Laser Promise
* Every machine parts must be quality assurance!
* Every machine parts must be tested well!
* Every machine parts must be quality assurance!
* Every machine parts must be tested well!

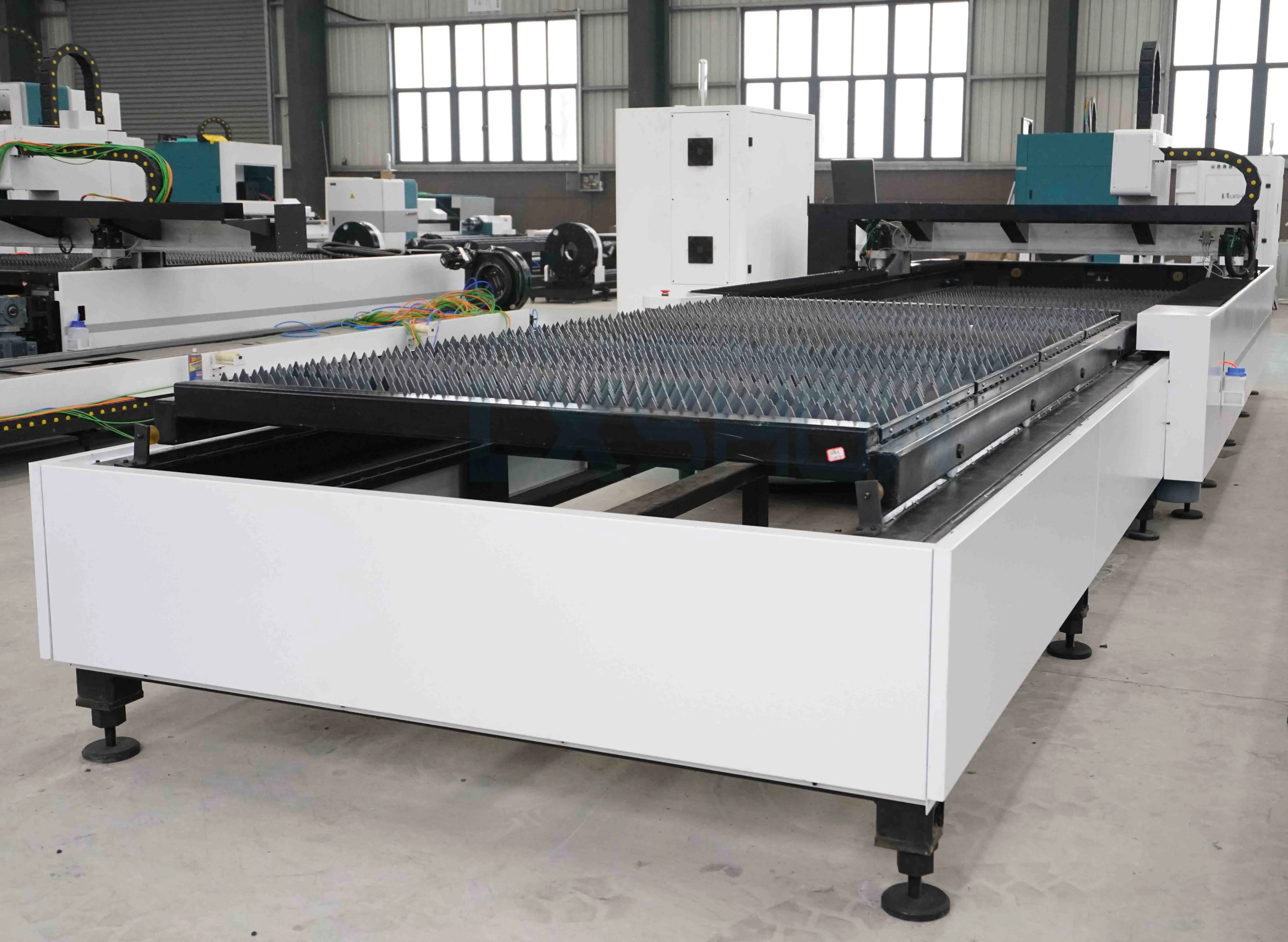

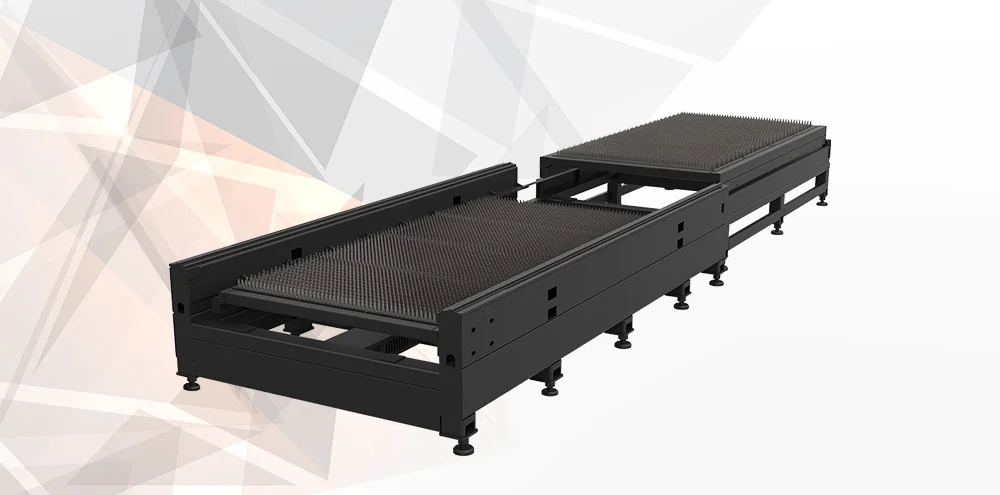

Exchange Table
It adopts an up and down exchange platform;
The converter is responsible for controlling the exchanging motor;
High working efficiency: The machine is able to finish the platform exchanging within 15s..
The converter is responsible for controlling the exchanging motor;
High working efficiency: The machine is able to finish the platform exchanging within 15s..

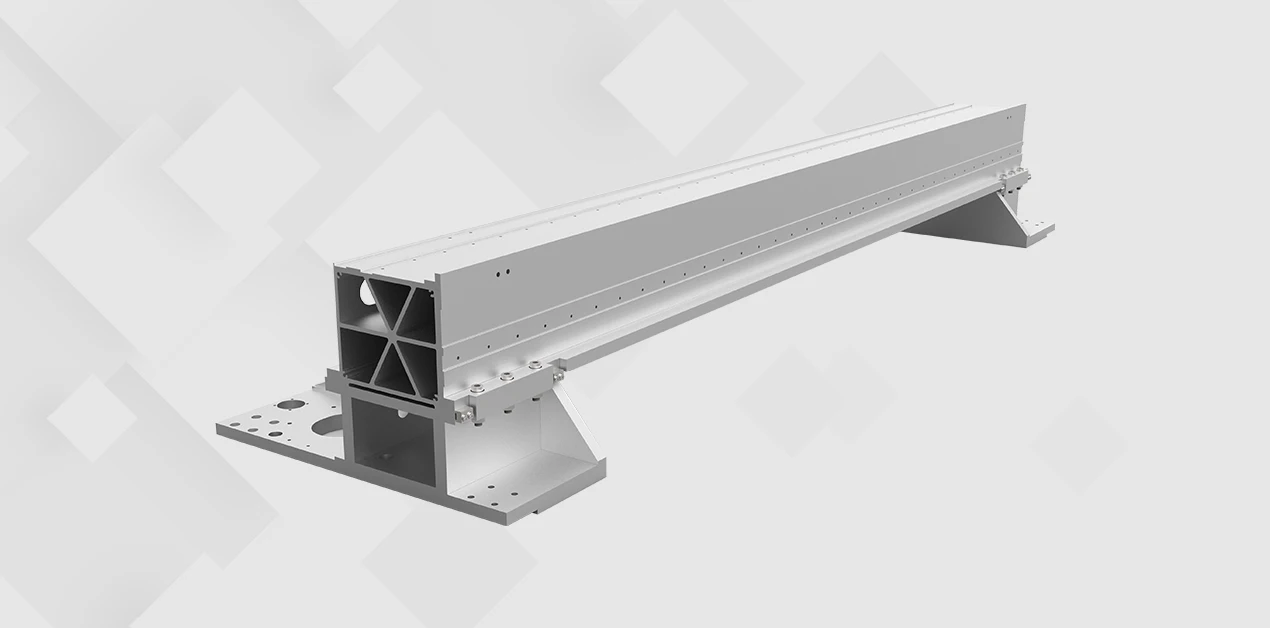

Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

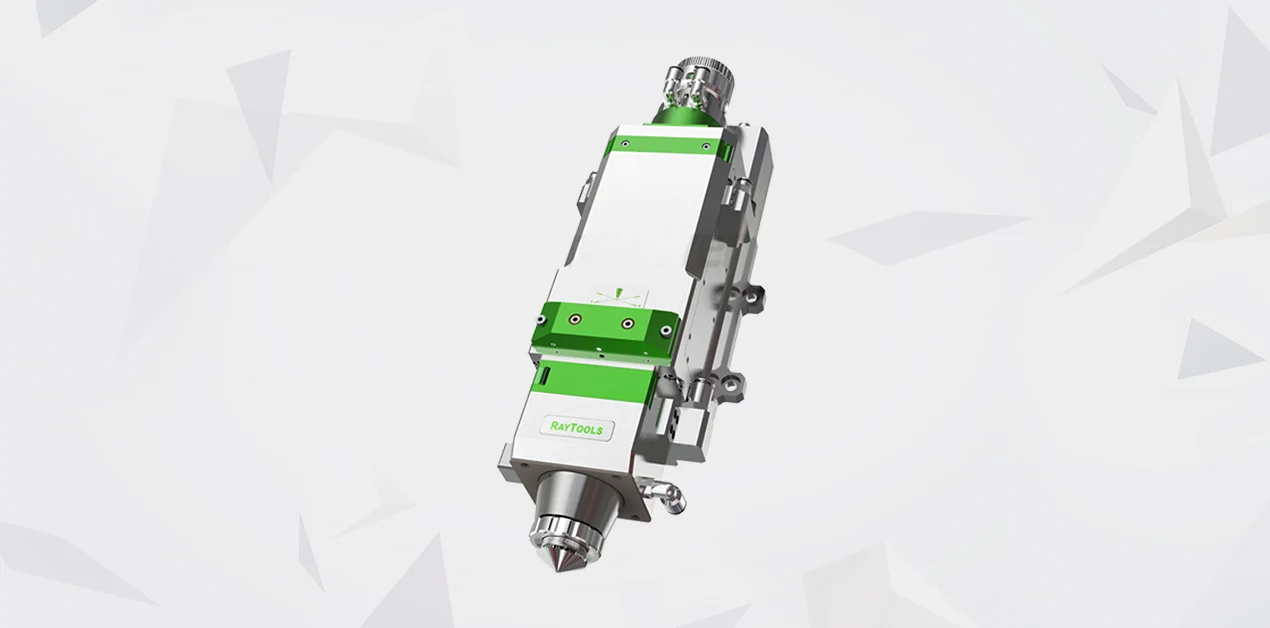

Intelligent Autofocus
The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
Automatic focus:
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting:
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting:
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

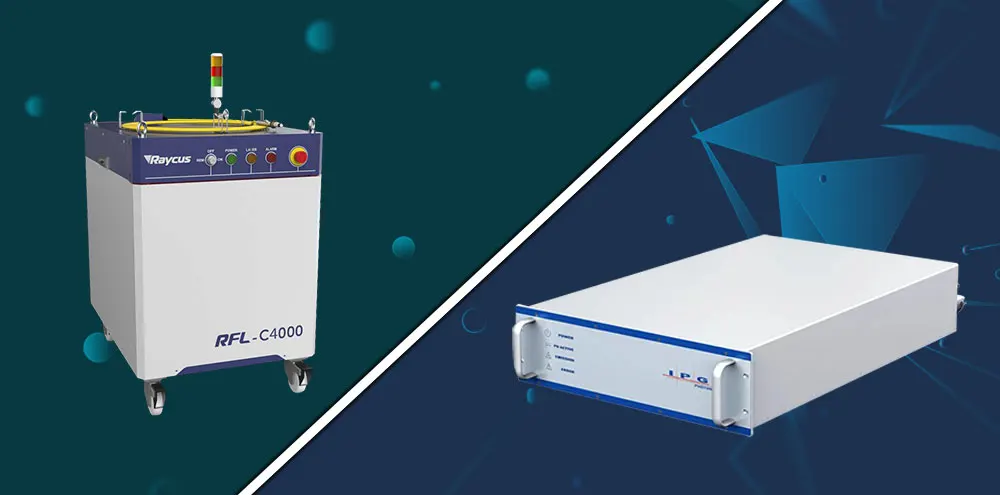

Generator:
Suitable Power:1000-12000w( optional)
Brand:IPG/Raycus/MAX/JPT/Nlight
Brand:IPG/Raycus/MAX/JPT/Nlight

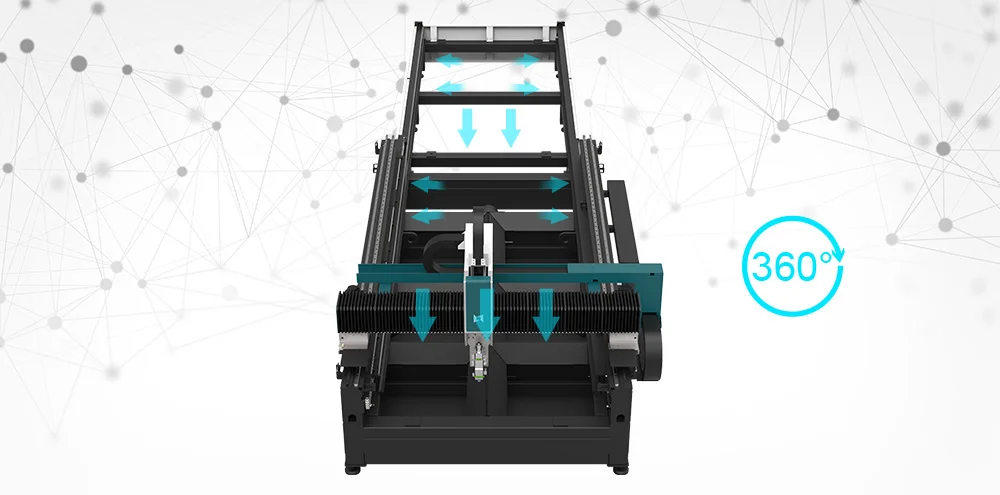

Full coverage, super suction
Adopt the latest cutting-edge tobacco control technology
Each section of the bed has a smoke exhaust device
Powerful negative pressure 360° adsorption
Axial fan wind direction surrounds blowing smoke downward
Full 360° strong adsorption and consistent smoke exhaust
Effectively purify the smoke and dust on the top of the enclosed cutting platform
Improve purification efficiency and reject lens contamination
Net follow-up, wisdom grows by quality
The smoke exhaust device automatically senses the laser cutting position
Turn on precise smoke exhaust, follow-up smart smokingCreate a concealed cavity, fully enclosed smoke control and clean smoke.
Each section of the bed has a smoke exhaust device
Powerful negative pressure 360° adsorption
Axial fan wind direction surrounds blowing smoke downward
Full 360° strong adsorption and consistent smoke exhaust
Effectively purify the smoke and dust on the top of the enclosed cutting platform
Improve purification efficiency and reject lens contamination
Net follow-up, wisdom grows by quality
The smoke exhaust device automatically senses the laser cutting position
Turn on precise smoke exhaust, follow-up smart smokingCreate a concealed cavity, fully enclosed smoke control and clean smoke.

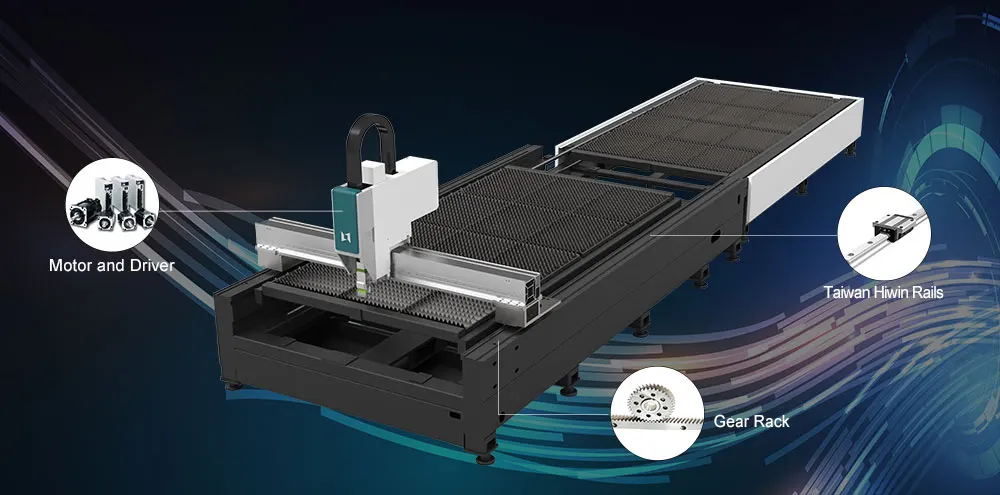

Transmission And Precision
LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

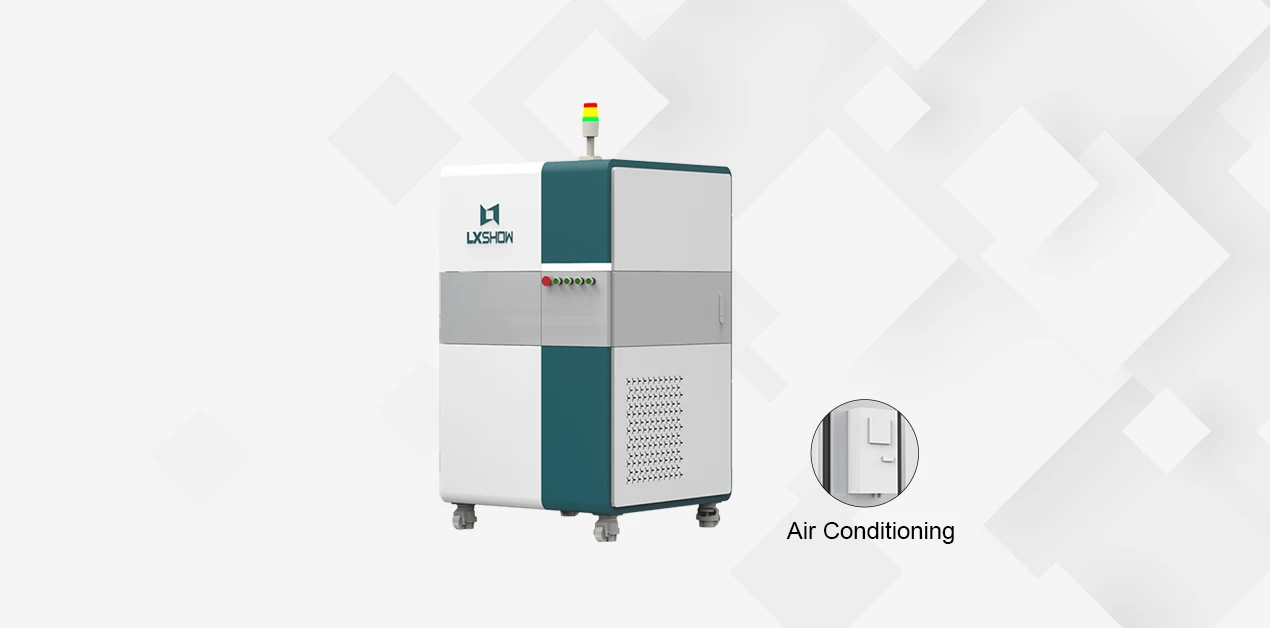

Independent Control Cabinet
Dust-proof
All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
Automatic Thermostat
The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer.
All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
Automatic Thermostat
The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer.

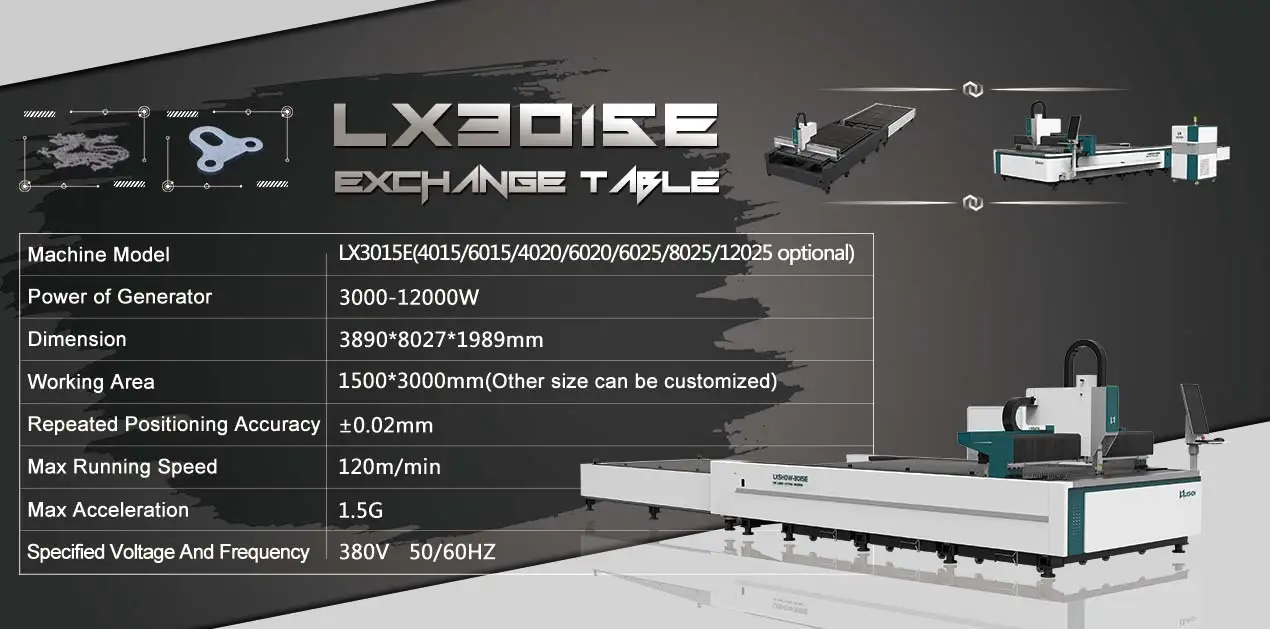

Machine Parameters
1 | Model | LX3015E |
2 | Cutting working area | 3000x1500mm |
3 | Laser Generator | Raycus / IPG /MAX |
4 | Transmission system | Gear + rails |
5 | Fiber Laser Power | 1000-3000w，6000w, 12000w |
6 | X.Y axis location accuracy | ±0.01mm |
7 | X.Y axis repeat location accuracy | ±0.01mm |
8 | X.Y axis max moving speed | 120m/min |
9 | Laser wave length | 1064nm |
10 | Machine color | Support custom made |
11 | Gross weight | 3500KG |
12 | Machine Warranty | 3 years |

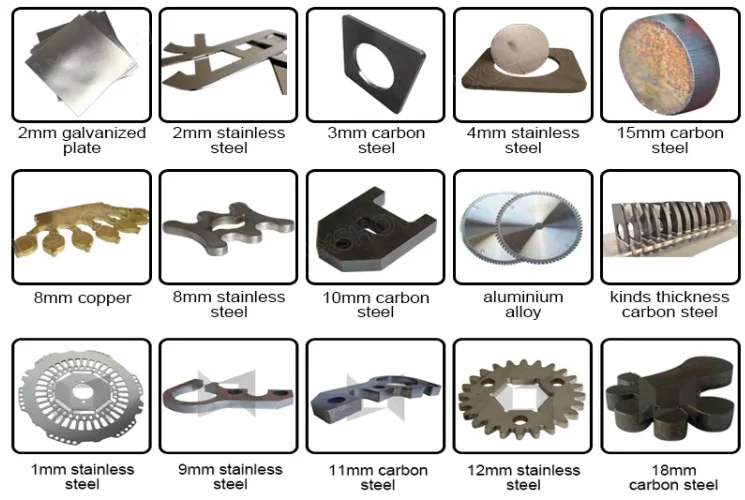

Machine Application
Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate,
Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate. If you equipped with the rotary axis, metal tube, all ok.
Application Industries:
LXSHOW CNC Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate. If you equipped with the rotary axis, metal tube, all ok.
Application Industries:
LXSHOW CNC Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
If you have any other questions, please contact us and we will provide you with professional answers and free sample testing services!
* 20years factory production experience
* 3 years machine warranty
* 156 exported country experience
* 50000 square meters fiber laser cutting machine factory
* 156 exported country experience
* 50000 square meters fiber laser cutting machine factory

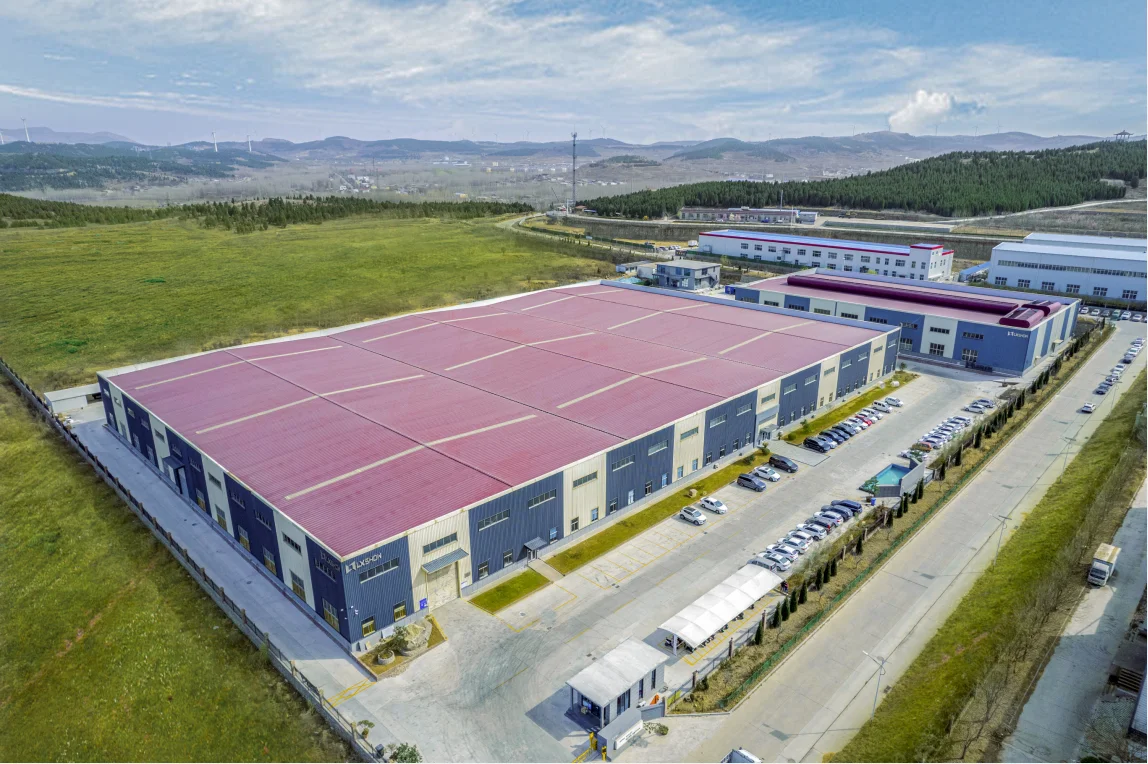

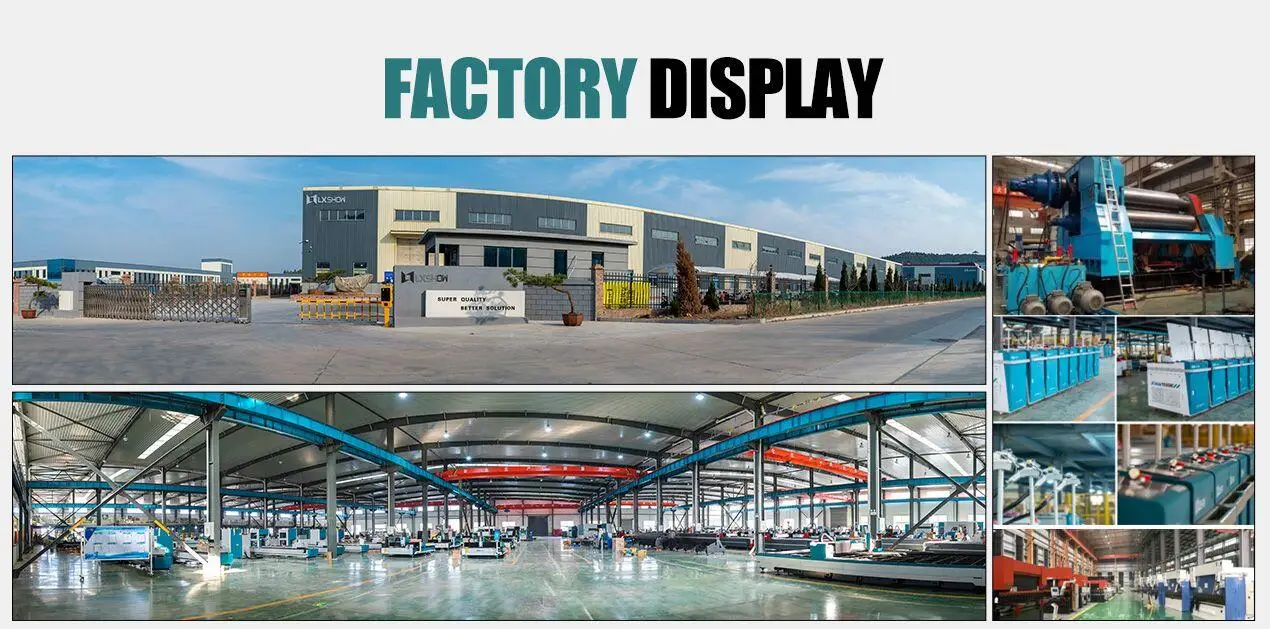

* About Jinan Lxshow Laser Manufacture Co., Ltd.
is established in July 2004, owns more than 500 square meters of researching and office
space, more than 50000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures
space, more than 50000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures
* About Fiber Laser Cutting Machine Quality Control
About cnc fiber laser cutting machine quality, every machine, including every machine parts, we must be tested carefully, and every machine machine before delivery.
We can promise: The whole fiber laser cutting machine can working well.
We can promise: The whole fiber laser cutting machine can working well.
* About Laser Cutting Machine After Sale Group - Support Door to Door
We have a professional and experienced after-sales team. We support door-to-door after-sales service. In order to effectively solve customer problems and help customers use the machine better, we will conduct skill assessments on our after-sales team every year.
To improve the problem-solving level of the after-sales team. Improve their skills more comprehensively, to serve customers wholeheartedly.
To improve the problem-solving level of the after-sales team. Improve their skills more comprehensively, to serve customers wholeheartedly.
If you want to visit our factory, please make an appointment with us in advance and we will send a driver to pick you up
Many customers around the world are inconvenient to fly to the factory to check the machines in person,We also support live online viewing of production progress,You can contact sales to view the factory via online video chat.
We will participate in many offline exhibitions. When we are exhibiting near you, please visit our prototypes and make an appointment with us in advance
Your Choice, Our Responsibility
OUR SERVICES:
1. Pre sales service:
the sales staff can answer your questions online 24 hours a day we support free sample service, try first and buy later
2. In sale service:
1) Since customized machines require a certain amount of production time, we support the whole process of visualization during the production of the machines.
2) The sales staff and engineers provide you with professional services,you can keep abreast of the production progress of the machine.
3) After the completion of the machine, you will be provided with the installation and trial video of the machine from our quality inspection,
4) During the transportation period, credit guarantee orders support the whole process of logistics tracking, You can contact us immediately if you have any questions after receiving
1) Since customized machines require a certain amount of production time, we support the whole process of visualization during the production of the machines.
2) The sales staff and engineers provide you with professional services,you can keep abreast of the production progress of the machine.
3) After the completion of the machine, you will be provided with the installation and trial video of the machine from our quality inspection,
4) During the transportation period, credit guarantee orders support the whole process of logistics tracking, You can contact us immediately if you have any questions after receiving
3. After sales service:
the professional technical team provides on-line guidance for installation and debugging. If there is any problem in the use process, please contact us and provide 3-YEAR warranty to support the replacement of accessories or on-site maintenance.
the professional technical team provides on-line guidance for installation and debugging. If there is any problem in the use process, please contact us and provide 3-YEAR warranty to support the replacement of accessories or on-site maintenance.
Welcome to visit our factory for machine inspection, and feel free to welcome you at any time
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
1. What main job you do with the machine?
2. What is your request max working area? __mm* __mm?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
1. What main job you do with the machine?
2. What is your request max working area? __mm* __mm?
3. What's your material diameter and length?
4. What material you want to cut,stainless steel,carbon steel?
4. What material you want to cut,stainless steel,carbon steel?
5. What's your favourite laser generator brand? laser generator as optional parts, different customer, different choose.
Please tell us, then we can recommend the suitable machine to you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running.
world, We need your machines running in order to keep your business running.
