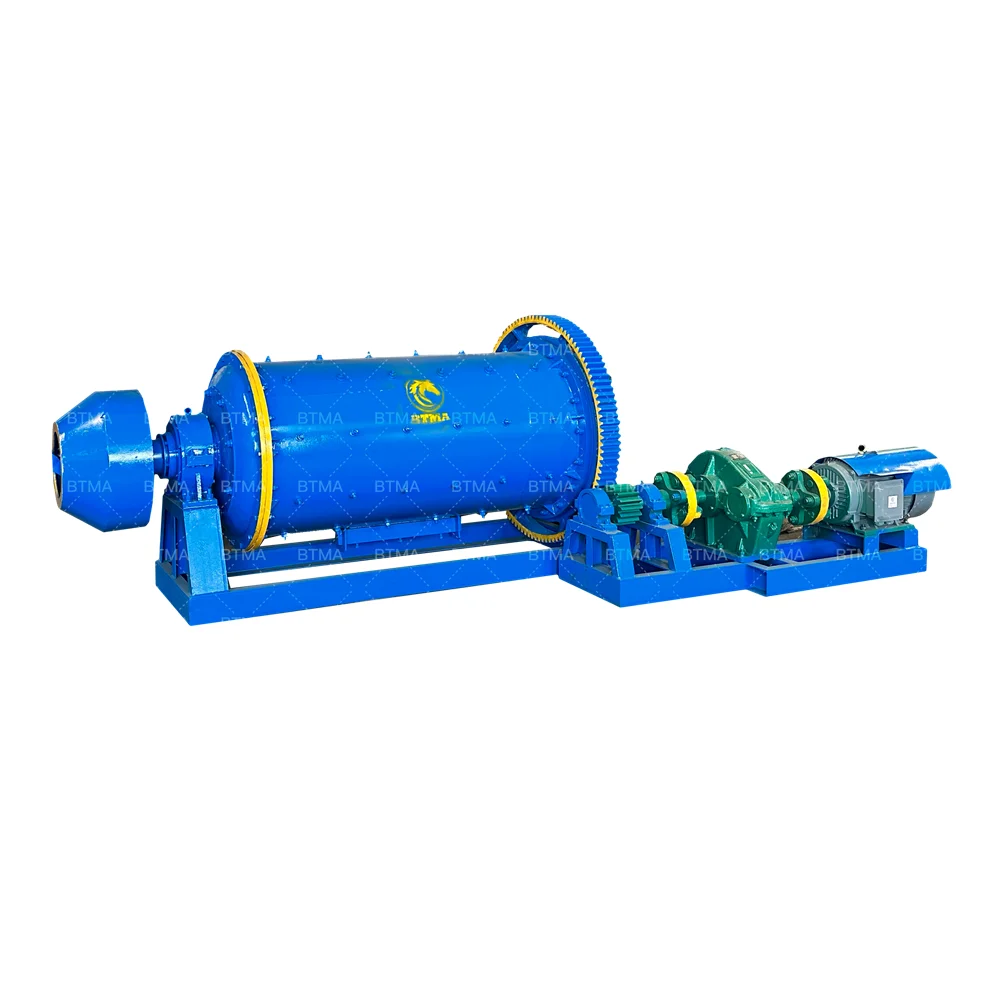

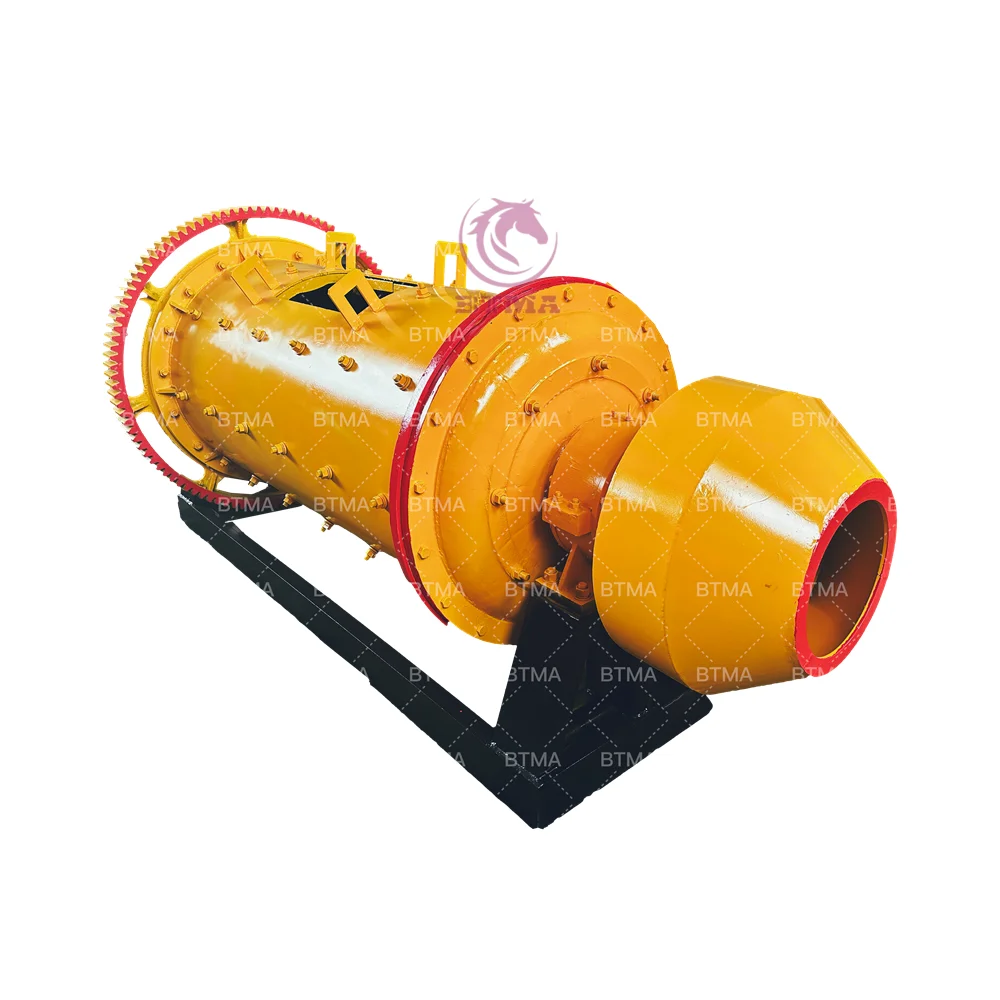

BTMA 1 2 t/h 900x1800 Model Gold Mining Clay Aluminium Grinding Ball Mill Machine Sudan and Zimbabwe
- Category: >>>
- Supplier: Henan Benteng Machinery Co. Ltd.
Share on (1601169005071):
Product Overview
Description
BALL MILL
Products Description
BTMA Ball Mill is a key equipment to grind the crushed materials, which is widely used in the manufacturing industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
The ball mill is a cylinder tube mill, which is characterized by high grinding efficiency single large capacity, low power consumption and little dust pollution. It is commonly used in closed-circuit milling and open flow milling in the field of cement, fly ash, a variety of non-metallic materials dry milling production.

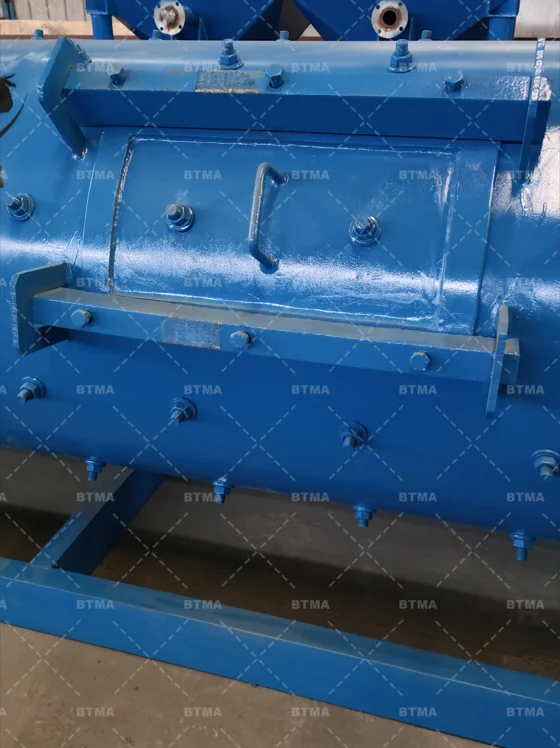

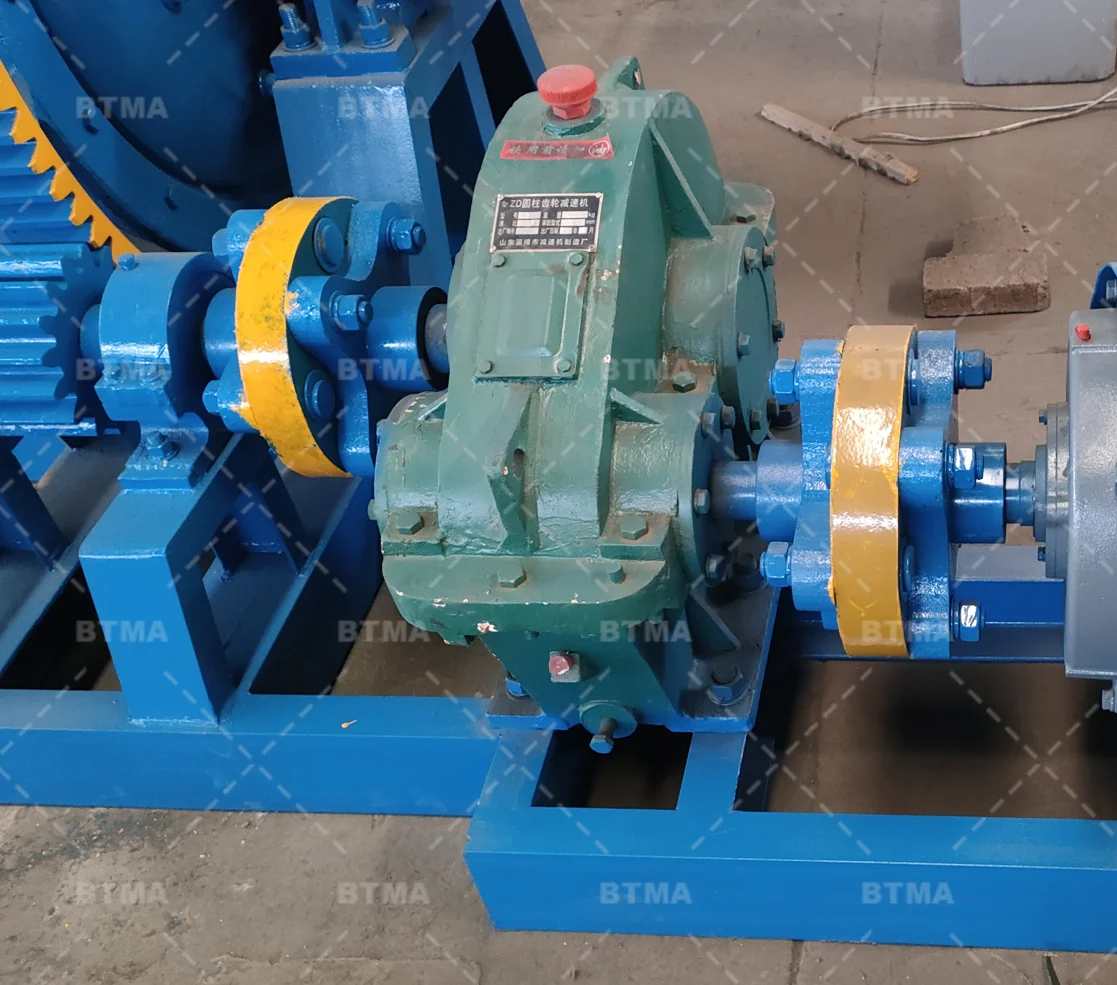

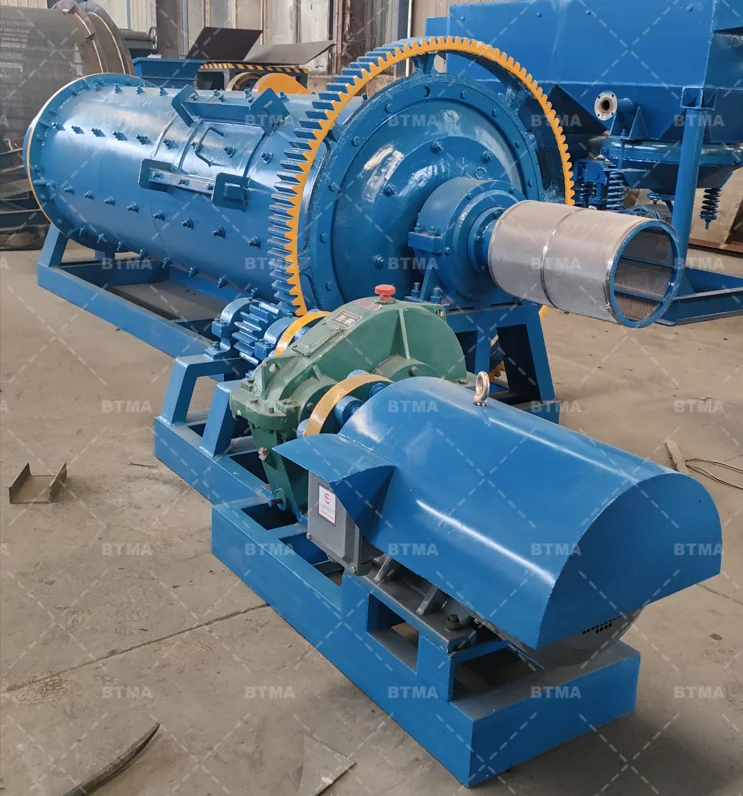

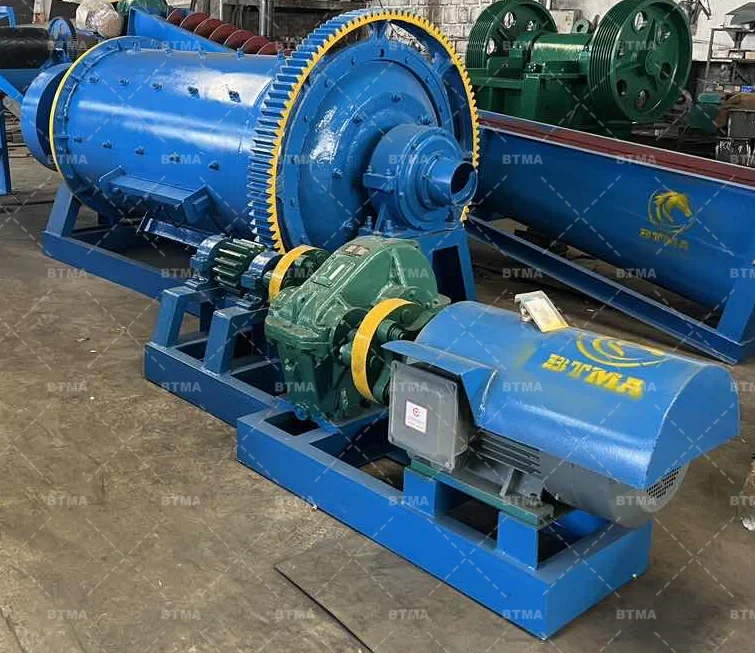

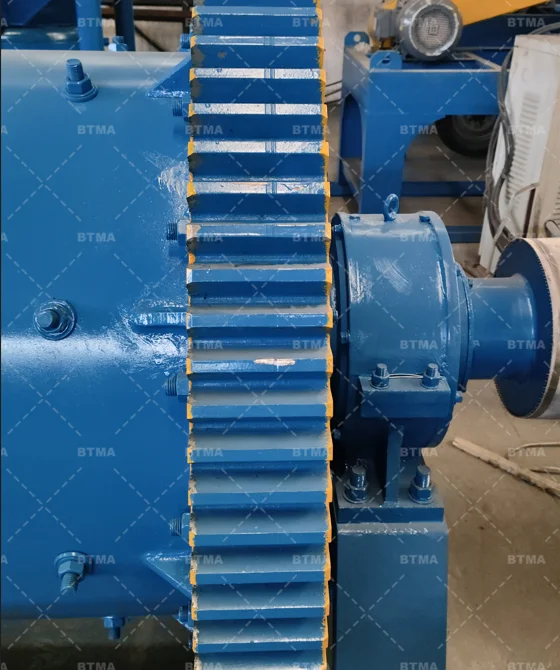

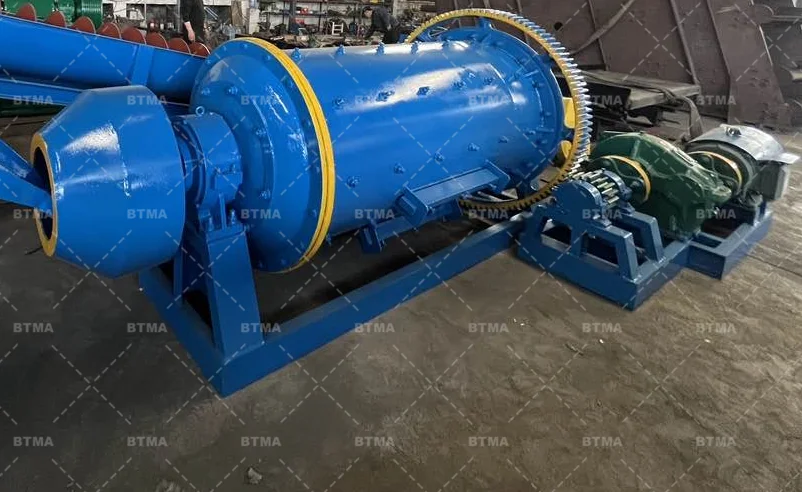

Details Images
structure of ball mill
Working Principle
The ball mill is horizontal cylindrical rotation device, driving by brim gearwheel, there are two chambers and grid. Material goes into the first chamber through the feeding inlet, inside the first chamber, there are stage liners and ripple liners as well as steel balls with various kinds. The shell rotates which generates eccentricity, this force brings balls to a certain height and then balls drop down by gravity, which will impact and grind the material. After the primary grinding in the first chamber, material goes into the second chamber through segregate screen, in the second chamber, there are fiat liners and steel balls, after the secondary grinding, material is discharged through the discharge screen.
Features about our products
This Ball mill machine changes the intrinsic grinding mill structure
Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only
Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%.
The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling of the granule and the quantity dealt with is reduced by 15-20%.

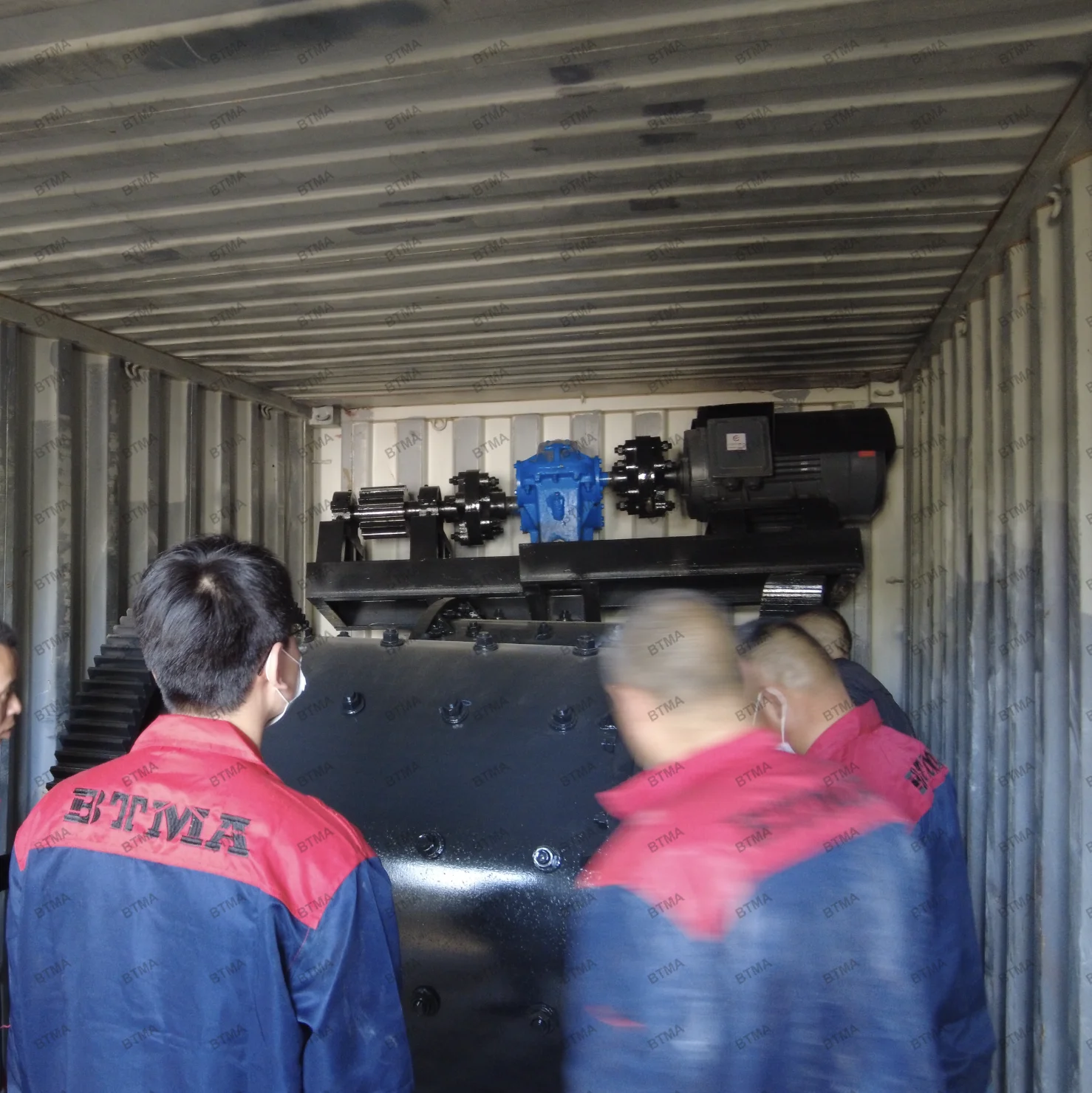

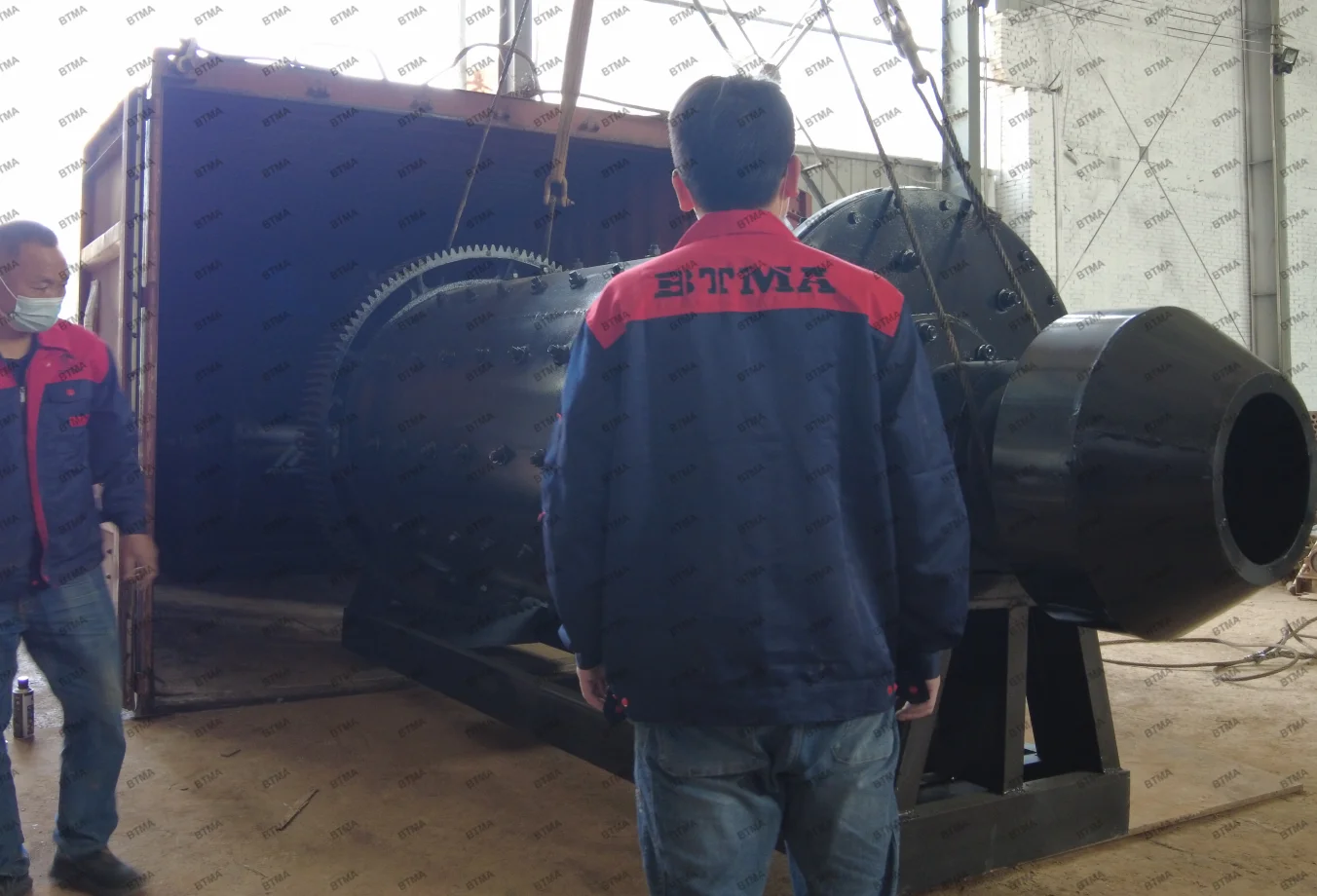

Paking & Delivery
Product Paramenters
Model | Cylinder Rotating Speed (r/min) | Ball weight (t) | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Power (kw) |
900x1800 | 38 | 1.8 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 |

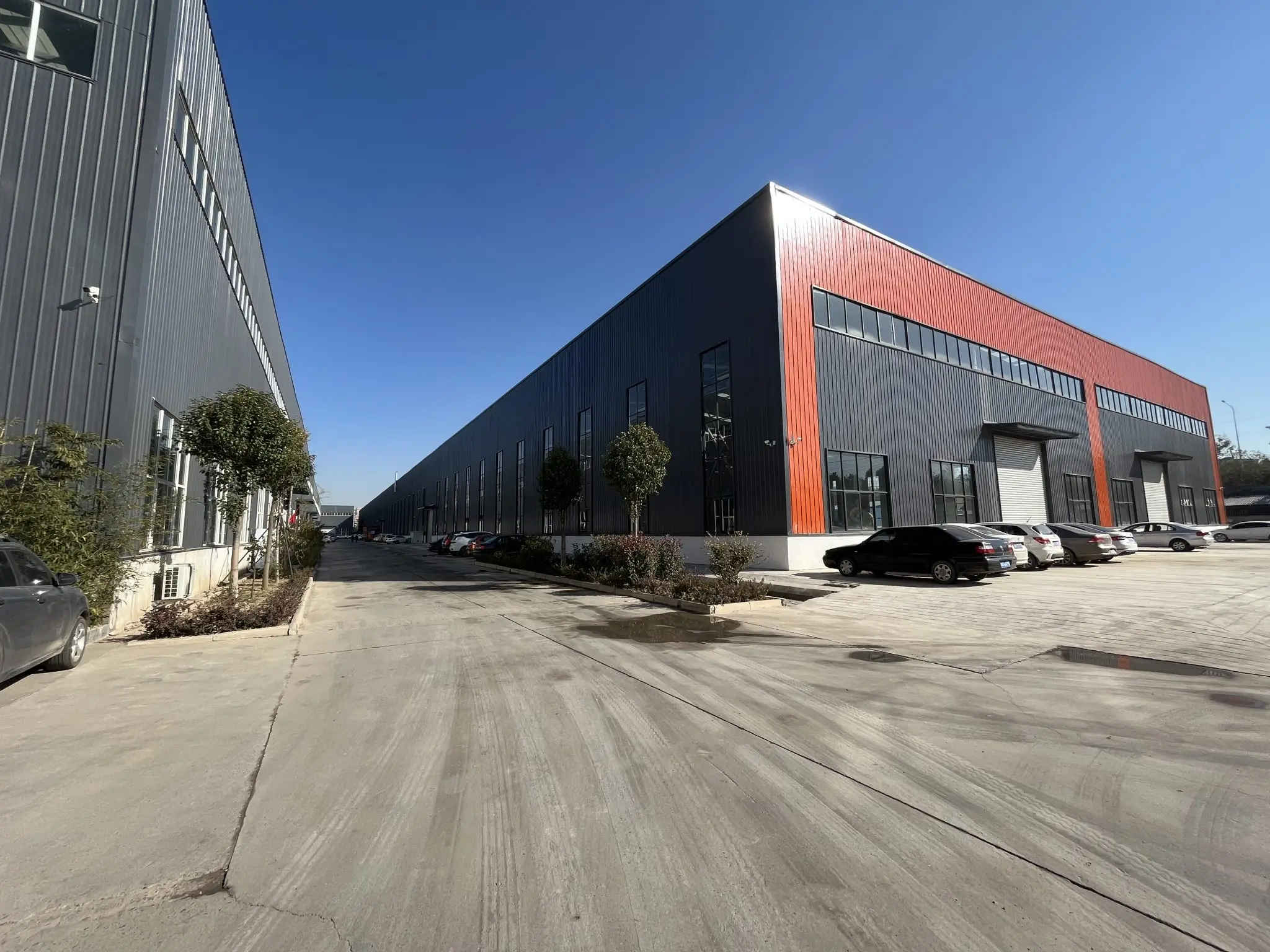

Company Profile
Henan Benteng Machinery Co., Ltd. is a reputed manufacturer and joint-stock enterprise with import & export rights and mainly produces large and medium-sized mining machinery, oil press machinery and others equipment. Our fixed asset is RMB 80,000,000 and we have four subsidiaries and a R&D department. Product quality is considered as the life of our company and all our products have attained the certification of ISO 9001:2000 qualify system.
Moreover, superior after-sales services guarantee high quality continuously. In addition, we have a group of experienced and excellent after-sales service members who provide following up services for worldwide customers.Customers' need is what we are trying to create. Customer satisfaction is what we are seeking.
Over the last couple of decades, Benteng people have created continuously, transcending ourselves and insisting on the concept of"Development is of overriding importance". Develop the brand with quality. Promote the brand with service. We, Benteng people,are forging ahead for first-class brand with innovative spirit and do our best to contribute to the national industry.
Moreover, superior after-sales services guarantee high quality continuously. In addition, we have a group of experienced and excellent after-sales service members who provide following up services for worldwide customers.Customers' need is what we are trying to create. Customer satisfaction is what we are seeking.
Over the last couple of decades, Benteng people have created continuously, transcending ourselves and insisting on the concept of"Development is of overriding importance". Develop the brand with quality. Promote the brand with service. We, Benteng people,are forging ahead for first-class brand with innovative spirit and do our best to contribute to the national industry.
FAQ
Q1: If I don't know how to operate this machine? How can I do?
A1: Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6:
A1: Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good reputation.Our price is 3%-5% lower than the average market price.
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good reputation.Our price is 3%-5% lower than the average market price.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6:
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
3. We can design the machine as our clients required.
Q7 How can I get the price?
A7 We usually quote within 2 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Q 8:What is your term of delivery?
A 8:We accept EXW, FOB Qingdao And CIF Terms. You can choose the one which is the most convenient or cost effective for you.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
3. We can design the machine as our clients required.
Q7 How can I get the price?
A7 We usually quote within 2 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Q 8:What is your term of delivery?
A 8:We accept EXW, FOB Qingdao And CIF Terms. You can choose the one which is the most convenient or cost effective for you.
Our Service
Pre—sale service
2.We will prepare packing and shipment according to customers' need in advance.
3.Testing the machine and making video for customers' checking.
1.We provide pre-sales service in various forms, making investment budget, manufacturing, planning, so that
customers can make a reasonable plan with less cost.
2.We will first check customers' goods and goods size, then we will recommend suitable machine to meet customers' requirement..
3.We will recommend and offer machine according to customers' use and purchase budget.
customers can make a reasonable plan with less cost.
2.We will first check customers' goods and goods size, then we will recommend suitable machine to meet customers' requirement..
3.We will recommend and offer machine according to customers' use and purchase budget.
In-sale service
1.We will supply each manufacturing step photo for customer checking on time.
1.We will supply each manufacturing step photo for customer checking on time.
2.We will prepare packing and shipment according to customers' need in advance.
3.Testing the machine and making video for customers' checking.
After-sale service
1.We will guarantee the machine quality for 1 year.
2.We provide free training and answer customers' questions on technology in time.
1.We will guarantee the machine quality for 1 year.
2.We provide free training and answer customers' questions on technology in time.
