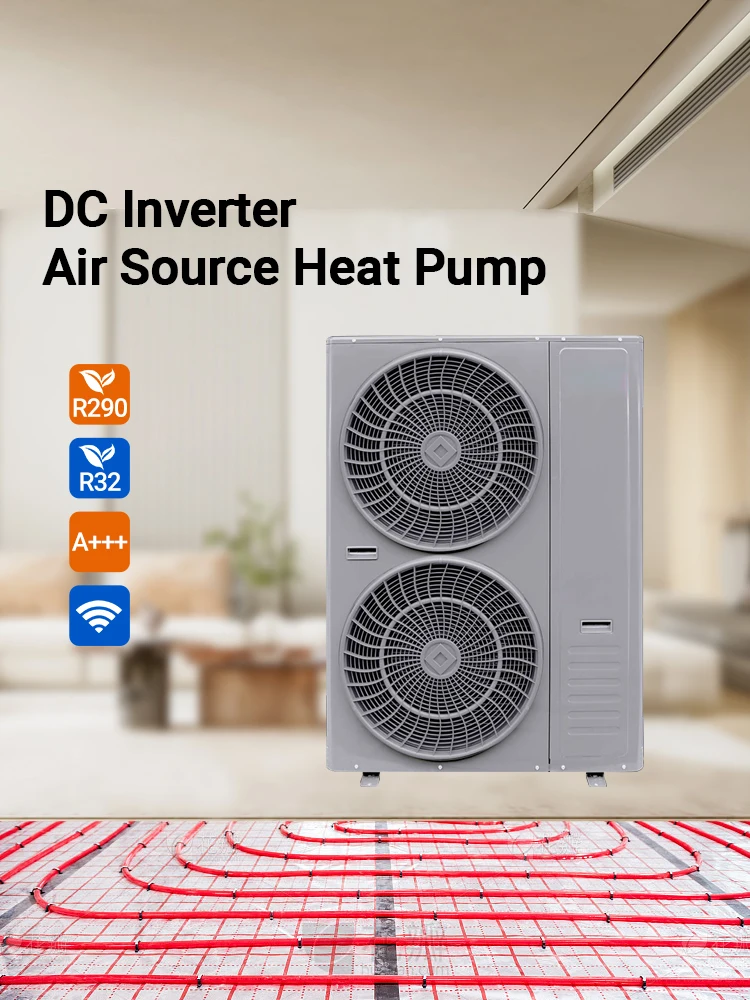

Factory price 15kw 30kw R290 Full EVI DC Inverter Heating and Cooling Heat Pump for Central air conditioners fan coil unit
- Category: >>>
- Supplier: Yuexin (tianjin) Artificial Environment Engineering Technology Co. Ltd.Yuexin Ltd.
Share on (1601169416693):
Product Overview
Description
Related Products
Product Image
Product Advantage
R290
With the acceleration of global warming and the destruction of the ozone layer, ,R290 refrigerant is favored for its environmental benefits, Internationally acclaimed because it has a muchsmaller global warming potential (GWP) than the current R32 refrigerant, lt will occupy the market position inthe future.

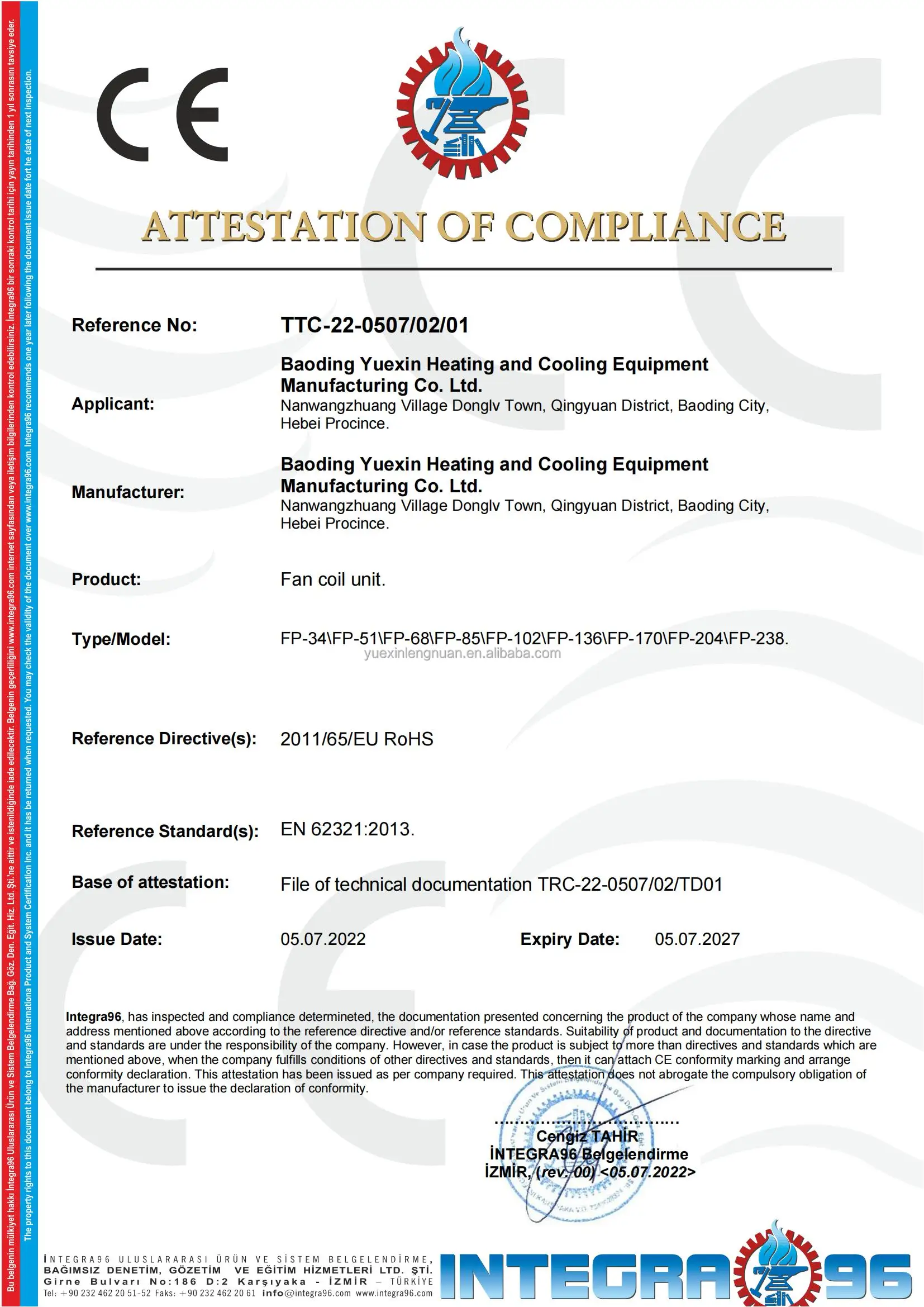

Certificate

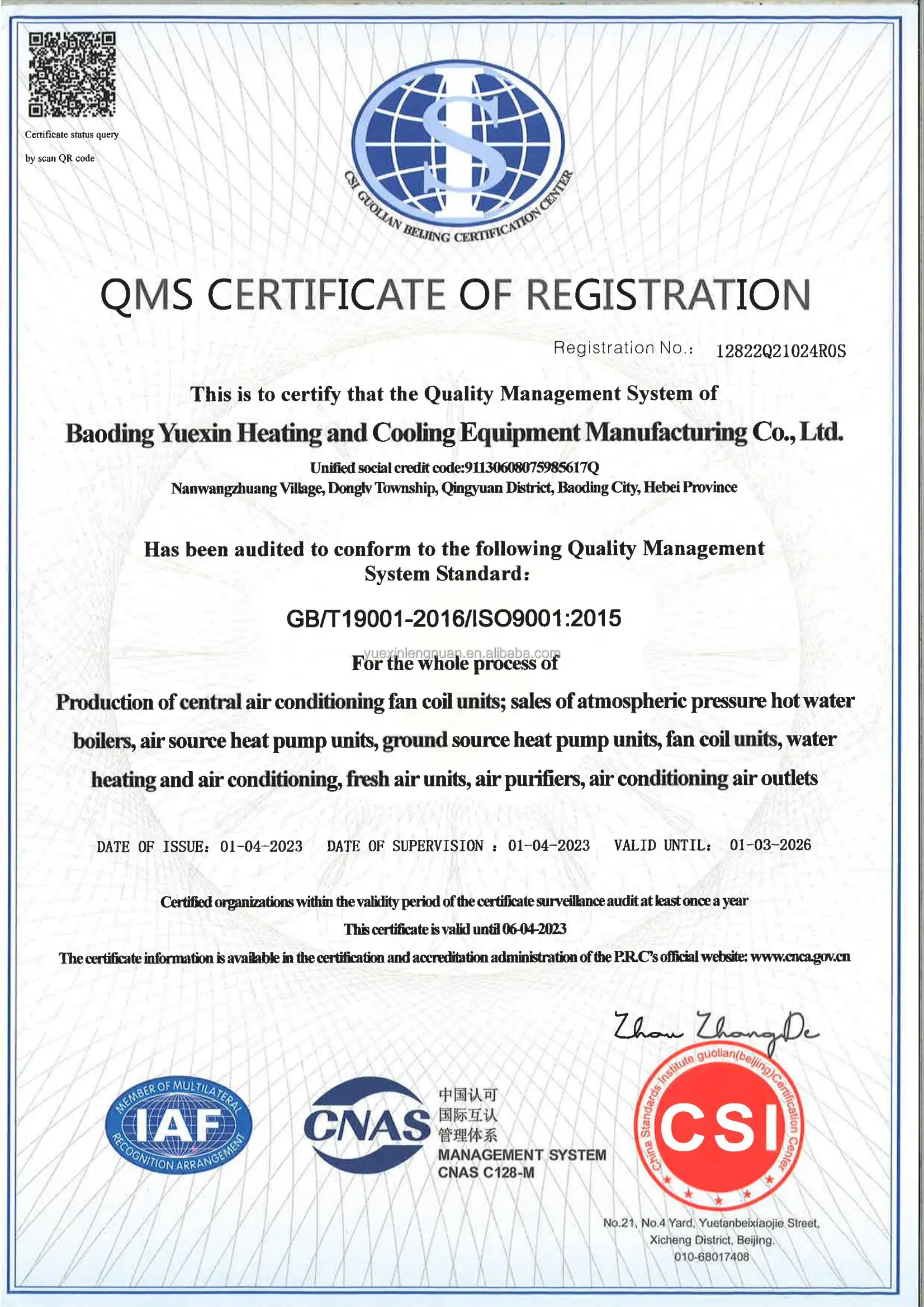

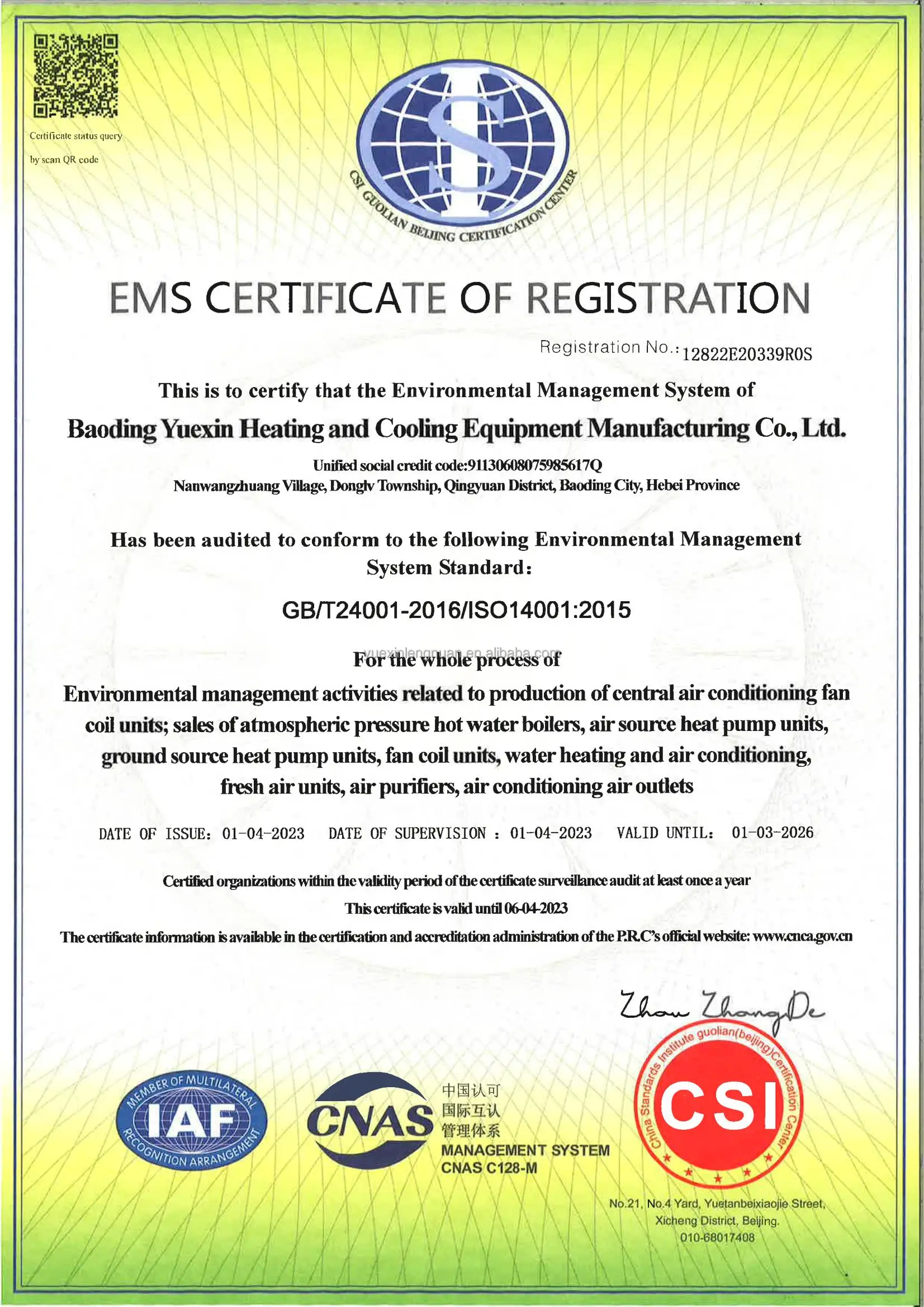

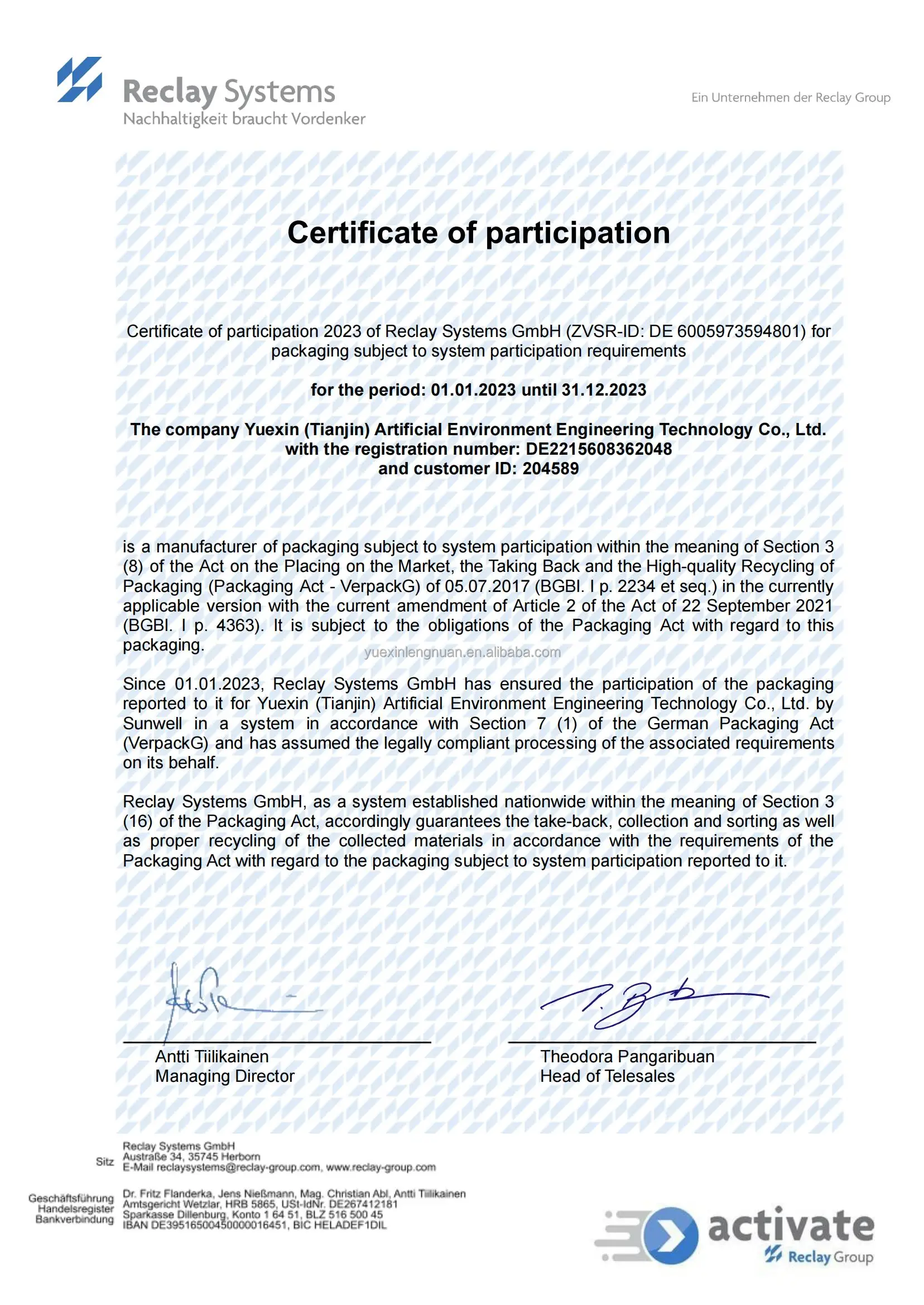

Guaranteed by multiple certificates such as CE, ISO9001, German and French EPR and WEEE

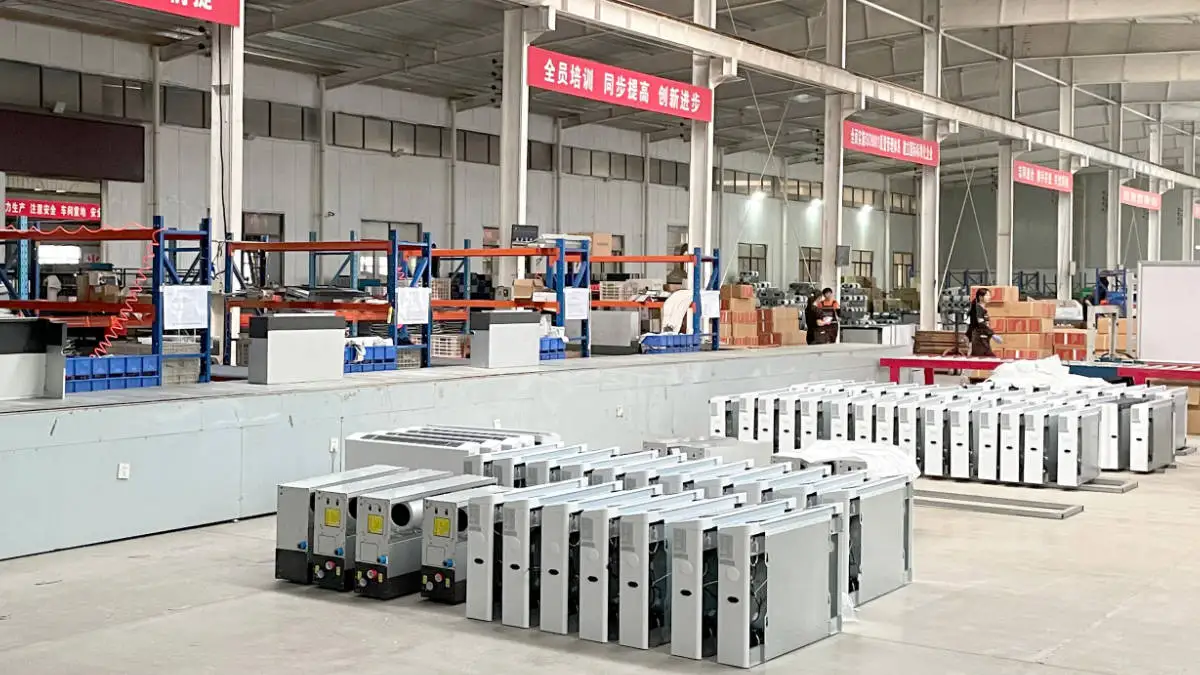

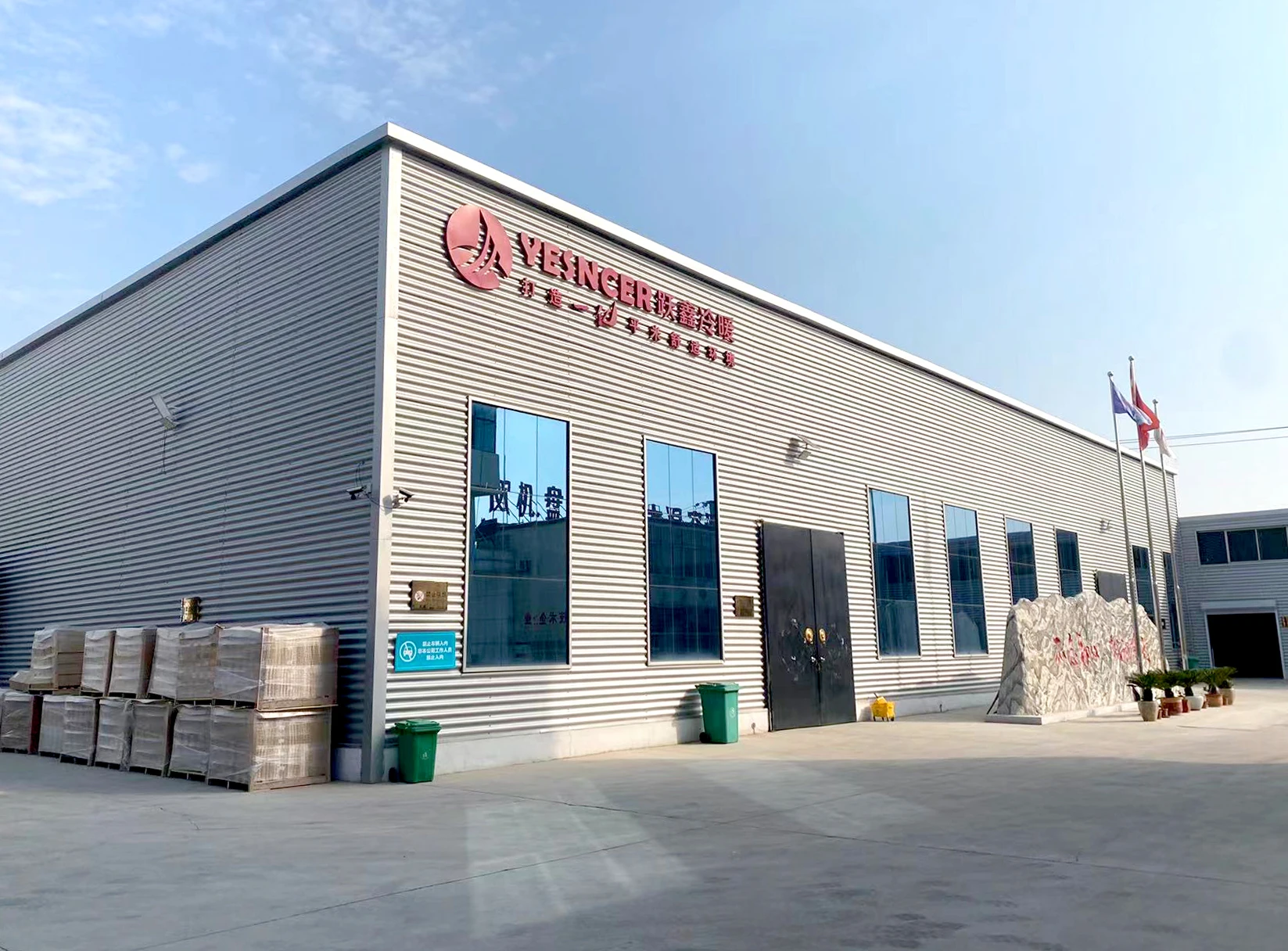

Factory

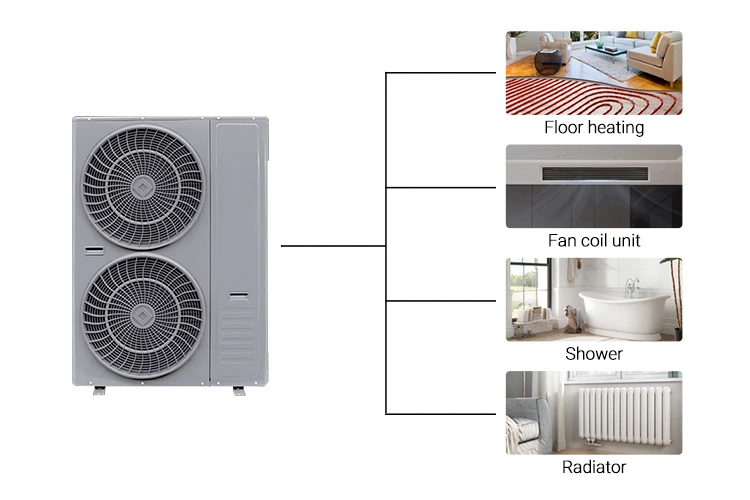

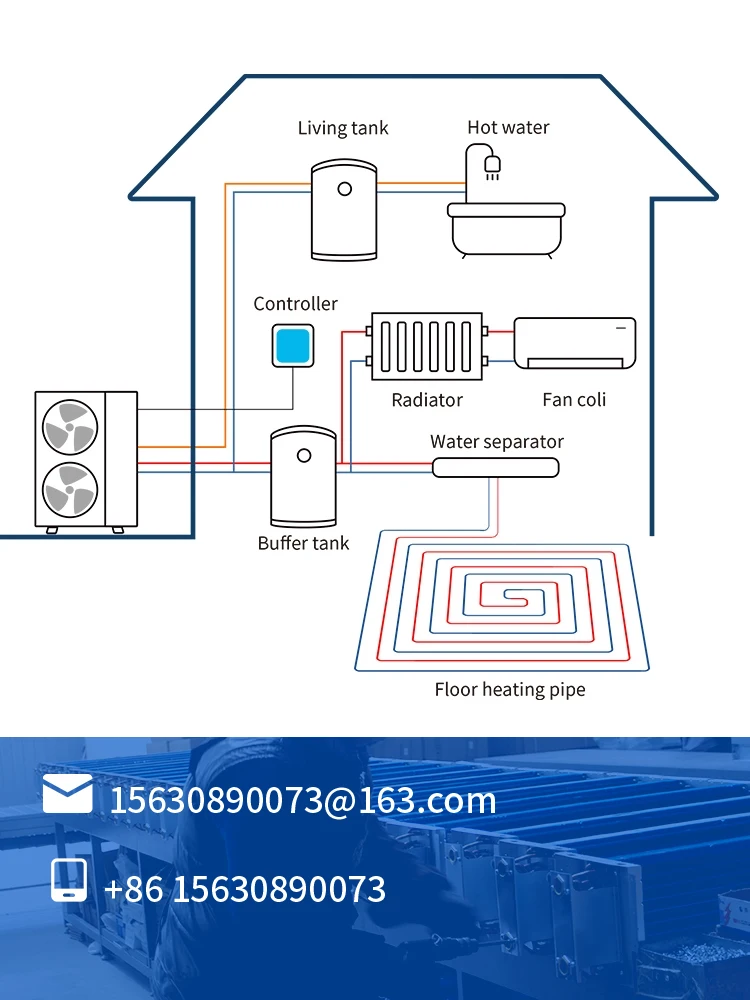

We provide a complete set of equipment, from outdoor cooling and heating host equipment to indoor fan coil equipment, we can provide it to meet the needs of various projects.
Product Parameters
Model | ASH-08CHW/RV | ASH-10CHW/RV | ASH-15CHW/RVS | ASH-20CHW/RVS | ||||||
Power Supply | V/Ph/Hz | 220~240/1/50 | 220~240/1/50 | 380~415/3/50 | 380~415/3/50 | |||||
ErP Level | at35℃ | A+++ | A+++ | A+++ | A+++ | |||||
Heating (A7°C/W30°C~35°C) | Rated Heating Capacity | kw | 8 | 10 | 15 | 20 | ||||
Heating Capacity Range | kw | 3.30~8.65 | 3.80~10.50 | 5.80~15.40 | 9.5~20.20 | |||||
Heating Power Input Range | kw | 0.64~1.93 | 0.74~2.41 | 1.14~3.56 | 1.89~4.83 | |||||
COP Range | w/w | 5.16~4.48 | 5.12~4.35 | 5.09~4.32 | 5.02~4.18 | |||||
Heating (A7°C/W50°C~55°C) | Heating Capacity Range | kw | 3.05~7.10 | 3.45~8.45 | 5.22~13.80 | 8.55~18.20 | ||||
Heating Power Input Range | kw | 0.67~2.55 | 0.76~3.10 | 1.14~4.89 | 2.16~7.05 | |||||
COP Range | w/w | 4.58~2.78 | 4.55~2.73 | 4.59~2.82 | 3.96~2.58 | |||||
Cooling (A35°C/W12°C~7°℃) | Heating Capacity Range | kw | 4.22~10.40 | 4.45~12.20 | 6.90~18.30 | 11.60~23.80 | ||||
Heating Power Input Range | kw | 0.84~2.40 | 0.90~2.87 | 1.35~4.60 | 2.39~6.23 | |||||
COP Range | w/w | 5.05~4.33 | 4.94~4.25 | 5.12~3.98 | 4.86~3.82 | |||||
Hot Water (A 20°C/W15°C~55°C) | Cooling Capacity | kw | 6.3 | 7.5 | 10.8 | 14.2 | ||||
Cooling Power Input | kw | 2.18 | 2.47 | 3.66 | 5.13 | |||||
EER | w/w | 2.89 | 3.04 | 2.95 | 2.77 | |||||
Max.Input Power | kw | 3.2 | 3.8 | 5.9 | 8.5 | |||||
Compressor | Type | DC Inverter+EVI Twin Rotary | ||||||||
Fan Motor | Type | DC/1 set | DC/1 set | DC/1 set | DC/2 set | |||||
Circulation Water Pump | Type | DC | ||||||||
Max.Outlet Water Temp | ℃ | 75 | ||||||||
Ambient temperature Range | ℃ | -30~45 | ||||||||
Refrigerant Type/Input | kg | R290/0.48 | R290/0.52 | R290/0.86 | R290/1.25 | |||||
CO2 Equivalent | Ton | 0.0014 | 0.0016 | 0.0026 | 0.0038 | |||||
Sound Pressure(acc.to EN 12102) | dB(A) | 57 | 59 | 60 | 62 | |||||
Sound Pressure(1m) | dB(A) | 44 | 46 | 46 | 49 | |||||
Shockproof | Class | l | l | |||||||
Wateroof | Class | IPX4 | IPX4 | IPX4 | IPX4 | |||||
Net Weight | kg | 78 | 83 | 118 | 127 | |||||
Net Dimension(L*W*H) | mm | 1003x392x867 | 1003x392x867 | 1203×433×995 | 11003×392×1396 | |||||
Certifications
Company Profile
YUEXIN (TIANJIN) ARTIFICIAL ENVIRONMENT ENGINEERING TECHNOLOGY CO., LTD.
YUEXIN (TIANJIN) ARTIFICIAL ENVIRONMENT ENGINEERING TECHNOLOGY CO., LTD. is a professional manufacturer of cooling and heating equipment integrating R&D,manufacturing, sales and after-sales service. It mainly produces fan coil units, water temperature air conditioners,The hot air blower, water conservancy module and air source heat pump cover an area of more than 26,600 square meters (40 acres) and a construction area of 17,000 square meters. The company takes "energy saving and environmental protection" as its mission and is committed to Use technology to save energy in our world, save money and reduce expenses for our customers.
Every employee of YESNCER has undergone strict professional and technical training. They are responsible for inspecting product details and assembling semi-finished products to ensure that the products delivered to customers fully meet the requirements.

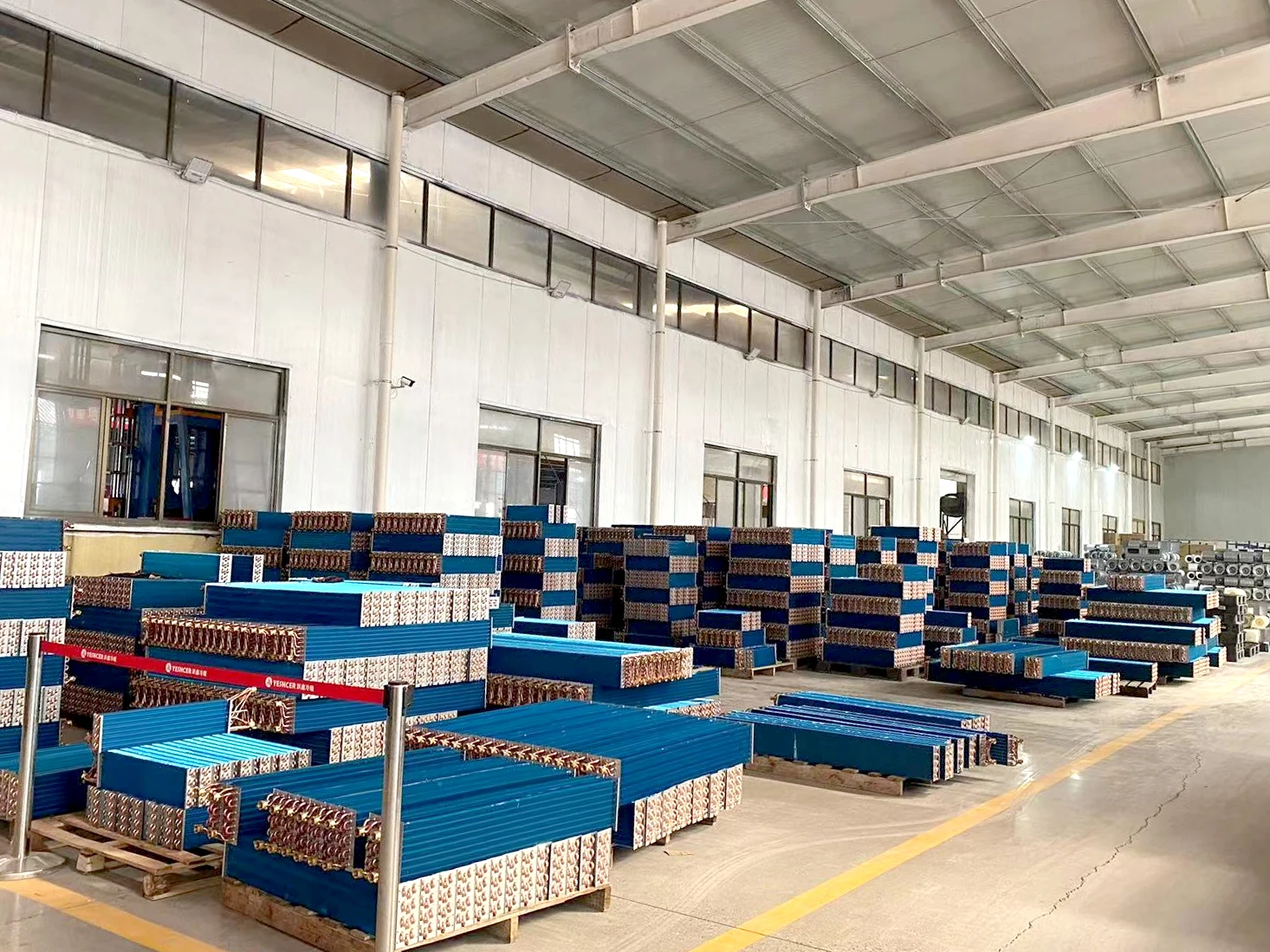

We have production capabilities worthy of recognition, from the production of parts and components, the assembly of semi-finished products, the packaging and transportation of finished products, to complete assembly line operations. The annual sales volume reaches 20W+ units, meeting the needs of major engineering projects and ensuring that your projects are delivered on schedule.
The company also has a national-level comprehensive enthalpy difference performance laboratory for air-conditioning units, including condensation water erosion test on the product shell, seismic test of transportation packaging, high, medium and low-end noise test, product cold and heat test, etc., to ensure that the production of each product is perfect. It has passed strict technical testing and fully meets the acceptance standards.
Our Customers
YESNCER welcomes friends from all over the world to visit our factories and companies.
China is a warm country. Coming here is equivalent to coming home. You and I are friends from afar.
If you are free, you can come here at any time. We look forward to your visit.
