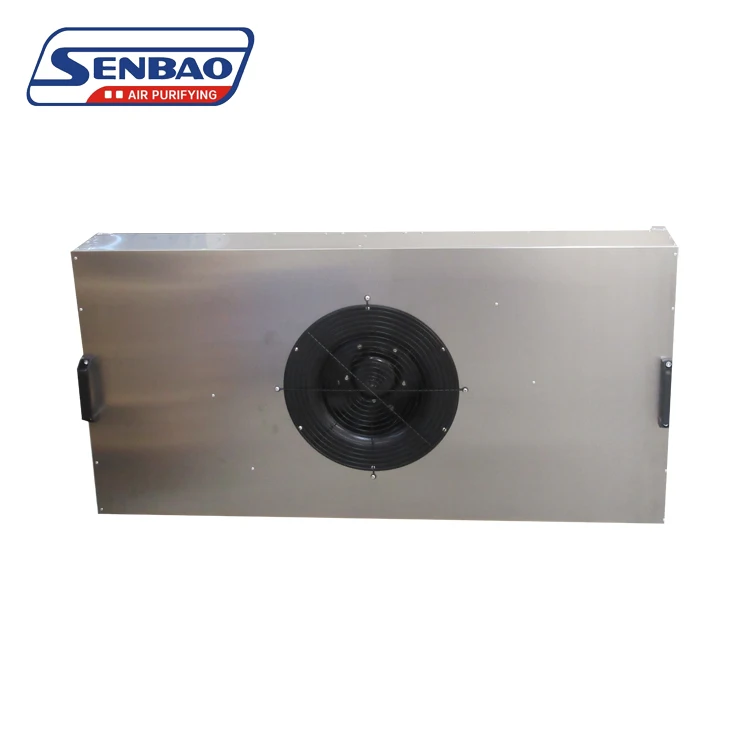

Factory Manufeture High Quality Low Noise Air Purification FFU Fan Filter Unit For Clean Room

Product Overview

Description

Factory Manufeture High Quality Low Noise Air Purification FFU Fan Filter Unit For Clean Room

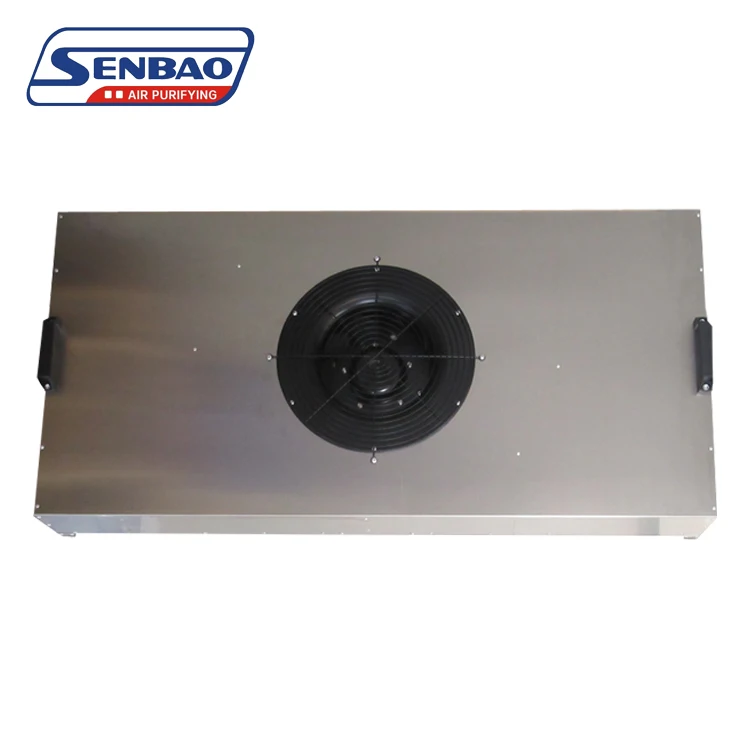

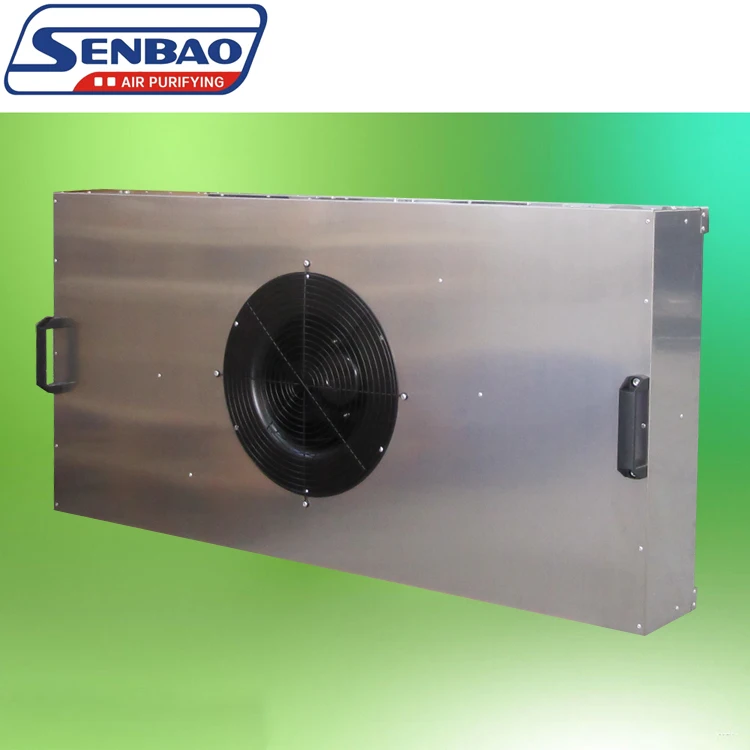

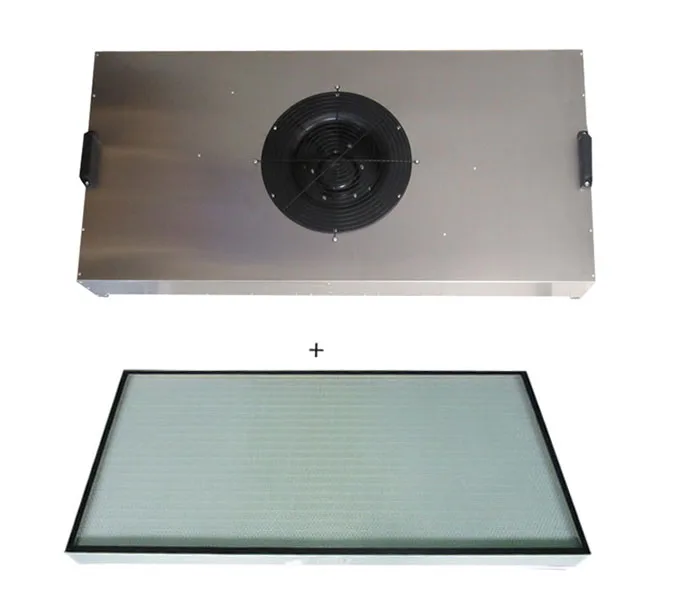

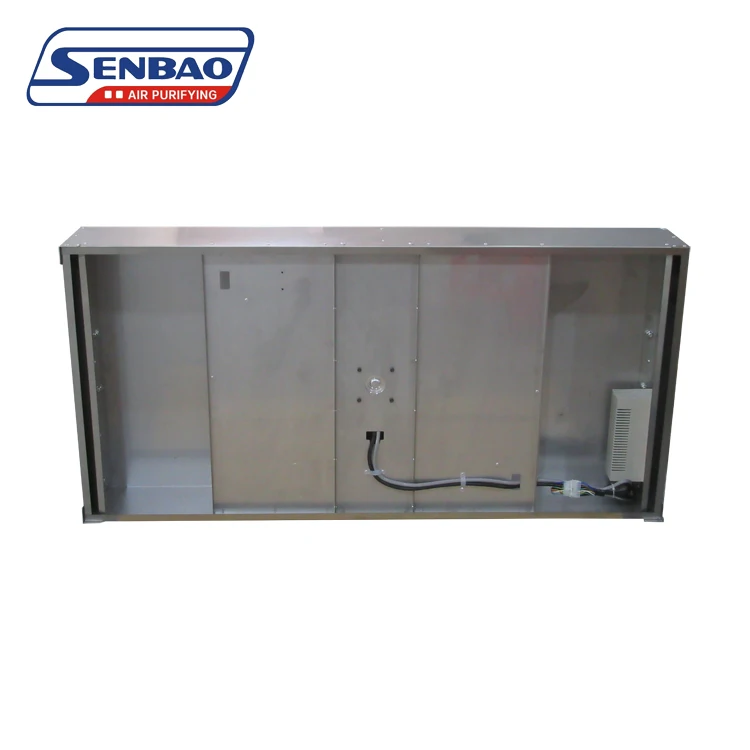

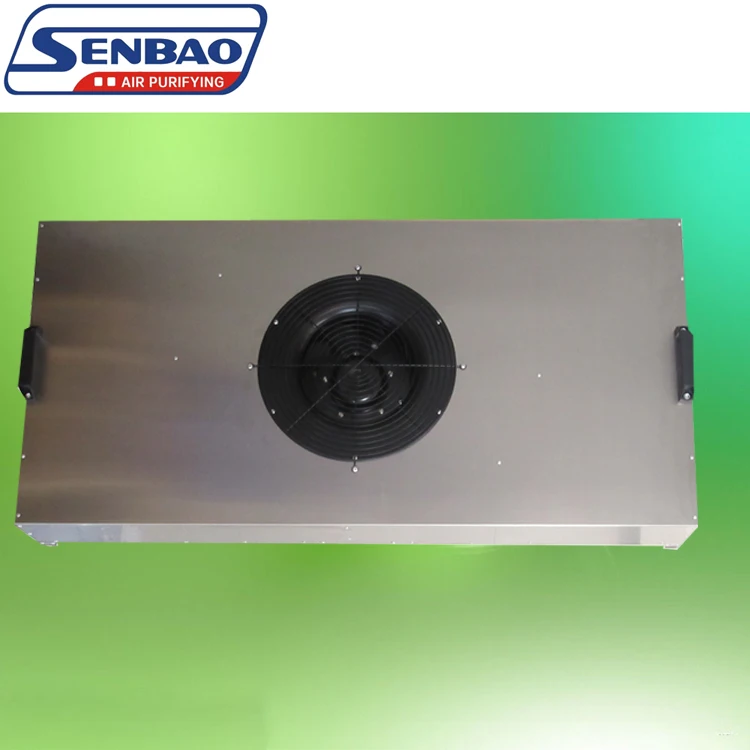

A fan filter unit is a terminal air supply device that can independently supply power and has the function of filtering air. In this device, the fan sucks in air from the top and filters it through a HEPA filter, ultimately producing clean air that is evenly distributed through the air outlet. This design can provide stable and strict air environment control for clean rooms. In addition, the fan filter unit also supports modular connections, which can meet the needs of different enterprises and industries for different clean environments.



Application

The fan filter unit is widely used in clean workshops of different cleanliness in many industries such as microelectronics / semiconductor, biopharmaceuticals, food processing, microbiological inspection and other places with strict air control requirements.

FFU’s are commonly used in the construction of Class 100 to Class 100,000 cleanrooms, even forming ultra clean line, clean closet and etc…

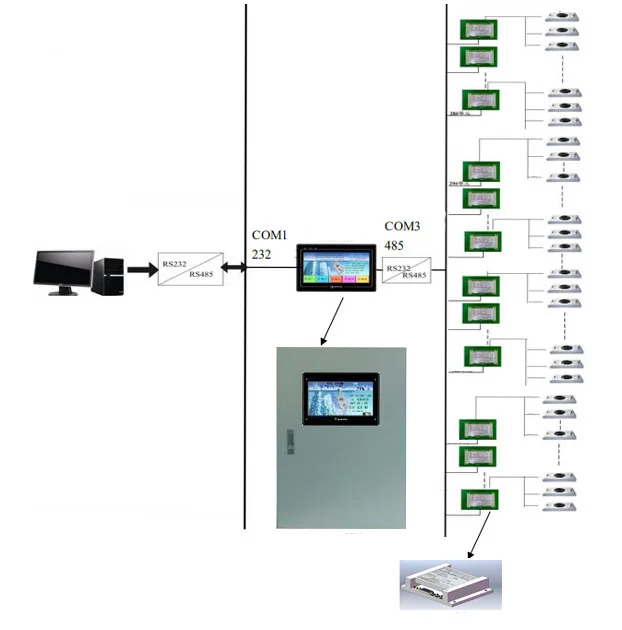

Senbao FFU Group Control System
According to different usage requirements, the FFU control method could be selectable from single control, electric box small group control, touch screen small group control, computer group control etc.



Specification and technical parameters

Model		FFU-1175	FFU-1220	FFU-575	FFU-610
Size (WxLxHmm)		575x1175x350	610x1220x350	575x575x350	610x610x350
Air chamber material		Galvalume / Aluminum / Stainless Steel
Air Flow (m³/h)		1100-1800	1200-1900	500-900	600-950
Air velocity (m/s)		0.35~0.55	0.35~0.55	0.35~0.55	0.35~0.55
Noise dB  (1m below the HEPA filter)		55~63
Vibration (mm/s)		0.2~0.7
Power supply		1P, 220V- 50/60Hz, 110V-50Hz/60Hz.  1P( Phase), AC or Dc
Control mode		3 levels adjustable manually or group control by computer
High Efficieny Filter	Size (WxHxDmm)	570x870x69	570x1170x69	610x1220x69	870x1170x69
	Efficiency	99.99% 0.3μm
	Frame	High quality anodized aluminum
	Initial pressure drop	110Pa @0.45m/s±15%

 Special size can be customized.







 A:We are indeed filter manufacturer over 20 years experiences and work with many brands for dozen years,such as Coke Cola,Pepsi,Sony,Zhongsheng Medicine and etc.



 Q:Where is the air filter generally use for?

 A:HAVC(Heating,air conditioning and ventilation system)Spray painting stop,chemical plant,pharmaceutical plant,cement or asphalt powder plant,clean room,power station,heavy and metal industry,Gas turbo and Co-generation utility plants, Engineering and devices plants, dry and bake room, Hospital,etc.



Q:What's your testing standard?

 A:EN779:2012, ISO9001

Q:What is the international standard for air filter?
A:European and American use different name for the same standard.
Euro:Pre(G1-G4),Medium(F5-F9),HEPA(H10-H14),ULPA(U15-U17)
American:Pre(Merv1-7),Medium(Merv8-14),HEPA(Merv15-19),ULPA(Merv 20)
