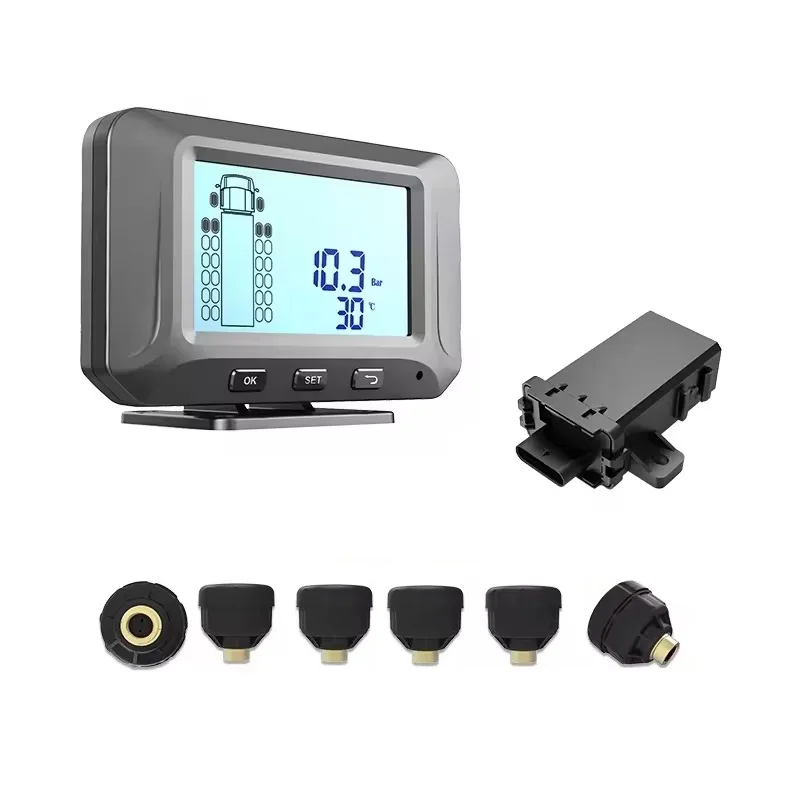

2 26 wheels TPMS tyre pressure monitoring system for trucks trailer BUS IN/External sensors Support adding wheels RS232 GPS TPMS
- Category: >>>
- Supplier: Shenzhen Yiguo Electronic Technology Co. Ltd.
Share on (1601169852955):
Product Overview
Description
Specification
item | value |
Product name | Truck TPMS （6wheels） |
Pressure range | 0-18Bar/0-264Psi/0-1800Kpa |
Working Temperuare | -40℃-105℃ /-40℉-221℉ |
Pressure resolution | 0.2Bar/4.4Psi |
Battery Type | Maxell 2050 350mAh |
Battery life time | More than 4 years |
Default packaging | Each Sealed bag (Support customization) |
Chip | AUTOMOTIVE GRADE |
OEM/ODM Orders | Offer |
Protection grade | IP67 |
Products Description
Product features

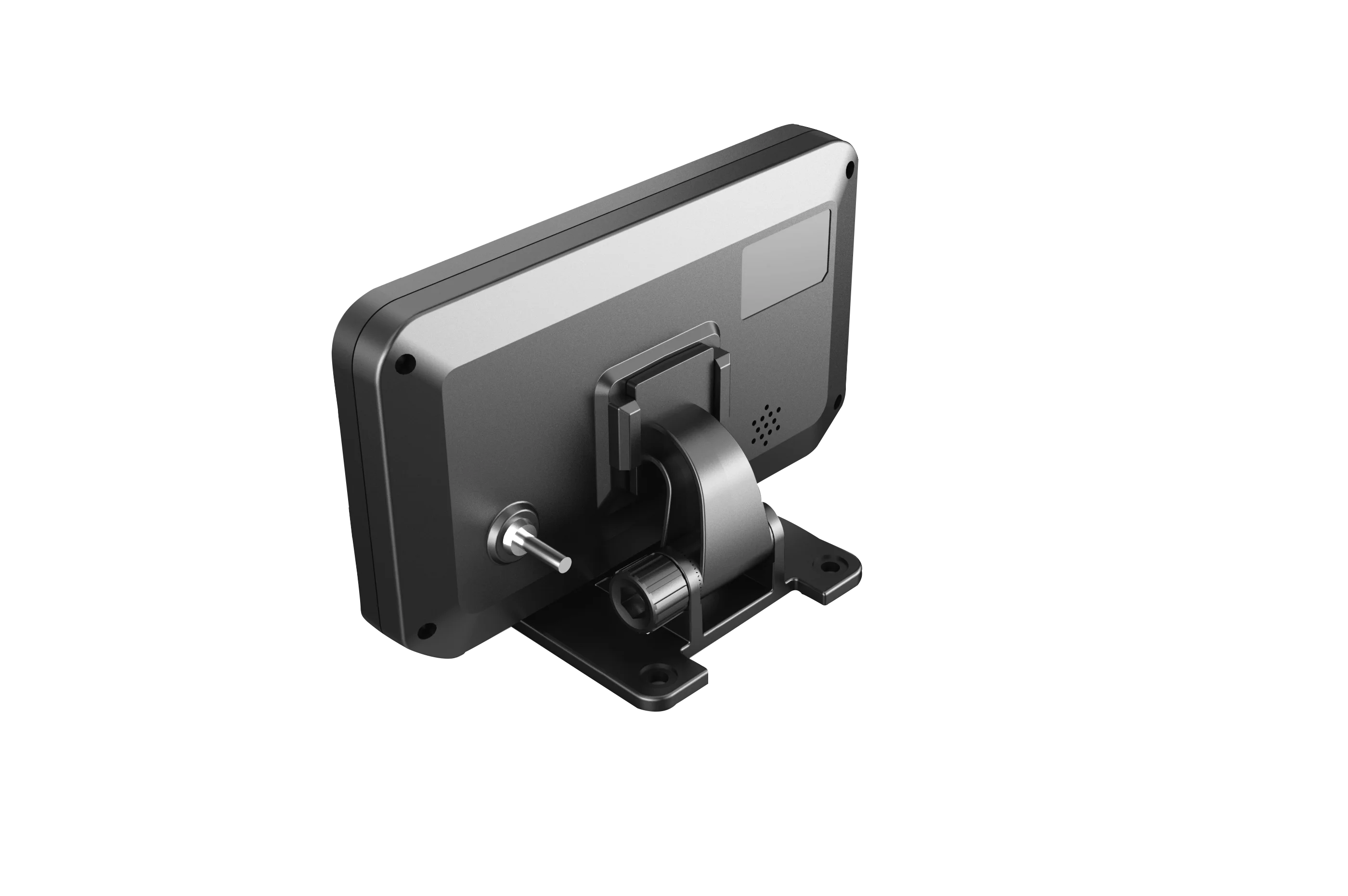

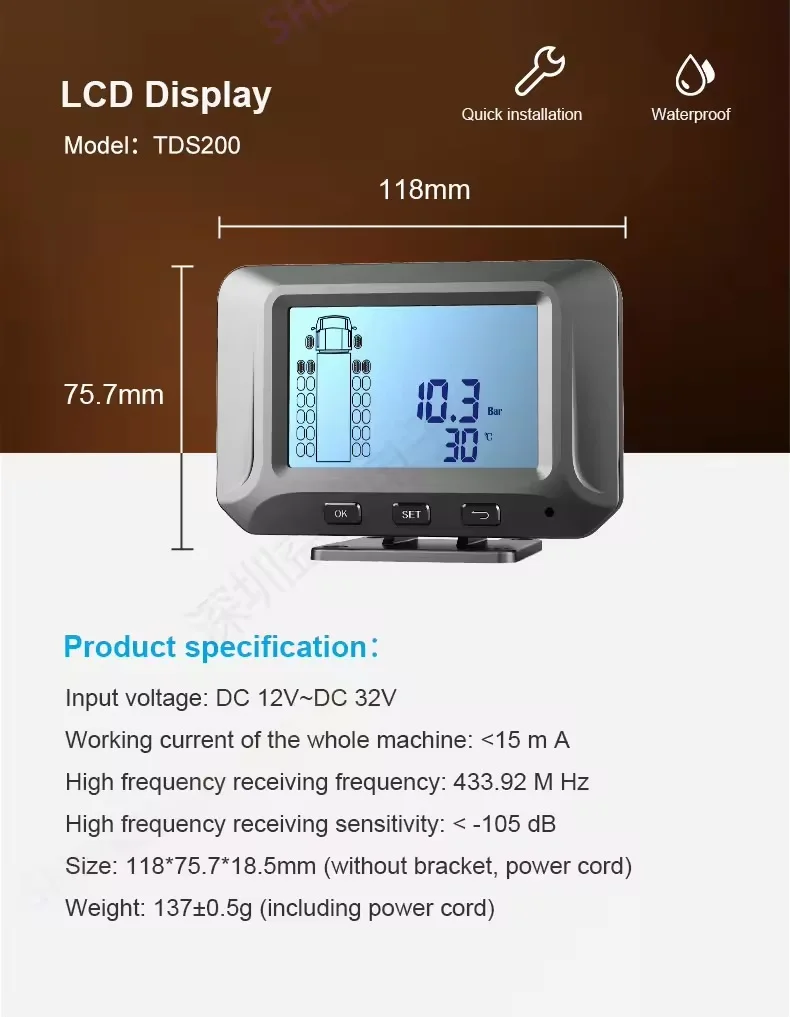

1. LCD screen cycles to display pressure and temperature
2. Customizable tire arrangement, capable of synchronously monitoring 26 wheels

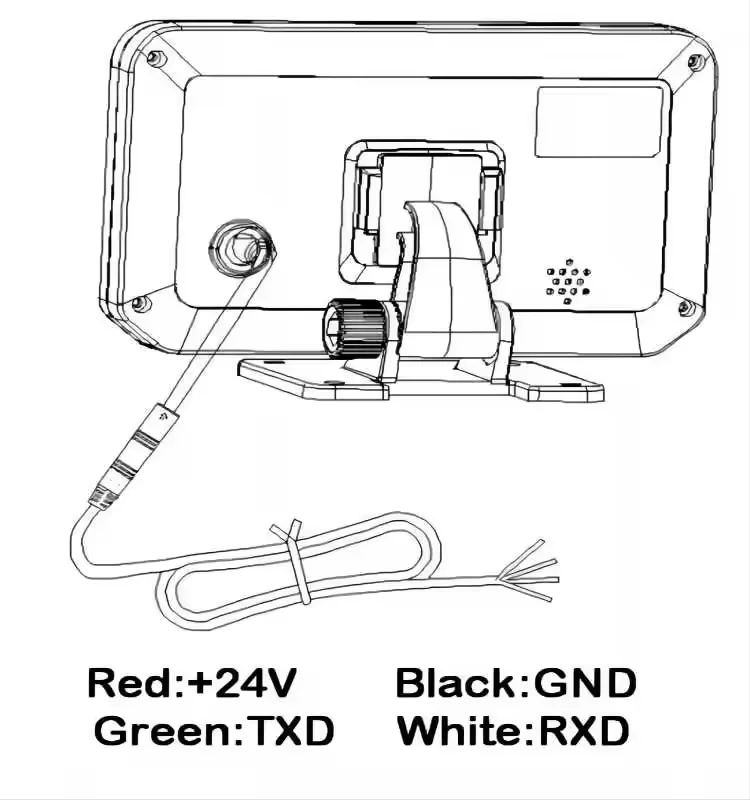

3. Adjustable RS232 communication and GPS background monitoring of tire pressure
4. Can set tire high pressure/low pressure/high temperature alarm standard values
When the tire is abnormal, LCD display and sound prompt alarm
6. Bar Psi ℃ ℉ units can be selected
7. Strong receiving sensitivity and long stable receiving distance
2. Customizable tire arrangement, capable of synchronously monitoring 26 wheels
3. Adjustable RS232 communication and GPS background monitoring of tire pressure
4. Can set tire high pressure/low pressure/high temperature alarm standard values
When the tire is abnormal, LCD display and sound prompt alarm
6. Bar Psi ℃ ℉ units can be selected
7. Strong receiving sensitivity and long stable receiving distance
Product features
1. Supports wide temperature operation, with a working temperature of -40 ℃ -85 ℃
2. The shell is made of high-temperature resistant material, with a thermal deformation temperature greater than 125 ℃
3. The shell has good waterproof performance and is suitable for harsh outdoor environments. It has a waterproof interface and a waterproof level of IP67
4. Wide working voltage, working voltage 9V-36V
5. The product comes with reverse connection protection, overvoltage protection, and short circuit protection, which will not burn the machine no matter how it is connected
2. The shell is made of high-temperature resistant material, with a thermal deformation temperature greater than 125 ℃
3. The shell has good waterproof performance and is suitable for harsh outdoor environments. It has a waterproof interface and a waterproof level of IP67
4. Wide working voltage, working voltage 9V-36V
5. The product comes with reverse connection protection, overvoltage protection, and short circuit protection, which will not burn the machine no matter how it is connected
Product features

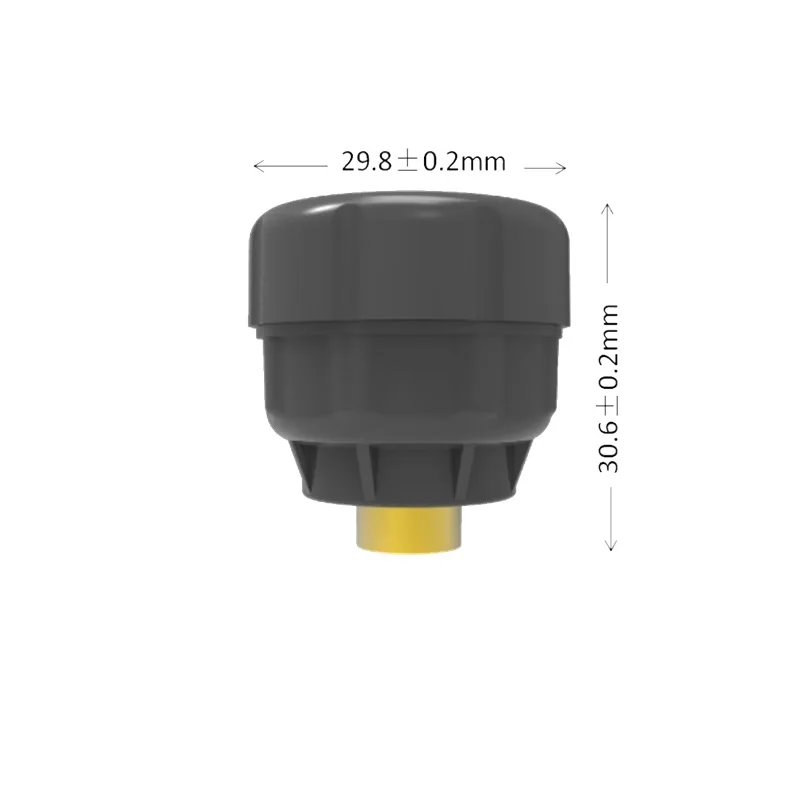

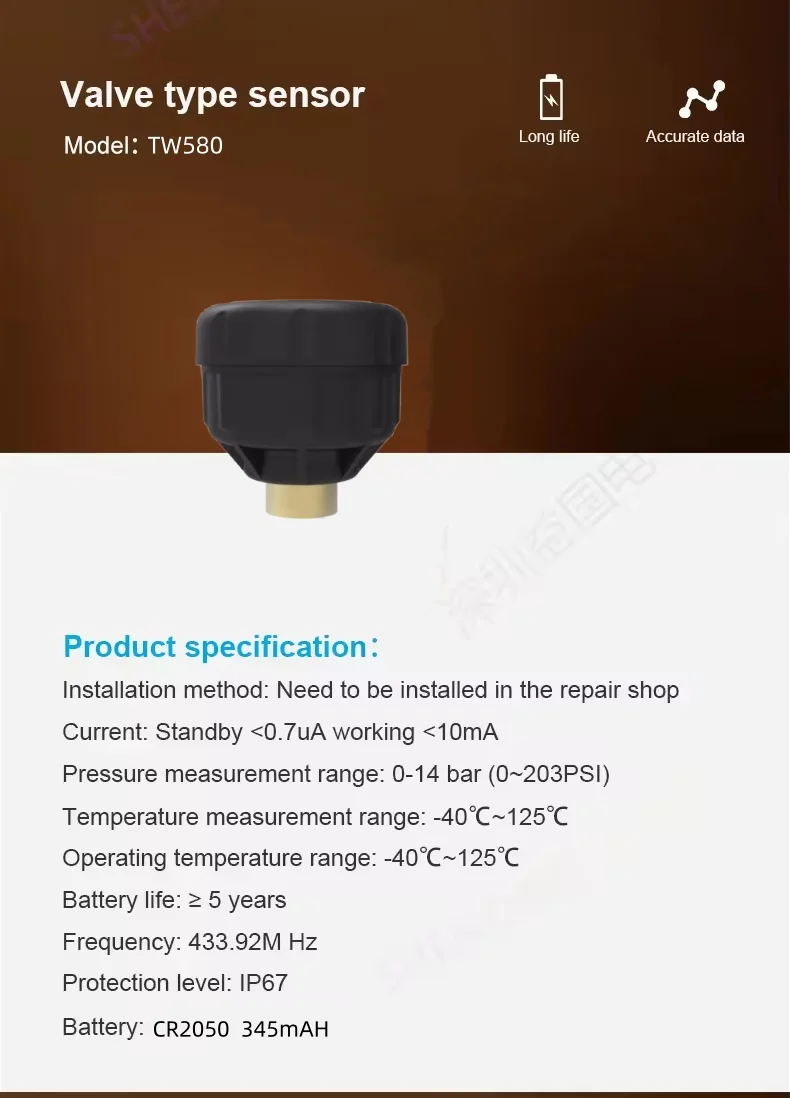

1. The high-frequency transmission method adopts FSK modulation signal, and the low-frequency adopts ASK modulation signal
2. Vehicle grade materials with high stability and strong anti-interference ability
3. Large capacity batteries with long lifespan
4. Simultaneously measure and monitor air pressure and temperature, and have self inspection and tire leak monitoring functions
5. Adopting IP67 protection level
6. Reliable structure and simple installation
2. Vehicle grade materials with high stability and strong anti-interference ability
3. Large capacity batteries with long lifespan
4. Simultaneously measure and monitor air pressure and temperature, and have self inspection and tire leak monitoring functions
5. Adopting IP67 protection level
6. Reliable structure and simple installation
Company Profile
Shenzhen Yiguo Electronic Technology Co., Ltd. was established in 2014 and is a modern high-tech company specializing in the research and development and production of automotive safety electronic products for over 15 years. Our main products include motorcycle TPMS, sedan TPMS, passenger car TPMS, trailer TPMS, truck TPMS, wheel hub high temperature warning device, tire pressure programming tool, programmable universal TPMS sensor OE TPMS sensors,especially universal TPMS sensors and programming tools that are fully compatible with 99% of vehicle models, etc. We have won numerous orders in the global market with complete technical solutions, independent R&D team, strict quality control, fast delivery, professional services, and competitive prices.
The company is based on advanced technology, efficient management, excellent products, and a standardized modern enterprise management system, and has passed the IATF16949:2016 automotive industry production quality management system certification. Its product has passed CE certification FCC, RoHs inspection, and third-party quality inspection certification from domestic and foreign authoritative institutions. With exquisite manufacturing techniques and stable and safe product applications, we have won markets and reputations in multiple countries and regions around the world.
The company is based on advanced technology, efficient management, excellent products, and a standardized modern enterprise management system, and has passed the IATF16949:2016 automotive industry production quality management system certification. Its product has passed CE certification FCC, RoHs inspection, and third-party quality inspection certification from domestic and foreign authoritative institutions. With exquisite manufacturing techniques and stable and safe product applications, we have won markets and reputations in multiple countries and regions around the world.
Packaging & Shipping
Why Choose Us
1. Our team has been dedicated to research and development, specializing in the production of tire pressure monitoring products for over 15 years. Having mature experience in product design, development, and production control, ensuring reliable product quality, reasonable and competitive prices, and fast delivery cycles!
2. Our team supports OEM/ODM orders and can customize brand logos or packaging methods to meet your various product requirements.
3. Our team is excellent and professional, and we will answer all your questions before you make a purchase, whether it's about the product or the company. We will do our best to dispel all your doubts. And confirm the model, quantity, price, payment method, packaging, brand, etc. one by one before shipment.
4. Our team will conduct 100% testing on each component during the production process to ensure that the product you receive is perfect; Before shipment, if you need to make temporary changes to packaging, labels, quantities, etc., we will do our best to meet your modifications within our capabilities, but it may affect the delivery time. We will keep in touch with you based on the specific situation.
5. After you receive the goods, if you have any quality issues, please contact us in a timely manner. Our team will provide you with a satisfactory professional solution. If you provide relevant test data or photographic evidence, we would greatly appreciate it. This can help us quickly identify the cause, and our technical team can make improvements to improve product quality.
2. Our team supports OEM/ODM orders and can customize brand logos or packaging methods to meet your various product requirements.
3. Our team is excellent and professional, and we will answer all your questions before you make a purchase, whether it's about the product or the company. We will do our best to dispel all your doubts. And confirm the model, quantity, price, payment method, packaging, brand, etc. one by one before shipment.
4. Our team will conduct 100% testing on each component during the production process to ensure that the product you receive is perfect; Before shipment, if you need to make temporary changes to packaging, labels, quantities, etc., we will do our best to meet your modifications within our capabilities, but it may affect the delivery time. We will keep in touch with you based on the specific situation.
5. After you receive the goods, if you have any quality issues, please contact us in a timely manner. Our team will provide you with a satisfactory professional solution. If you provide relevant test data or photographic evidence, we would greatly appreciate it. This can help us quickly identify the cause, and our technical team can make improvements to improve product quality.
FAQ
Q1: Are you a manufacturing factory?
A1: Yes, our team is a factory specializing in the design, research, development, production, and manufacturing of products such as tire pressure and temperature detection. Please feel free to video check or visit our factory in China at any time.
Q2: How long is your delivery time?
A2: Most of our products are in stock and it usually takes 2-10 days to label and package them according to your needs. If out of stock, it will take 15-20 days, depending on the product model and quantity.
Q3: Can I purchase samples for placing an order?
A3: Yes. Please feel free to contact us at any time.
Q4: What is your payment term?
A4: T/T,Western Union,L/C,and Paypal.This is negotiable.
Q5: What is the shipping method?
A5: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
A1: Yes, our team is a factory specializing in the design, research, development, production, and manufacturing of products such as tire pressure and temperature detection. Please feel free to video check or visit our factory in China at any time.
Q2: How long is your delivery time?
A2: Most of our products are in stock and it usually takes 2-10 days to label and package them according to your needs. If out of stock, it will take 15-20 days, depending on the product model and quantity.
Q3: Can I purchase samples for placing an order?
A3: Yes. Please feel free to contact us at any time.
Q4: What is your payment term?
A4: T/T,Western Union,L/C,and Paypal.This is negotiable.
Q5: What is the shipping method?
A5: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
