Product Overview
Description
Specification
No. | Project | Unit | Specification | * |

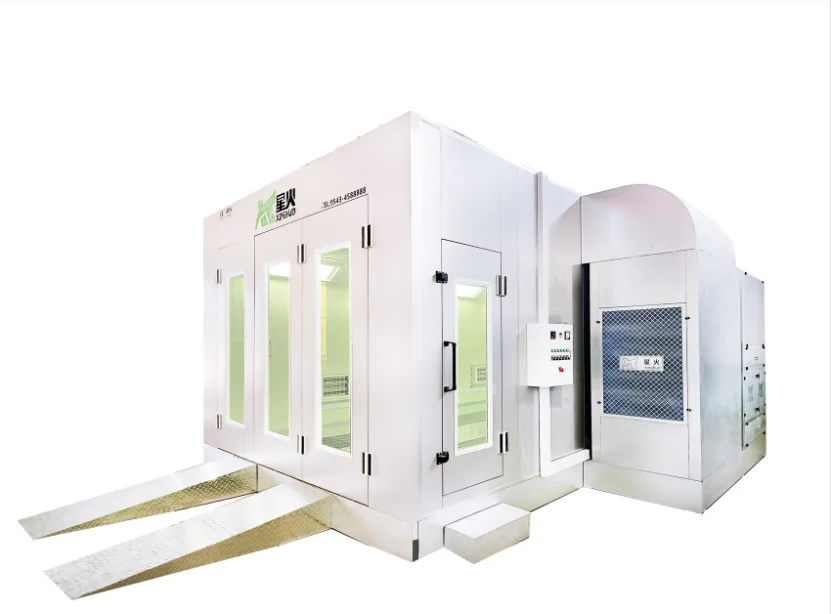

1 | Spray booth type | * | Side-inlet, side-exhaust spray booth | Single station |
2 | Inside diameter of the chamber | mm | 6900×3900×2800 | * |
3 | The outer diameter of the chamber | mm | 7000×4000（+1300）×3500 | Including 300mm base |
4 | Door opening size (W×H) | mm | 3200×2500 | 3 sheet metal gates |
5 | Noise when the equipment is working | dB | ≤85 | * |
6 | Indoor illumination | Lux | ≥800 | * |
7 | Average indoor wind speed | m/s | ≥0.25 | * |
8 | Air supply filter | * | tertiary filtration | * |
9 | Paint mist treatment efficiency | * | ≥98％ | * |
10 | Paint temperature | ℃ | 60-80 | * |
11 | Total enter air volume | m³/h | 20000 | 2 sets of 3kw intake fans |
12 | Total exhaust air volume | m³/h | 15000 | 1 set 5.5kw exhaust fan |
Products Detail
House System
①The wall panel of the house is made of 50mm fireproof rock wool board, the thickness of the insulation board is 50mm, the single-layer color steel plate δ0.4mm, and the rock wool bulk density is 100kg/cubic;
②The top is δ0.6mm color plate bending and buckle connection, and the top skeleton is welded with 40*60 square tube, which is firm and safe.
③The slot and wrap angle are bent with δ0.8mm galvanized sheet.
②The top is δ0.6mm color plate bending and buckle connection, and the top skeleton is welded with 40*60 square tube, which is firm and safe.
③The slot and wrap angle are bent with δ0.8mm galvanized sheet.
Plenum system
①The top "T" beam is welded with 40*60mm galvanized square tube, and both ends are equipped with 2.0mm galvanized sheet folded 90°, and the connection with the paint room is lap joint;
②The top vertical bracing is made of 40*60mm galvanized square tube, and the two sides of the square tube are equipped with connecting rows. The fixing method is screw connection, which has high stability and is used to support the top plate;
③The upper sealing plate is made of δ0.8mm galvanized sheet by bending and welding, sprayed with plastic, and the color is white; the connection between the upper sealing plates is screw connection, and the connection between the upper sealing plate and the top beam is screw Connection, large bearing capacity and strong stability.
④ The filter frame material is made of high-quality profiles to be folded into a "concave" shape, sprayed with plastic, and the filter cotton edge can be inserted into the frame to prevent lint. The design of 6 cotton supports is convenient for replacement and enhances the overall strength.
②The top vertical bracing is made of 40*60mm galvanized square tube, and the two sides of the square tube are equipped with connecting rows. The fixing method is screw connection, which has high stability and is used to support the top plate;
③The upper sealing plate is made of δ0.8mm galvanized sheet by bending and welding, sprayed with plastic, and the color is white; the connection between the upper sealing plates is screw connection, and the connection between the upper sealing plate and the top beam is screw Connection, large bearing capacity and strong stability.
④ The filter frame material is made of high-quality profiles to be folded into a "concave" shape, sprayed with plastic, and the filter cotton edge can be inserted into the frame to prevent lint. The design of 6 cotton supports is convenient for replacement and enhances the overall strength.
Gate system
①The gate design is a folding three-sheet metal large glass door, all handmade, with a built-in delta 0.8mm skeleton, a built-in mortise lock, and a glass observation window, which is convenient for observing the paint spraying in the room; the size of the door opening is W:3000mm×H : 2500mm, the size of a single door is W: 1000mm × H: 2500mm;
Gate system

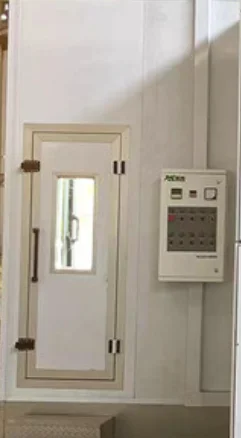

②There is a safety working door on one side of the room, equipped with a safety pressure lock device. When the pressure in the room reaches the limit, the safety door will automatically pop open to release the pressure, which is convenient and safe. It is equipped with a glass observation window, which is convenient for observing the paint spraying in the room. The size of the door opening is: W:650mm×H:1800mm.
Air Filtration System
①The air inlet of the fan adopts the primary filter of the special air inlet cotton;

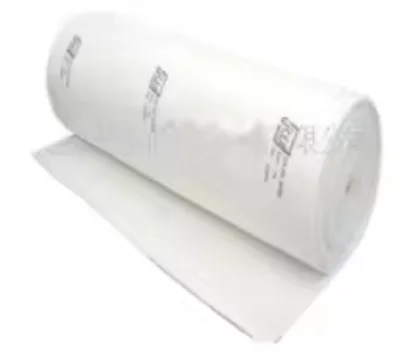

②The top of the static pressure chamber adopts CC-800XU advanced filter cotton for high-efficiency filtration;
③The bottom of the steel grille is equipped with bottom cotton paint mist filter felt for efficient filtration;
⑤The exhaust box body adopts 2 layers of paint mist filter cotton.
②The top of the static pressure chamber adopts CC-800XU advanced filter cotton for high-efficiency filtration;
③The bottom of the steel grille is equipped with bottom cotton paint mist filter felt for efficient filtration;
⑤The exhaust box body adopts 2 layers of paint mist filter cotton.
Fan system

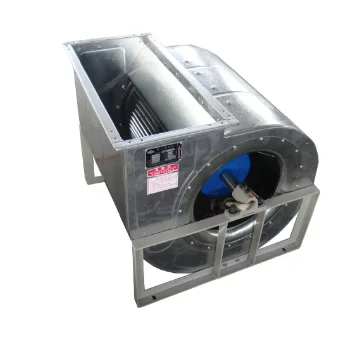

①The air supply unit uses Jiangsu YDW double-inlet fans. According to the calculation of air volume, a total of 2 sets of 3kw fans are configured for air intake. , a total of 6kw.
②The exhaust fan group adopts Jiangsu YDW type double inlet fan; a total of 1 set of 5.5KW fan is configured to exhaust air, and the exhaust air volume of each fan is 15500m³/h, with a total of 5.5KW.
②The exhaust fan group adopts Jiangsu YDW type double inlet fan; a total of 1 set of 5.5KW fan is configured to exhaust air, and the exhaust air volume of each fan is 15500m³/h, with a total of 5.5KW.
Heating system
Diesel heating: Italian G20 diesel burner, heat exchanger made of SUS304 high-quality stainless steel.
Heating system

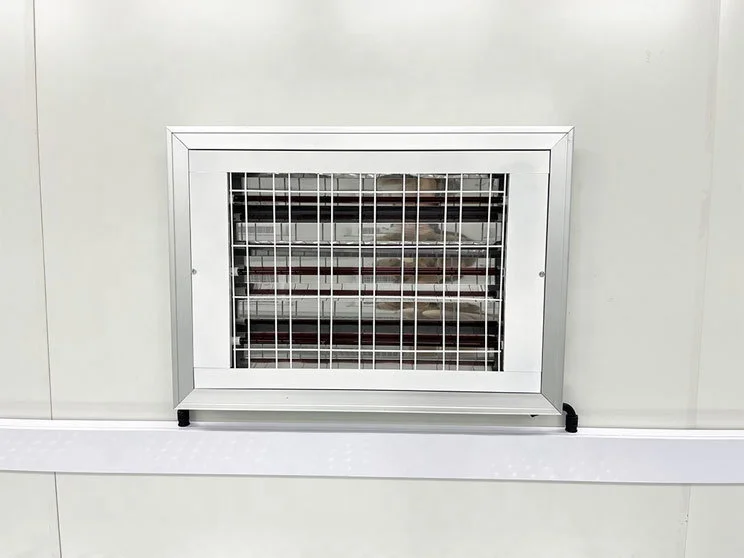

A total of 10 sets of side-by-side heating and baking lamps are configured, each set of 3kw, a total of 30kw.
Heating system
Natural gas heating: Italian FS20 natural gas burner, heat exchanger made of SUS304 high-quality stainless steel.
Base system

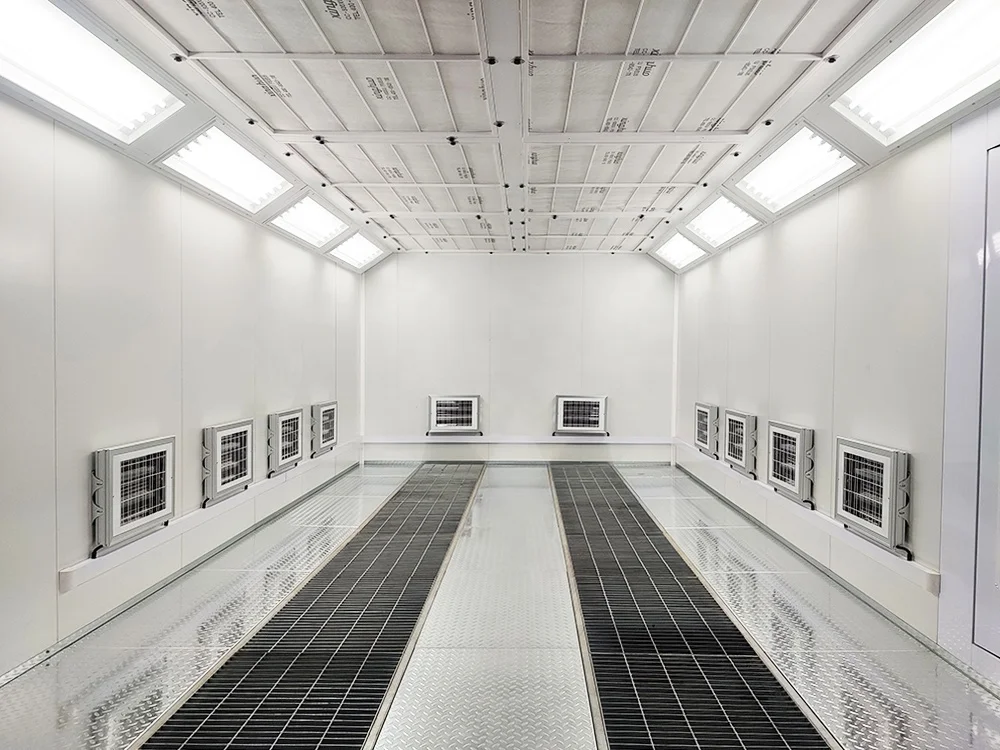

③The steel grating is made of 30*4mm flat iron and 6# thread welding, with high strength;
④The checkered plate is folded from δ1.8mm steel plate. The bottom is welded with reinforcing ribs and the checkered plate, which strengthens the bearing capacity, and is treated with rust removal and plastic spraying, and the appearance is beautiful.
④The checkered plate is folded from δ1.8mm steel plate. The bottom is welded with reinforcing ribs and the checkered plate, which strengthens the bearing capacity, and is treated with rust removal and plastic spraying, and the appearance is beautiful.
Base system
①The front and lower skirts of the house are made of δ1.2mm galvanized sheet, bent and welded, and reinforced; the other skirts are made of δ0.8mm galvanized sheet, bent and welded, and reinforced;
②The connecting legs are made of δ1.8mm galvanized sheet bent and welded into a "convex" structure, which has high strength and is used to support steel grilles and checkered plates;
②The connecting legs are made of δ1.8mm galvanized sheet bent and welded into a "convex" structure, which has high strength and is used to support steel grilles and checkered plates;
