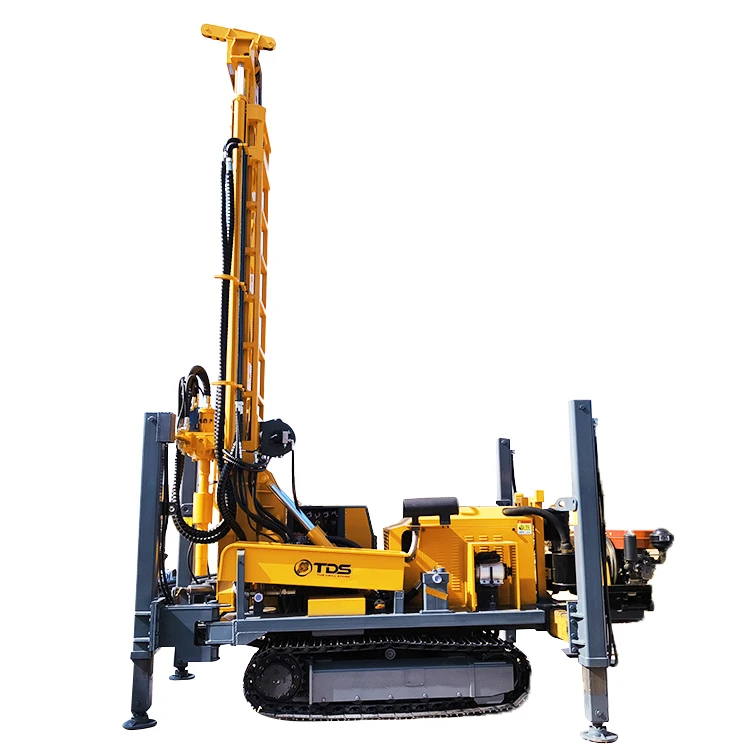

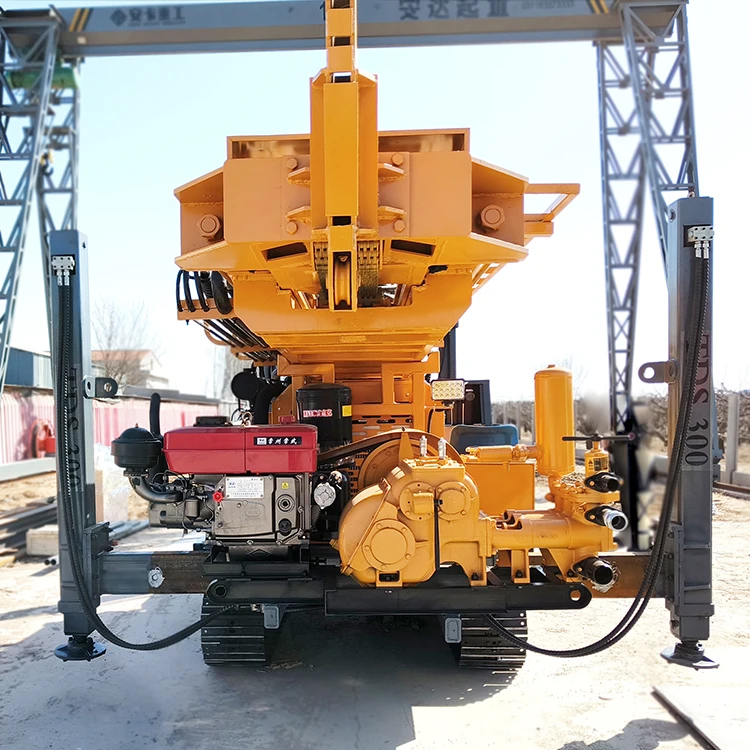

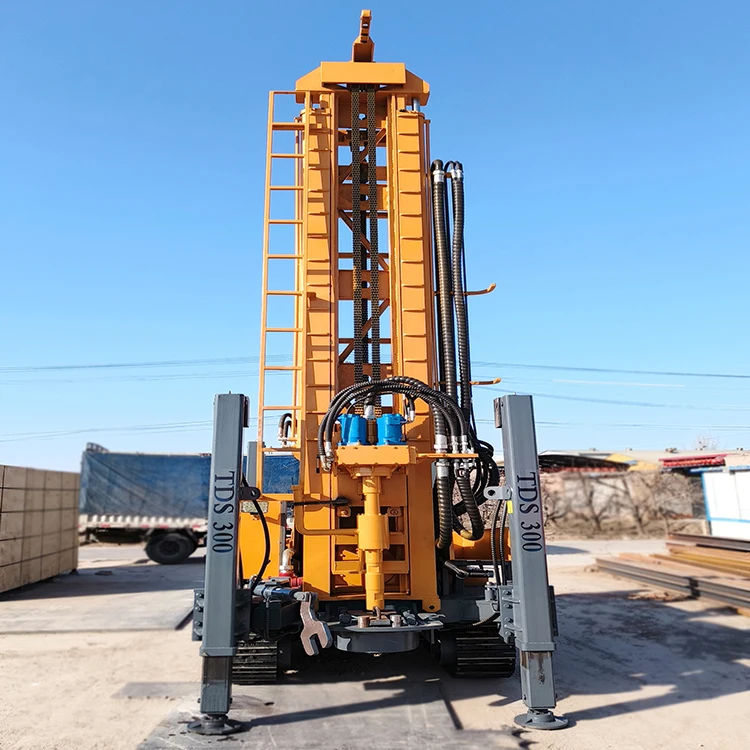

crawler water well drilling rig drilling rig for water well machine drilling rig machine
- Category: >>>
- Supplier: Beijing The Drill Store Machinery Equipment Co. Ltd.
Share on (1601170396188):
Product Overview
Description
Parameters

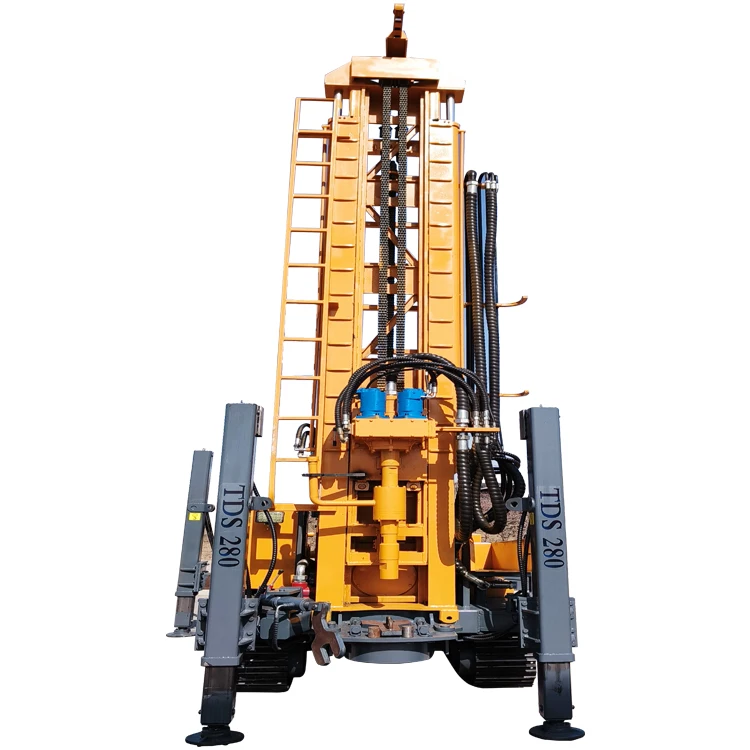

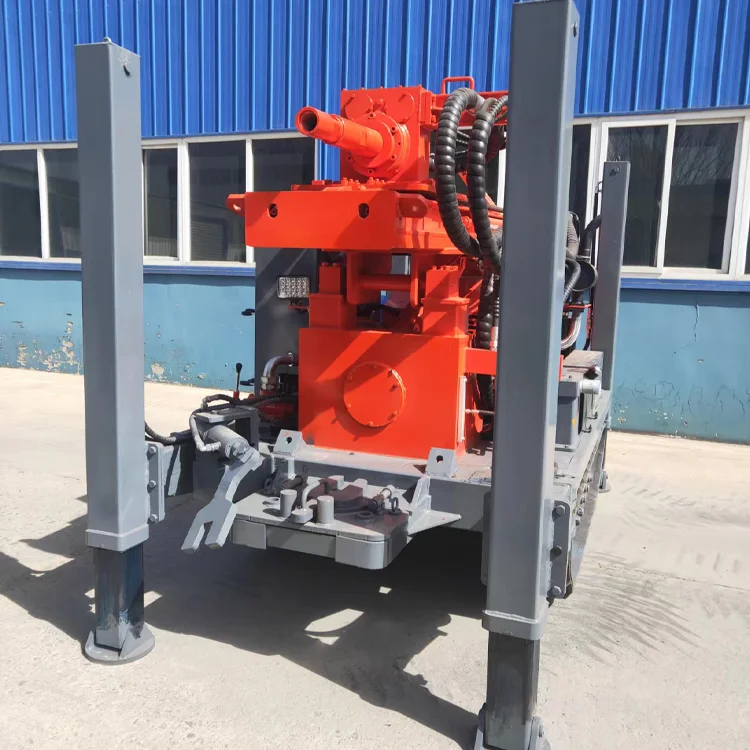

200m Crawler Water Well Drilling Rig | ||||||
Drilling Depth (m) | 200 | Air Consumption (m³/min) | 17-30 | |||
Hole Diameter (mm) | 140-305 | Drill Pipe Diameter (mm) | Φ76 Φ89 | |||
Using Air Pressure (Mpa) | 1.7-3.0 | Drill Pipe Length (m) | 1.5 2.0 3.0 | |||
One-time Advance Length (m) | 3.3 | Rig Lifting Force (Tons) | 15 | |||
Walking Speed (Km/h) | 2.5 | Rotary Speed (rpm) | 45-70 | |||
Climbing Angles (Max) | 30 | Rotary Torque (N.m) | 3500-4800 | |||
Equipped Capacitor (Kw) | 65-70 | |||||
Online 24 hours
Whatsapp: +86 138 1126 7124
Email: summer@thedrillstore.com
Product Details
All Models

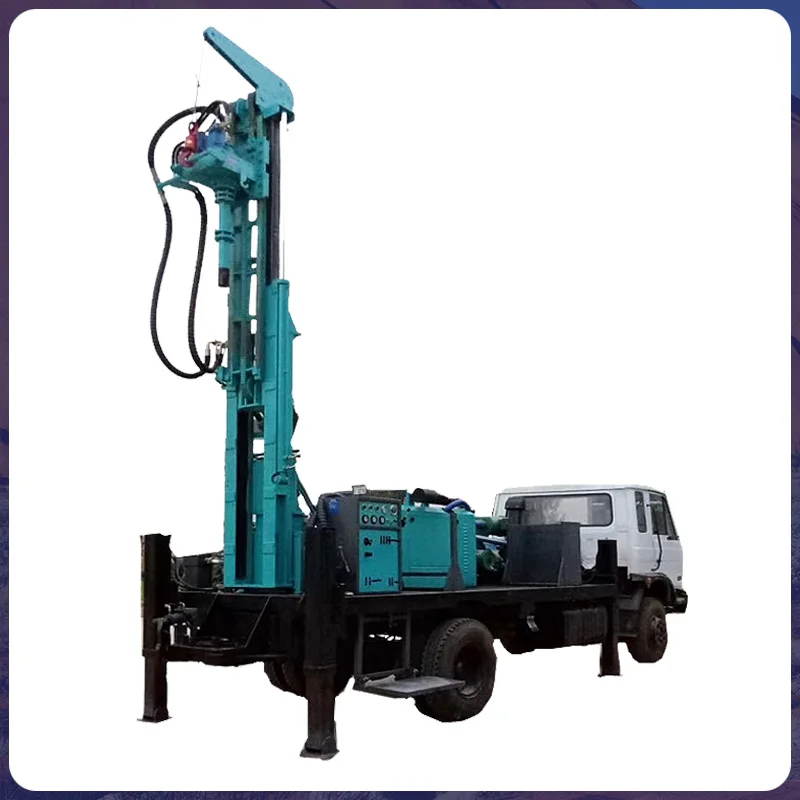

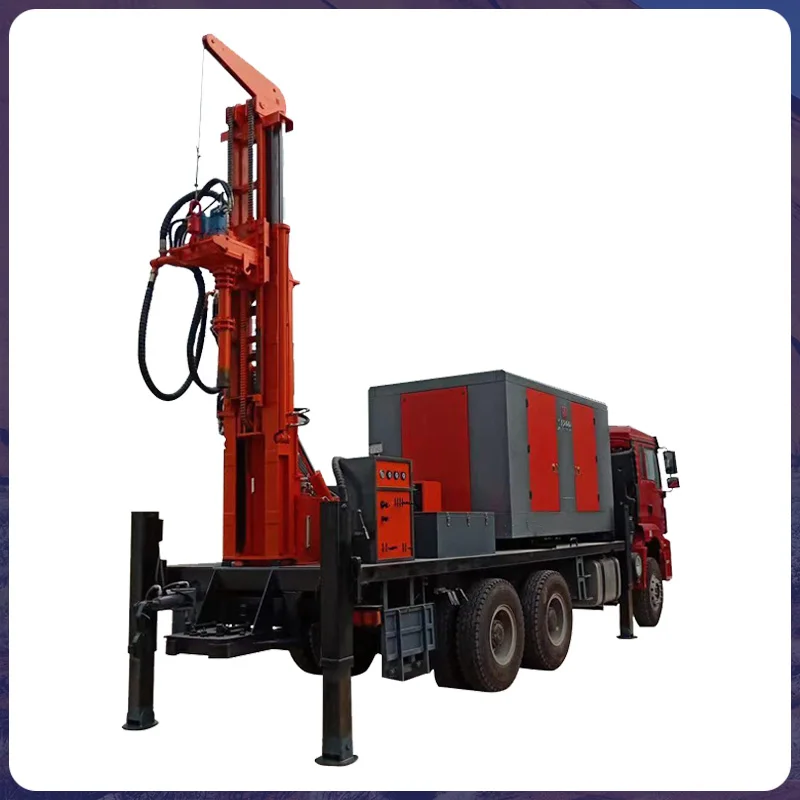

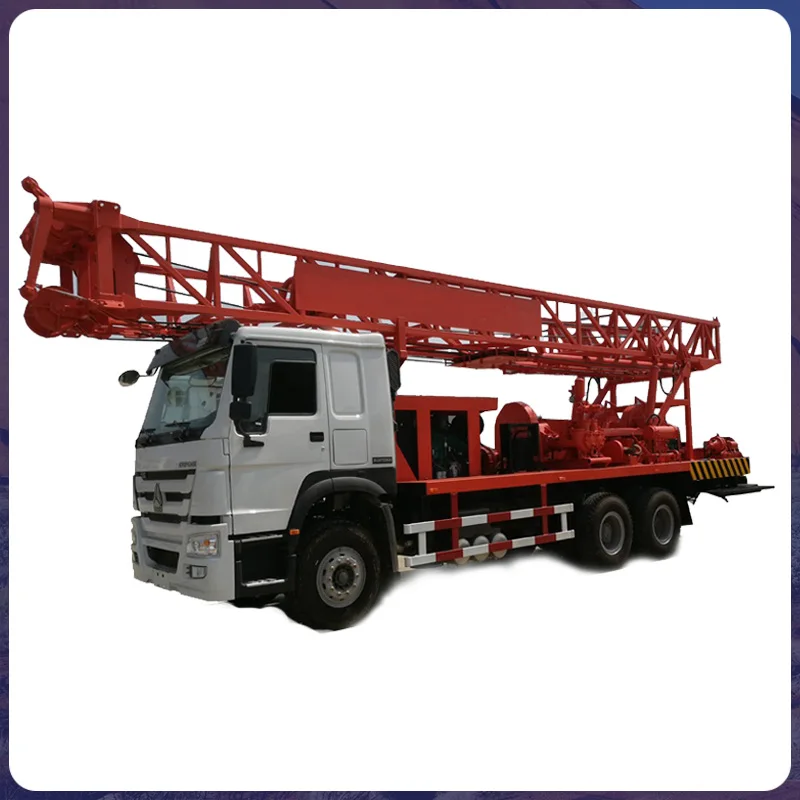

1- TDS Truck Mounted Water Well Drilling Rig

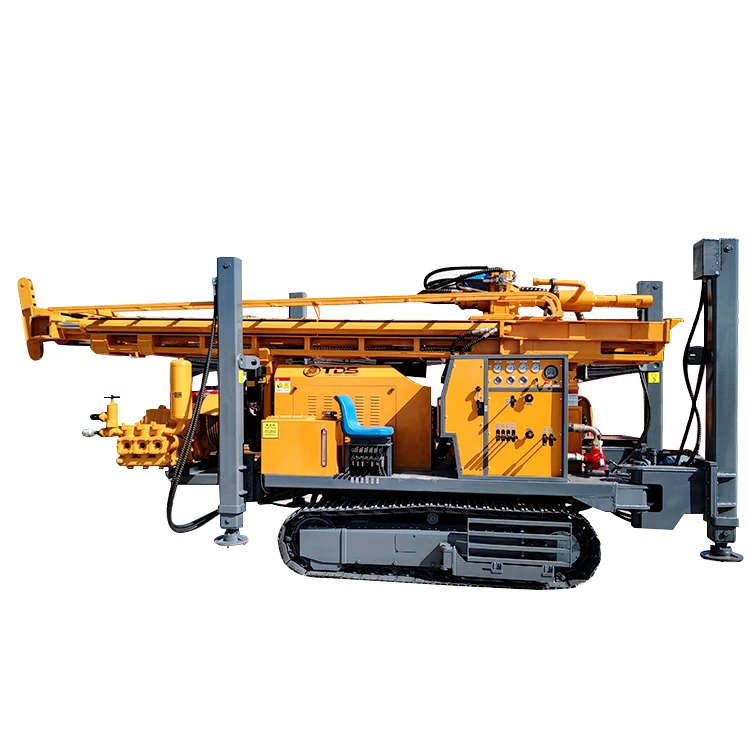

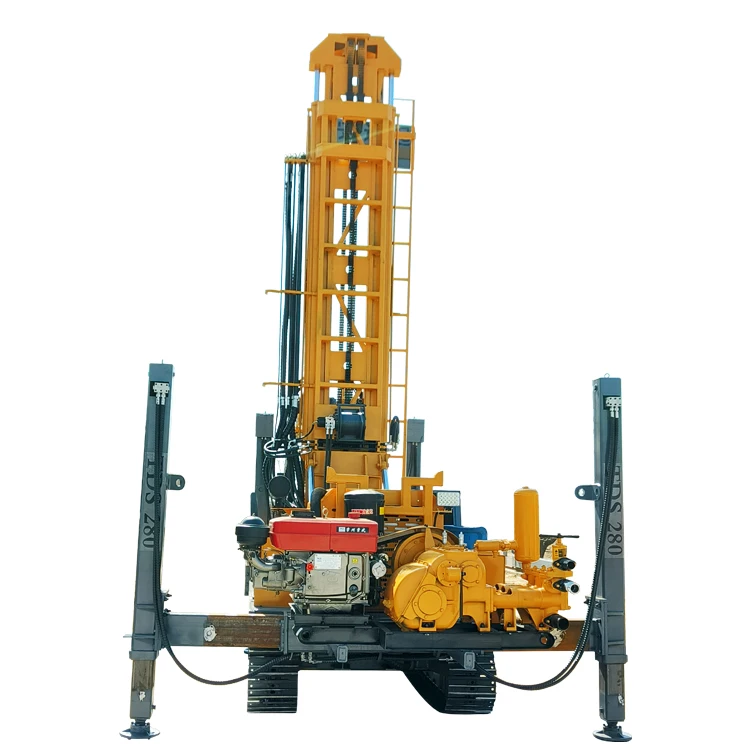

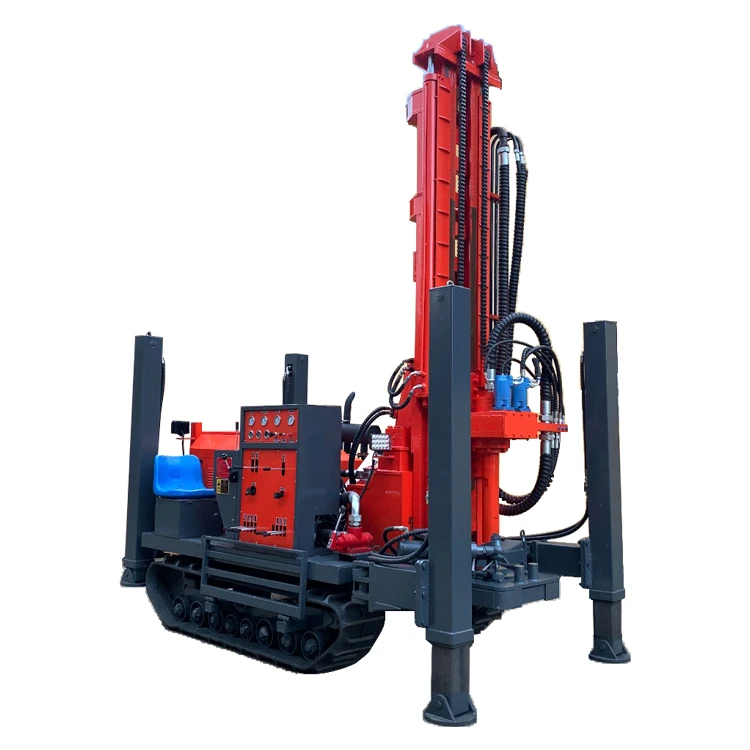

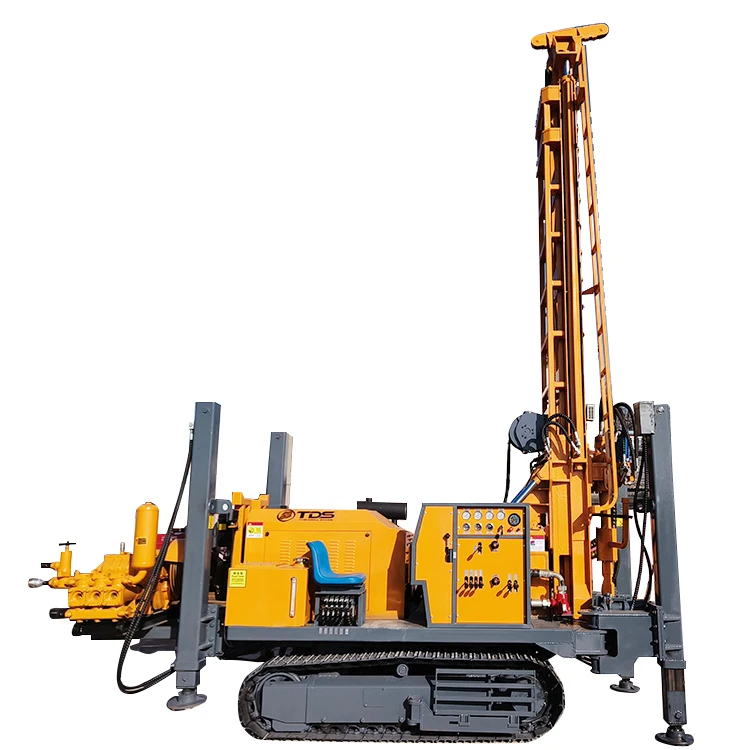

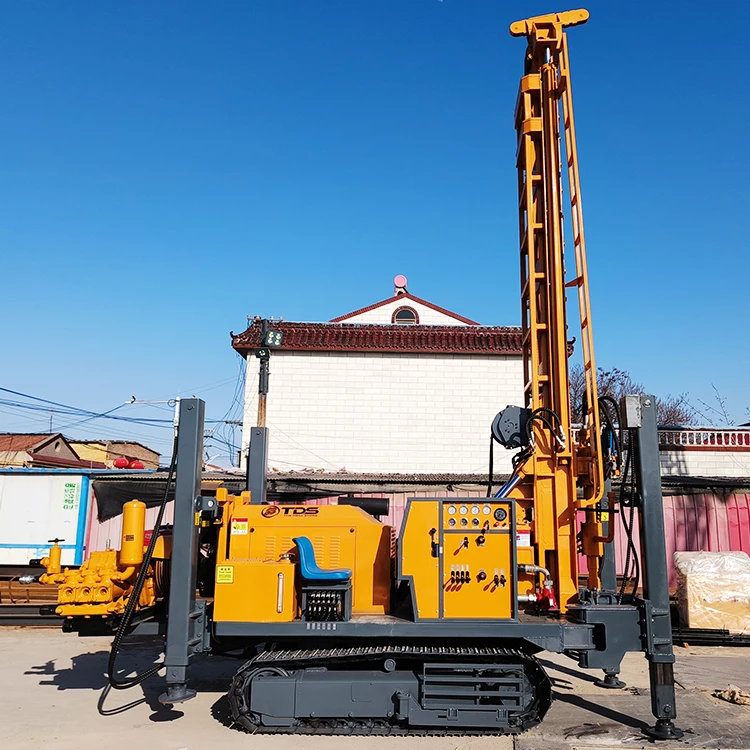

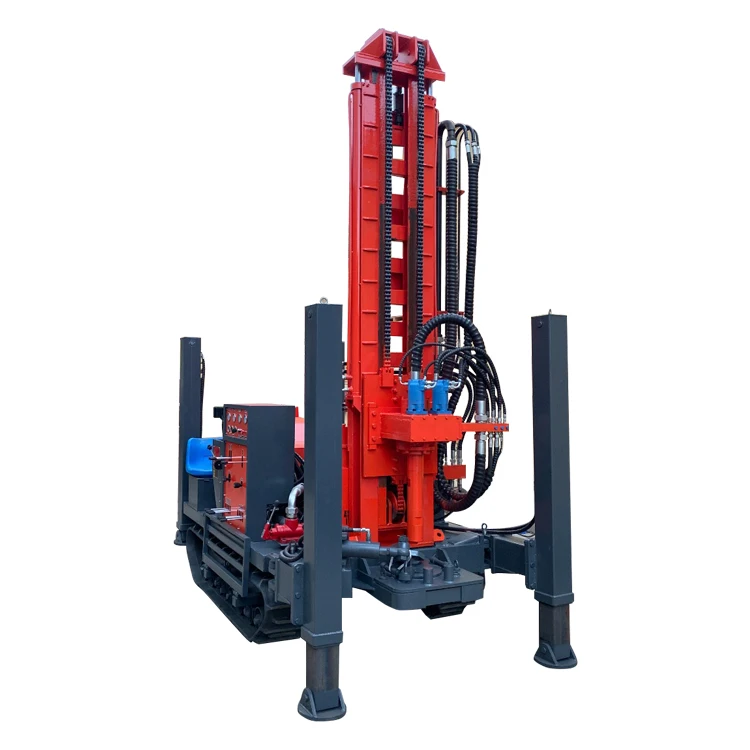

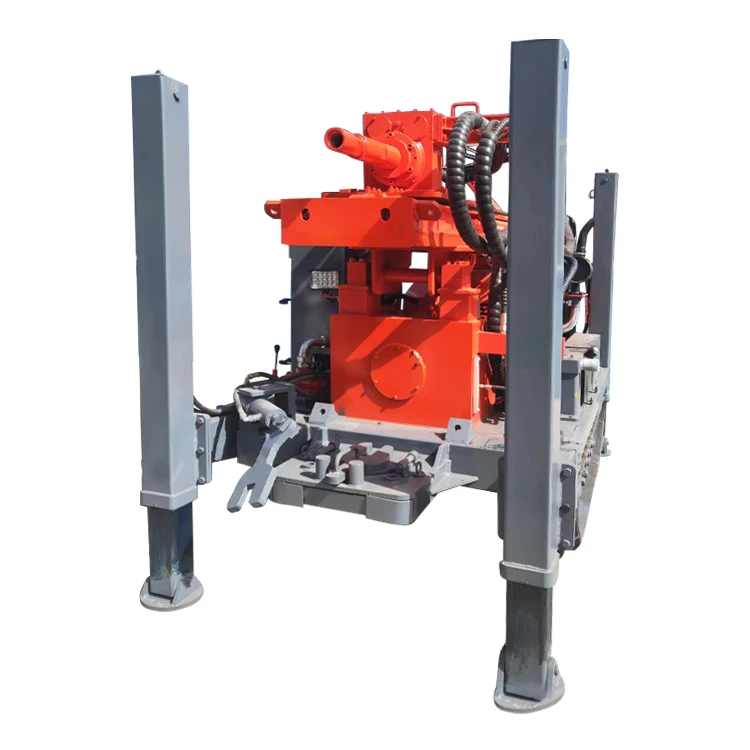

2- TDS Crawler Type Water Well Drilling Rig
TDS800 Water Well Drill Rig TDS600 Water Well Drill Rig TDS500 Water Well Drill Rig TDS400 Water Well Drill Rig

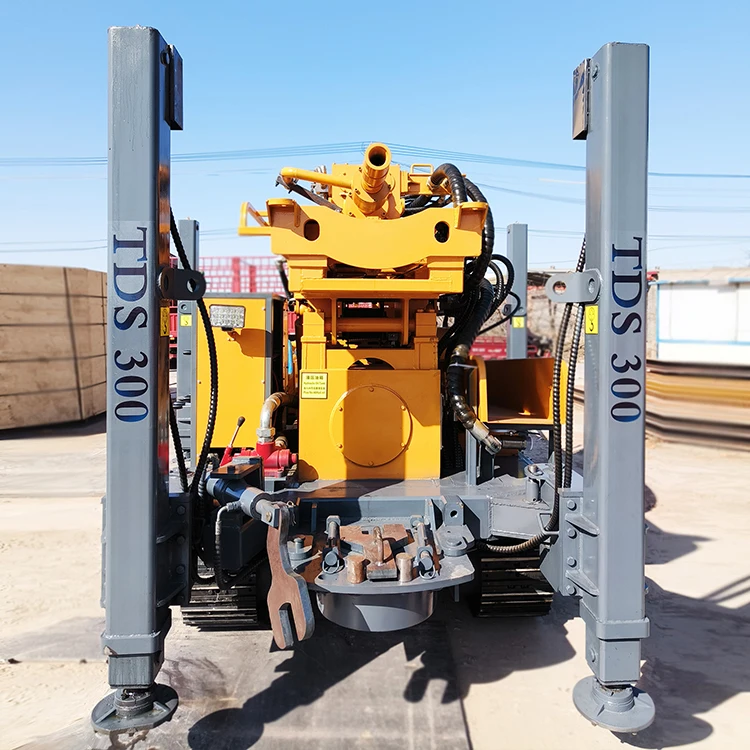

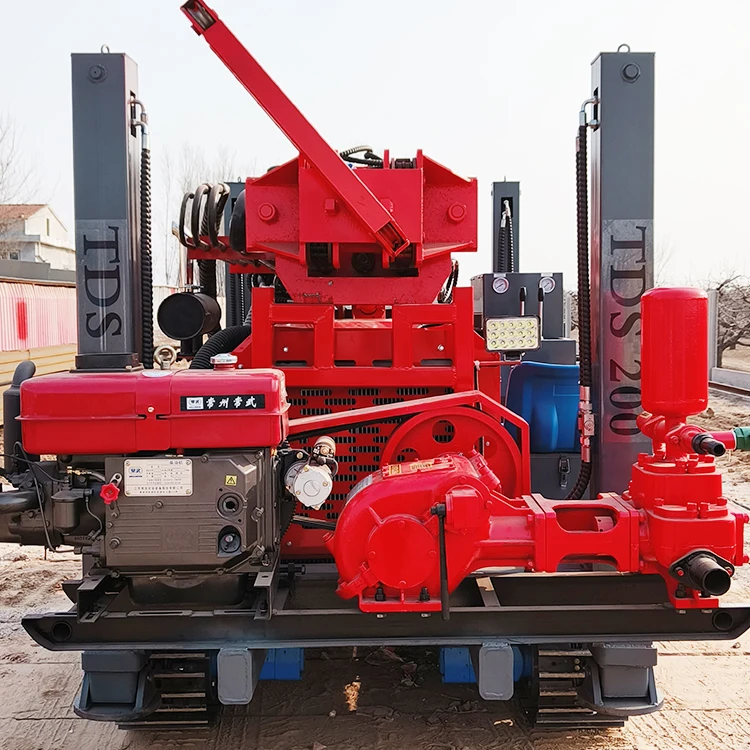

TDS350 Water Well Drill Rig TDS300 Water Well Drill Rig TDS200 Water Well Drill Rig TDSX180 Water Well Drill Rig

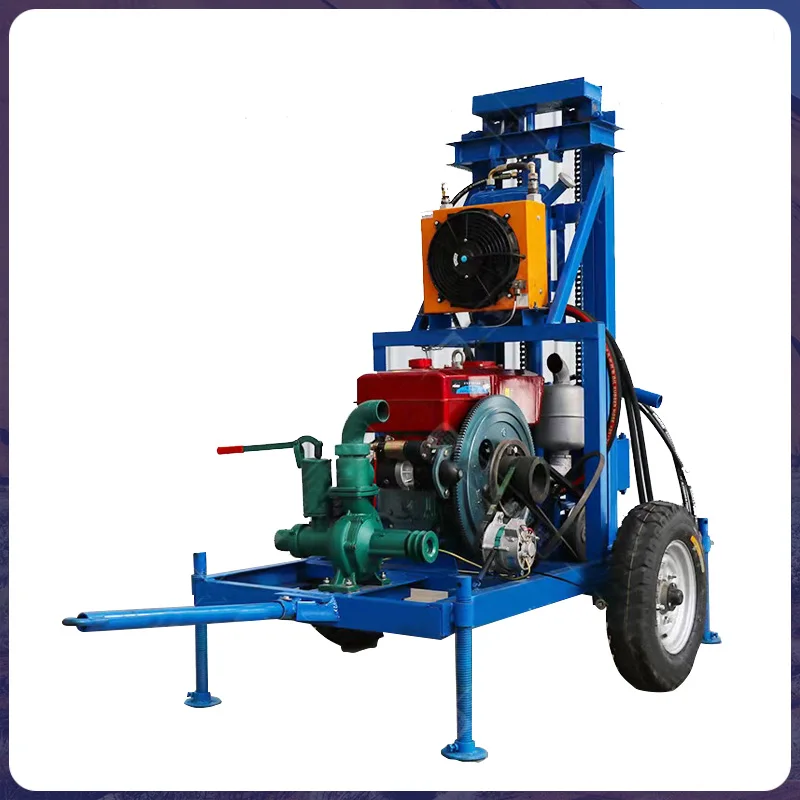

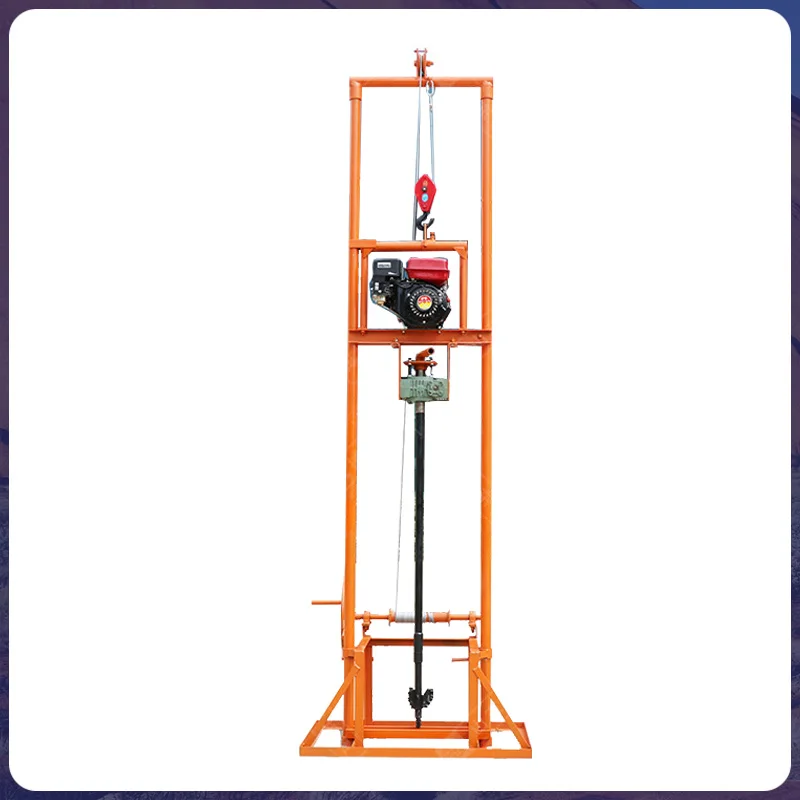

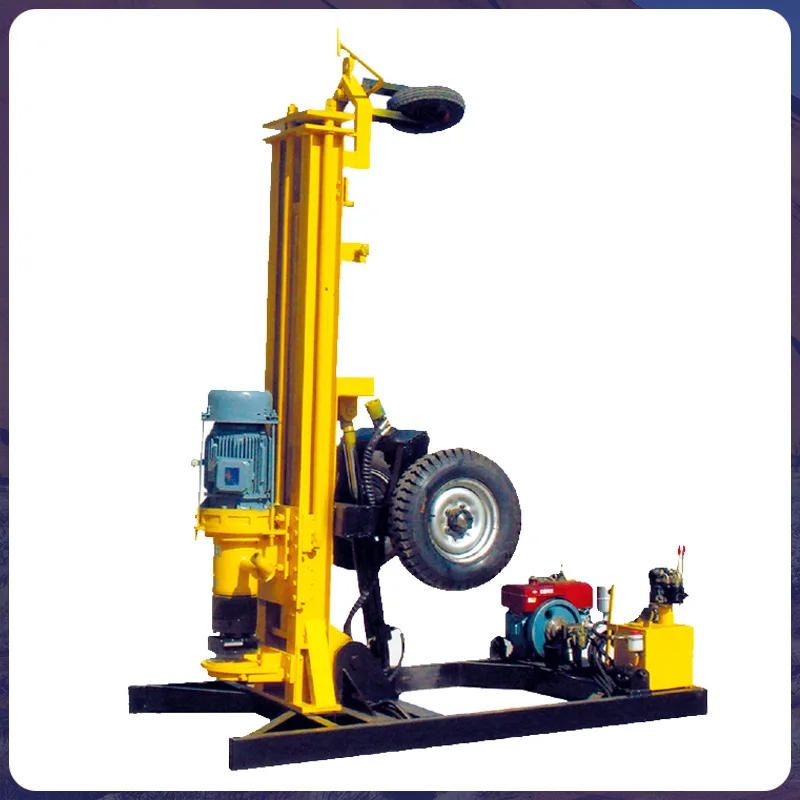

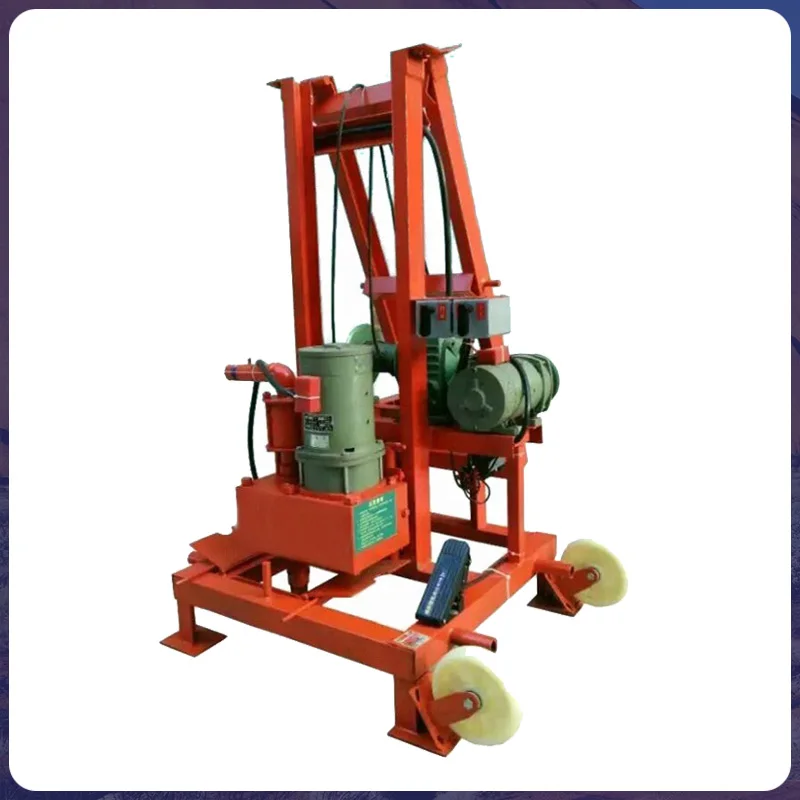

3-TDS Portable Water Well Drilling Rig
Diesel Type Air Drilling Diesel Type Mud Drilling Electric Type Mud Drilling Electric Type Mud Drilling
Detailed Specification:
Click On Model | Rig Type | Drilling Depth (m) | Hole Diameter (mm) | Weight (Kgs) | ||||
KQZ180D | Portable Type | 150 | 100-219 | 1000 | ||||
KQZ200D | Portable Type | 200 | 100-254 | 1800 | ||||
TDS130 | Wheeled Type | 130 | 100-219 | 3000 | ||||
TDSX180 | Crawler Type | 180 | 140-254 | 4500 | ||||
TDSL200 | Vehicle-Mounted | 200 | 140-203 | 5000 | ||||
TDSX200 | Crawler Type | 200 | 140-203 | 5000 | ||||
TDS200 | Crawler Type | 200 | 140-305 | 5800 | ||||
TDS300 | Crawler Type | 300 | 140-325 | 7000 | ||||
TDS350 | Crawler Type | 350 | 140-325 | 9000 | ||||
TDS400 | Crawler Type | 400 | 140-350 | 10000 | ||||
TDS500 | Crawler Type | 500 | 140-350 | 11500 | ||||
TDS600 | Crawler Type | 600 | 140-350 | 12000 | ||||
TDS800 | Crawler Type | 800 | 140-400 | 13000 | ||||
Customized services | ||||||||
Contact Us
Online 24 hours
Whatsapp: +86 138 1126 7124
Email: summer@thedrillstore.com
Related Products
Stationary Air Compressor
Portable Air Compressor
DTH Hammer
DTH Hammer Bit
ODEX Casing
Symmetric Casing
Water Well Drill Pipe
Casing
Connector
Exhibition & Users

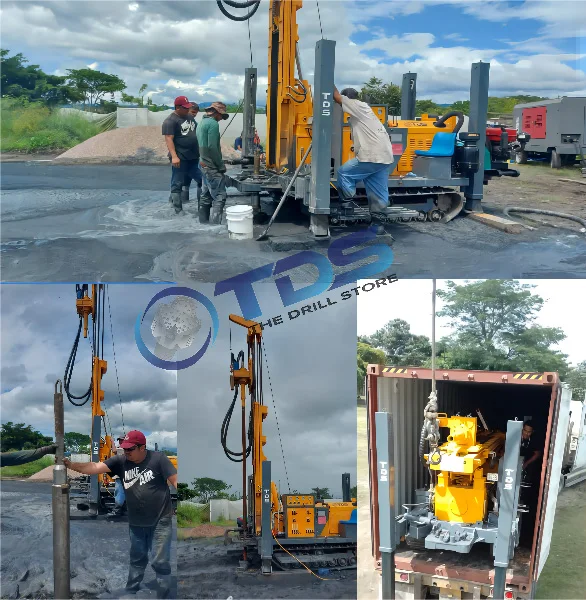

Application
