high precision portable mini home diy wainlux z4 20w 30w 50w handheld cnc laser engraver marking cutting cutter machine effect

Product Overview

Description

High precision portable mini home diy wainlux z4 20w 30w 50w handheld cnc laser engraver marking cutting cutter machine effect



Feature

1.High quality laser equipment: Adopt best Chinese fiber laser equipment,high quality laser beam for perfect marking, the minimum line width of laser can reach 0.02mm

2.Advanced accessories: Sino-Galve scanner system with High marking speed and precision,

Best quality motor inside of scanning head to control the reflected mirrors

3.Fast speed with best configuration

Speed more than 8000mm/s, improved efficiency, save time, save cost

4.Low consumption, energy saving: no consumption parts for maintenance during usage, long life time more than 100,000 hours free warranty.

5.Low weight and small dimension, easy to keep and move

 Portable making is just 40kgs in total

5.Two years warranty

   During two years warranty time, we will send new parts for replacement if there is any problem





Quick details:

Application: fiber laser marking

Laser type: fiber laser

Power: 20W/30W/50W/75W/100W

Scanning speed: 8000mm/s

Operating mode: pulsed

Cooling: air cooling

Marking area: optional as your need

Head: Digital laser marking head

Graphic format supported: AI,BMP,DST,DWG,DXF,DXP,LAS,PLT





Parameters of high precision portable mini home diy wainlux z4 20w 30w 50w handheld cnc laser engraver marking cutting cutter machine effect

Model	high precision portable mini home diy wainlux z4 20w 30w 50w handheld cnc laser engraver marking cutting cutter machine effect
laser wavelength	1064nm
Rated Laser Output Power	20W/30W/50W/75W/100W
Beam Radiation Angle	≤2mrad
Marking Area Diameter	110*110mm ( 220*220mm, 300*300mm or bigger size is optional)
Marking depth	0.01-0.2mm(depend on the material)
Marking Breadth	0.01-0.1mm(depend on the material)
Least significant	0.2mm
Scan Speed	12000mm/s
Scanning system	Sino-Galve
Pulse Breadth	0.2ms-10ms
Modulation Frequency	20-80KHz
Laser model	Fiber laser
Collimating Location Way	Red beam indication
Working Voltage	220V /50Hz
Main Machine Power	0.5KW
Machine weight	50kgs
Software support	CORELDRAW,AutoCADP,Photoshop,LT

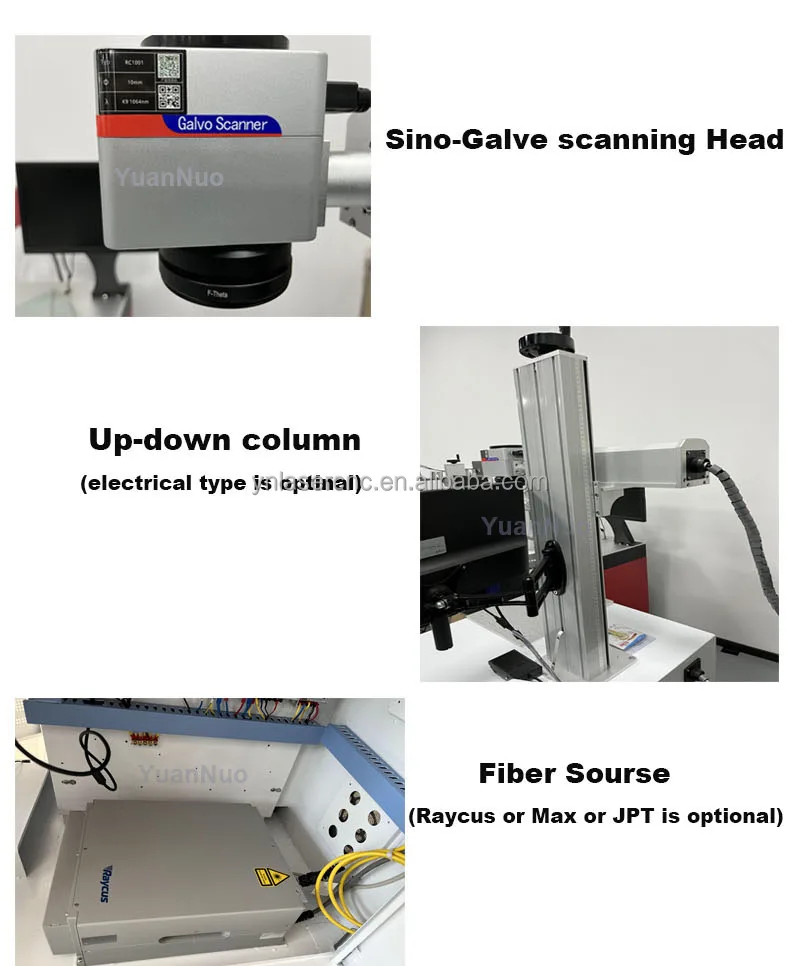

 Some parts of  high precision portable mini home diy wainlux z4 20w 30w 50w handheld cnc laser engraver marking cutting cutter machine effect



Application materials of high precision portable mini home diy wainlux z4 20w 30w 50w handheld cnc laser engraver marking cutting cutter machine effect



Fiber laser marking machines can mark a variety of materials, including metal materials, plastic rubber, spray materials, electroplating materials, etc.

1)Metal materials: Almost all metal materials can be marked using fiber laser marking machines, including iron, copper, manganese, steel, alloys, gold, silver, copper, iron, and aluminum, etc. The high reflectivity and thermal conductivity of these materials allow fiber lasers to imprint information on their surfaces more efficiently.

2)Plastic rubber: suitable for rubber industry, mobile phone casing, shock-absorbing rubber products, etc. Hard plastics such as ABS are better marked. There are many kinds of plastic materials. The darker the texture and hardness, or the plastic products with laser color masterbatch added, the more beautiful the marking effect will be.

3)Electroplating materials: Electroplating materials such as nickel, nickel chloride, copper sulfate, copper chloride, etc. can be marked.

4)Sprayed materials: Materials sprayed with metal materials can also be marked.



It should be noted that the marking effects of different materials may vary. Therefore, when selecting a fiber laser marking machine, you need to consider the characteristics and requirements of the marking material and select the appropriate laser power and parameters.





Sample:

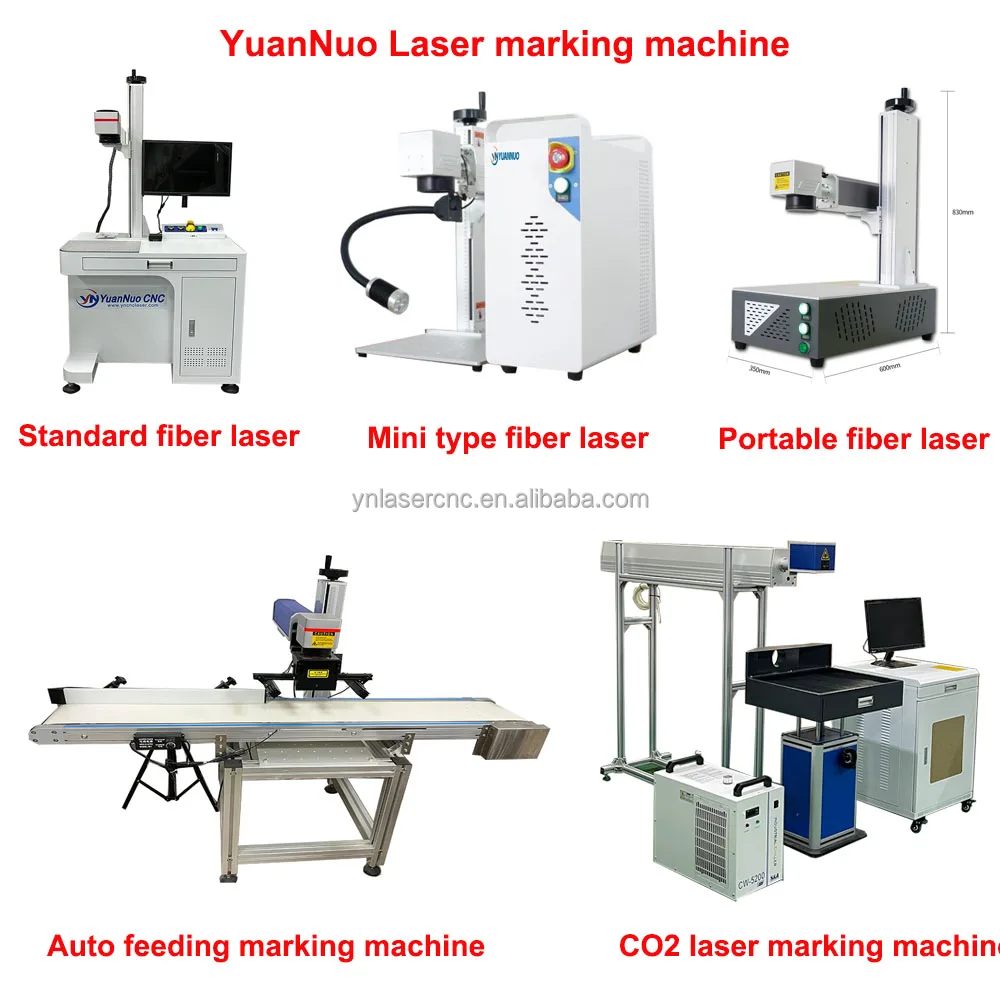

Other models of handheld design can be directly carved on the surface of larger objects mini desktop split fiber laser marking machine
