Product Overview
Description

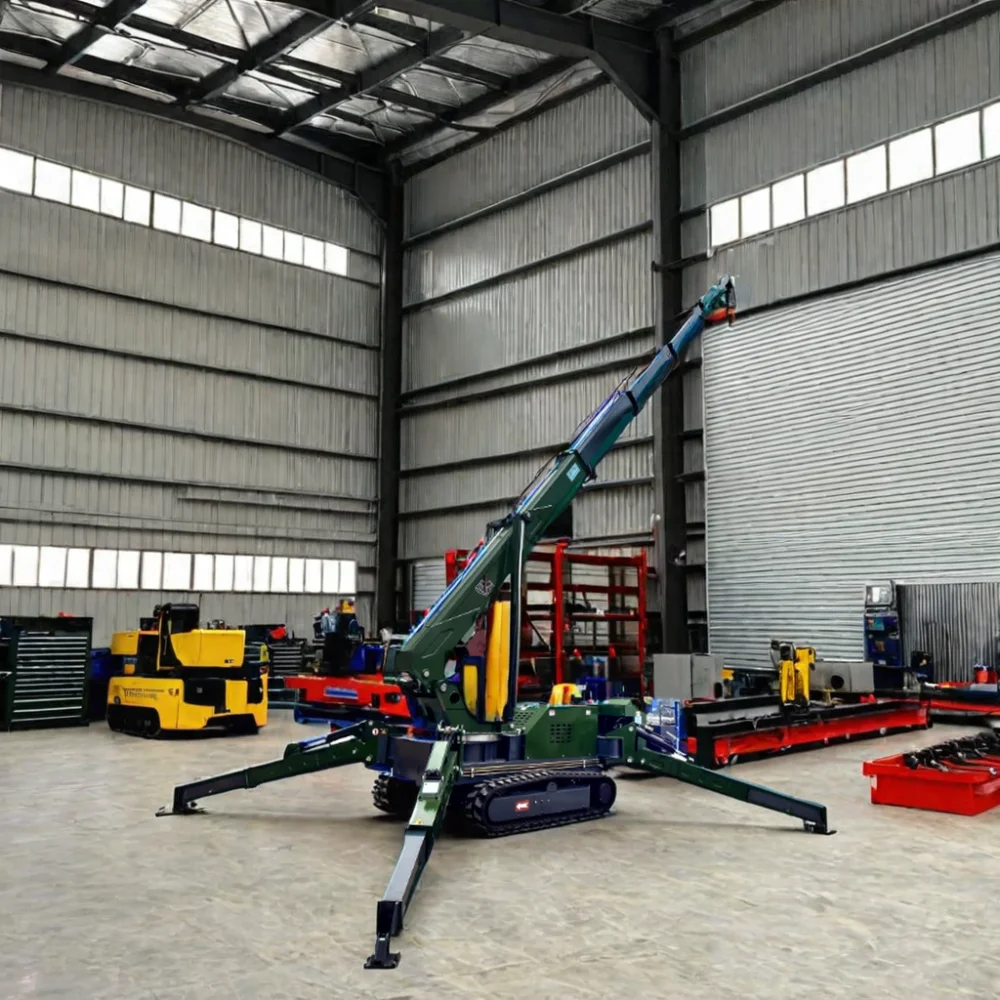

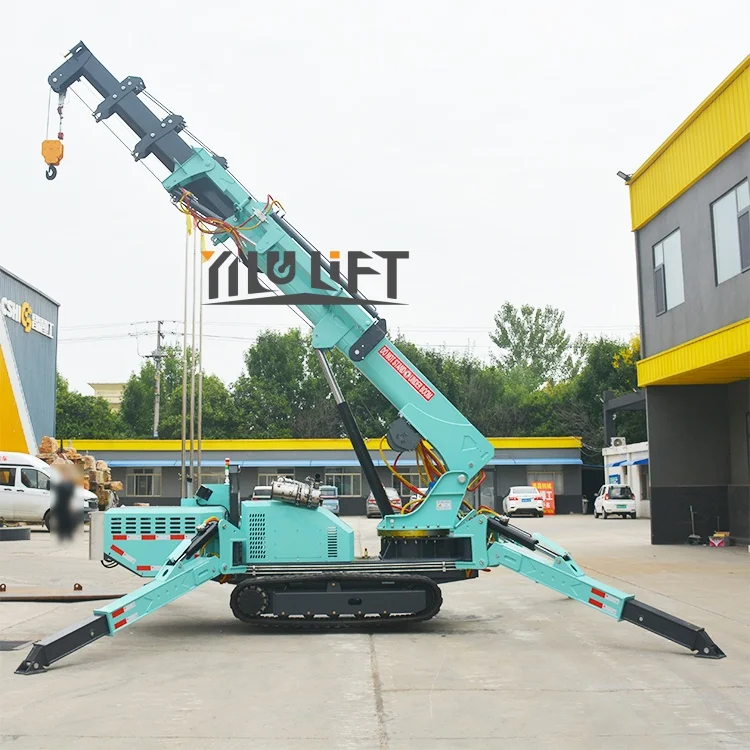

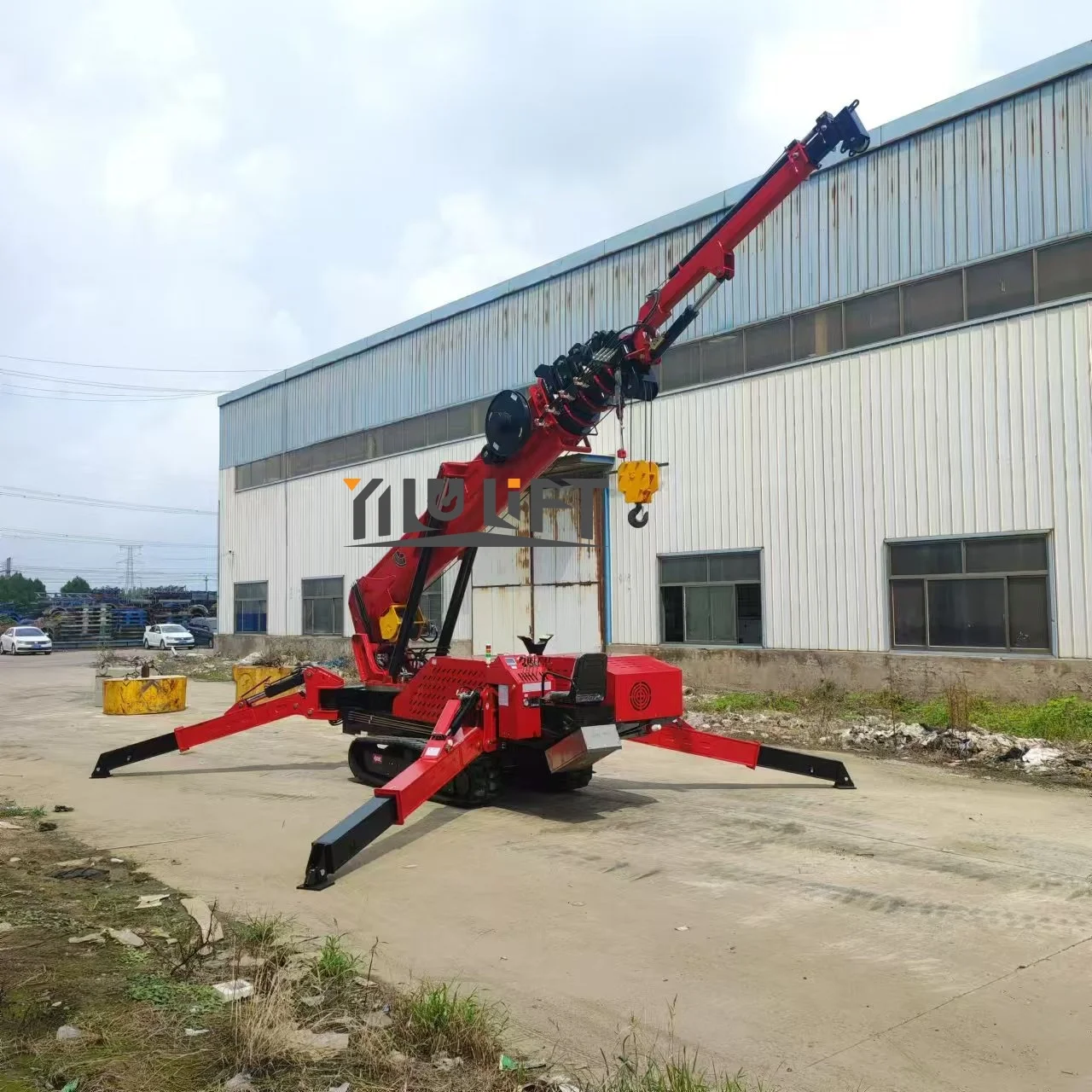

Crawler Mini Spider Crane
Mini-crawler cranes are the latest must-have tool for the glazing, steel erection, and construction industries. YILU Spider cranes offer a compact design that allows for operation in confined areas. The smaller models can travel through a standard width door in their travel position, while other models can fit through a standard double door.
Features & Advantages:
1. The Crawler Spider Crane for moving loads quickly, easily, and safely.
2. Spider crane, suitable for occasions with limited space.
3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.
4. The main arm is 4-5 sections. The main arm section adopts a U-shaped structure. The single-st
age telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous
expansion and contraction of the main arm.
5. The telescoping limit of the boom uses the double insurance of the marking line and the
alarm
| Model Type | CL1.2 | CL2.0 | CL3.0 | CL5.0 | CL8.0 | CL10.0 | CL12.0 | CL14.0 |
| Lifting Capacity | 1.2 ton | 2 ton | 3.0 ton | 5.0 ton | 8.0 ton | 10.0 ton | 12.0 ton | 14.0 ton |
| Max Lifting Height | 5.8m x 0.8t | 6m x 0.3t | 10m x 0.8t | 16m x 1.5t | 18m x 1.5t | 21m x 0.6t | 24.5m x 0.9t | 24.5m x 2t |
| Max Radius | 5m x 0.3t | 6.8 x 0.8t | 9m x 0.2t | 15mx1t | 16.5m x 0.2t | 20m x 0.2t | 23x0.2t | 23x1.5t |
| Hook rising speed | 0-8m/min | 0-10m/min | ||||||
| Wire Rope | Φ8mm×35m | Φ8mm×35m | Φ8mm×45m | Φ10mm×120m | Φ10mm | Φ11mm×100m | Φ12mm×80m | Φ12mm×80m |
| Boom form | 4 | 5 | 5/6 | 5/6 | 5/6 | 5/None | 5/6 | 5/6 |
| Boom length | 5.8m | 6.8m | 9.2m/9.2+1.7m | 16m/16+3m | 18m/18+3.5m | 21m/None | 24.5m/24.5+4m | 24.5m/24.5+4m |
| Boom Angle/Time | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec |

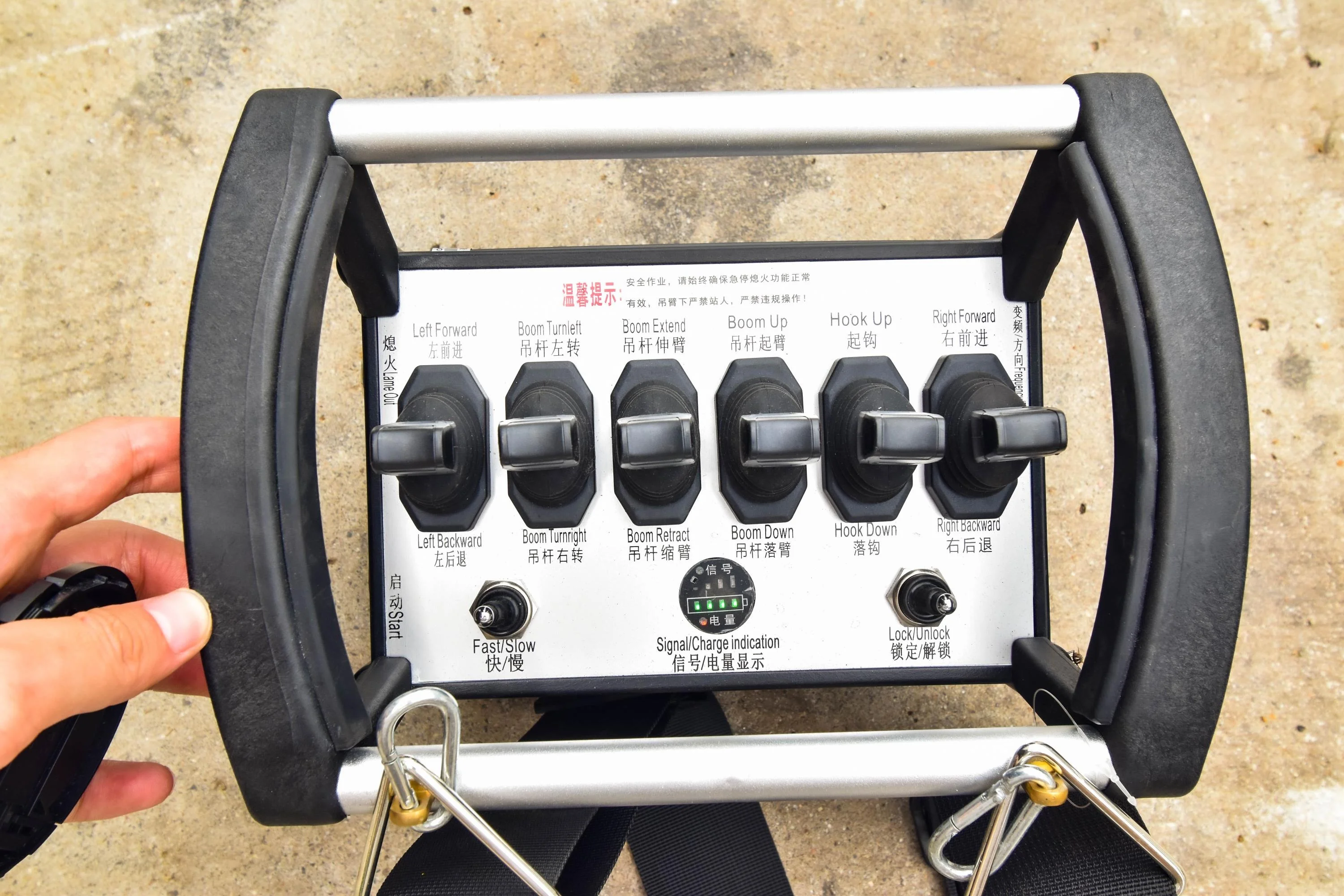

As an optional feature of the spider crane, these mini cranes can be equipped with a wireless radio remote control system; freeing the operator from being tethered to the crane. Couple this crane with a glass manipulator and this crane turns into one of the most powerful glazing tools on the market. The champion of the cranes, the mini-cranes can be seen everywhere from the rooftops to the oil fields.
Complete with some of the same features on the smaller spider crane models, such as an Electronic Display Load Moment Indicator, On-board Self Diagnostic Computer System, and a Full Function Wireless Remote, this mini-crawler is designed for ease of use. It’s mounted on dual tracks and It has the ability to rotate 360 degrees in place, making it easy to maneuver into and out of tight spots. It comes standard with a Quick Disassemble System allowing for the outriggers, boom, and frame assembly to be removed from the carrier to reduce the weight for transport or hoisting.
Mini spider crane is our most versatile. While popular among many industries, the spider crane is quickly becoming one of the most in demand glazing and construction tools to set glass and materials. Available models offer maximum lifting capacities of 1.2Ton 2Ton 3Ton 5Ton 8Ton 10Ton 12Ton 14Ton, Featuring a variable geometric footprint courtesy of adjustable outriggers allowing for set-up in tight spots such as hallways, balconies, or around obstacles, this mini crane acting as a glazing tool is tackling projects once thought impossible.
Commitment is a big word, and not to be taken lightly. With YILU LIFT our first commitment is to offer high quality products. The second promise is innovation. We are constantly developing new models as part of the spider crane family to better serve our customers unique needs. If you have a lifting need, we have a solution.
FAQ
| 1: How to place an order? |
| Answer: Please tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will send you detailed parameters and quotations as soon as possible. |
| 2: What is your price? |
| Answer: It depends on your requirements of the equipment and shipment terms (FOB, CIF, DDP) |
| 3: How should I pay? |
| Answer: We accept wire transfer; letter of credit; Alibaba trade guarantee. |
| 4: What is the delivery time? |
| Answer: For the standard product, the delivery time is 7 days.For customized orders with no stock, we need to determine the delivery time according to the situation, if you need urgent items, please contact us. |
| 5: About the warranty |
| Answer: 1-year warranty. Lifelong technical support via email or video. |
| 6: About the guarantee |
| Answer: Alibaba will protect the order. We have Alibaba trade assurance. |
| 7: Mode of transportation |
| Answer: You can choose sea, air, rail transportation. |
