All in One Container Energy Storage Power Air Cooling 100kW 0.5C 20kWh IP54 Solar Battery Industrial Commercial Energy Storage
- Category: >>>
- Supplier: Suzhou Aode Laote Energy Technology Co. Ltd.Suzhou Ltd.
Share on (1601171558604):
Product Overview
Description
BATTERY CELL | ||
RATED VOLTAGE | 3.2V | |
CAPACITY | 280Ah | |
BATTERY PACK 1P16S | ||
RATED VOLTAGE | 51.2V | |
NOMINAL CAPACITY | 280AH | |
PACK POWER | 14.336KWH | |
WEIGHT | 130KG | |
BATTERY SYSTEM 1P224S | ||
RATED VOLTAGE | 716.8V | |
NOMINAL CAPACITY | 280AH | |
RATED CURRENT | 140A | |
BATTERY POWER | 200.7KWH | |
VOLTAGE RANGE | 627.2-806.4V | |
CONNECTING WAY | 1P224S/1CLUSTER | |
≥MAX EFFICIENCY | ≥95% | |
COOLING | FORCED AIR | |
OPTIMAL WORKING TEMPERATURE RANGE | -10℃-55℃ | |
PROTECTION DEGREE | IP54 | |
DIMENSION | 2250*1300*1190MM | |
WEIGHT | 2100KG | |
CERTIFICATES | CE,MSDS,UN38.3 | |
Optimal Protection
Utilizing a patented outdoor cabinet protection system, this solution safeguards against dust, rain, and sand, while optimizing channels for heat dissipation. With a dual-door maintenance system, multiple systems can be operated concurrently on-site, minimizing space requirements.
The Ultimate Integration

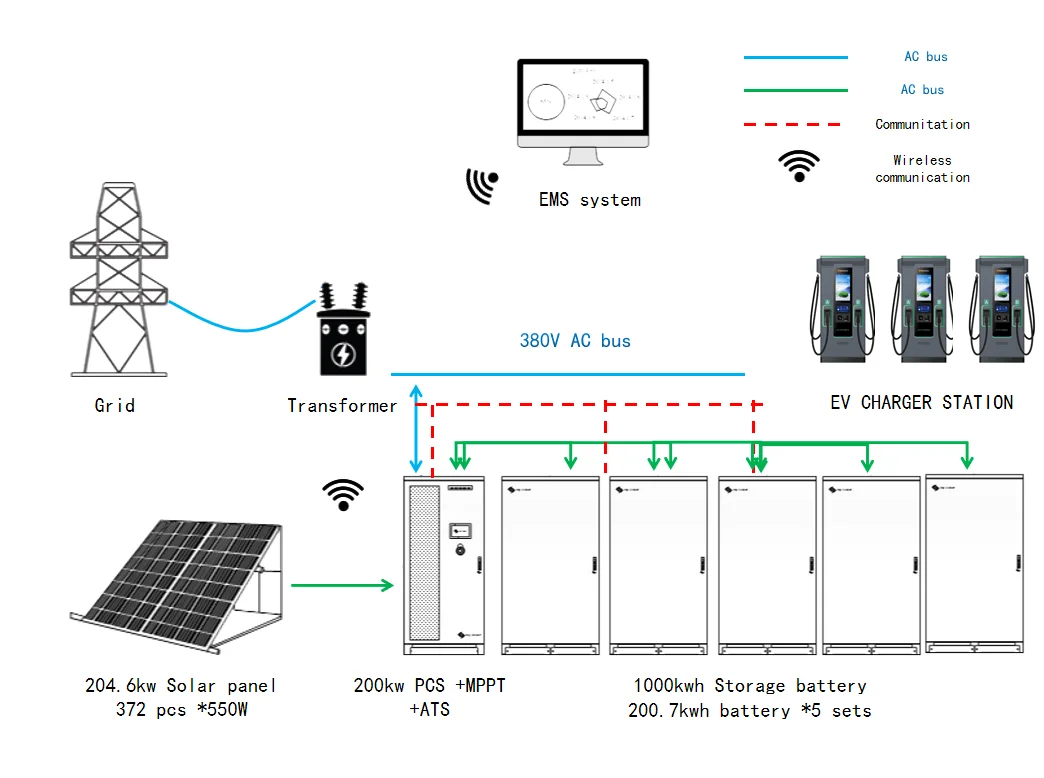

The outdoor cabinet-type photovoltaic storage system, boasting a power rating of 100kW/200kWh, seamlessly amalgamates energy storage batteries, PCS, power distribution, temperature regulation, fire safety measures, water-immersed door sensors, and monitoring and communication tools. This comprehensive integration ensures absolute control over system operations and risks, significantly enhancing power quality.
Intelligent Management
The local control screen supports a myriad of functions, including system operation monitoring, formulation of energy management strategies, and remote device upgrades, ensuring intelligent and efficient management of the system.
Versatility in Features
A standardized structural design and menu-based function configurations enable the incorporation of optional accessories tailored for microgrid scenarios, including photovoltaic charging modules and off-grid switching modules. These solar energy storage cabinets are engineered to seamlessly integrate into comprehensive solar energy storage systems.
Efficiency and Space Optimization
Integrated air conditioning within the cabinet door eliminates the consumption of cabinet space, maximizing storage capacity. Enhanced waterproofing, facilitated by the top structure, ensures superior protection against environmental elements.

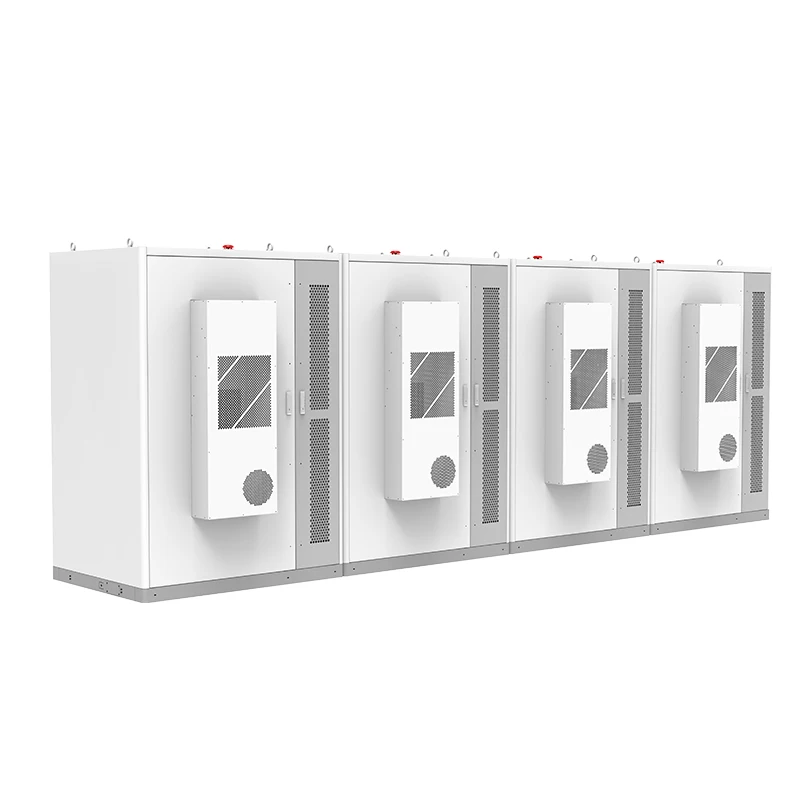

Flexible Parallel Operation
Thanks to patented virtual synchronous machine technology, multiple units can operate in parallel or switch off-grid without the need for long-distance communications, offering unparalleled flexibility in system configuration.
Utilizing a patented outdoor cabinet protection system, this solution safeguards against dust, rain, and sand, while optimizing channels for heat dissipation. With a dual-door maintenance system, multiple systems can be operated concurrently on-site, minimizing space requirements.
The Ultimate Integration
The outdoor cabinet-type photovoltaic storage system, boasting a power rating of 100kW/200kWh, seamlessly amalgamates energy storage batteries, PCS, power distribution, temperature regulation, fire safety measures, water-immersed door sensors, and monitoring and communication tools. This comprehensive integration ensures absolute control over system operations and risks, significantly enhancing power quality.
Intelligent Management
The local control screen supports a myriad of functions, including system operation monitoring, formulation of energy management strategies, and remote device upgrades, ensuring intelligent and efficient management of the system.
Versatility in Features
A standardized structural design and menu-based function configurations enable the incorporation of optional accessories tailored for microgrid scenarios, including photovoltaic charging modules and off-grid switching modules. These solar energy storage cabinets are engineered to seamlessly integrate into comprehensive solar energy storage systems.
Efficiency and Space Optimization
Integrated air conditioning within the cabinet door eliminates the consumption of cabinet space, maximizing storage capacity. Enhanced waterproofing, facilitated by the top structure, ensures superior protection against environmental elements.
Flexible Parallel Operation
Thanks to patented virtual synchronous machine technology, multiple units can operate in parallel or switch off-grid without the need for long-distance communications, offering unparalleled flexibility in system configuration.
