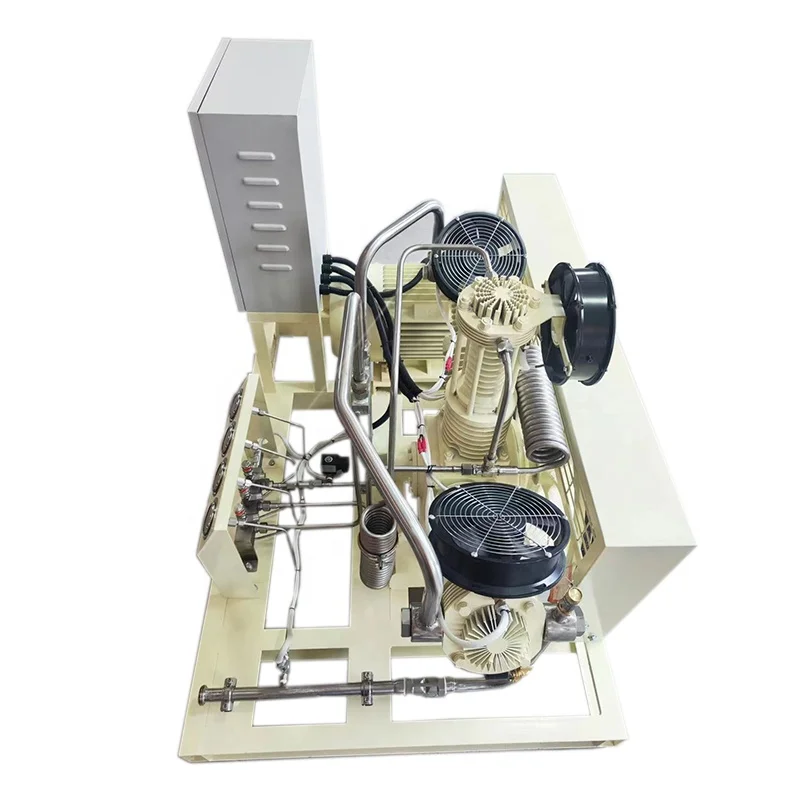

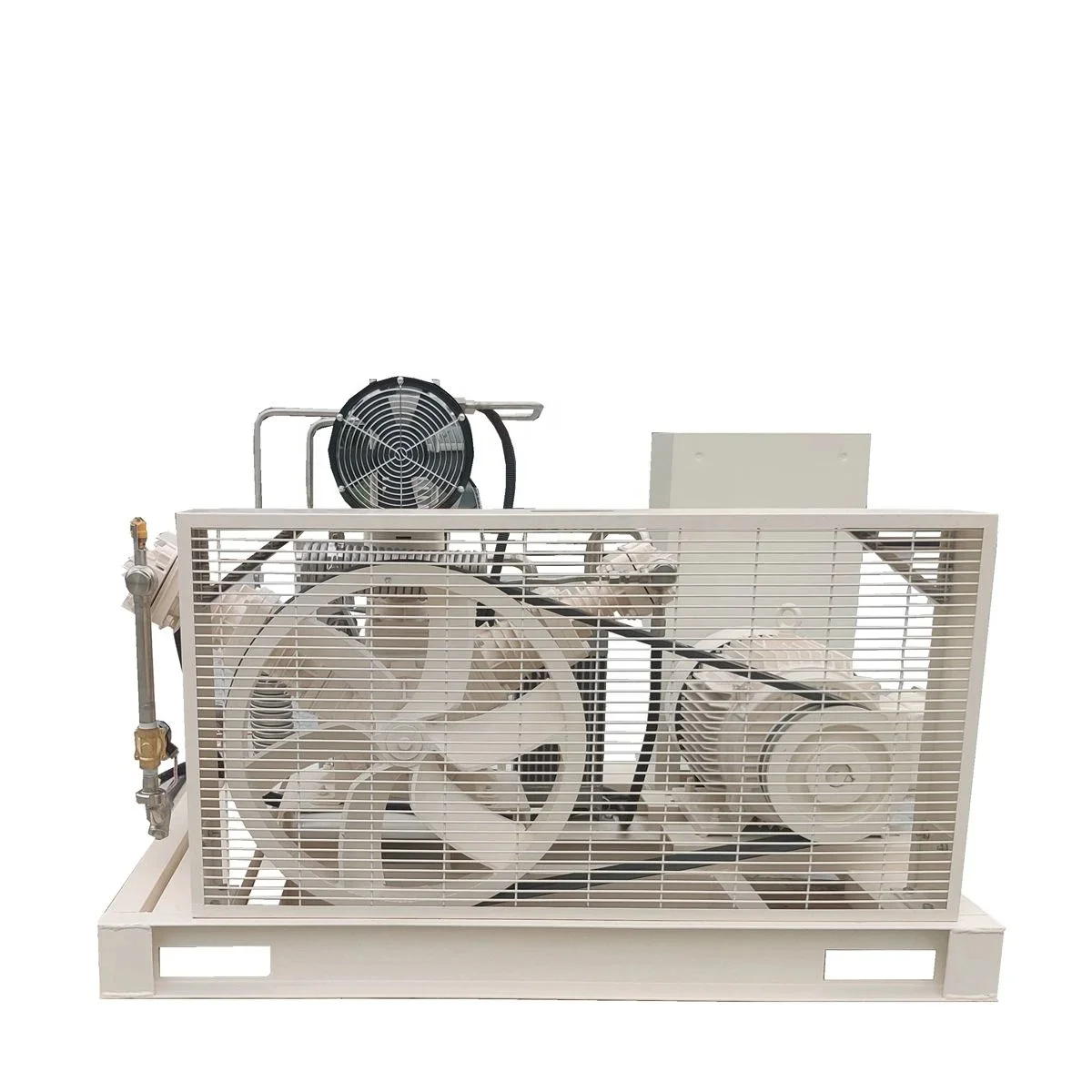

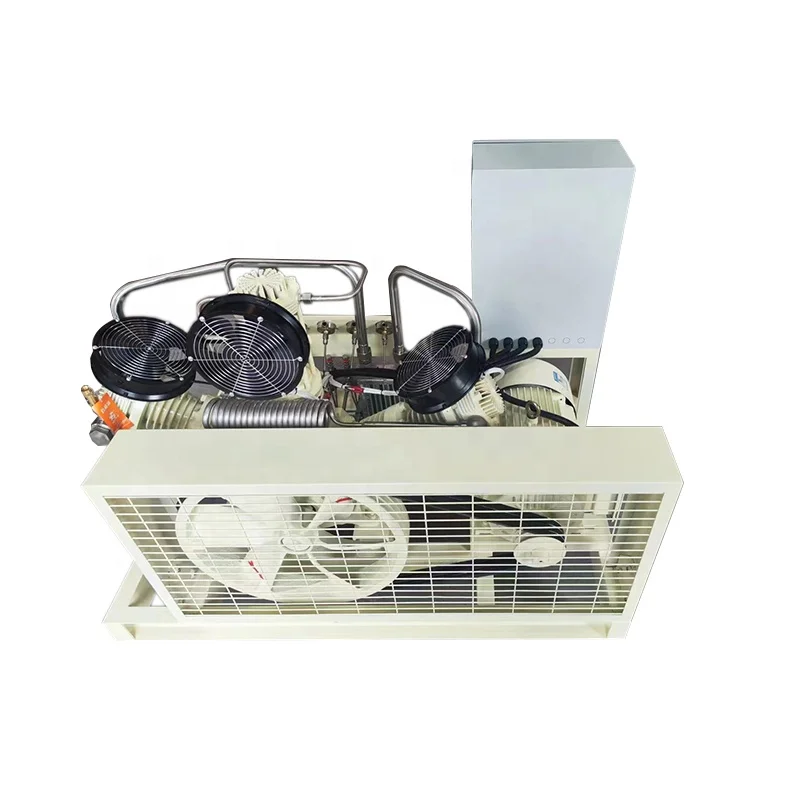

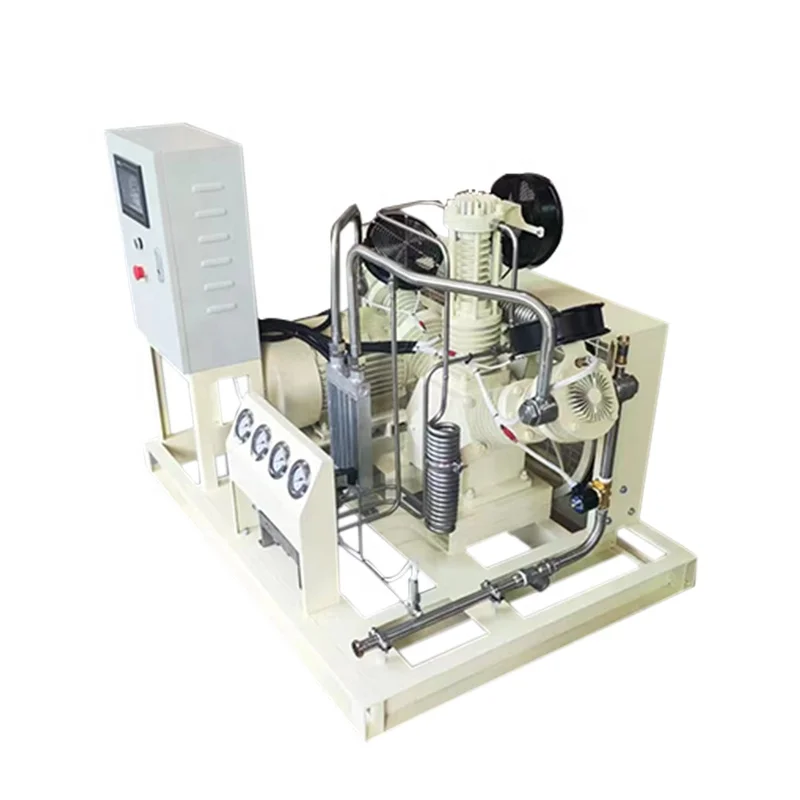

6Nm3/h 150Bar 200Bar High Pressure Oil Free Medical Oxygen Booster Compressor For Hospital
What's the usage of oxygen gas compressor?
* Oxygen compressor for filling oxygen cylinders:
For filling oxygen cylinder from oxygen systems, generally the pressure is high. This is done in a totally oil-free environment.
* Oxygen compressor for medical use:
Oxygen from a PSA or liquid oxygen source is compressed with one or two stages to 3 barg (43 psig) to 20 barg (290 psig) for use directly by patients.
The oxygen is kept pure by the oxygen compressor so that it is safe for medical use.
These oxygen compressors are usually relatively small, in the 3 to 15 kW range.
* Oxygen compressor for process use:Oxygen for industrial processes is generally higher volume, 3,000 Nm3/hr (1,900 SCFM).
The pressures can be medium and low, sometimes up to 35 barg (510 psig).
Is available for VSA applications at steel mills, paper plants,water treatment plants.
The oxygen compressors are one, two, or three stages and in the power range of 50 kW up to 375 kW






Product Parameter


Model
Intake pressure
Exhaust pressure
O2 flow
(Nm3/h)
Motor Power
(KW)
Size(mm)
Weight(kg)
GOW-5/4-150/200
0.4Mpa
15/20 Mpa
5
4.0
1350*850*1100
380
GOW-10/4-150/200
0.4Mpa
15/20 Mpa
10
5.5
1350*1050*1100
410
GOW-15/4-150/200
0.4Mpa
15/20 Mpa
15
7.5
1350*1050*1100
420
GOW-20/4-150/200
0.4Mpa
15/20 Mpa
20
7.5
1350*1050*1100
430
GOW-25/4-150/200
0.4Mpa
15/20 Mpa
25
11.0
1350*1050*1100
430
GOW-30/4-150/200
0.4Mpa
15/20 Mpa
30
15.0
1350*1050*1100
450
GOW-35/4-150/200
0.4Mpa
15/20 Mpa
35
15.0
1350*1050*1100
450
GOW-40/4-150/200
0.4Mpa
15/20 Mpa
40
15.0
1350*1050*1100
450
GOW-45/4-150/200
0.4Mpa
15/20 Mpa
45
18.5
1450*1100*1250
520
GOW-50/4-150/200
0.4Mpa
15/20 Mpa
50
18.5
1450*1100*1250
520
GOW-55/4-150/200
0.4Mpa
15/20 Mpa
55
18.5
1450*1100*1250
520
GOW-60/4-150/200
0.4Mpa
15/20 Mpa
60
22.0
1450*1100*1250
540
GOW-65/4-150/200
0.4Mpa
15/20 Mpa
65
22.0
1450*1100*1250
540
GOW-70/4-150/200
0.4Mpa
15/20 Mpa
70
22.0
1450*1100*1250
540
GOW-75/4-150/200
0.4Mpa
15/20 Mpa
75
15*2
2800*1250*1200
1060
GOW-80/4-150/200
0.4Mpa
15/20 Mpa
80
15*2
2800*1250*1200
1060
GOW-85/4-150/200
0.4Mpa
15/20 Mpa
85
15*2
2800*1250*1200
1060
GOW-90/4-150/200
0.4Mpa
15/20 Mpa
90
18.5*2
2900*1320*1300
1260
GOW-95/4-150/200
0.4Mpa
15/20 Mpa
95
18.5*2
2900*1320*1300
1260
GOW-100/4-150/200
0.4Mpa
15/20 Mpa
100
18.5*2
2900*1320*1300
1260
GOW-105/4-150/200
0.4Mpa
15/20 Mpa
105
18.5*2
2900*1320*1300
1260
GOW-110/4-150/200
0.4Mpa
15/20 Mpa
110
18.5*2
2900*1320*1300
1260
GOW-115/4-150/200
0.4Mpa
15/20 Mpa
115
22*2
2900*1320*1300
1350
GOW-120/4-150/200
0.4Mpa
15/20 Mpa
120
22*2
2900*1320*1300
1350
GOW-125/4-150/200
0.4Mpa
15/20 Mpa
125
22*2
2900*1320*1300
1350
GOW-130/4-150/200
0.4Mpa
15/20 Mpa
130
22*2
2900*1320*1300
1350
GOW-135/4-150/200
0.4Mpa
15/20 Mpa
135
22*2
2900*1320*1300
1350
GOW-140/4-150/200
0.4Mpa
15/20 Mpa
140
22*2
2900*1320*1300
1350


Company Profile




FAQ


If you have compressor inquiry please tell us follows information when you send inquiry:
*Compressor working medium: If single gas ,how many purity ? if mixed gas , what’s gas content lit ?
*Suction pressure(gauge pressure):_____bar
*Exhaust pressure(gauge pressure):_____bar
*Flow rate per hour for compressor: _____Nm³/h
Compressor gas suction temperature:_____℃
Compressor working hours per day :_____hours
Compressor working site altitude :_____m
Environment temperature : _____℃
Has cooling water in the site or not ?______
Voltage and frequency for three phase :____________
V Application for compressor?
