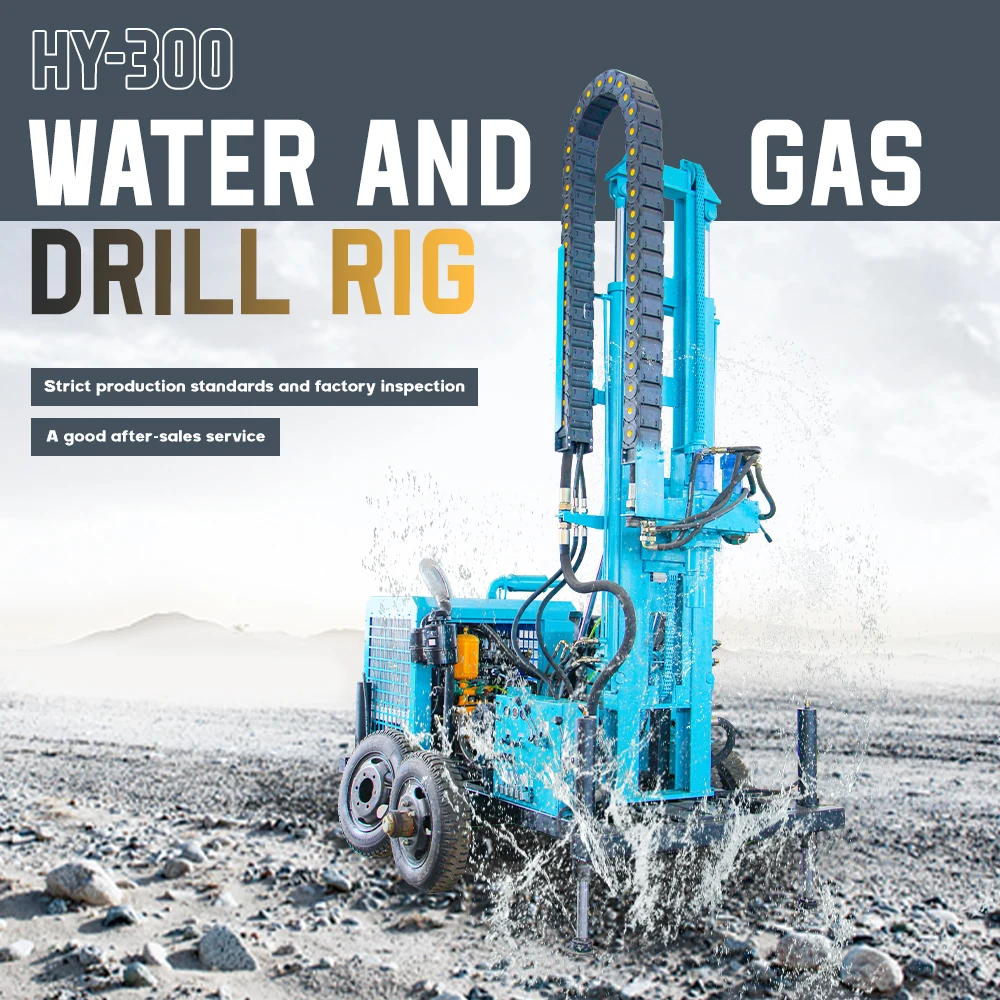

HUAYAO water drilling machine 300m borehole Pneumatic and water multifunctional drilling rig
- Category: >>>
- Supplier: Shandong Huayao Construction Machinery Co. Ltd.
Share on (1601171643829):
Product Overview
Description
150m water well drilling machine 200m borehole drilling machine drilling rigs for sale
Product Information
The listing price just deposit price and without freight fee,please kindly note that,if you want to know the specific price,pleasecontact us or send us inquiry,then we can give you detail quotation list,thanks.
Product Description:
This drilling rig is a multifunctional water and pneumatic drilling rig.
A. Equipped with high-performance pneumatic systems and optimized mechanical structures, as well as long drill rods and long travel speed doubling mechanism power heads, it can effectively reduce the number of guide rod replacements, improve drilling efficiency, and reduce the risk of drilling blockage and burning, thereby accelerating drilling speed.
B. Convenient and safe to operate, the multi gear forward and reverse rotation speed design makes it easy to cope with different drilling conditions and handle unexpected situations.
C. Suitable for various geological conditions, including hard rock layers and complex terrains, such as horizontal drilling in mountainous areas, it demonstrates its strong adaptability and drilling ability, and can drill holes in rocks over 200 meters or even deeper. Capable of meeting different types of drilling needs, such as water wells, geothermal wells, geological exploration holes, etc.
D. The drilling rig has two types of chassis devices: 4-wheel trailer type and track type. Especially with its track design, it can easily move on rough and uneven ground, increasing the flexibility of operations and the ability to reach remote work points.
A. Equipped with high-performance pneumatic systems and optimized mechanical structures, as well as long drill rods and long travel speed doubling mechanism power heads, it can effectively reduce the number of guide rod replacements, improve drilling efficiency, and reduce the risk of drilling blockage and burning, thereby accelerating drilling speed.
B. Convenient and safe to operate, the multi gear forward and reverse rotation speed design makes it easy to cope with different drilling conditions and handle unexpected situations.
C. Suitable for various geological conditions, including hard rock layers and complex terrains, such as horizontal drilling in mountainous areas, it demonstrates its strong adaptability and drilling ability, and can drill holes in rocks over 200 meters or even deeper. Capable of meeting different types of drilling needs, such as water wells, geothermal wells, geological exploration holes, etc.
D. The drilling rig has two types of chassis devices: 4-wheel trailer type and track type. Especially with its track design, it can easily move on rough and uneven ground, increasing the flexibility of operations and the ability to reach remote work points.

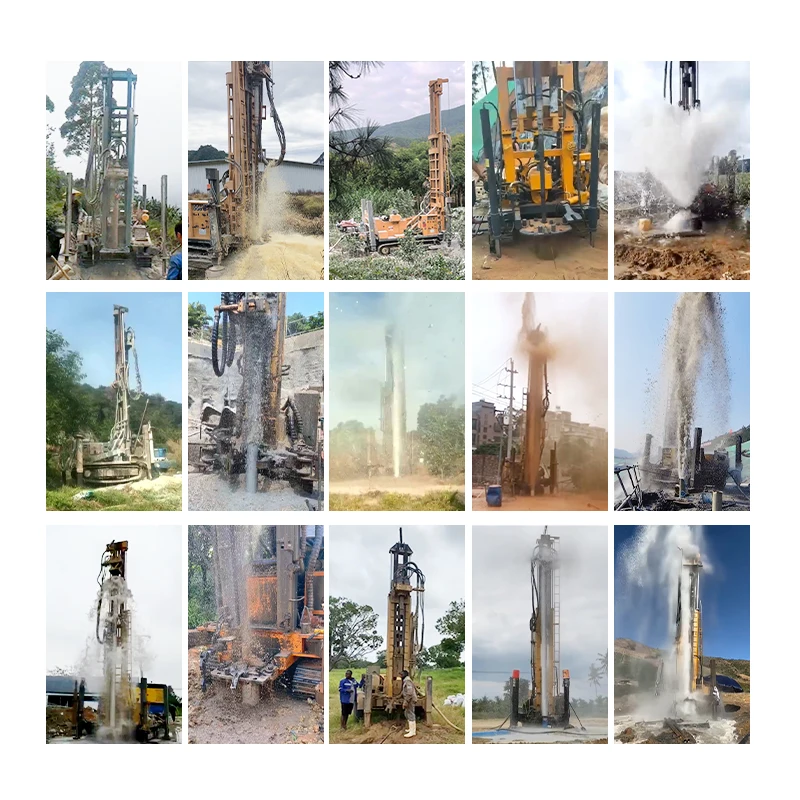

Product display
Specification Of HUAYAO HY300 | ||
Model | HY300 | |
Max. Drilling Depth | 300m | |
Drilling Diameter | 200-450mm | |
Machine Weight | 2700KG | |
Once-time Advance Length | 3.3m | |
Engine Brand | YUNNEI | |
Engine Power | 78KW | |
Working Pressure | 1.45-2.5MPA | |
Air Consumption | 17-33m³/min | |
Diameter of Drill Rod | 60/76/89 mm | |
Length of Drill Rod | 3m | |
Lifting Force | 14 Tons | |
Rotation Speed | 200-400rpm/min | |
Rotation Torque | 2500-3500N.m | |
Overall Dimensions | 3300/1500/2100mm | |
The applicable geology is a hard rock layer. If the geology is a loose rock layer, please use follow-pipe drilling to prevent the occurrence of hole collapse. | ||

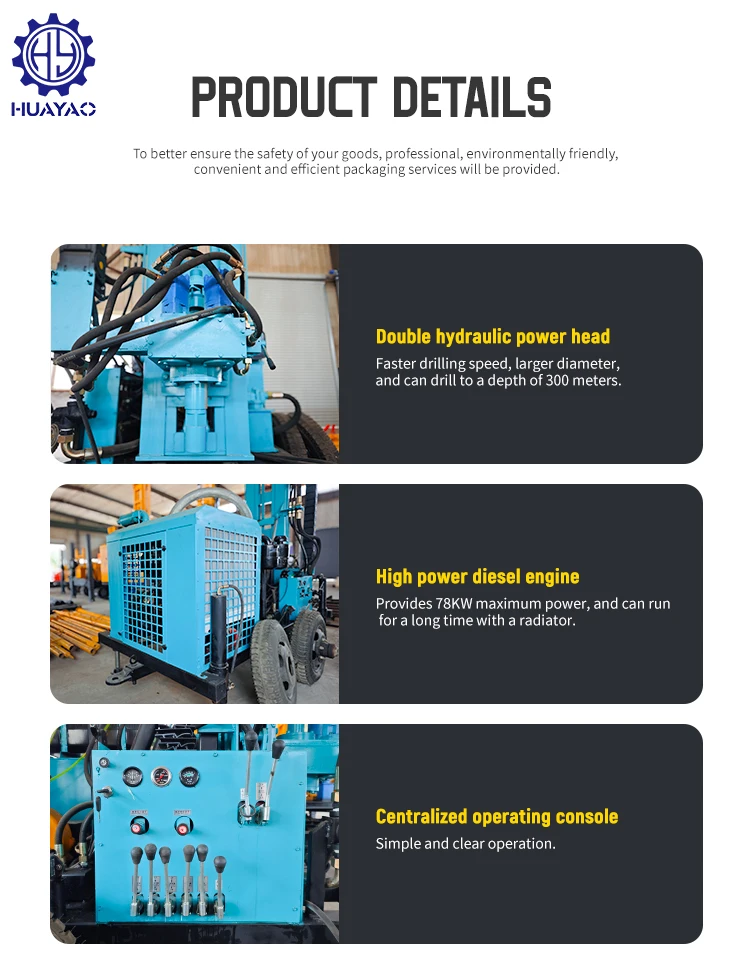

Drilling Mode | Double Hydraulic Motor Rotor Propulsion Impactor Down The Hole Hammer or Mud Drilling | |
Impactor | China Famous Brand New Diamond Middle and High Pressure Series Impactor | |
Optional Accessories | 1.1000 hours Spare Parts 2.Mud Pumps 3.Electric welding machine 4.Foam Pump | |

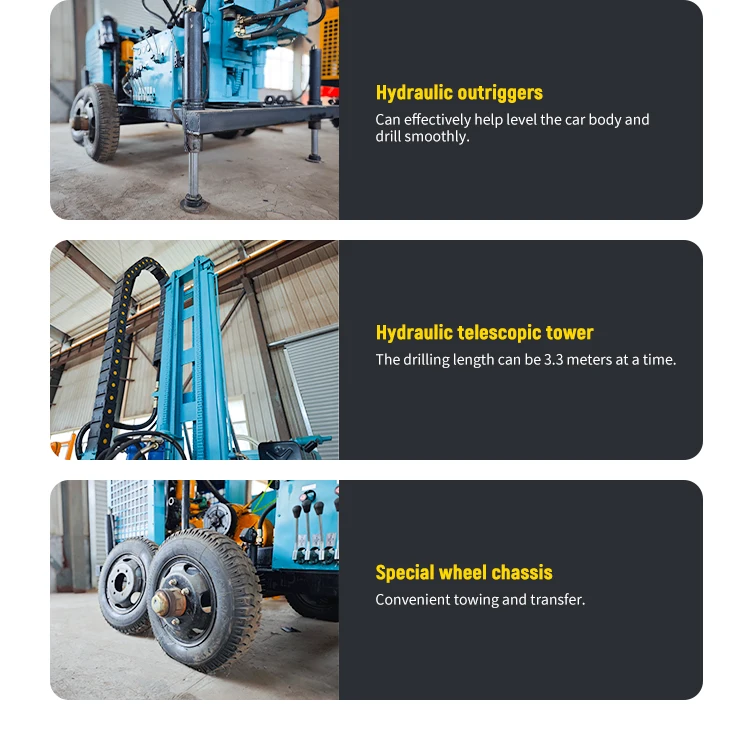

Four-wheel trailer
A. The four-wheel trailer design can be directly pulled by a car or tractor, quickly transferring between different construction sites, reducing equipment installation, disassembly, and transportation time. It is particularly suitable for work environments that require frequent transfers without damaging the ground.
B. The structure is relatively simple, easy to operate and maintain, and one person can operate the machine.
C. Stronger stability and security. The trailer drilling rig is equipped with fully hydraulic support legs to ensure stability and safety during drilling operations
D. Strong drilling ability, able to meet operations in hard rock formations and complex geological conditions. Not only suitable for drilling water wells and geothermal wells, but also for various application scenarios such as geological exploration and mineral exploitation.
B. The structure is relatively simple, easy to operate and maintain, and one person can operate the machine.
C. Stronger stability and security. The trailer drilling rig is equipped with fully hydraulic support legs to ensure stability and safety during drilling operations
D. Strong drilling ability, able to meet operations in hard rock formations and complex geological conditions. Not only suitable for drilling water wells and geothermal wells, but also for various application scenarios such as geological exploration and mineral exploitation.
Crawler chassis
A. Adopting an all terrain tracked walking system, it can easily traverse muddy, sloping, rocky and other terrains
B, The fully hydraulic drive system can accurately control drilling movements
C. Off road performance, efficient operation, high flexibility and safety have become indispensable equipment in fields such as mining, geological exploration, and infrastructure construction.
D.Fast transition capability and lower maintenance requirements help reduce overall operating costs, especially in situations where project cycles are short and frequent movements are required, resulting in more significant economic benefits.
B, The fully hydraulic drive system can accurately control drilling movements
C. Off road performance, efficient operation, high flexibility and safety have become indispensable equipment in fields such as mining, geological exploration, and infrastructure construction.
D.Fast transition capability and lower maintenance requirements help reduce overall operating costs, especially in situations where project cycles are short and frequent movements are required, resulting in more significant economic benefits.

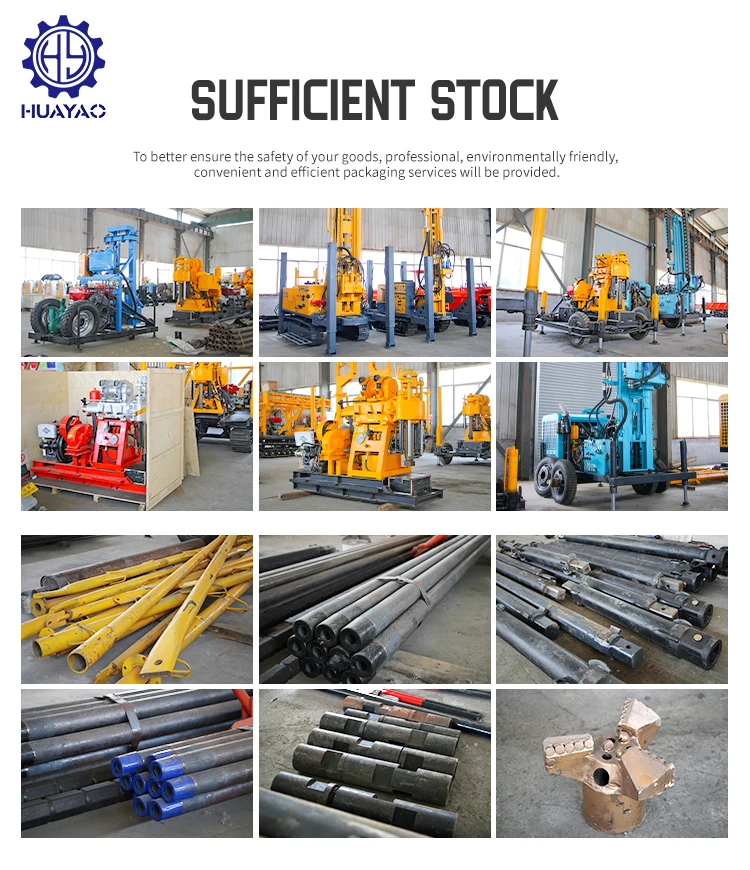

Provide a complete set of drilling tools required
Reasonable price, high quality level, independent R&D team and strong after-sales team, please send us an inquiry.
Specification
Drill Rig and Air Compressor Recommendation | ||||
Drill Depth/Drill Diameter | Within 219mm | 219-300mm | ||
100 Meter | HZ-160L KSZJ-18/17 | HZ-160L ZEGA-S85D（24-22) | ||
150 Meter | HZ-160L ZEGA-S85D（24-22） | HZ-160L KSZJ-29/23G | ||
200 Meter | HZ-260L KSZJ-29/23G | HZ-360L KSZJ-31/25 | ||
300 Meter | HZ-360L KSZJ-31/25 | HZ-400L LUY400-30 | ||
350 Meter | HZ-400L LUY400-30 | HZ-450L KSZJ-31/25 (2 Sets) | ||
400 Meter | HZ-450L KSZJ-31/25 (2 Sets) | HZ-500L LUY400-30 (2 Sets) | ||
450 Meter | HZ-500L LUY400-30 (2 Sets) | HZ-550L LUY400-30 (3 Sets) | ||

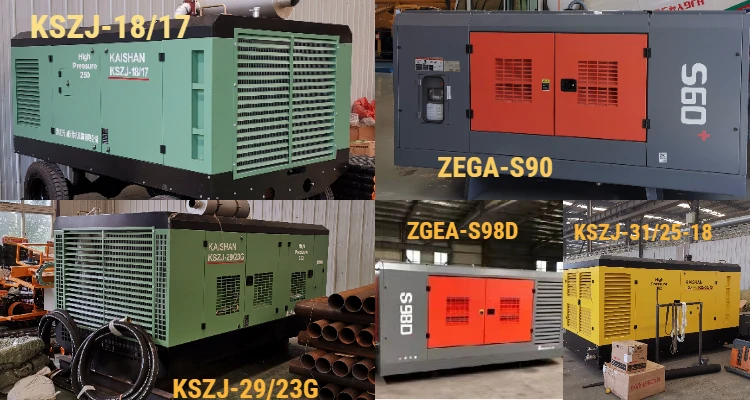

Air Compressor Technical Parament | ||||||||
Model | Free Air Delivery (m3/min) | Discharge Pressure (Mpa) | Power | Machine Weight(KG) | ||||
KSZJ-18/17 | 18 | 1.7 | 191KW | 3200 | ||||
ZEGA-S85D | 24 | 2.2 | 228KW | 3500 | ||||
KSZJ-29/23G | 29 | 2.3 | 295KW | 5000 | ||||
KSZJ-31/25 | 31 | 2.5 | 367KW | 6000 | ||||
LUY400-30 | 40 | 3.0 | 410KW | 5750 | ||||
Please contact the sales manager to recommend a suitable air compressor model for you! | ||||||||
Company Information
Company Profile：
Shandong Huayao Construction Machinery Co,. Ltd was found in 2020, is an exclusive overseas distributor of LGMG brand, a sub-brand of SDLG .
It is located in China's small construction machinery distribution center-Jining city, shandong province, mainly engaged in water well drilling rig, wheel loader, wheel excavator, small road roller, small excavator etc.
With a registered capital of RMB 50 million, the company mainly provides a complete set of drilling machinery and construction road machinery solutions for domestic and foreign projects and mine construction.
Shandong Huayao Construction Machinery Co., Ltd pays great attention to the credit, keeps the contract, and ensures product quality, has gained the trust of customers in the principle of small profits but quick turnover.
It is located in China's small construction machinery distribution center-Jining city, shandong province, mainly engaged in water well drilling rig, wheel loader, wheel excavator, small road roller, small excavator etc.
With a registered capital of RMB 50 million, the company mainly provides a complete set of drilling machinery and construction road machinery solutions for domestic and foreign projects and mine construction.
Shandong Huayao Construction Machinery Co., Ltd pays great attention to the credit, keeps the contract, and ensures product quality, has gained the trust of customers in the principle of small profits but quick turnover.
FAQ
1.Are you manufacture?
Yes, we are factory with more than 20 years of manufacturing experience.
2.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.What is your terms of delivery?
Ans.: EXW,FOB,CFR, CIF.
4. How about your delivery time?
Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items
and the quantity of your order.
5.What is the warranty of our machine?
Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a
new one.And we provide videos for machine install and operation.
6.What is your terms of packing?
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
7.Do you test all your goods before delivery?
Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
8.Do you Preferred provide wear parts for transacted clients?
Yes, we have records for your clients, and will prefer providing accessories to clients.
9.How do you make our business long-term and good relationship?
aWe keep good quality and competitive price to ensure our customers benefits;
b.We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
10.Do you have any certificates for your machine?
All of our products coming with the certificates of CE, ISO9001.
Yes, we are factory with more than 20 years of manufacturing experience.
2.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.What is your terms of delivery?
Ans.: EXW,FOB,CFR, CIF.
4. How about your delivery time?
Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items
and the quantity of your order.
5.What is the warranty of our machine?
Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a
new one.And we provide videos for machine install and operation.
6.What is your terms of packing?
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
7.Do you test all your goods before delivery?
Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
8.Do you Preferred provide wear parts for transacted clients?
Yes, we have records for your clients, and will prefer providing accessories to clients.
9.How do you make our business long-term and good relationship?
aWe keep good quality and competitive price to ensure our customers benefits;
b.We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
10.Do you have any certificates for your machine?
All of our products coming with the certificates of CE, ISO9001.
