CE 100w lightweight solar module monocrystalline flexible pv panel thin film etfe flexible solar panels 200w for car roof
- Category: >>>
- Supplier: Shenzhen JCN New Energy Technology Co. Ltd.Shenzhen Ltd.
Share on (1601171832820):
Product Overview
Description
Product Paramenters

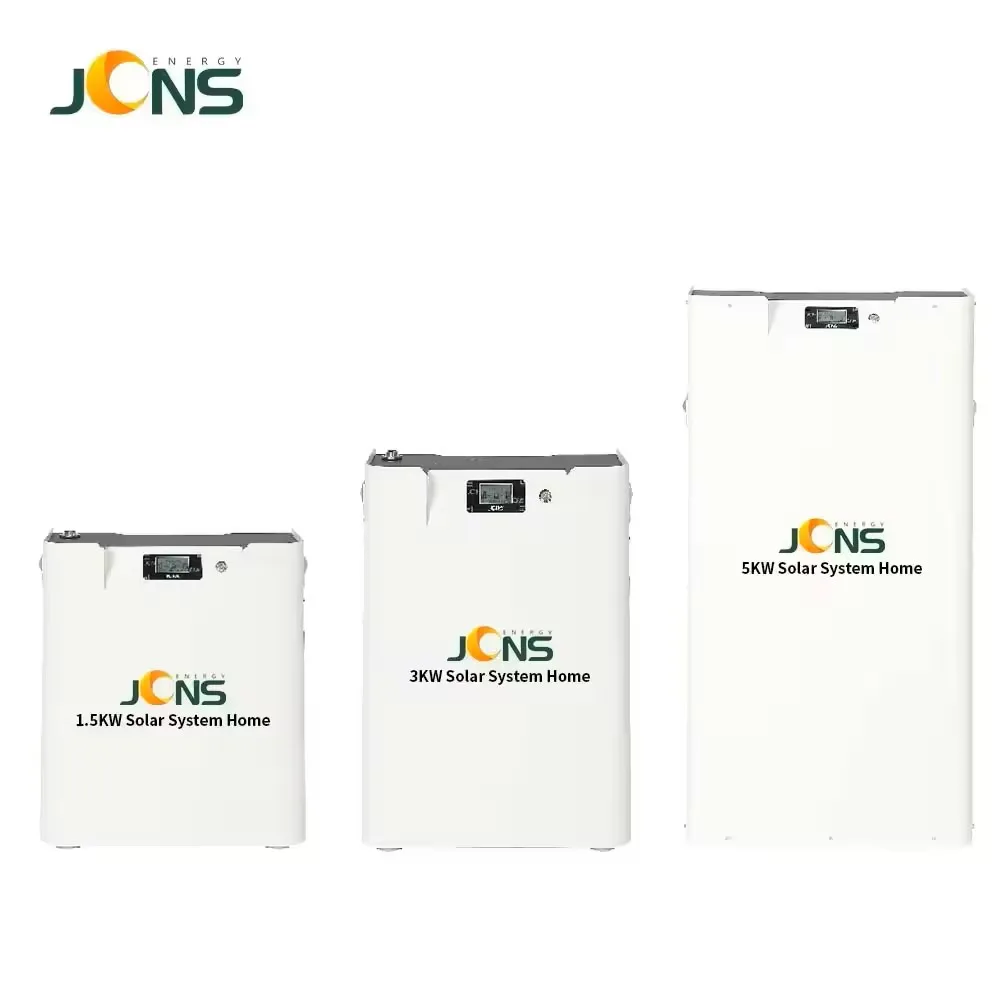

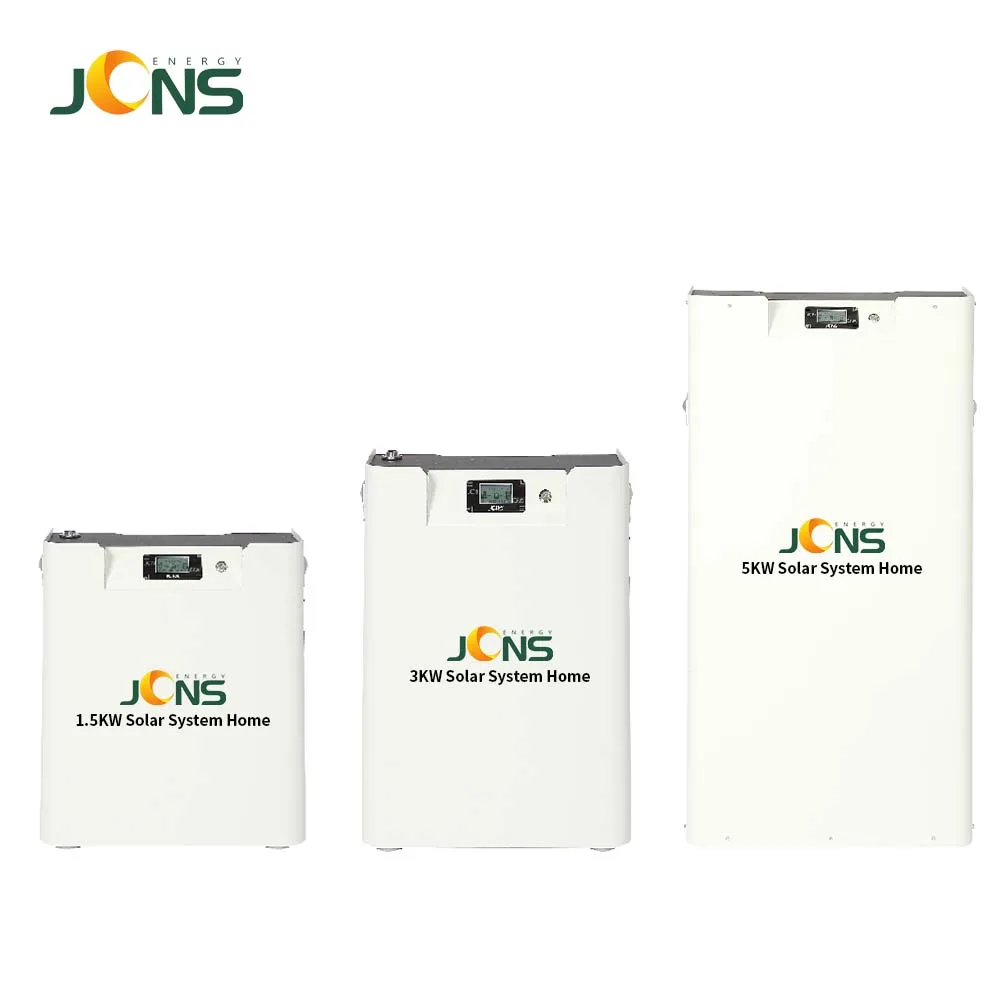

Number | 1.5KW system | 3KW system | 5KW system | ||
Output | 2* AC 220 | ||||
Solar panel | Poly/Mono | ||||
Solar panel input voltage | DC 38V-88V ±1.5V | ||||
Rated charging current | ＜6A | ＜12A | <15A | ||
Battery Type | Lithium iron phosphate battery | ||||
Battery capacity | 48V25AH | 48V60AH | 48V100AH | ||
BMS function | Over voltage protection, over current protection, over temperature protection. | ||||
Inverter type | Pure Sine Inverter | ||||
Inverter rated power | 1800W | 3000W | 5000W | ||
Inverter output voltage | AC-220V | ||||
Rated input voltage | DC-48V | ||||
Inverter operating voltage | 38V-75V DC ±0.5V | ||||
Output frequency | 50Hz±1Hz | ||||
No-load current | ＜0.11A | ＜0.2A | To be tested | ||
Conversion efficiency | ＞86% | ||||
Standby power consumption | ＜5W | ＜8W | To be tested | ||
Output protection | Low voltage protection, over voltage protection, overload protection, short circuit protection, over temperature protection. | ||||
System operating temperature | -10℃ To +50℃ | ||||
Charge time | Determined according to light intensity. | ||||
Discharge time | Determined according to the load power. | ||||
Size（mm） | 493*200*489 | 493*200*789 | 493*200*1009 | ||
System shell material | Cold rolled sheet | ||||
FAQ
1.Q:What are the advantages of your company?
A:Strong R & D team, independent R & D and production of main parts, to control
product quality very strictly.
2.Q:Can you supply OEM &ODM service ?
A:Yes,we have R&D team and need MOQ.
3.Q:What kind of certificates your products have acquired ?
A:Most of our solar products have acquired CE, FCC, UL and PSE certificates, which is able to satisfy most country’s importing requirements.
4.Q:What about the lead time?
A:Sample needs 5-10 days, mass production time needs 25-45days.
5.Q:How do you ship the goods since they are high capacity battery ?
A:We have long-term cooperated forwarders who are professional at battery shipment.
6.Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
7.Q:Can your machines carry refrigerators, coffee makers, and electric kettles?
A:Please read the product manual carefully for details. As long as the Noninductive load not over our rated load.
8.Q:Does your portable power station have UPS function?
A:The portable power station has no UPS function, while the home systems has UPS function.
9. Q:Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
10.Q:How long is the warranty of your products? How to guarantee the after-sale services?
A:We guarantee most of our products for one year,the solar panel for 5 years. We will prepare 3‰ to 5‰ accessories for easy damage parts. We will help you solve all the technology problems through email,phone,video...
product quality very strictly.
2.Q:Can you supply OEM &ODM service ?
A:Yes,we have R&D team and need MOQ.
3.Q:What kind of certificates your products have acquired ?
A:Most of our solar products have acquired CE, FCC, UL and PSE certificates, which is able to satisfy most country’s importing requirements.
4.Q:What about the lead time?
A:Sample needs 5-10 days, mass production time needs 25-45days.
5.Q:How do you ship the goods since they are high capacity battery ?
A:We have long-term cooperated forwarders who are professional at battery shipment.
6.Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
7.Q:Can your machines carry refrigerators, coffee makers, and electric kettles?
A:Please read the product manual carefully for details. As long as the Noninductive load not over our rated load.
8.Q:Does your portable power station have UPS function?
A:The portable power station has no UPS function, while the home systems has UPS function.
9. Q:Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
10.Q:How long is the warranty of your products? How to guarantee the after-sale services?
A:We guarantee most of our products for one year,the solar panel for 5 years. We will prepare 3‰ to 5‰ accessories for easy damage parts. We will help you solve all the technology problems through email,phone,video...
