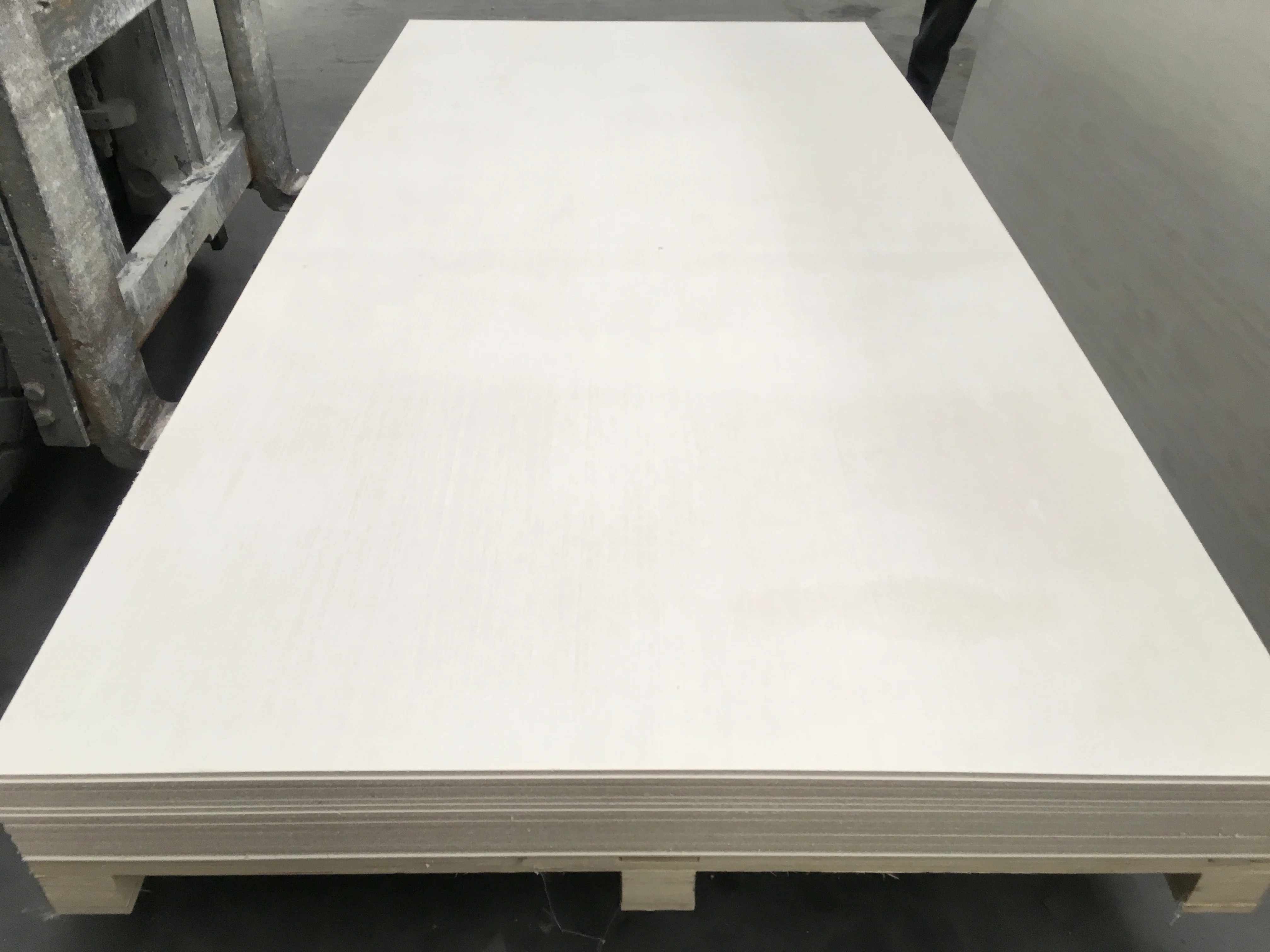

10mm Lightweight Fireproof Level A1 Glass Magnesium Oxide Wall Siding MGSO4 MGO Board

Product Overview

Description

SWISSIWS ‘STANDARD’ MGO BOARD

This panel is the most cost-effective fire rated replacement for poured concrete in floors and roof decks as well as walls where

high impact fire rated surfaces are required. It allows rapid installation for accelerated schedules while giving architects and

contractors a sustainable product that is silica free and mold intolerant.



It is very green in comparison to competitive products. While cement based products use tremendous amounts of energy in their

manufacture, SWISSIWS MGO BOARD uses a room temperature process that uses a small fraction of energy in comparison.

With no silica, it does not pose the same threat to workers when cutting or sanding. Its mold resistance is exemplary.



‘Dimension’ of SWISSIWS STANDARD MGO BOARD

Sizes:	1220*2440, 1200*2400, 1200*2250, 1200*2280, 1100*2750, 1100*2950, 1100*3000
Thickness:	3mm to 25mm
100% asbestos free	Other specifications available
Thickness tolerance	0.5mm
Size tolerance	2mm



The chart below states general ‘technical parameter’ of SWISSIWS STANDARD MGO BOARD

Characteristic	Unit	Description
Density	1050KGS/M3	Grams per cubic meter
Tensle Strength	>5.5 (MPa)	Mega pascal units
Compressive Strength	>25 (MPa)	Mega pascal units
Striking Resistant Strength	±23.5 (N/mm2)	Newton per square millimetre
Dimensional Change	0.35 (%)	Percentage of water absorption
Modulus of Elasticity	~6055 (N/mm2)	Newton per square millimetre
Flexibility	~20.5 (N/mm2)	Newton per square millimetre
Thermal Conductivity	~0.153 (W/mK)	High Aust. Insulation Rating
Asbestos	0 %	Absent
Formaldehyde	0 %	Absent
Freeze Thawing Test	/	No change after 15 cycles of freeze Thawing
