Professional Design Foil Printing Machine for Packaging Cigarette
- Category: >>>
- Supplier: Yuncheng Plate Making Printing Machinery Co. Ltd.Yuncheng Ltd.
Share on (1601172079932):
Product Overview
Description
Product Overview

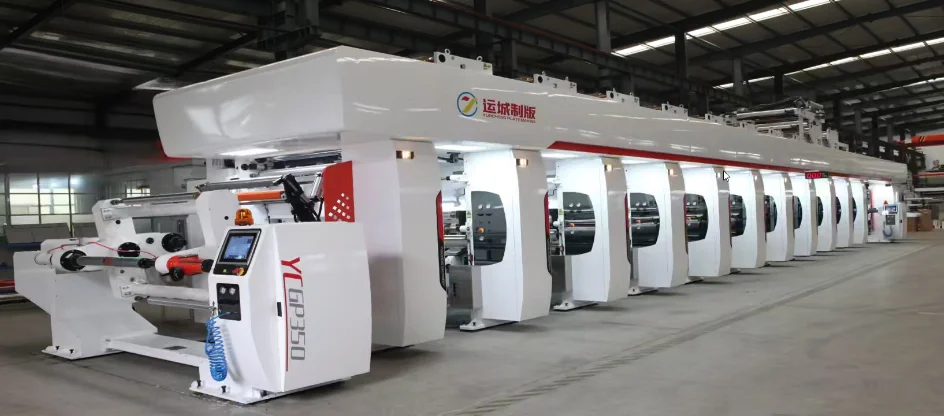

YCGP350-801250
Rotogravure printing machine is suit for the cellophane paper, BOPP, PET, PVC, PE, aluminum foil, paper and so on, multicolor progression printing possesses of choiceness printing performance and roll material. It is used in all kinds of top grade printing abroad.
FEATURES AT A GLANCE
* Double-armed rotary turret and rack combination with double working positions in single tower style
* Automatic high-speed splicing , automatic pre-driving of new reel, automatic same speed with main machine, alarm for
auto-splicing.
* Hot air can be recycled to save energy
* Automatic high-speed splicing , automatic pre-driving of new reel, automatic same speed with main machine, alarm for
auto-splicing.
* Hot air can be recycled to save energy
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Film Running Direction from Unwind to Rewind | From left to right |
2 | Printing Color | 8 |
3 | Max. Machine Speed | 350m/min（cylinderdia.≥Φ170mm） |
4 | Heating Style | Oil/Gas/Electricity heating |
5 | Accuracy of tension | Unwind and rewind±0.2kg Traction ±0.1kg |
6 | Length of cylinders | 900~1350mm Taper cone10°,block 100mm,key width: 12x5mm |
7 | Guide roller length | 1300mm |
8 | Printing materials | PET：12~60μm BOPP： 18~60μm CPP：20~60μm OPP： 20~60μm PVC：35~60μm NY ： 12~50μm Composite film ：15~60μm And other similar films with same features |
PRODUCT CONFIGURATION
Dancer Roller

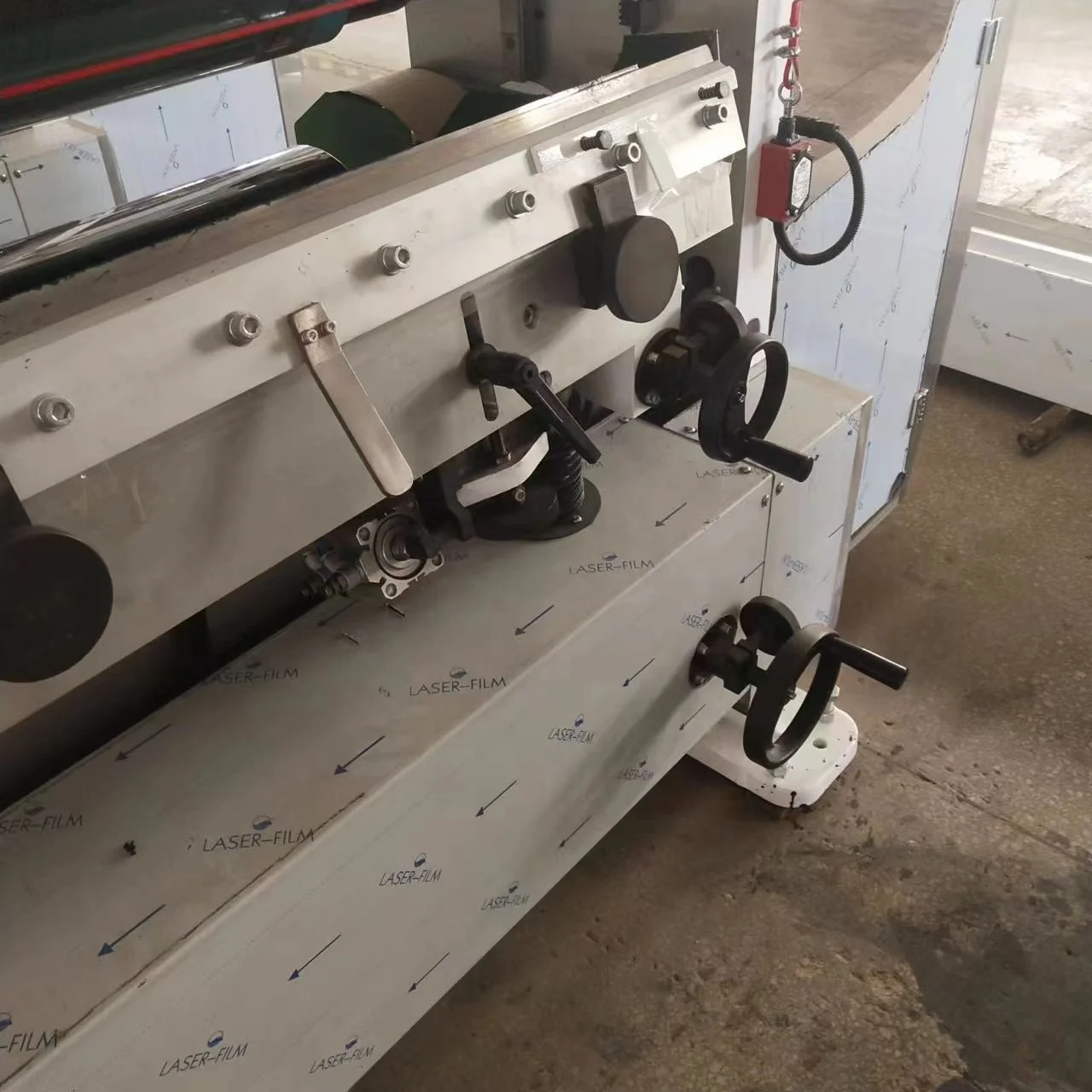

Doctor Blade
Static Eliminator
Drying Chamber
SIEMENS Servo Motor
Accurate Preset For Register
SALES AND SERVICE NETWORK
Founded in 1989, our company moved to the High-tech Development Park in Yuncheng City, Shanxi Province, P.R.China, which covering an area of 40000 square meters and has more than 200 technical employees of various types. Through the unremitting efforts and continuous innovation of the entire team for more than 30 years,we have developed into key enterprises in the field of flexible packaging rotogravure equipment.Our products are mainly distributed to domestic major economic center such as Guangdong, Shanghai, Qingdao, Tianjin, Hangzhou, Chengdu and so on, in the leading the domestic market while our sales network also involved to the Russia, Mexico, Turkey, Brazil, Egypt, Indonesia, Thailand, Vietnam, Pakistan, Bengal, India and so on.
FAQ
Q1：How do we guarantee quality?
Q2: How to contact us?
A2: Tel: 0086-359-6365333 ; Fax : 0086-359-6365333 ;Our factory is located at No. 1, Sushui Avenue, Yanhu Industrial Zone, Yuncheng City, Shanxi Province, China.
Q3: What machines do we sell?
A3: Its main products are electronic shaft rotogravure printing machines, dry laminating machines, slitting machines and automatic plate making lines.
A1：We have a complete sales and service system. Including pre-sale and after-sale tracking service system, regular return visit, technical on-site service, technical training and installation, lifetime remote technical support.
Q2: How to contact us?
A2: Tel: 0086-359-6365333 ; Fax : 0086-359-6365333 ;Our factory is located at No. 1, Sushui Avenue, Yanhu Industrial Zone, Yuncheng City, Shanxi Province, China.
Q3: What machines do we sell?
A3: Its main products are electronic shaft rotogravure printing machines, dry laminating machines, slitting machines and automatic plate making lines.
