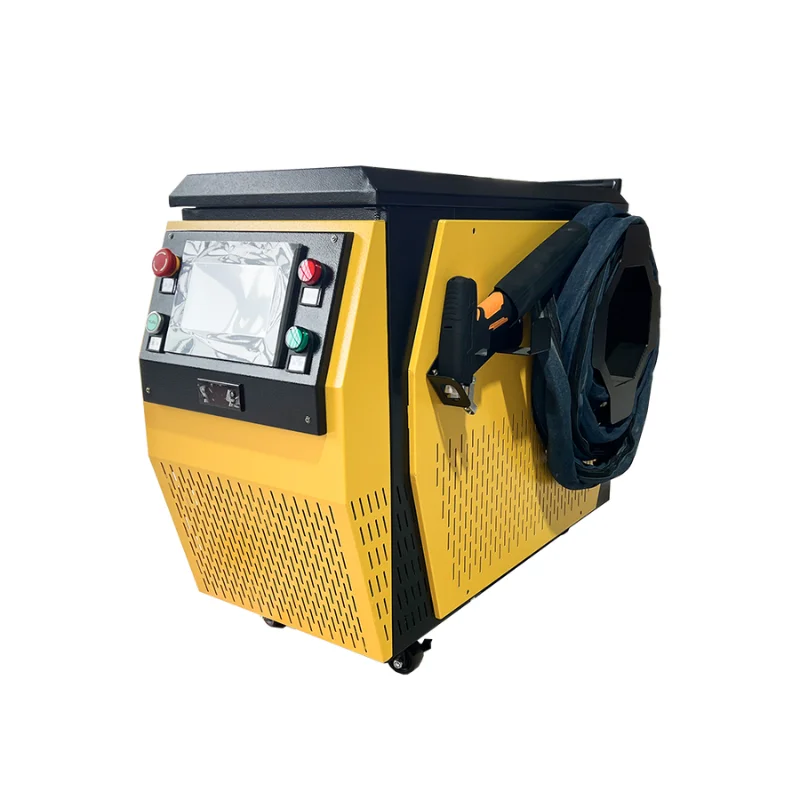

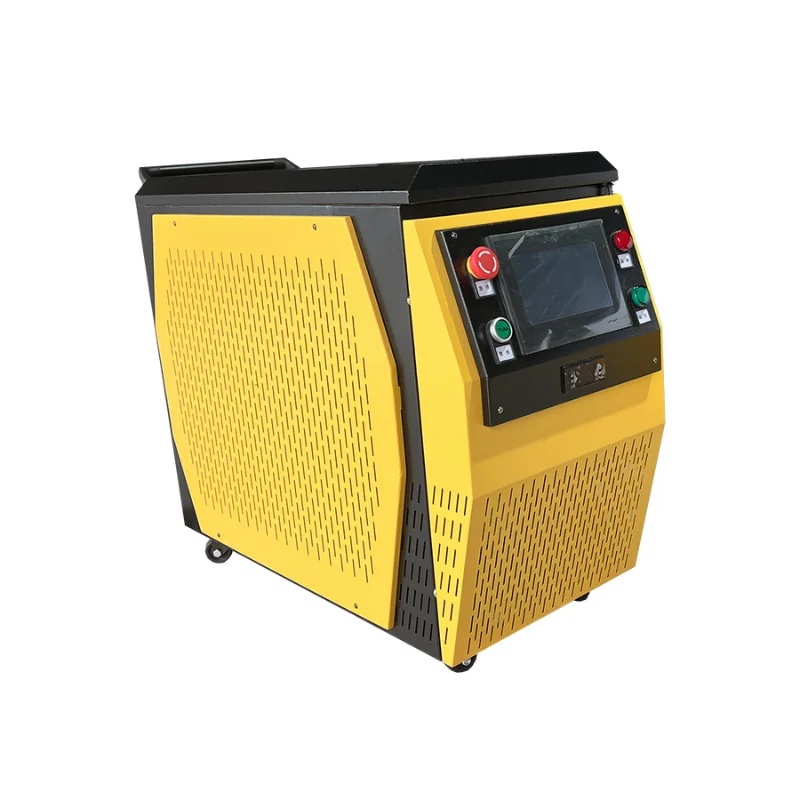

Raysoar 1.5KW 2KW 3KW Fiber Portable Mini Laser Welding Machine Water Cooled Handheld Laser Welding Machine For Metal
- Category: >>>
- Supplier: Shanghai Raysoar Electromechanical Equipment Co. Ltd.
Share on (1601172279909):
Product Overview
Description
Basic parameters of water-cooled handheld laser welding machine | Basic parameters of water-cooled handheld laser | |
Type | FWW1500 | |
Maximum average power output of laser | 1200W-1600W | |
Rated power | 2.1KW | |
Input power | 0.55KW | |
Power loss | ≤6W | |
Core diameter | 50um | |
Operating temperature range | 15~35℃ | |
Total machine weight | 150KG | |
Cooling method | Water cooling | |
FWW1500 is a new generation handheld welding machine that boasts fast welding speed,excellent results, and ease of learning. lt's easy to get started with and can significantly boost production efficiency while reducing processing costs.
High performance | Fast speed |
4.0mm ultimate welding depth for stainless steel, 1.5mm ultimate welding depth for ways,improving production efficiency copper | 4-10 times faster than traditional welding ways,improving production efficiency |
Good effect | Strong energy-saving |
Precision laser control system, stable beam quality, high welding strength, and beautiful welding seams. | Compared to xenon arc welding.it saves about 80% to 90% of electrical energy. |
Long service life | Easy to operate |
Phase change heat dissipation technology adaptive fan speed regulation, 2-year warranty for the laser source | 7-inch touch screen, a new generation intelligent operating system. |
Widely application | Safe enough |
Suitable for welding various materials thicknesses, and ultra-thin parts | Six sufficient safety measures, safety assurance, pressure monitoring, and high protection for the safety of operators and equipment. |
Traditionalwelding method | FWA1500 Handheldlaser welding machine | |
Physical hazard | Large radiation and smoke | Low radiation, environmentally friendly |
Welding speed | Slow and inefficient | Up to 4 times faster than TIG and MlG |
Welding quality | welding seam are rough and irregular,need to be polished | Beautiful and neat welding seam, deep molten pool and high strength |
Learning difficulty | High | Low |
Heat affected zone | Large | Small |
Bending deformation | High | Low |
Welding seam damage | With air holes, easy to weld through | Uniform molten pool and good consistency |
Welding materials | Limited by changes in consumables | Wide range of materials |
system and structural design.

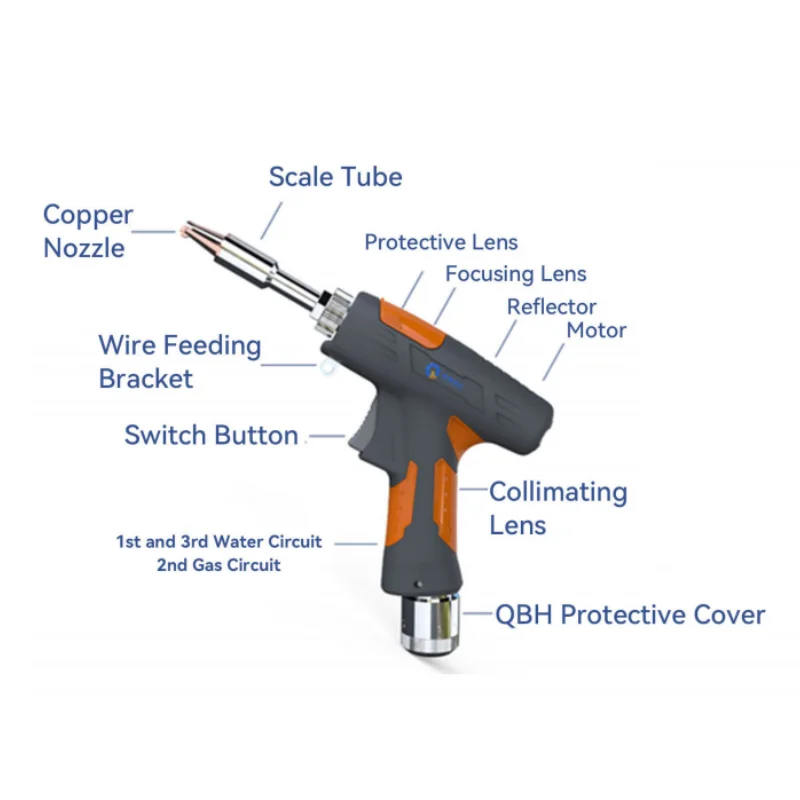

Suitable for various welding requirements up to 3000W.Equipped with multiple safety alarms and status indicator lights, with instant response to abnormal conditions.Lightweight with a net weight of 750g for flexible and easy operation.
Through the intelligent operating system, users can quickly select welding parameters based on different materials and thicknesses. Even beginners can produce high-quality and highly consistent welds.

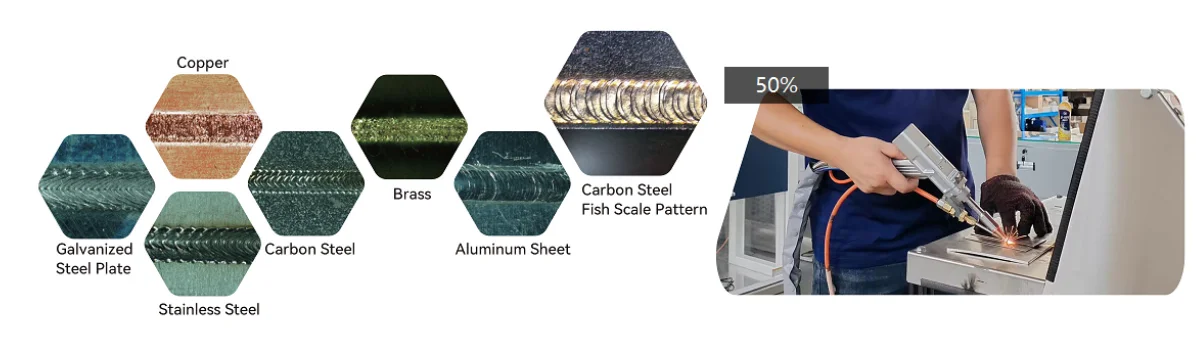

Material | Thickness | Scanspeed | Scan width | Peak power | Pulse frequency | Wire-sending speed |
Carbon steel | 4mm | 300 | 3mm | 1500w | 2000 | 60cm/s |
Carbon steel | 6mm | 220 | 3mm | 2000w | 2000 | 50cm/s |
Carbon steel | 8mm | 220 | 3mm | 3000w | 2000 | 40cm/s |
Aluminium | 3mm | 300 | 3mm | 1500w | 2000 | 60cm/s |
Aluminium | 6mm | 220 | 3mm | 2000w | 2000 | 50cm/s |
Aluminium | 8mm | 220 | 3mm | 3000w | 2000 | 40cm/s |
Stainless steel | 3mm | 300 | 3mm | 1500w | 2000 | 60cm/s |
Stainless steel | 5mm | 220 | 3mm | 2000w | 2000 | 50cm/s |
