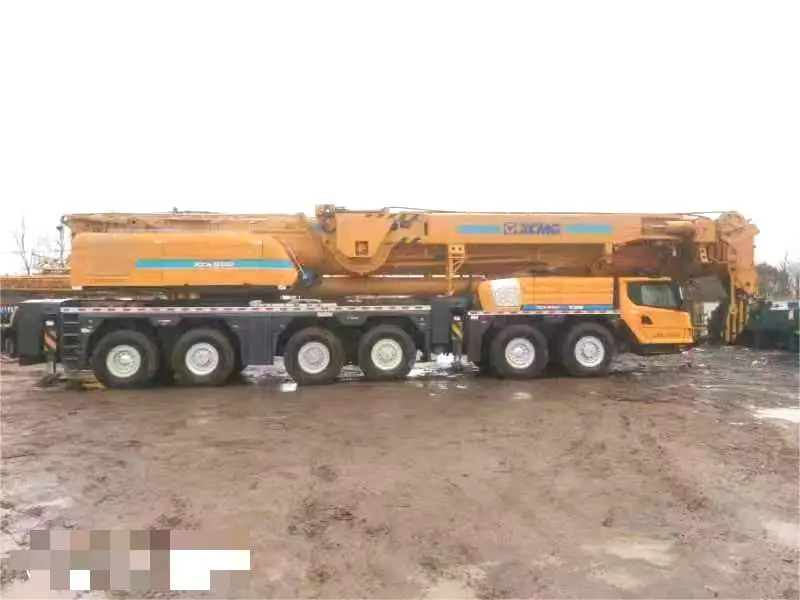

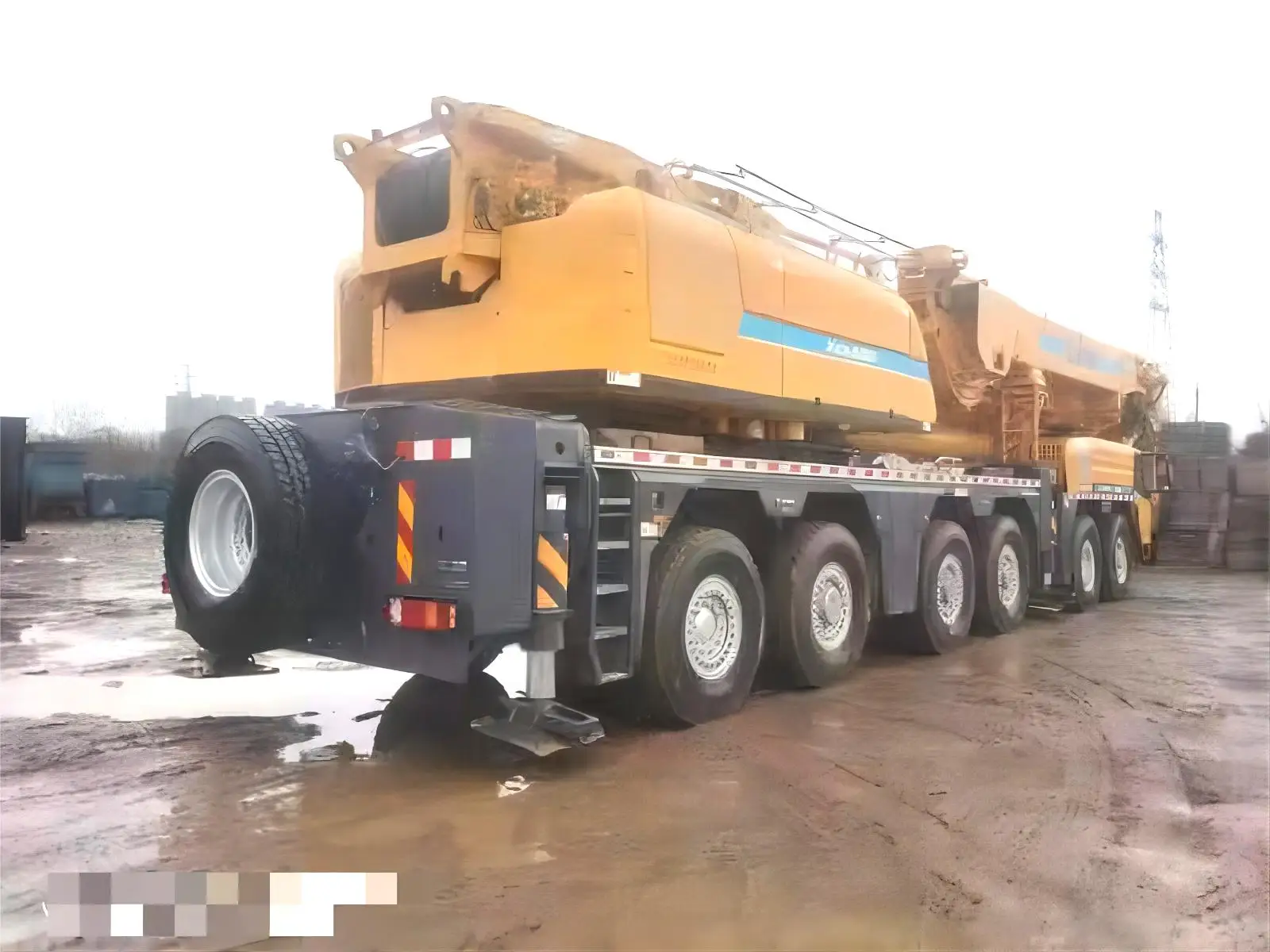

XCMG Official Used Truck Crane Telescopic Boom Crane XCA300 300 ton Mobile Crane Price
The lifting capacity takes the lead in the industry with strong power, the 6-axle all terrain crane with high intelligent level.
Performance Characteristics:
1. Super lifting performance
* 7-section boom of 80m, fixed jib of 6-36m, fixed-length tensioning technology of super lifting device brings 5-8% higher performance.
* Automatic rope ordering technology contributes to smooth and orderly wire rope.
2. Work condition of wind power
* Boom 69.8m+ Super lifting device + luffing jib of 8m for wind power maintenance, the working radius is 16m, the rated lifting load is 33.2t.
* Less product auxiliaries for 1.5MW wind power maintenance operation and more efficient and convenient assembly, contributing to much lower cost.
3. New highly efficient energy-saving hydraulic system
* Closed hydraulic system for lifting and slewing system, equipped with large-displacement pump, lifting speed with heavy load highly.
* Min. stable lifting speed (at drum) 2.5m/min, and min. stable slewing speed 0.1°/s.
4.Power and traveling performance
* Rated power 442.6kw, max. torque 2800N.m.
* Max. travel speed 80Km/h, Max. grade ability 57%.
Performance Characteristics:
1. Super lifting performance
* 7-section boom of 80m, fixed jib of 6-36m, fixed-length tensioning technology of super lifting device brings 5-8% higher performance.
* Automatic rope ordering technology contributes to smooth and orderly wire rope.
2. Work condition of wind power
* Boom 69.8m+ Super lifting device + luffing jib of 8m for wind power maintenance, the working radius is 16m, the rated lifting load is 33.2t.
* Less product auxiliaries for 1.5MW wind power maintenance operation and more efficient and convenient assembly, contributing to much lower cost.
3. New highly efficient energy-saving hydraulic system
* Closed hydraulic system for lifting and slewing system, equipped with large-displacement pump, lifting speed with heavy load highly.
* Min. stable lifting speed (at drum) 2.5m/min, and min. stable slewing speed 0.1°/s.
4.Power and traveling performance
* Rated power 442.6kw, max. torque 2800N.m.
* Max. travel speed 80Km/h, Max. grade ability 57%.
Specification
Item | Unit | Parameter |
Overall Length | (mm) | 17674 |
Overall Width | (mm) | 3000 |
Overall Height | (mm) | 4000 |
Wheel Base | (mm) | 1650+3100+1650+2440+1650 |
Wheel Tread | (mm) | 2590/2540 |
Travelling Weight | (kg) | 72000 |
Axle Load | (kg) | 12000*6 |
Rated Power | (kw/(r/min)) | 205/2200 |
Rated Torque | (N.m/(r/min)) | 1100/1200-1600 |
Rated Power | (kw/(r/min)) | 442/1800 |
Rated Torque | (N.m/(r/min)) | 2800/1300 |
Max.Travelling Speed | (km/h) | 80 |
Min.Stable Travelling Speed | (km/h) | 2 |
Min Diameter of Turning Circle | (m) | 23 |
Max Gradeability | (%) | 57 |
Minimum Ground Clearance | (mm) | 280 |
Approach Angle | (°) | 16 |
Departure Angle | (°) | 15 |
Braking Length | (m) | ≤10 |
Fuel Consumption Per Hundred Kilometers | (L) | 89.2 |
Max.Rated Lifting Capacity | (t) | 300 |
Min.Rated Range | (m) | 3 |
Max. Lifting Moment of Basic Boom | (kN·m) | 9270 |
Turning Radius of Platform Tail | (mm) | 3690 |
Lengthways | (m) | 8.93 |
Transverse | (m) | 8.53 |
Basic Boom | (m) | 16.3 |
Full-extend boom | (m) | 79.1 |
Full-extend boom + jib | (m) | 112 |
Basic Boom | (m) | 15 |
Full-extend boom | (m) | 80 |
Full-extend boom + jib | (m) | 112.8 |
Max Rotating Speed | (r/min) | 1.2 |
Main Hoisting Mechanism | (m/min) | 127 |
Auxiliary Hoisting Mechanism | (m/min) | 127 |
