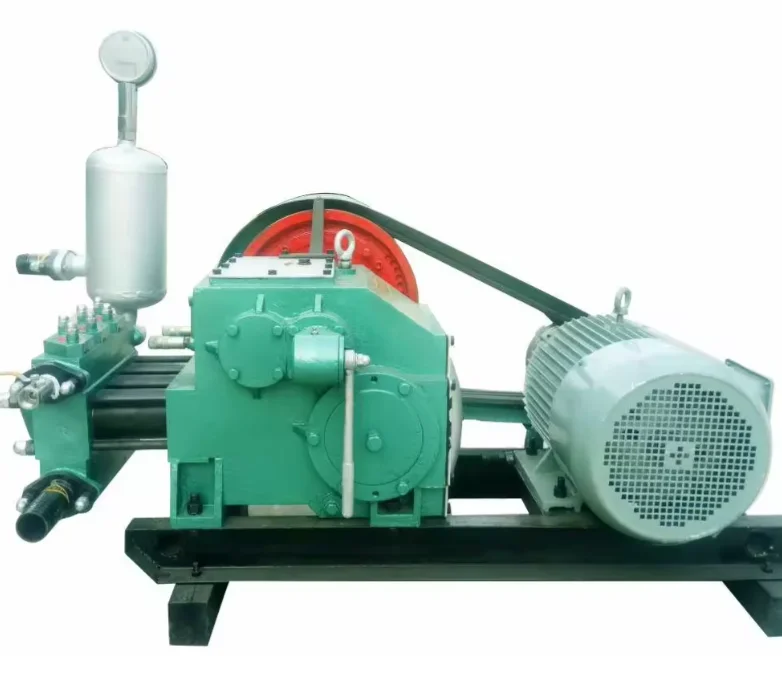

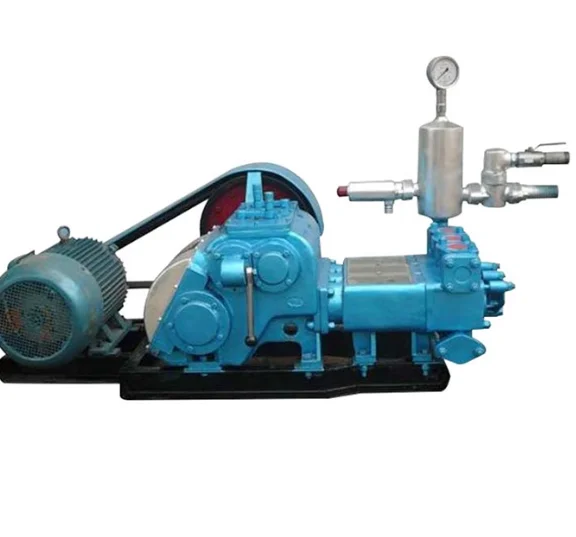

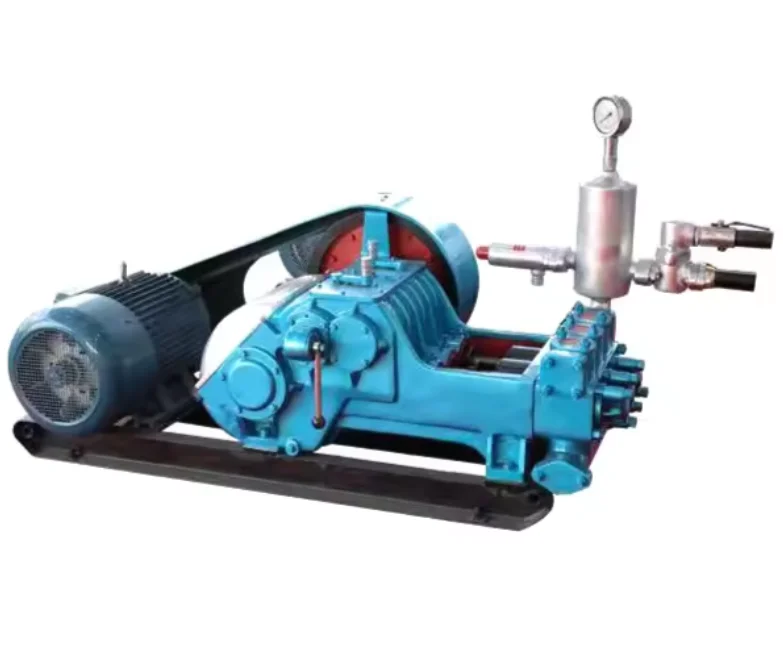

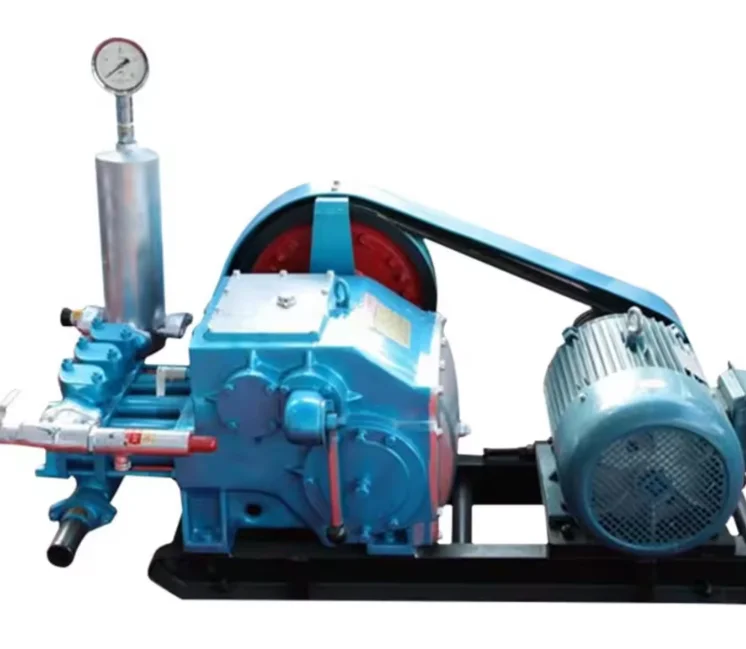

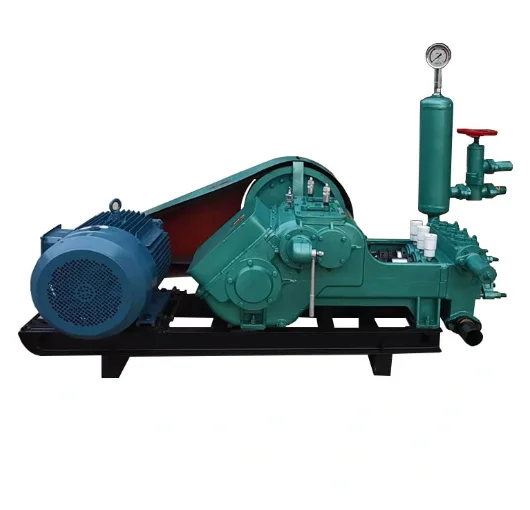

Hot Sale BW150 BW160 BW250 BW320 Mud Pump For Oil Field Equipment
- Category: >>>
- Supplier: Qingdao Jincheng International Business Co. Ltd.Qingdao Ltd.
Share on (1601172413293):
Product Overview
Description
Features at a glance

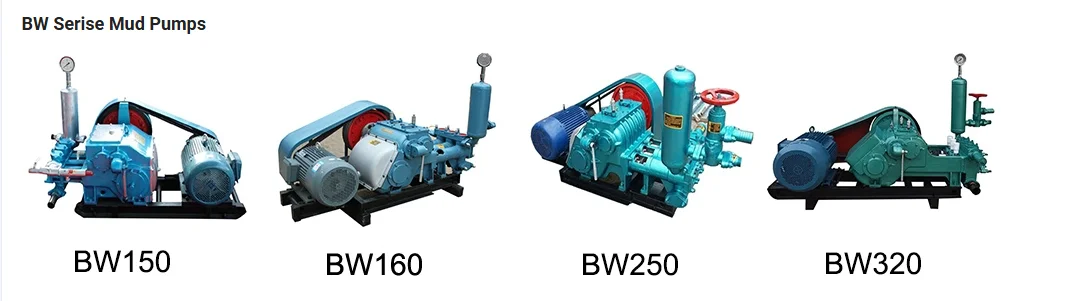

BW Mud Pump Features
1. The mud pump is a horizontal triplex reciprocating single-acting piston pump with four flow rates and four pressures, with a
wide range of flow and pressure variations.
2. Piston mud pump is designed with multiple shifts for flexible speed and displacement adjustment.
3. With a compact structure and lightweight, this reciprocating piston pump is also energy-saving, highly effective, and durable
in use.
4. it is easy to operate and convenient to maintain, keeping maintenance costs low.
1. The mud pump is a horizontal triplex reciprocating single-acting piston pump with four flow rates and four pressures, with a
wide range of flow and pressure variations.
2. Piston mud pump is designed with multiple shifts for flexible speed and displacement adjustment.
3. With a compact structure and lightweight, this reciprocating piston pump is also energy-saving, highly effective, and durable
in use.
4. it is easy to operate and convenient to maintain, keeping maintenance costs low.
Product Specifications
Model | BW150 | BW160 | BW250 | BW320 |
Cylinder Diameter (mm) | 70 | 70 | 65/80 | 80 |
Stroke (mm) | 70 | 70 | 100 | 110 |
Pump Speed (t/m) | 57-183 | 55-200 | 42-200 | 78-214 |
Flow Rate (l/m) | 38-125 | 44-160 | 35-250 | 118-320 |
Pressure (Mpa) | 2.3-7 | 2.5-10 | 2.5-7 | 2.2-10 |
Outlet Pipe Diameter (mm) | 32 | 32 | 51 | 51 |
Inner Pipe Diameter (mm) | 51 | 51 | 76 | 76 |
Power (kW) | 7.5 | 11 | 15 | 30 |
Size (mm) | 1925*795*1150 (diesel motor) 1840*795*995 (electric motor) | 1450*745*970 | 1560*995*650 | 1905-1100-1200 |
Weight (kg) | 560/630 | 430 | 650 | 720 |
Our Advantage

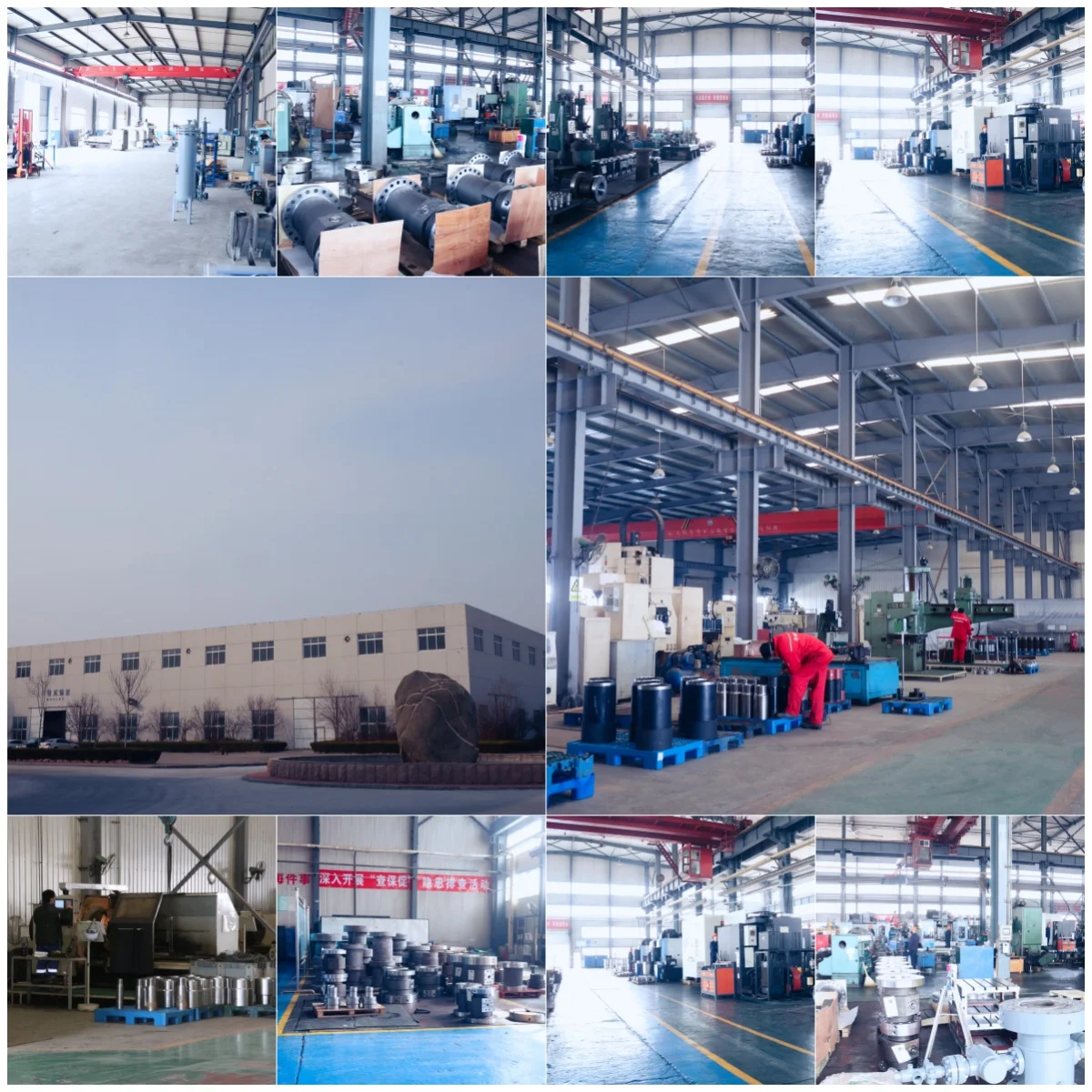

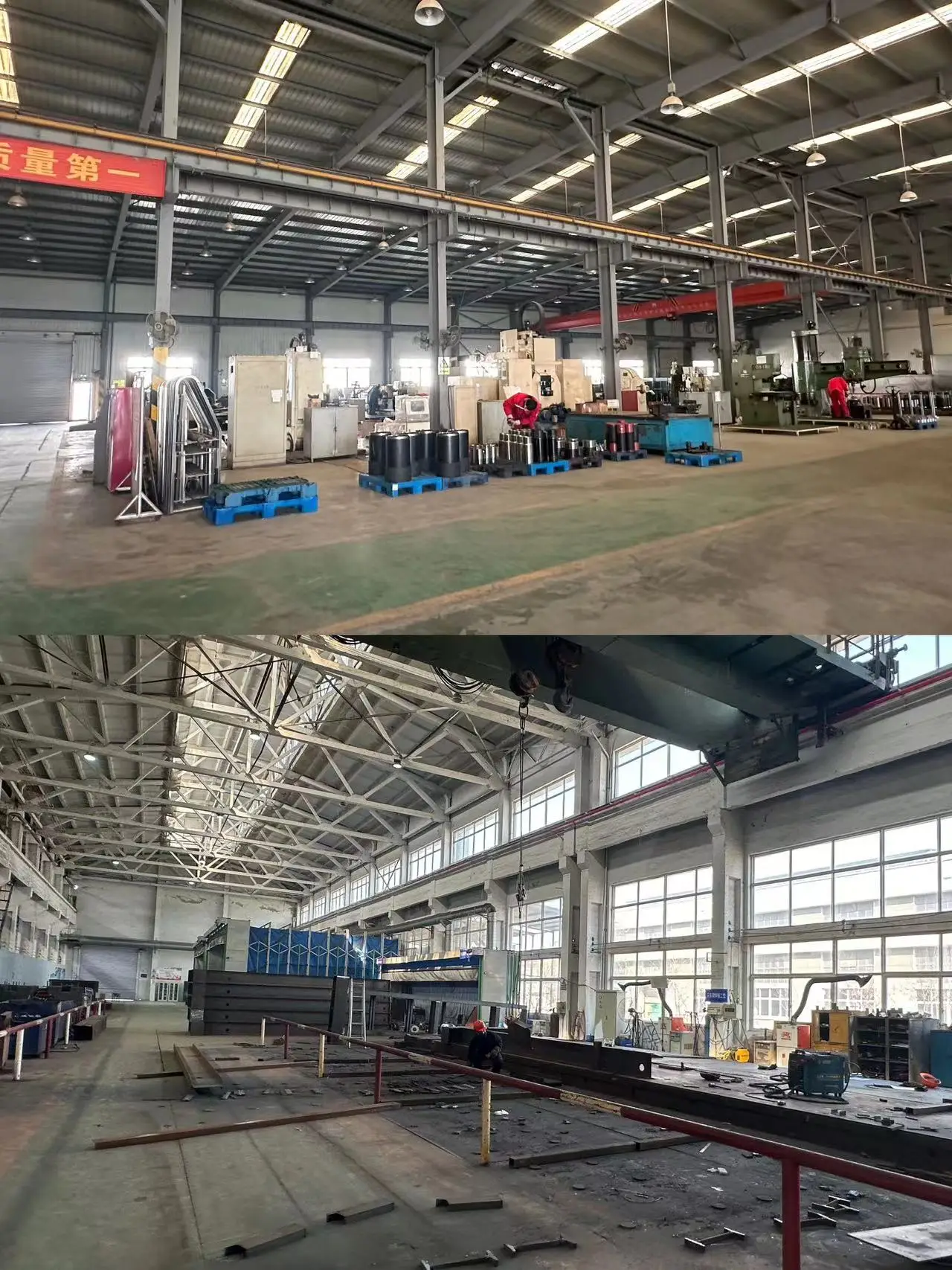

Our Factory

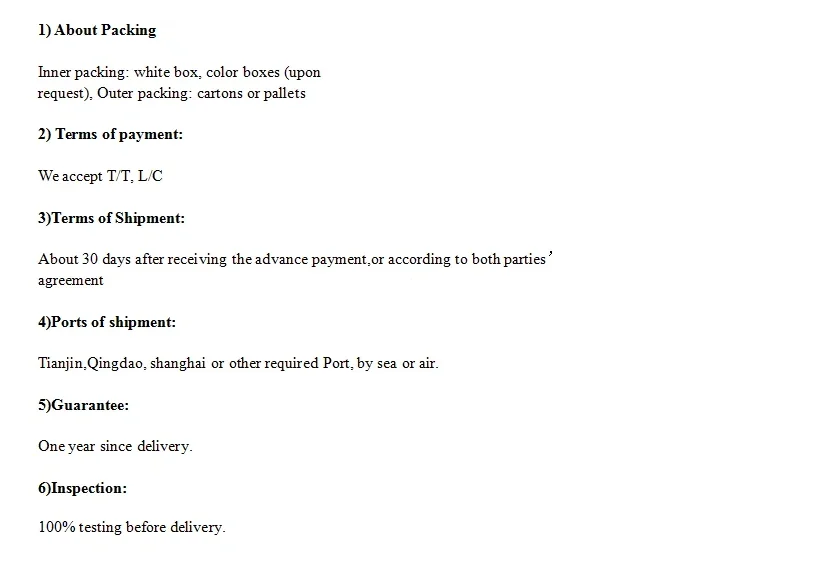

Our Package
