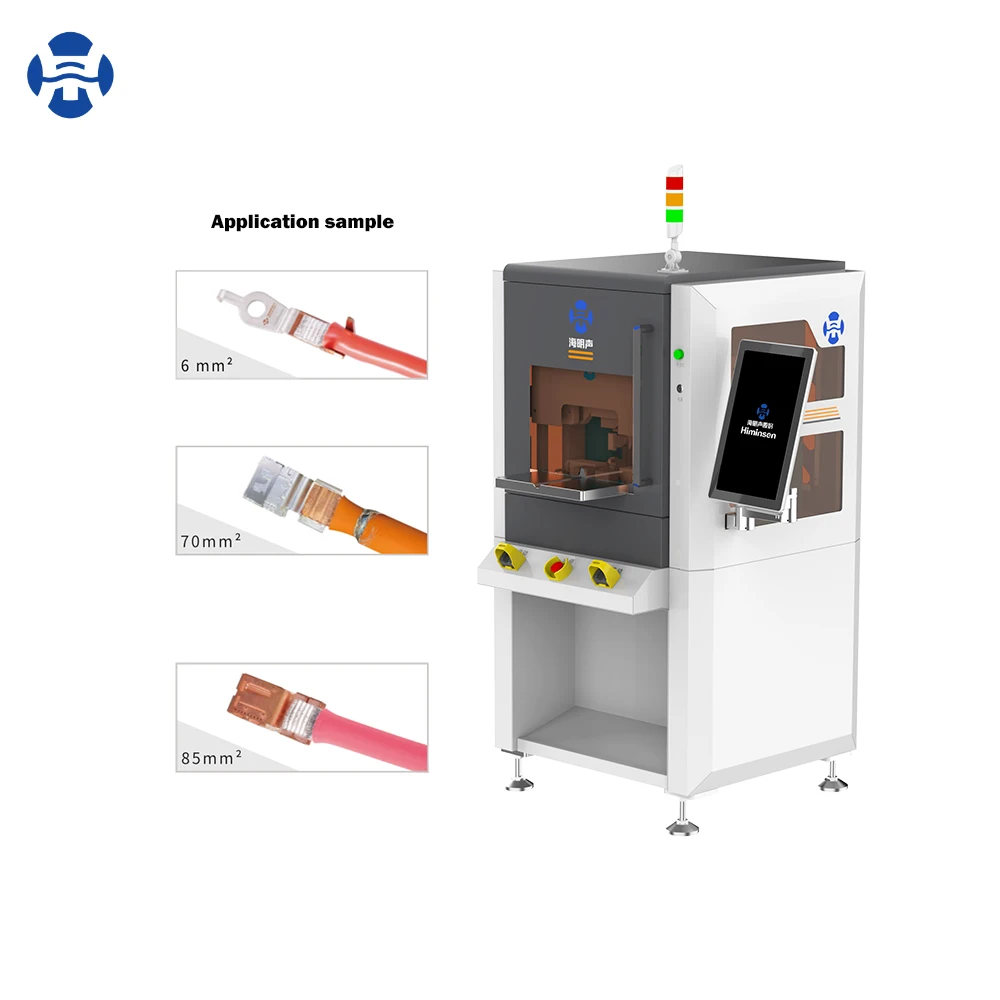

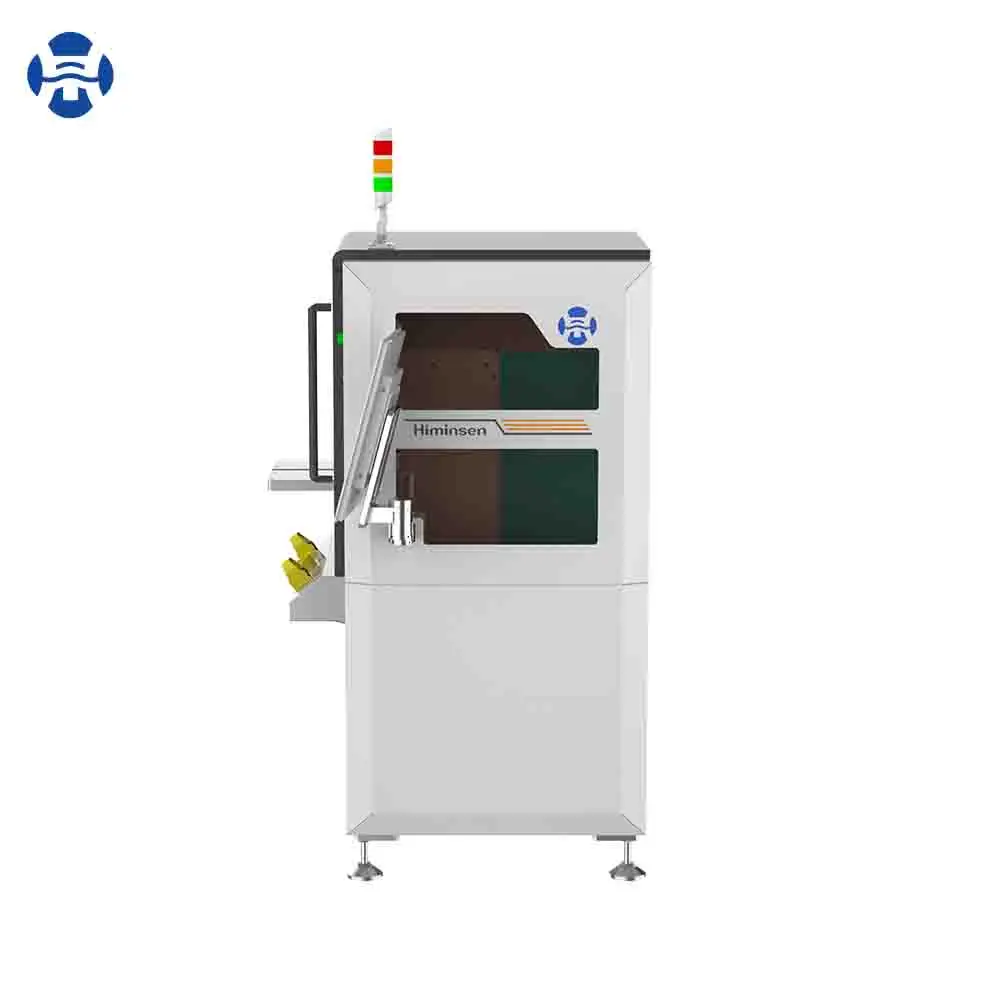

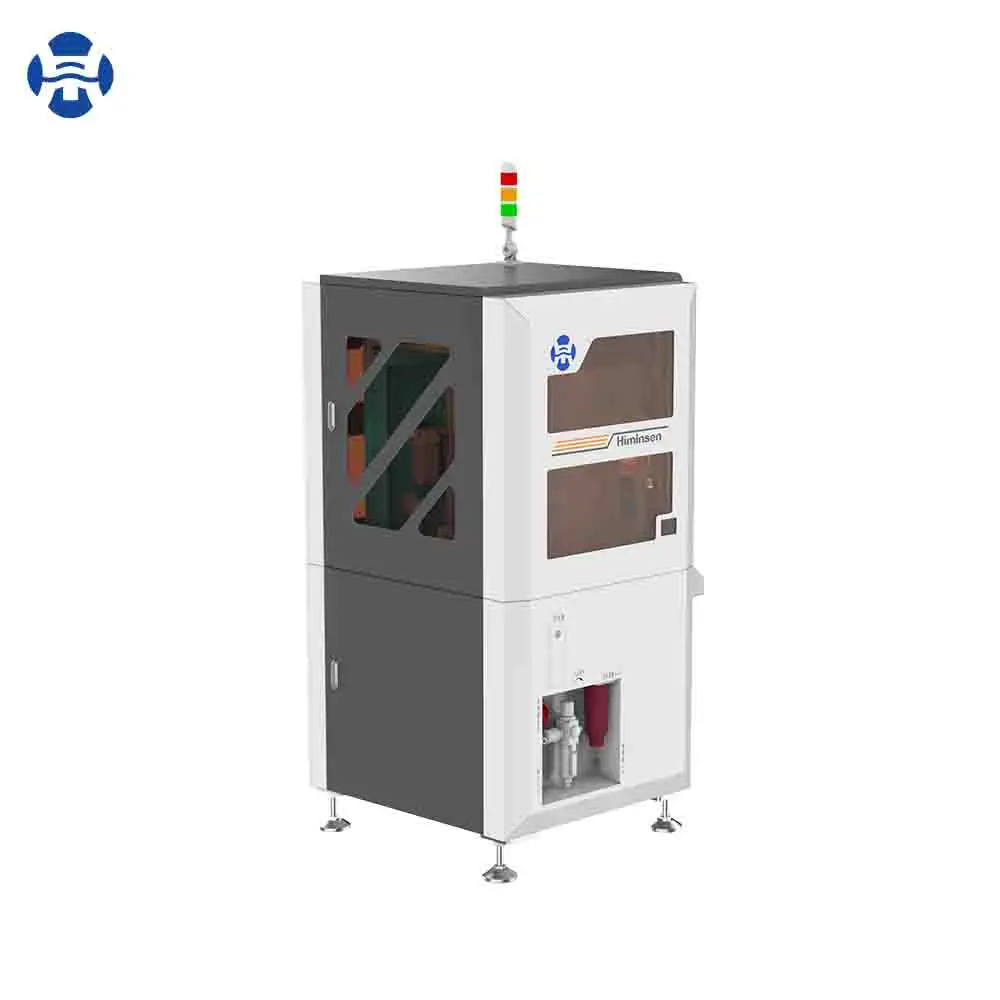

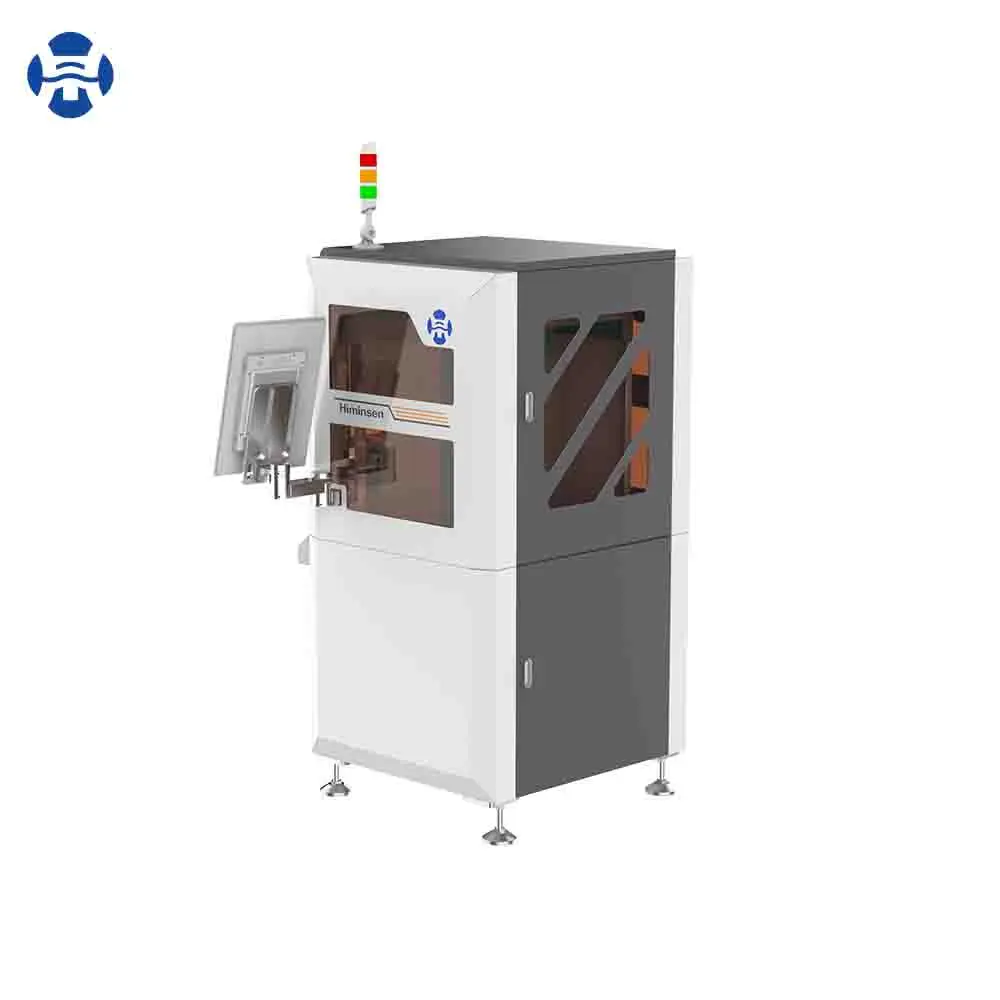

HMS D01 Ultrasonic Terminal Welding Machine 6200w Advanced Process Control Ultrasonic Terminal Welding Machine 1300*1000*2000mm
- Category: >>>
- Supplier: Guangdong Himinsen Technology Co. Ltd.
Share on (1601172443992):
Product Overview
Description
Products Description
Model | HMS-D01 |
Power | 6200W |
Copper wire welding range | 6mm² -70mm² |
Aluminum wire welding range | 6mm² -85mm² |
Configuration | hellman |
Input Voltage | AC 380V(-10/+60) 50～60Hz |
Size | 1300*1000*2000mm |
Weight | 580kg |
Air Pressure | >0.5MPa |
Data Storage | 100.000 sets of product welding parameters |
Product Efficiency | 120pcs/H—150pcs/H |
Alarm | Welding result monitoring.controlling, welding time,energy, pressure,amplitude power, pre-weld height, and post weld height |
Interface Display | Can display welding time energy, power, pressure frequency, amplituae.frequency and other information |
Display Method | 18.5inch touch all-in-one computer |
HS Code | 8515809090 |
1. No additional materials are required
2. Advanced process control environmental protection
3. Compact and portable
4. Security and Ease of Use
5. Stable welding quality
6. Prevent empty welding
7.Low temperature welding
8.Adaptable
9.Energy saving and environmental protection
10.Efffcient and fast
11.High welding strength
12. Password protection and parameter storage
Product Application
Our products are mainly used in new energy electric vehicle wiring harness processing, charging gun and charging pile processing,aerospace, data transmission, medical equipment, industrial electronics, home appliances and other fields.
