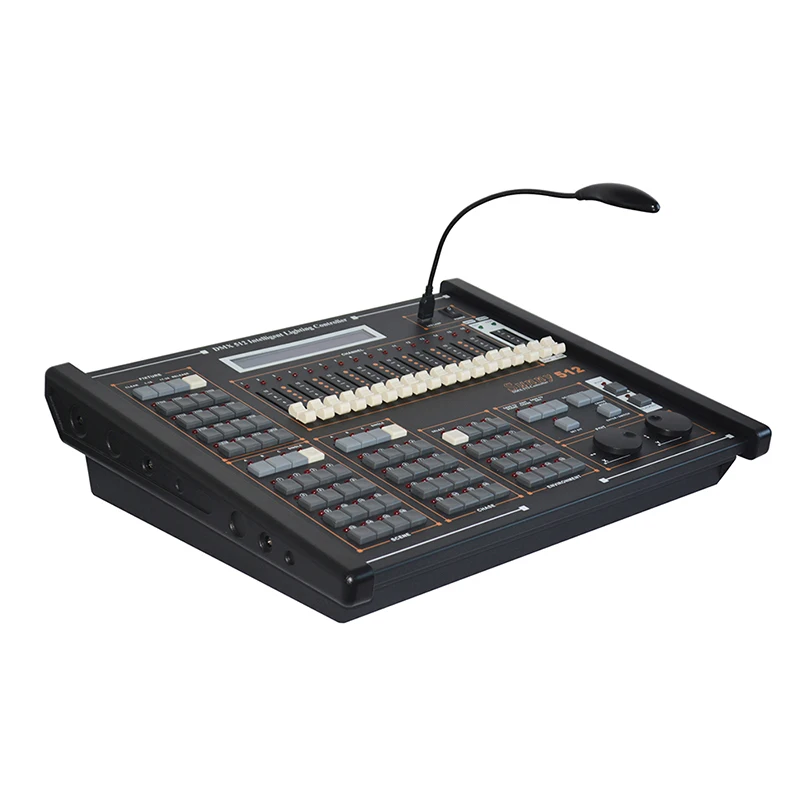

Sunny512 console is specially designed to control various lighting fixtures 4 output with separate optical DMX512/1990 standard
- Category: >>>
- Supplier: Guangzhou Shengyi Photoelectric Equipment Co. Ltd.
Share on (1601172693643):
Product Overview
Description
Product Description
DMX512/1990 standard, 512 DMX channels.
4 output with separate optical. Independent slot structure is easy to change.
Up to 32 Lighting fixtures may be connected with a maximum of 16 channels each.
Large blue/white LCD display to show operation parameters.
16 sliders for channel, 1 slider for SPEED & CROSS control.
16 sliders for channel, 1 slider for SPEED & CROSS control.
1600 chase steps, 48 chases, up to 100 steps each.
Each step containsits speed and cross time, can be set respectively.
Combine with chase SPEED & CROSS slider, the time of the program step can be changed from 0.01s to 25.5s.
The running speed will be total amount of SPEED & CROSS slider.
48 lighting fixture scenes can be used directly. 8 chases, 48 scenes operated at the same time.
Maximum 32 lighting fixtures can be selected simultaneously.
The X/Y channels of different lighting fixtures can be
controlled by modulation wheel.
16Bit controllable for fine movement.
15 environment programs to output the combination are
composed of different scenes, chases and manual output quickly.
composed of different scenes, chases and manual output quickly.
The music trigger source can be selected between audio line input and internal microphone.
Easy to edit and handle. Data auto-saves.
High performance switching power supply, with extremely low power harmonious distortion and wide range of voltage, suit for the requirement of different country.
Detailed Images

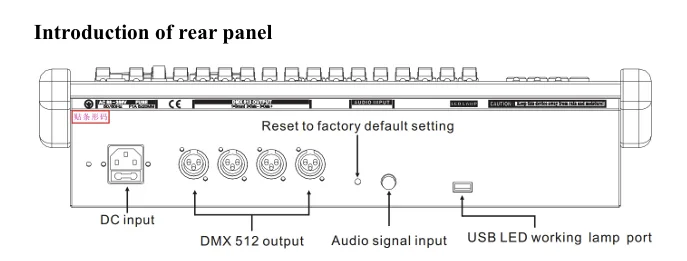

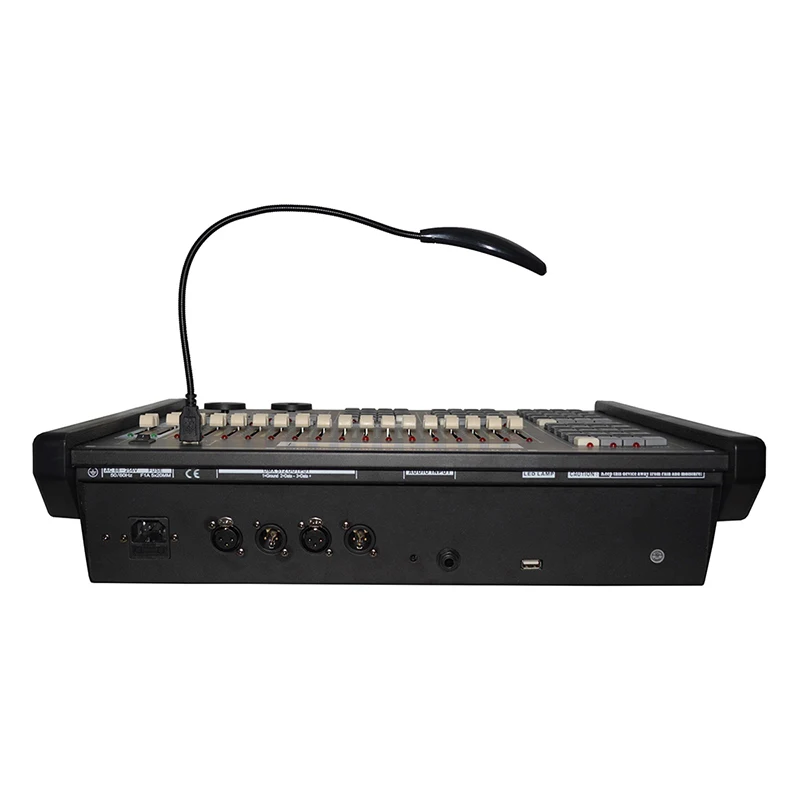

Introduction of rear panel
There are 4 optical isolated DMX512 output sockets, which output same signal. * Audio signal input socket is a ¼” mono socket with
0dB input level. When the plug is connected, music trigger signal comes from audio input signal. When the plug is pulled out,
music trigger signal comes from the environment sound picked by the internal microphone. * Keep pressing RESET button and switch
ON console. Release RESET button when ** on right bottom of display. It means console have been reset to factory default setting.
0dB input level. When the plug is connected, music trigger signal comes from audio input signal. When the plug is pulled out,
music trigger signal comes from the environment sound picked by the internal microphone. * Keep pressing RESET button and switch
ON console. Release RESET button when ** on right bottom of display. It means console have been reset to factory default setting.
Sunny512 console is specially designed to control various lighting fixtures. Double CPU works in coordination, high speed MCU
offer precise control to achieve 16Bit X/Y movement. Up to 32 lighting fixtures with a maximum of 16 channels each. Multi scenes
and multi chase programs can be operated at the same time, and 32 lighting fixtures can be selected simultaneously. It is designed
with two groups of DMX 512 signals and it is adapted for wide range of input power voltage. The edit mode and running mode of the
console are convenient and flexible. So, it is easy to edit and to handle. Sunny 512 is the best suit for art show, theater,
dancing and acting.
offer precise control to achieve 16Bit X/Y movement. Up to 32 lighting fixtures with a maximum of 16 channels each. Multi scenes
and multi chase programs can be operated at the same time, and 32 lighting fixtures can be selected simultaneously. It is designed
with two groups of DMX 512 signals and it is adapted for wide range of input power voltage. The edit mode and running mode of the
console are convenient and flexible. So, it is easy to edit and to handle. Sunny 512 is the best suit for art show, theater,
dancing and acting.
BEFORE USE
* Before you start using this unit,please check if there is no transportation damage.Should there be any,do not use the device
and consult your dealer first.
* This device has left our factory in absolutely perfect condition and well packed. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in
this manual.
* The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device.
* Please consider that damages caused by manual modifications to the device are not subject to warranty.
and consult your dealer first.
* This device has left our factory in absolutely perfect condition and well packed. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in
this manual.
* The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device.
* Please consider that damages caused by manual modifications to the device are not subject to warranty.
Product video
Packing&Shipping
Flight case packing 1/1pcs for wooden case packing /pallets/wooden case packing with cartons
