Voltup 12v Battery Car Start Battery Jump Starter Car 12/24v Jump Starter
- Category: >>>
- Supplier: Chengdu Longrun Chuangshi Technology Co. Ltd.Chengdu Ltd.
Share on (1601172716767):
Product Overview
Description
Product Paramenters
Product Introduction:

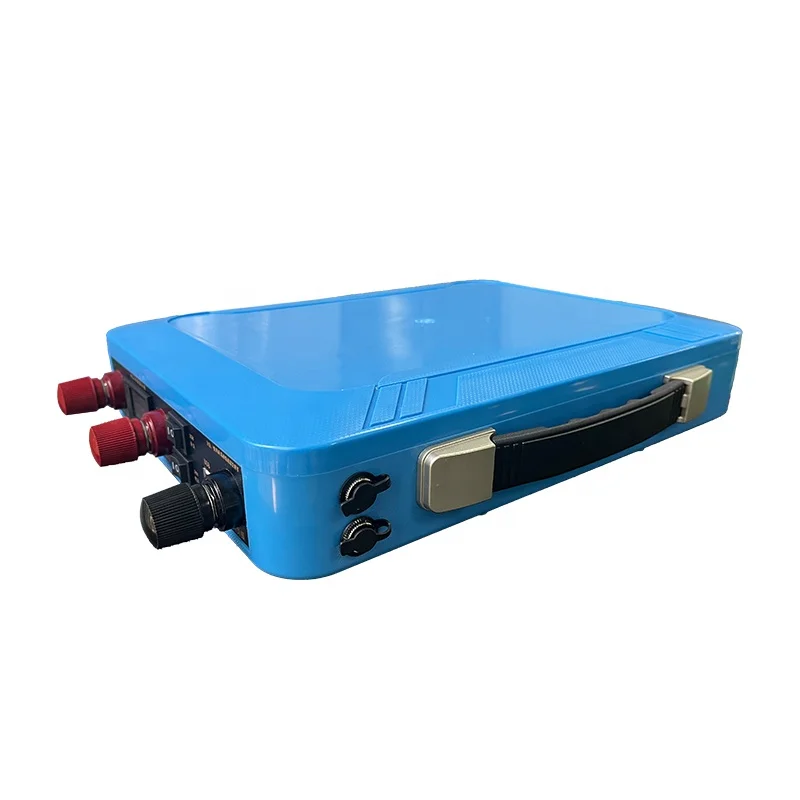

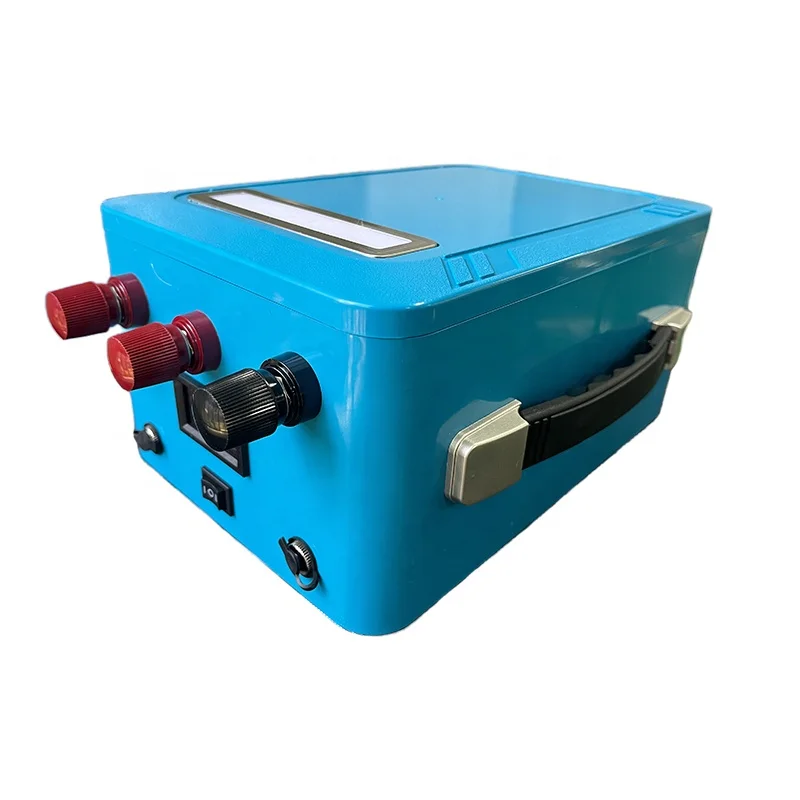

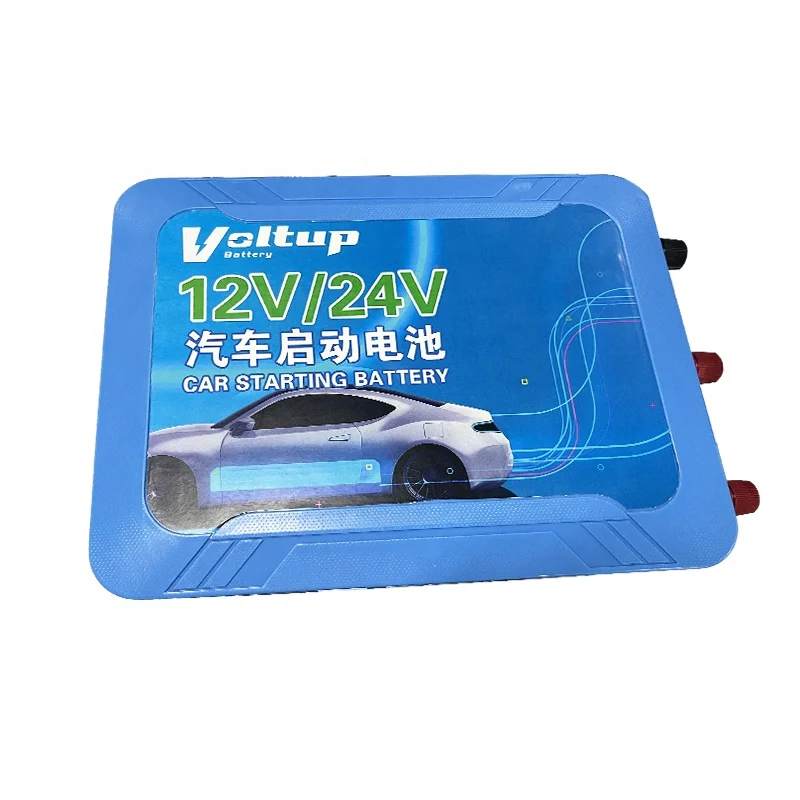

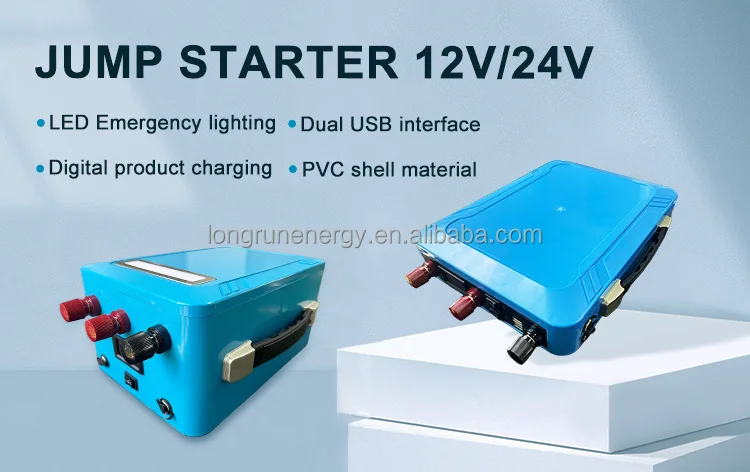

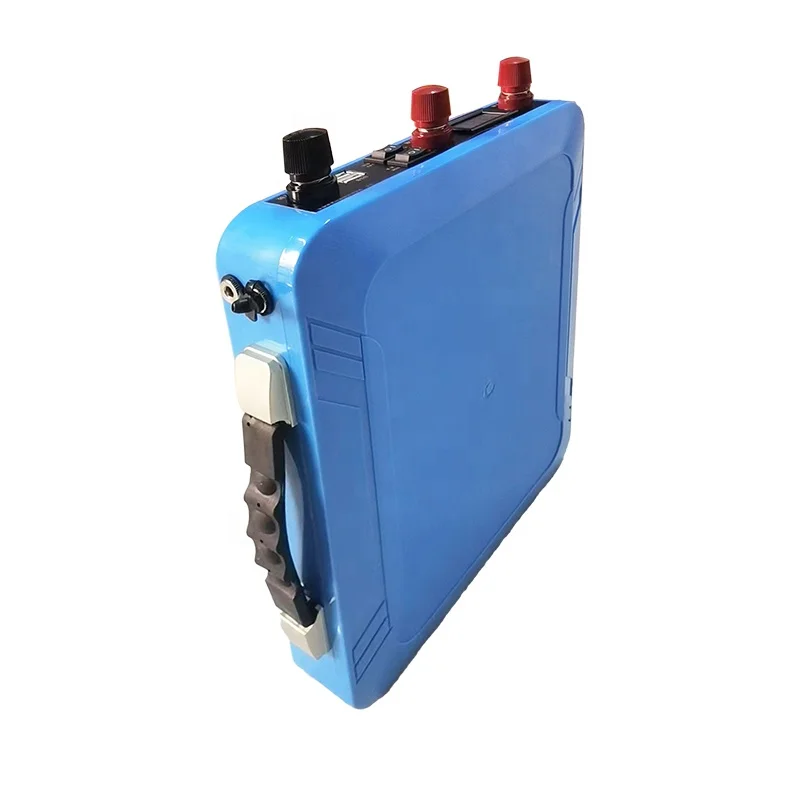

The Voltup car jump starter is a portable power device, it is made of PVC shell materials, and 10000mAh high power polymer cells that supports fast charging, low self-discharge, up to 1000 charge-discharge cycles. It is commonly used to start car (12v/24v) and charge device such as Mobile phone APP, laptops, and more. It also has lighting function, is easy to operate, and convenient to carry.
Parameter | Value | Parameter | Value | |
Product Name | Voltup car jump starter | Nominal Capacity | 10000mAh | |
Maximum Starting Current | 400A | Output Parameters | 5v 2A (USB interface) 12v 400A (Car start port) | |
Intput Parameters | 12v 1A (DC interface) | Charging Time | Approximately 4-5 Hours to fully charge | |

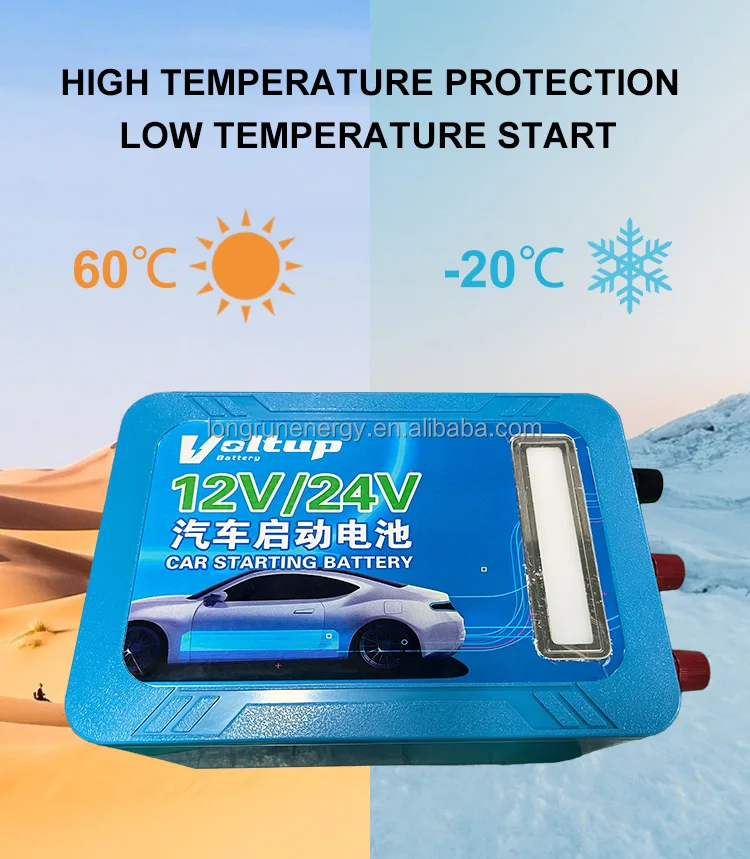

Operating Temperature Range | -20℃~60℃ | Product Dimensions | 300mm*288mm*130mm 360mm*265mm*65mm | |
Product Weight | 4.03kg & 4kg | |||

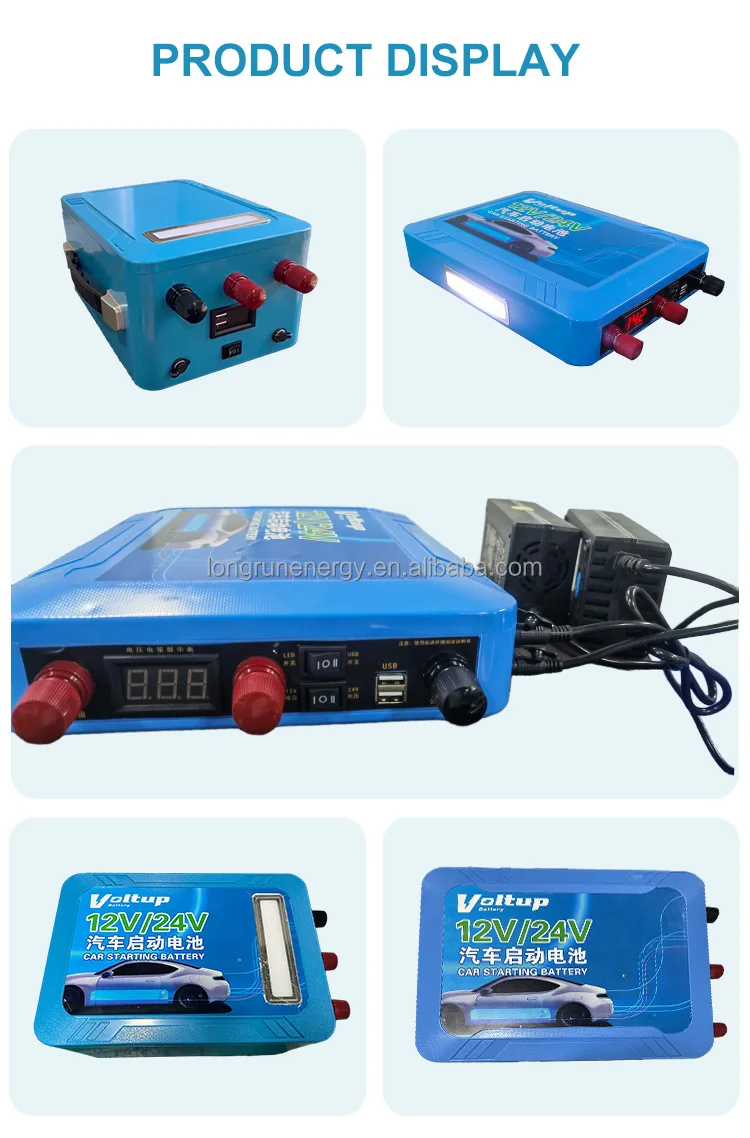

Details Images
Product Features | 1. Car emergency starts ≥100 times. | ||||||
2. One-time start in cold weather. | |||||||
3. Strong lighting for 40 hours. | |||||||
4. Fully charges a smart phone more than 10 times. | |||||||
5. Provides power to a computer for more than 3 hours. | |||||||
6. Service life up to 3-5 years. | |||||||
7. Convenient (home and car charging) | |||||||

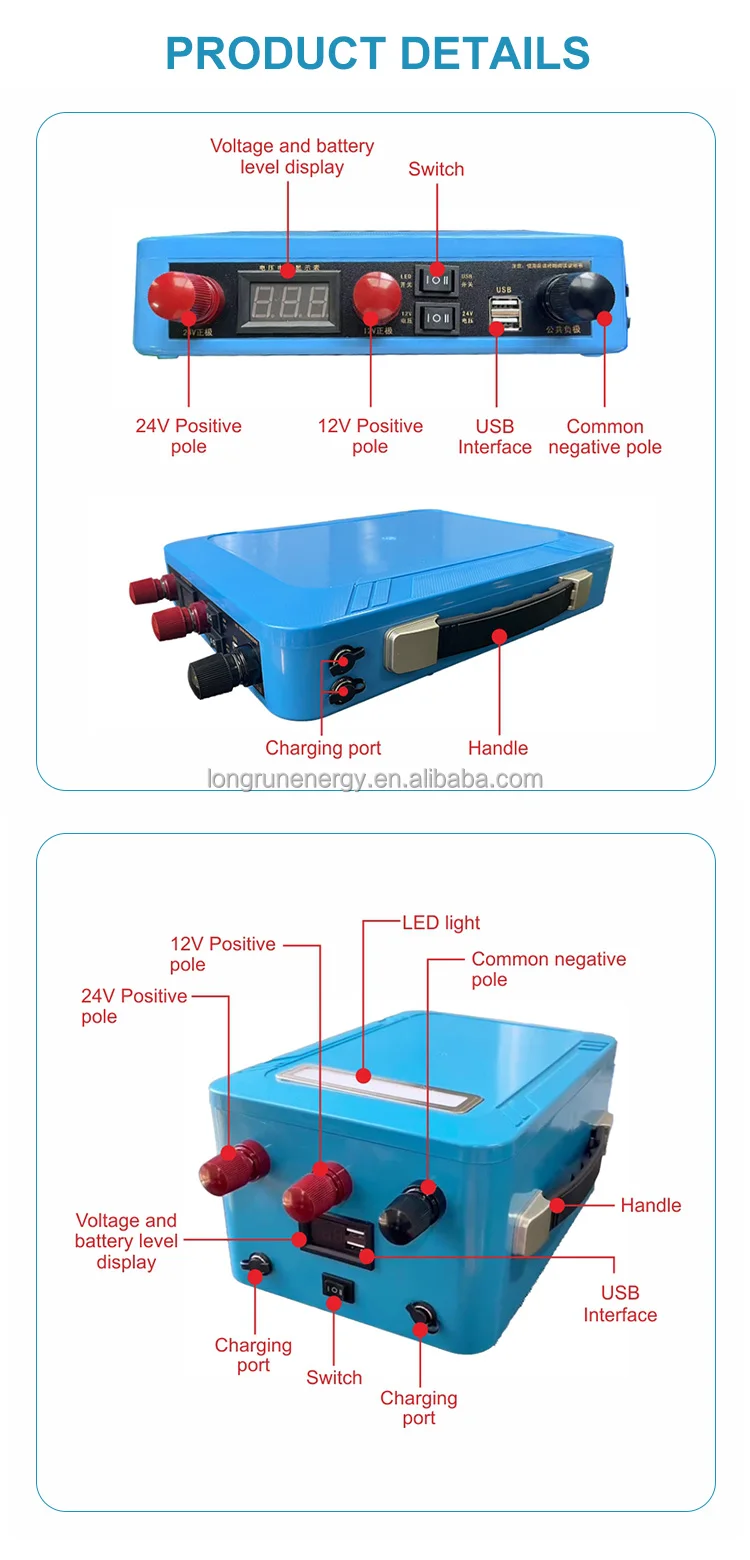

Operation Instructions :
1.Common Negative Pole: Connect the black jump lead. 12V Positive Pole/24V Positive Pole(choose according
to battery voltage): Connect the red jump lead.
to battery voltage): Connect the red jump lead.
2.Press the LED switch: Light on; Press the USB switch: USB interface powered; Press the 12V voltage: 12V positive pole powered: Press the 24V voltage: 24V positive pole powered.
3.Voltage and Battery Level Display: Press 12V: Display voltage range: 12V to 14.6V, it is recommended to charge if below 12.8V; Press 24V Display voltage range: 24V to 29.2V, it is recommended to charge if below 25.6V.
Application

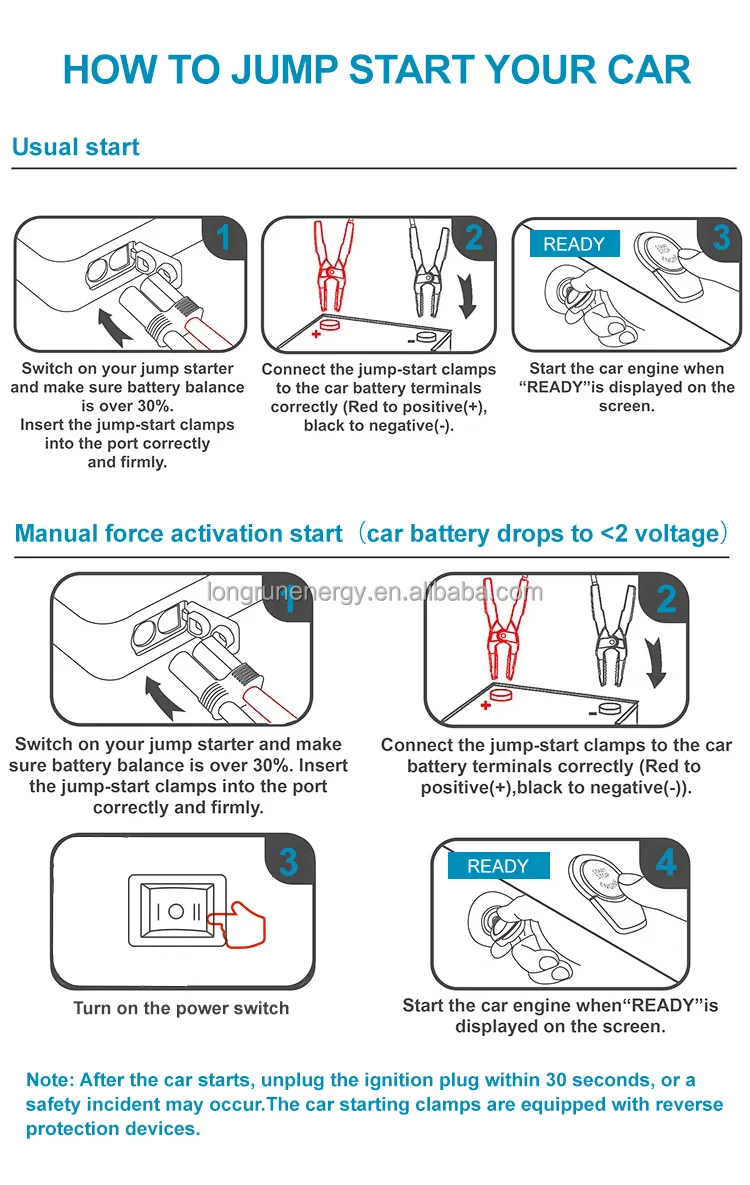

● Starting a 12V Car
When a car fails to start, you can use the Voltup car Jump Starter to start it.
1.Ensure that at least 2 or more power indicator lights on the jump starters are illuminated.
2.Attach the red battery clamp to the positive terminal (+of the battery and the black battery clamp to the negative terminal (-)of the battery.
3.Insert the battery connecting cable into the EC5 car start dedicated output port of the jump starter(12V).
4.Turn the car ignition switch to the start(START)position.
5.After the car starts, immediately unplug the plug and remove the battery clamps.
Note: After the car starts, unplug the ignition plug within 30 seconds, or a safety incident may occur. The car starting clamps are equipped with reverse protection devices.
●Charging Mobile Phones/Tablets and Other Electronic Devices
1.Choose the provided USB cable or other suitable connecting cable.
2.Insert the USB plug of the connecting cable into the USB 5V output port of the main unit.
1.Choose the provided USB cable or other suitable connecting cable.
2.Insert the USB plug of the connecting cable into the USB 5V output port of the main unit.

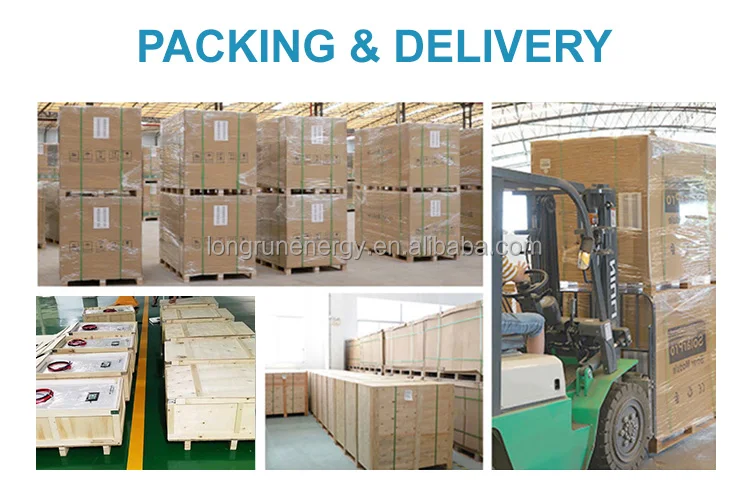

Packaging & Delivery
About transportation, you might also be interested in the following things: |
1. Package : Carton + Wooden + Pallet or Customized. Usually packing with Wooden Case for safety shipping. |
2. DDP Service is available( including custom clearance, all the tax fees and door to door service), The tracking information will be update after pick up by local express. |
3. If you have your own freight forwarder, please send us your forward address and phone number, we will send to your forward address, it will help save shipping cost. |
4. Please let us know which shipping method you prefer, and send us your full delivery address when you send your inquiry so that we can offer you a more accurate shipping cost for you. |
Exhibition
We recently attended the Electric & Hybrid Marine Expo Europe 2024 in the Netherlands. At the exhibition, we showcased our products including batteries and chargers. For those interested in learning more about our offerings, we invite you to visit our booth during our next exhibition.

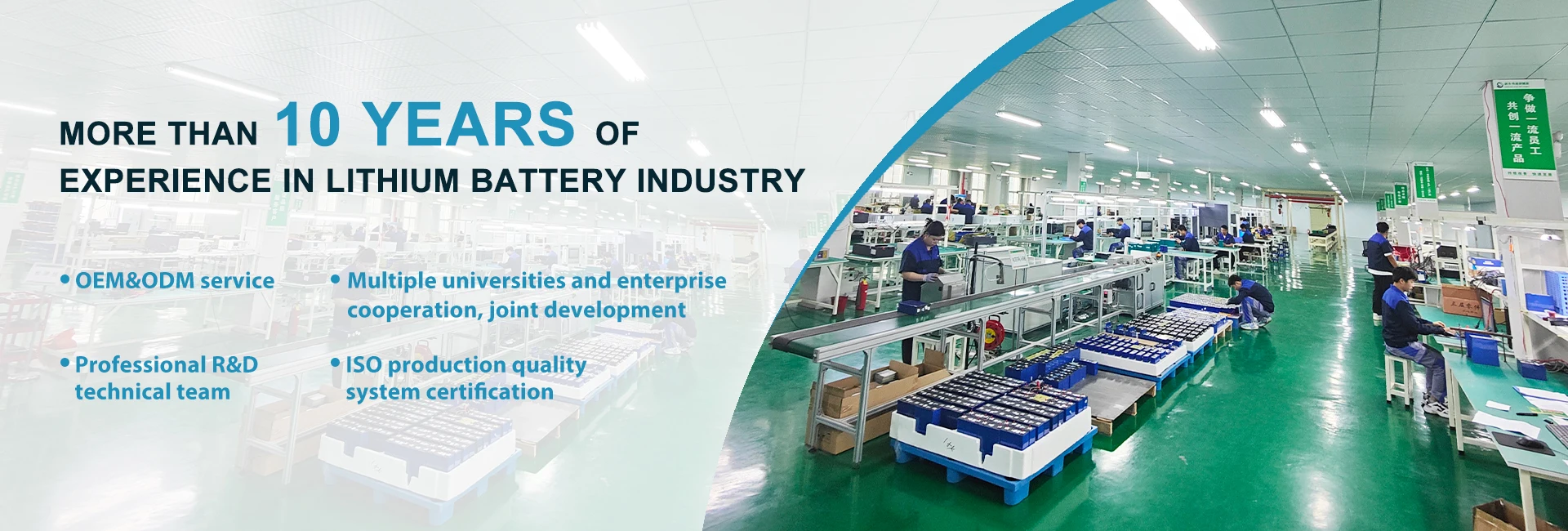

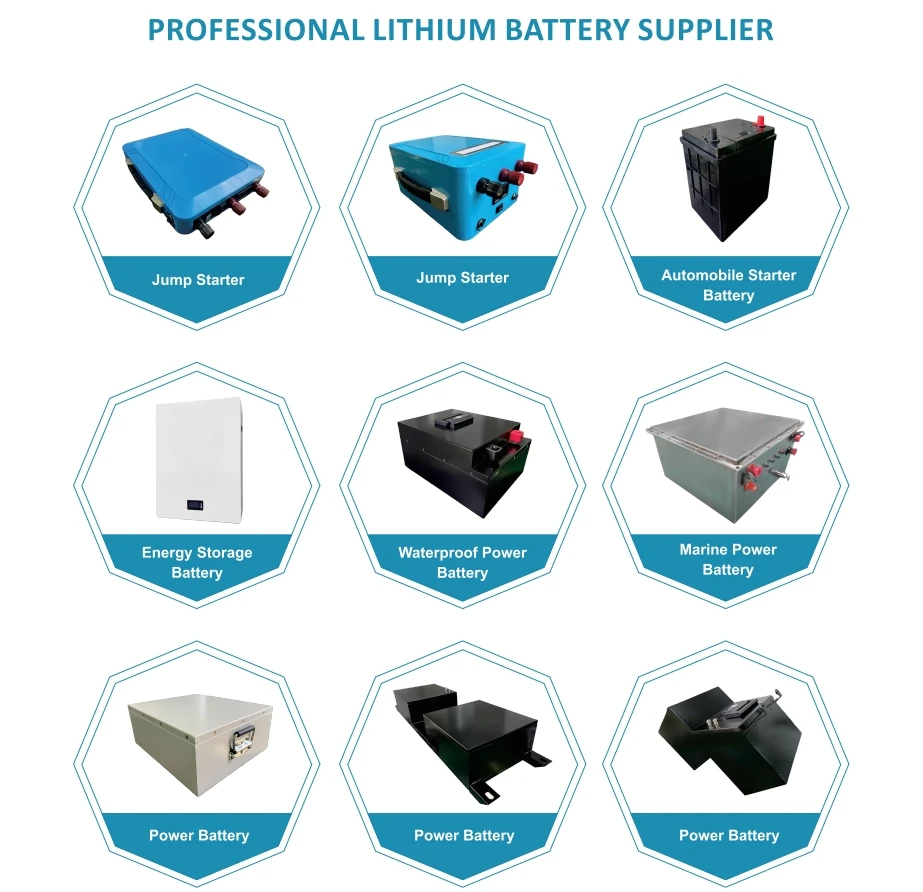

Company Profile
Certifications
FAQ
Q1:How long is the delivery time of your products?
A:Usually about 15 days .
Q2:Can you supply OEM &ODM service ?
A:Yes, but there is a minimum order quantity required.
Q3:Can you ship your battery products by sea or by air ?
A:We have long-term cooperated forwarders who are professional at battery shipment.
Q4:Can I get a sample?
A:Yes, please leave your contact information and our online sales will contact you soon.
Q5:What kind of certificates your products have?
A:Our battery products have acquired UN38.3, CE, MSDS, ISO9001, UL certificates, which is able to satisfy most country’s importing requirements.
Q6:How do I know whether you've shipped my order or not?
A:Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo you the done order and let you know the forwarder picked it up.
