600KG 1200KG Remote Controlled Mini Electric Lifting Machine for Sale

Product Overview

Description

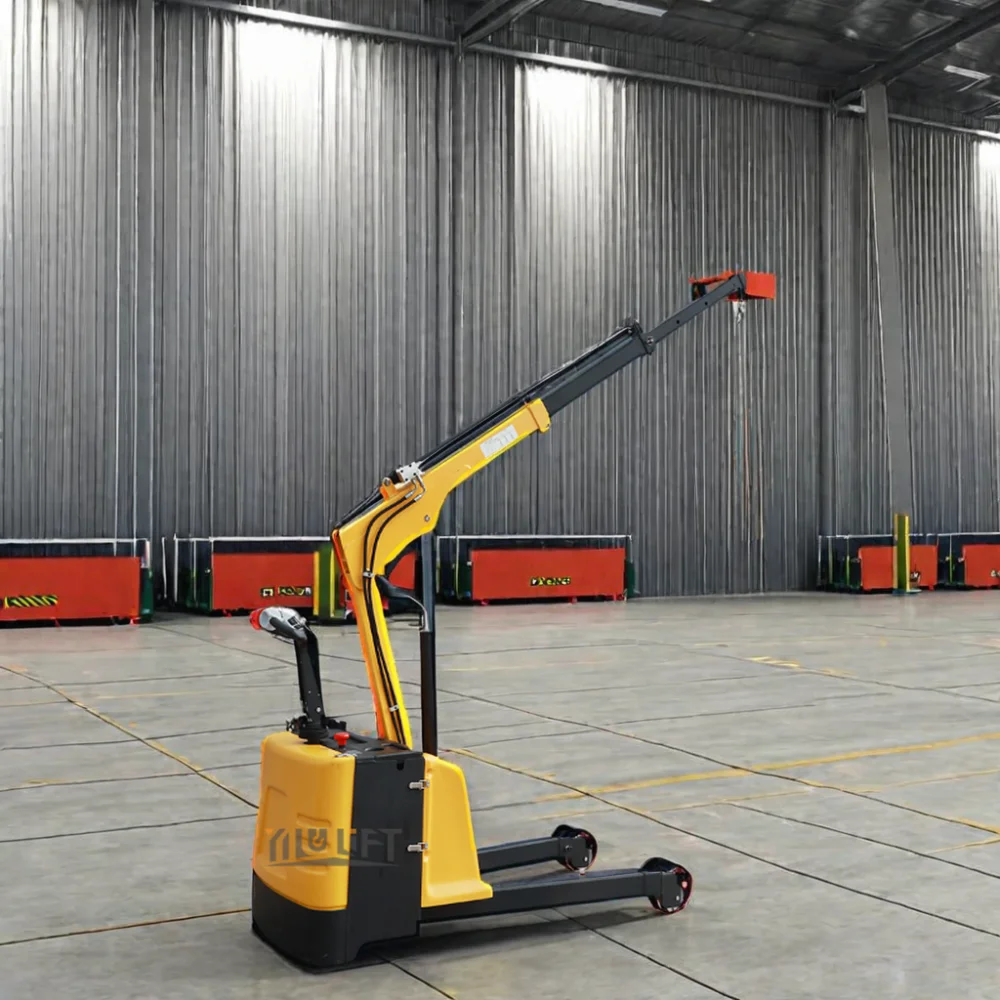

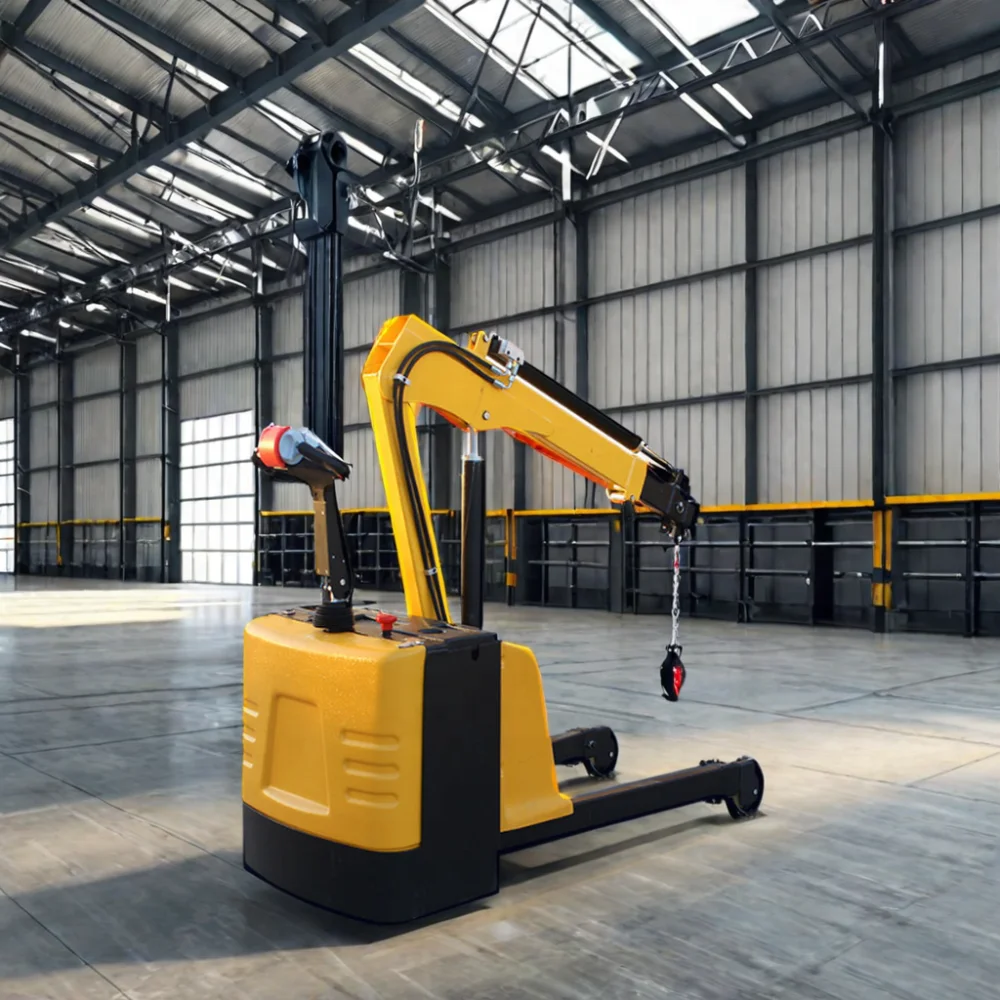

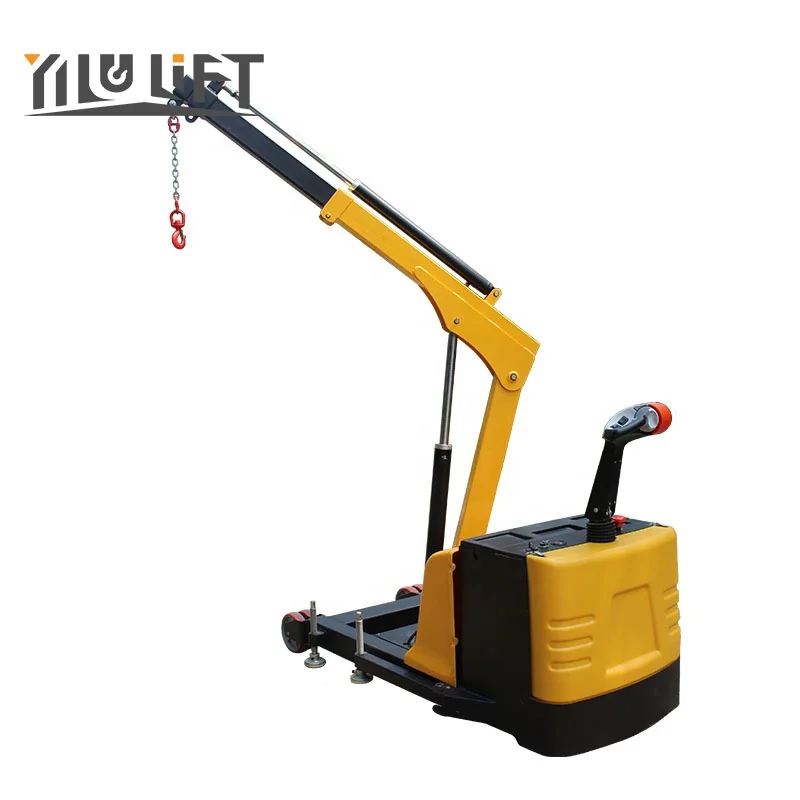

                                  YILU Electric Floor Crane





YILU ELectric mini floor crane is the latest additions to crane family. Engineered and built in China, we designed EP machines to be simple to operate but robust when working on tough jobsites. The EPFC series machines allow for transport of materials and boast valuable safety features such as automatic drive-wheel breaking on the front wheels and turnover prevention technology.

Because of their versatility,  EPFC Series cranes can be found on glazing jobs, steel erection sites, and almost any general construction site.

Model Type	Horizontal Reach	Load Capacity	Load Capacity	Load Capacity	Max Lifting	Min Lifting	Net  weight
	(Extended 2 stages)		(Stage 1)	(Stage 2)	Height	Height
EPFC-25	1280+610+610mm	1200kg (1280mm)	600kg	300kg	3570mm	960mm	500kg
EPFC-25-AA	1280+610+610mm	1200kg (1280mm)	600kg	300kg	3540mm	935mm	480kg
EPFC-CB15	1220+610+610mm	700kg (1220mm)	400kg	200kg	3350mm	1190mm	770kg
EPFC-RS90	1280+610+610mm	900kg (1280mm)	450kg	250kg	3180mm	1410mm	900kg



Features:

1) Can be installed on pickups, trucks and other vehicles.

2) Many capacities available, 700kg, 900kg, 1200kg.(3570mm Max lifting height)

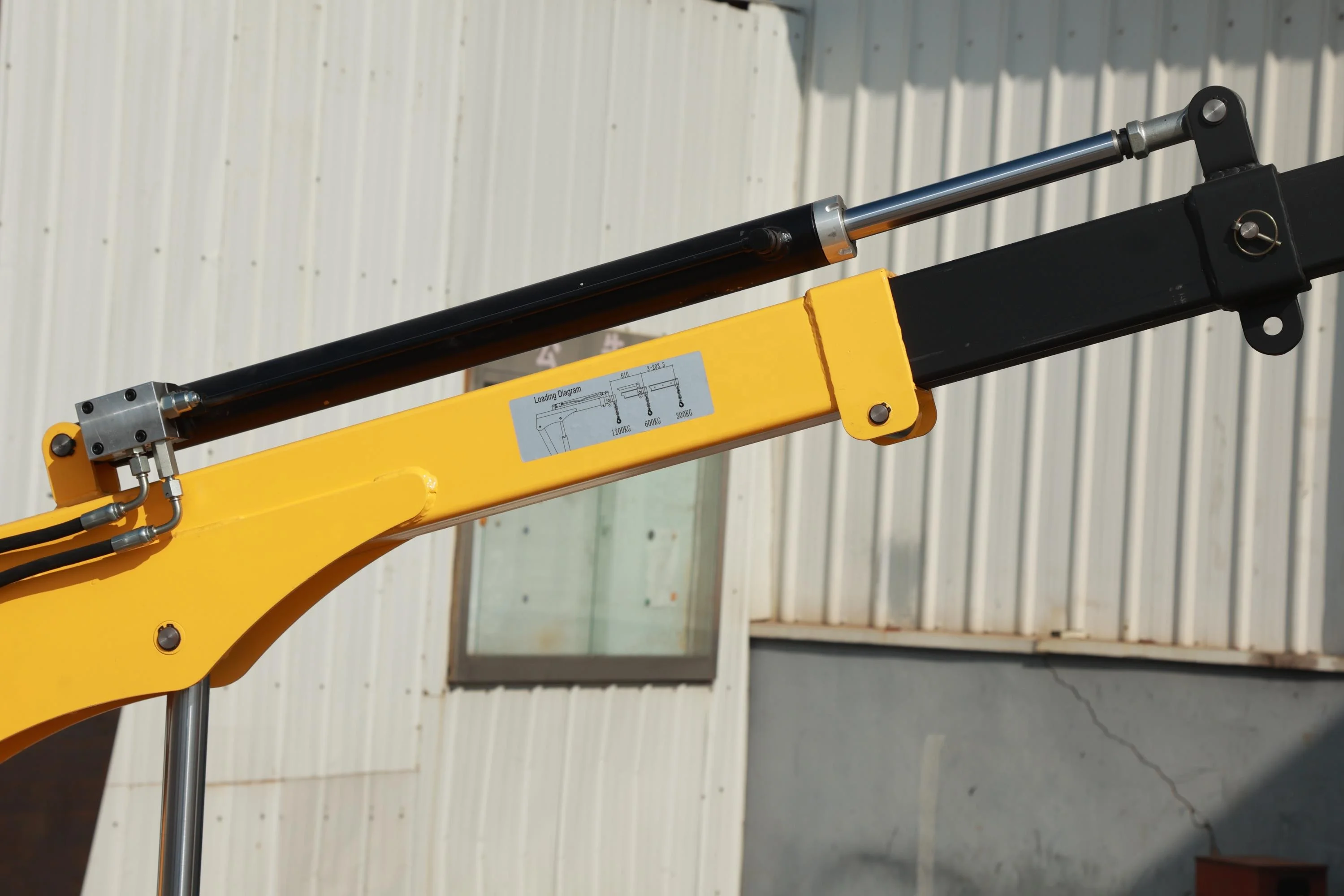

3) Telescopic design to reach further objects.

4) 120 degree left and right rotation.

5) Electromagnetic disc brake system.

6) Explosion-proof valves to prevent hydraulic hose rupture.

7) 24V DC drive and lift.

8) Ergonomic handle incorporates power throttle controlling stepless moving speed adjustment

    and once released, it makes truck crane stops.

9) 3-4 hours nonstop operation at full charge - 8 hours when used intermittently.

10) Equipped with two deep cycle 12V, 80 - 95/Ah lead acid batteries, integral battery charger, and battery level gauge.

11)Free Parts Offered for any malfunctioning part.





 Mini electric cranes can travel through standard size single or double doors depending on the model. The YILU mini crane was thoughtfully designed with a low center of gravity to stabilize the mini crane when traveling and during crane operations. Due to this low center of gravity and increased stability, YILU mini electric cranes offer some of the narrowest mini cranes in their class.

Commitment is a big word, and not to be taken lightly. With YILU LIFT our first commitment is to offer high quality products. The second promise is innovation. We are constantly developing new models as part of the spider crane family to better serve our customers unique needs. If you have a lifting need, we have a solution.
