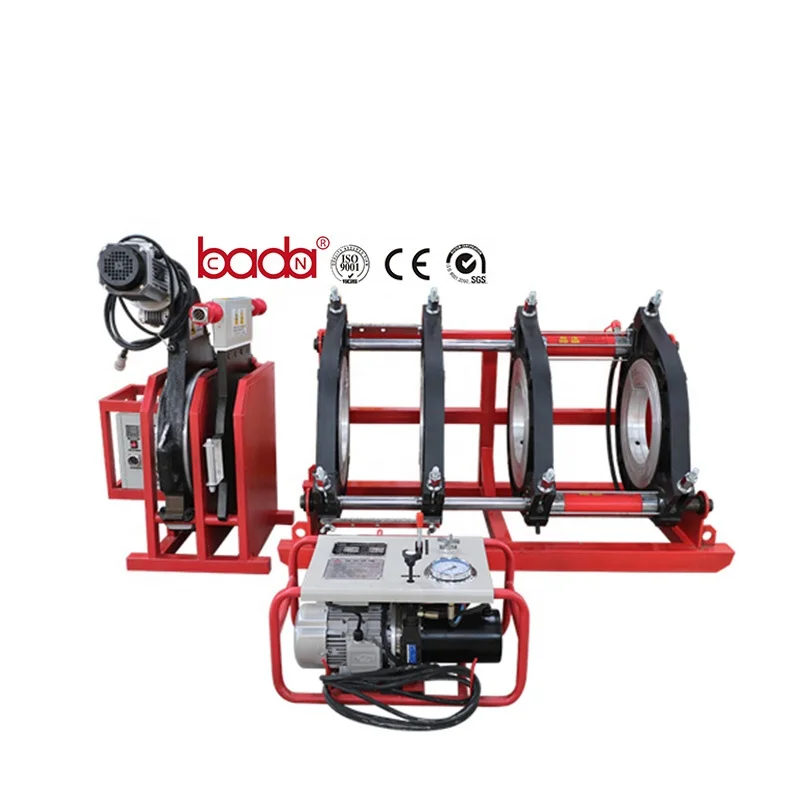

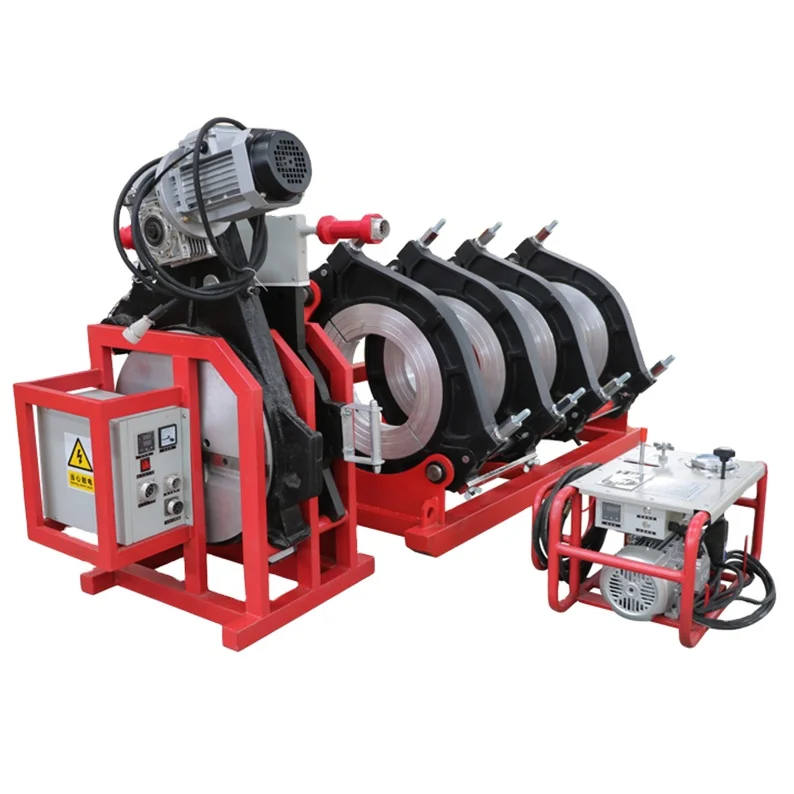

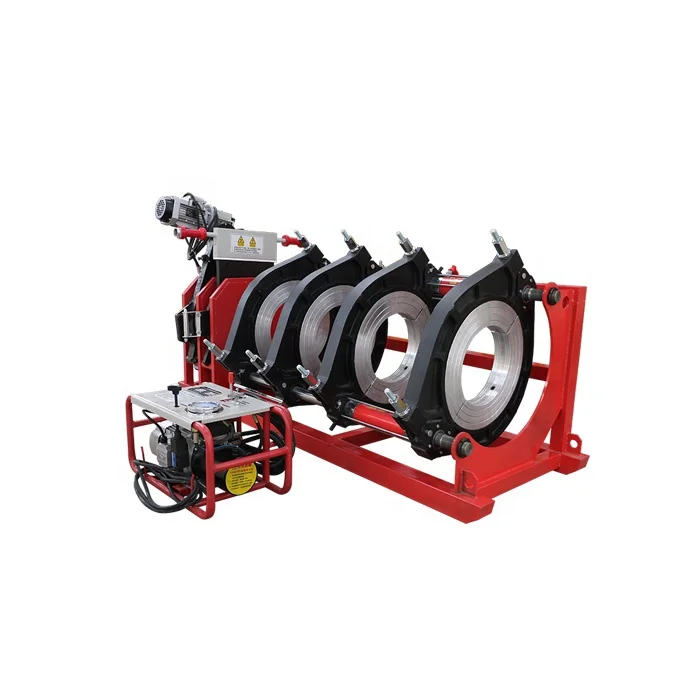

Hydraulic Thermofusion Jointing polyfusion butt fusion 315 mm to 500 mm hdpe pipe 200 mm welding machine for 335m
- Category: >>>
- Supplier: Jinan Bada Plastic Pipe Welding Equipment Co. Ltd.
Share on (1601172802233):
Product Overview
Description
hdpe plastic pipe thermofusion 500 mm hdpe butt fusion welding machine

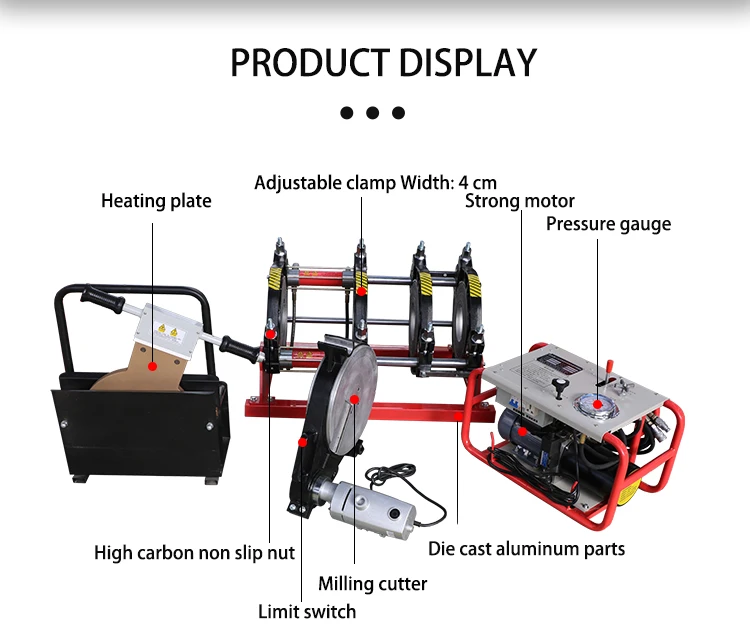

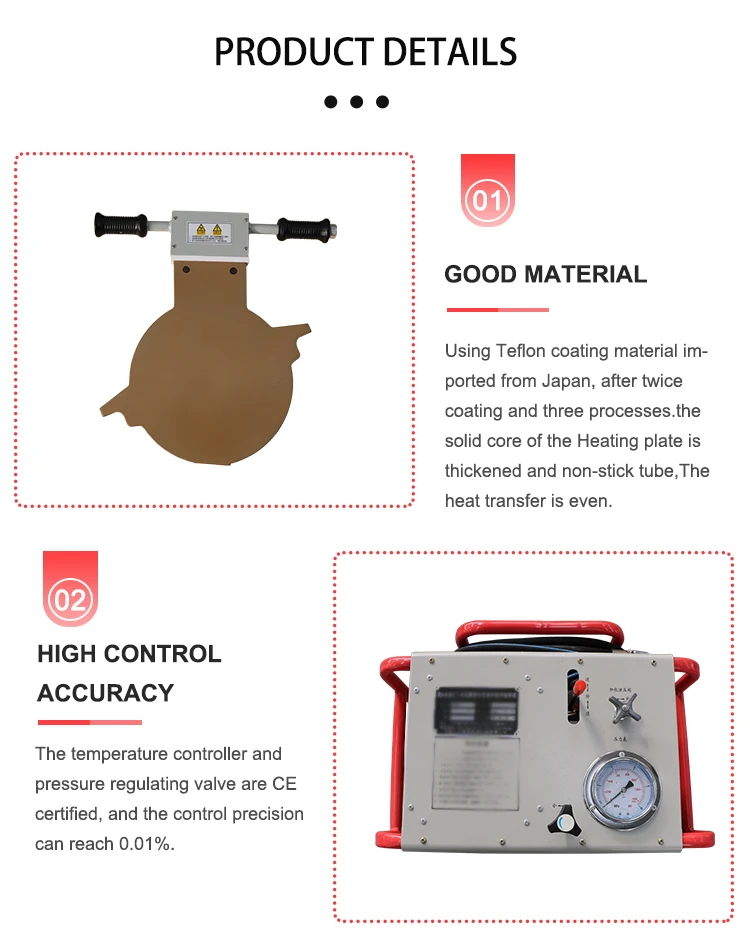

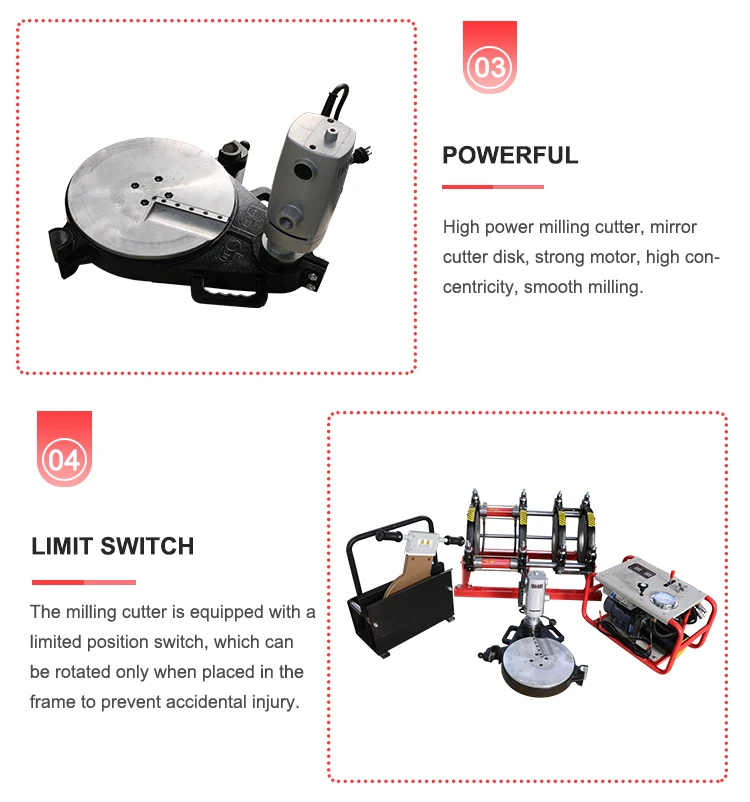

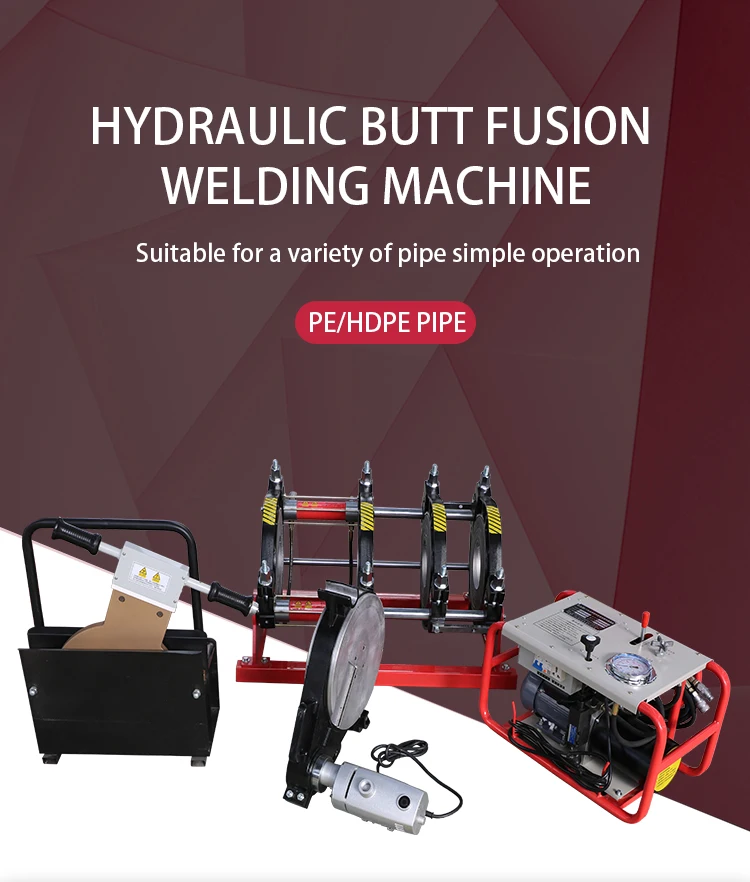

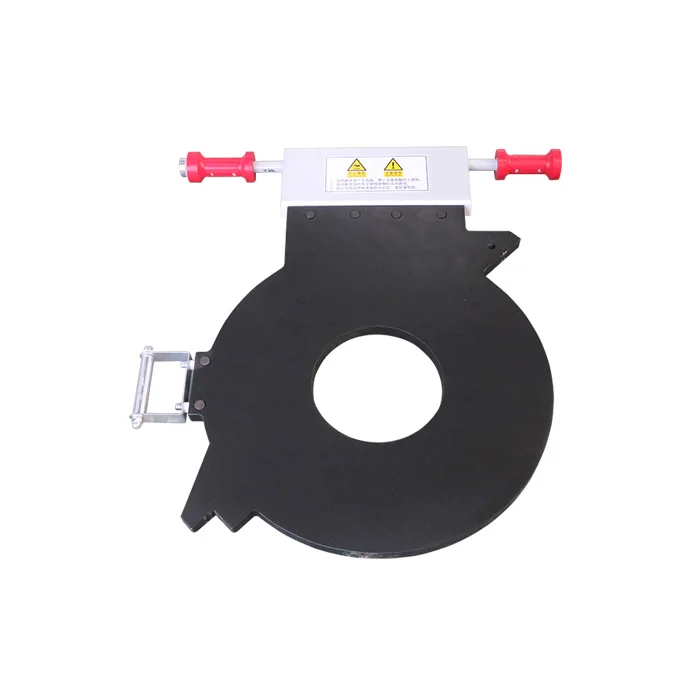

This hydraulic butt fusion welding machines is able to weld pipes and fittings with material pe pipe，hdpe pipe , operation easily and suitable for any complex work condition. It Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
FEATURES AT A GLANCE
When our hdpe plastic pipe thermofusion 500 mm hdpe butt fusion welding machine welds pipe together with data logger, the welding process is in a semi-automatic way, continuous repeat of the welding cycles and automatic control of preset parameters. Data Logger can store up to 1000 welding cycles and sum them into a encrypted EXCEL file. This report can be transferred to a PC/Laptop through a USB port.
Model | SHBD 500 hdpe plastic pipe thermofusion 500 mm hdpe butt fusion welding machine | SHBD630 |
Welding diameters (mm) | 315mm-500mm | 315-355-400-450-500-560-630mm |
Heating plate temperature | 270°C | 270°C |
Heating plate surface temperature(170-250°C) | <±7°C | <±7°C |
Pressure adjustment range | 0-6.3MPa | 0-6.3MPa |
Cross-sectional area of the cylinder | 2360mm2 | 2306mm2 |
Working Voltage | 380V, 50Hz | 380V, 50Hz |
Heating plate power | 8KW | 9.2KW |
Milling cutter power | 1.5KW | 1.5KW |
Hydraulic station power | 1.5KW | 1.5KW |
Lifter power | - | - |
Total Power | 11.0KW | 12.5KW |
Successful Project
Project in Southeast Asia
Project in Southeast Asia
Project in Russia
Related Products
After Sales Service
1. One year warranty, life-long maintenance.
2. In warranty time, if non-artificial reason damaged can take old
change new for free. Out of warranty time, we can Offer maintenance service (charge for material cost).
3. Engineers available to service machinery overseas
2. In warranty time, if non-artificial reason damaged can take old
change new for free. Out of warranty time, we can Offer maintenance service (charge for material cost).
3. Engineers available to service machinery overseas
Company Introduction
Packing&Shipping
1.The shipping: 3 days after received payment
2.The packaging: standard export plywood cases
3:Our machine will be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty easily.
2.The packaging: standard export plywood cases
3:Our machine will be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty easily.
FAQ
1. What is your payment terms ?
100% TT in advance . Western Union , D/P, Credit card payment on line .
2. What’s your delivery time ?
3-5 days after payment
3.How about your Guarantee and Service ?
All designed according to ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007)
International warranty: 12 months.
Any parts broken or does not work under normal operating, we are free to provide.
100% TT in advance . Western Union , D/P, Credit card payment on line .
2. What’s your delivery time ?
3-5 days after payment
3.How about your Guarantee and Service ?
All designed according to ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007)
International warranty: 12 months.
Any parts broken or does not work under normal operating, we are free to provide.
