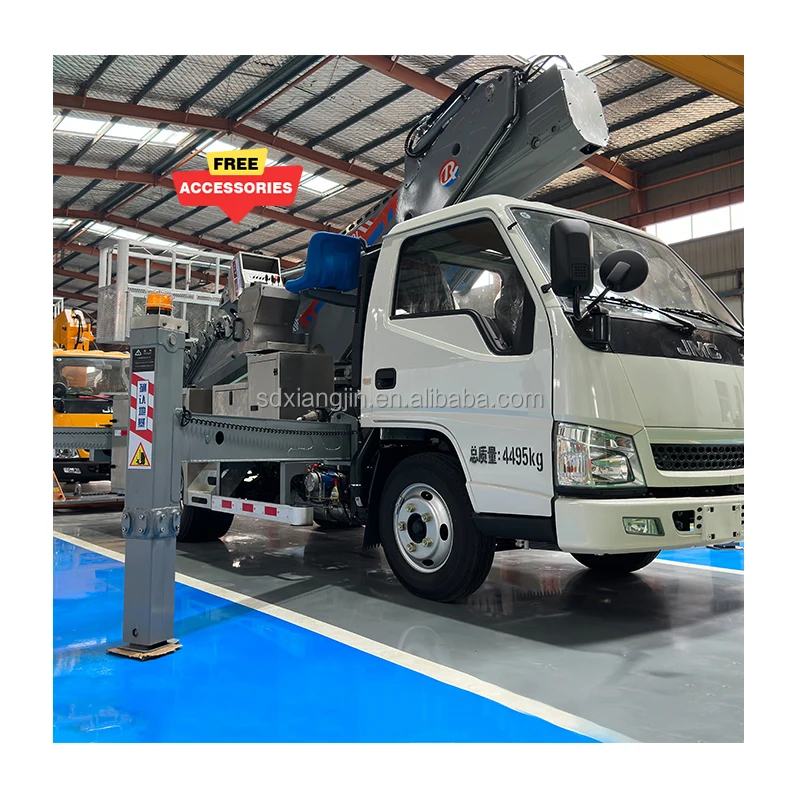

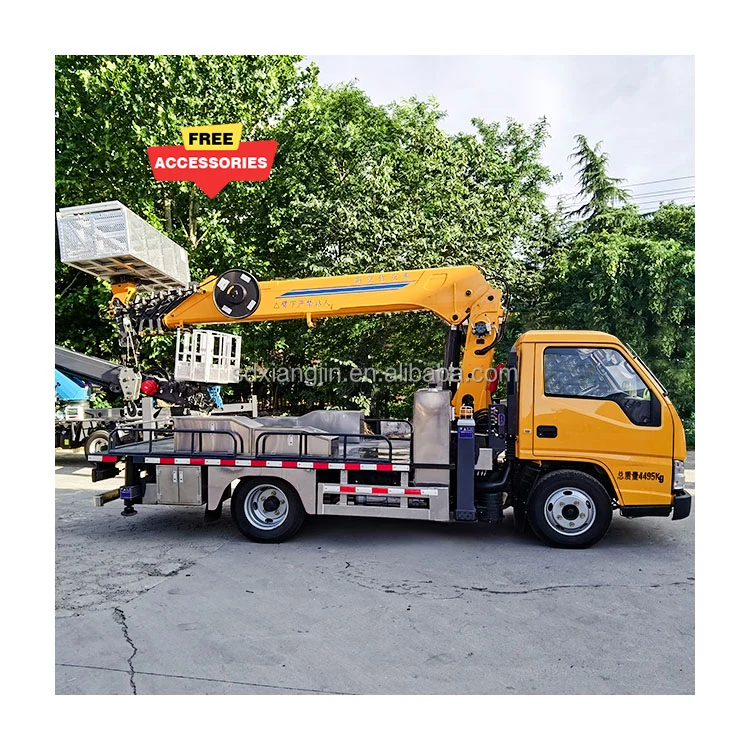

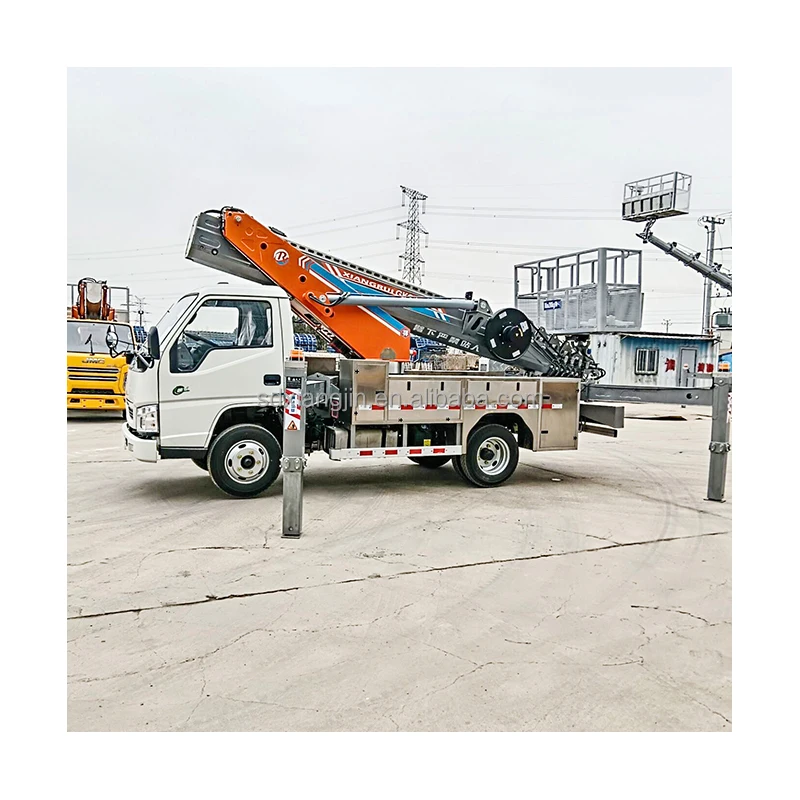

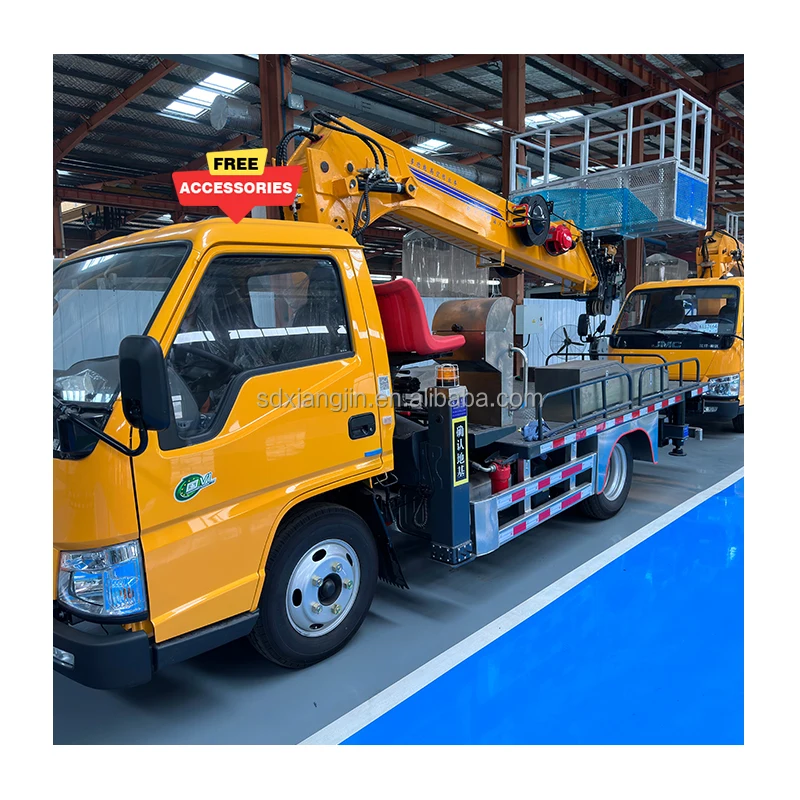

28m 32m hydraulic Truck Mounted Aerial Bucket 4x2 Boom Lift Aerial Manlift Work Platform Truck
- Category: >>>
- Supplier: Shandong Xiangjin International Trade Co. Ltd.Shandong Ltd.
Share on (1601172983189):
Product Overview
Description
Product Description

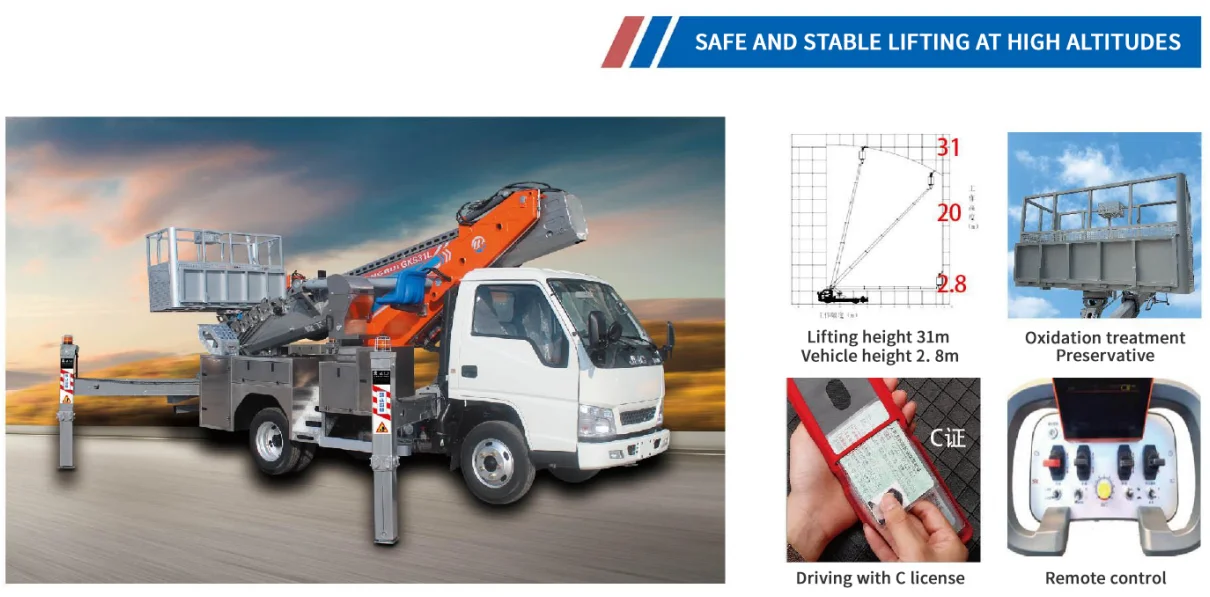

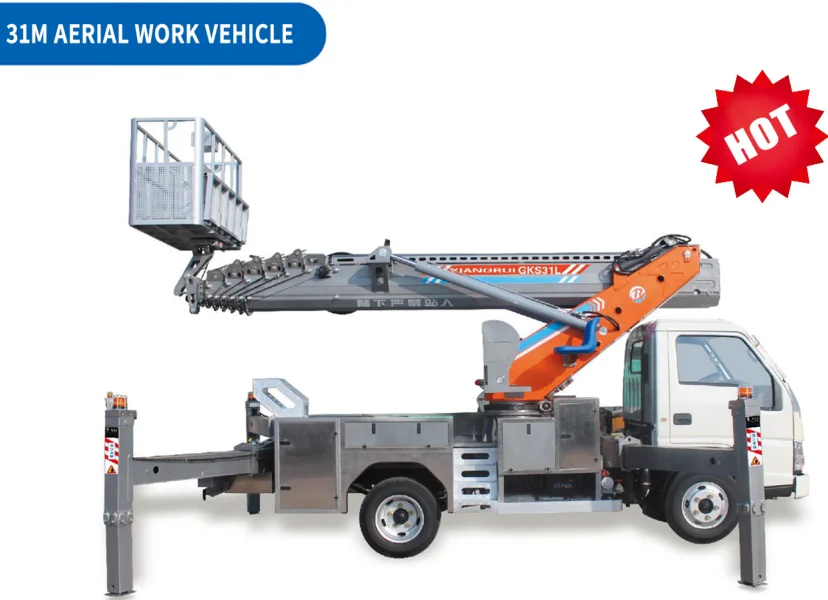

The straight-arm high-altitude working vehicle has a height of 31 meters. It uses the full-retractable working arm with large leg
span and good stability. It can be operated simultaneously or separately, which is safe and reliable. With flexibility, in the
tight high building can also be flexible operation, is the leader of high altitude operation car, leading the new trend of the
industry. Widely used in municipal, electric power, street lamp, advertising, communication, photography, landscape, shipbuilding,
transportation, wharf, airport port, rescue and rescue, large industrial and mining enterprises and other industries of
installation and maintenance and climbing operations.
span and good stability. It can be operated simultaneously or separately, which is safe and reliable. With flexibility, in the
tight high building can also be flexible operation, is the leader of high altitude operation car, leading the new trend of the
industry. Widely used in municipal, electric power, street lamp, advertising, communication, photography, landscape, shipbuilding,
transportation, wharf, airport port, rescue and rescue, large industrial and mining enterprises and other industries of
installation and maintenance and climbing operations.
If you are interested in this product, please contact us and we will give you the best deals and gifts!
Specification
size parameter | Total length | mm | 5995 | ||
Overall width | mm | 2060 | |||
Total height | mm | 2780 | |||
quality parameter | Number of passengers (including driver) | 人 | 2 | ||
Total mass | kg | 4495 | |||
Rated load of working platform | kg | 200 | |||
Maximum working height | m | 30.5 | |||
Operating amplitude at maximum operating height | m | 25 | |||
Maximum operating amplitude | ° | 78 | |||
Working height at maximum working amplitude | m | 5 | |||
Leg span (full extension) | transverse | mm | 4630 | ||
portrait | mm | 5040 | |||
Work platform rotation | º | ±360 | |||
Arm body luffing and extension time | s | 55≤t≤65 | |||
Arm body luffing lowering time | s | 50≤t≤60 | |||
Arm full extension time | s | 70≤t≤80 | |||
Arm full retraction time | s | 60≤t≤70 | |||
Boom rotation speed | s/r | 140≤t≤150 | |||
Horizontal leg full extension time | s | 20≤t≤30 | |||
Horizontal leg full retraction time | s | 15≤t≤25 | |||
Vertical leg full extension time | s | 20≤t≤30 | |||
Vertical leg full retraction time | s | 10≤t≤20 | |||
Leg retraction and release time | s | 30≤t≤50 | |||
travel parameter | Front overhang/rear overhang/rear extension | mm | 1075/1800/308 | ||
Wheelbase | mm | 2800 | |||
Maximum driving speed | km/h | 100 | |||
Minimum ground clearance | mm | 181 | |||
Approach/departure angle | ° | 19/13 | |||
Multifunctional aerial work vehicle
1.The boom and legs are made of low alloy Q345 profiles, no welds around, beautiful appearance, large force, high strength;
2. H type leg stability is good, leg can be operated at the same time or alone, the operation is flexible, can adapt to a variety of working conditions;
3. The rotary mechanism is adjustable, easy to adjust;
4. The turntable two-way 360° rotation, the use of advanced turboworm type deceleration mechanism (with self-lubrication and self-locking function), later maintenance can also be easily achieved by adjusting the bolt position;
5. The car operation adopts integrated electric control valve block mode, beautiful layout, smooth operation, easy maintenance;

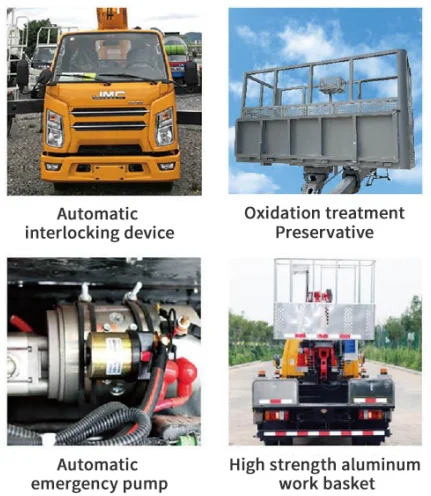

6. Get off and get on interlock, safe and reliable operation;
7. The car operation through the throttle valve to achieve stepless speed regulation;

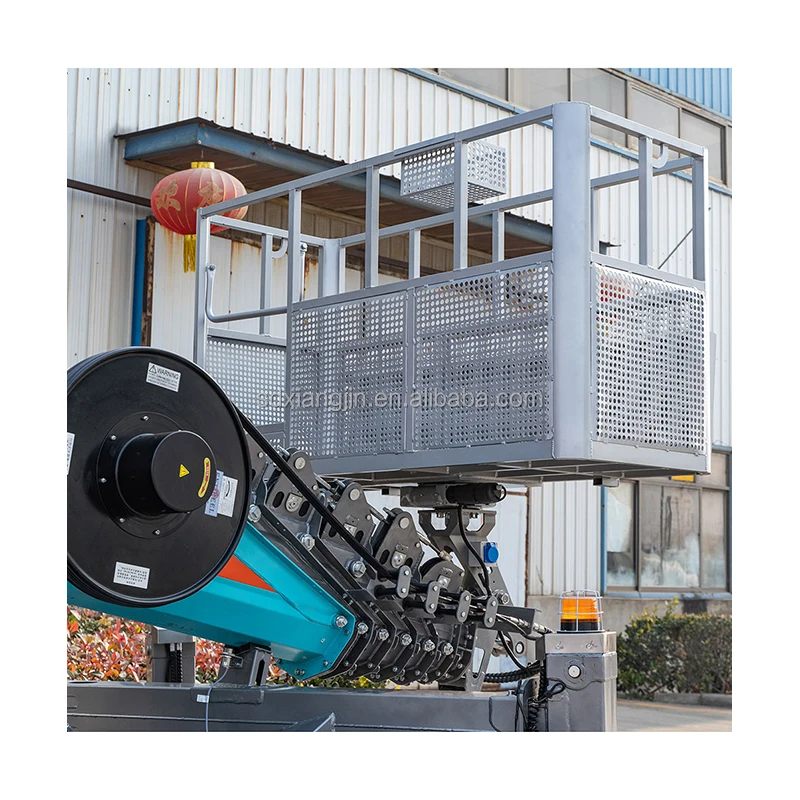

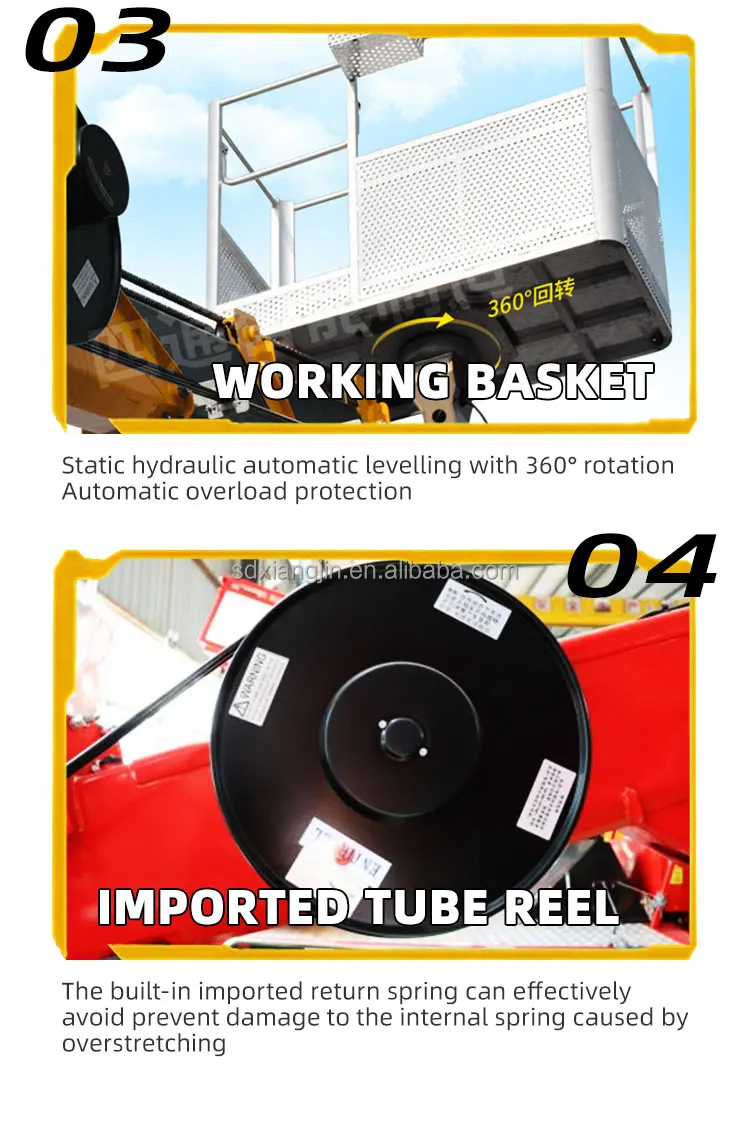

8. The working platform uses mechanical leveling, more stable and reliable;
9. Turntable and hanging basket with starting and extinguishing switch, easy to operate, save fuel.
2. H type leg stability is good, leg can be operated at the same time or alone, the operation is flexible, can adapt to a variety of working conditions;
3. The rotary mechanism is adjustable, easy to adjust;
4. The turntable two-way 360° rotation, the use of advanced turboworm type deceleration mechanism (with self-lubrication and self-locking function), later maintenance can also be easily achieved by adjusting the bolt position;
5. The car operation adopts integrated electric control valve block mode, beautiful layout, smooth operation, easy maintenance;
6. Get off and get on interlock, safe and reliable operation;
7. The car operation through the throttle valve to achieve stepless speed regulation;
8. The working platform uses mechanical leveling, more stable and reliable;
9. Turntable and hanging basket with starting and extinguishing switch, easy to operate, save fuel.
If you are interested in this product, please contact us and we will give you the best deals and gifts!
