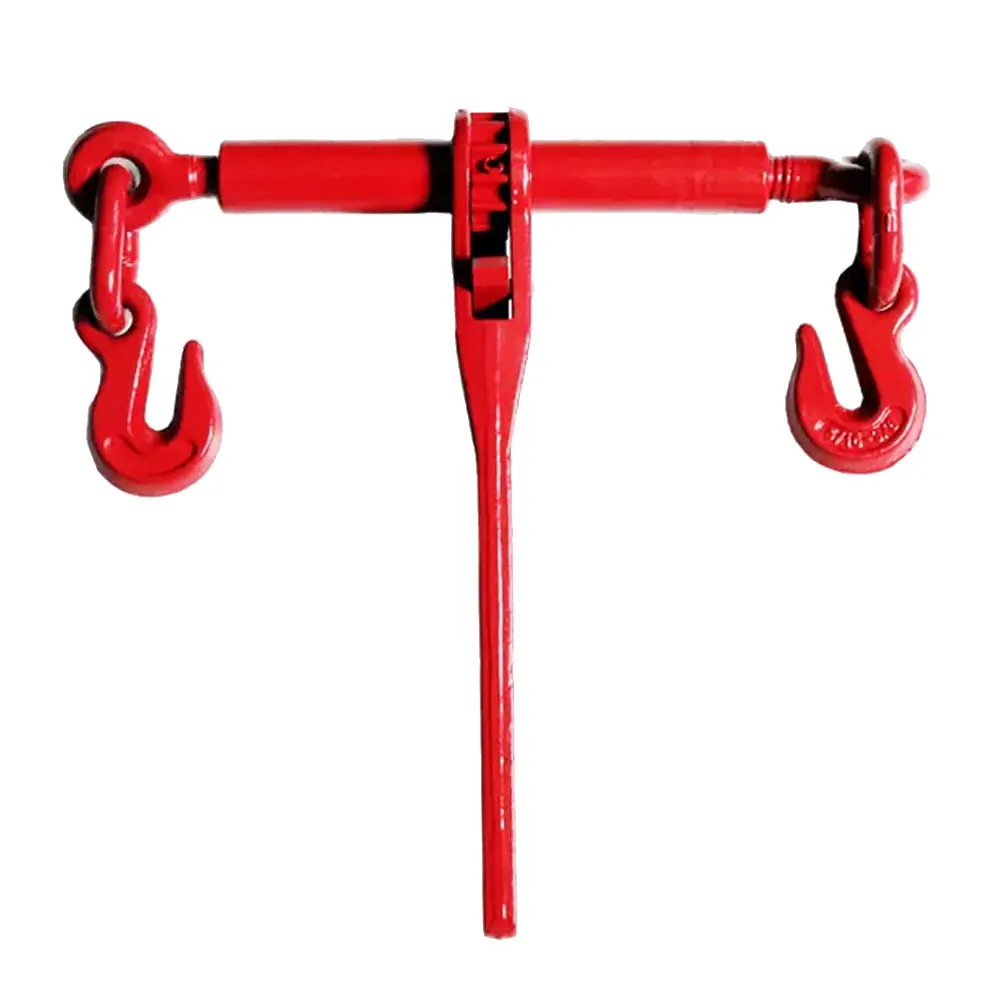

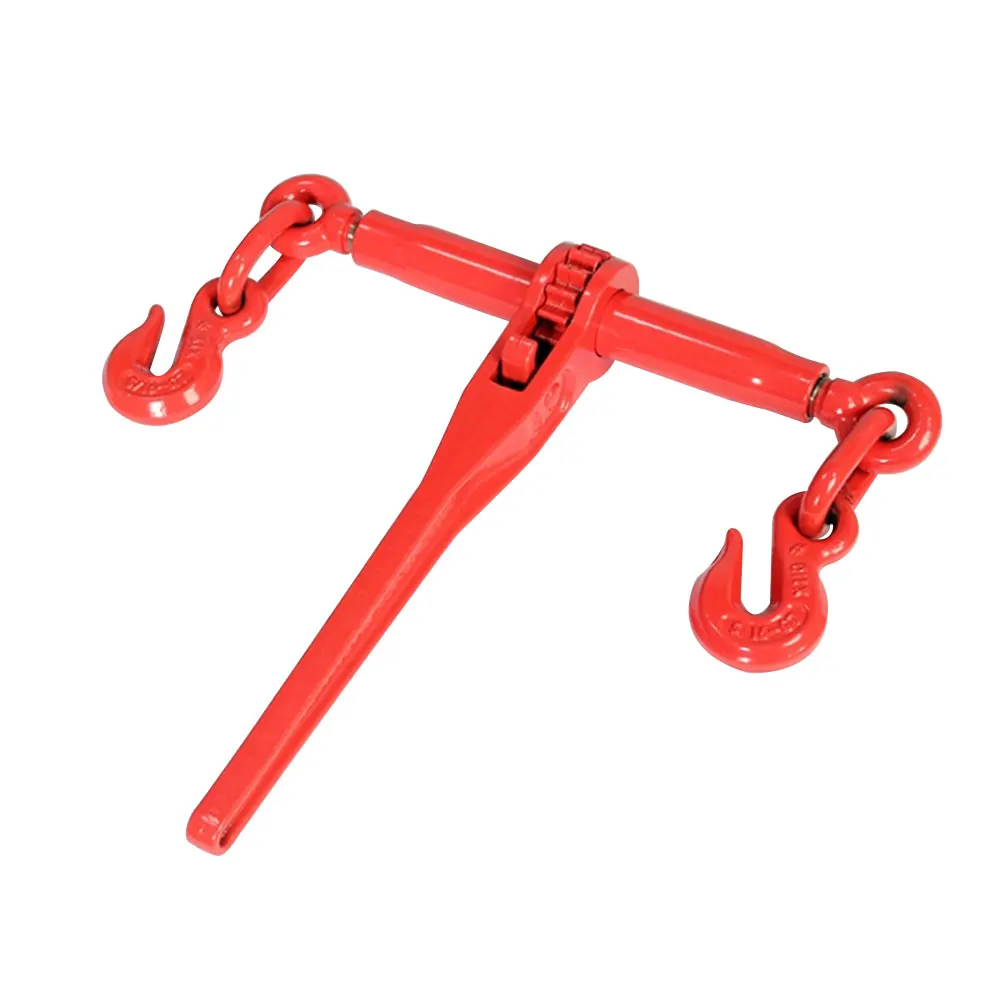

G80 Drop Forged Red Ratchet Load Binder with Hooks

Product Overview

Description

G80 Drop Forged Red Ratchet Load Binder with Hooks

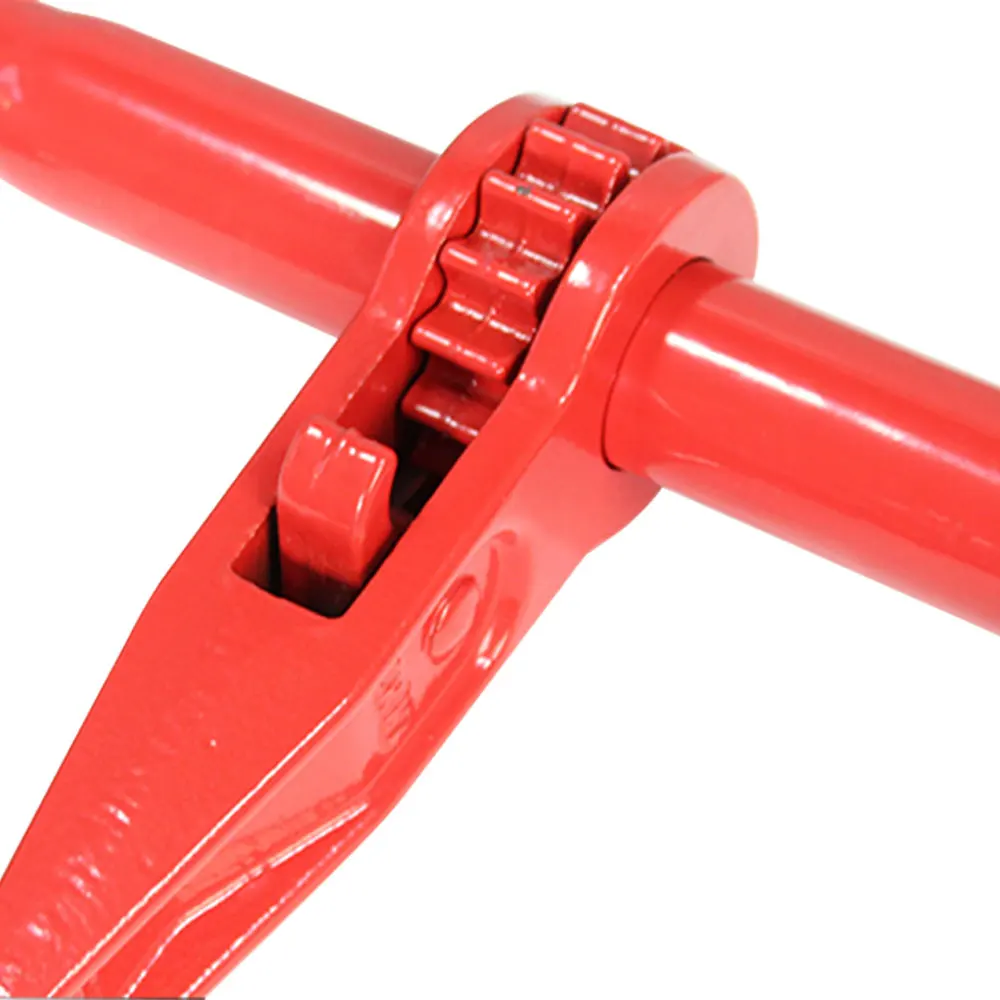

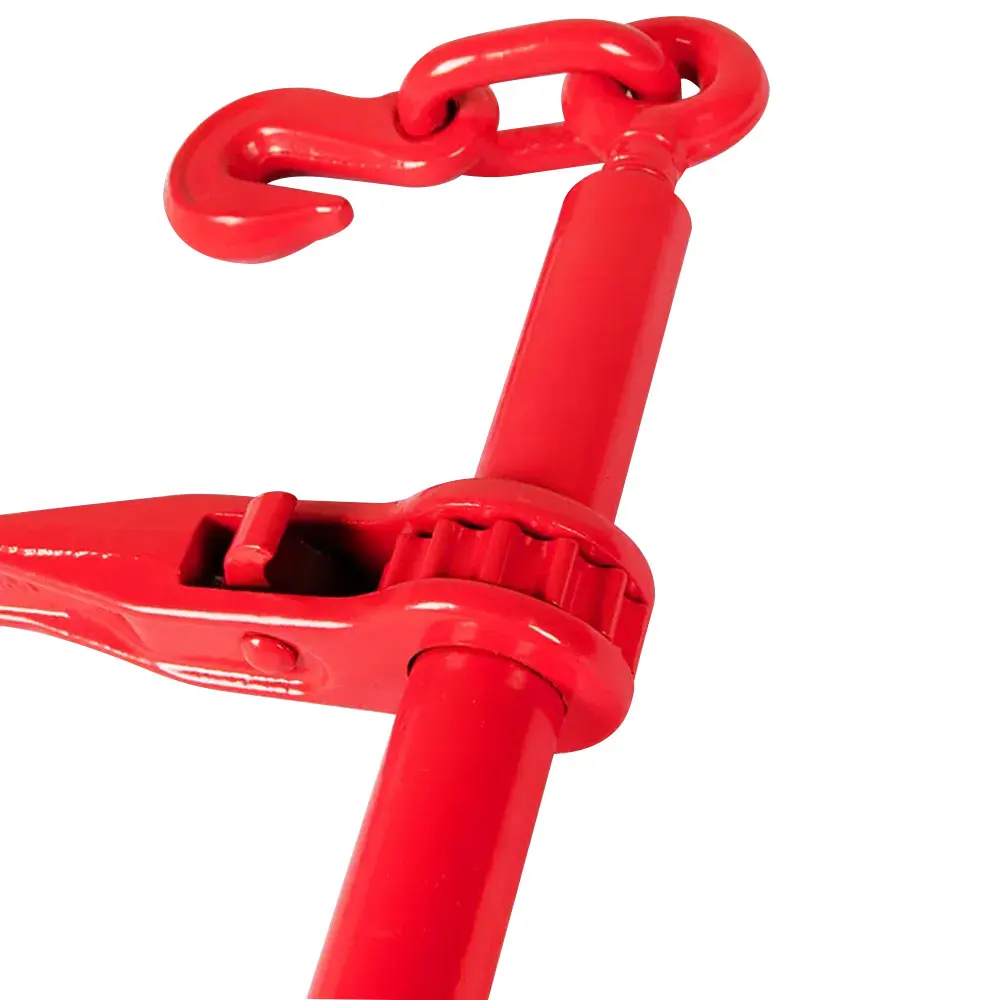

Ratchet load binders are a type of tool used to secure cargo during transportation by roadrail, or sea. They are also known as ratchet binders, lever binders, or chain binders. Thesetools are commonly used in the trucking and shipping industry to secure heavy loads suchas machinery,construction materials, or vehicles.Ratchet load binders consist of a lever and a ratcheting mechanism that allows the user totighten and secure chains or straps around the cargo. The lever is connected to the chain orstrap, and the ratcheting mechanism allows the user to tighten the chain or strap until it issecurely held in place.

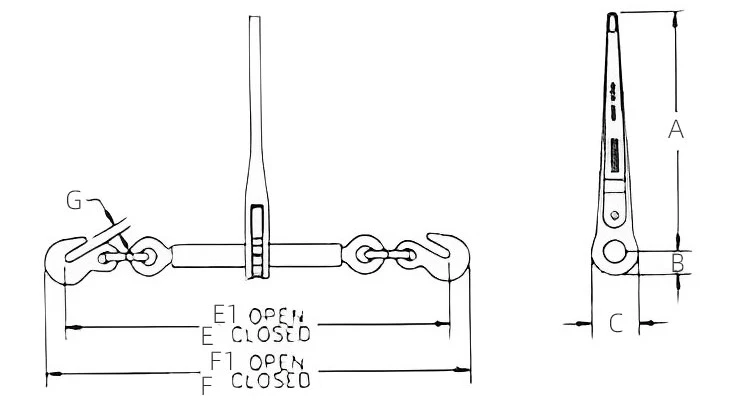

SIZE/IN	W.L.L IBS	PROOF LOAD/BIS	MIN UITMATE LOAD/BIS	KG/PC	HANDLE LENGTH	DIMENSIONS/IN
						A	B	C	E	E1	F1	G
1/4-5/16	2200	4400	7800	1.600	7.16	7.16	0.89	1.77	16.22	21.62	17.79	0.35
5/16-3/8	5400	10800	19000	4.773	13.42	13.92	1.30	2.60	22.64	30.64	25.24	0.51
5/16-3/8	6600	10800	19800	4.891	13.42	13.92	1.30	2.60	22.64	30.64	25.24	0.51
3/8-1/2	9200	18400	33000	5.864	13.92	13.92	1.30	2.60	24.13	32.13	27.04	0.59
1/2-5/8	13000	26000	46000	6.536	13.92	13.92	1.30	2.60	26.45	34.45	30.07	0.74

Shandong Licheng Chain Co.LTD.is a new generation enterprise committed to the hardware industry.Located in Jining,Shandong Province,the hometown of Confucius and Mencius.
The company is a professional hardware supporting enterprise integrating design,research and development,production and sales.The main products are chains and wire ropes and their accessories:shackles,turnbuckles,clips,loops,spring hooks and other forged parts And castings,and accept drawings and samples for processing.
