Original 4690 4695 Battery Cell High Power 3.7v 27ah 30ah 32ah Lithium Ion Batteries Cylinder Li ion Battery
- Category: >>>
- Supplier: Shenzhen Baisiyu Technology Co. Ltd.
Share on (1601173153994):
Product Overview
Description
Hot Selling models:
Lifepo4 3.2V 280Ah 300Ah 314Ah 320Ah 330Ah Battery;
48V DIY BOX;
18650 21700 32700 Lithium Battery;
46800 46950 46100 33145 40135 NCM LFP Battery;
BMS;
Product Specification
EV 5695P 4695E 27Ah 32Ah NCM battery Cell in big stock
Item | G13 4695P | G16 4695E | ||
Normal Capacity | 27.4 Ah | 31.9Ah | ||
Normal Energy | 100.0 Wh | 117.7Wh | ||
AC Internal Resistance of BOL Status | ≤2.0 mΩ | 1.2±0.3mΩ | ||
DC Internal Resistance of BOL Status | ≤3.5 mΩ | ≤ 3.0 mΩ | ||
Nominal Voltage | 3.65 V | 3.68 V | ||
Cell Weight(With Insulating Film) | 415±10 g | 419±10g | ||
Diameter(with Insulating Film) | 46.16±0.25 mm | 46.16±0.10 mm | ||
h1(w/o Terminal (h1)) | 95.00±0.35 mm | 46.00±0.10 mm | ||
h2(w/ Terminal (h2)) | 96.50±0.35 mm | 95.00±0.10 mm | ||
TerminalDiameter | 18.50±0.20 mm | 96.50±0.20 mm | ||
Ch Limited Voltage (Umax) | 4.2 V | 4.25V | ||
Dch Cut-off Voltage (Umin) | 2.8 V(0＜T≤55°C) 2.5 V(-20≤T≤0°C) | 2.8V (T>0℃) 2.5V (T≤0℃) | ||
Standard Ch Current | 9.1 A | 10.6A | ||
Standard Dch Current | 9.1 A | 10.6A | ||
Maximum Continuous Charging Current | 1C | 1.5C | ||
Maximum Charging Current | 5C | 3C | ||
Maximum Discharging Current | 2.5C | 4C | ||
1.2C | 2C | |||
Cycle Life | 1000 cycles | 1000 cycles | ||
Note:

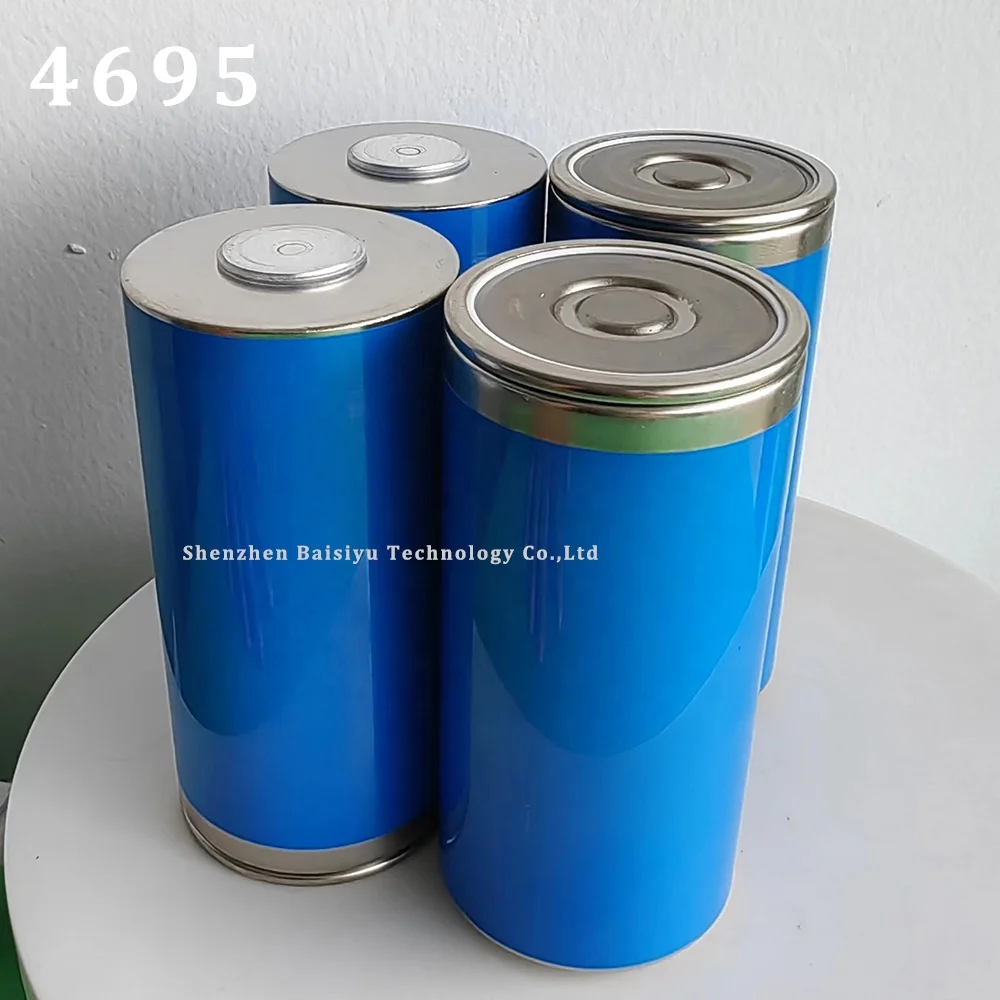

This EV 4695 cells with 2 version:
G16 4695E 31.9Ah 117.7Wh NMC battery cell;
G13 4695P 27.4Ah 100.0Wh NMC battery cell;
Both with 1000 Life Cycles, voltage 3.7V, Cylinder shape
*Please confirm the quantity required for your system before placing an order

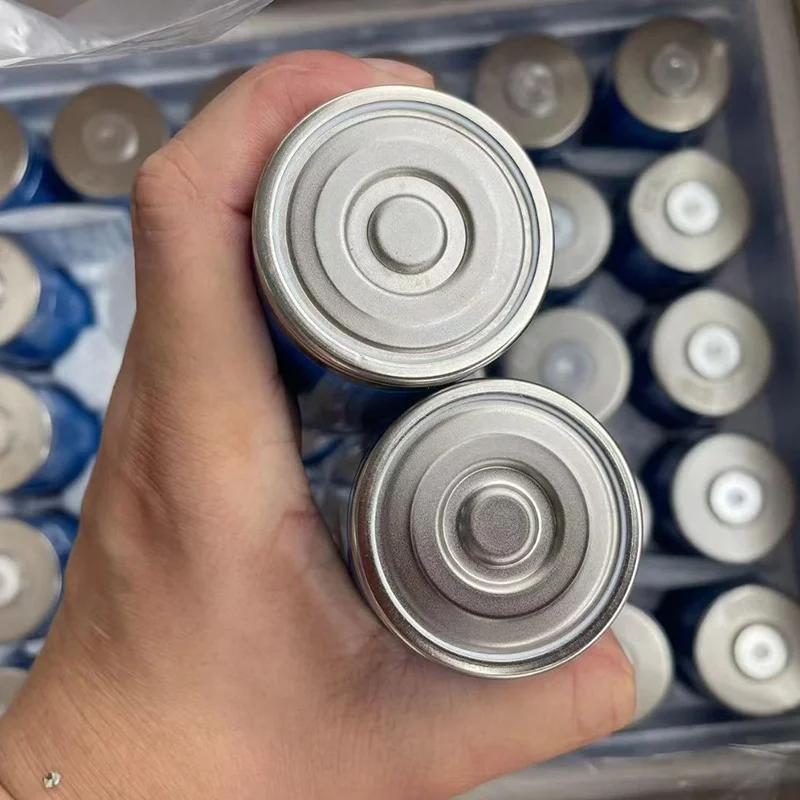

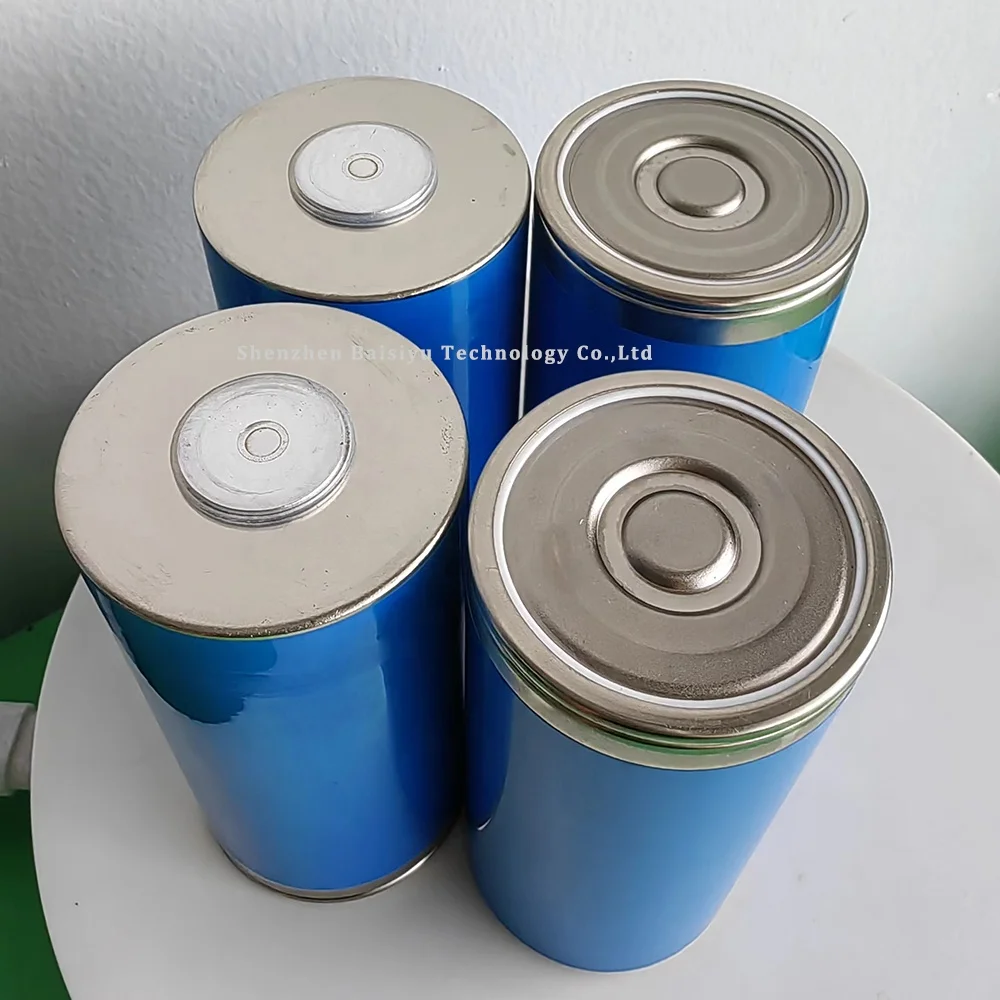

Detail Images
WARNING:
The battery cells should be stored within the temperature range specified in the specification, otherwise, it may lead to loss of performance, leakage or rusting. Batteries need to be used as soon as possible after recharging to avoid loss of usable capacity due to self-discharge. If storage is required, the battery needs to be stored in a low SOC state.
Recommended storage conditions are: stored in shipping SOC state, 0~25°C, ≤60%RH. For long-term storage, the battery needs to be recharged within three months
The battery cells should be stored within the temperature range specified in the specification, otherwise, it may lead to loss of performance, leakage or rusting. Batteries need to be used as soon as possible after recharging to avoid loss of usable capacity due to self-discharge. If storage is required, the battery needs to be stored in a low SOC state.
Recommended storage conditions are: stored in shipping SOC state, 0~25°C, ≤60%RH. For long-term storage, the battery needs to be recharged within three months

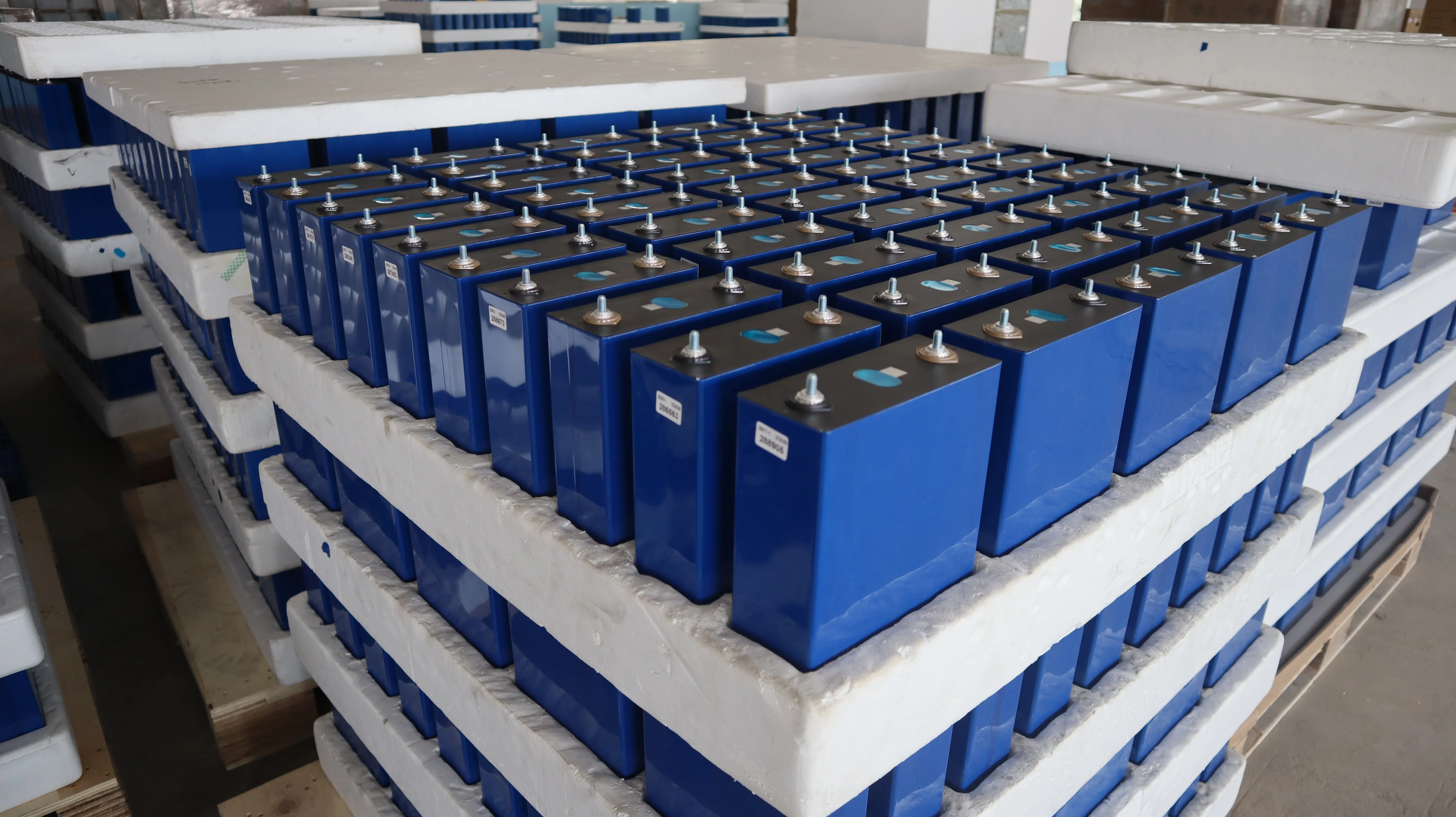

Oversea Stock
The Hot selling models in our shop:
Application
1. EV, e-scooter, electric golf car, electric vacuum sweeper.
2. Electronic toy, model airplane, remote control.
3. Communication equipment: Cordless telephone, inter-phone.
4. Modality equipment and consumer electronics.
5. Decorative lighting, Solar lamps,torch, emergency light, solar street light and power supply.
Testing
Package + Payment

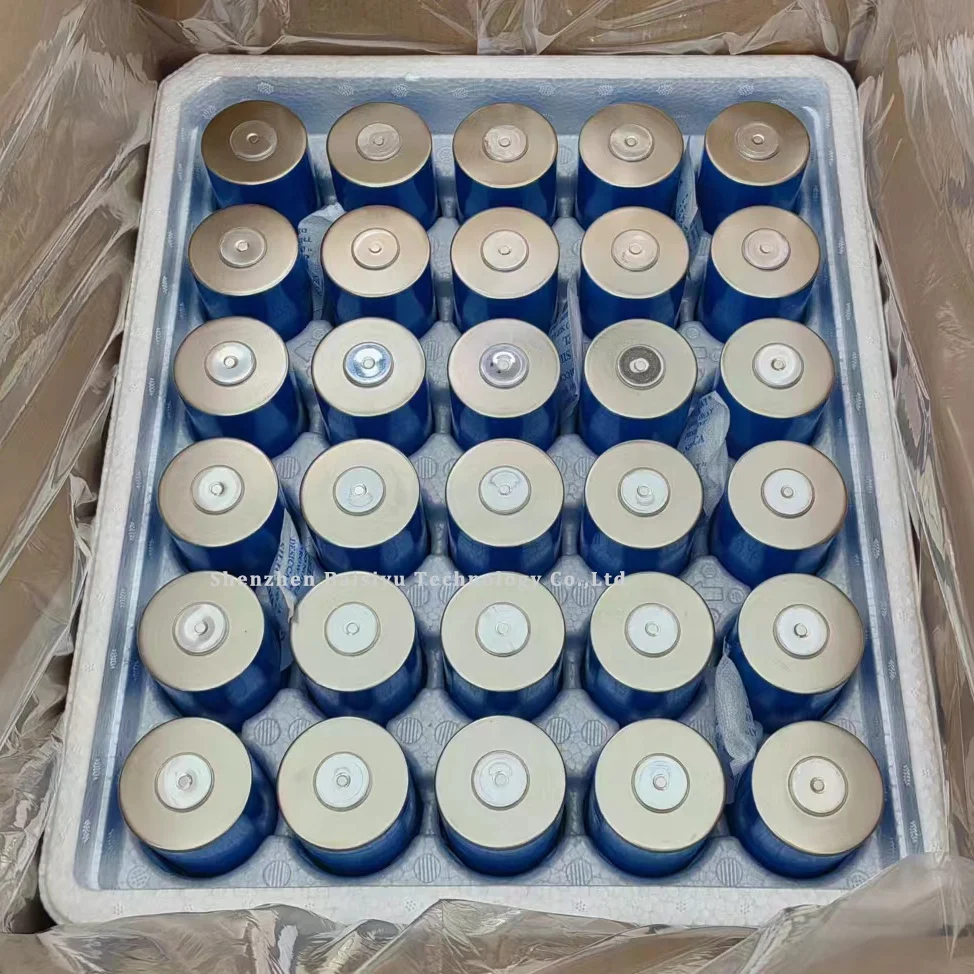

* Use high hardness custom sponge to strengthen the battery
* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.
FAQ
1. Are the batteries GRADE-A,Brand NEW?
Yes, GRADE A + quality. the QR code is intact, Brand new.
2.Are the batteries come with busbars+bolts?
The price come with Bus bars and Bolts，One Battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4pcs busbars and 8pcs bolts）If need more please contact us online.
3.Can you test each battery PRIOR to shipping?
We will test all the battery Voltage and Internal resistance before shipping.
4.What kind of the package of the cells?

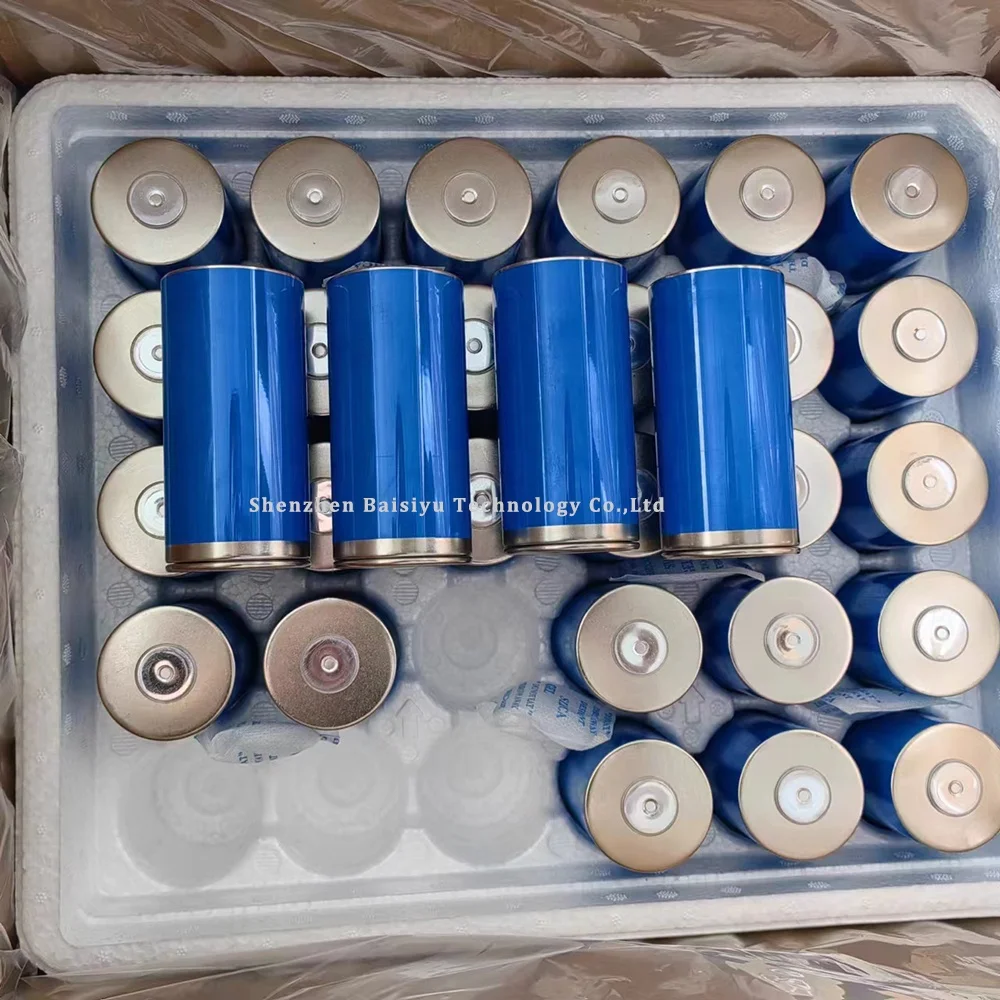

Pack with strong package, each cell into thickness PE foam or bag, then into 5 layers strong carton.
5.How can I place the order?
Usually we accept alibaba trade assurance order online. For the RTS(ready for ship) product if there is clear shipping cost or free shipping to your country you can place order and pay directly after reading for all the details,or you can provide your
shipping information to our sales they will create online order for you.
6.How can I do if I need more help for the order?
You can chat our sales online or send inquiry email,we will respond you ASAP.
Yes, GRADE A + quality. the QR code is intact, Brand new.
2.Are the batteries come with busbars+bolts?
The price come with Bus bars and Bolts，One Battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4pcs busbars and 8pcs bolts）If need more please contact us online.
3.Can you test each battery PRIOR to shipping?
We will test all the battery Voltage and Internal resistance before shipping.
4.What kind of the package of the cells?
Pack with strong package, each cell into thickness PE foam or bag, then into 5 layers strong carton.
5.How can I place the order?
Usually we accept alibaba trade assurance order online. For the RTS(ready for ship) product if there is clear shipping cost or free shipping to your country you can place order and pay directly after reading for all the details,or you can provide your
shipping information to our sales they will create online order for you.
6.How can I do if I need more help for the order?
You can chat our sales online or send inquiry email,we will respond you ASAP.
Reminder
DIY battery pack must get the cells balanced (same voltage ) before assembly. Later if there happens don't know how to assembled or wrong assembly is not accepted refund. Professionals will detected voltage/resistance/appearance and other issues before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days, after that means batteries have no problem, does not provide return nor refund. If you found problems you can contact us for return or refund.
Battery can only be unused (the electrode intact, no welding, no wear, the appearance good) to provide return. Any return behavior buyers need to be responsible for shipping fee.
1.Warranty period:5 years(from the date of successful delivery),if the single battery capacity less than 80% initial
capacity,take the test pictures or video to us,we will replace it or give satisfied solution.
2.If any miss or damaged for the shipping. Please contact us firstly, then send us the picture or video to check. In case of loss of cargo or the battery is damaged and can not be used or there is a greater risk of use, we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost.
3.These situations not provide return nor refund
1. After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
Battery can only be unused (the electrode intact, no welding, no wear, the appearance good) to provide return. Any return behavior buyers need to be responsible for shipping fee.
1.Warranty period:5 years(from the date of successful delivery),if the single battery capacity less than 80% initial
capacity,take the test pictures or video to us,we will replace it or give satisfied solution.
2.If any miss or damaged for the shipping. Please contact us firstly, then send us the picture or video to check. In case of loss of cargo or the battery is damaged and can not be used or there is a greater risk of use, we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost.
3.These situations not provide return nor refund
1. After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.
