Car Paint Preparation Room Booths Cleaning Booth For Cars

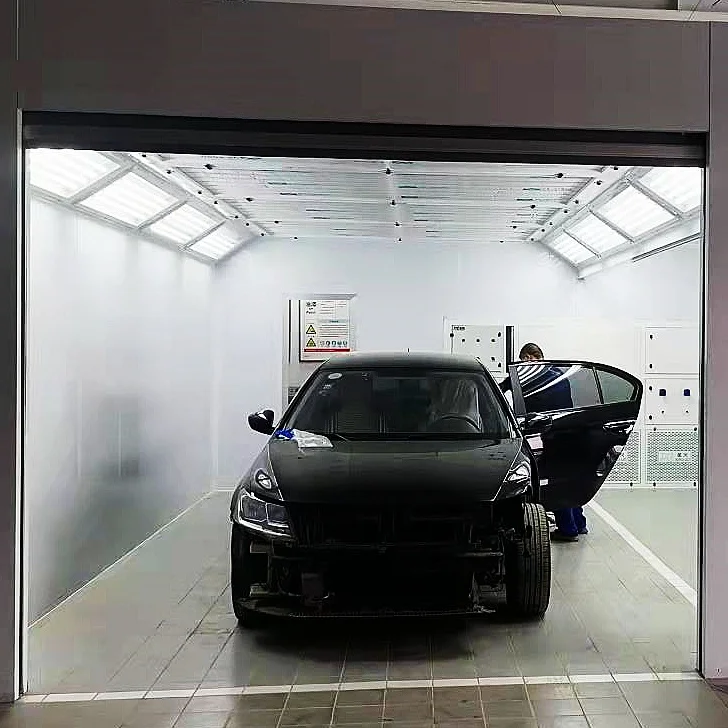

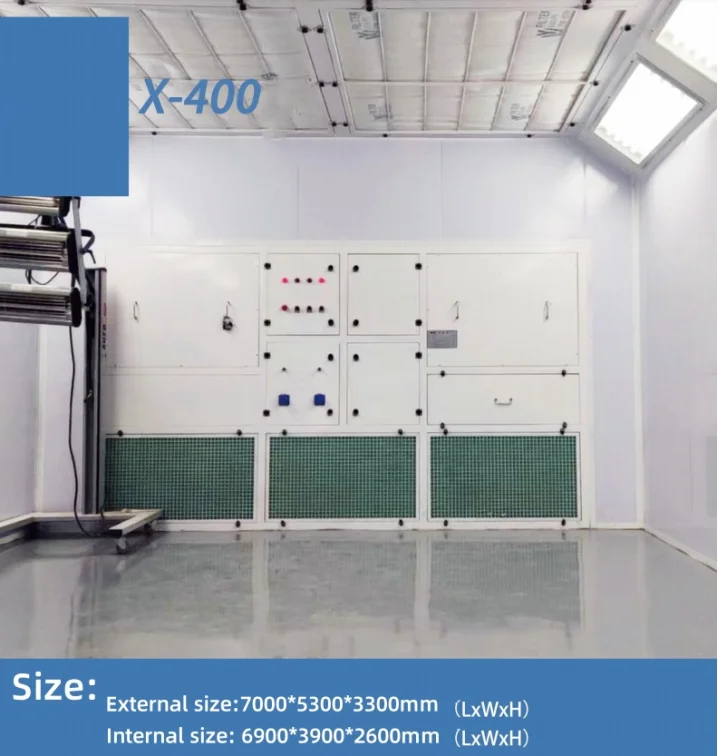

External size

Internal size

Entrance door width

Entrance door height

Air fan type

Inlet fan power

Air fan volume

power

Wind speed

mm

mm

mm

mm

kw

m3/h

KW

m/s

7050*4000
*3000

6900*3900
*2600

3000

2500

YDW

3×1Units

10000

4

0.3

Room system:

①The wall panel of the house is made of 50mm fireproof rock wool board, the thickness of the insulation board is 50mm, the
single-layer color steel plate δ0.4mm, and the rock wool bulk density is 100kg/cubic;
②The top is δ0.6mm color plate bending and buckle connection, and the top skeleton is welded with 40*60 square tube, which is firm
and safe.
③The card slot and wrap angle are bent with δ0.8mm color plate.

Gate system

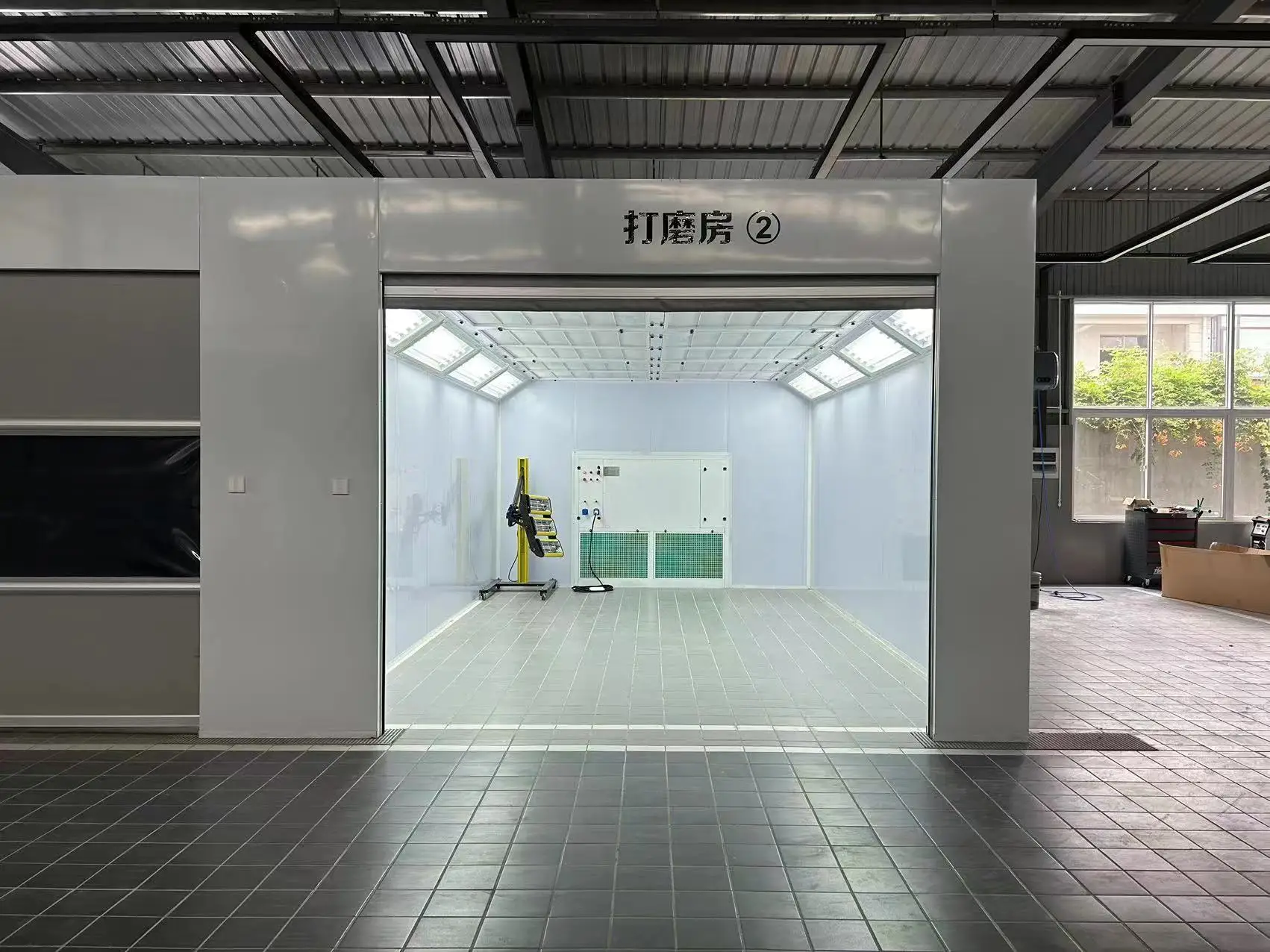

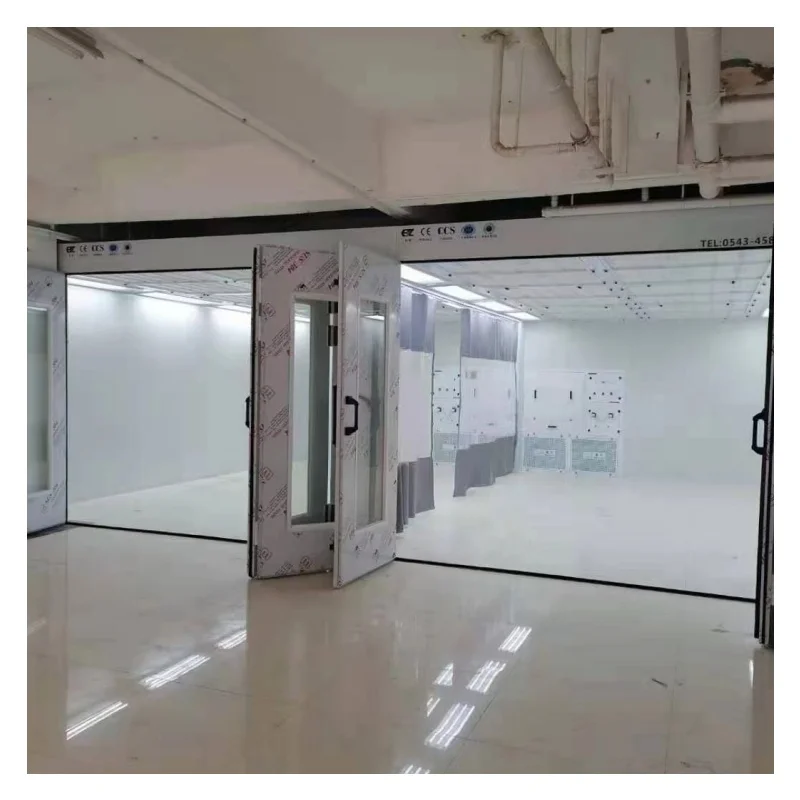

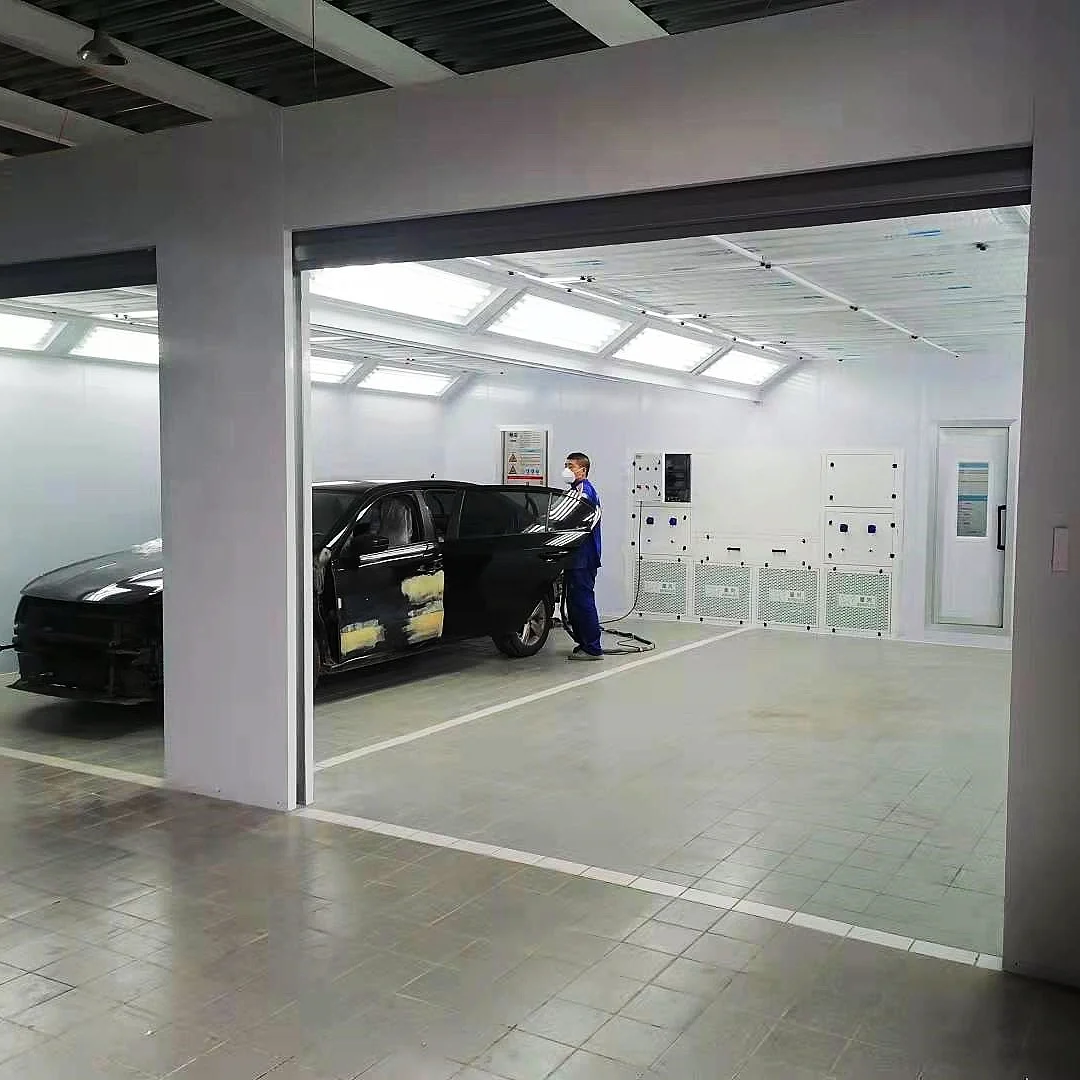

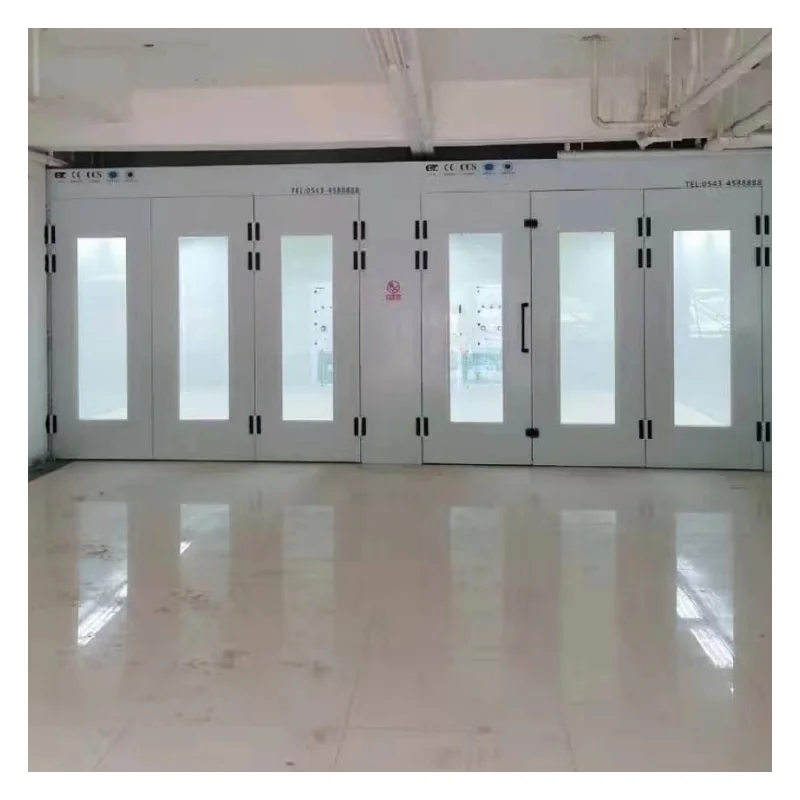

①The gate design is a folding three-sheet metal large glass door, all handmade, with a built-in delta 0.8mm skeleton, a built-in
mortise lock, and a glass observation window, which is convenient for observing the grinding situation in the room; the size of
the gate opening is W:3000mm×H: 2500mm, the size of a single door is W:1000mm×H:2500mm;
②There is a safety working door on one side of the room, equipped with a safety pressure lock device. When the pressure in the
room reaches the limit, the safety door will automatically pop open to release the pressure, which is convenient and safe. It is
equipped with a glass observation window, which is convenient for observing the grinding situation in the room. The small door The
size of the door opening is: W:650mm×H:1800mm.

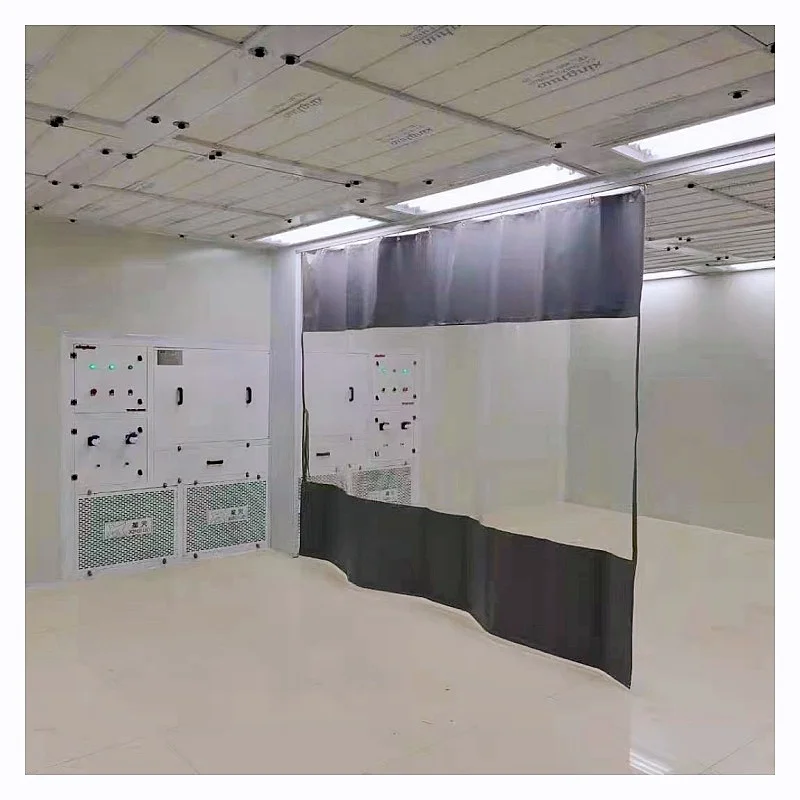

（Electric leather curtain）

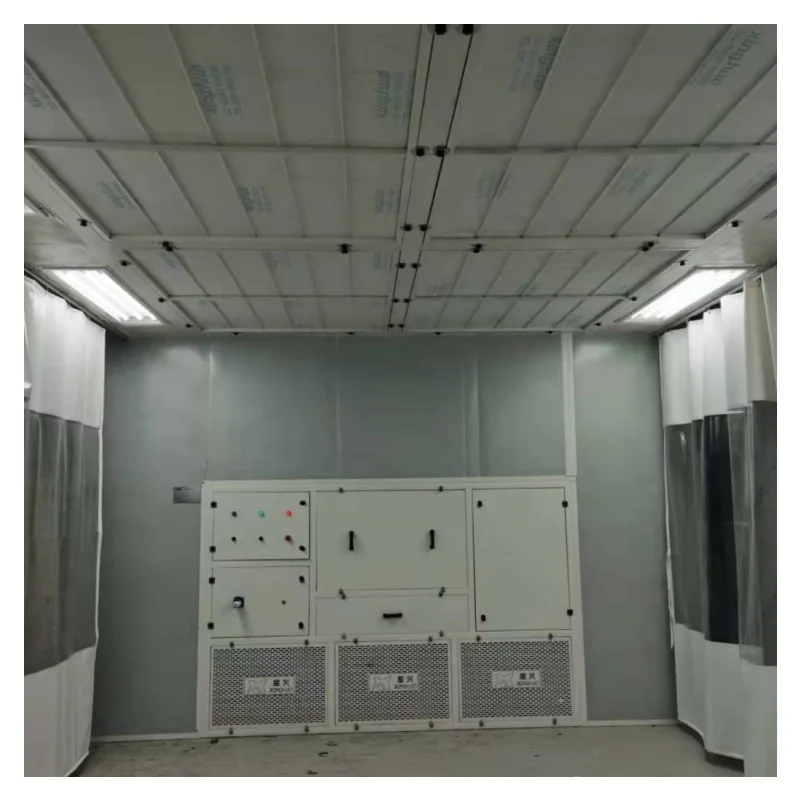

Fan system

The exhaust fan group adopts Jiangsu YDW type double intake fan; a total of 3KW fans are configured for exhaust air, and the
exhaust air volume of each fan is 10000m³/h, with a total of 3KW.

Air filtration system

①The air intake is natural air intake and there are two sets of filter frames on the top
②The top of the static pressure chamber adopts VF-600G advanced filter cotton for efficient filtration;

Lighting device

①The light box is made of high-quality delta 0.6mm galvanized steel sheet, folded and sprayed with plastic, and the lighting tubes
are all LED integrated tubes, with high lighting brightness;
②The ceiling lamp is equipped with 8 groups, each group of 3 lamps, realizes the illuminance of 700 lux, and realizes the
operation area.
No ghosting and blind spots inside;
③The surface of the lamp tube has a glass cover, and the frame is sprayed with plastic, which can prevent rust and be beautiful;
the light boxes are evenly distributed on both sides of the spray booth and hang on the top of the spray booth at a 45-degree
angle.
④Lighting power: 0.8KW.

Controlling system

Including button control, power switch, lighting switch, fan switch, fault indicator, emergency stop switch, emergency stop and
other functions; simple operation and high degree of automation.
