Product Overview
Description

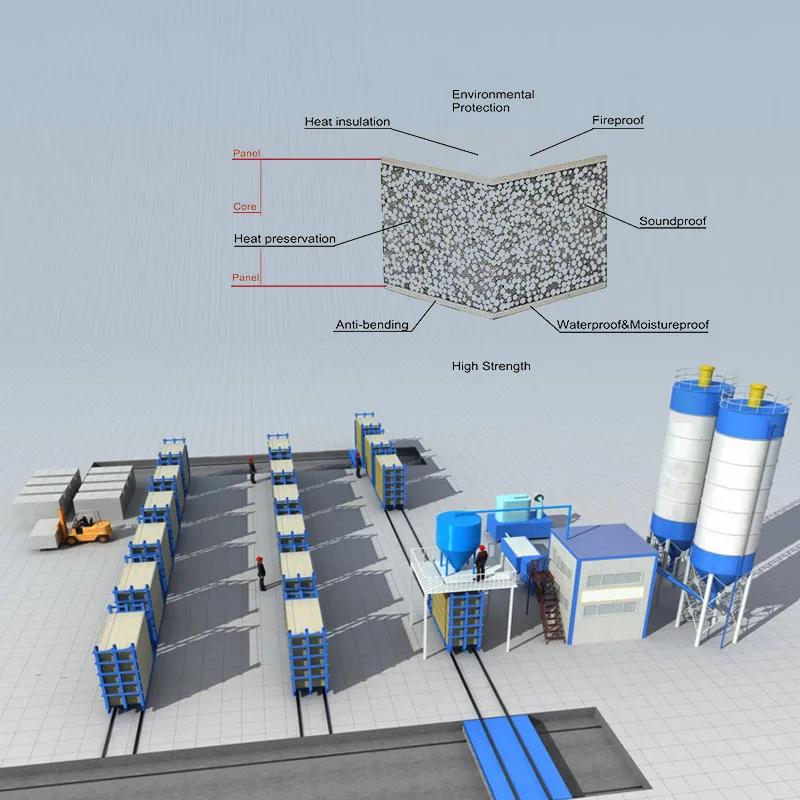

Lightweight EPS Cement Partition Panel Equipment

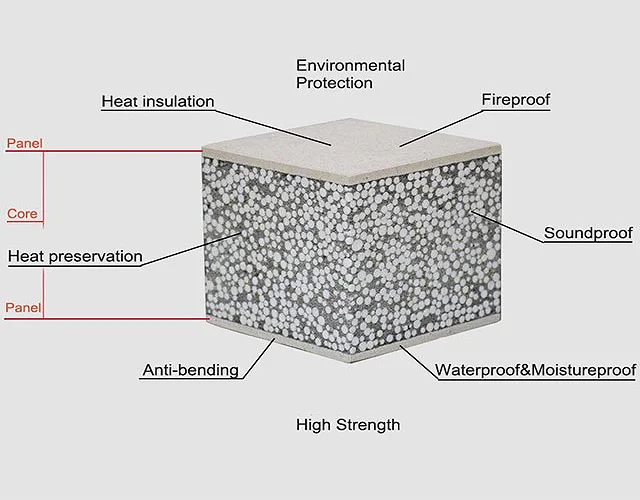

Lightweight EPS Cement Sandwich Wall Panel Machine Is Manufactured According To Current Development Trend Of New Building Materials Market, Our Company Develops The New Innovation Style Of Highly Automatic Production Line, Which Can Make Waste Water Recycle And Wastage Material Reused Through Elaborate Style; Our This Plant Can Demould Automatically, Which Can Save A lot Of Labor Cost ; The vertical panel of partition wall includes hollow wall panel and composite vertical panel, which can be replaced by each other.The strength and other indicators of these two panels are the same. New Lightweight EPS Cement Sandwich Panels Is One New Wall Products, Which Have Good Features Of Energy-Saving ,Environmental Protection, Thermal Insulation, Sound Insulation, Light Weight, and are widely used in building partitions and partitions. Which Make Such Product More Popular All Over The World
Advantage
1. The equipment has high reliability, high output, low cost, and adapts to a variety of materials in different regions.
2. Continuous production is adopted, which improves the production efficiency and reduces the overall cost.
3. Good adjustability. This equipment can produce products of different thickness and length according to the different needs of users, and the operation is flexible and convenient.
4. Various auxiliary equipments matched with the main engine make the production handy.
5. One machine with multiple functions, the same equipment can produce products of different
specifications and models.
specifications and models.
Equipment Specifications
Equipment name | Light partition board equipment |
Types | 1. Full automation line 2. Semi-automation line |
Total installed power | 50KW |
Production workers | 3-5 |
Theoretical Capacity | 20,000sqm~600,000sqm per year |
Requirements for workshop | about 1000㎡, height not less than 6.5 meters |
Products Types | 1. EPS Sandwich Panel 2. Perlite Sandwich Panel 3. Ceramicite Sandwich Panel 4 EPS and Ceramicite Compound Sandwich Panel |
Surface board types | 1. Calcium silicate board 2. Fiber cement board 3. Mgo board |
Product length | 1500-3000mm Product |
Product width | 610mm or 1200mm |
Product thickness | 75-200mm |
Panel Application | Interior wall, exterior wall, roof, floor and fence ( for house, villa, apartment, school, hotel, office building and so on) |
Raw Material

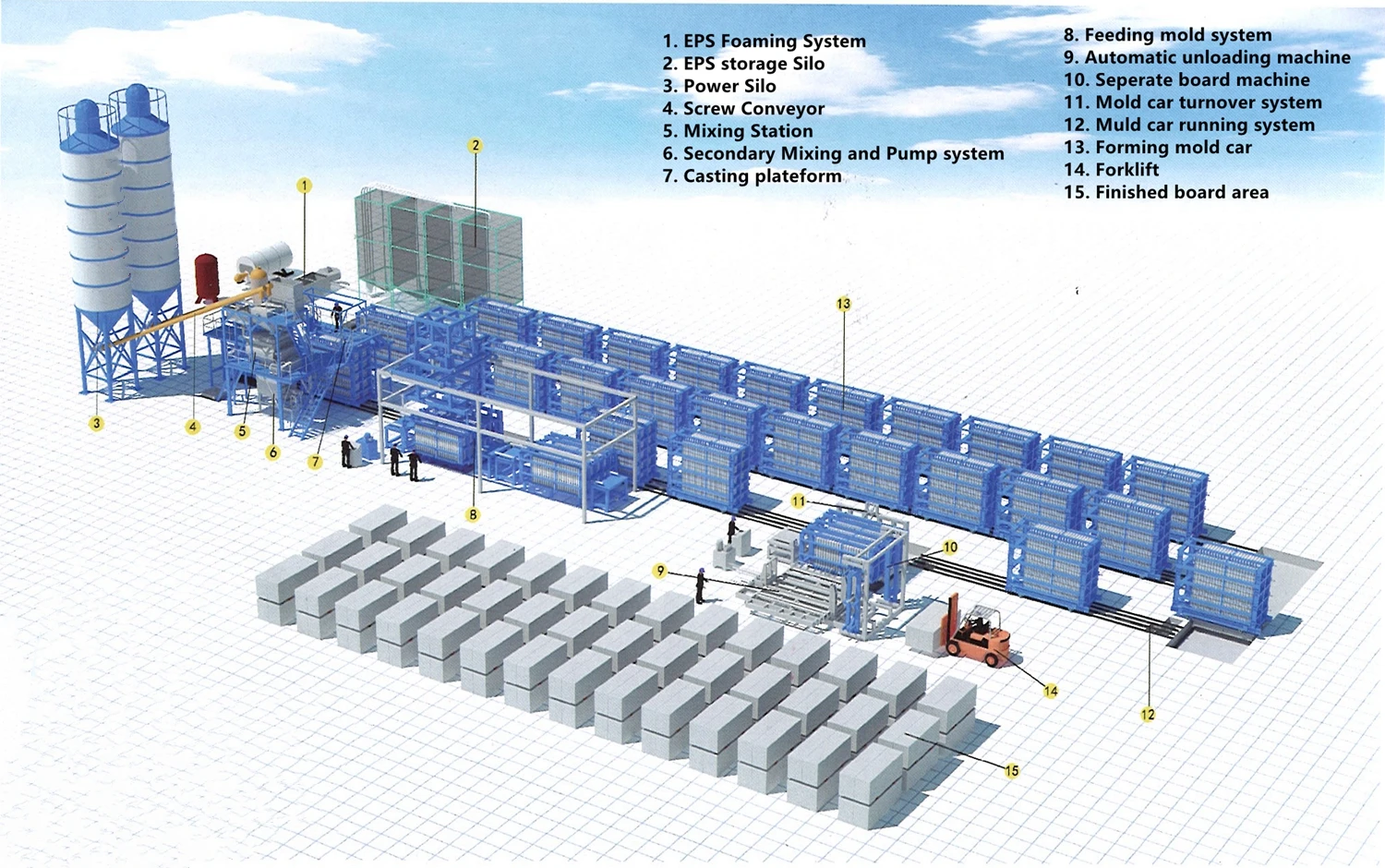

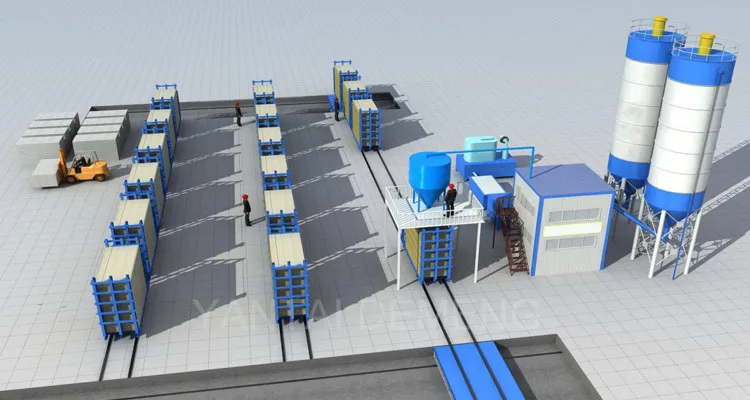

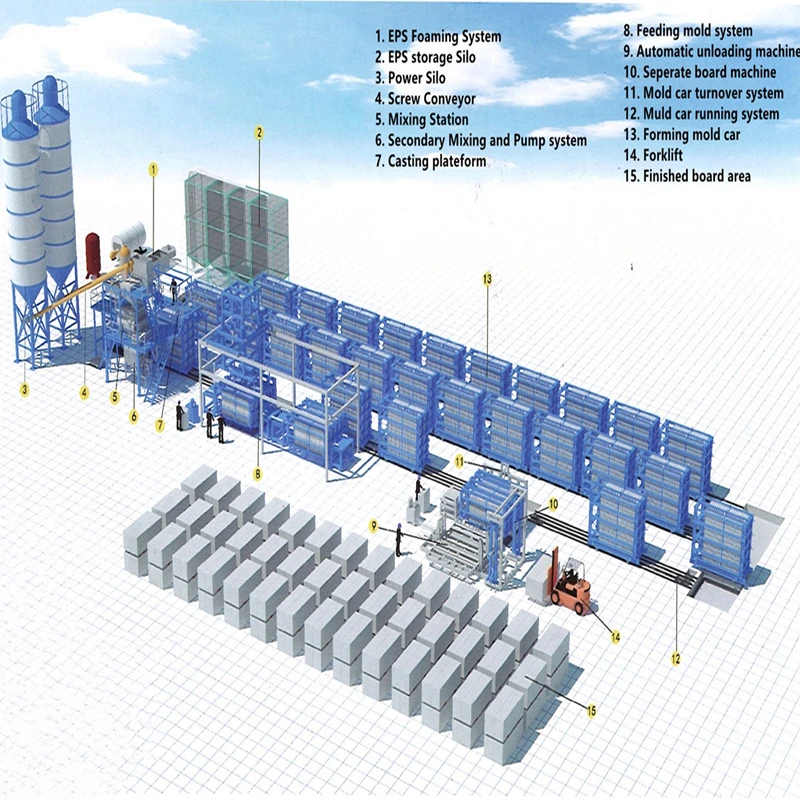

Flow chart
Products Specification
Specification(mm) | Output/mold | |||||||
thickness | Length | Width | Pcs/mold | square meters/mold | ||||
50 | 2270(2240/3000) | 610 | 54 | 74.8 | ||||
60 | 2270(2240/3000) | 610 | 48 | 66.5 | ||||
75 | 2270(2240/3000) | 610 | 42 | 58.2 | ||||
90 | 2270(2240/3000) | 610 | 36 | 49.8 | ||||
120 | 2270(2240/3000) | 610 | 30 | 41.5 | ||||
150 | 2270(2240/3000) | 610 | 24 | 33.3 | ||||
180 | 2270(2240/3000) | 610 | 20 | 27.8 | ||||
200 | 2270(2240/3000) | 610 | 18 | 24.9 | ||||
Equipment details
____________________________________________________________________________
Raw material storage bin
According to the customer's requirements, the design is placed indoors or outdoors and the size
Automatic feeding measurement system
All raw materials are automatically transported and measured into the mixer. Clean production environment, high accuracy, less waste
Blender
After measuring the raw materials, they are automatically put into the mixer for mixing. The U-shaped cylinder is adopted for mixing without dead Angle

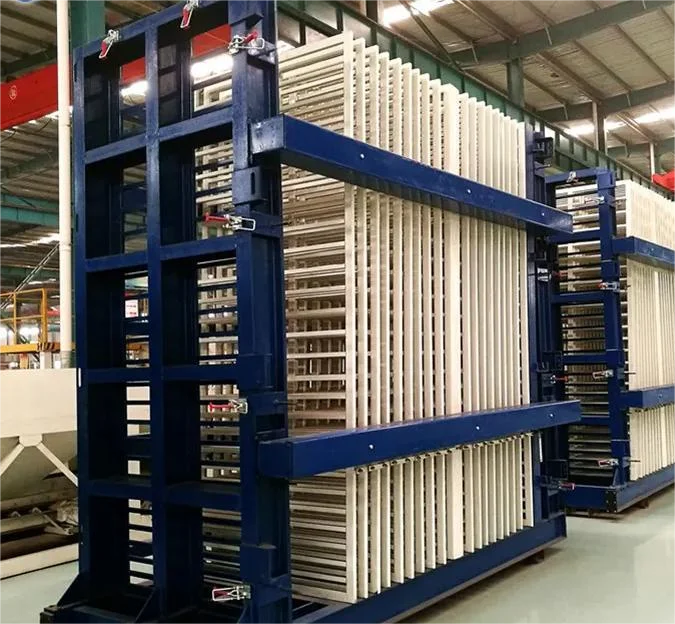

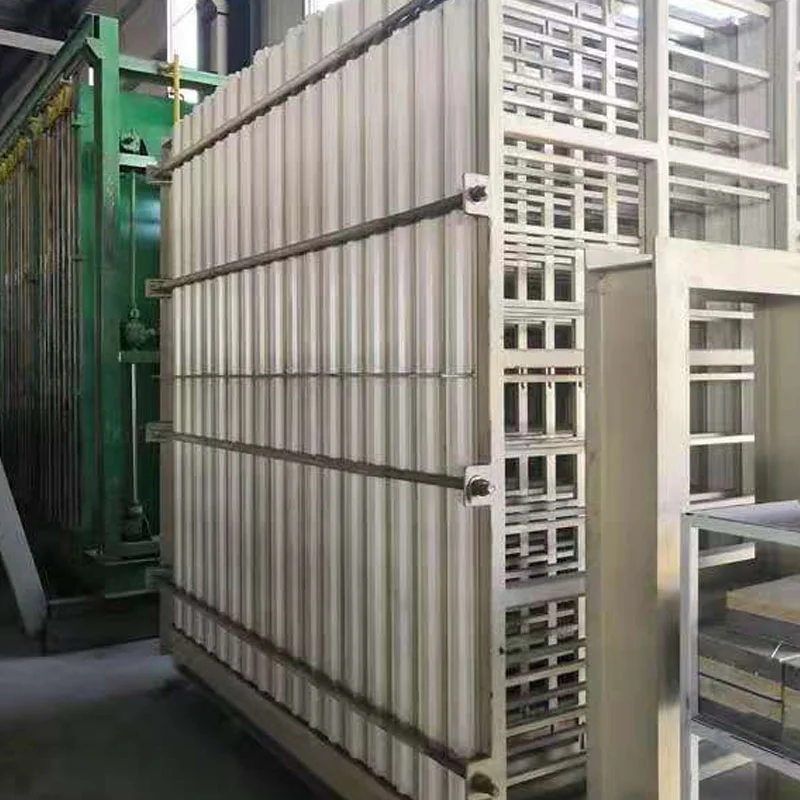

Mold Car
We have artificial mold car, semi-automatic mold car, automatic mold car for customers to choose, to achieve the control of labor costs.

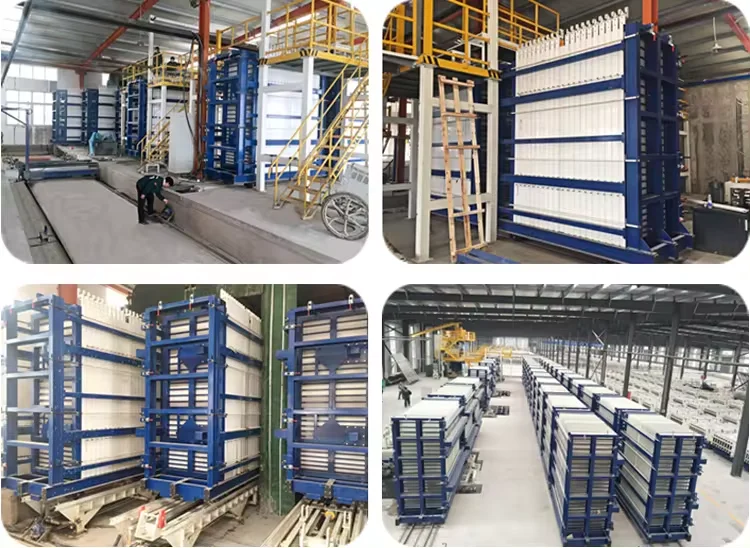

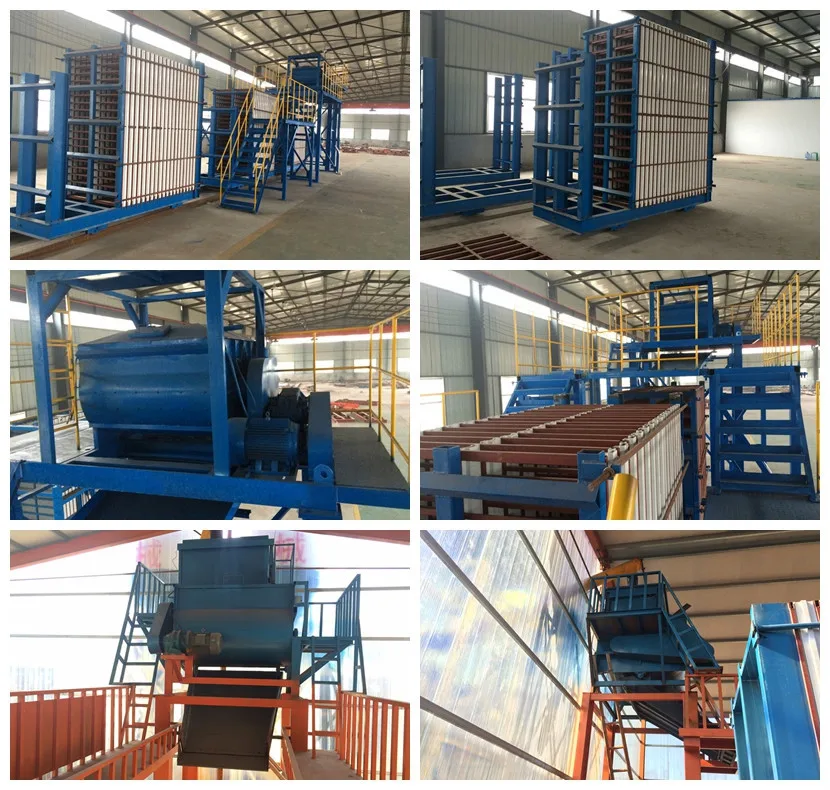

Workshop photo

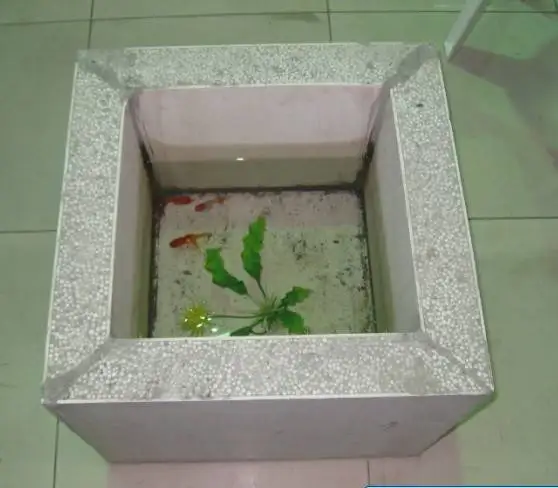

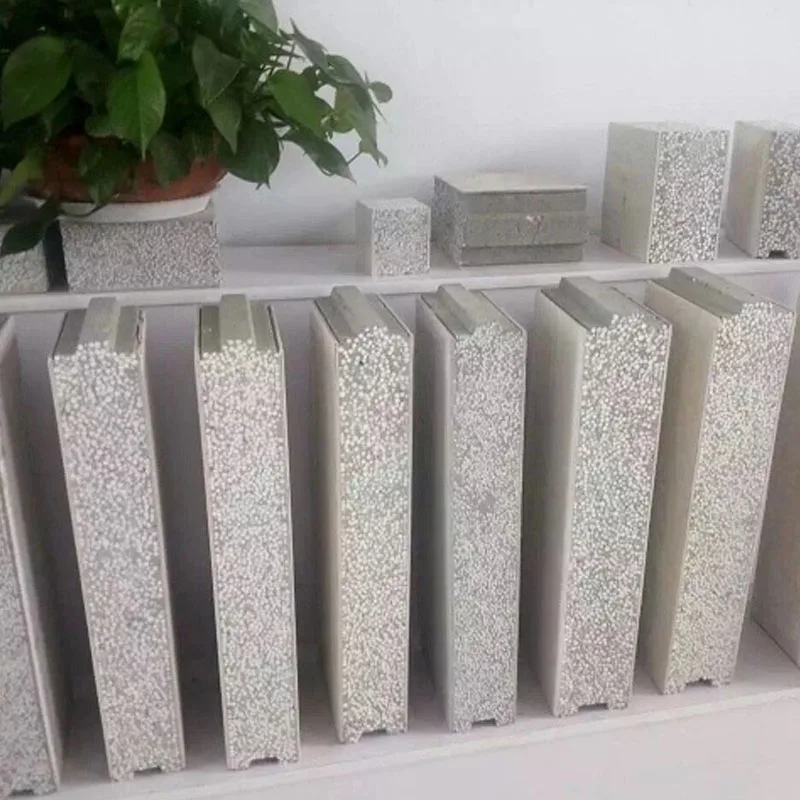

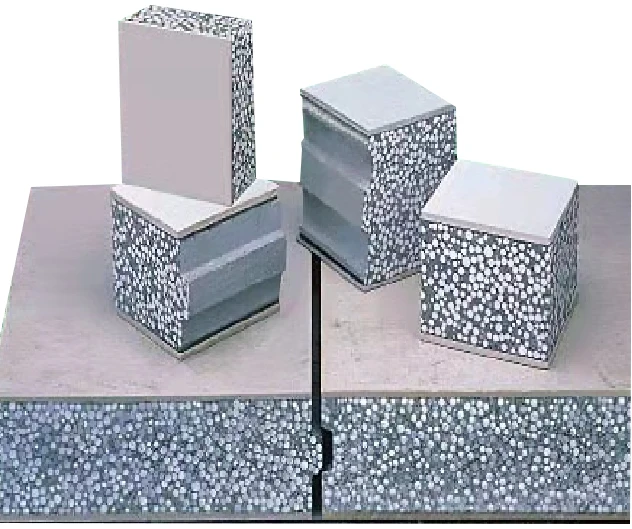

Product Photo

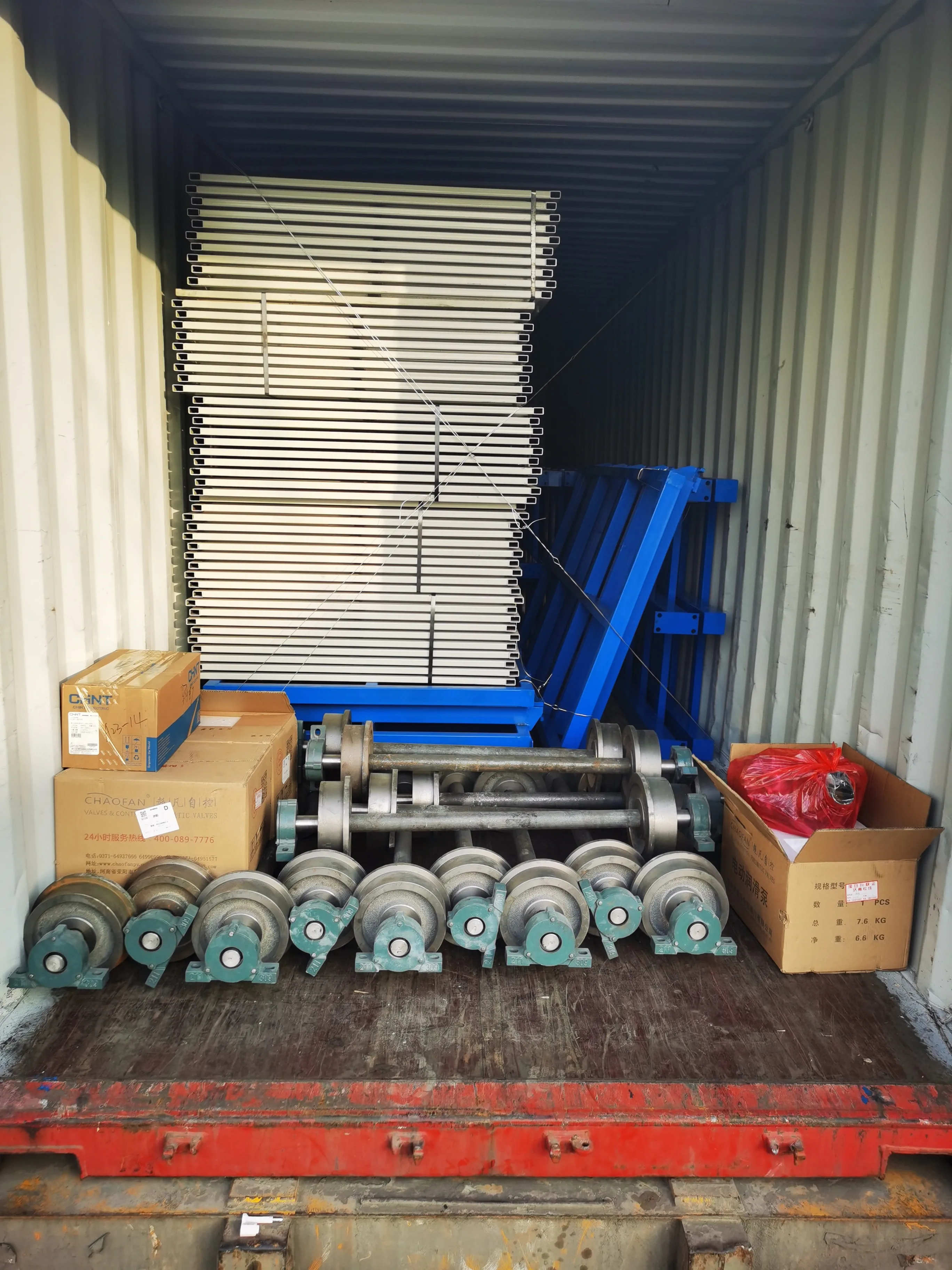

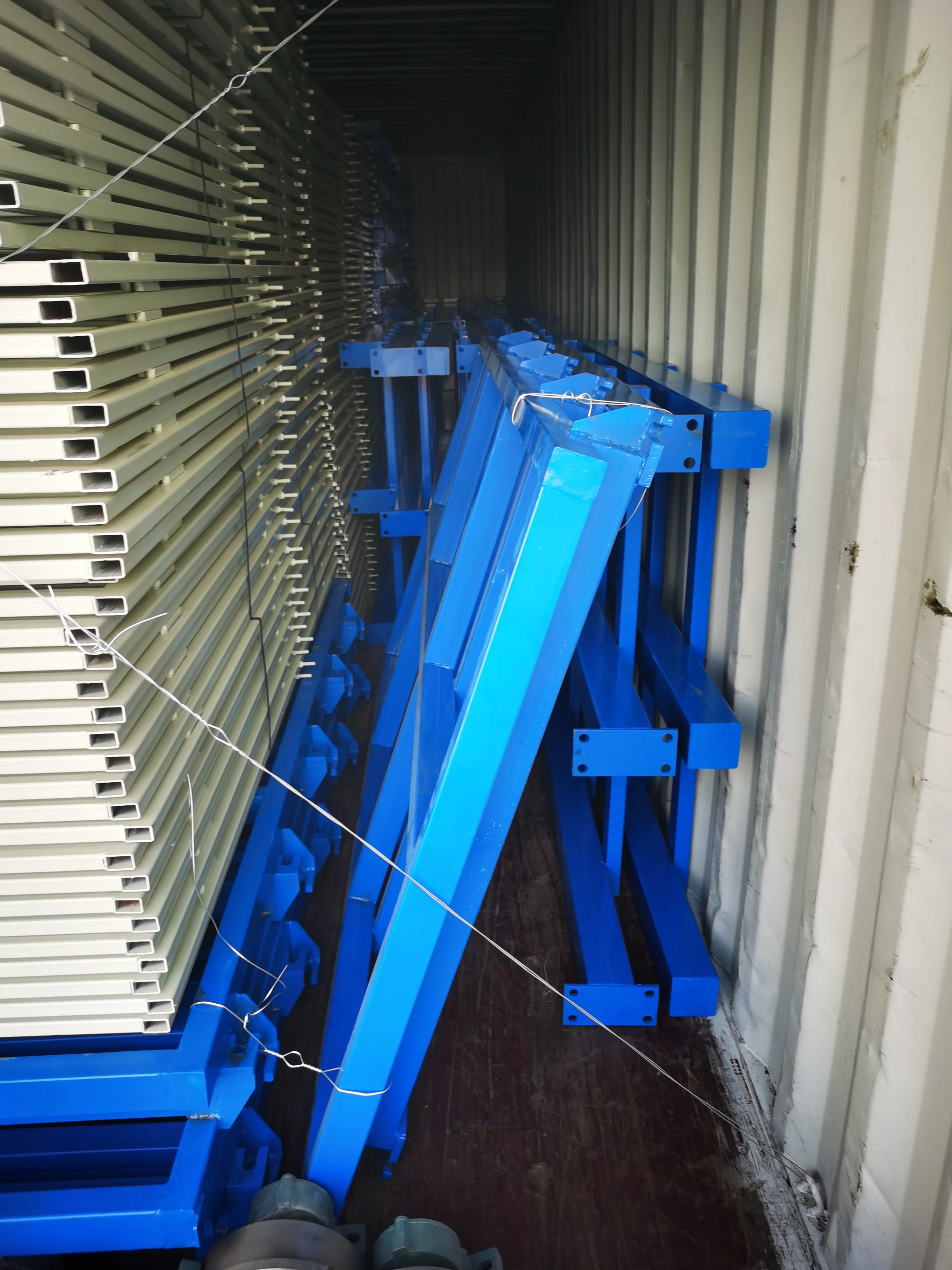

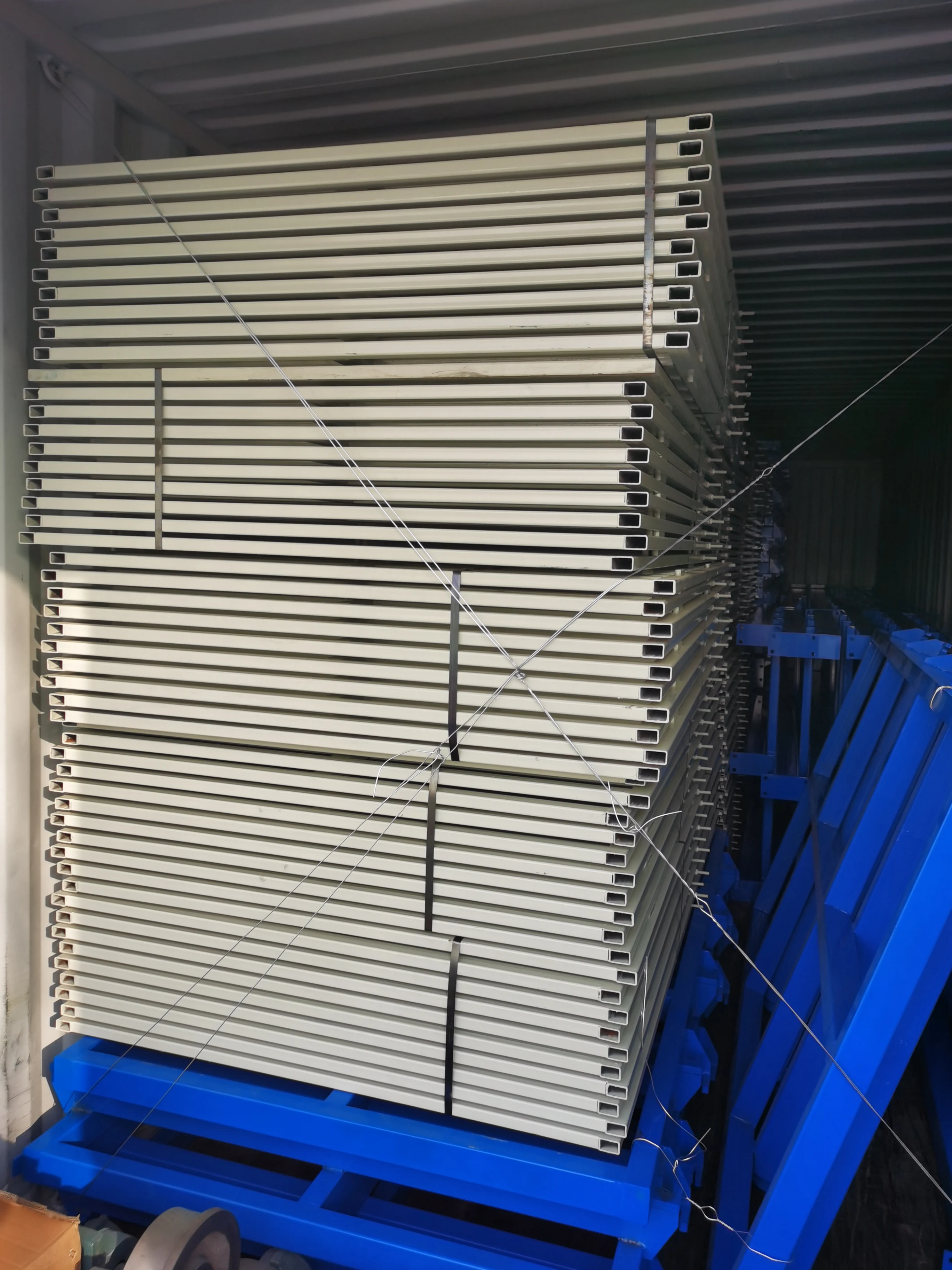

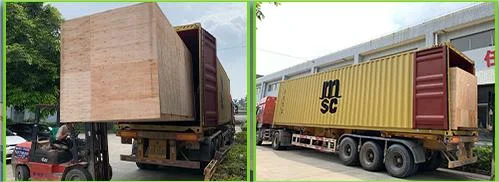

Packing & Delivery
Construction Board Machine From us
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Is the installation of the equipment difficult?
We will provide a full set of drawings such as 3D drawings, circuit drawings and basic drawings, and arrange professional engineers to go abroad for installation and commissioning for you.
Q: What is the product guarantee period ?
A: One year after installation finished at buyer's factory.
Q: What is your terms of payment ?
A: Payment:50% as down deposit by T/T ,50% as the balance paid before loading
A: We are factory.
Q:Is the installation of the equipment difficult?
We will provide a full set of drawings such as 3D drawings, circuit drawings and basic drawings, and arrange professional engineers to go abroad for installation and commissioning for you.
Q: What is the product guarantee period ?
A: One year after installation finished at buyer's factory.
Q: What is your terms of payment ?
A: Payment:50% as down deposit by T/T ,50% as the balance paid before loading
Q:What kind of manufacturing facility is needed?
Dry, ventilated, and meet the production equipment of power, water, air compressor and other infrastructure requirements
Dry, ventilated, and meet the production equipment of power, water, air compressor and other infrastructure requirements
