5 Axis Automatic laser welding machine
Factory Price in Big Promotion Now
Contact: johnson wang
WhatsApp/Skype/Phone Number:
+86-135-6455-0050
Email:
 johnson.wang@aogeolaser.com
We can customize the machine depending on your special needs.


Products Description

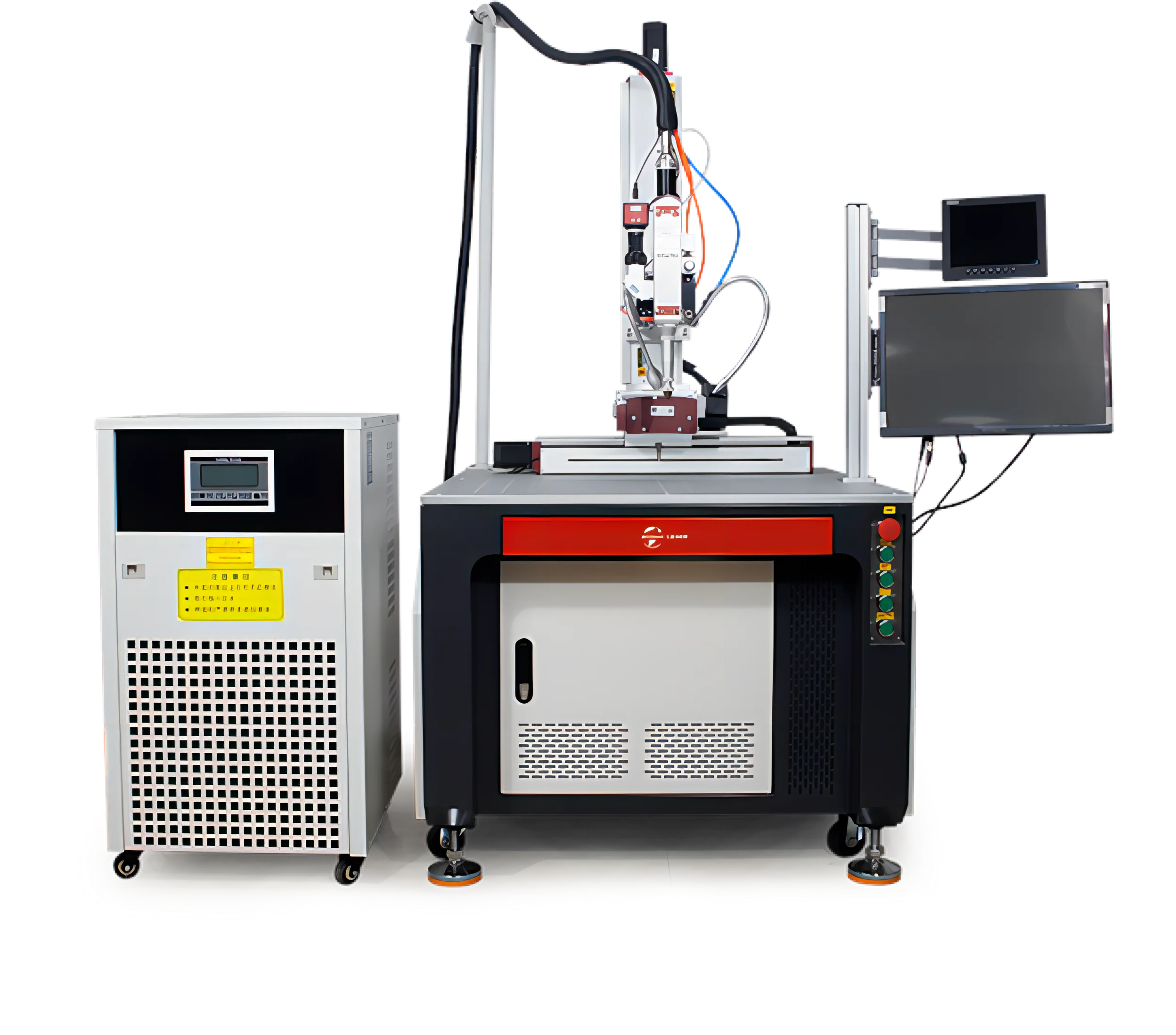

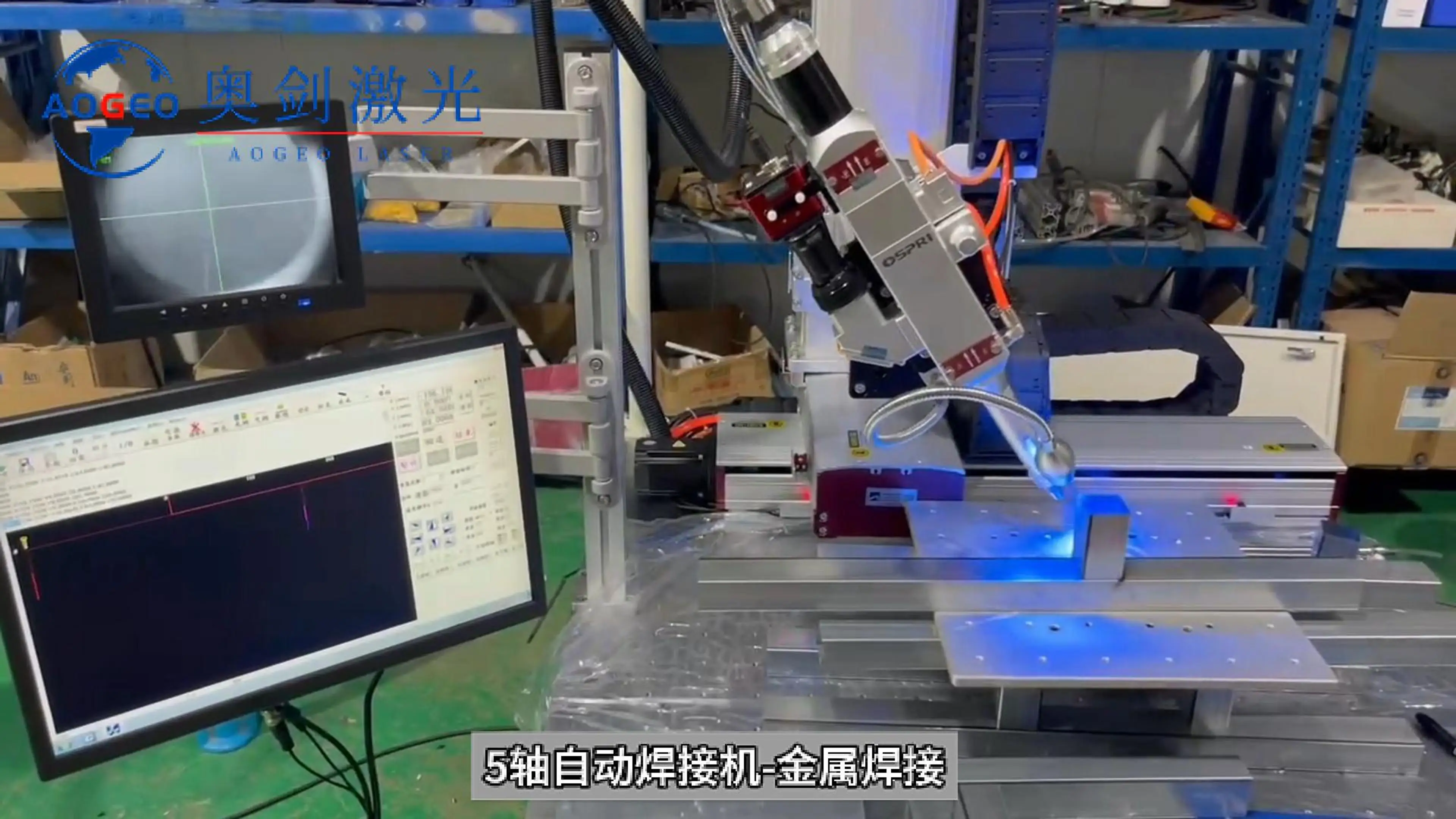

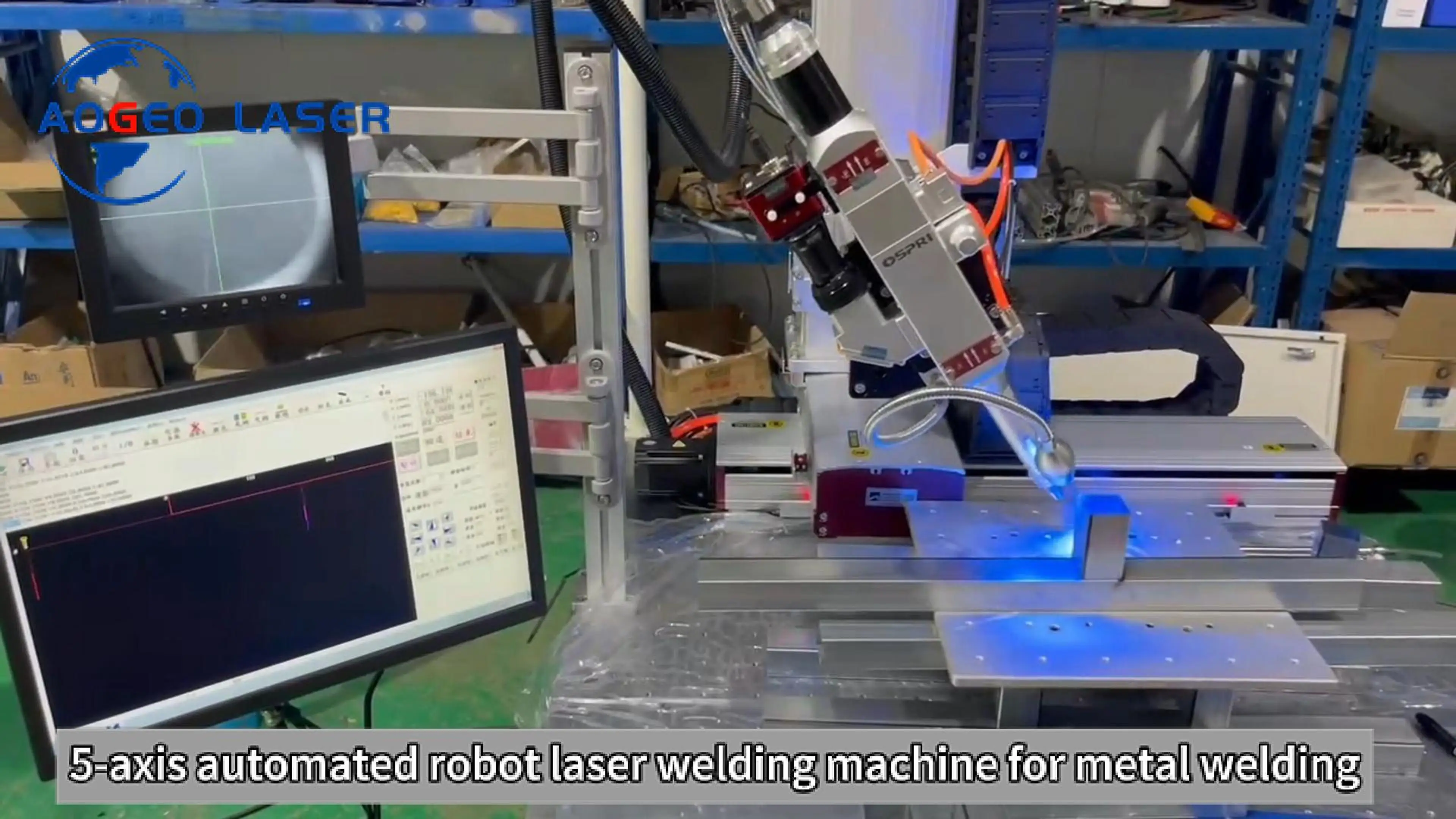

Automatic 3 Axis 4 Axis 5 Axis Laser Welding Machine
This type of laser welding machine is special for automatic laser welding applications. It adopted CW type fiber source with laser energy feedback system and is easy to operate.

Equipped with a CCD monitoring system and advanced control software, the fiber laser welder makes accurate positioning,auto-focuses on the welding parts, and produces high-tensile tight seams with top visual quality. With fixtures and rotating devices, you gain boosted welding efficiency by quickly welding similar products in large quantities and with high consistency.

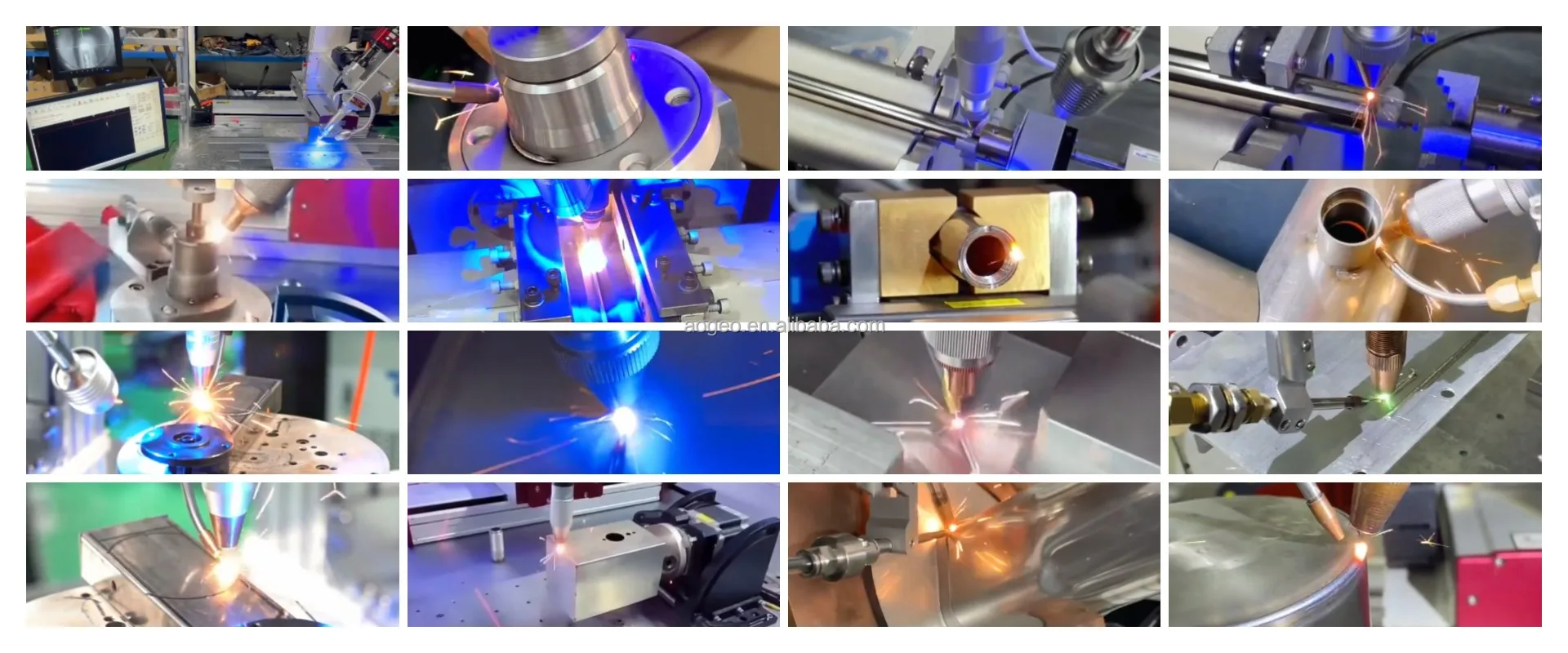

Suitable for welding of the kettle, vacuum cup, stainless steel bowl, sensor, tungsten wire, high power diode (triode), aluminum alloy laptop shell, mobile phone battery, door handle, mould, electric apparatus fittings, filter, nozzle, stainless steel products, gol head, and zinc alloy artworks.

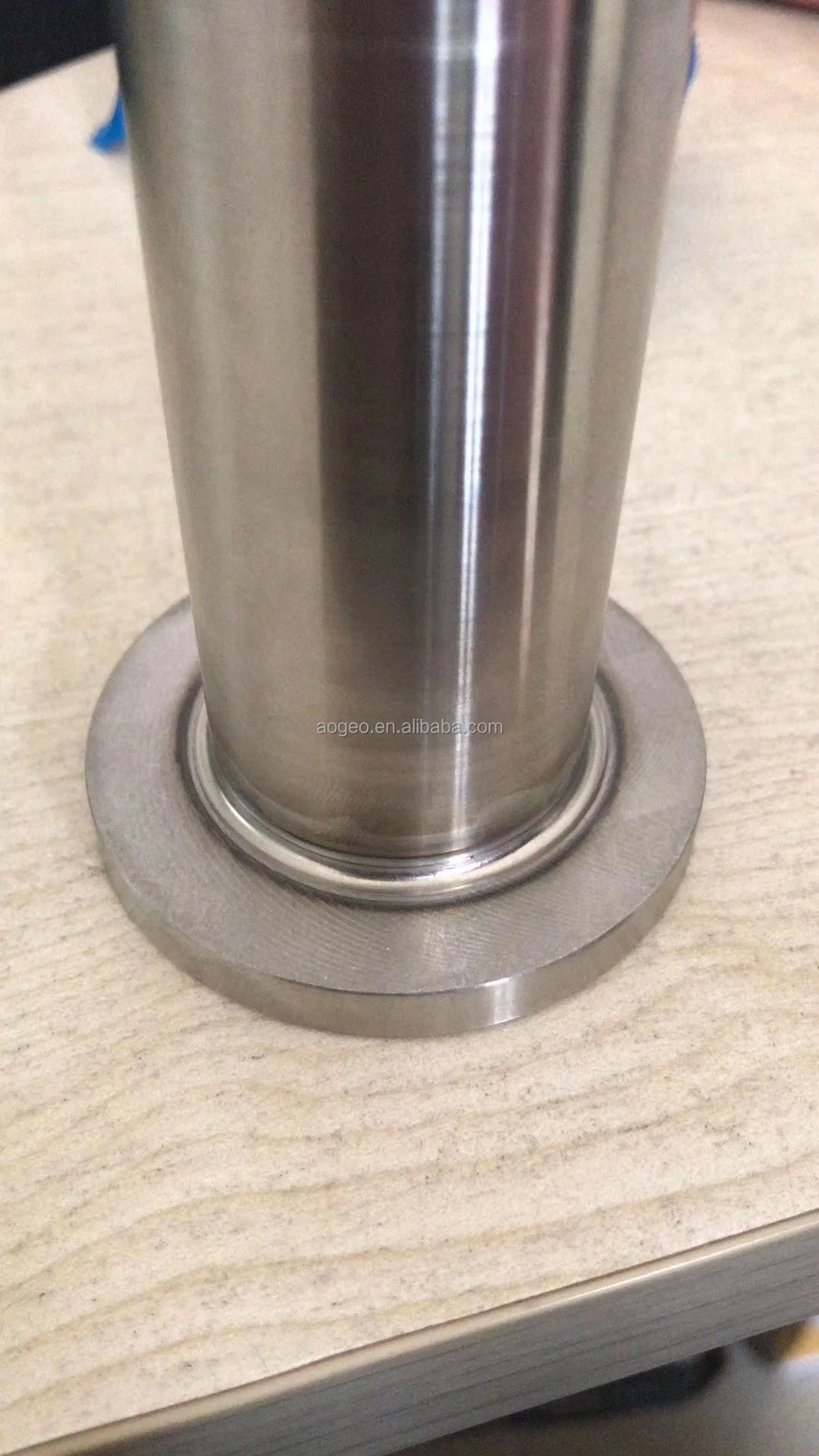

Weld point, straight line, circle, square, weld vertical track.

1. It gives more design freedom to create various seam shapes.
2. X, Y, Zelectric three-axis stroke 600*400*400(optional), can reach repeat positioning accuracy of ±0.05.
3. Optional laser generators, such as Fiber laser, YAG, QCW high-speed splitter, semiconductor, etc.
4. Exclusive models can be customised according to customer needs, and two rotating shafts can be added.




Product Details

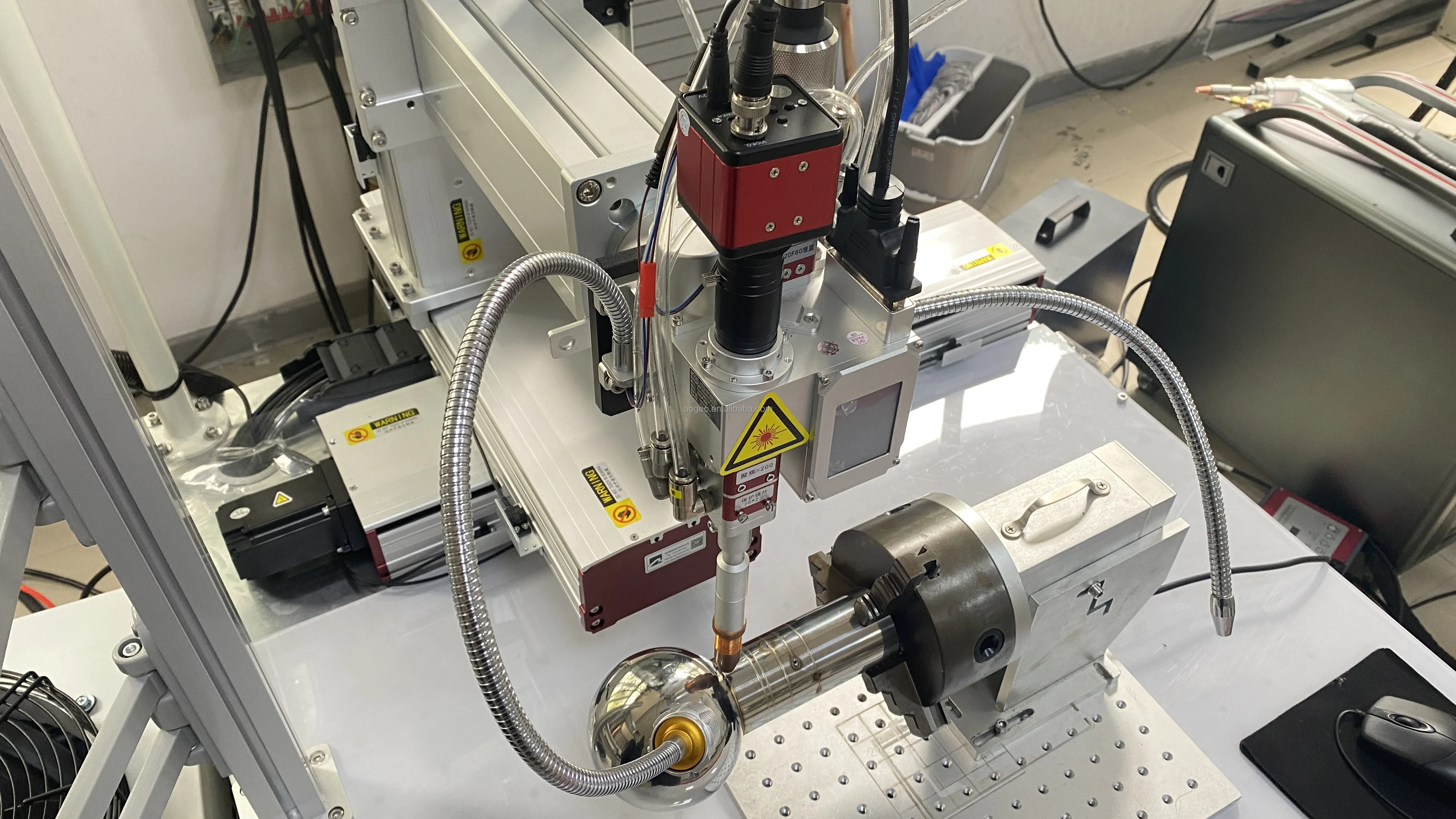

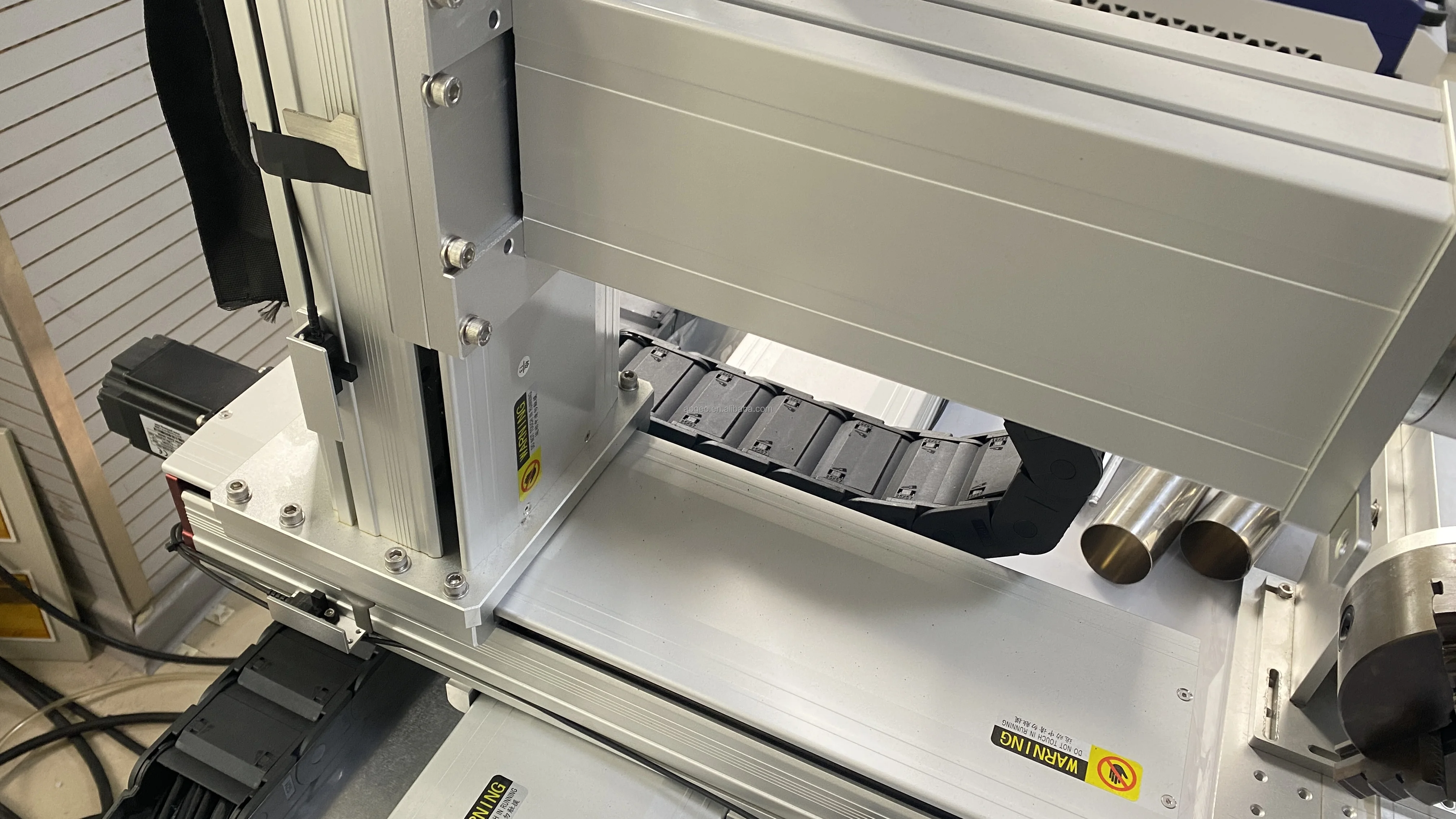

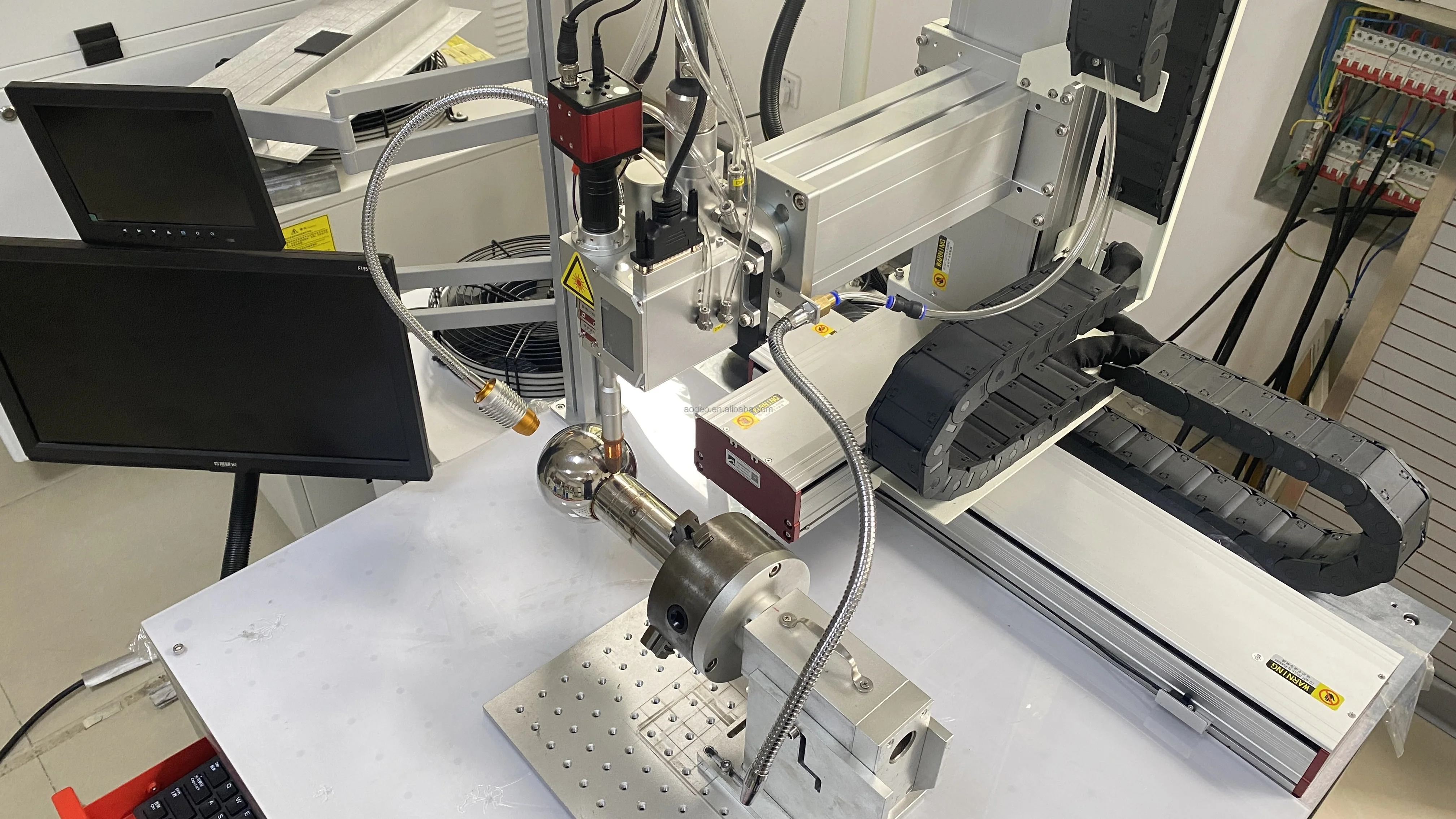

X.Y.Z Axis Guide Rail
With the function of moving up anddown, it can weld irregular products,TheZ axis has brake function.

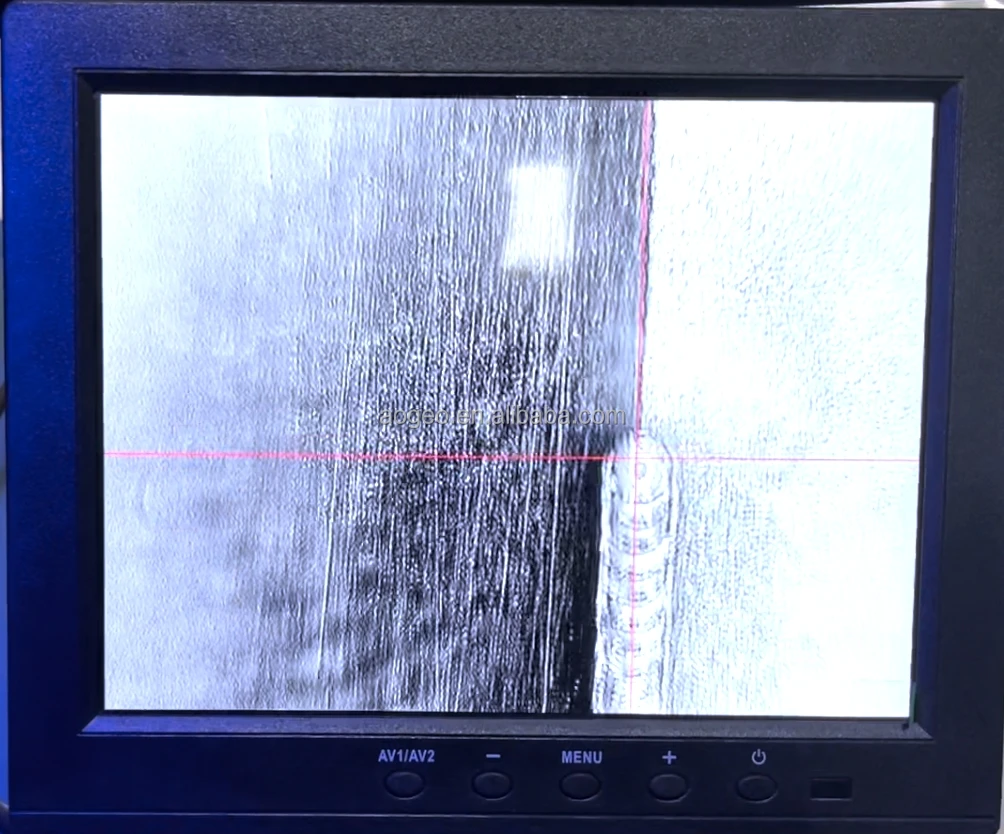

CCD Camera Display
Display on a video display byconnecting the device, Clear weldingpoint.

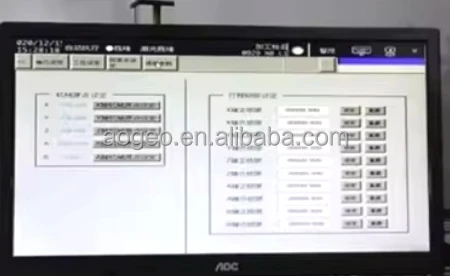

Special Welding Software
It has function of continuous laserbeam, and the adjustable outputwaveform, which can assure theprecious and high-speed welding.

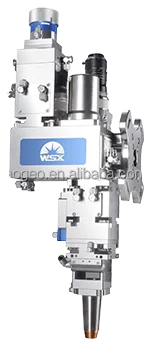

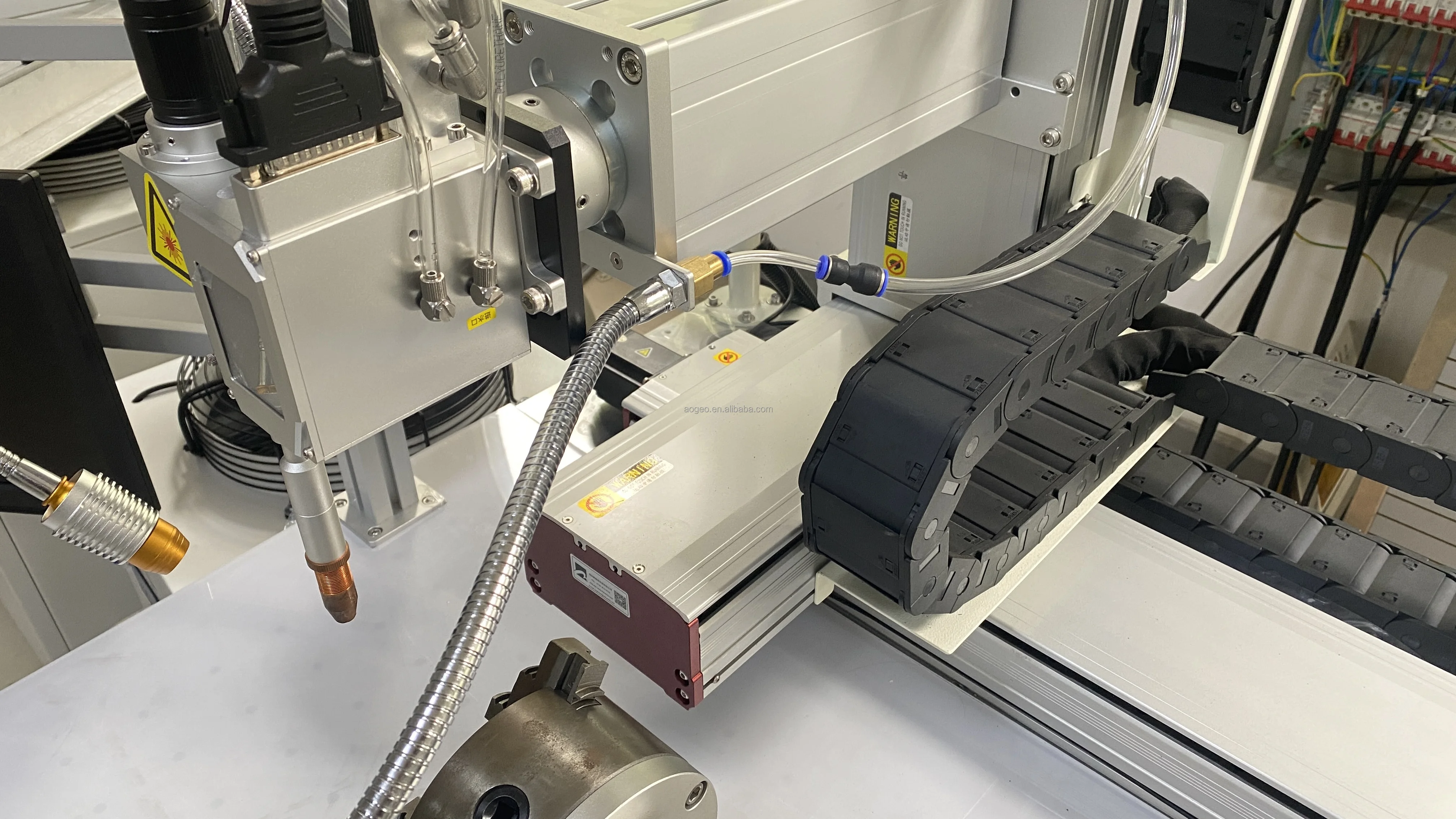

Laser Welding Head
Adopts industrial standard QBHconnector, high welding precision,outstanding durability, ease maintenance and adjustment.

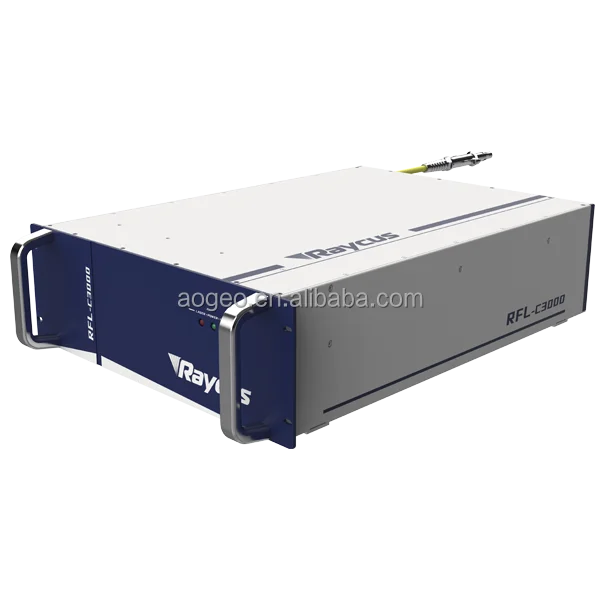

Laser Source
With the advanced fiber lasergenerator, we can get 200% highereffiency 100% seal ability afterwelding, and 50% lower consumablecost.

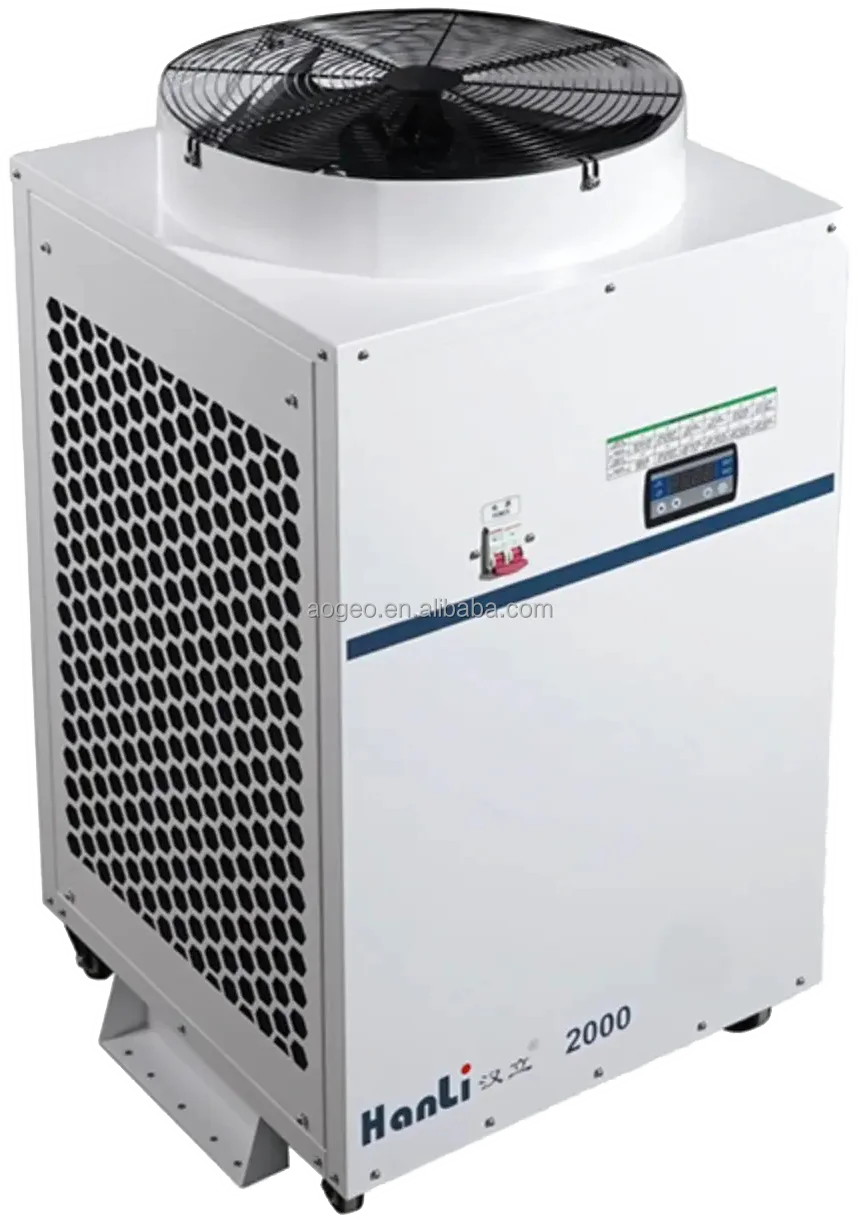

Water Chiller
Long service life, stable cooling, twointelligent temperature control modes,precise temperature control with aaccuracy of up to +0.1'C.


Product Advantages



Easy operation with automaticwelding;

simple request for worker'swelding skill.





3-6 axis driving available to meet theneeds of large travel.




Mass production by machine operationmulti welding station optional, thequality of mass production is stable.

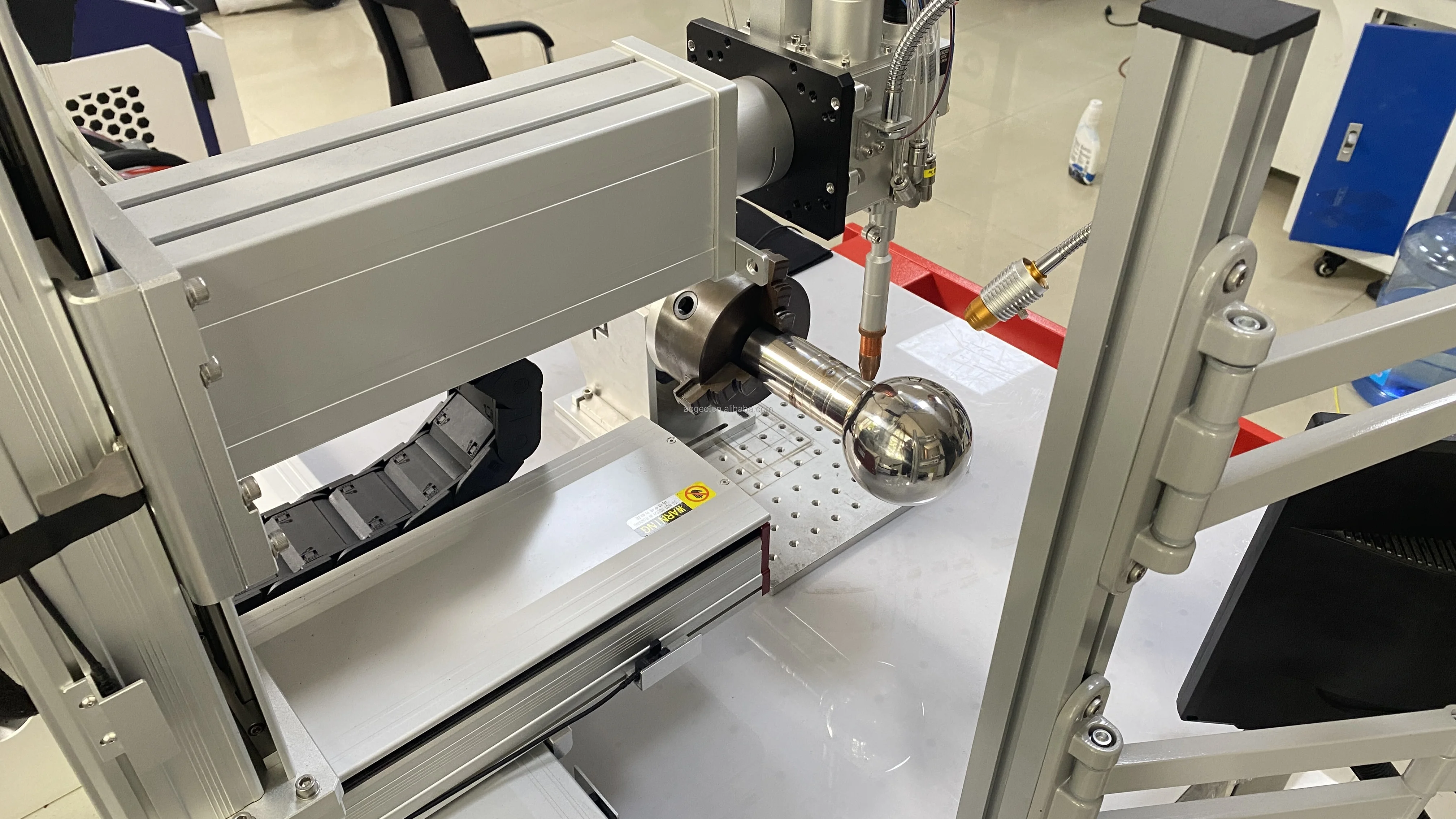

The workpiece can be moved on aplane and a rotating track, and thewelding head swings left and right tomeet a variety of welding rquirements;multiple dimensional welding paths isavailable to weld parts with complexstructures.




Good welding effect,reducesecondary processing to saveyour cost and production time


Technical Details


Technical Parameters of Automatic Platform Laser Welding Machine
Model
AG-LWH-F1500
AG-LWH-F2000
AG-LWH-F3000
AG-LWH-F4000
Laser Source
Raycus/Max/ BWT (optional)
Laser Source Type
Continuous or modulate
Power Adjustment Range
10-100%
Laser Wavelength
1080±10nm
Welding Speed
0-90mm/s
0-100mm/s
0-110mm/s
0-120mm/s
Welding Spot
0.1-5mm adjustable
Min Line Width
≤0.15mm
Gas Requirements
10-15L/min（Ar/N2）
Fiber Connection
QBH
Control System
Earain/BSL (optional)
Servo Motor
Leadshine/ Panasonic (optional)
HD CCD
Supported
Table Size
880*1000mm
Diameter of Fiber Core
50um
Suitable Material
Aluminum, carbon steel, stainless steel, copper, brass, galvanized sheet, etc.


Feedback












Factory introduction






Cooperation brand




Corporate patent




Exhibition

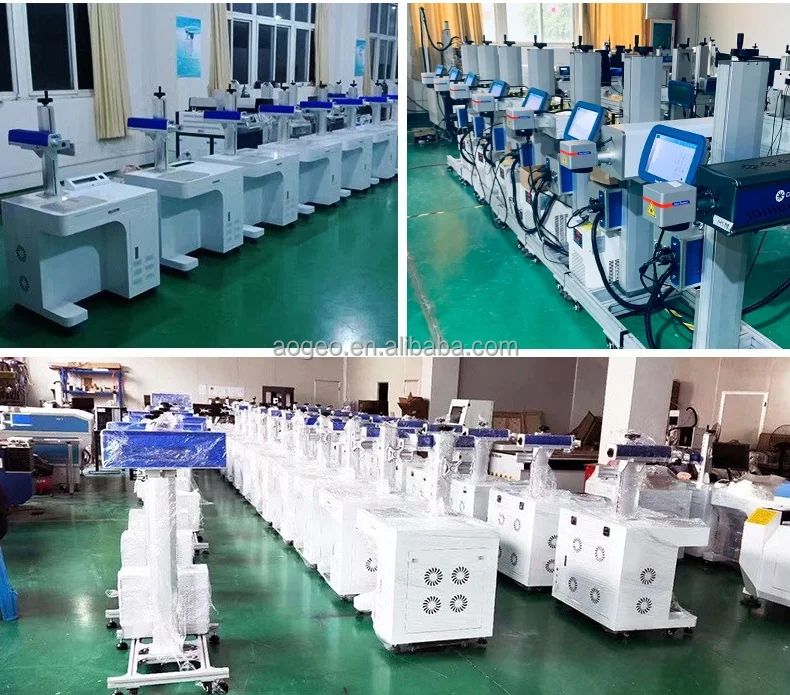

Producing departments

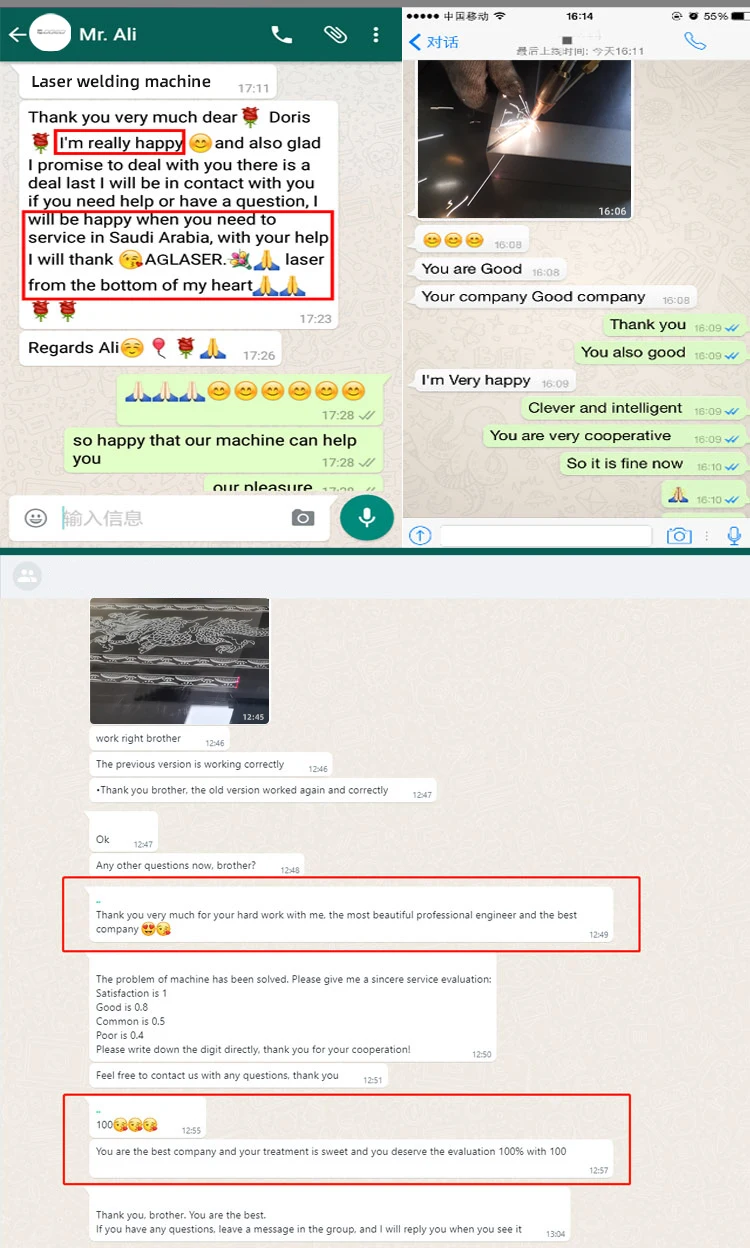

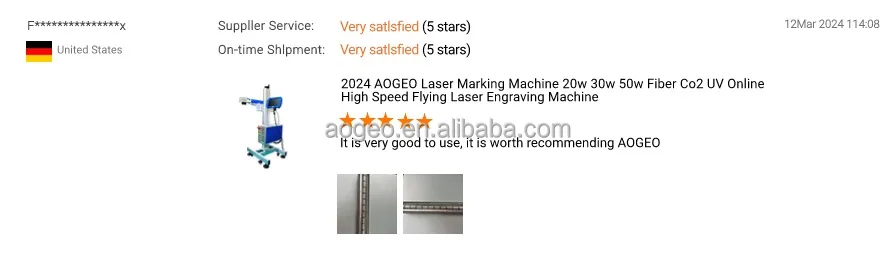

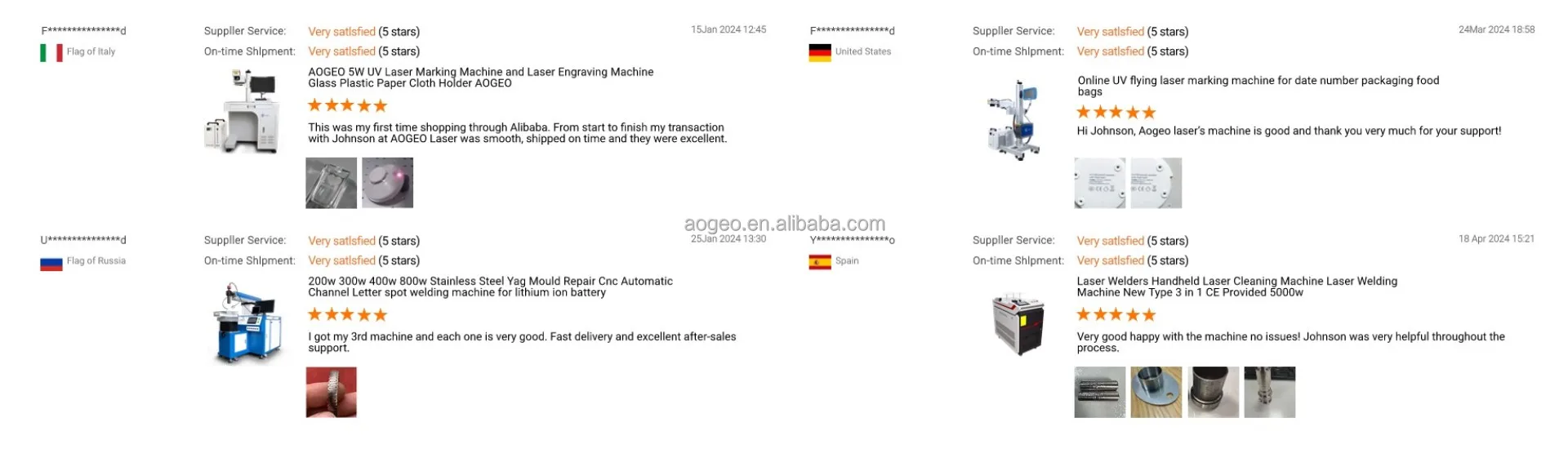

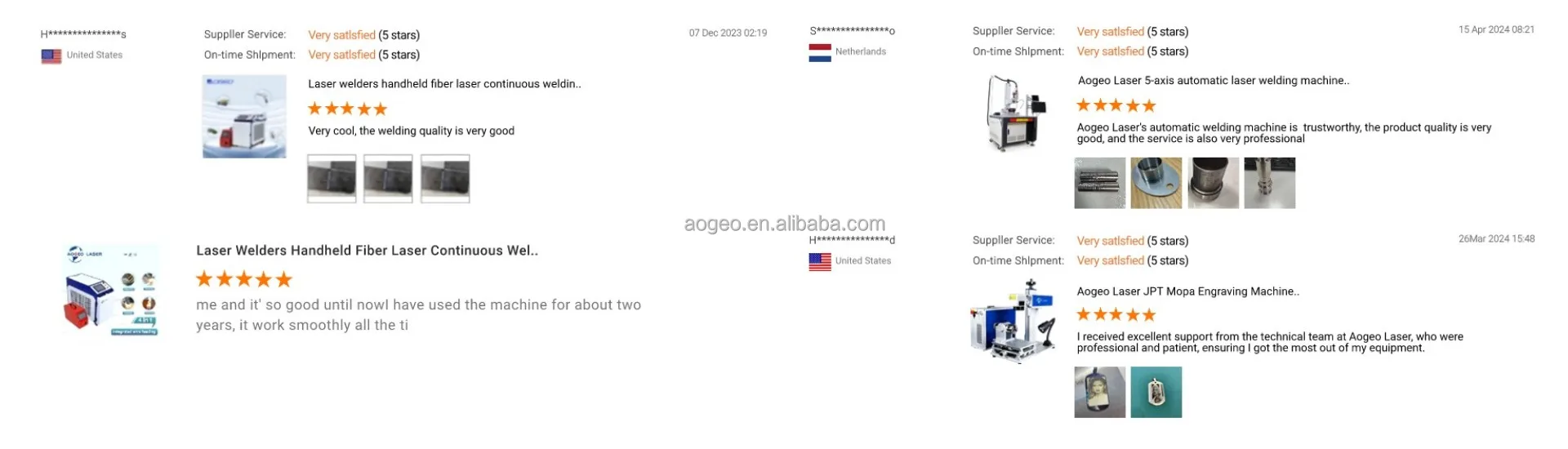

Customer review




FAQ


Q1: What materials is this machine suitable for?
Mainly used for laser welding of gold, silver, titanium, nickel, tin, copper, aluminum and other metals.

Q2: lf we don't know how to use the machine, do you have teaching ortraining class for us?
Yes. We have fully customers service training video for your kindlyreference, attached will also be machine welding parameters and worknotes. lfyou still confused about it, please contact our sales and we willhelp you any mins as your service.

Q3: How long is the delivery time?
For standard machines, it would be 1-2 weeks; For non-standard machinesand customized machines according to clien's specific requirements, itwould be 3-4 weeks.

Q4: How do you guarantee the quality of the machine?
The whole production will be under regular inspection andstrict quality control. AOGEO machines will be tested before shipmentwith our fully quality control system. CE Certificate qualified, meetEuropean and American standard.ean and American standard.

Q5: Do you arrange shipment for the machines?
Yes, any shipping terms could be negotiable. For EXW price,clients needto arrange shipment by themselves or their agents.
