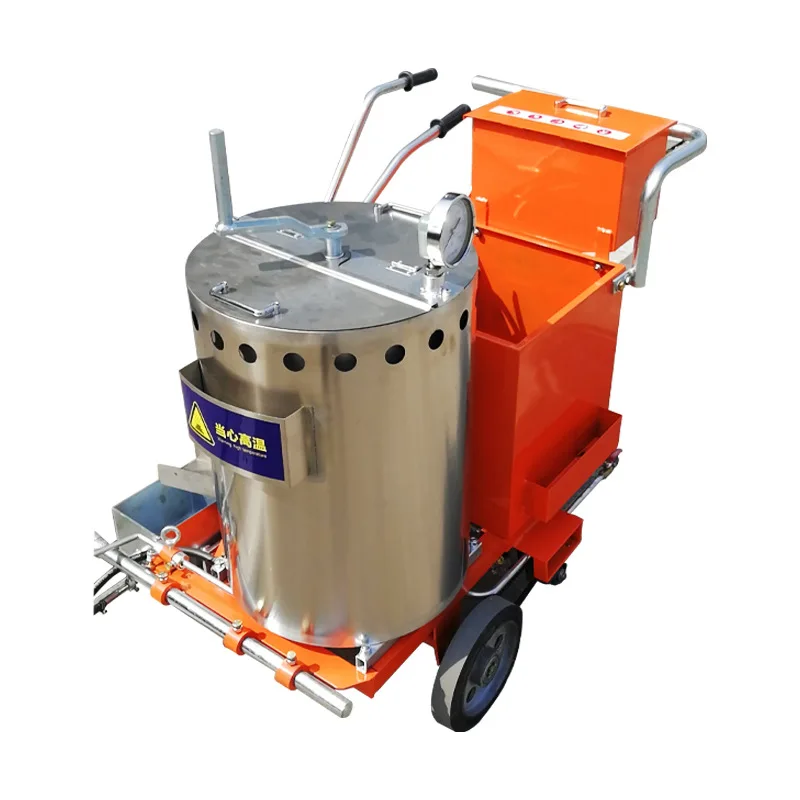

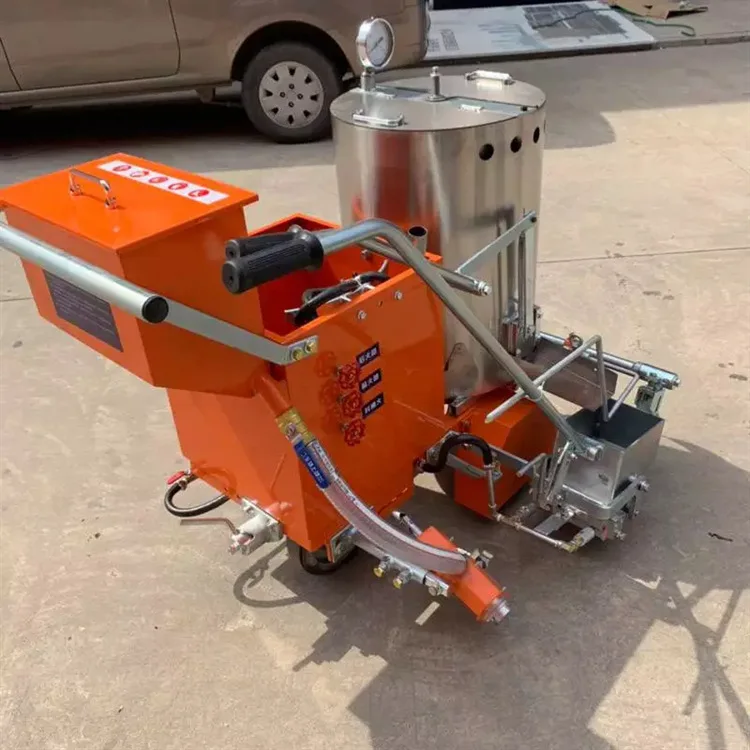

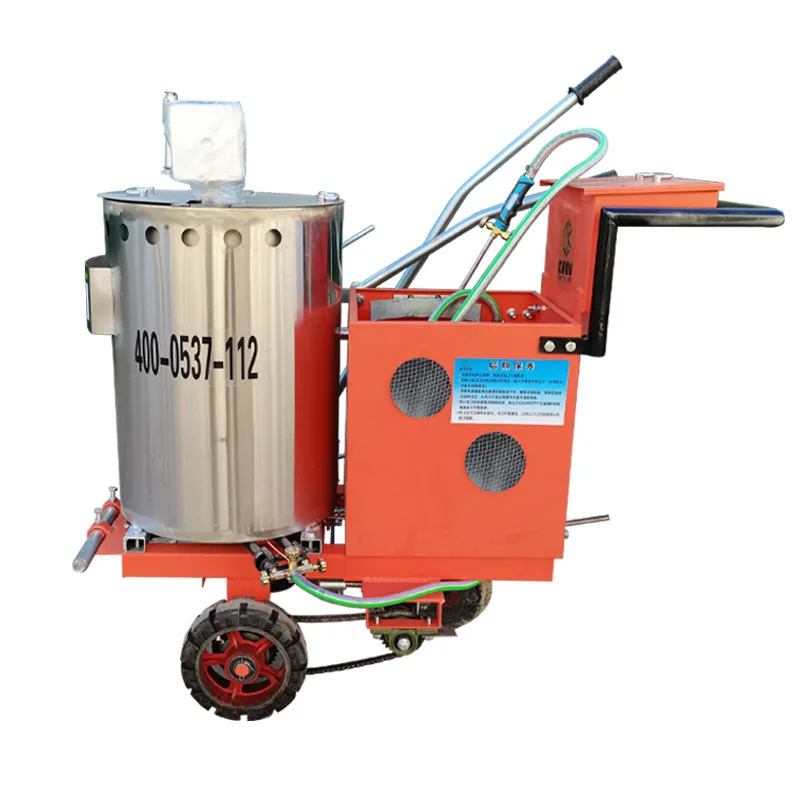

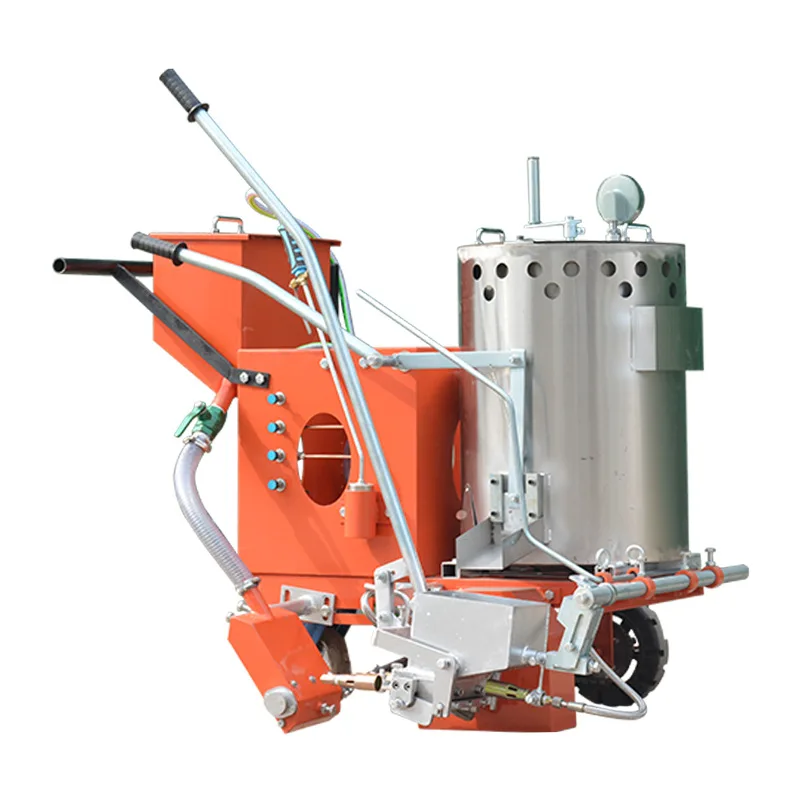

Powerful Engine Road Marking Machine Sports Field Line Paint Machine Line Marking
- Category: >>>
- Supplier: Xiamen Firstents Industrial Co. ltd.
Share on (1601173332783):
Product Overview
Description

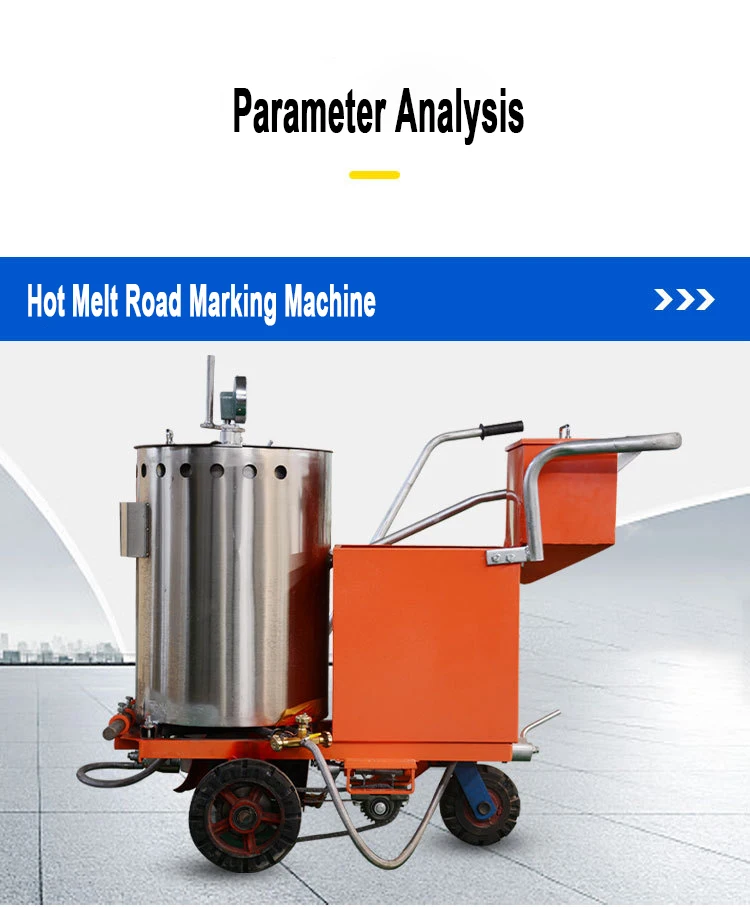

Products Description
Volume: | 132 * 85 * 100cm | Coating Thickness: | 1.0-3.0mm |
Weight: | 135kg | Application Speed: | 1.5km/h |
Coating Capacity: | 100kg/time | Heating Temperature: | 180-210℃ |
Heating Method: | Liquefied Petroleum Gas | Liquefied Gas Tank: | 15kg |
Volume: | 190*168*164cm | Power: | 15 Horsepower Diesel Engine |

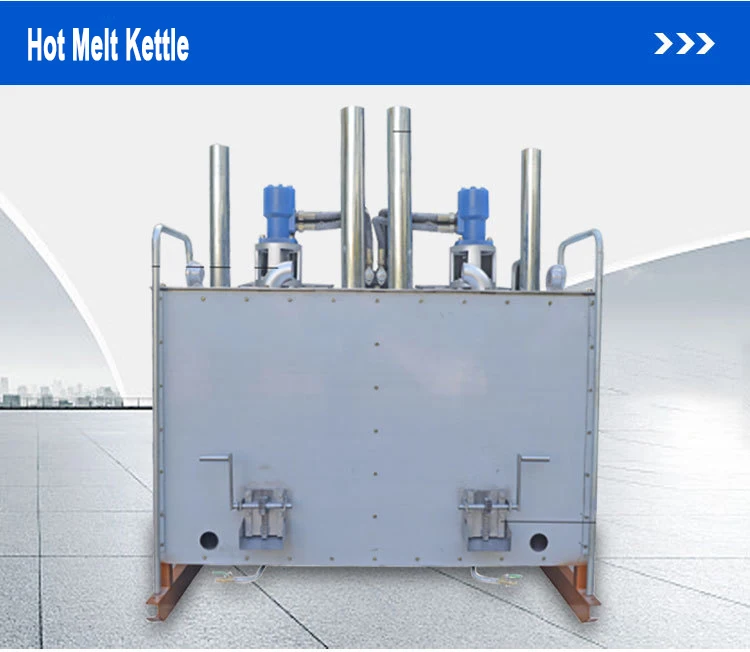

Weight: | 600kg | Stove: | Alloy Direct Spray Stove |
Power Mode: | Hydraulic Pressure | Heating Method: | Liquefied Petroleum Gas |

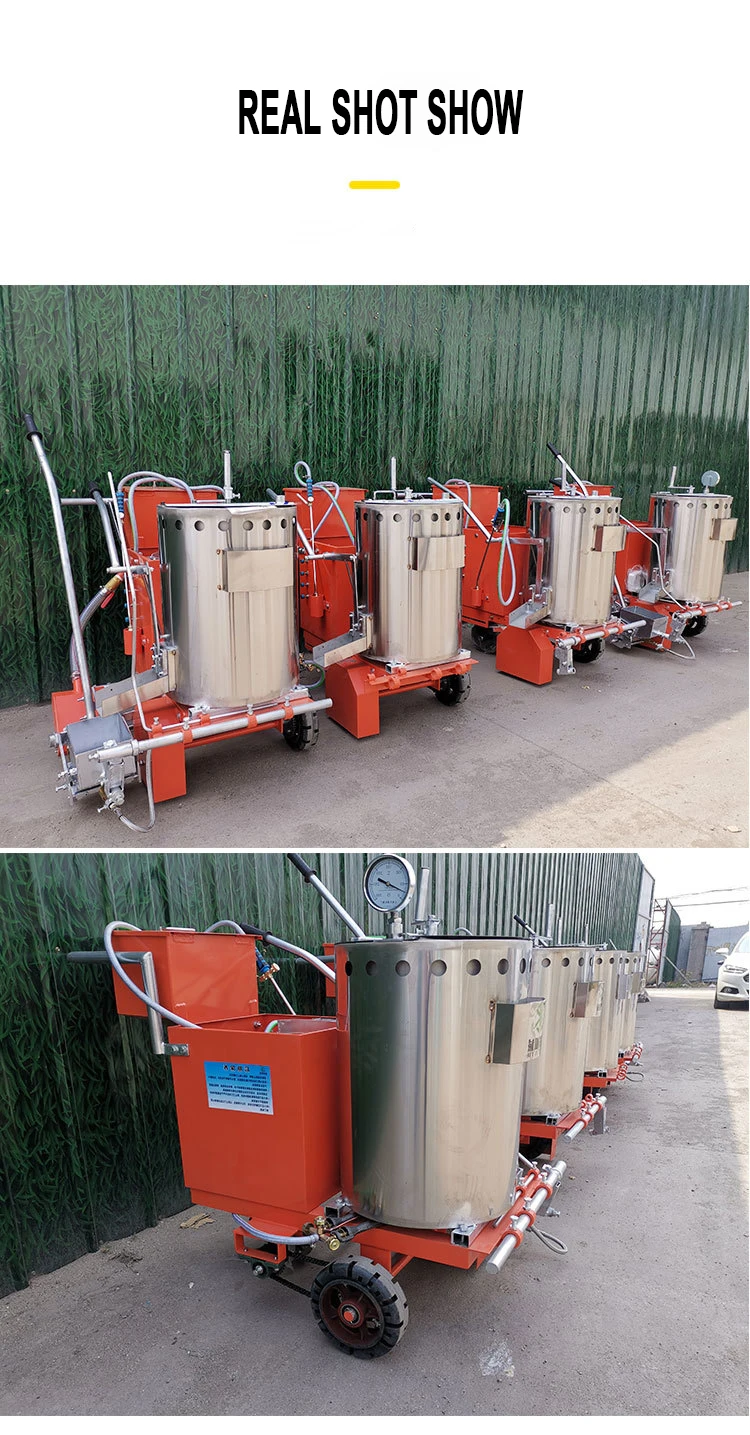

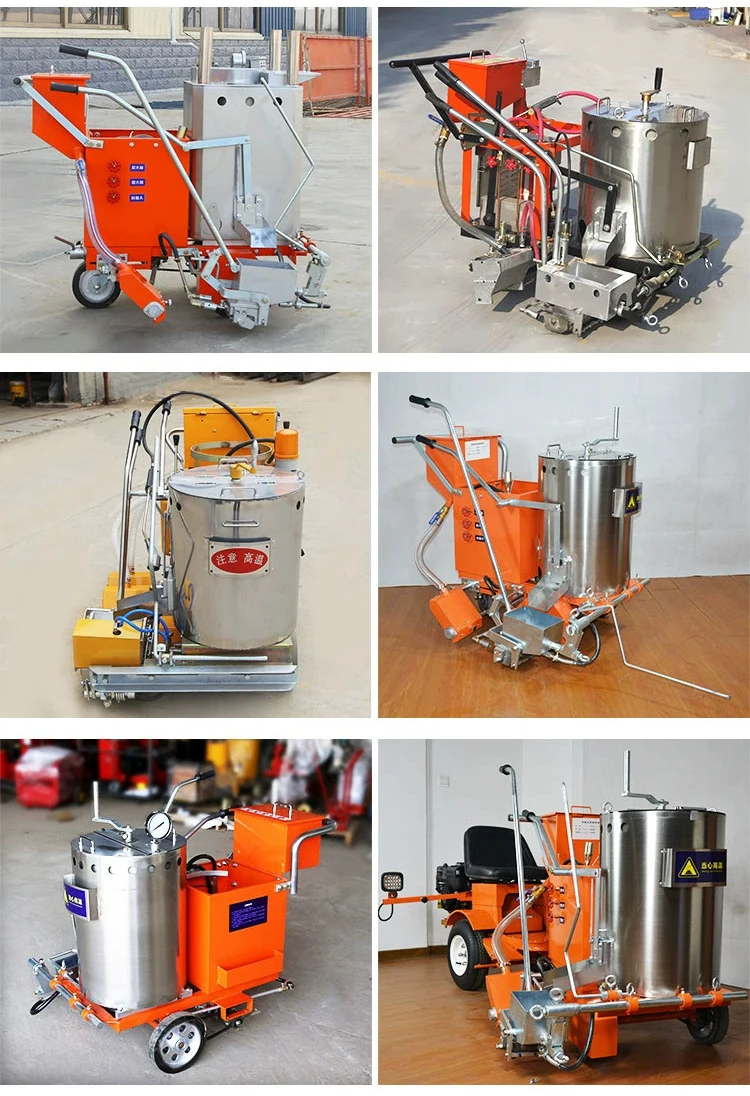

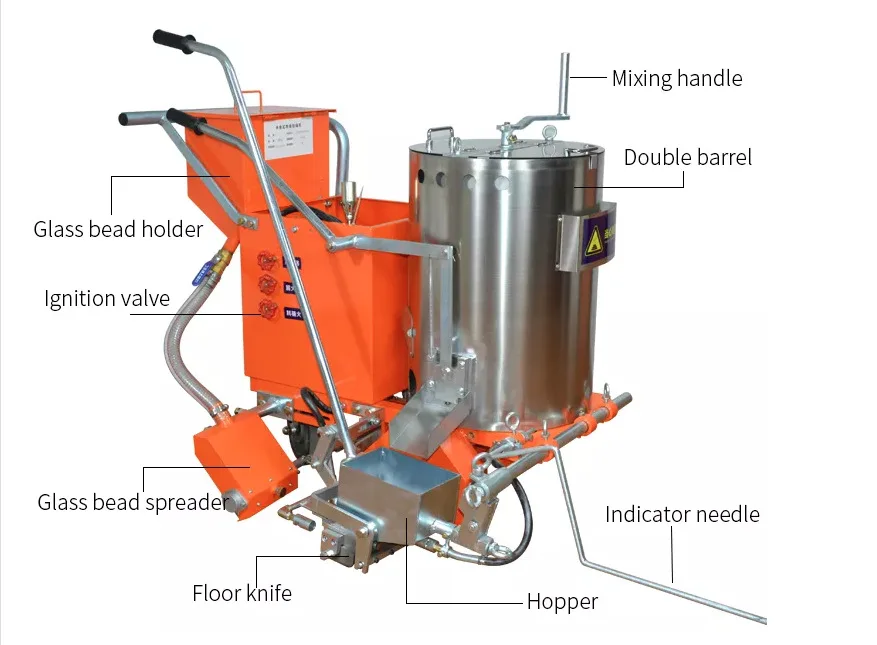

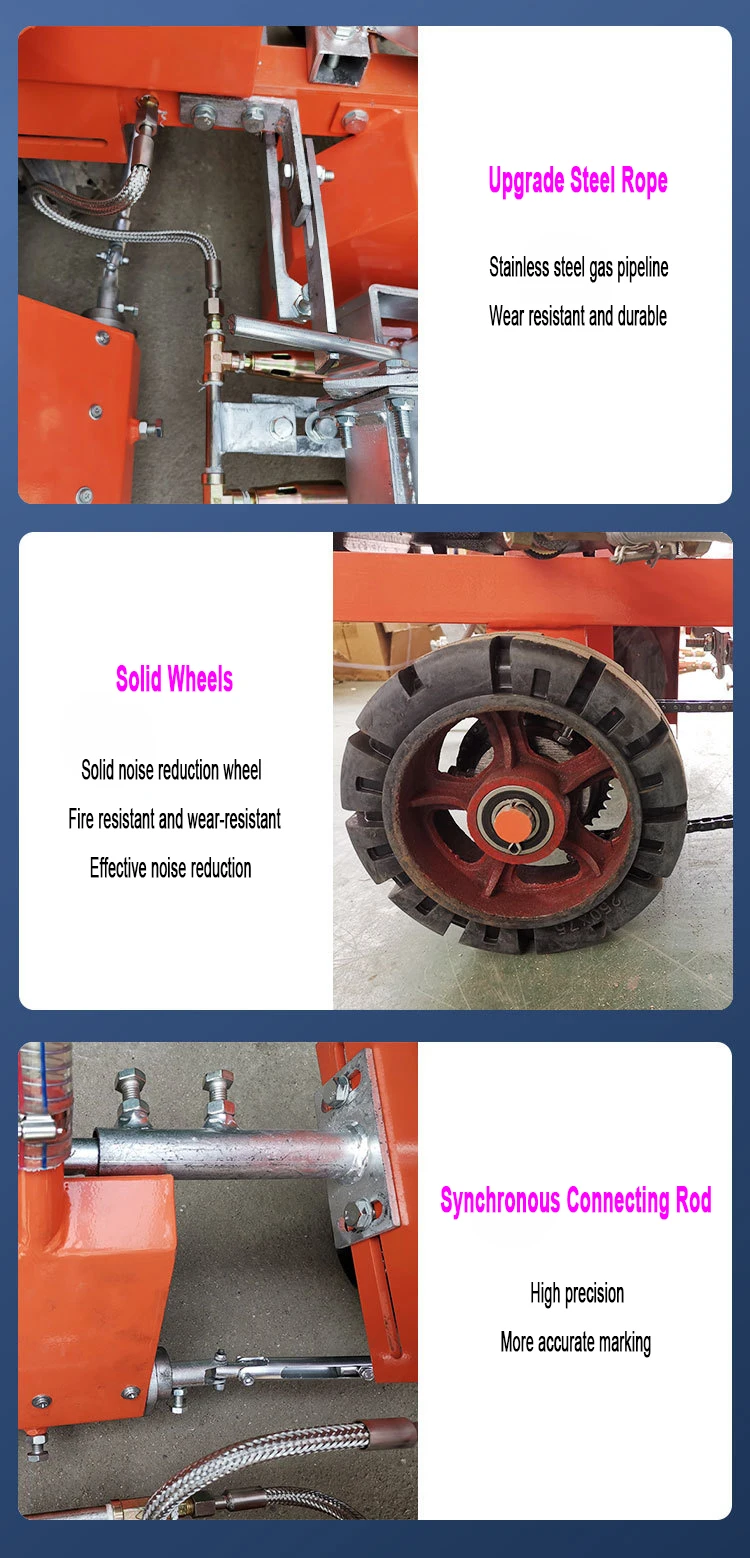

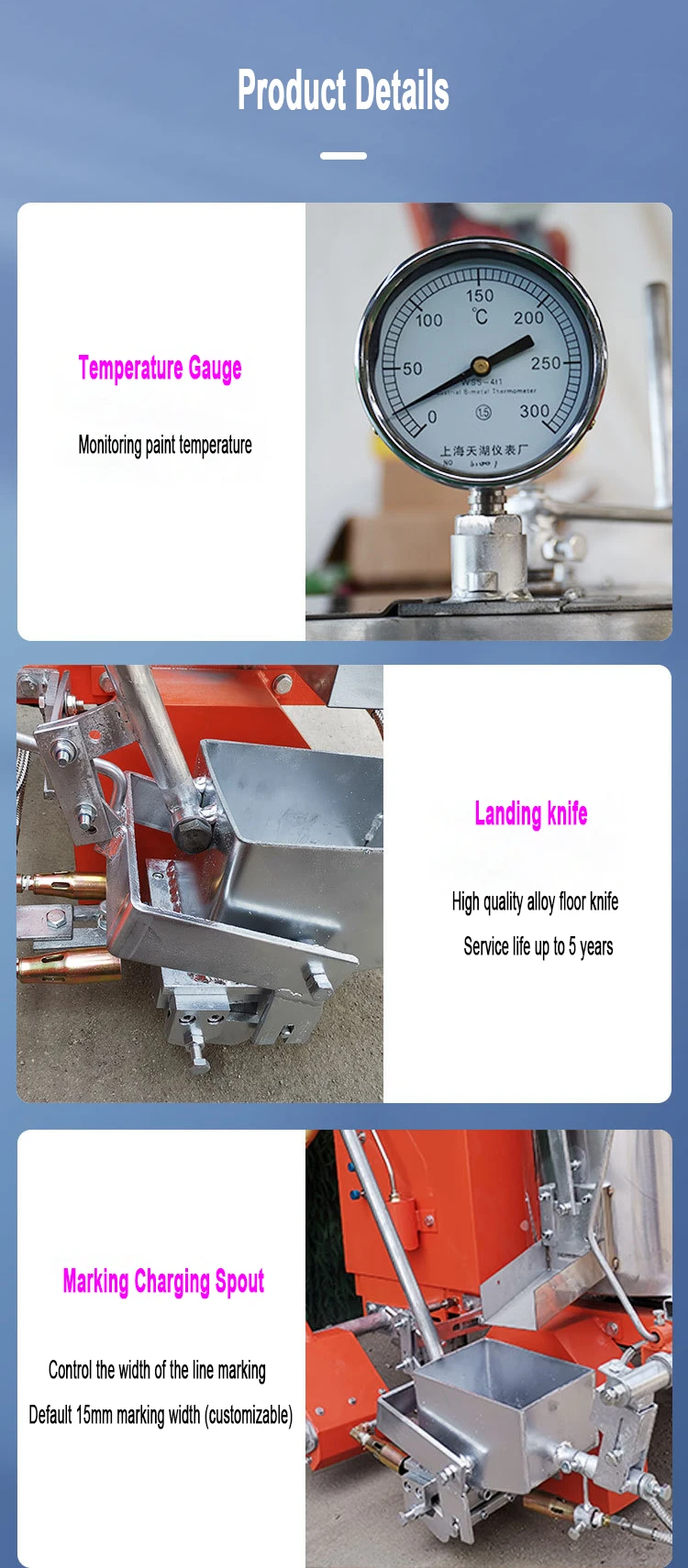

Details Images
Installation Instructions
Gun Distance
The distance between the nozzle and the surface of the coated object is called the gun distance, which is recommended to be 30-40cm. If the gun distance is too small, the spraying pressure is too high, and the back impact force is also large, which can easily lead to uneven coating. Moreover, the spraying width (fan width) is small, resulting in excessive spraying of local materials on the coated object and excessive thickness of the coating film. If the gun distance is too large, the spraying pressure loss is large, the coating is prone to scattering, and the spraying amplitude is too large, resulting in insufficient local spraying of the coated material and the coating film not meeting the thickness requirements.
Angle of spray marking
The spraying fan and the surface to be coated should be perpendicular to each other. When manually operating the spray gun, it is important to note that the spraying width should not be too large each time, otherwise inconvenient operation may cause significant changes in the angle of the spraying fan, resulting in uneven coating.
Running direction and speed
The running direction and speed of the spray gun should always be parallel to the coating and perpendicular to the spraying fan to ensure the uniformity of the coating. The running speed of the spray gun should be stable, preferably between 300-400mm/s. Unstable running speed and uneven layer thickness. The running speed is too fast and the coating is too thick, while the running speed is too slow and the coating is too thick.
Company Profile
Xiamen Firstents Industrial Co., Ltd. We are a high-tech coating equipment manufacturer and service provider that integrates research and development, production, and sales. Our company specializes in the production of high-pressure airless spraying equipment, screw pump spraying equipment, and pneumatic spraying equipment.
Since its establishment, the company has adhered to the principle of quality and kept its promises
Since its establishment, the company has adhered to the principle of quality and kept its promises
FAQ
Q: Are you a factory or trade company?
A: We are a factory
Q: How to Operate the machine?
A: We have a operation room and skilled engineers. If you can come to visit our company, they will show you and teach you.
If you can't come to CHINA, don't worry, we also have a set of Video and introduction brochure for you to learn. In addition,our engineers can go to your place to teach you if the orders with big quantity.
Q: The warranty of the machines?
A: 1 year.
Q: Do you accept OEM service?
A: Yes.we can help you to customize the color you want or print your logo.
Q:Which transportation do you accept?
A: DHL, FedEx, EMS, ocean shipping,etc, as for your convenience.
Q:What about payment terms?
A: T/T, PayPal, western union, E-checking and cash are acceptable.
A: We are a factory
Q: How to Operate the machine?
A: We have a operation room and skilled engineers. If you can come to visit our company, they will show you and teach you.
If you can't come to CHINA, don't worry, we also have a set of Video and introduction brochure for you to learn. In addition,our engineers can go to your place to teach you if the orders with big quantity.
Q: The warranty of the machines?
A: 1 year.
Q: Do you accept OEM service?
A: Yes.we can help you to customize the color you want or print your logo.
Q:Which transportation do you accept?
A: DHL, FedEx, EMS, ocean shipping,etc, as for your convenience.
Q:What about payment terms?
A: T/T, PayPal, western union, E-checking and cash are acceptable.
