High Speed Earth Drill For Quick And Efficient Drilling With High Precision
High-Speed Earth Drill For Quick And Efficient Drilling With High Precision
High-Speed Earth Drill For Quick And Efficient Drilling With High Precision
High-Speed Earth Drill For Quick And Efficient Drilling With High Precision
High-Speed Earth Drill For Quick And Efficient Drilling With High Precision
High-Speed Earth Drill For Quick And Efficient Drilling With High Precision
High-Speed Earth Drill For Quick And Efficient Drilling With High Precision

High Speed Earth Drill For Quick And Efficient Drilling With High Precision

Share on (1601173345183):


Price:$700.00-750.00

Quantity:


Product Overview

Description



Product Paramenters


Technical Specification of Auger Drill
Type
Unit
AP2500
AP3000
AP3500
AP4000
AP6000
AP8000
Suitable Excavator
T
1.5-3T
2-4T
2.5-4.5T
3-5T
4.5-6T
5-7T
Torque
Nm
790-2593
1094-3195
1374-3578
1710-4117
2570-6917
3163-8786
Pressure
Bar
70-240
80-240
80-240
80-240
80-240
80-240
Flow
Lpm
25-65
25-70
40-80
50-92
40-89
48-110
Rotate Speed
Rpm
36-88
30-82
35-75
35-68
20-46
20-45
Output Shaft
mm
65Rnd
65Rnd
65Rnd
65Rnd
75Sq
75Sq
Weight
Kg
95
100
105
110
105
110
Max Auger Diameter Clay/Shale
mm
300
300
350
350
500
600
Max Auger Diameter Earth
mm
350
400
450
500
600
800


Technical Specification of Auger Drill
Type
Unit
AP9000
AP15000
AP20000
AP25000
AP30000
AP59000
Suitable Excavator
T
6-8T
10-15T
12-17T
15-22T
17-25T
20-35T
Torque
Nm
3854-9961
5307-15967
6715-20998
8314-25768
15669-30393
27198-59403
Pressure
Bar
80-240
80-260
80-260
80-260
80-260
160-350
Flow
Lpm
70-150
80-170
80-170
80-170
80-170
100-250
Rotate Speed
Rpm
23-48
23-48
15-32
12-26
12-21
10-22
Output Shaft
mm
75Sq
75Sq
75Sq
75Sq
75Sq
110Sq
Weight
Kg
115
192
200
288
298
721
Max Auger Diameter Clay/Shale
mm
800
900
1000
1100
1200
1500
Max Auger Diameter Earth
mm
1000
1200
1400
1500
1600
2000


Products Description






Company Profile

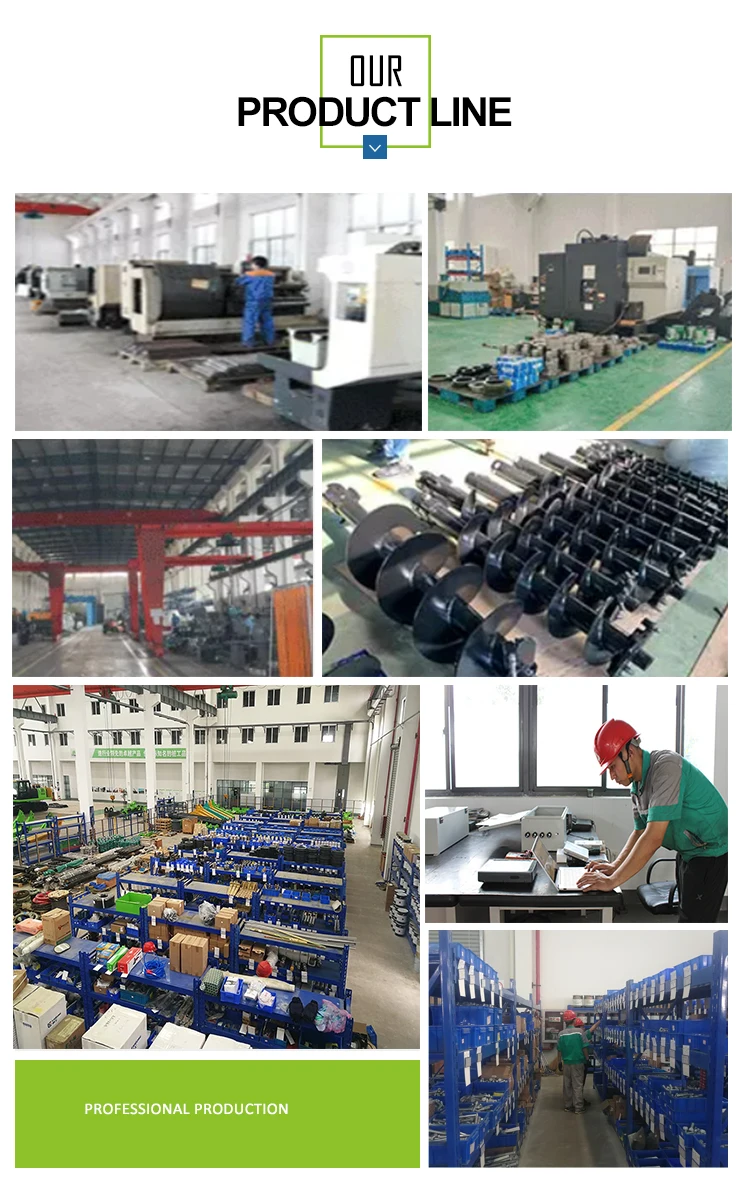

Our product line

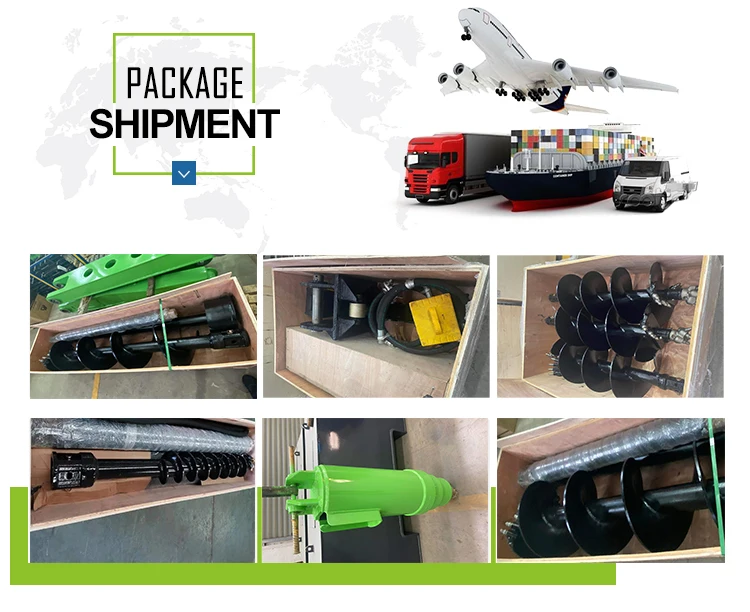

Product packaging




Our exhibition




Our customers




FAQ




Q1: How to choose a suitable model?
Pls kindly let us know your following information, and then we recommend right model for you.
1 Brand and model of Excavator/Backhoe/Skid Steer loader 2.Hole diameter 3.Hole depth 4.Soil condition

Q2: Can earth drill fit a variety of machines?
Yes.as long as the carrier's specifications agree with the parameters of the Earth Drill as outlined in our catalogue

Q3: Do I need to purchase spare parts when ordering an earth drill?
It is not necessary to purchase spare parts for the Planetary Drive as this is a sealed unit, however it is important to follow the service schedule as outlined in the operator manual. It is advisable to purchase spare wearing parts (teeth and Pilots).

Q4: How about the delivery time?
Within 5-10 working days after receiving T/T payment.
