Product Overview
Description
Products Overview
Spiral Tube Making Machine Round Duct Forming Machine
Spiral duct is a thin-walled tube with spiral bite seams made of metal strips. It is round, weld-free, airtight and watertight. It is mostly used for air supply and bulk material transportation, replacing traditional galvanized iron pipes (i.e. hand-sewn iron pipes).
The spiral duct machine produced by our company is produced according to Swiss standards, with high output and stable pipe diameter, good bite and good sealing. It is a new generation of excellent and stable products with long term innovation. It can process round pipes with a maximum diameter of 1.5 meters. It has high strength and good sealing. Various diameter round pipes can be quickly converted with high-speed synchronous cutting devices, fast processing speed and stable performance.
Specification
Model | HK-1500 |
Rolling tube diameter | 80-1500mm |
Rolling tube length | 120-8000mm |
Suitable material | Galvanized sheet, stainless steel, aluminum |
Processing plate thickness | 0.4-1.2mm |
Processing plate width | 137-140mm |
Processing speed | 1-45m/min |
Bite opening | External round tube, can be bitten inside as required |
Electronic control system | Computer PLC control. Frequency conversion speed regulation |
Main engine power | 5.5KW |
Cutting motor power | 4KW |
Cutting method | Saw blade cutting |
Weight | About 2200kg |
Packing size | 2700x1700x2300mm |
Product Details

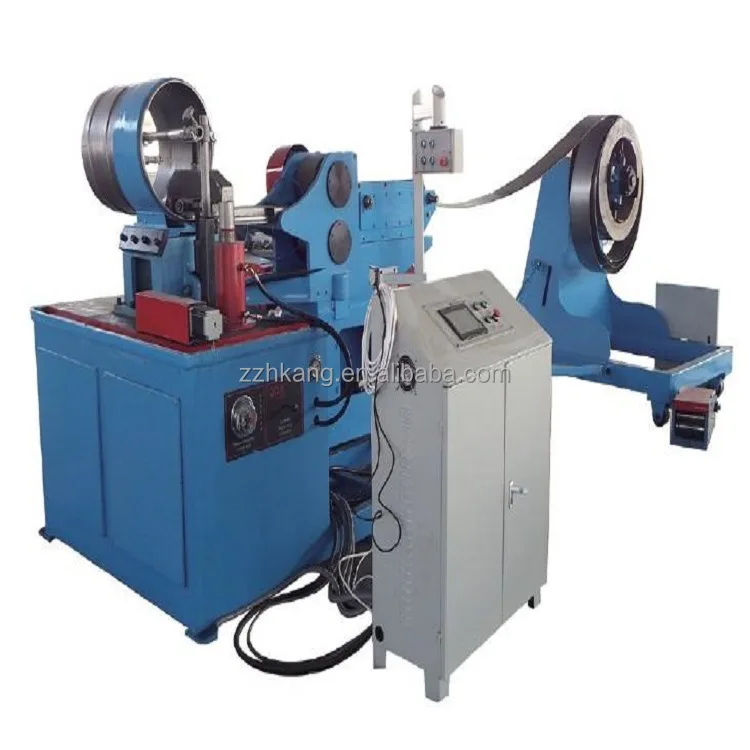

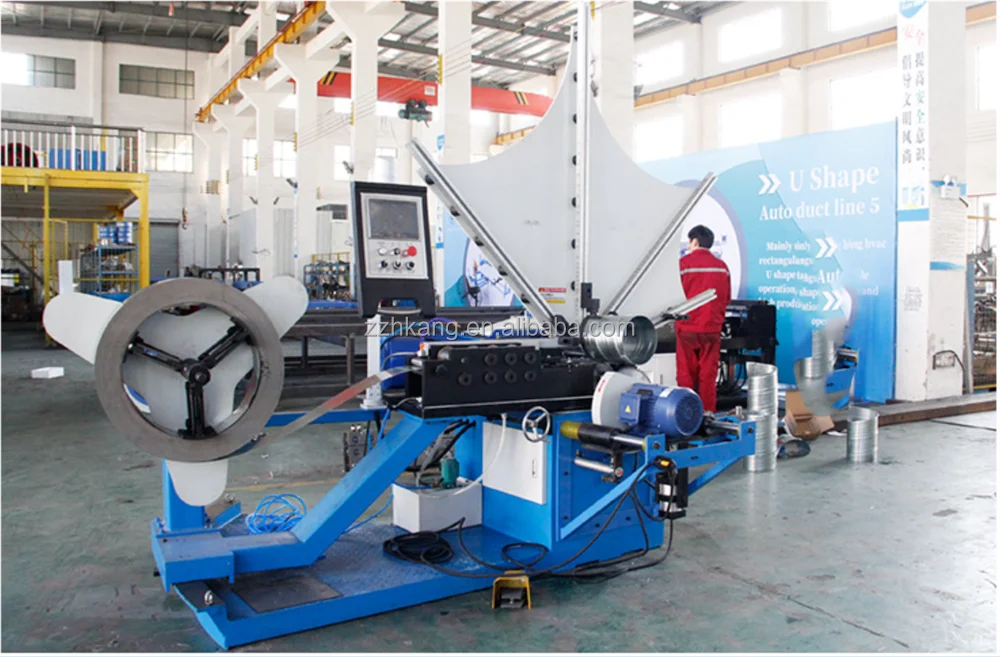

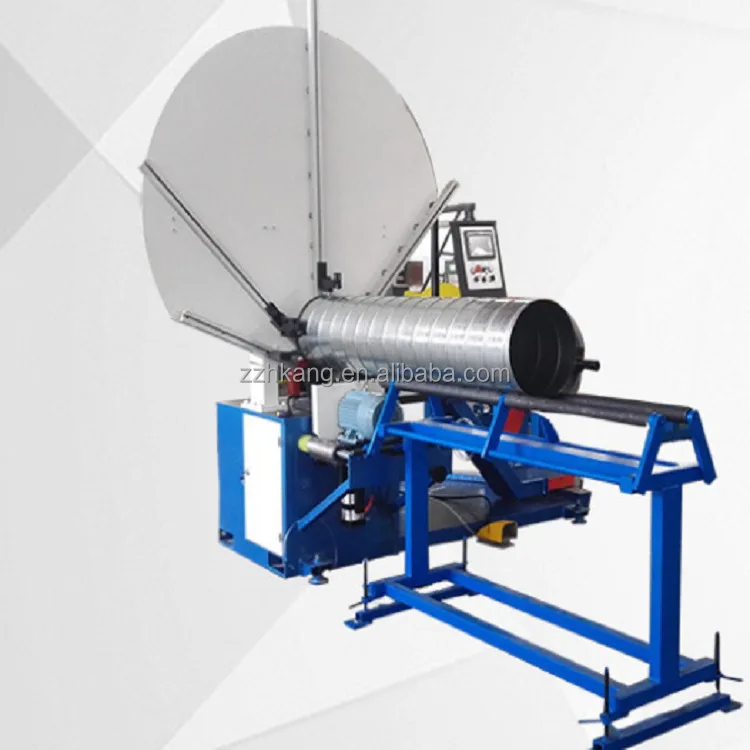

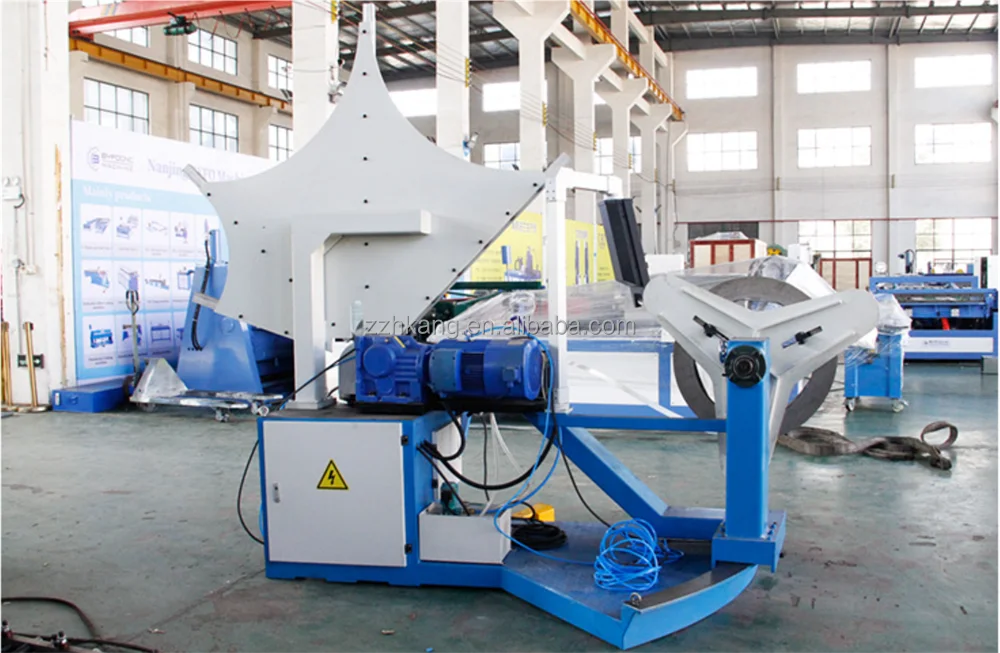

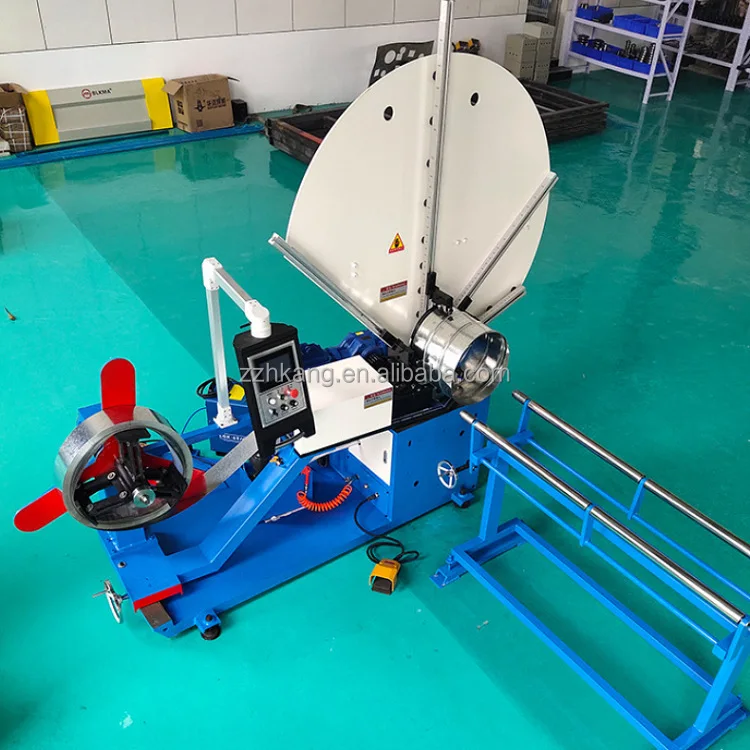

Spiral round duct forming machine

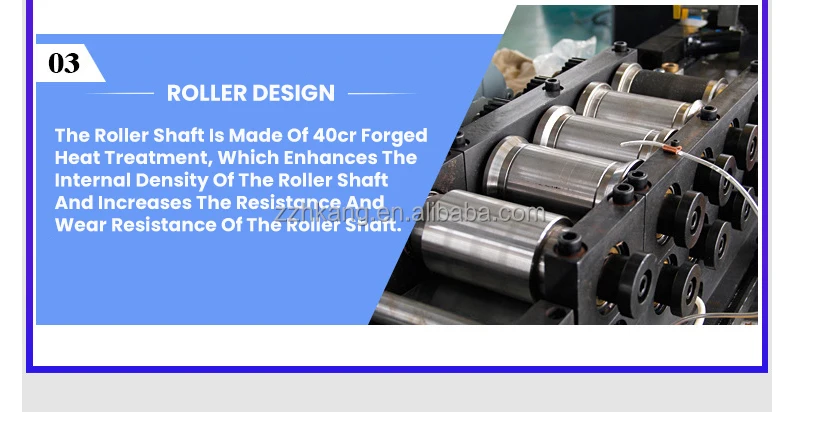

The fully automatic spiral duct machine is composed of four sets of molds, including an electric feeding rack, a seven-roller leveling machine, a rib pressing machine and a hydraulic angle shearing machine, a hydraulic shearing machine, a hydraulic bending machine, an industrial control computer and production software. It automatically completes the cutting production of rectangular ducts and the automatic size production of various types of hardware boxes.

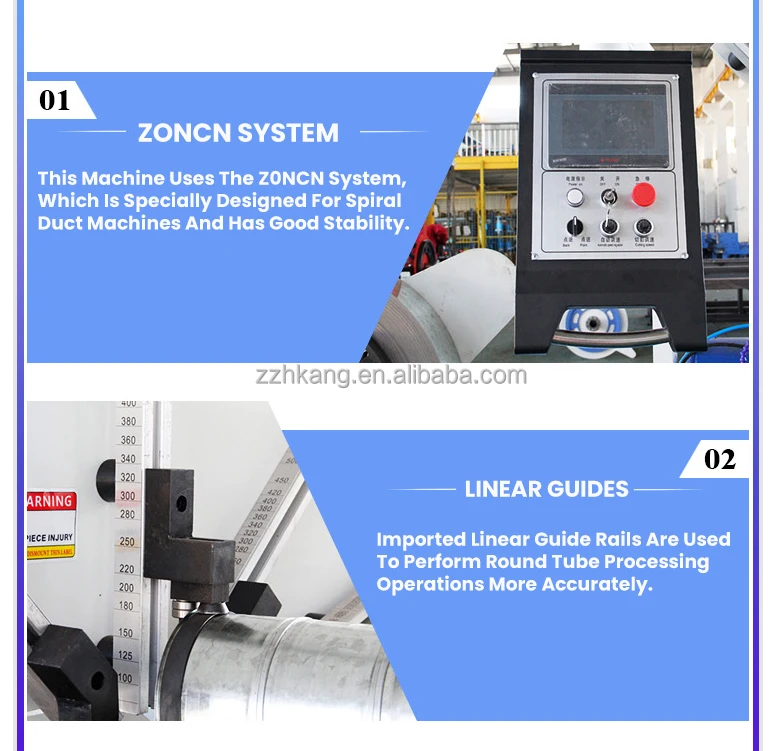

The electrical control part is fully computer-controlled. The control system has a closed-loop feedback system, and the production accuracy and stability are significantly improved. Its maximum working speed is 10 meters/minute. The length error is ±0.5mm and the diagonal error is ±0.8mm. This system can meet the production capacity of 1000M2 square ducts in a single shift.
The electrical control part is fully computer-controlled. The control system has a closed-loop feedback system, and the production accuracy and stability are significantly improved. Its maximum working speed is 10 meters/minute. The length error is ±0.5mm and the diagonal error is ±0.8mm. This system can meet the production capacity of 1000M2 square ducts in a single shift.

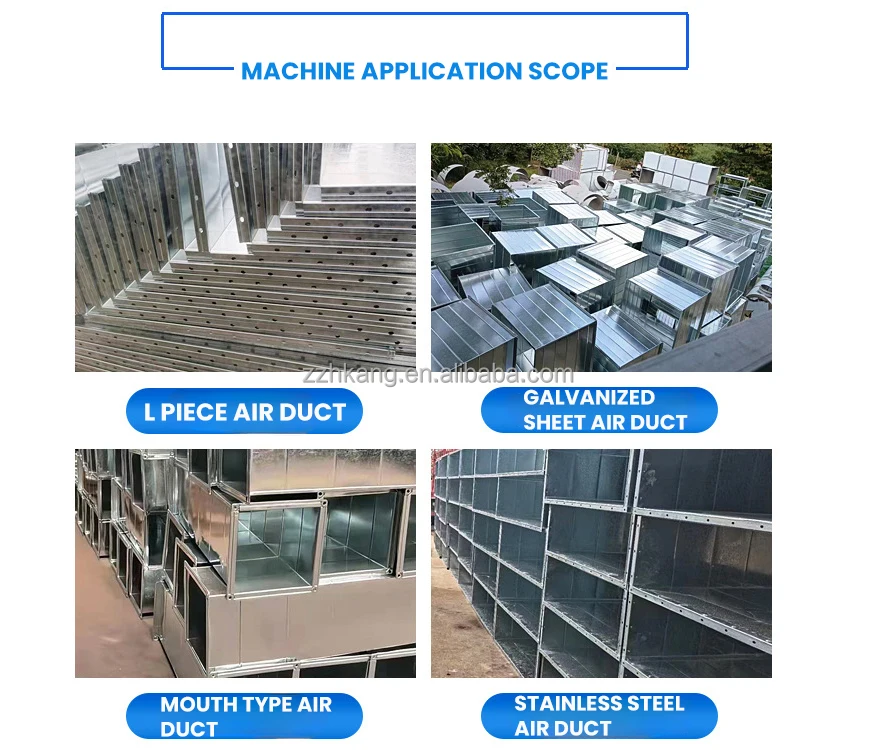

Product Application

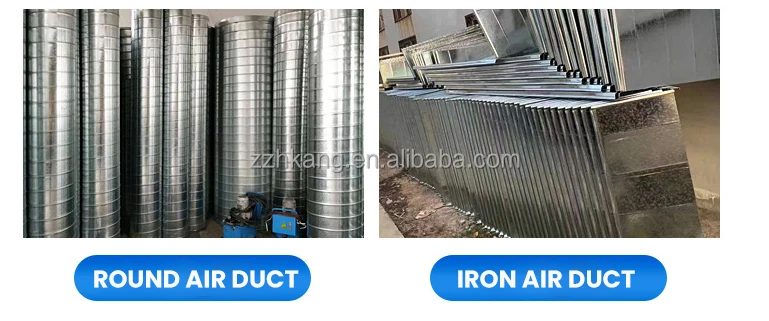

Spiral duct is a widely used ventilation duct product. It is suitable for various occasions such as industry and civil buildings.
1. In the industrial field, spiral duct is mainly used in centralized ventilation and environmental control systems, such as factories, workshops, laboratories, etc., which can transport and distribute air.
2. In civil buildings, spiral duct is used in air conditioning system, HVAC system, smoke exhaust system, etc. to improve indoor air quality and meet different air flow requirements.
3. In addition, spiral duct is also widely used in commercial, entertainment, hospitals, schools, airports, stations and other fields.
1. In the industrial field, spiral duct is mainly used in centralized ventilation and environmental control systems, such as factories, workshops, laboratories, etc., which can transport and distribute air.
2. In civil buildings, spiral duct is used in air conditioning system, HVAC system, smoke exhaust system, etc. to improve indoor air quality and meet different air flow requirements.
3. In addition, spiral duct is also widely used in commercial, entertainment, hospitals, schools, airports, stations and other fields.
