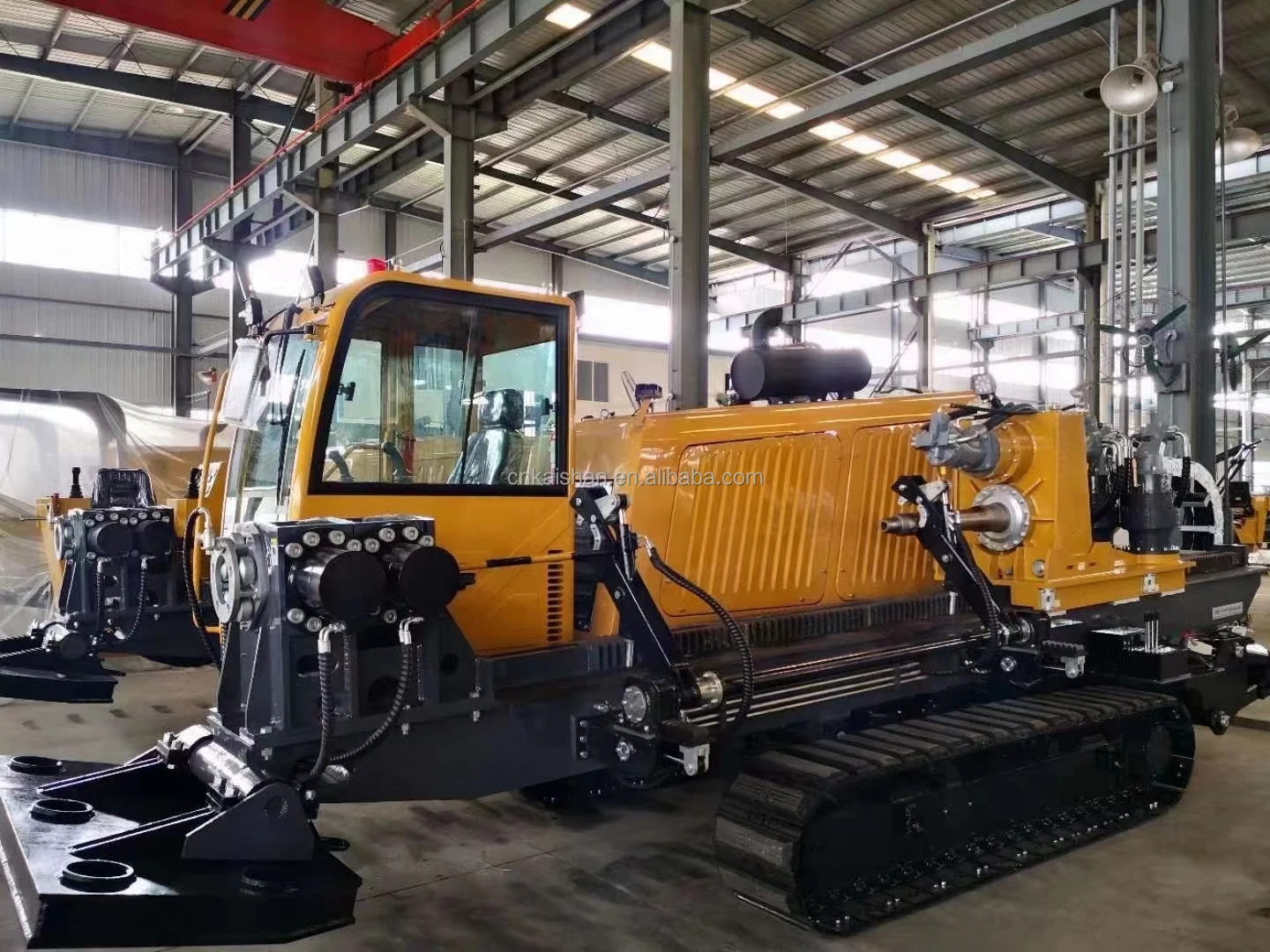

environmentally friendly hdd machine drilling machine horizontal directional drilling machine

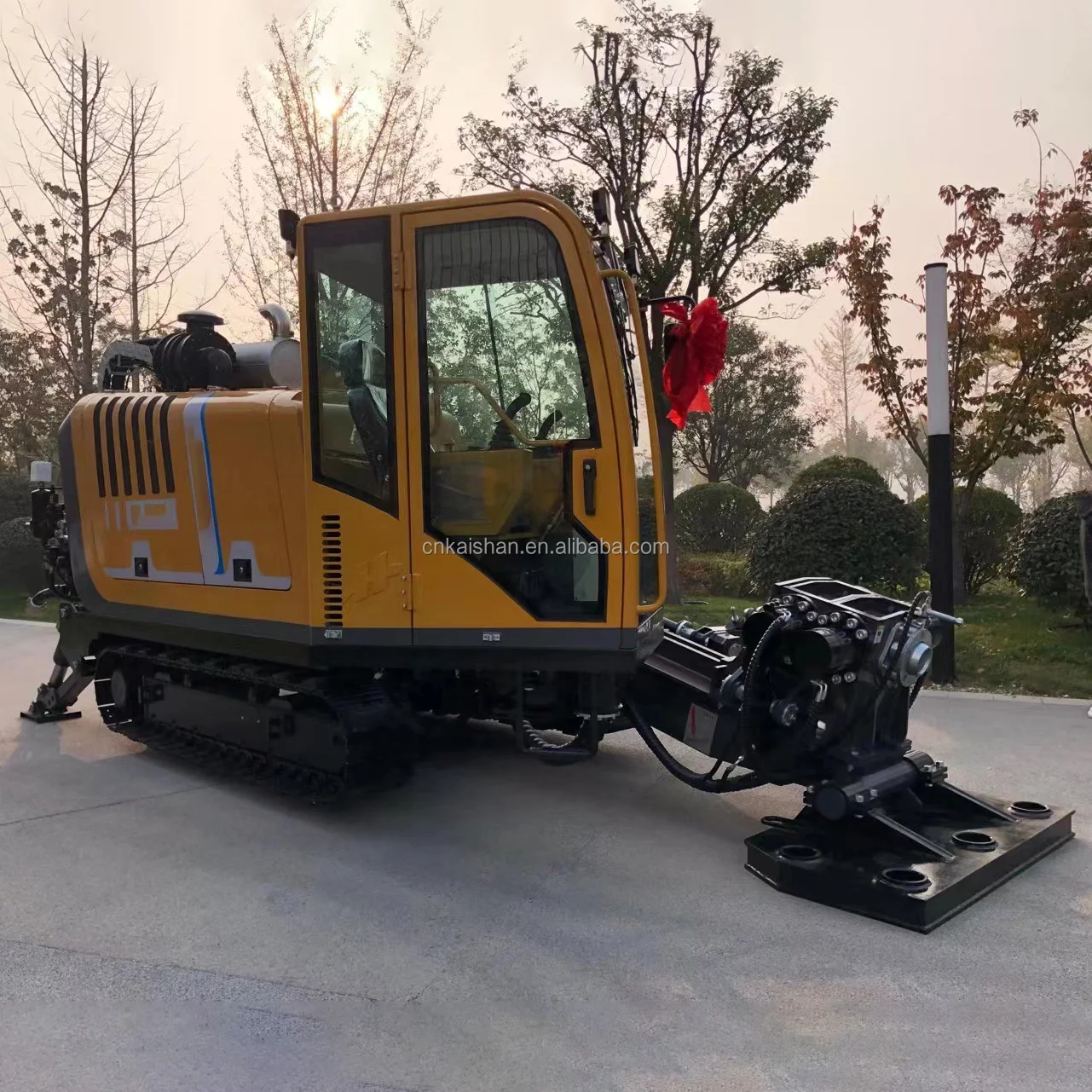

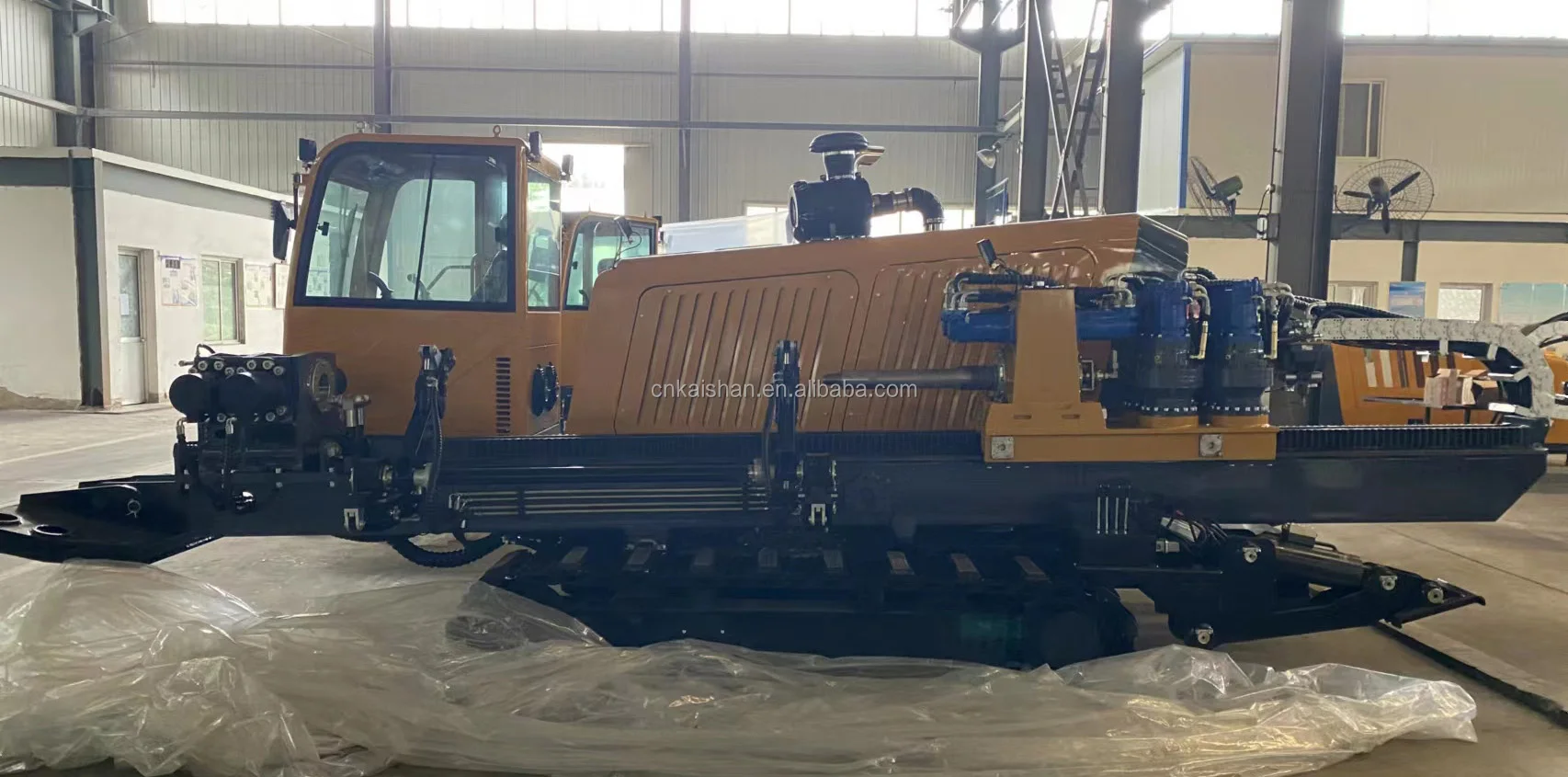

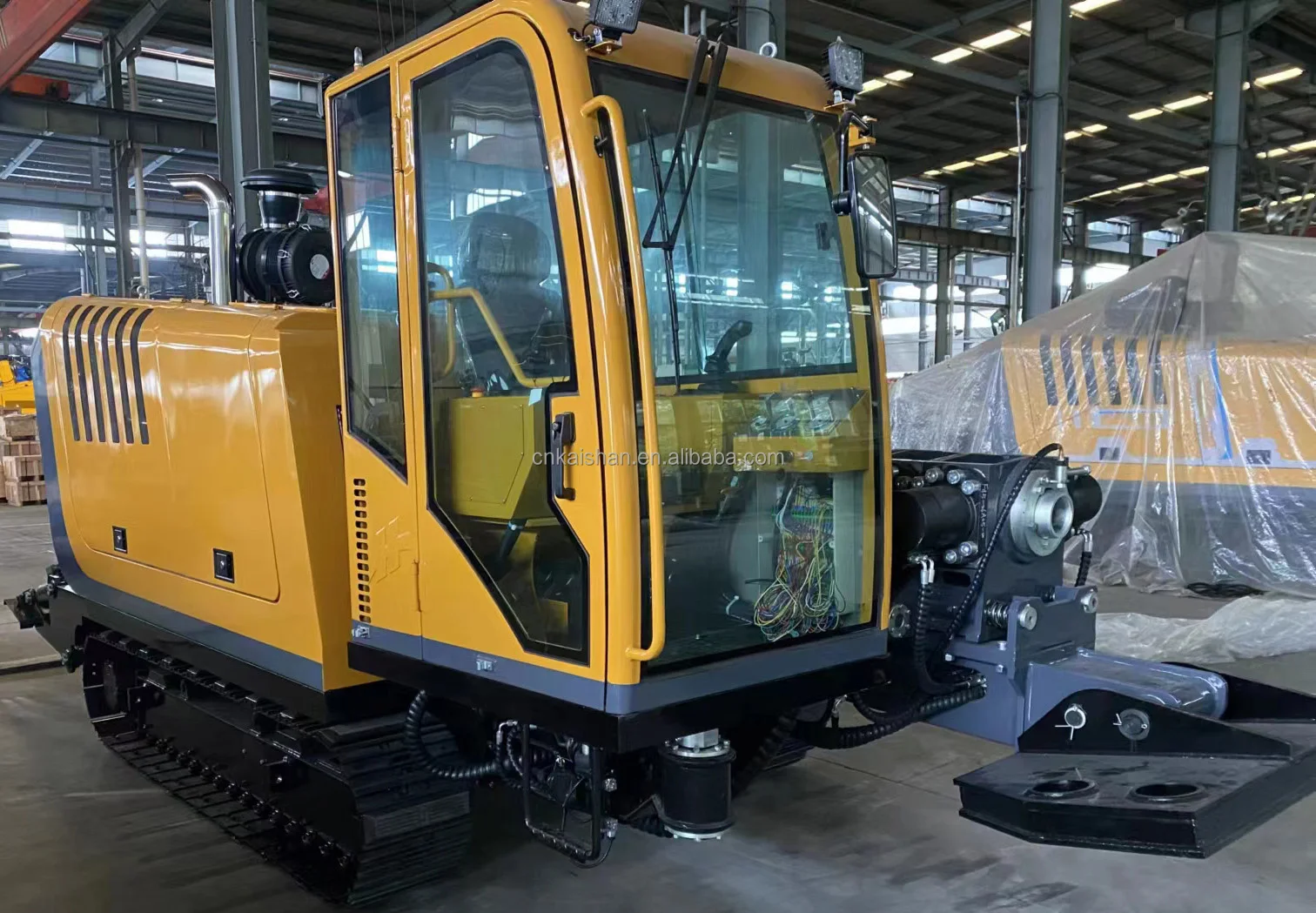

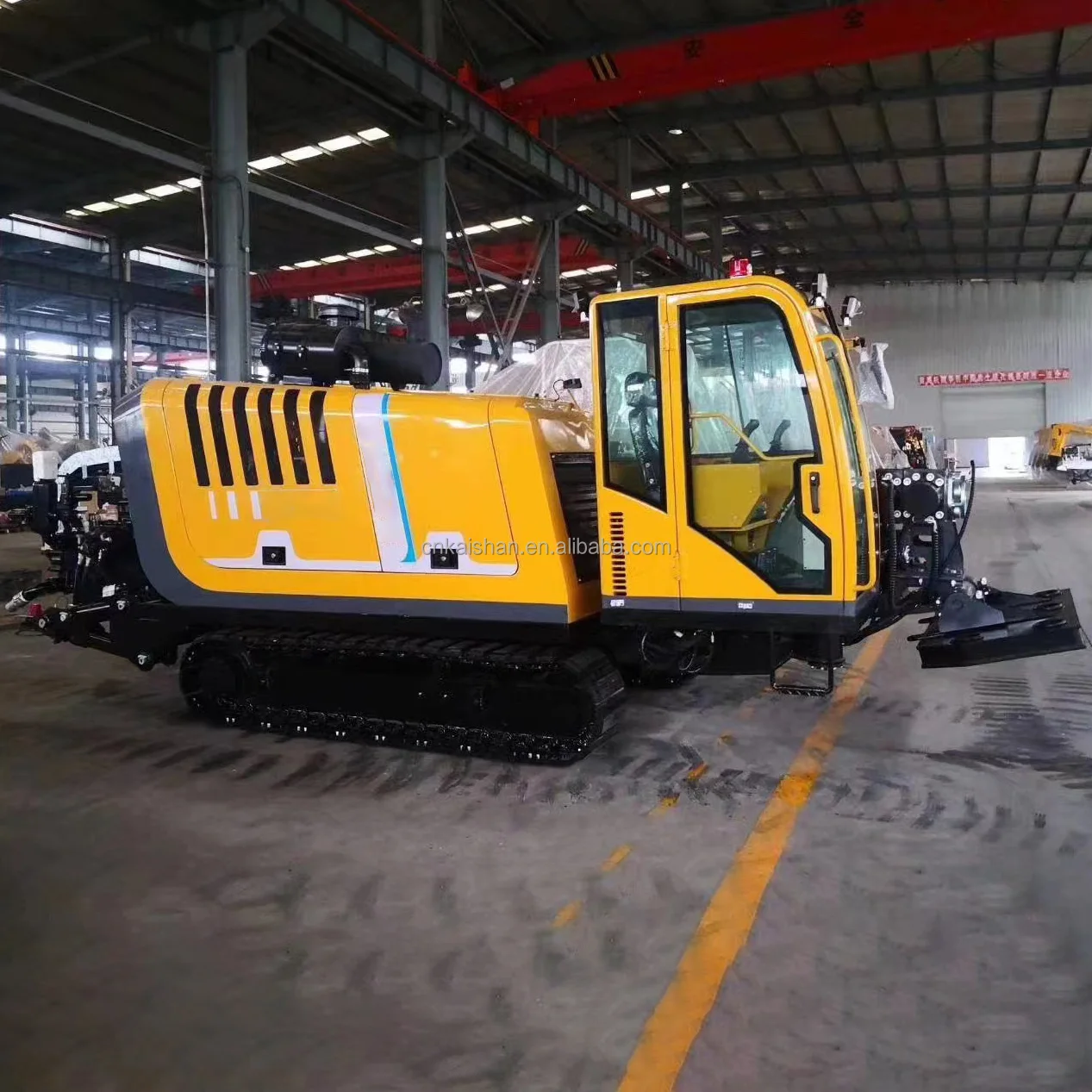

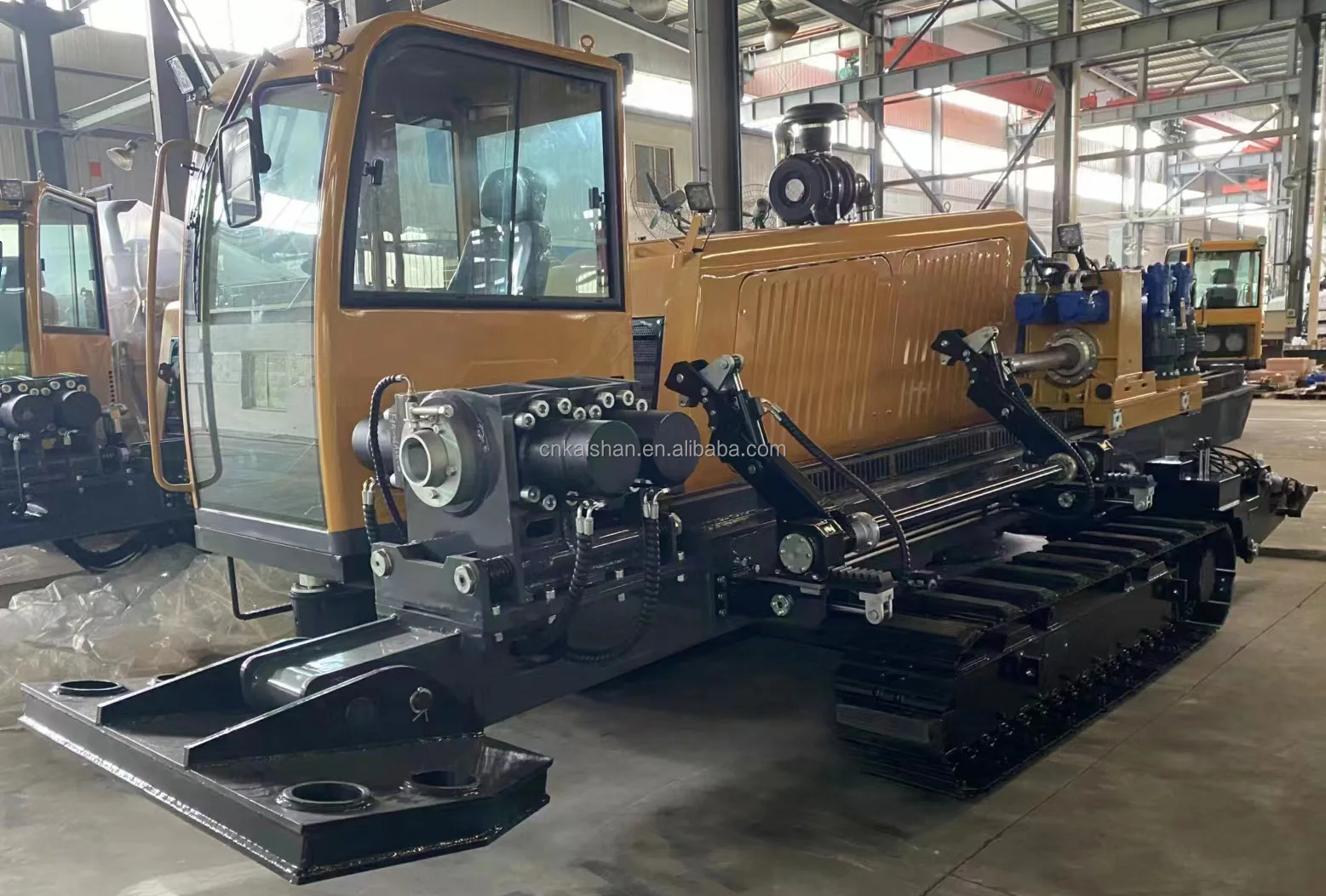

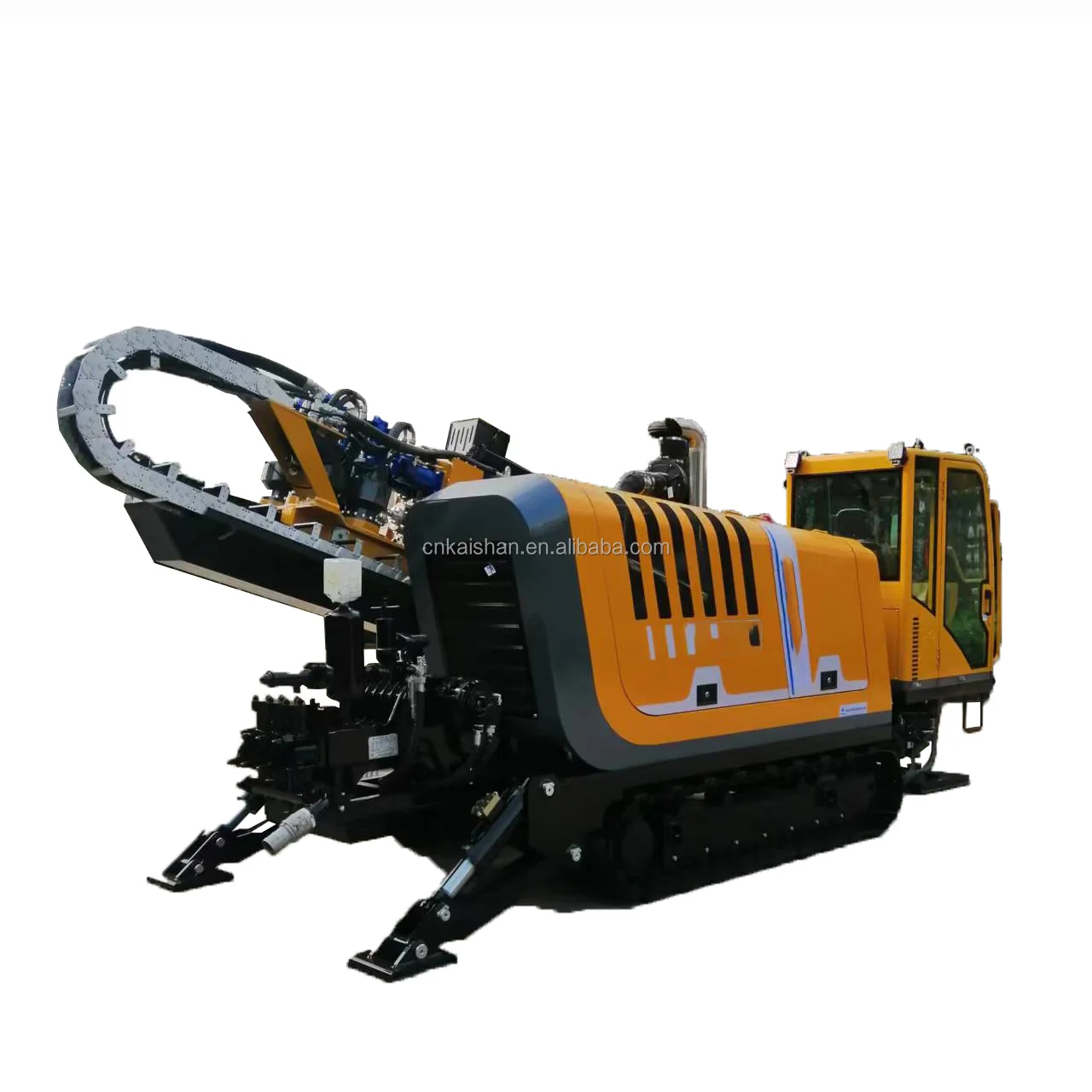

KFDP Series horizontal directional drilling rig is designed as one-piece fully self-supporting type, adopts open circuit and hydraulic control method, and the main components such as hydraulic system, transmission system, reducer, electrical control system are selected from domestic well-known brand products, with high reliability.


Product Paramenters




Item
KFDR-35
KFDR-45


Engine
Manufacturers
Cummins
Cummins
Model
QSB5.9-C210-30
QSB8.3-C260-30
Power rating
154KW
194KW


Thrust-Pull
Max pull/thrust force
350KN
450KN
Max pull/thrust speed
38m/min
50m/min


Rotation
Torque
13500N.m
19500N.m
Max spindle speed
135r/min
120r/min
Drill Pipe
Diameter × Length
φ 73*3000
φ83*3000
Max inclination angle
23
23
Loader Crane
Lifting weight
/
/


Travel driving
Style
Steel crawler self-propelled
Steel crawler self-propelled
Traveling speed
1.5-3 km/h
2-2.6km/h
Weight
11t
12t
Size
6.7*2.25*2.4m
7.2*2.25*2.45m




Related Products




Company Profile




Zhengzhou Kaishan Mechanical & Electrical Equipment Co., Ltd.Our company are specialized in this filed for over 25 years with high quality and competitive price. We provide various kinds of high-end rock drilling equipment and air compressors, including borehole drilling rig, screw air compressor, industrial piston air compressor, and construction tools and parts. These products have been widely used in many industries like open pit mines, quarry and construction projects of railway, road, hydroelectric power station, and buildings.We aims at producing and selling high-quality product and providing high quality pre-sale and after-sale service.
Welcome to contact us if you are interested in our products. In addition to our standard products listed on this website, we can also provide OEM and ODM services. Besides, you are also welcome to become one of our agents around the world.


Certifications








FAQ


Q1: Are you a manufacturer?
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
