Product Overview
Description
Product Overview

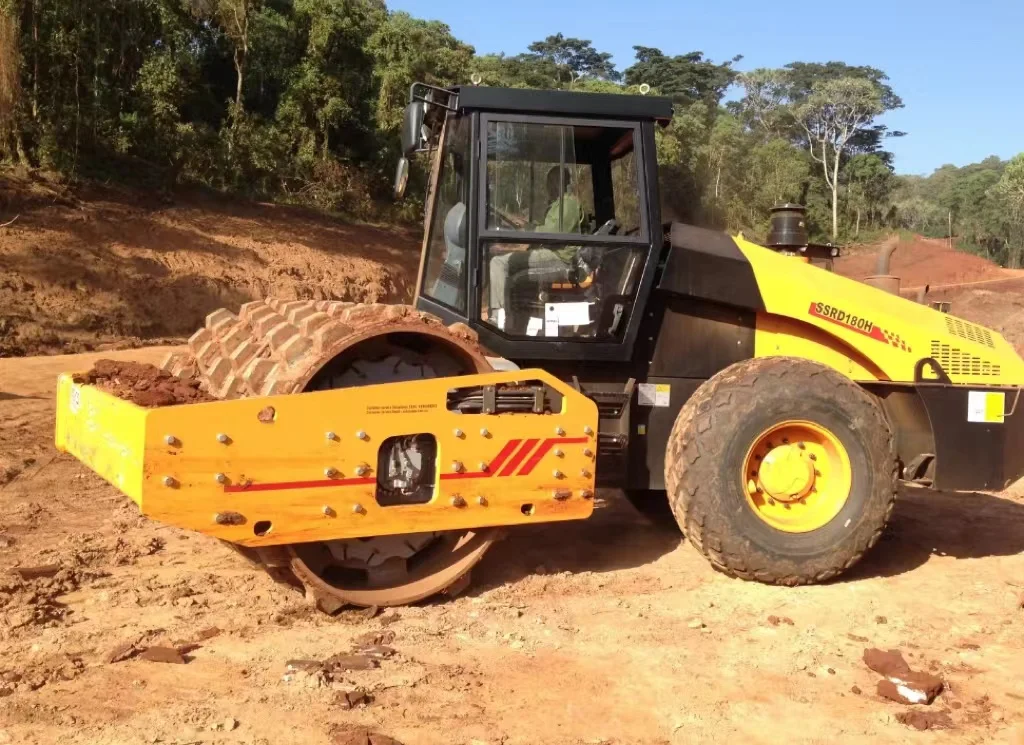

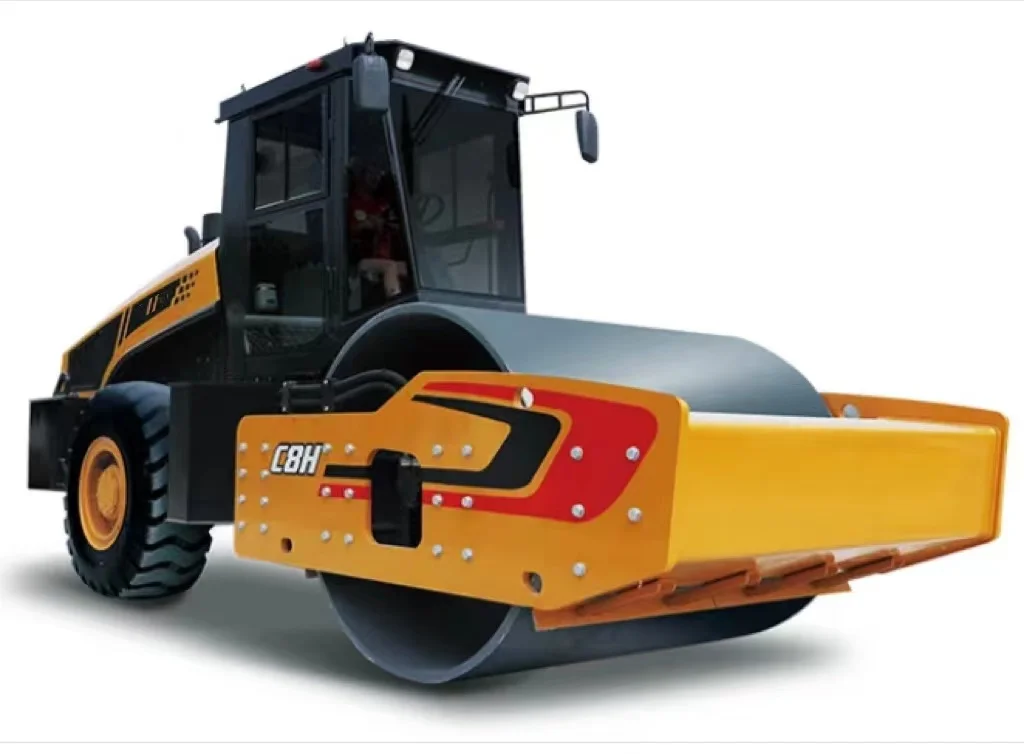

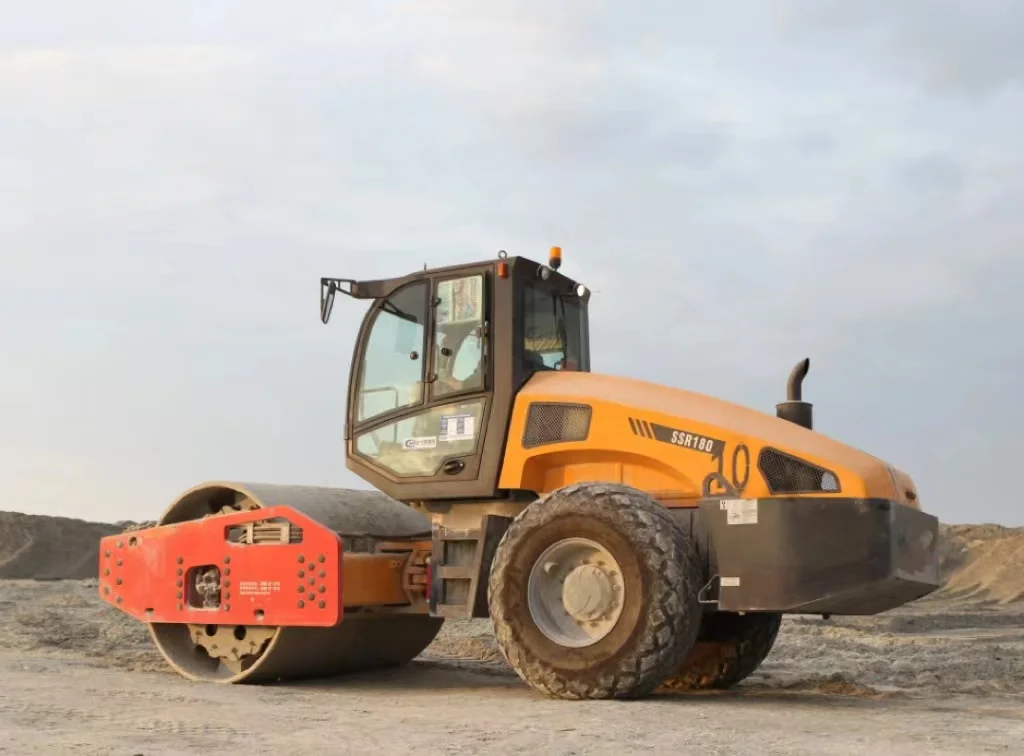

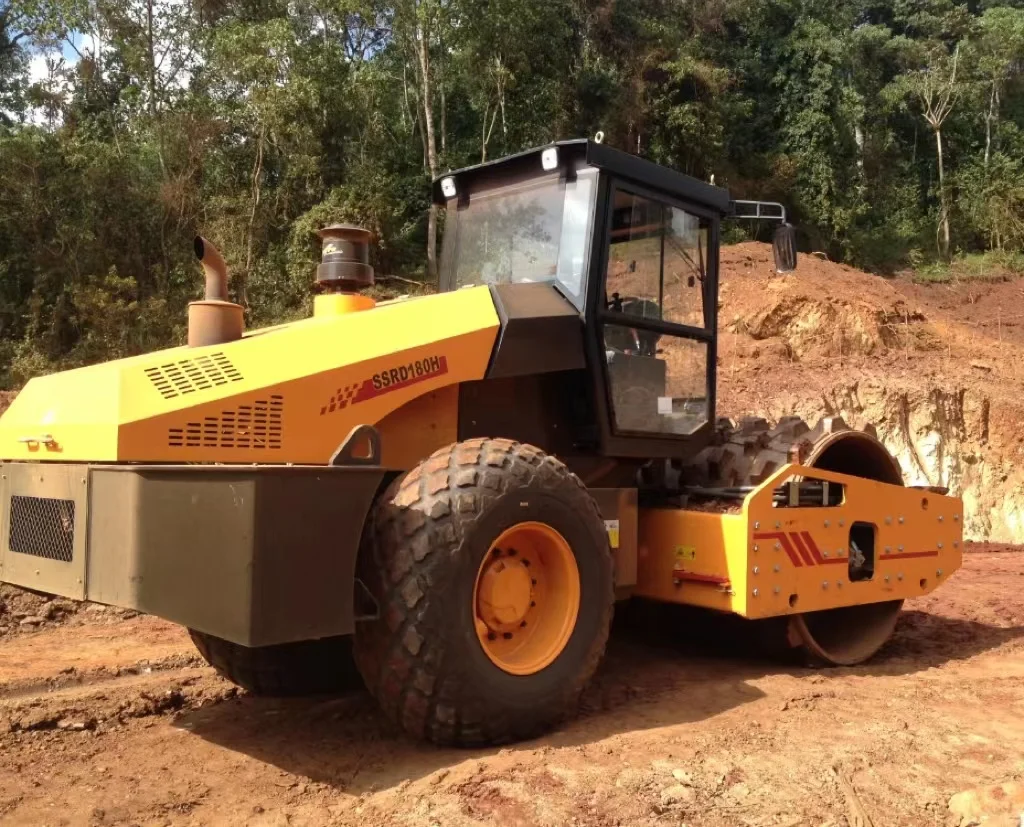

Single Drum Roller SSR160AC-8
· 10% greater excitation force than other products in the same category resulting in 16.7% greater production.
· The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours.
· The engine air filter is raised and the air is filtered twice to protect the engine.
· The hydraulic system contains three stage filtration.
· Cab mounted on vibration damping mounts.
· Cab temperature control.
· Operator control forces have been reduced.
· Rounded bumpers front and rear.
· The large rear glass and sloped hood for greater visibility.
PRODUCT SPECIFICATIONS
180HP SSR160AC-8 Single Drum Roller | 250HP SMG200AWD Motor Grader | |
Operating weight (kg) | 16000 | |
Weight at drum (kg) | 8000 | |
Weight at rear axle (kg) | 8000 | |
Drum static linear load (N/cm) | 376 | |
Vibration frequency (Hz) | 33/36 | |
Nominal amplitude (mm) | 1.9/1.0 | |
Centrifugal force (kN) | 300/210 | |
Drum diameter (mm) | 1500 | |
Drum width (mm) | 2130 | |
Drum edge thickness (mm) | 25 | |
Travel speed (km/h) | 0-5.5/0-12 | |
Gradeability | 35% | |
Ground clearance (mm) | 410 | |
Wheelbase (mm) | 2980 | |
Steering angle (°) | 土35 | |
Swing angle (°) | 土12 | |
Min. turning outside diameter (mm) | 11800 | |
Tires | 20.5-25-16PR | |
Brand | Dongfeng Cummins | |
Model | 6BTAA5.9-C180 | |
Emission | / | |
Rated power (kW) | 132 | |
Battery (V x Ah) | 24 x 120 | |
Fuel tank (L) | 300 | |
Hydraulic oil tank (L) | 150 | |
