Full Auto Eva Foam Cutting Plastic Roll To Sheet Aluminium Foil Pet Film Pvc Cutter Machine Non woven Fabric Punching Machine
Full Auto Eva Foam Cutting Plastic Roll To Sheet Aluminium Foil Pet Film Pvc Cutter Machine Non-woven Fabric Punching Machine
Full Auto Eva Foam Cutting Plastic Roll To Sheet Aluminium Foil Pet Film Pvc Cutter Machine Non-woven Fabric Punching Machine
Full Auto Eva Foam Cutting Plastic Roll To Sheet Aluminium Foil Pet Film Pvc Cutter Machine Non-woven Fabric Punching Machine
Full Auto Eva Foam Cutting Plastic Roll To Sheet Aluminium Foil Pet Film Pvc Cutter Machine Non-woven Fabric Punching Machine
Full Auto Eva Foam Cutting Plastic Roll To Sheet Aluminium Foil Pet Film Pvc Cutter Machine Non-woven Fabric Punching Machine
Full Auto Eva Foam Cutting Plastic Roll To Sheet Aluminium Foil Pet Film Pvc Cutter Machine Non-woven Fabric Punching Machine

Full Auto Eva Foam Cutting Plastic Roll To Sheet Aluminium Foil Pet Film Pvc Cutter Machine Non woven Fabric Punching Machine

Share on (1601173649838):


Price:$1,428.00

Quantity:


Product Overview

Description



Product Description

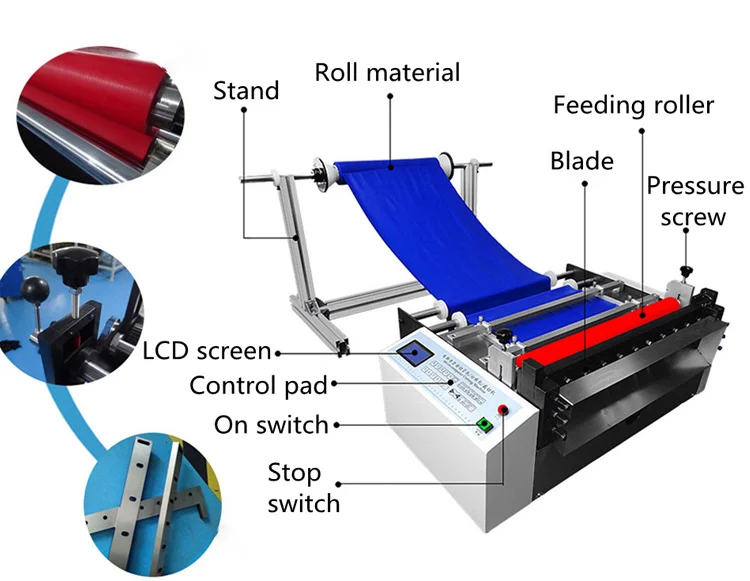

1. Simple operation panel
Simple panel,  operation, Chinese and English switching, LCD screen

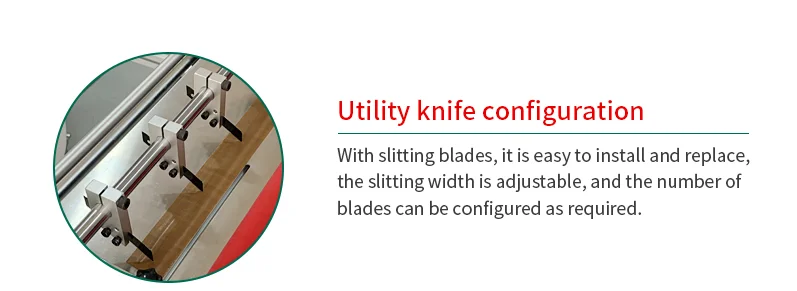

2. High-strength high-performance steel knife
The special mechanical structure and thickened knives
3. Multi-function button
New upgrade of the operation panel! Feeding speed adjustable, total technology, segmented batch setting
4. Rugged guide strip
High-strength guide strips are not easy to wear, and colleagues can cut multiple materials, double the efficiency and save labor.







Model Unit: Model 600 roll paper cutter
Cutting width: 0.1-600MM
Cutting length: 0.1-9999999.99mm
Cutting speed：34m/min
Cutting accuracy：±0.1mm
power:220V/50/60Hz,900w
Net weight:85kg
Packing size: 600*860*400mm
Hscode：8441100000



APPLICATION:

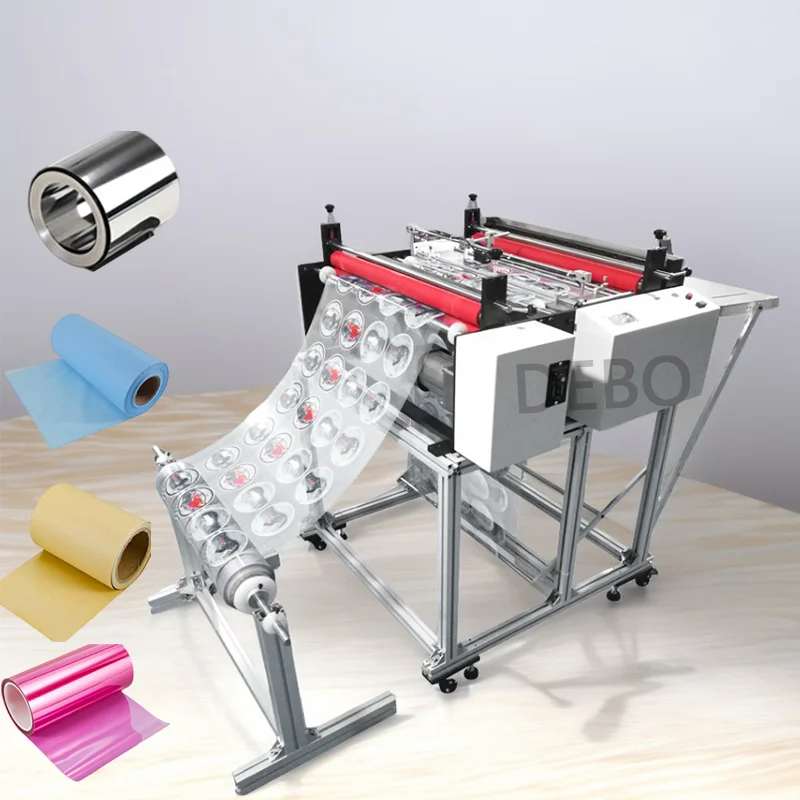

Roll to sheet cutting machine is designed for cutting roll material into sheet or pieces,such as pvc,copper foil,cloth,nonwoven fabric,barlry paper,aluminum foil,pe film,plastic sheet,bopp film,cotton,leather,coated paper,kraft paper,plastic and metal mesh, foam, sponge, self-adhesive stickers sheet,band-aid, velcro,corrugated paper, sandpaper and other roll material.Desktop roll to sheet cutter can cut max 50 kgs material roll. Stand roll to sheet cutter can cut max 200 kgs material.More heavy,need to add automatic material feeder










Model
Cutting Width
Cutting Length
Speed
Precision
Packing size
DB-100
100mm
0.1mm-100m
0-34M/min
0.1mm
540*500*560mm
DB-200
200mm
0.1mm-100m
0-34M/min
0.1mm
540*500*450mm
DB-300
300mm
0.1mm-100m
0-54M/min
0.1mm
330*660*670mm
DB-400
400mm
0.1mm-100m
0-54M/min
0.1mm
750*650*610mm
DB-500
500mm
0.1mm-100m
0-54M/min
0.1mm
900*670*750mm
DB-600
600mm
0.1mm-100m
0-54M/min
0.1mm
1000*660*760mm
DB-700
700mm
0.1mm-100m
0-80m/min
0.1mm
1110*1050*1350mm
DB-800
800mm
0.1mm-100m
0-80m/min
0.1mm
1220*690*1270mm
DB-900
900mm
0.1mm-100m
0-80m/min
0.1mm
1400*670*700mm
DB-1000
1000mm
0.1mm-100m
0-80m/min
0.1mm
1420*1075*1350mm
DB-1100
1100mm
0.1mm-100m
0-80m/min
0.1mm
1520*1070*820mm
DB-1200
1200mm
0.1mm-100m
0-80m/min
0.1mm
1600*670*820mm
DB-1500
1500mm
0.1mm-100m
0-80m/min
0.1mm
2000*820*790mm

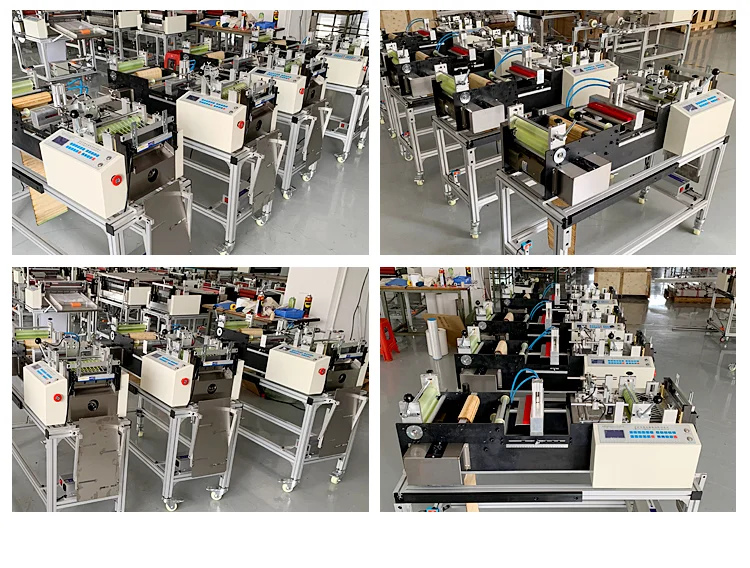

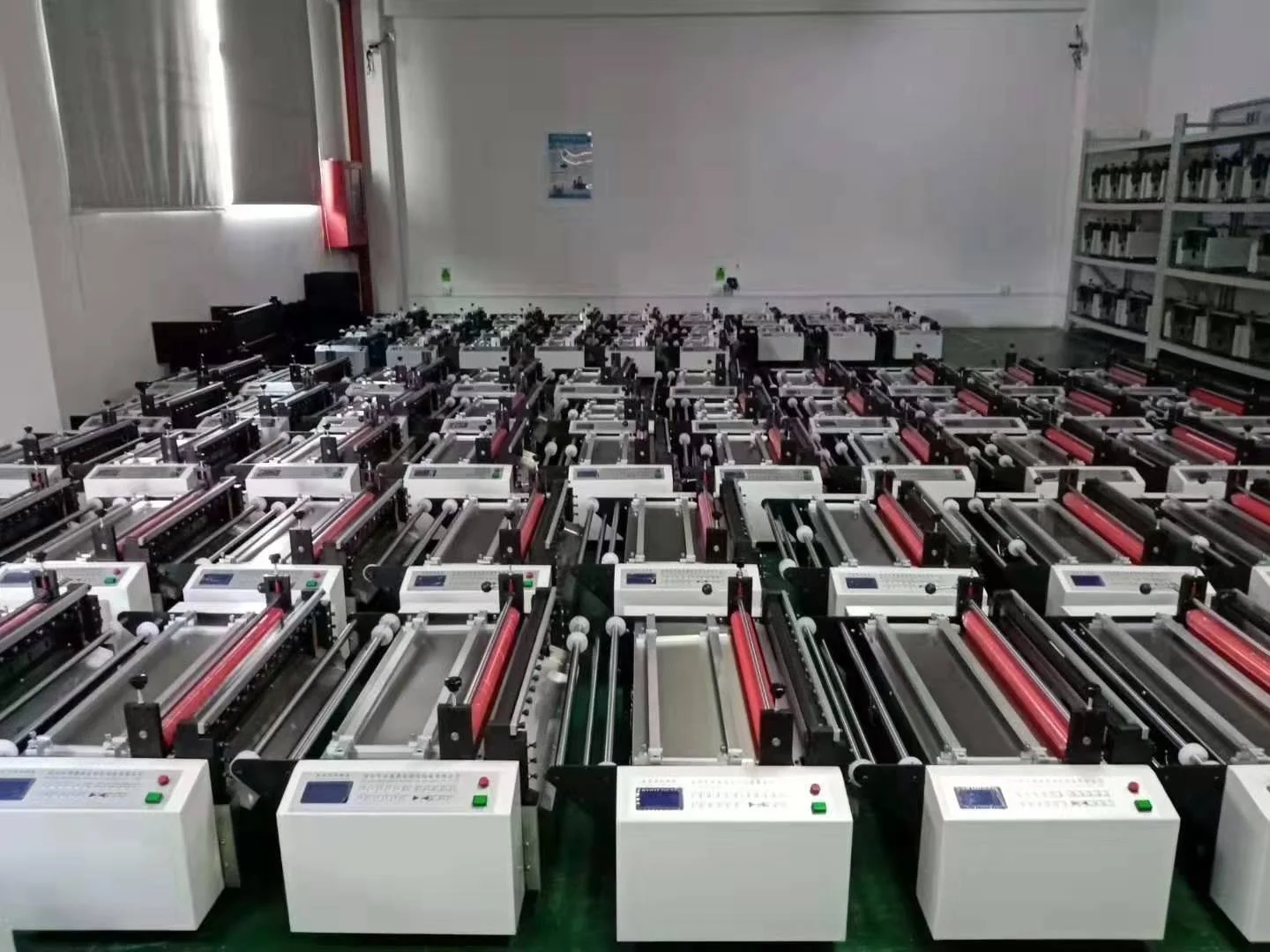

Exhibition




Company Profile


GONGYI company provides integrated solutions to a wide range of industries including Lamination & paper processing ,book binder,and other after printing process ,etc.follow up on provide better solution for after printing digital equipment for over 15 years, With good quality and excellent performance, BAIYIN products are highly praised by the customers from more than 50 countries.
Precision and reliability are our fundamental; fair price and high performance are our pursuit. GONGYI Technical Support is the customers' connection for help and advice on how best to use GONGYI Technical Systems.
GONGYI Technical is always working hard to help the customers get the maximum return on investment and improve the competitiveness.
