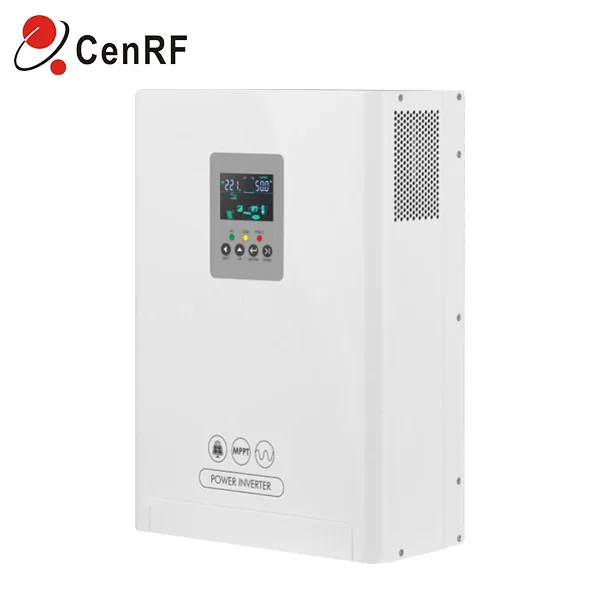

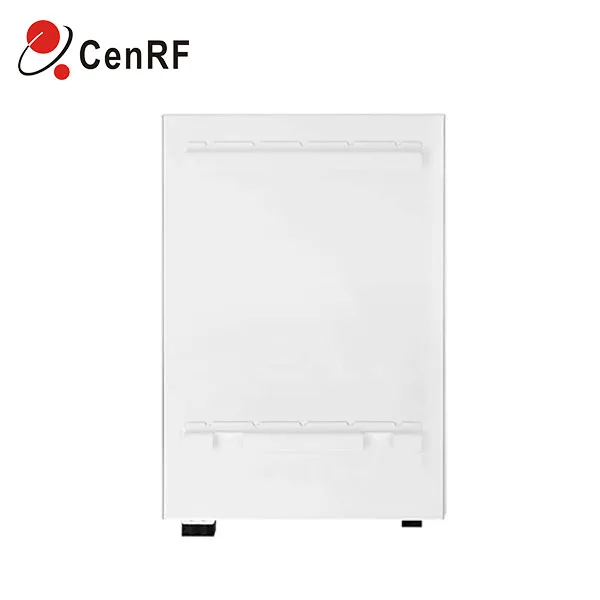

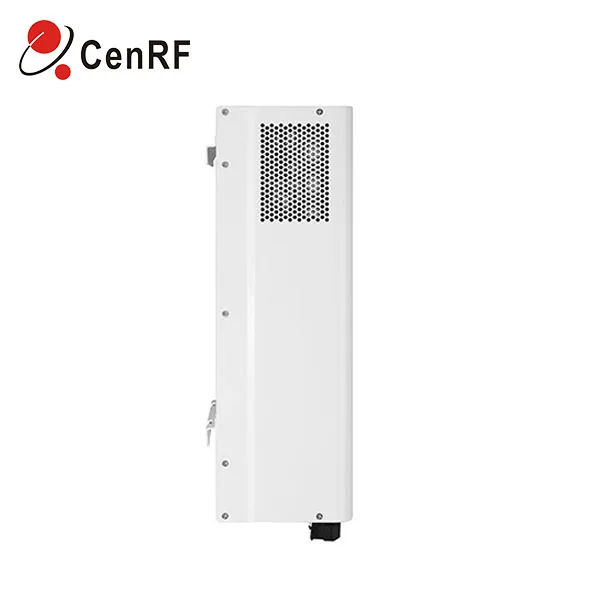

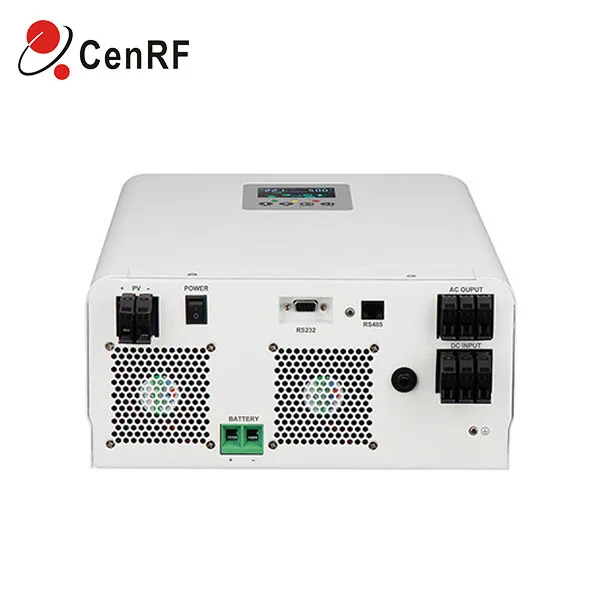

Three Phase 3KW 3000W 24V Solar Hybrid Inverter 5KW Solar Inverter With MPPT Solar Controller
- Category: >>>
- Supplier: Zhejiang Shengyang New Energy Co. Ltd.
Share on (1601173851138):
Product Overview
Description
Products Description
Rated power | 3200W | 5000W | 8000W | |||
Standard battery voltage | 24VDC | 48VDC | ||||
Installation method | Wall mounted installation | |||||
Photovoltaic Parameters | ||||||
Work mode | MPPT | |||||
Rated photovoltaic input voltage | 360VDC | |||||
MPPT tracking voltage range | 120-450V | |||||
Maximum photovoltaic input voltage | 500V | |||||
Maximum photovoltaic power output | 4000W | 6000W | 8000W | |||
MPPT tracking path number | 1 | 2 | ||||
Input Parameters | ||||||
DC input voltage range | 21-30VDC | 42-60VDC | ||||
Rated mains input voltage | 220/230/240VAC | |||||
Input voltage range of mains power | 170-280VAC (UPS mode)/120-280VAC (inverter mode) | |||||
Frequency range of mains power input | 40~55Hz(50Hz), 55~65Hz(60Hz) | |||||
Output Parameters | ||||||
Inverter output efficiency | 94% | |||||
Inverter output voltage | 220VAC ± 2%/230VAC ± 2%/240VAC ± 2% (inverter mode) | |||||
Inverter frequency | 50Hz ± 0.5 or 60Hz ± 0.5 (inverter mode) | |||||
Municipal power output efficiency | ≥99% | |||||
Other Parameters | ||||||
Max mains charging current | 60A | 80A | ||||
Max photovoltaic charging current | 100A | 100A | ||||
Battery type | Lead acid battery(Average charging voltage 13.8V Float charging voltage 13.7V (single cell battery voltage) | |||||
Conversion time | ≤4ms | |||||
Product size | 420*290*110mm | 460*304*110mm | 520*450*200mm | |||
Package size | 486*370*198mm | 526*384*198mm | 580*510*260mm | |||
Net weight | 8.5kg | 9.5kg | 17kg | |||
Gross weight | 9.5kg | 10.5kg | 19kg | |||

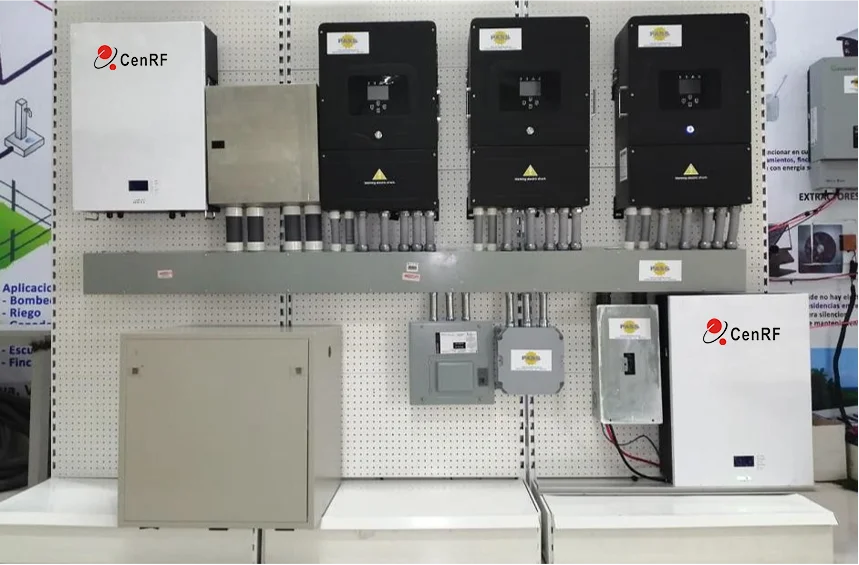

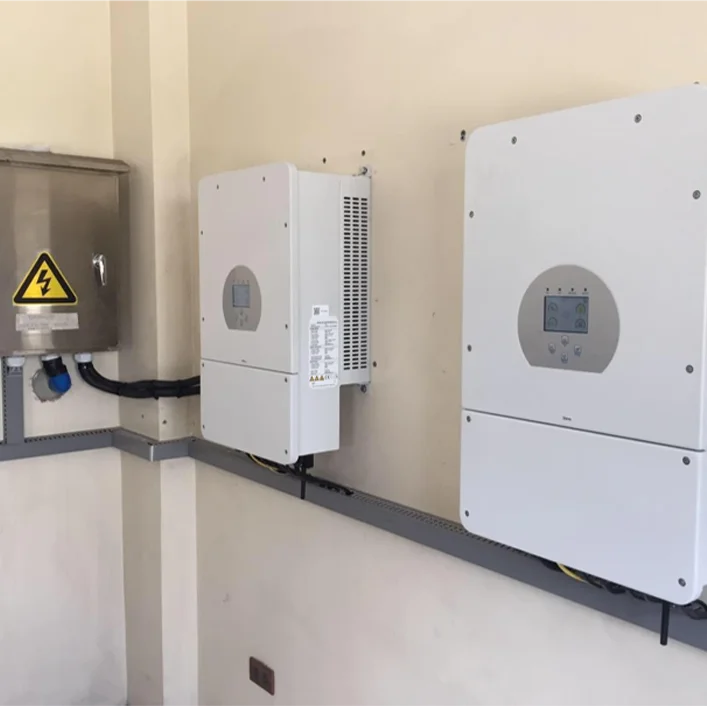

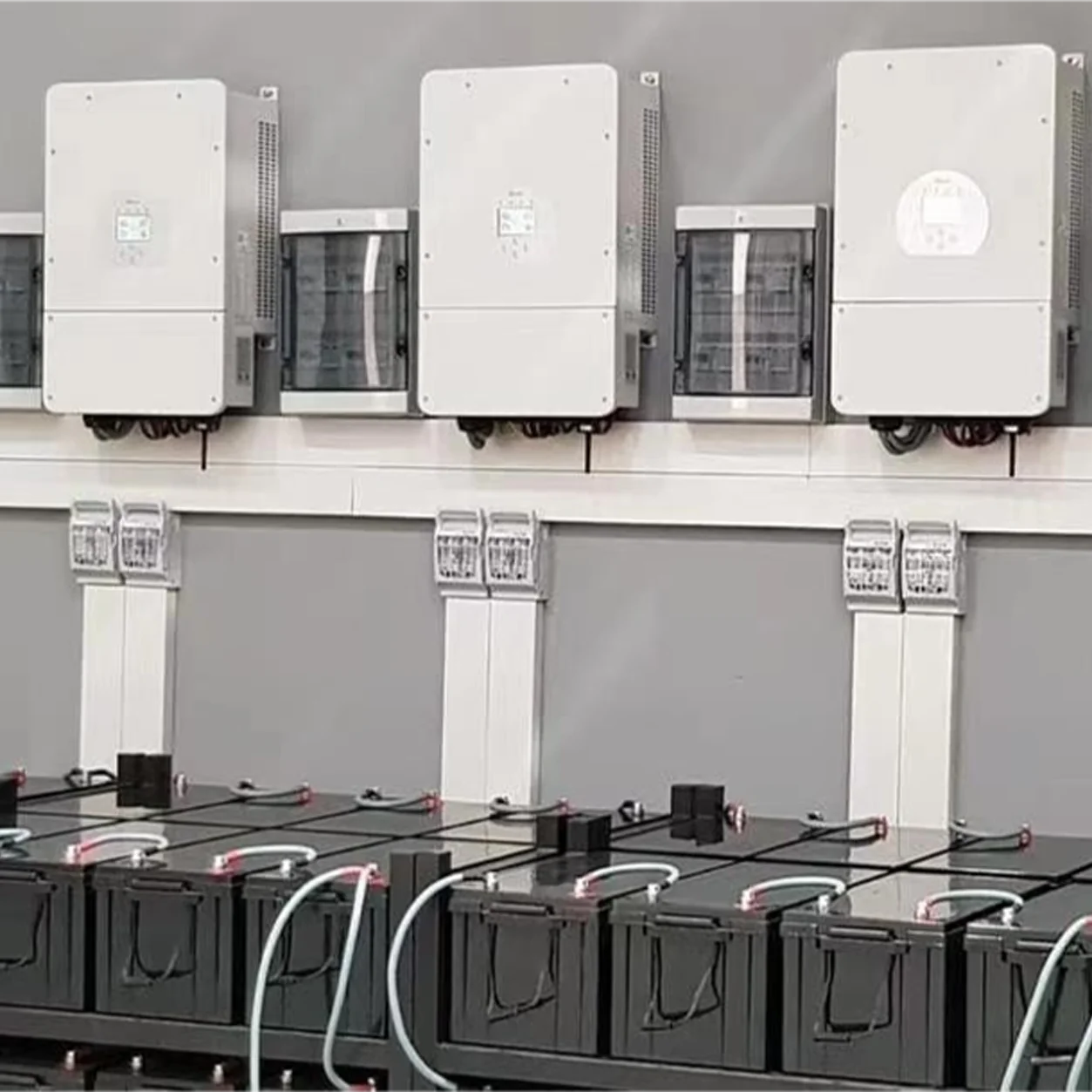

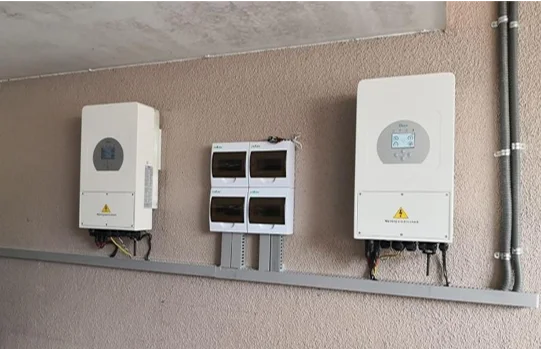

Engineering Pictures
Product Packaging
Company Profile
Zhejiang Shengyang New Energy Co., Ltd.
Zhejiang Shengyang New Energy Co., Ltd., a new energy company established in 2000, is mainly engaged in energy storage battery pack, portable power supply, household energy storage system, inverter and other products to respond to the national goal of carbon neutrality, reduce carbon emissions and bring green new energy to the world.
Shengyang is willing to create maximum value for the interests of customers,since its establishment, we have obtained 8 patents, and been recognized as a national high-tech enterprise. We have passed the ISO9001 quality management system certification, and our products have obtained CE, MSDS, IEC and other international certification.
Certifications
Service Guarantee
FAQ
Q：Are you a factory or trading company?
A：We are a group company, an enterprise integrating industry and trade,welcome to visit our factory.
Q:What is the delivery time?
A:The lead time for stock delivery is 3-7 working days. The production lead time of futures is 15-30 working days according to the quantity of orders.
Q:Do you have OEM&ODM service?
A:The content that the product can be customized is not limited to color, logo, shape, packaging, etc. You can send us the details you need to customize.
Q:Can your company provide Technical Support?
A:Yes. We have experienced technical experts who are willing to help you deal with technical problems.And we do test every component after installation to ensure we've delivered the signal solution you needed.
Q:How to get the price list?
A:The buyer provides the company information and specific procurement requirements. We will provide our company's product catalog and price list.
Q:How to become our agent and partner?
A:Having a strong willingness to cooperate and having industry background and resources Welcome to contact us: Cell phone: +86 18969122786 Email: sales@cenrf.com
