Guangzhou Building Construction Steel Ladder Frame Scaffolding For Sale
US $300.00-$900.00
Hot Sale Construction Building Galvanized round Ring Lock for Scaffoldings for Ring Lock System tower scaffold aluminium
- Category: >>>
- Supplier: Xianxian Woheng Metal Products Co. Ltd.
Share on (1601174177412):
Product Overview
Description
The construction ring lock scaffolding is made of high-quality steel, with higher load-bearing capacity and hot-dip galvanized coating on the surface, which is more corrosion-resistant and has a longer service life. The product provides excellent durability, easy assembly, and versatile applicability to various scenarios, as well as a modular structure that minimizes storage space, making it the preferred scaffold for industrial facilities and construction sites.

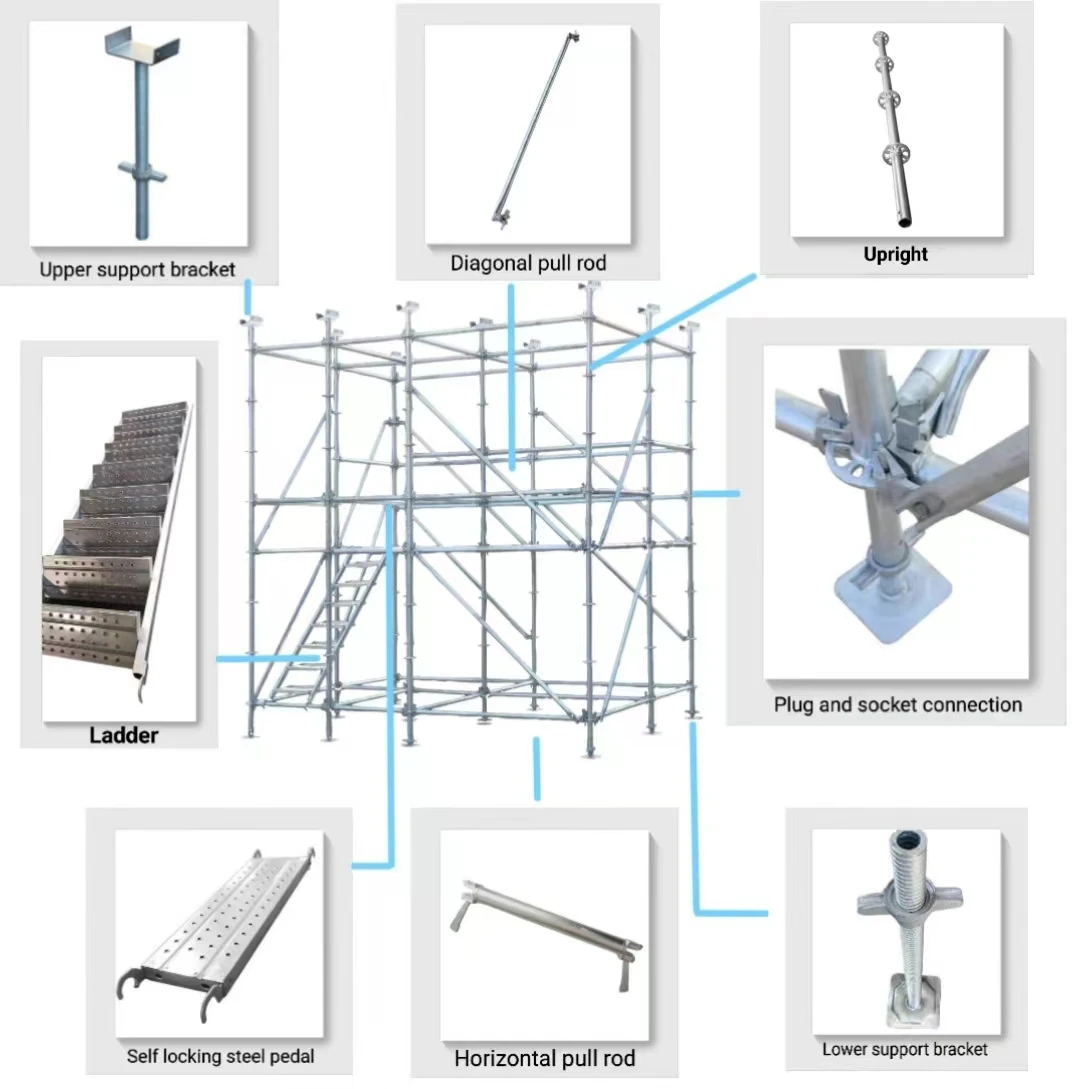

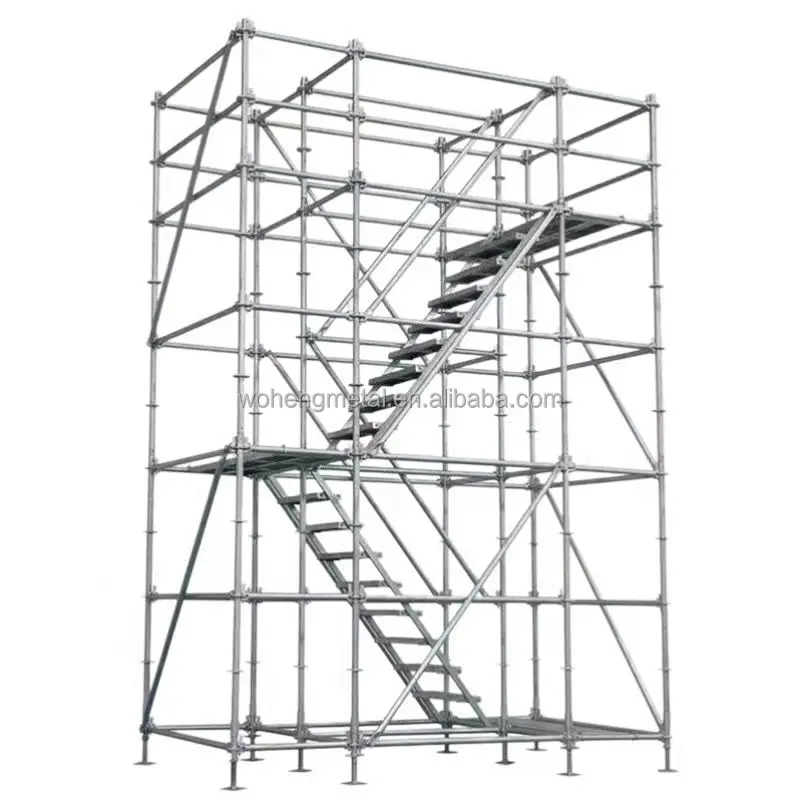

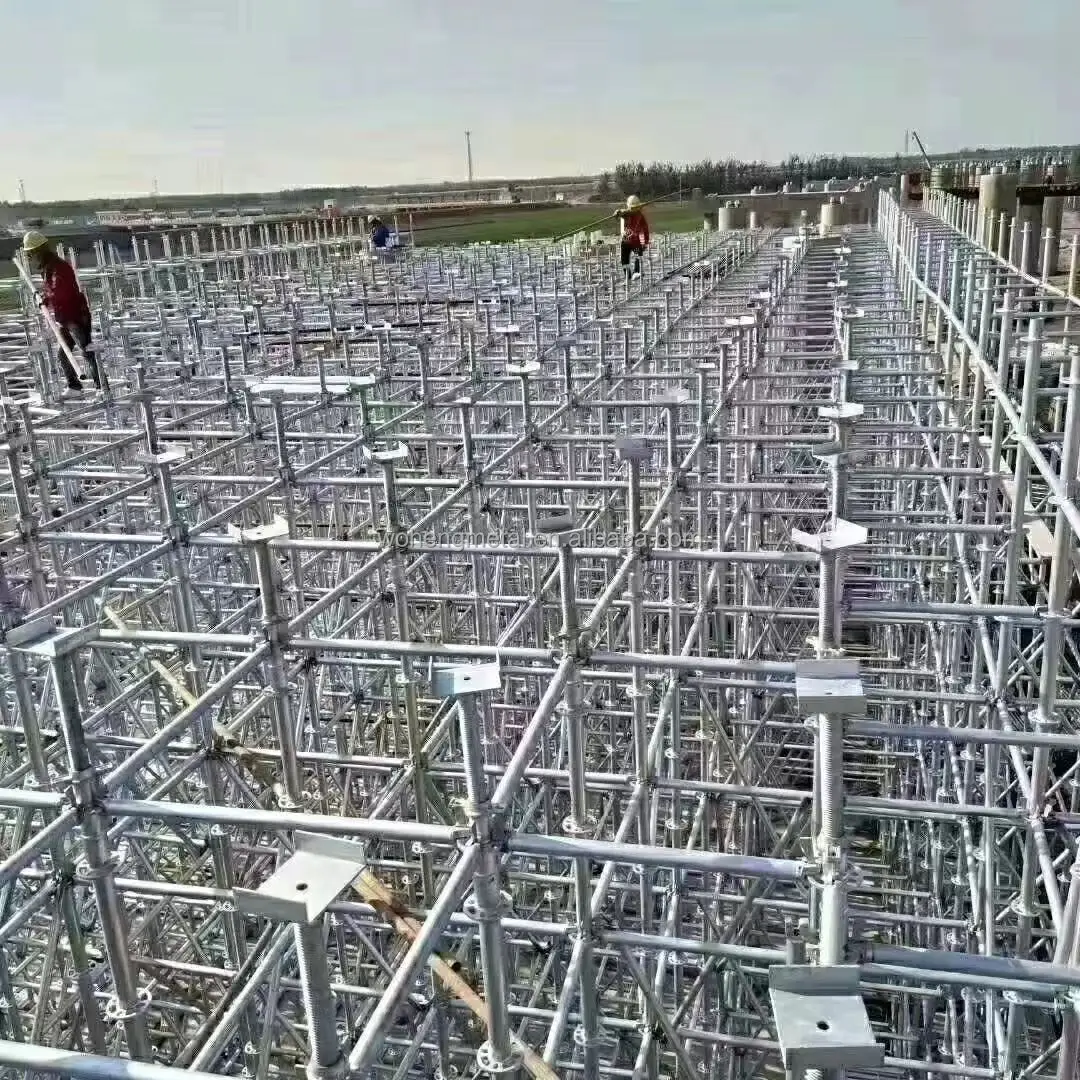

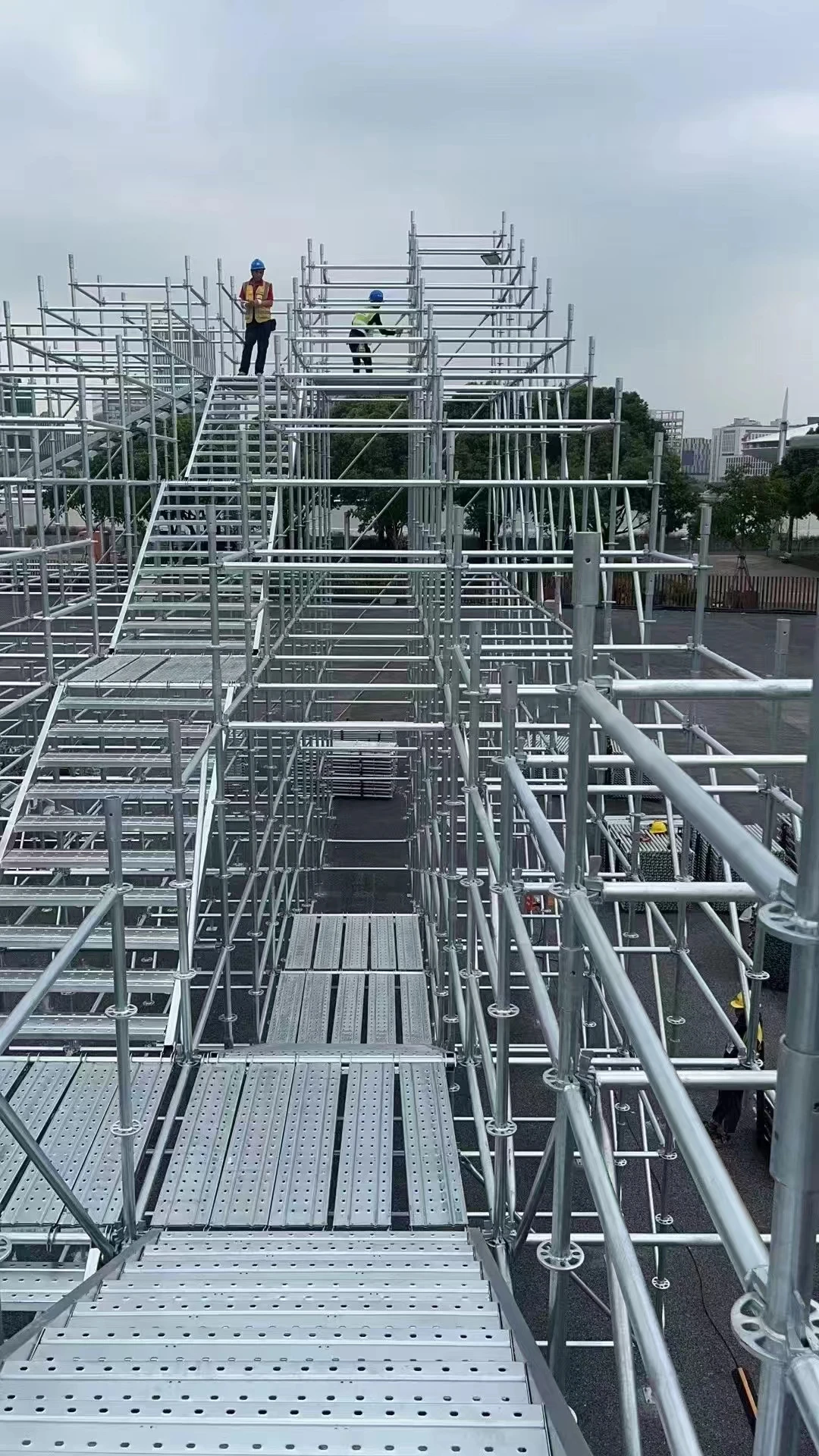

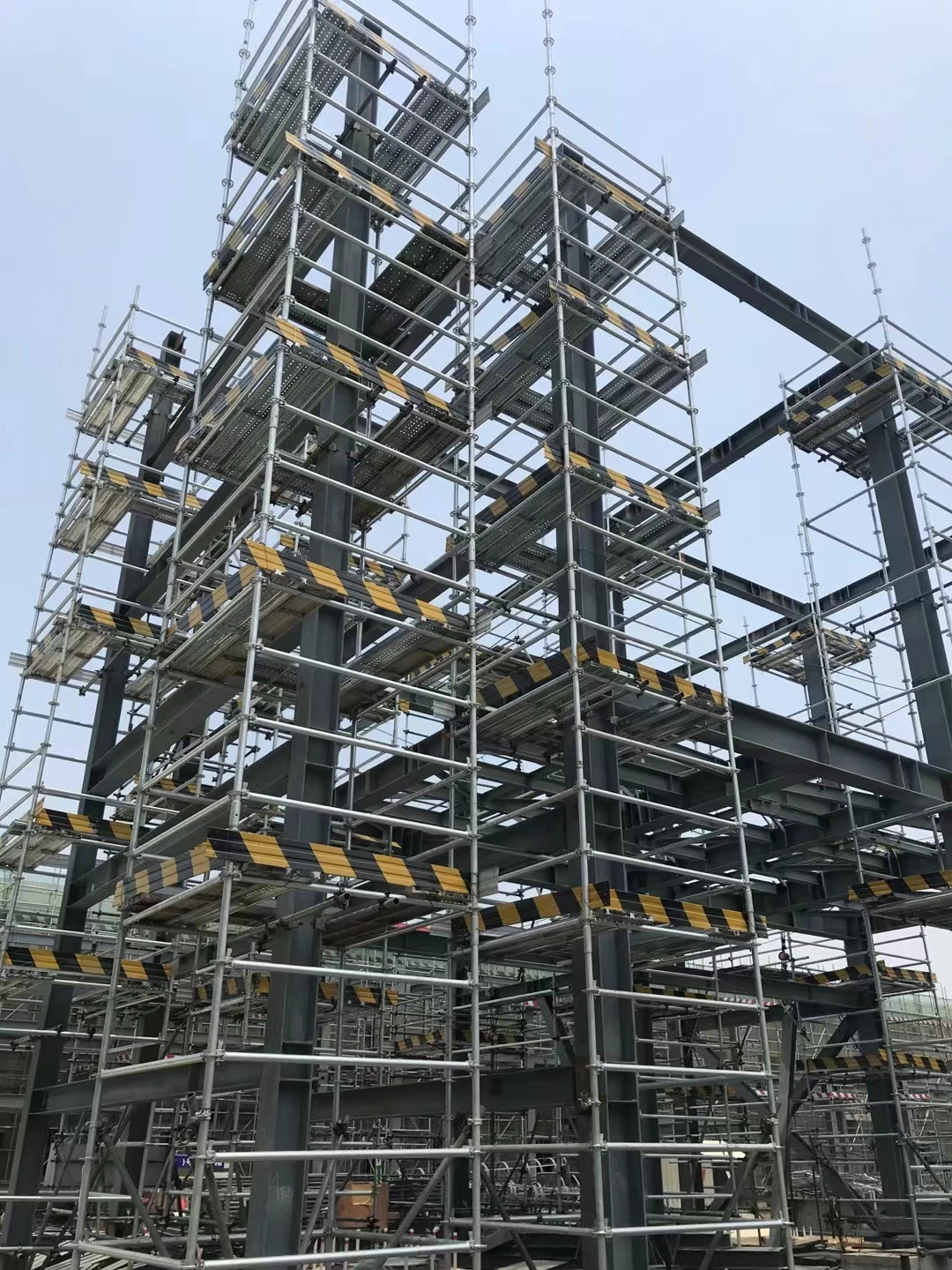

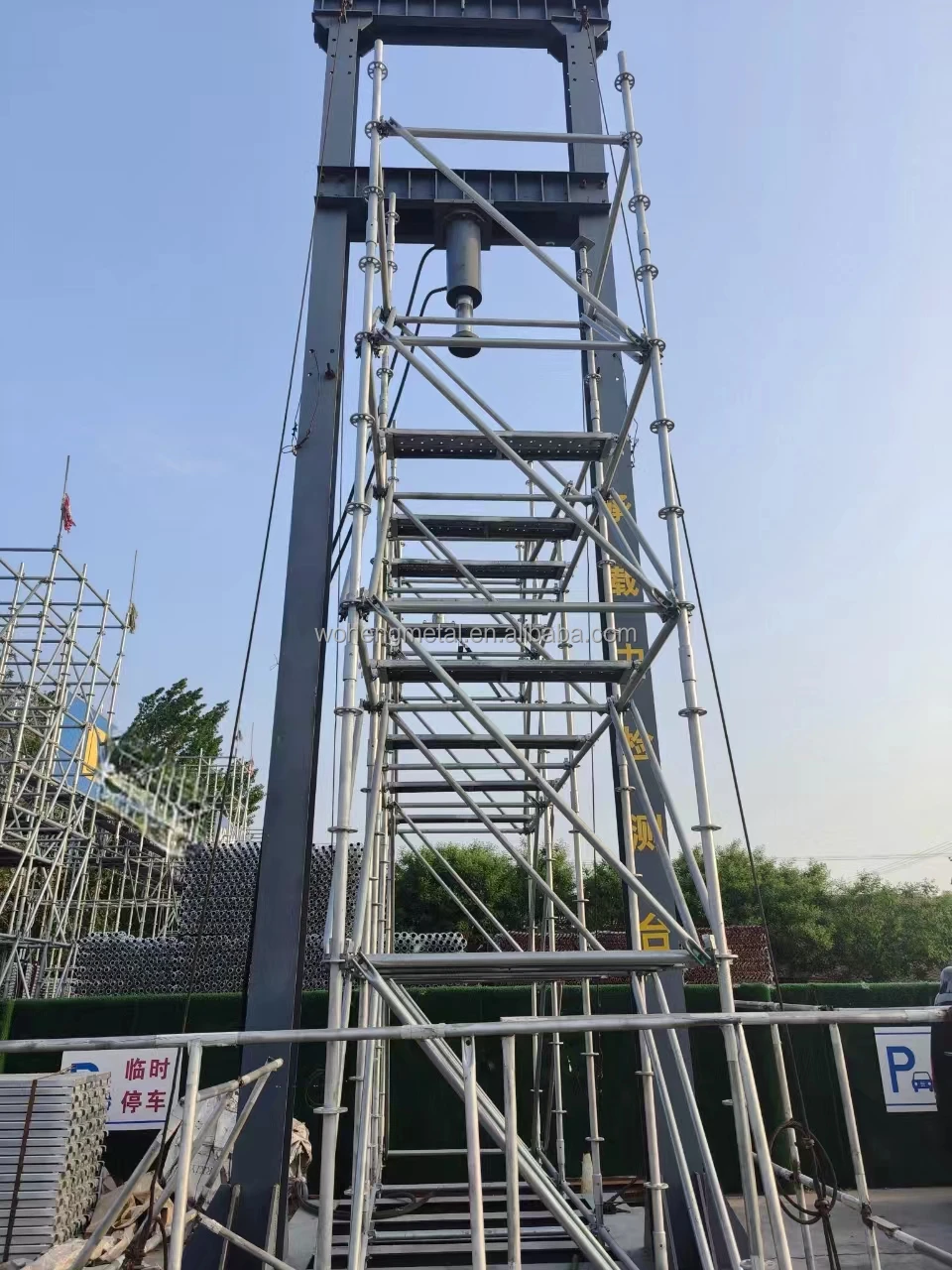

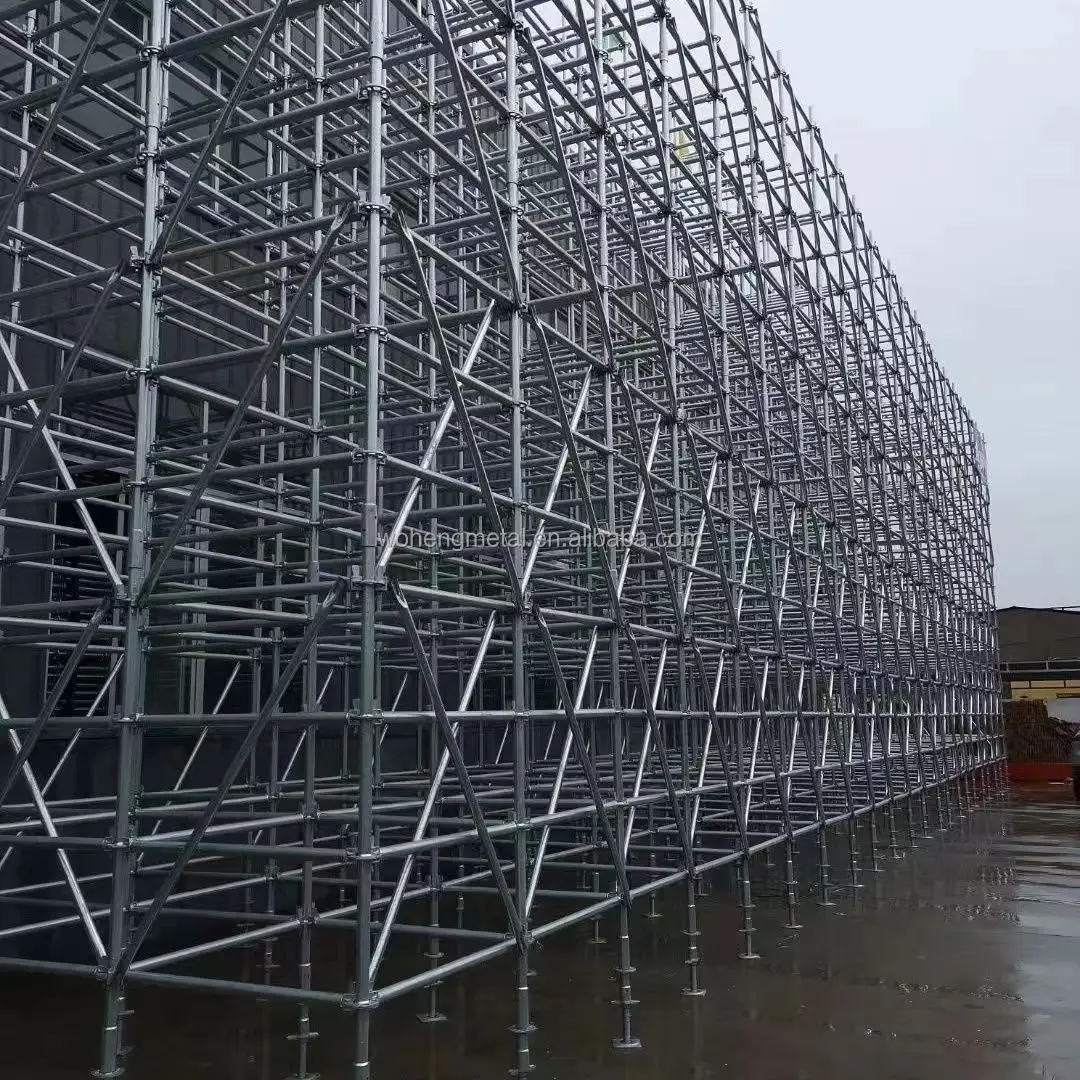

The ring lock scaffolding is assembled into a fixed triangular lattice structure through self-locking connecting plates and pins of uprights, crossbars, and diagonal rods, and will not deform under lateral and longitudinal forces. It can set up building main supports, bridge supports, stage supports, lighting installations, tunnel supports, bridge pier and column safety ladders with different cross-sections and spans, which can meet your various usage scenarios.
The ring lock scaffolding is assembled into a fixed triangular lattice structure through self-locking connecting plates and pins of uprights, crossbars, and diagonal rods, and will not deform under lateral and longitudinal forces. It can set up building main supports, bridge supports, stage supports, lighting installations, tunnel supports, bridge pier and column safety ladders with different cross-sections and spans, which can meet your various usage scenarios.
ASSEMBLY IS SO EASY

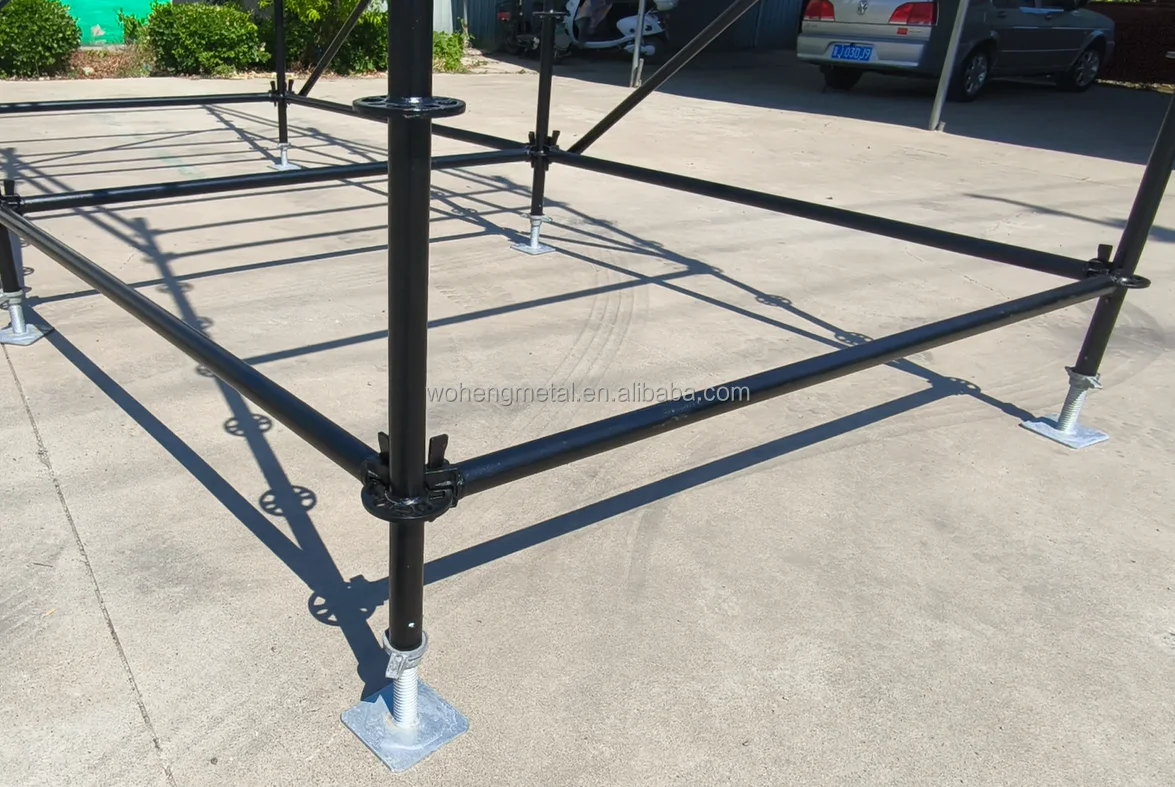

Place the horizontal tie rod in the desired position and insert the wedge into the opening of the ring lock.
Use a hammer to knock the wedge in, and all parts will automatically come into place.
Assemble the horizontal pull rod and diagonal pull rod in sequence, ensuring that each part fits perfectly.

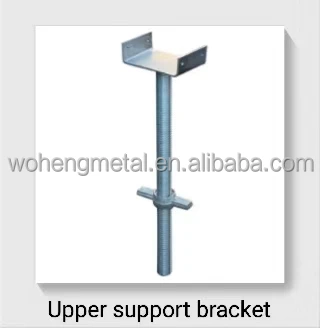

⚠️ WARNING ⚠️： The upper freely adjustable end is ≤ 650mm, the exposed part of the adjustable upper support bracket is ≤ 400mm, and the insertion depth of the adjustable upper support bracket is ≥ 150mm.
⚠️ WARNING⚠️：
The height of the lowest horizontal tie rod from the ground is ≤ 550mm

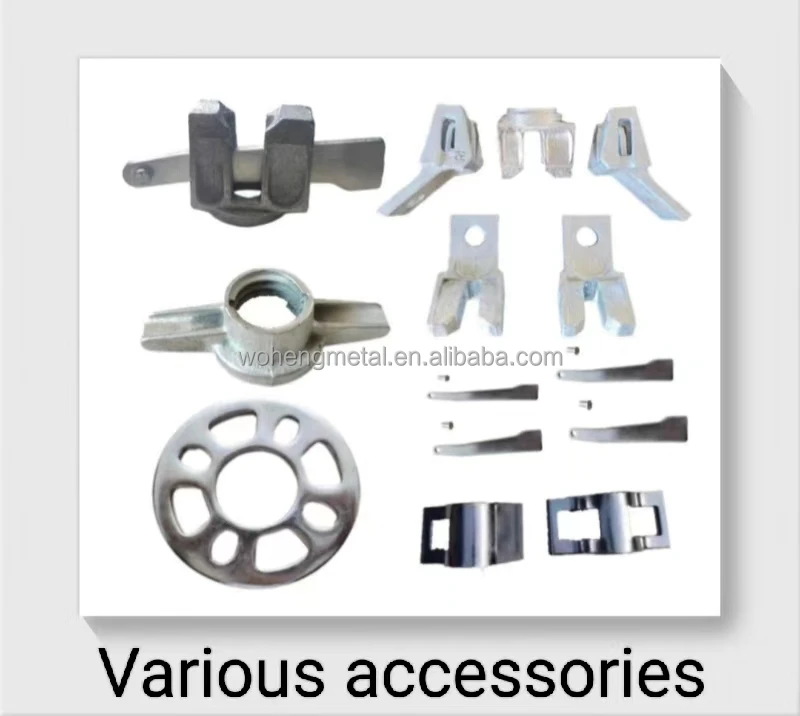

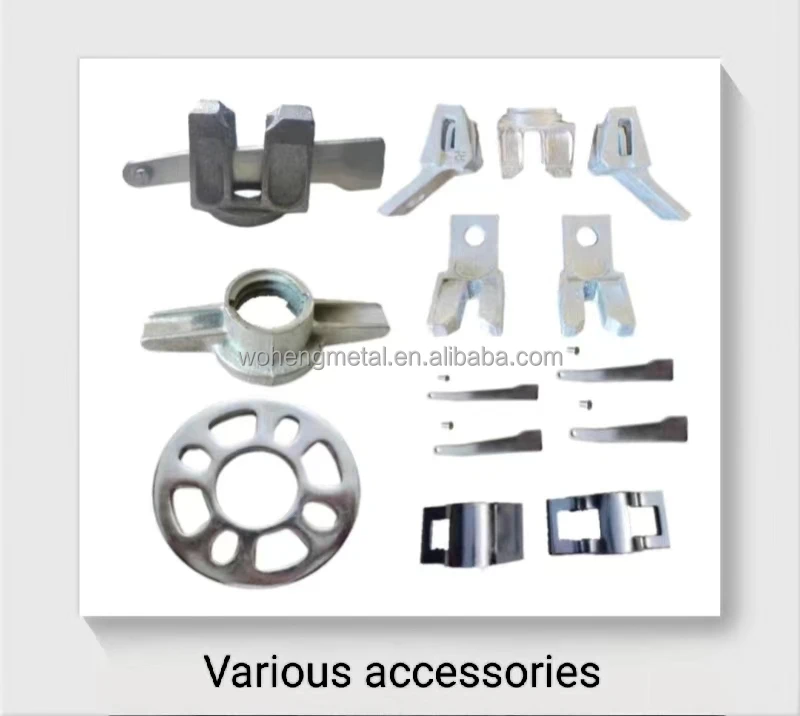

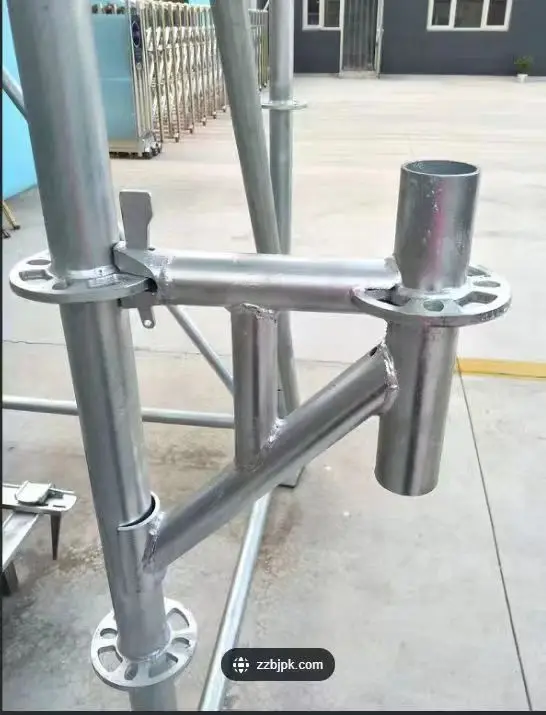

We can also provide you with various high-quality factory produced accessories and fittings.
Bearing capacity includes self weight load, load load, wind load, earthquake load, etc., and is an important quality indicator of scaffolding.

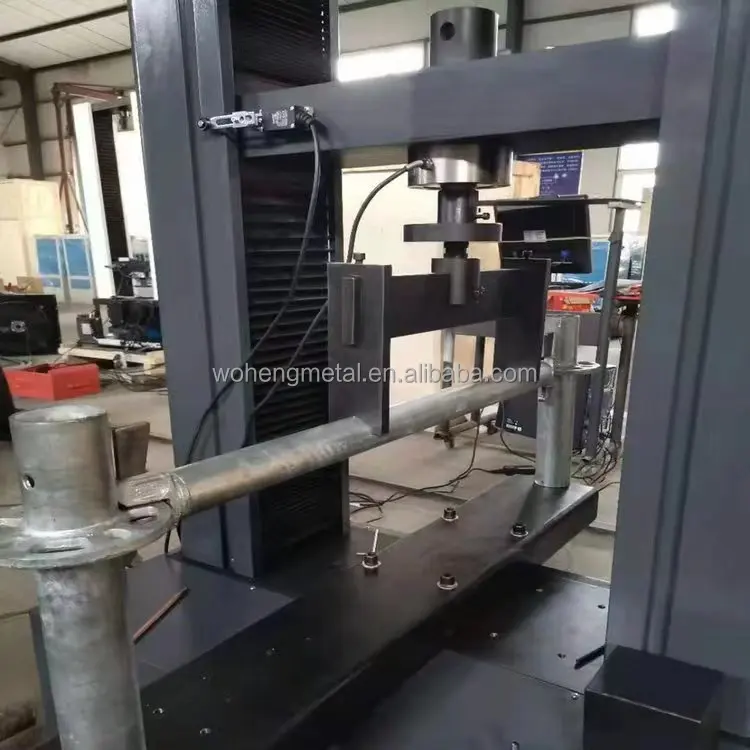

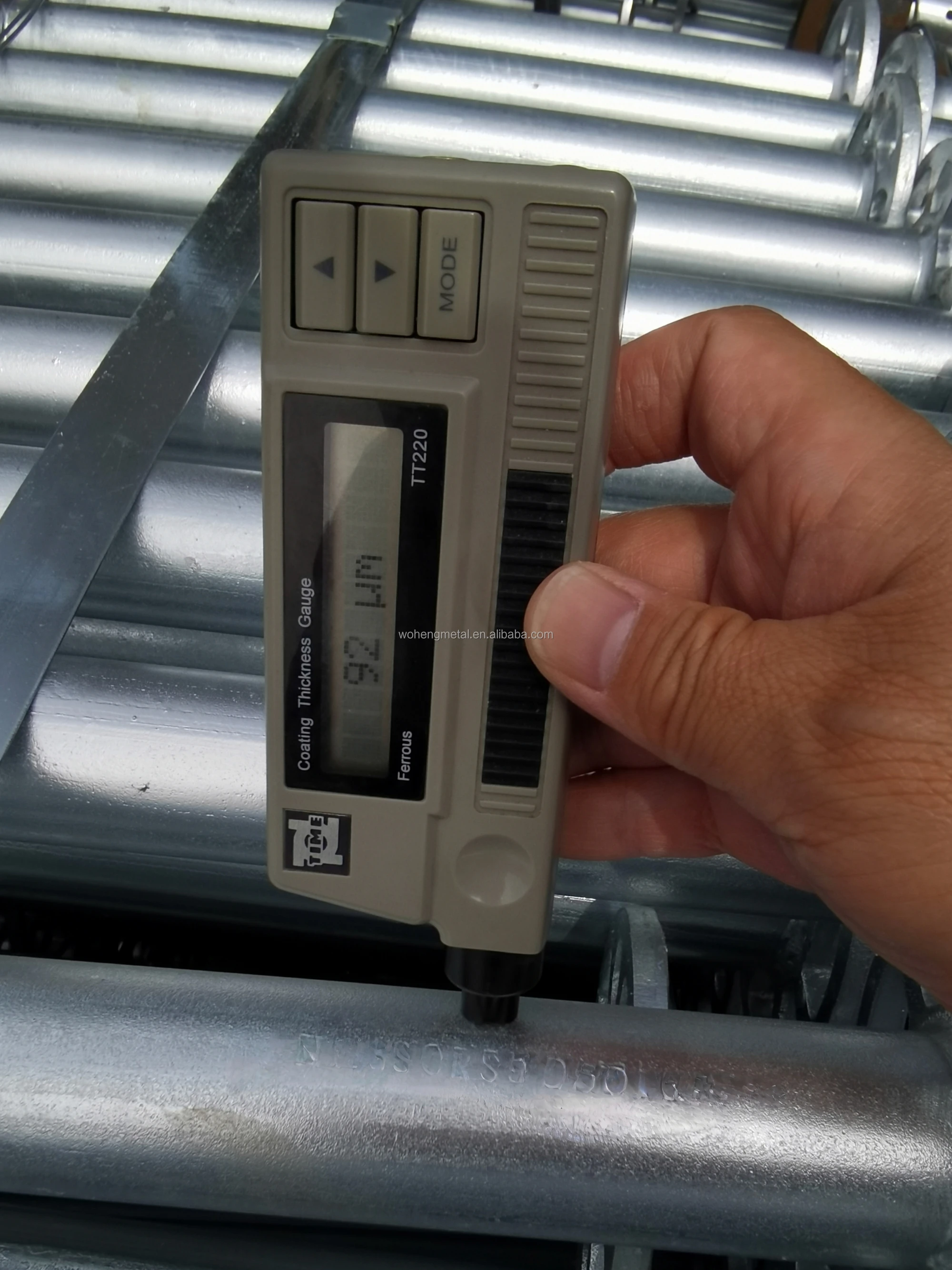

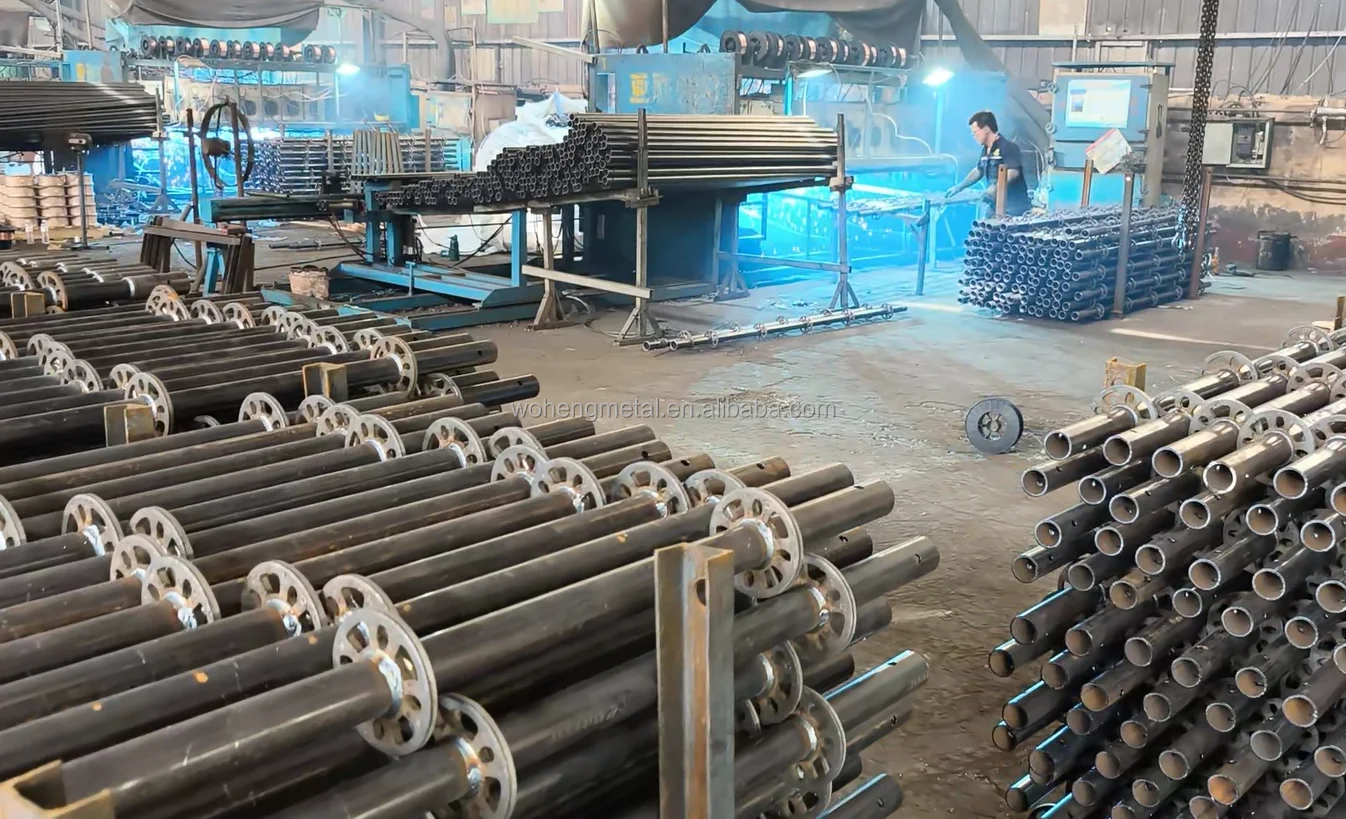

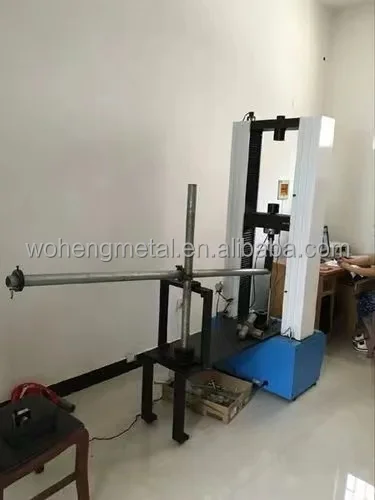

Our company has complete testing equipment to ensure the quality of products leaving the factory.

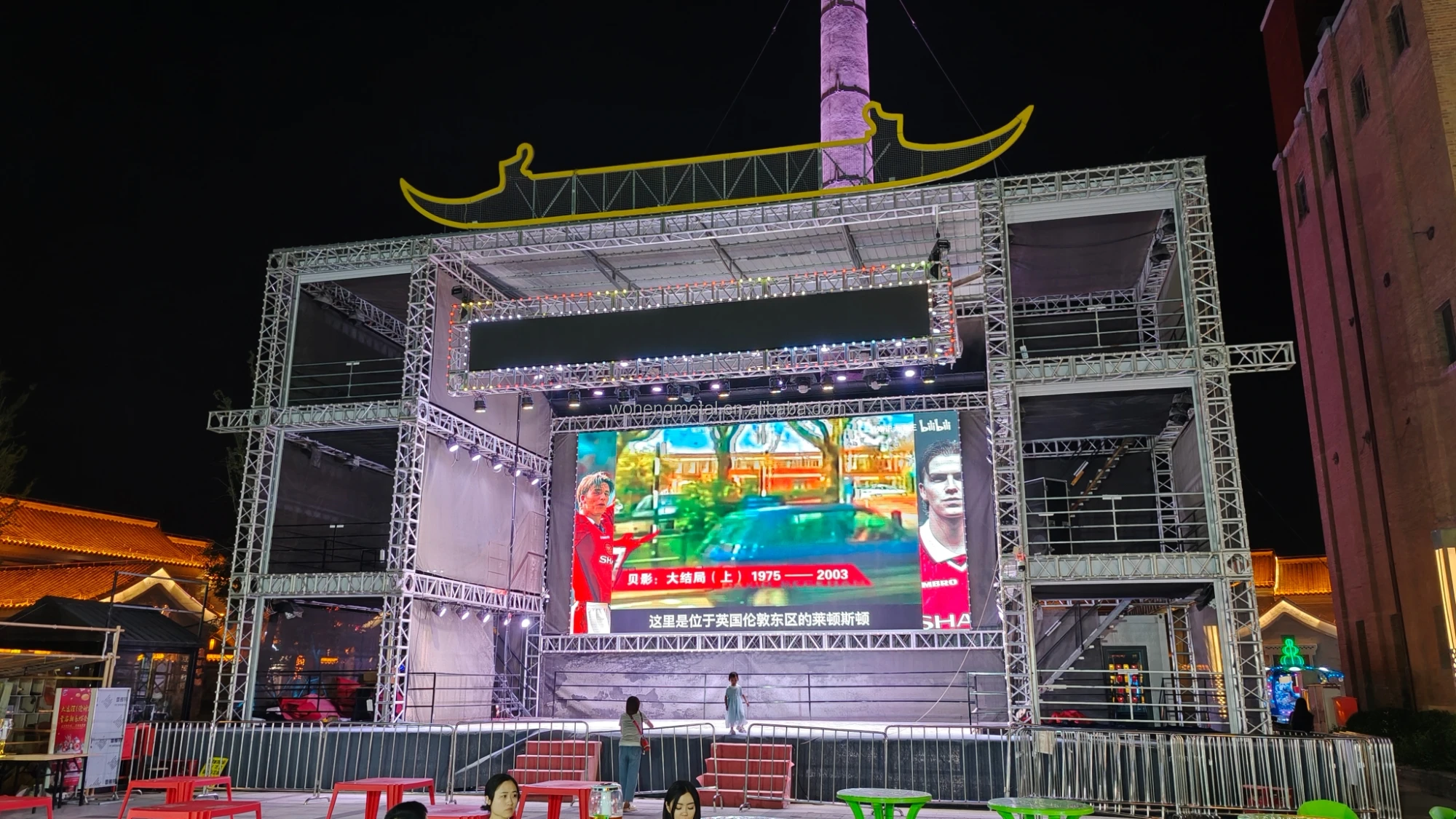

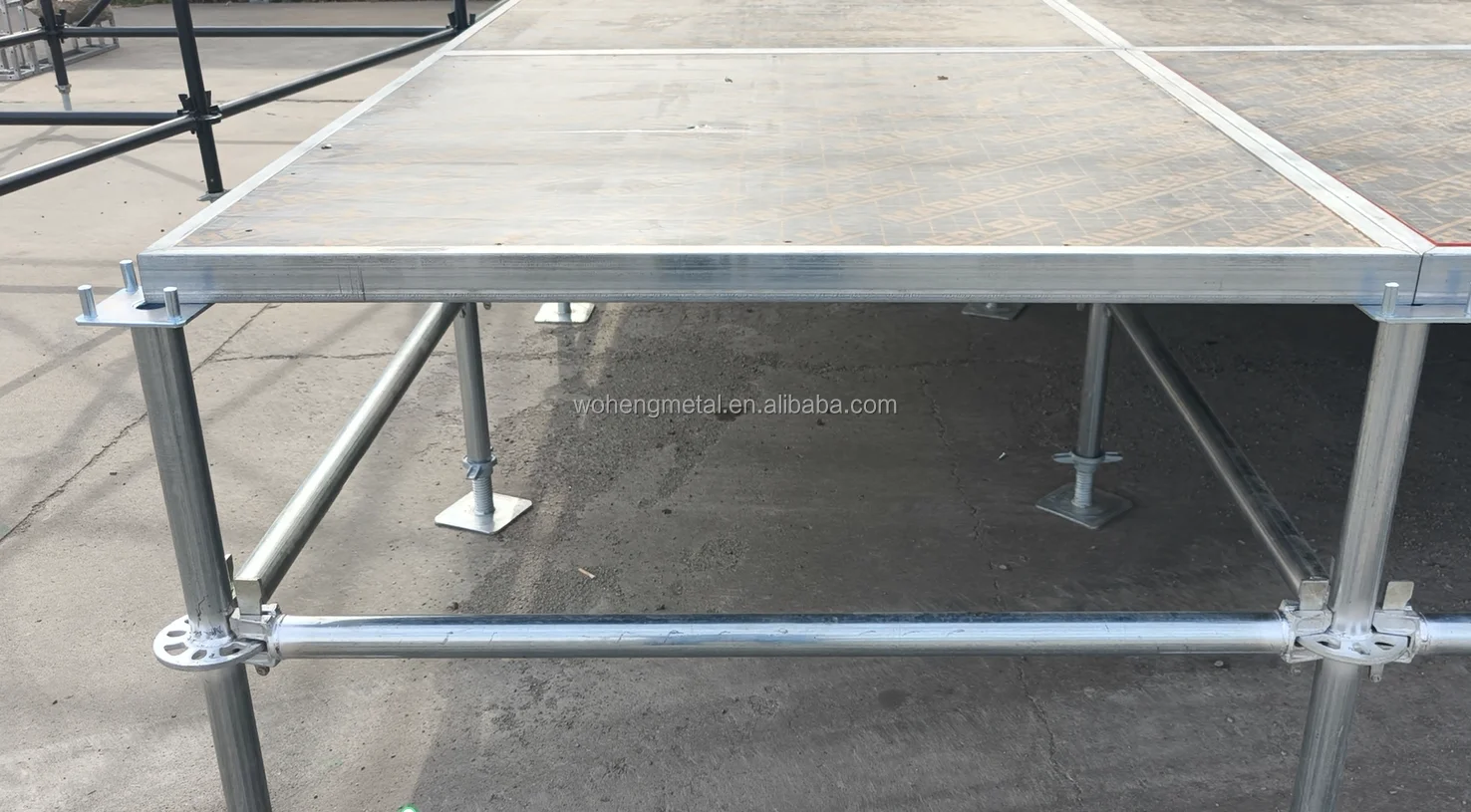

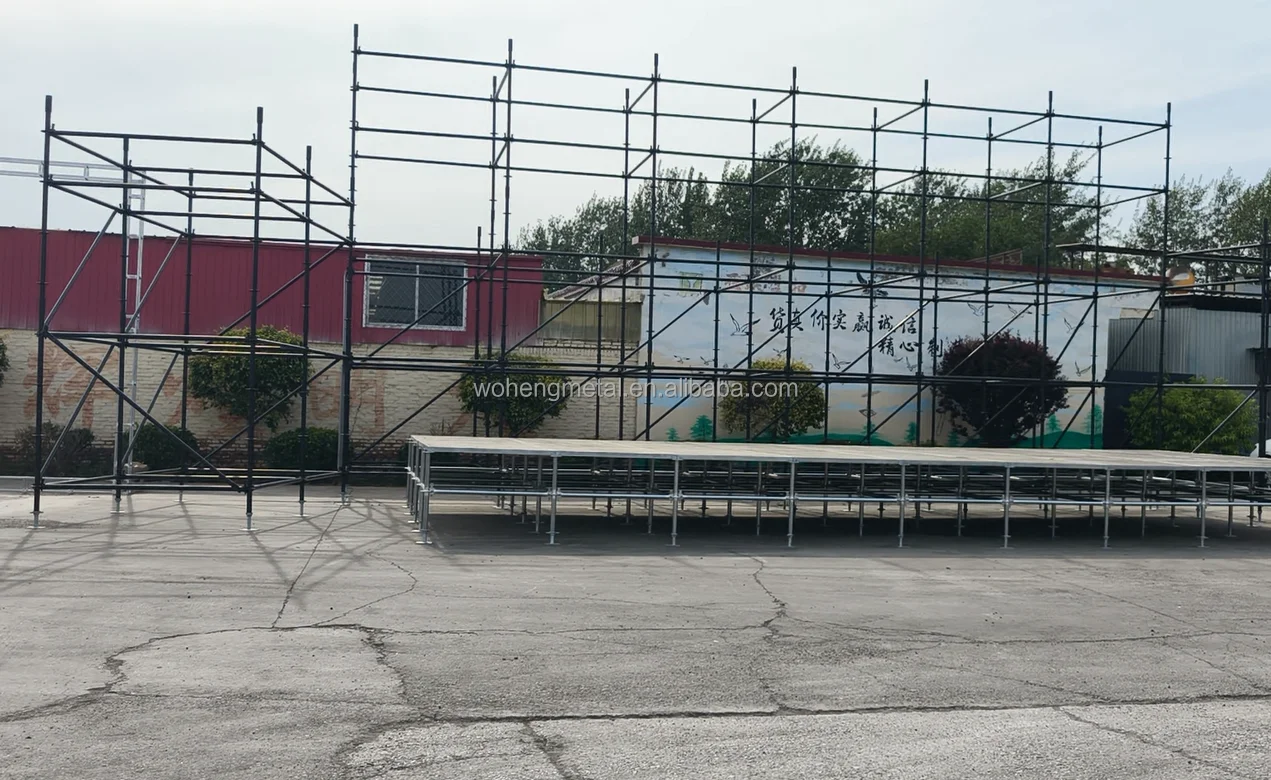

Stage Event Celebration real frame
Name | Specifications | Wall thickness (mm) | Diameter | Texture | Surface treatment |
Base | B-JZ-200 | 3.2 | 48.3 | Q355B | Hot dip galvanizing or electroplating |
B-JZ-350 | 3.2 | 48.3 | Q355B | Hot Galvanized | |

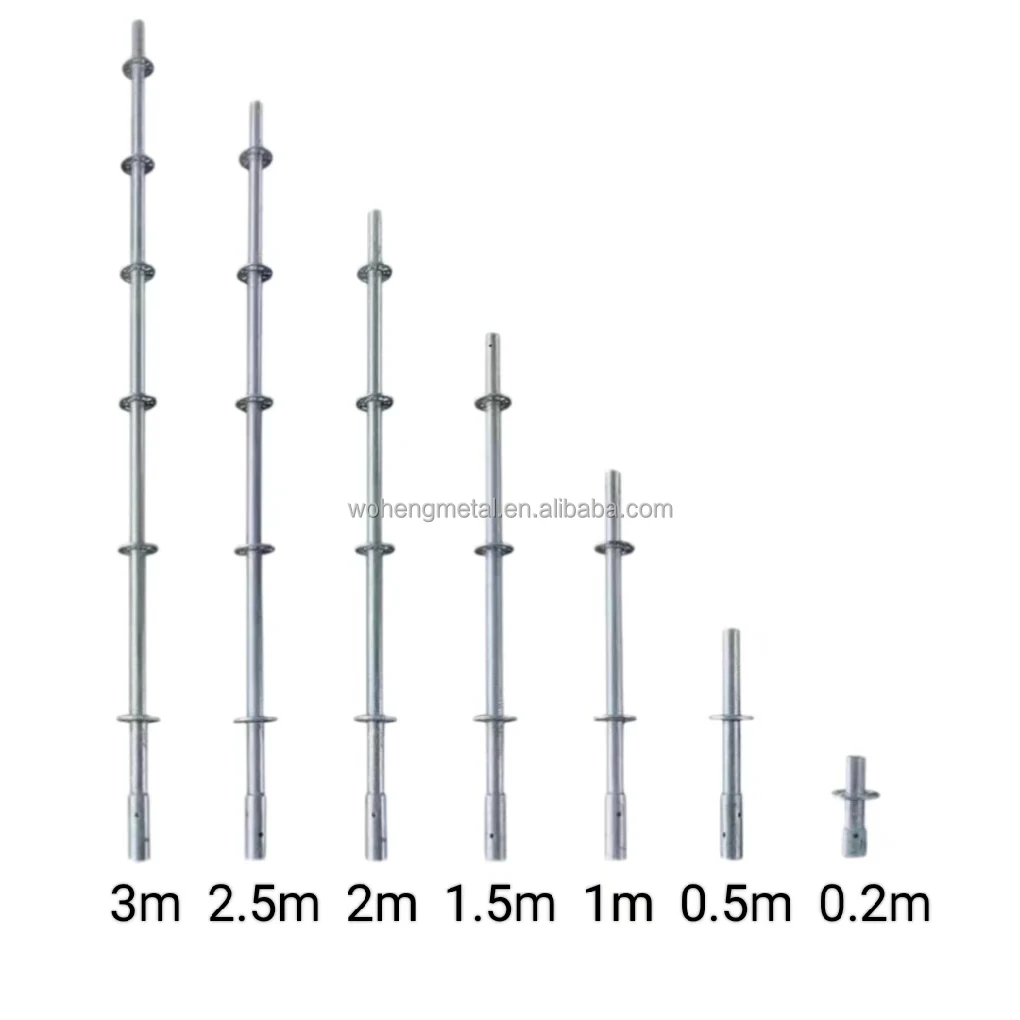

Upright | B-LG-500 | 3.2 | 48.3 | Q355B | Hot Galvanized |
B-LG-1000 | 3.2 | 48.3 | Q355B | Hot Galvanized | |
B-LG-1500 | 3.2 | 48.3 | Q355B | Hot Galvanized | |
B-LG-2000 | 3.2 | 48.3 | Q355B | Hot Galvanized | |
B-LG-2500 | 3.2 | 48.3 | Q355B | Hot Galvanized | |
B-LG-3000 | 3.2 | 48.3 | Q355B | Hot Galvanized | |

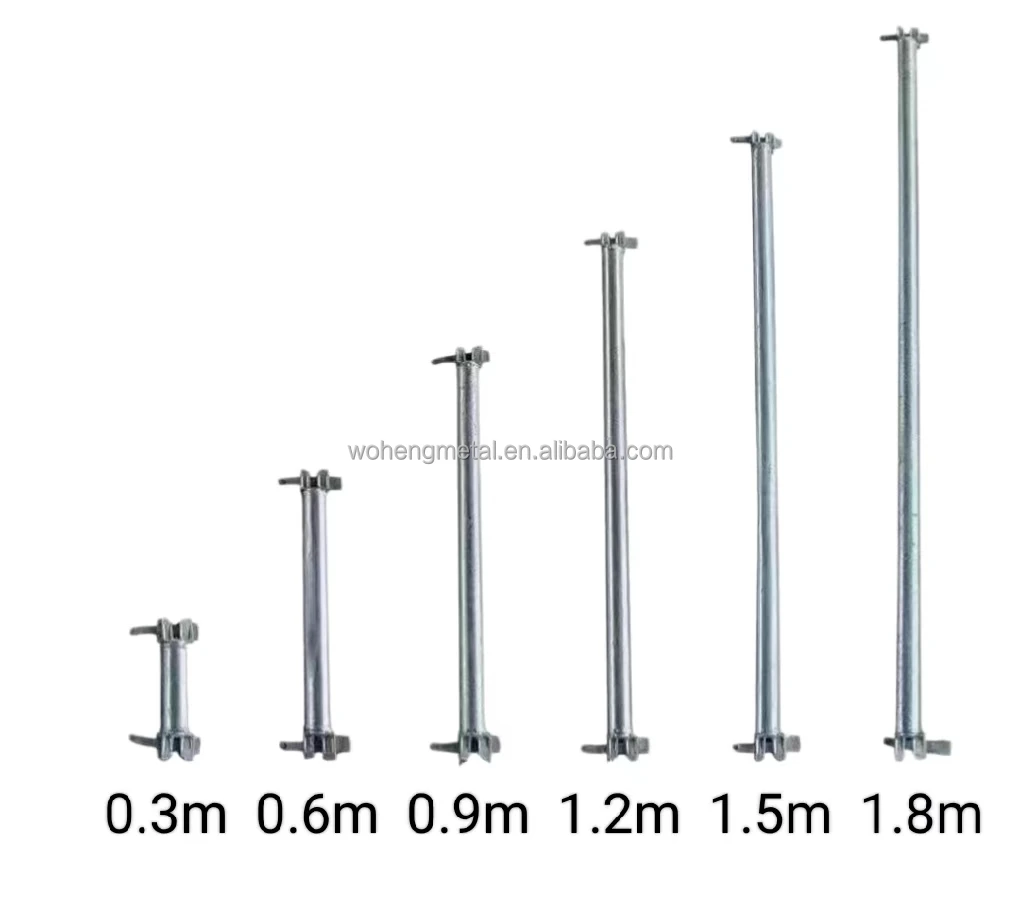

Horizontal pull rod | B-SG-300 | 2.75 | 48.3 | Q235 | Hot Galvanized |
B-SG-300 | 2.75 | 48.3 | Q235 | Hot Galvanized | |
B-SG-600 | 2.75 | 48.3 | Q235 | Hot Galvanized | |
B-SG-900 | 2.75 | 48.3 | Q235 | Hot Galvanized | |
B-SG-1200 | 2.75 | 48.3 | Q235 | Hot Galvanized | |
B-SG-1500 | 2.75 | 48.3 | Q235 | Hot Galvanized | |
B-SG-1800 | 2.75 | 48.3 | Q235 | Hot Galvanized | |
A-XG-600x1500 | 2.75 | 42 | Q195 | ||
A-XG-900x1500 | 2.75 | 42 | Q195 | Hot Galvanized | |
A-XG-1200x1500 | 2.75 | 42 | Q195 | Hot Galvanized | |
A-XG-1500x1500 | 2.75 | 42 | Q195 | Hot Galvanized | |
A-XG-1800x1500 | 2.75 | 42 | Q195 | Hot Galvanized | |
A-XG-600x2000 | 2.75 | 42 | Q195 | Hot Galvanized | |
A-XG-900x2000 | 2.75 | 42 | Q195 | Hot Galvanized | |
A-XG-1200x2000 | 2.75 | 42 | Q195 | Hot Galvanized | |
A-XG-1500x2000 | 2.75 | 42 | Q195 | Hot Galvanized | |
A-XG-1800x2000 | 2.75 | 42 | Q195 | Hot Galvanized | |

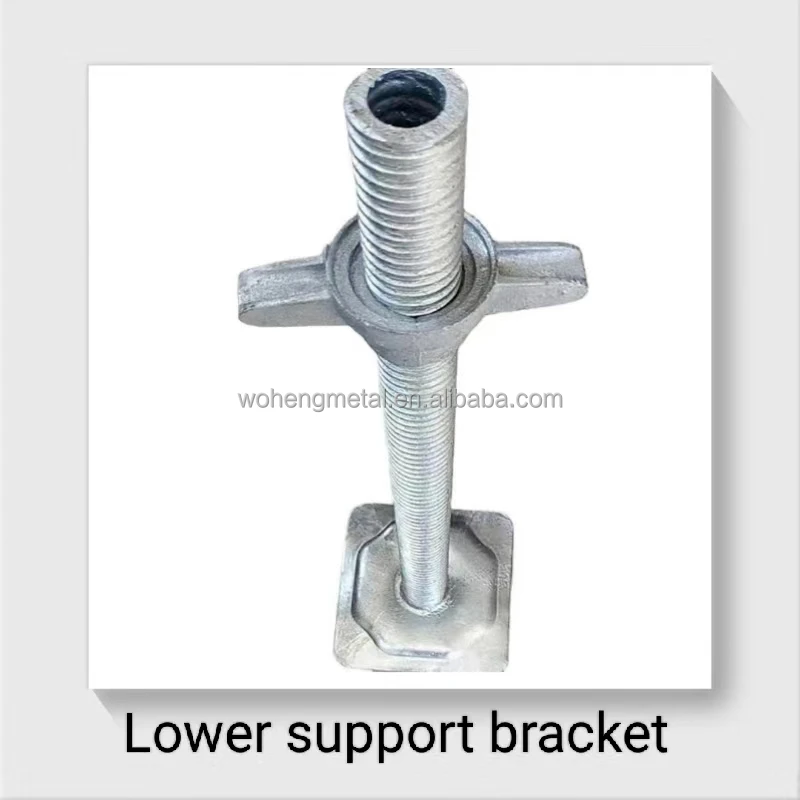

Lower support bracket | ∅38x500 | 20# | Hot Galvanized | ||
U-Jacking | ∅38x600 | 20# | Hot Galvanized | ||

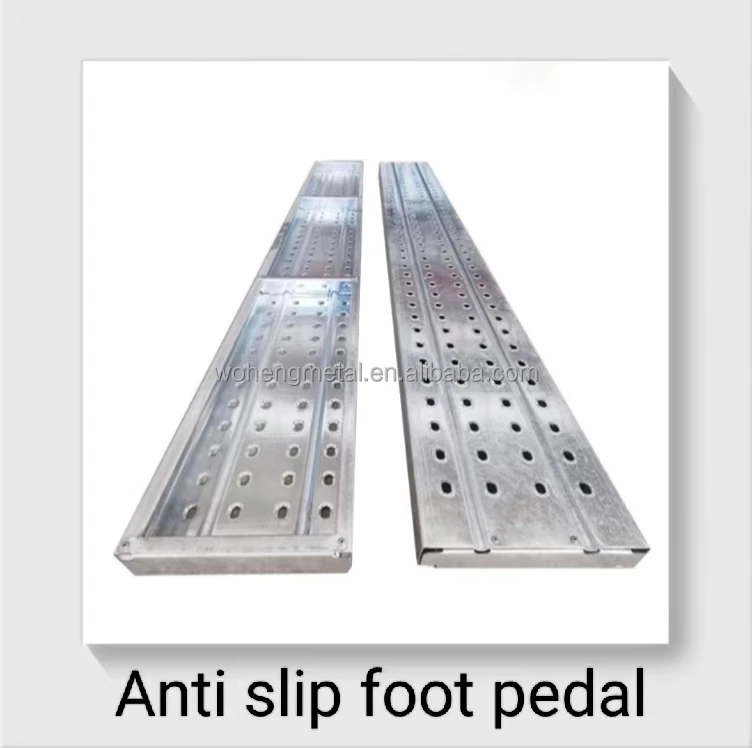

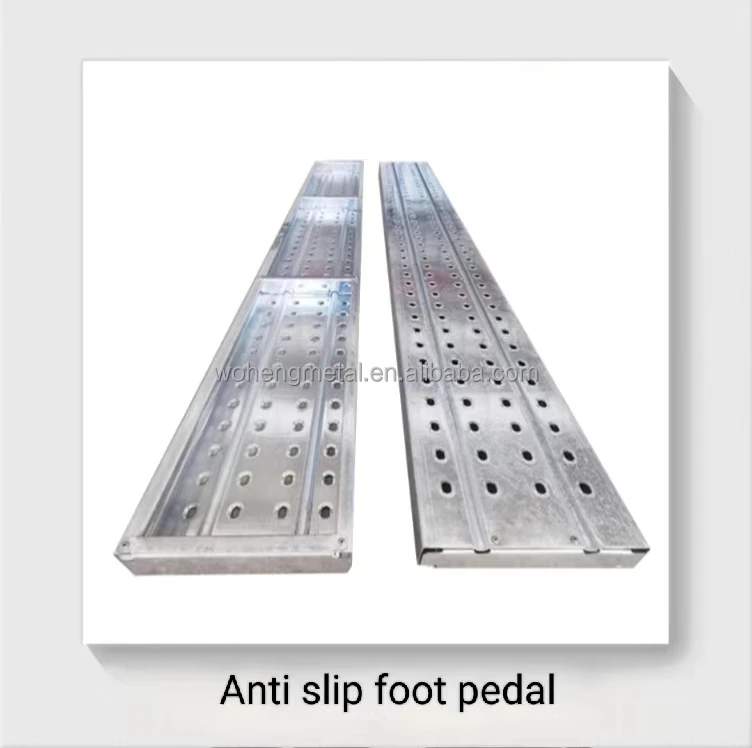

Ladder pedals | 600 | Q195 | Hot Galvanized | ||
900 | Q195 | Hot Galvanized | |||
1200 | Q195 | Hot Galvanized |
Item | Value |
Warranty | 5 years |
Project Solution Capability | graphic design, 3D model design, total solution for projects |
Application | building operations bridge construction etc |
Advantage | Easy Assembling |
1: Are you a manufacturer?
Yes,we have specialized in this field for about 10 years experience.
2: Could you provide sample?
Yes,we can provide sample together with our catalogue.
3: What information should I provide,if I want a lowest quotation?
The specifications of wire diameter. length, quantity, packing, etc.
4: How does your factory do regarding quality control?
We are very proud to let you know that, we use the best raw material,have at least 5 years experienced workers, the advanced
machine and specialized team to assure the quality.We perform Quality Control Inspections on 100%of our products.
5: How is your delivery time?
We always prepare enough stock material for your urgent requirement.The delivery time is 7days for all the stock material. We
will check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
6:Whats the payment term?
We usually use the T/T,L/C,D/P,Western union.
Yes,we have specialized in this field for about 10 years experience.
2: Could you provide sample?
Yes,we can provide sample together with our catalogue.
3: What information should I provide,if I want a lowest quotation?
The specifications of wire diameter. length, quantity, packing, etc.
4: How does your factory do regarding quality control?
We are very proud to let you know that, we use the best raw material,have at least 5 years experienced workers, the advanced
machine and specialized team to assure the quality.We perform Quality Control Inspections on 100%of our products.
5: How is your delivery time?
We always prepare enough stock material for your urgent requirement.The delivery time is 7days for all the stock material. We
will check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
6:Whats the payment term?
We usually use the T/T,L/C,D/P,Western union.
