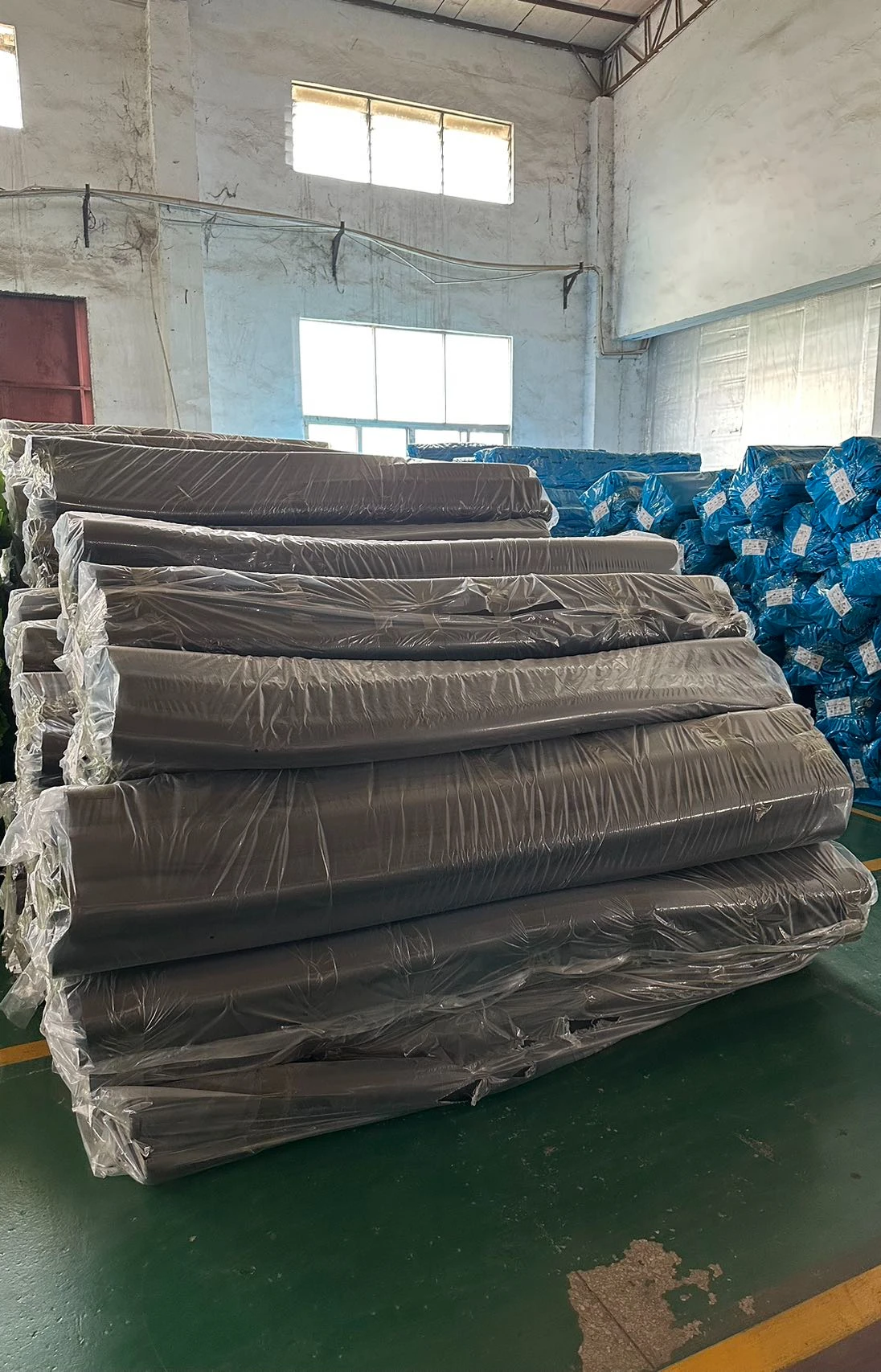

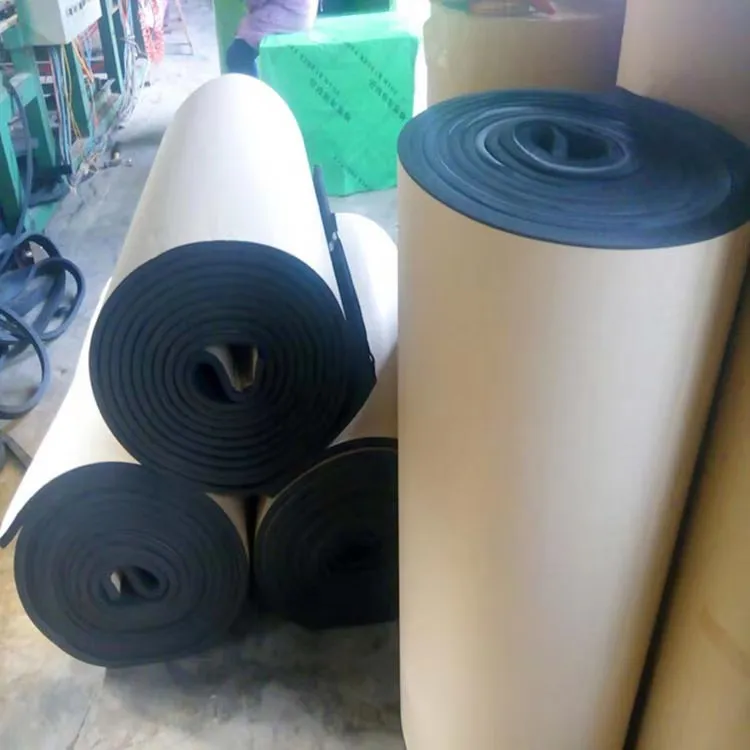

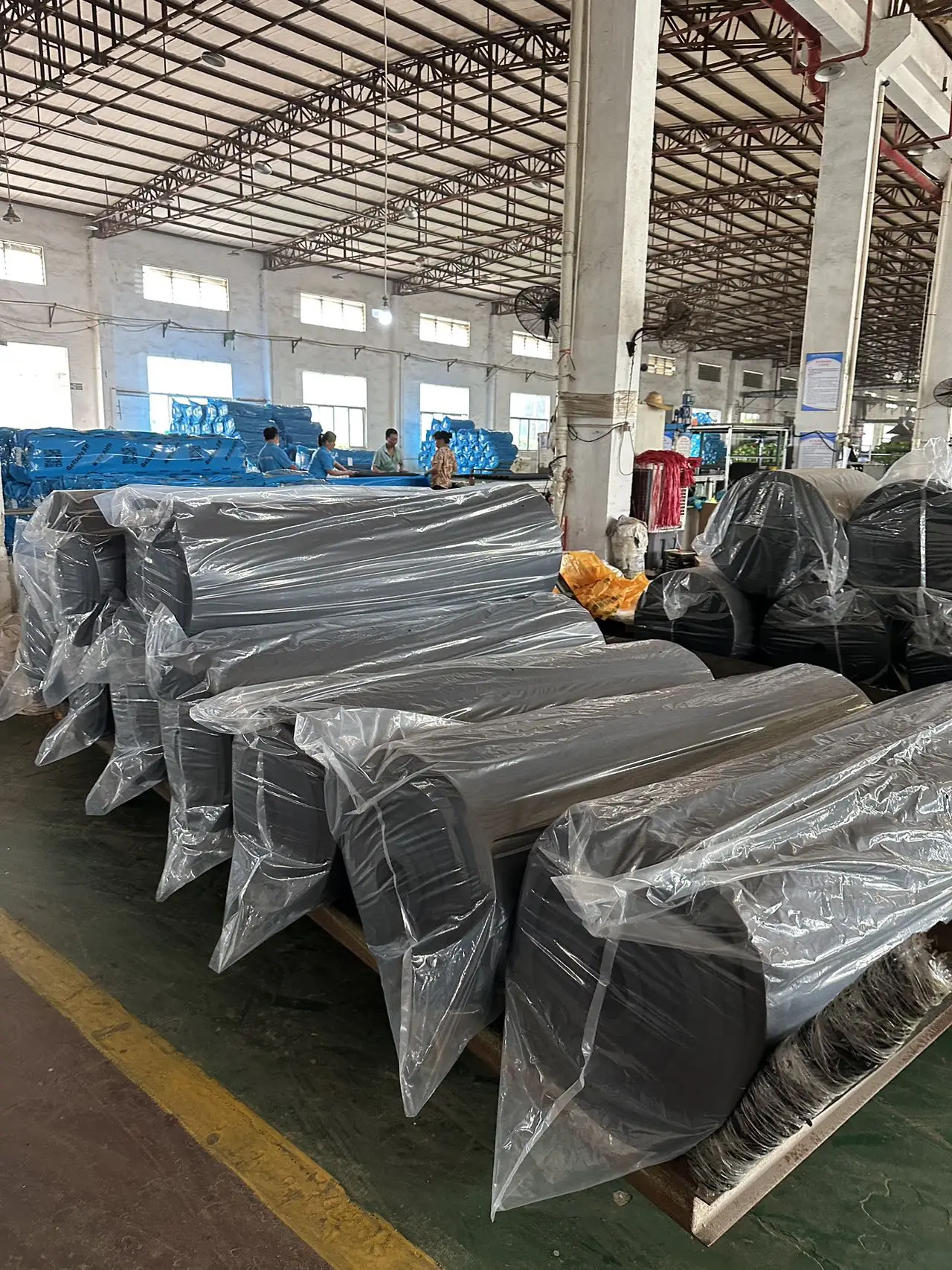

China Manufacturer Closed Cell Elastomeric Rubber Foam Insulation Sheets Adhesive Rubber Foam Roll
- Category: >>>
- Supplier: Tianjin Ecoin Tech Co. ltd.
Share on (1601174182729):
Product Overview
Description
Product Description

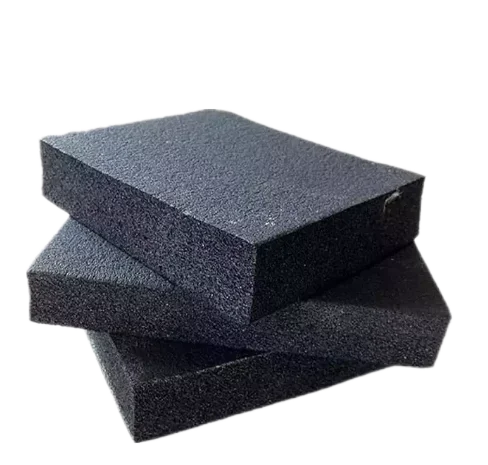

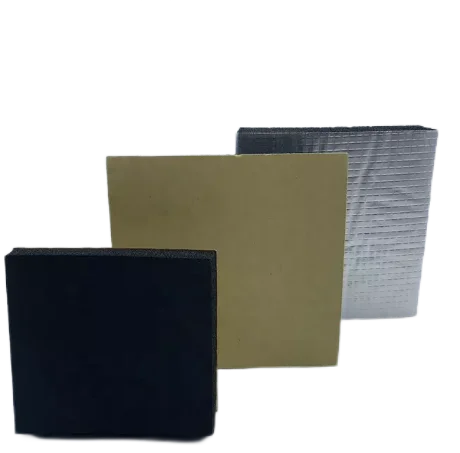

Ecoin High Density 8mm 10mm 13mm 19mm 20mm 30mm Black Nbr Pvc Rubber Foam Insulation Sheets
Rubber foam is a flexible insulation material that reliably protects against water vapor ingress due to its closed-cell
structure.No additional water vapor barrier is required and widely used for the insulation of pipework and ducting.
Foam rubber insulation pipe & sheet is designed for the insulation of large surfaces, ideal for the insulation of pipes of largediameters. By reducing the number of sections required they simplify installation, saving on time and labor costs.
structure.No additional water vapor barrier is required and widely used for the insulation of pipework and ducting.
Foam rubber insulation pipe & sheet is designed for the insulation of large surfaces, ideal for the insulation of pipes of largediameters. By reducing the number of sections required they simplify installation, saving on time and labor costs.
Standard Sizes
Nominal Density(kg): 55kg/m3
Size: L*W(mm): 8-30m
Size: W(mm): 1-1.5m
Thickness(mm): 9,13, 20,25,30,40mm
Size: L*W(mm): 8-30m
Size: W(mm): 1-1.5m
Thickness(mm): 9,13, 20,25,30,40mm
Specification
item | value |
Warranty | More than 5 years |
After-sale Service | Online technical support |
Project Solution Capability | graphic design, 3D model design, total solution for projects |
Application | Commercial Insulation, Residential Insulation |
Design Style | Traditional |
Place of Origin | China |
Tianjin | |
Brand Name | Ecoin |
Type | rubber foam |
Properties
PHYSICAL PROPERTY | RESULT | TEST METHOD |
Apparent Thermal Conductivity | 0.245 k-Value | ASTMC 177/C 518 |
Surface Burning Characteristics, Through 2” Thick | Flame Spread - 25 Max. | ASTM E 84 |
Smoke Dev. - 50 Max. | ||
UL 94 5V-A, V-0 | UL File E228536 | |
Self-Extinguishing | ASTM D 635 | |
Service Temperature, CONTINUOUS | -297°F to +300°F | ASTMC 411 |
-57°C to +105°C | ||
Water Vapor Sorption | 0.01% max. | ASTM C 1104 |
Water Absorption | 0.2% max | ASTM C 209 |
Water Vapor Permeability | .03 perm (4.38 x 10-11) | ASTM E 96 |
Dimensional Stability | 7%max. | ASTM C 356 |
Odor Emission | Pass | ASTM C 1304 |
Corrosiveness | Pass | ASTM C 665/C 692/DIN 1988 |
Fungi/Resistance | No Growth | ASTMC 1338/G 21/UL181 |
Erosion Resistance | Pass | ASTM C 1071/UL181 |
UV Resistance | Good | ASTM G 7/ G 90 |
Ozone Resistance | No Cracking | ASTM D 1171 |
Nitrosamine Content | None Detected | U.S. FDA CPG No. 7117.11 BSEN 12868 |
Noise Reduction Coefficient | 1/2" thick -.20 | ASTM C 423 |
1nthick - .35 |
Application

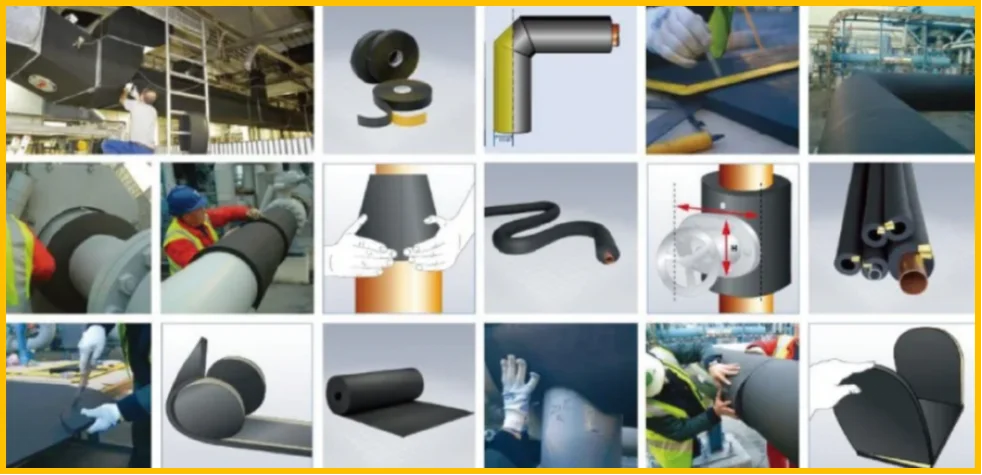

Ecoin Rubber foam is widely used for Thermal insulation/protection of pipes, air ducts, and vessels (incl. elbows, fittings,
flanges, etc.) in air conditioning, refrigeration, and process equipment to prevent condensation and to save energy.
Structure-borne noise reduction in service-water and waste-water installations.
flanges, etc.) in air conditioning, refrigeration, and process equipment to prevent condensation and to save energy.
Structure-borne noise reduction in service-water and waste-water installations.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Tianjin EcoIn Tech Co.,Ltd is a company specialized in new tech insulation material manufacturing and export. Our aim is to provide Grade A non combustible Eco-Insulation, friendly to environment and human body, and affordable for clients.

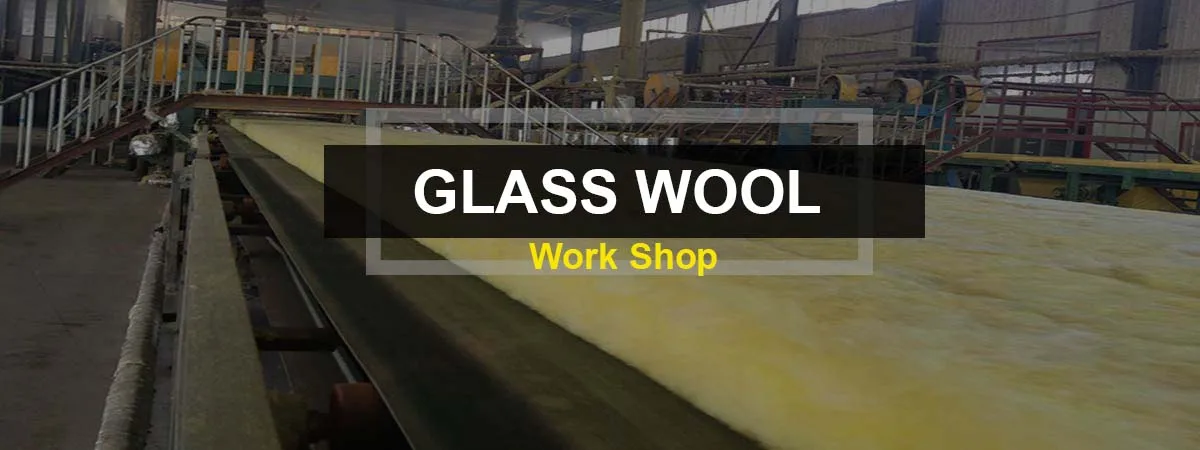

EcoIn factory was set up in 1995, with the register fund of 15 million USD. We are now one of the biggest insulation factory in North of China, with the main products of fiberglass insulation, mineral rockwool insulation and aluminum jacketing system. Low bio-resistance mineral wool is under developing, and hopefully to be exported next year.
EcoIn factory was set up in 1995, with the register fund of 15 million USD. We are now one of the biggest insulation factory in North of China, with the main products of fiberglass insulation, mineral rockwool insulation and aluminum jacketing system. Low bio-resistance mineral wool is under developing, and hopefully to be exported next year.
FAQ
1. What is foam rubber used for?
Foam rubber, also known as sponge rubber, is a versatile material that is commonly used in a wide range of applications. Some common uses of foam rubber include: Cushioning and padding, Insulation, Soundproofing, Packaging. Overall, foam rubber is a versatile material that is used in a wide range of applications due to its ability to provide cushioning, insulation, and soundproofing properties.
2. What is rubber foam sheets?
Rubber foam sheets are a type of insulation material made from rubber that has been processed to form a foam-like structure. They are commonly used for thermal and acoustic insulation in a variety of applications, such as HVAC systems, pipes, and equipment.
3.What is rubber foam sheets material?
Rubber foam sheets are made from a synthetic rubber material called elastomeric foam, which is a blend of rubber polymers, fillers, blowing agents, and additives. The foam structure is made up of small, interconnected bubbles that give the material its insulating and acoustic properties.
4. what are the advantages of rubber foam ?
Rubber foam has advantages such as excellent insulation properties, sound absorption, durability, chemical resistance, ease of installation, and fire retardancy, making it a versatile material for various applications.
5. Is rubber foam insulation better?
Rubber foam insulation can be a good option for many applications due to its excellent insulation and acoustic properties,
durability, chemical resistance, and ease of installation.
Foam rubber, also known as sponge rubber, is a versatile material that is commonly used in a wide range of applications. Some common uses of foam rubber include: Cushioning and padding, Insulation, Soundproofing, Packaging. Overall, foam rubber is a versatile material that is used in a wide range of applications due to its ability to provide cushioning, insulation, and soundproofing properties.
2. What is rubber foam sheets?
Rubber foam sheets are a type of insulation material made from rubber that has been processed to form a foam-like structure. They are commonly used for thermal and acoustic insulation in a variety of applications, such as HVAC systems, pipes, and equipment.
3.What is rubber foam sheets material?
Rubber foam sheets are made from a synthetic rubber material called elastomeric foam, which is a blend of rubber polymers, fillers, blowing agents, and additives. The foam structure is made up of small, interconnected bubbles that give the material its insulating and acoustic properties.
4. what are the advantages of rubber foam ?
Rubber foam has advantages such as excellent insulation properties, sound absorption, durability, chemical resistance, ease of installation, and fire retardancy, making it a versatile material for various applications.
5. Is rubber foam insulation better?
Rubber foam insulation can be a good option for many applications due to its excellent insulation and acoustic properties,
durability, chemical resistance, and ease of installation.
